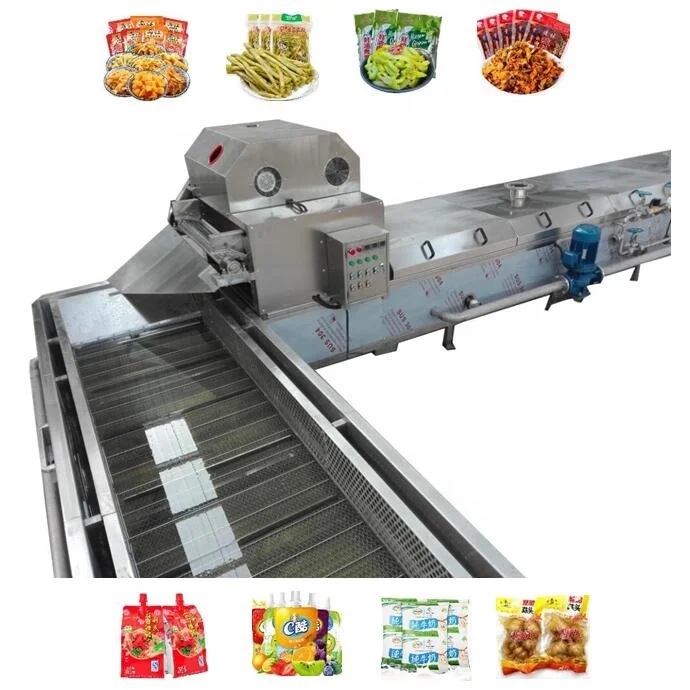

Continuous Water Bath Pasteurizer Tunnel Pasteurization Drying Machine Pasteurizing Pouch Pickles/Juice/Milk/Meat food/Sauce/Jam

Share on (1600920069017):


Price:$10,000.00 - $14,000.00

Quantity:


Product Overview

Description

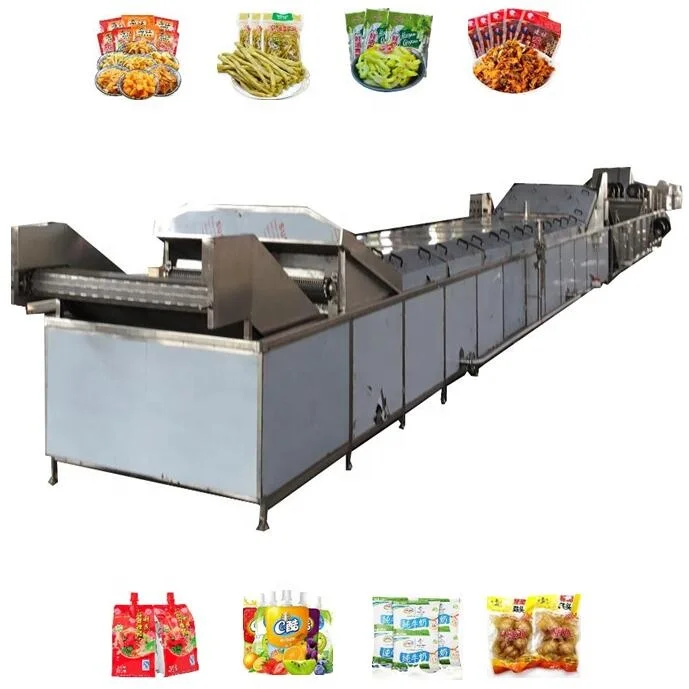

Water Bath Continuous Pasteurizer Drying Machine
(Pouch Pickles/Meat/Milk/Juice/Jam/Sauce)

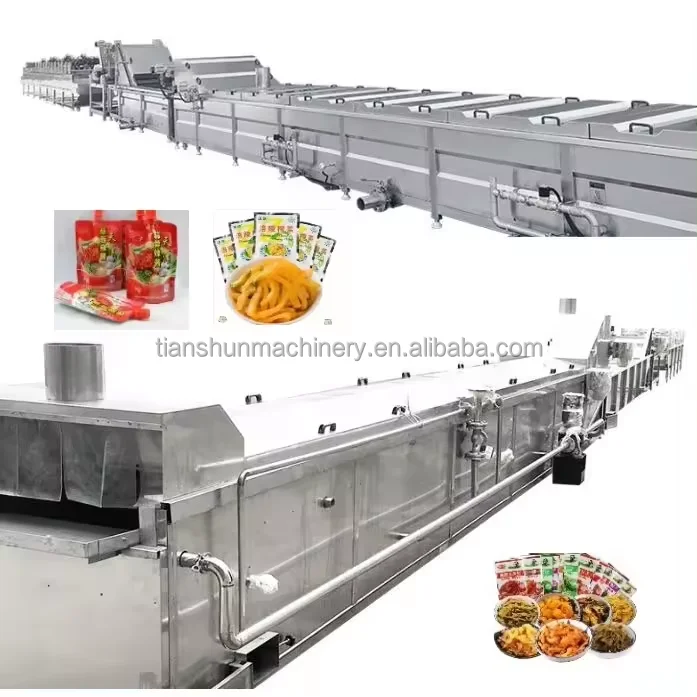

1.- Continuous Water Bath Pouch Pickles Tunnel Pasteurizer Introduction.

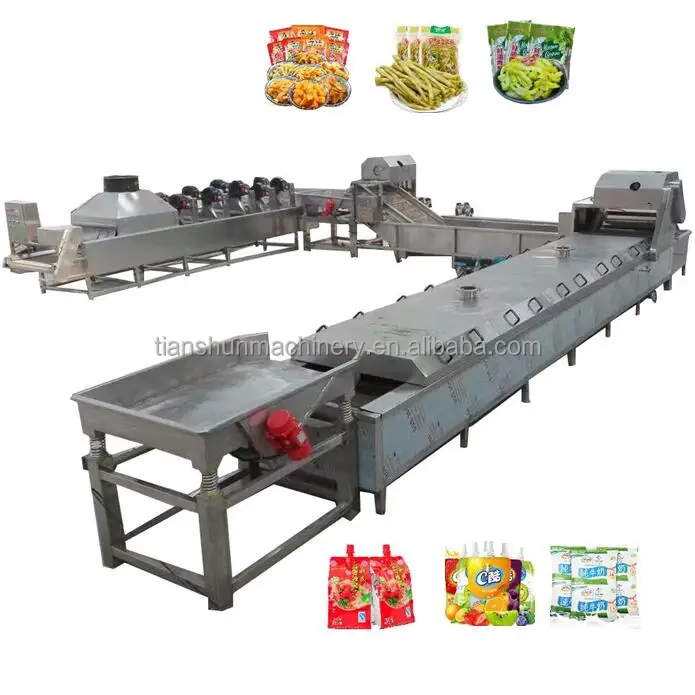

The complete pouches pasteurization line includes:
1) Pasteurization machine;
2) Cooling;
3) Drying (Vibrator + air blower dewatering)

--Heating mode: Electric, steam, gas
--Pasteurization mode: Water bath.
--Basic composition: pasteurization, cooling, drying.
--Capacity: Customized








2.- Continuous Pasteurization Machine Specifications


Model
TSBS-60
TSBS-80
TSBS-120
Overall size
5600*1700*1500mm
8000*1700*1500mm
11200*1700*1500mm
Heating mode
Steam (Electric optional)
Steam (Electric optional)
      Steam
Water capacity
3550L
5500L
8000L
Conveying system
S.S 304 mesh belt, width 1000mm
Effective size
4300*920*200mm
6700*920*200mm
9700*920*200mm
Temperature range
≤100℃
≤100℃
≤100℃
Pasteurization mode
Water bath
Water bath
Water bath


3.-Key Machines of Pasteurization equipment

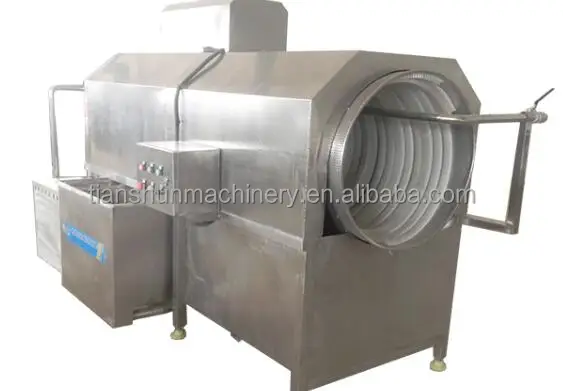

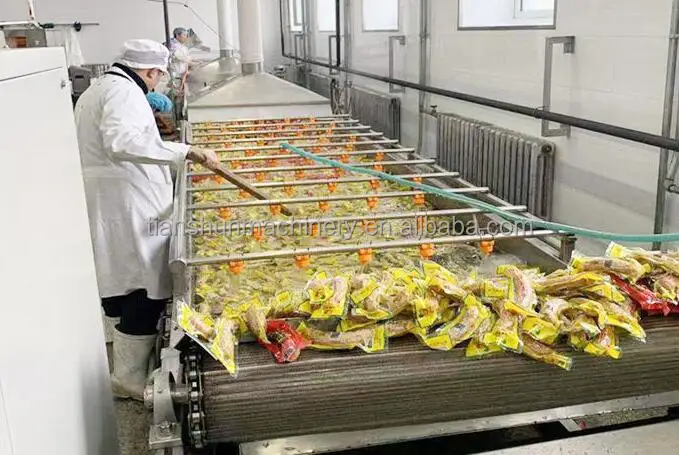

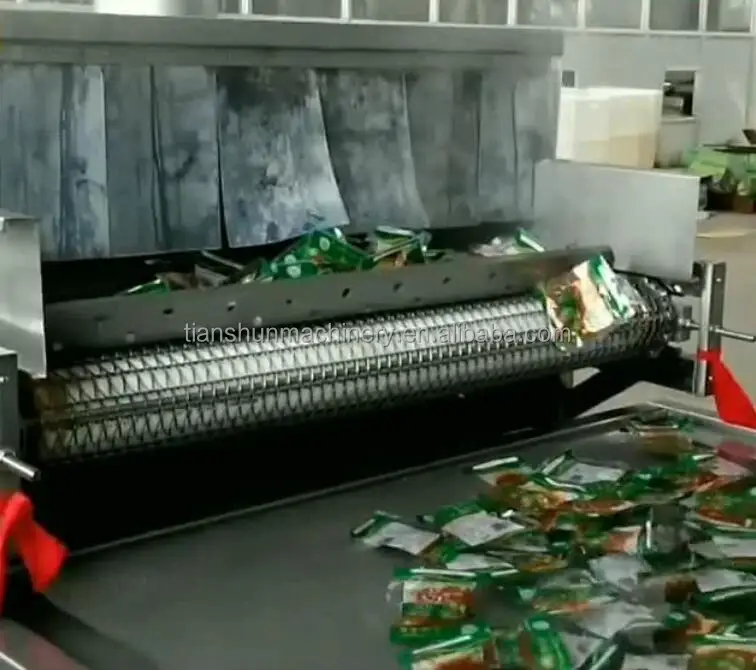

Drum Washing Machine

-Function: Wash and clean pouched pickles, juice, sausages, meat, etc.
-Water spray system
-Brush system
-Water circulation and filtration

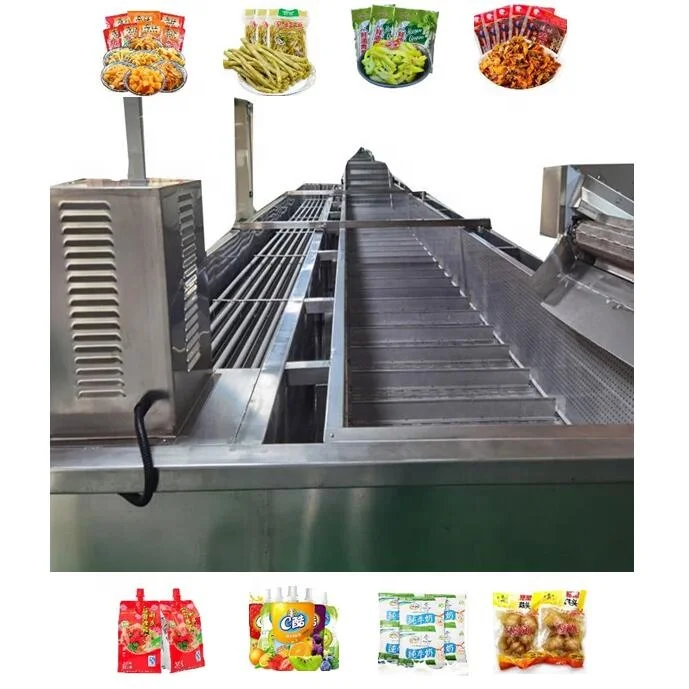

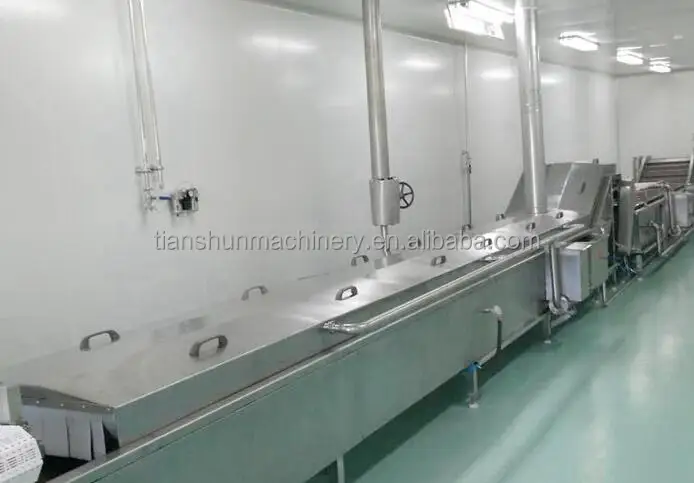

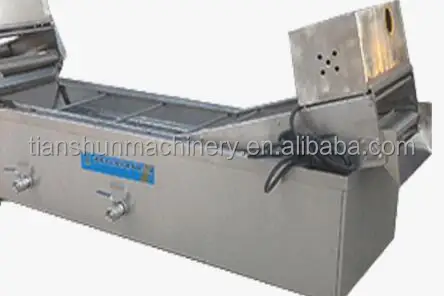

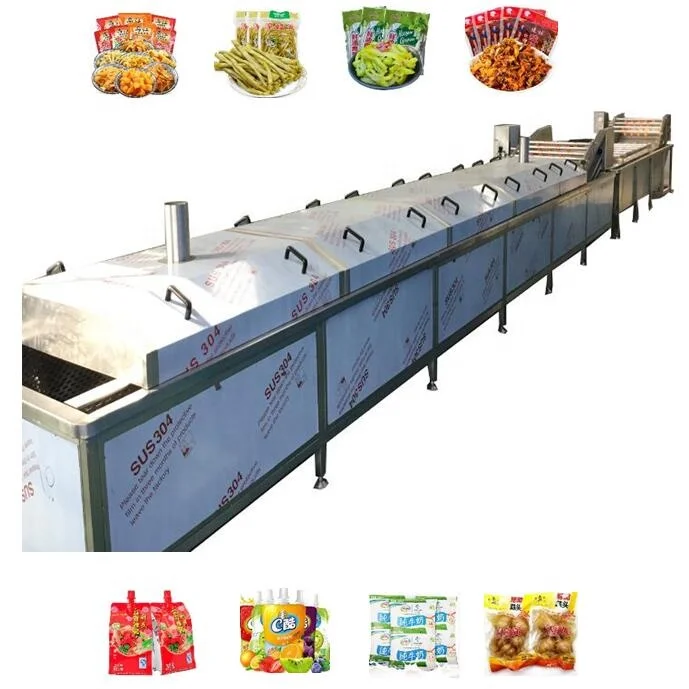

Water Bath Pasteurization Machine

-Heating mode: Steam, electricity
-S.S 304 double layer mesh belt
-Mesh belt lifting system
-Speed control: VFD
-Dimension: Customized

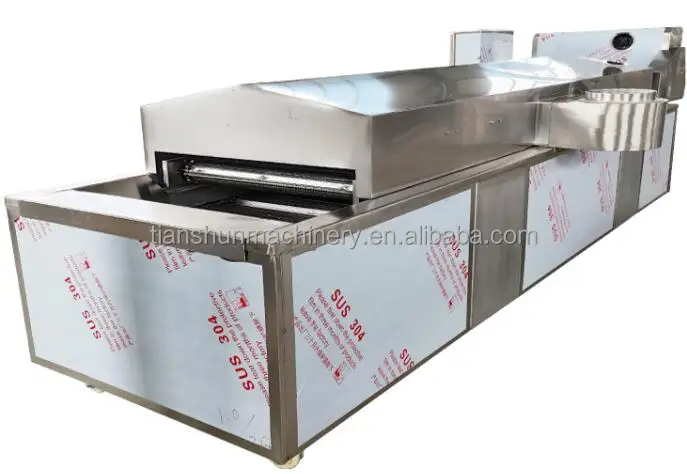

Cooling Machine

-Function: Cool the pasteurized products.
-Bubble system
-S.S 304 mesh belt
-Dimension: Customized

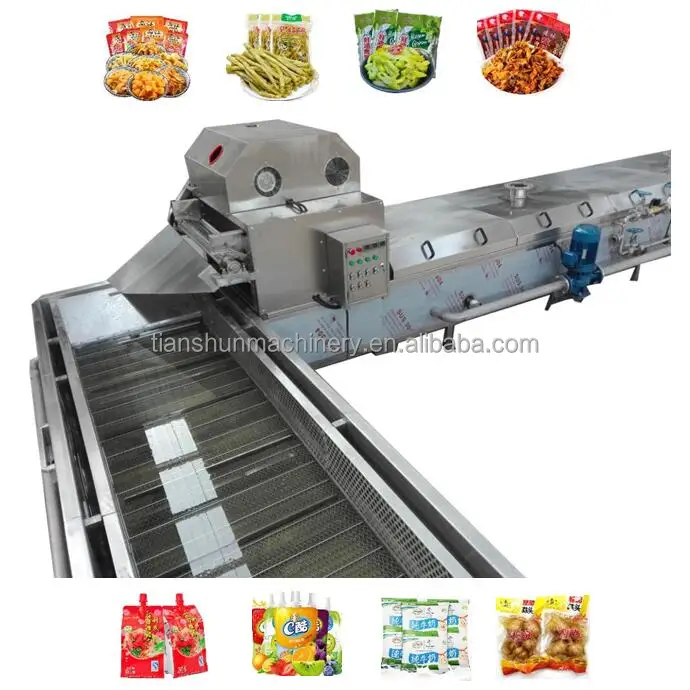

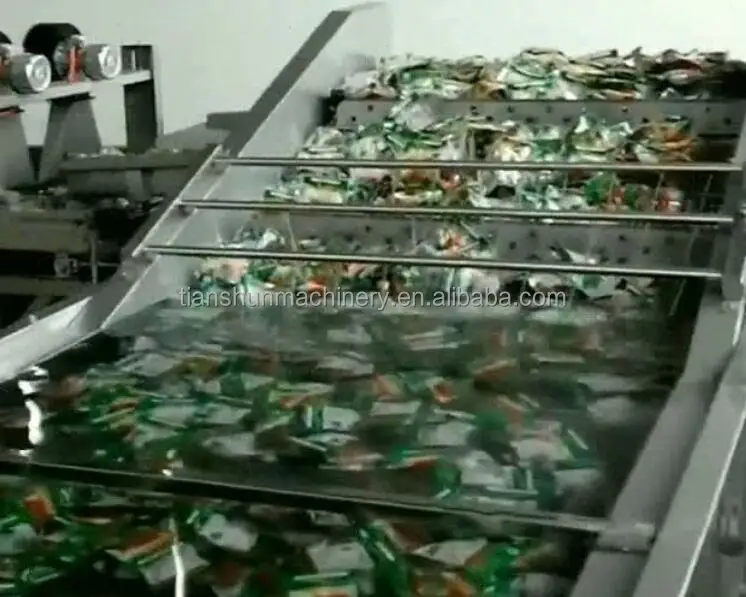

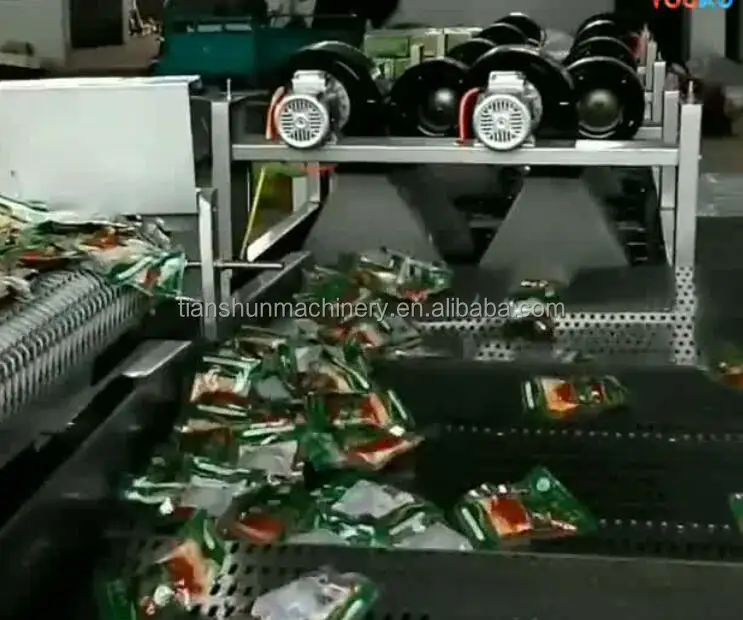

Drying Machine

-Function: Remove surface water.
-Air knife blower
-Turn over type mesh belt
-Dimension: Customized

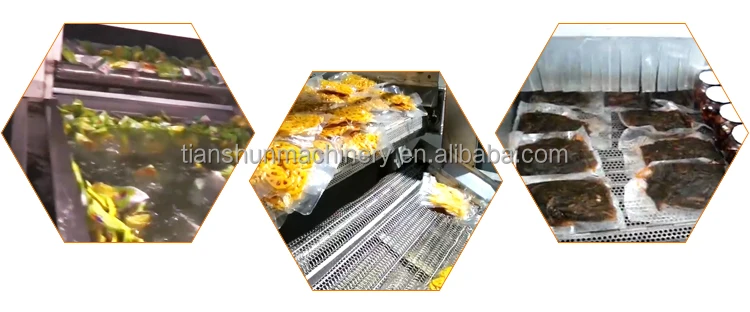

4.- Applications


The tunnel pasteurizer is used for sterilization of food and beverage fields such as pickles, canned foods, meat products, and seasonings. The sterilization temperature and speed can be set according to the process requirements.
















Related Product




Customer Photos & Reviews

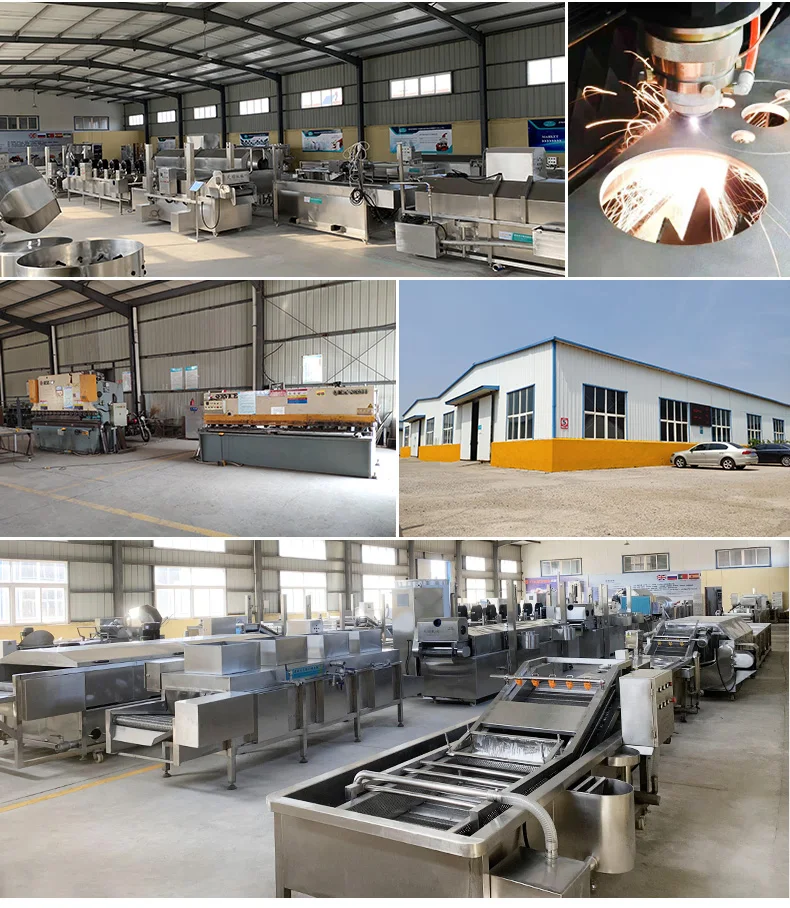

Company Profile&Certificates






Shipping&Delivery




FAQ


Q1.Could we visit your factory to check the machine carefully and closely?

A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.

Q2.How long is your machine's guarantee time?

A:1 year without normal wear parts,machine itself life guaranteed.

Q3.If we have very special request for the complete production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.

Q4.If we show you our layout of factory,can you help to design the whole process line?

A:Layout design service provided after received customer's factory layout size.

Q5.If we have samples of new products,can you help to analysis and design the machine?

A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
