8 ton diesel locomotive narrow gauge mining anti explosion locomotive

Product Overview

Description

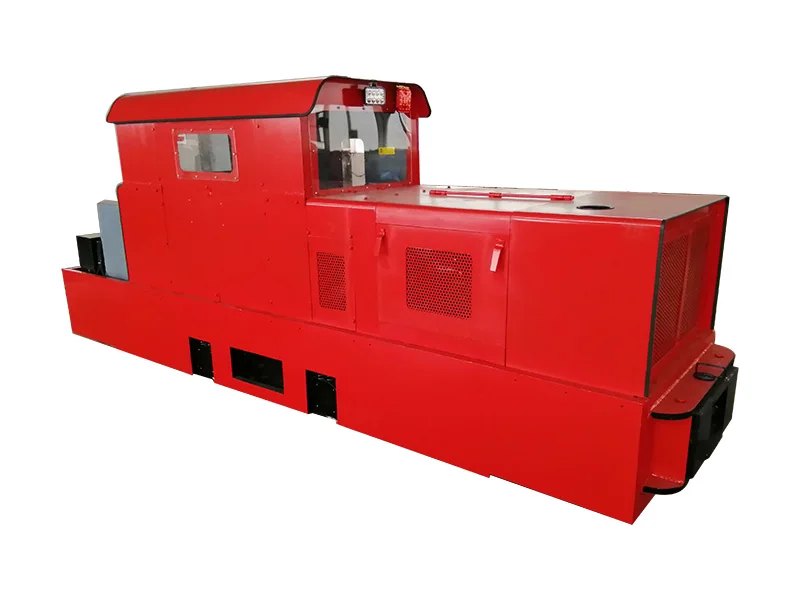

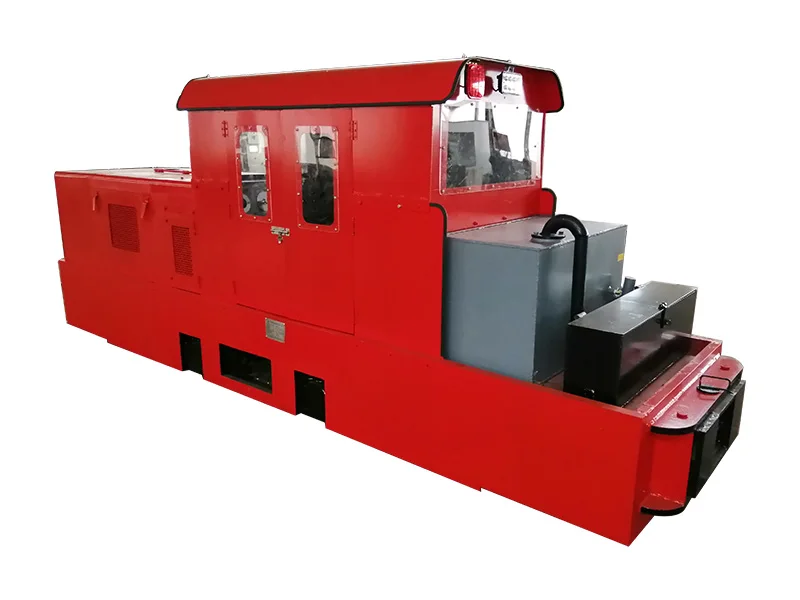

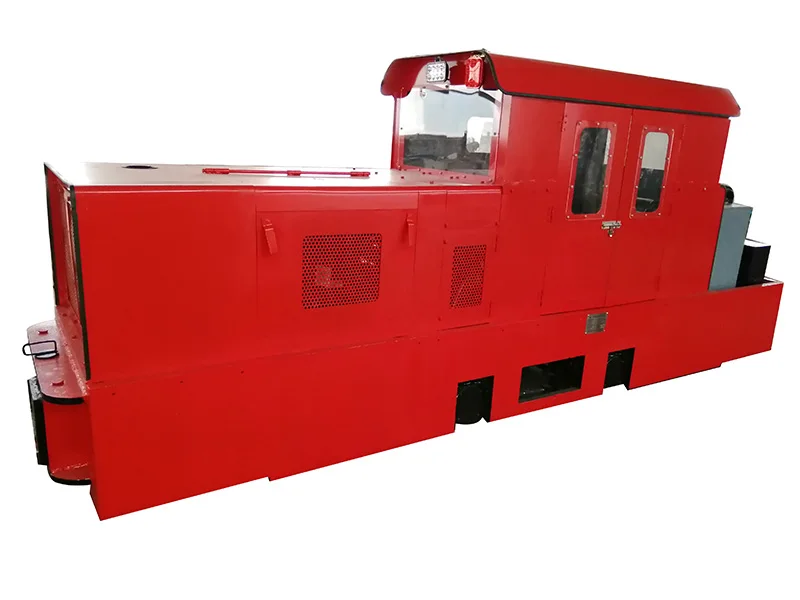

8 ton diesel locomotive narrow gauge mining anti-explosion locomotive

Model	CCG8/600(900)
Machine tonnage(KG)	8000
Gauge (mm)	600/900
Traction tonnage (slope 3‰)	50T
Maximum traction force (kN)	12
Traction method	plug connection
Speed adjustment mode	hydromechanical transmission
Braking method	Mechanical Brake (Parking Brake),Air brake (pedal brake)
Starting method	Electric starter
Transfer method	mechanical/hydraulic
Diesel model	Yuchai 4108
Maximum operating speed (km/h) (forward and reverse operation same)	4~20
Exhaust gas purification device indicators	CO≤0.1% NOx≤0.08%
Minimum tunning radius (m)	7
Wheelbase (mm)	1110
Traction height (mm)	320,430
Dimensions (length x width x height)(mm)	4600*1000/1300*1700
Explosion-proof diesel engine power (kw)/rotate speed (rpm)	45/2400







                                 Why choose us?

1. Company scale: Our company was established in 1995 and changed to the current name in 2000. It has a registered capital of 78 million and a paid-in capital of 78 million. It covers an area of 66,000 square meters and has 284 employees, including a 25-person R&D team and a 20-person quality control team. The performance in 2022 exceeded 144 million yuan.



2. Cost advantage: The self-made rate of our locomotives is more than 90%. Our motors and batteries are independently produced by our wholly-owned subsidiary. We are the only electric locomotive manufacturer in China that independently produces motors and batteries.



3. Brand advantage: Our "SHAOLI" brand is "China Famous Trademark", and our products have obtained ISO9001, ISO45001, OHSMS, CE certification.



4. Advantages of electronic control: Our IGBT is an internationally renowned brand "infineon", which can be found on Google.



5. Advantages of raw materials: Our charger coils are made of pure copper, and many small factories use copper-clad aluminum. Pure copper lasts longer and is safer.



6. Other advantages: hydraulic brake is our patent, compared with pure mechanical brake, hydraulic brake is more sensitive and effectual. We are a member of Alibaba for 14 years and have rich experience in exporting.
