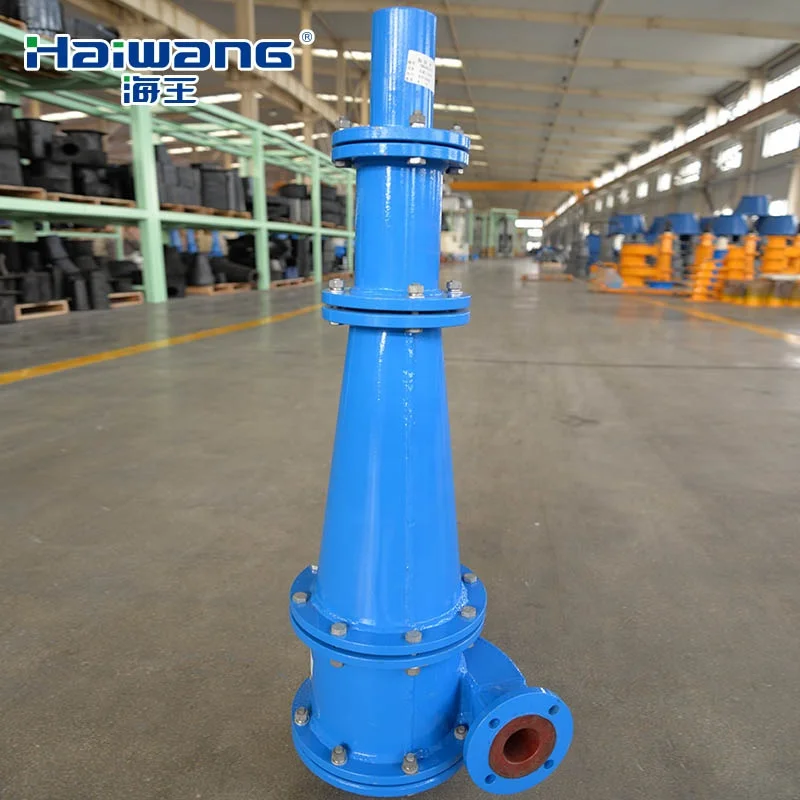

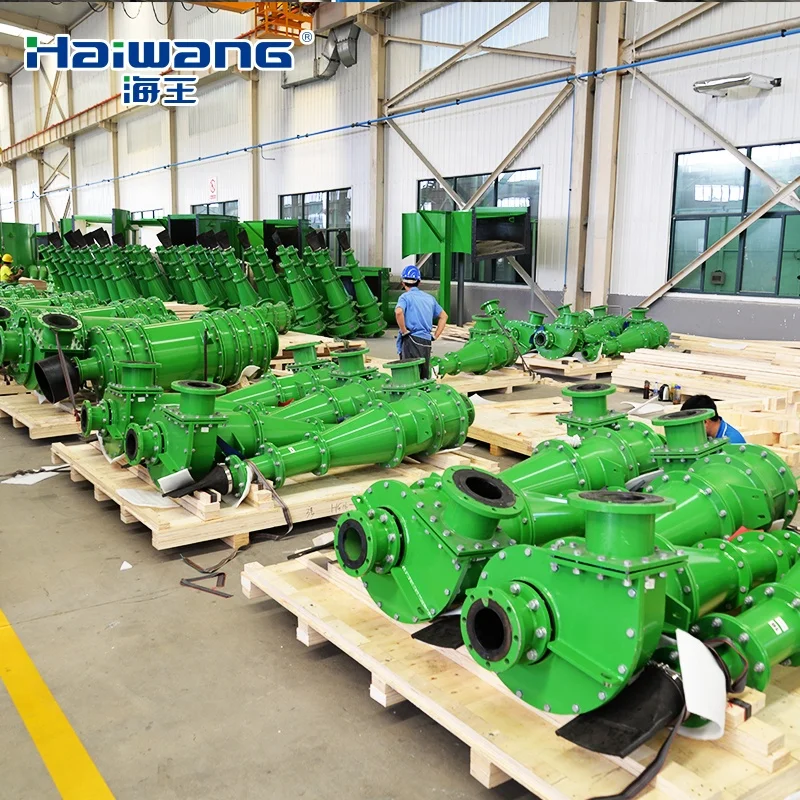

Haiwang FX Model Hydrocyclone Rubber-Lined Vortex Finder for Mining Ore Cyclon Coal
A hydrocyclone is a static separation device that applies centrifugal force and fluid resistance to a flowing liquid mixture so as to promote the separation of heavy and light components.The hydrocyclone takes water as medium to classify and separate mineral particles in the centrifugal force field with tens to hundreds of times acceleration of gravity. According to its different application, it can be divided into grinding classification hydrocyclone, ultrafine classification hydrocyclone, desliming hydrocyclone, concentrated hydrocyclone and so on.
Haiwang has been committed to the R&D of new technology and equipment for high efficiency and low consumption swirl separation.
Through various patented technologies, such as helical radial alignment technology for the feed particle, short-circuit current directional suppression technology, internal swirl turbulent energy consumption reduction technology, as well as volute pre-classifying feed structure, spiral line feed structure, multi-cone structure, flat bottom structure, on-line adjustable spigot and other patented structures, the separation efficiency of hydrocyclone is improved and the energy consumption of equipment is reduced effectively.
Haiwang has been committed to the R&D of new technology and equipment for high efficiency and low consumption swirl separation.
Through various patented technologies, such as helical radial alignment technology for the feed particle, short-circuit current directional suppression technology, internal swirl turbulent energy consumption reduction technology, as well as volute pre-classifying feed structure, spiral line feed structure, multi-cone structure, flat bottom structure, on-line adjustable spigot and other patented structures, the separation efficiency of hydrocyclone is improved and the energy consumption of equipment is reduced effectively.
Specification | Diameter (mm) | Inlet pressure (MPa) | Capacity (m3/h) | Cut size (μm) |
FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
FX710 | 710 | 0.04-0.15 | 400-500 | 74-250 |
FX660 | 660 | 0.04-0.15 | 260-500 | 74-220 |
FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
FX500 | 500 | 0.04-0.2 | 140-300 | 74-200 |
FX400 | 400 | 0.06-0.2 | 100-220 | 74-150 |
FX350 | 350 | 0.06-0.2 | 70-160 | 50-150 |
FX300 | 300 | 0.06-0.2 | 45-100 | 50-150 |
FX250 | 250 | 0.06-0.3 | 40-100 | 40-100 |
FX200 | 200 | 0.06-0.3 | 25-60 | 40-100 |
FX150 | 150 | 0.08-0.3 | 14-40 | 20-74 |
FX125 | 125 | 0.1-0.3 | 8-25 | 25-50 |
FX100 | 100 | 0.1-0.3 | 6-25 | 20-50 |
FX75 | 75 | 0.1-0.4 | 5-10 | 10-40 |
FX50 | 50 | 0.1-0.4 | 2-5 | 5-40 |
FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
Why we choose Haiwang Hydrocyclone?

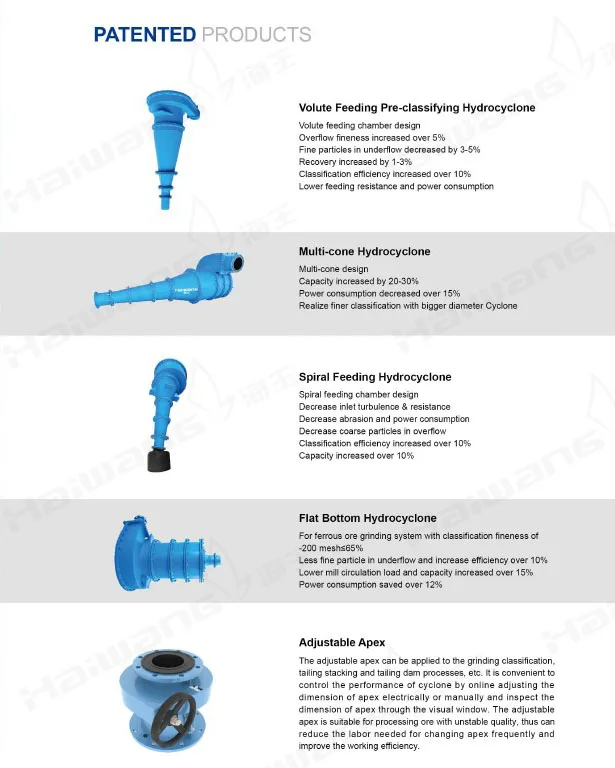

1. We own multifarious patent structure and advanced technology at abroad and domestic:
①According to the feeding method, feed structure could be divided into the involute feeding, the volute pre-classifying feeding,
spiral feeding etc.
②According to cone structure, it could be divided into flat bottom structure, multi-cone structure, the cone angle gradient
structure, etc.
③According to the overflow way, it could be divided into the air conditioning and energy saving overflow cap, thick wall overflow
pipe and other design.
①According to the feeding method, feed structure could be divided into the involute feeding, the volute pre-classifying feeding,
spiral feeding etc.
②According to cone structure, it could be divided into flat bottom structure, multi-cone structure, the cone angle gradient
structure, etc.
③According to the overflow way, it could be divided into the air conditioning and energy saving overflow cap, thick wall overflow
pipe and other design.
2.Personalized structure design is available. We can produce suitable hydrocyclone according to client’s demand or working

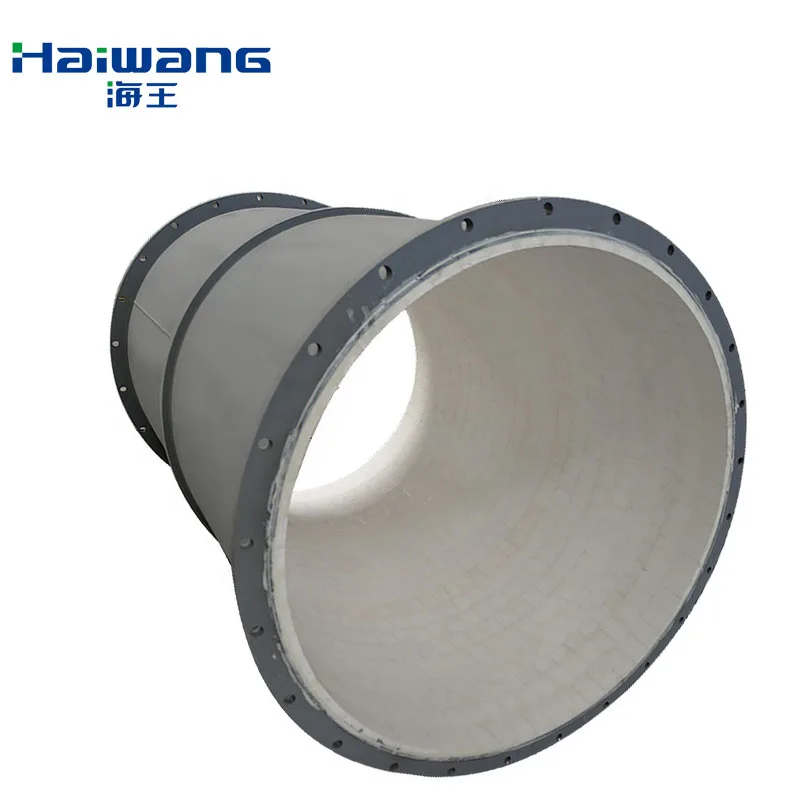

condition. Various wear-resisting material: High alumina ceramic, rubber, polyurethane, ceramic composite materials.shapes.
condition. Various wear-resisting material: High alumina ceramic, rubber, polyurethane, ceramic composite materials.shapes.
Packing&Shipping
Packing: Non-fumigation plywood case or as required by customer.
Shipping: Sea Freight/Air Freight/Land Transportation.
After Sales Service
Localized Service
Worldwide offices and agents provide localized sales and technical service.
Professional Technical Service
Professional technical team provide optimum solutions and early stage laboratory tests.
Prefect After Sales Service
Assembly, commissioning, training services by professional engineer.
Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.
Worldwide offices and agents provide localized sales and technical service.
Professional Technical Service
Professional technical team provide optimum solutions and early stage laboratory tests.
Prefect After Sales Service
Assembly, commissioning, training services by professional engineer.
Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.
Company Introduction
One of the largest and leading supplier of cyclone separation equipment and technical service in Asia-Pacific region
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries & regions.
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries & regions.
Exhibition
FAQ
How is the quality of your products?(mining equipment/machine)
Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder
before delivery.
before delivery.
Service and Payment Terms
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product
pictures will provide to customers before delivery.
pictures will provide to customers before delivery.
