airtac type 4v210 06 4v210 08 5 2 way solenoid valve wiring diagram pneumatic air valve 12v
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600920127526):
Product Overview
Description
Product Description
Specification
Model | 4V210-06 4V220-06 | 4V230C-06 4V230E-06 4V230P-06 | 4V210-08 4V220-08 | 4V230C-08 4V230E-08 4V230P-08 | |||||||
Working Medium | Air | ||||||||||
Action Mode | Internal Pilot Type | ||||||||||
Position | 5/2 Port | 5/3 Port | 5/2 Port | 5/3 Port | |||||||
Effective Sectional Area | 14.0mm2 | 12.0mm2 | 16.0mm2 | 16.0mm2 | |||||||
Port Size | Input=Output=Exhaust Port=PT1/8 | Input=Output=GT1/4, Exhaust Port=PT1/8 | |||||||||
Lubrication | No need | ||||||||||
Working Pressure | 0.15~0.8MPa(21~114psi) | ||||||||||
Proof Pressure | 1.2MPa(175psi) | ||||||||||
Working Temperature | -20~70℃ | ||||||||||
Voltage Range | AC:±15% DC:±10% | ||||||||||
Power Consumption | AC:4.5VA DC:3.0VA | ||||||||||
Insulation Grade | B Level | ||||||||||
Protection Class | IP65(DIN40050) | ||||||||||
Connecting Type | Plug Type | ||||||||||
Max. Operating Frequency | 5 Cycle/Sec | 3 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | |||||||
Min. Excitation Time | 0.05 Sec | ||||||||||
Body Material | Aluminum Alloy | ||||||||||
Seal Material | NBR | ||||||||||
Product Usage
FAQ

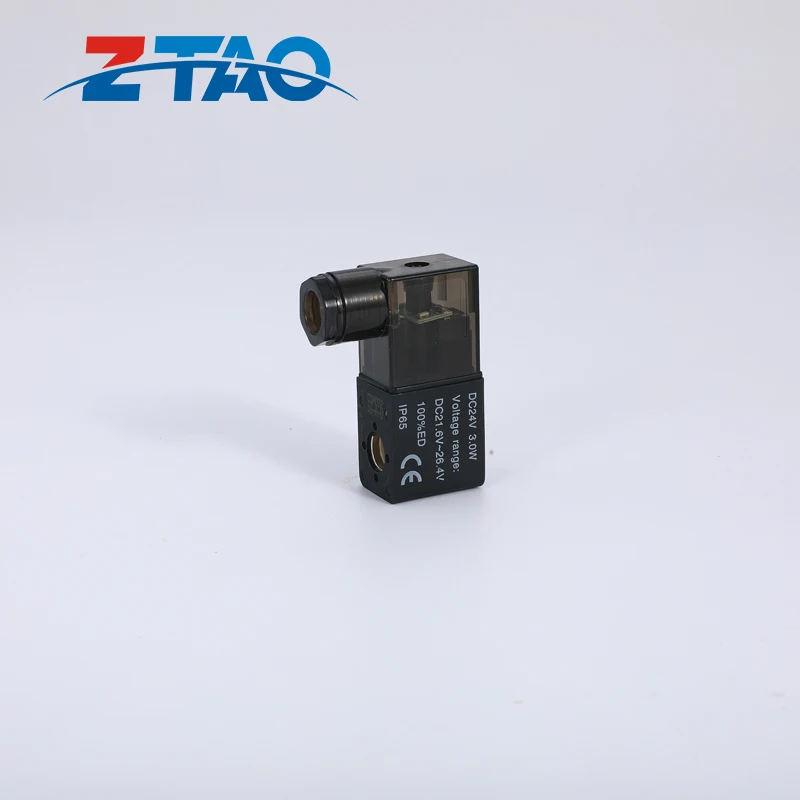

Q: *What is the diameter of the coil hole?
A: * The diameter of the coil hole is 8mm.
Q: Difference between DC24V and AC24V
A: * DC indicates direct current, and AC indicates alternating current.
Q: * The nozzle aperture of 4V210-08?
A: * 2''for entry and exit holes, 1'' for silence holes
Q: * What does a muffler do?
A: * Mufflers reduce noise and dust.
Q: * Can it be powered on for a long time?
A: * Yes, the coil with 100% mark.

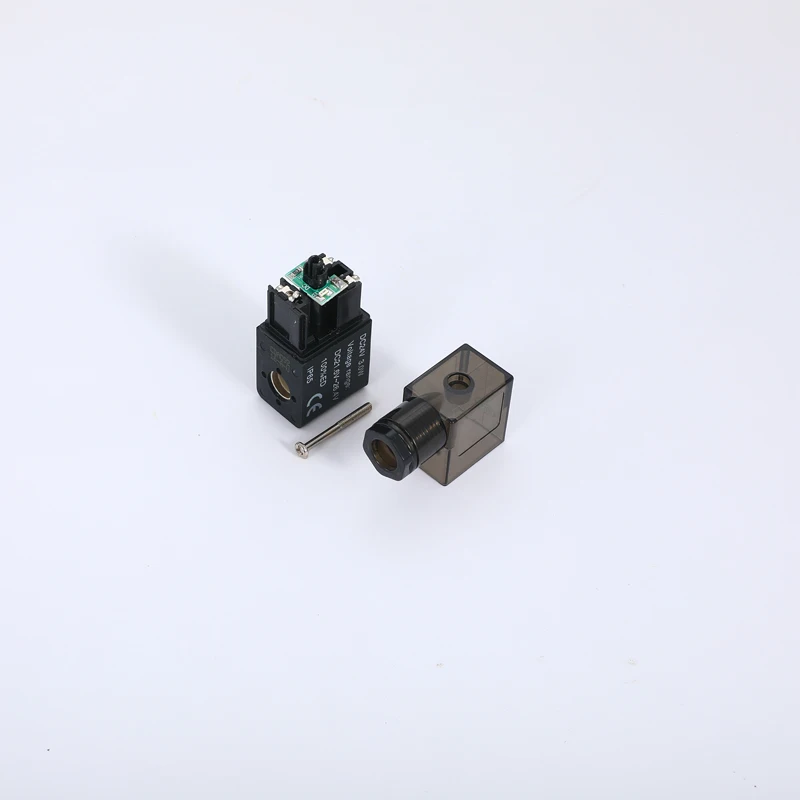

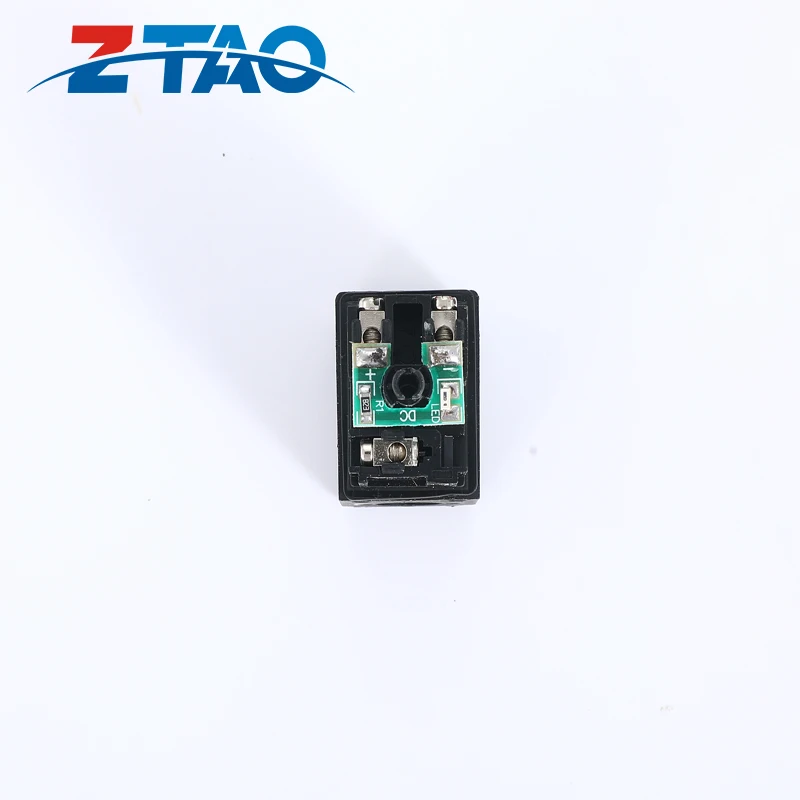

Q: * What is the function of the button below the wiring hole?
A: * Manual conversion of air vents.
Q: * Will the coil block the interface?
A: * No, the coil can rotate the direction.

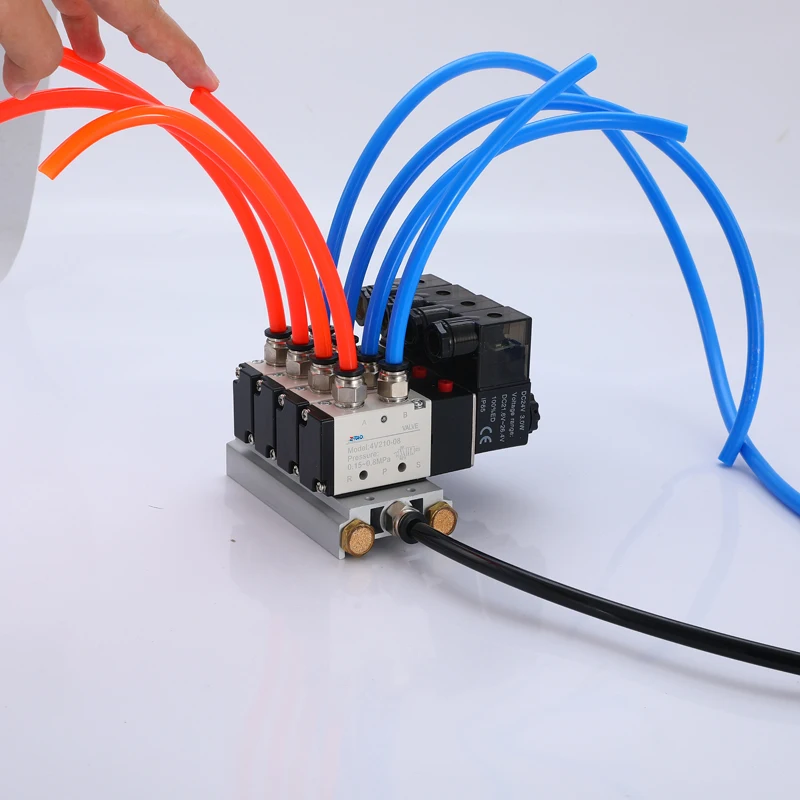

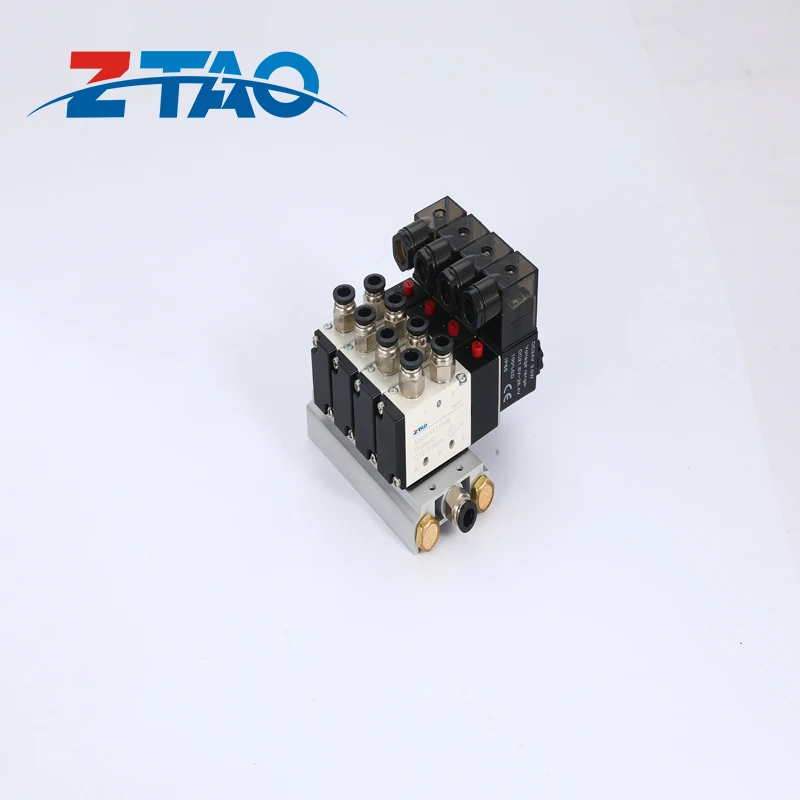

Q: * What is the port aperture of the matching busbar?
A: * Air inlet and outlet and silencer are both 2''.
