8.0 Copper wire drawing machine for electric wire production
- Category: >>>
- Supplier: Wuxi Baochuan Machinery Manufacture Co. Ltd.
Share on (1600920135560):
Product Overview
Description
Product Description

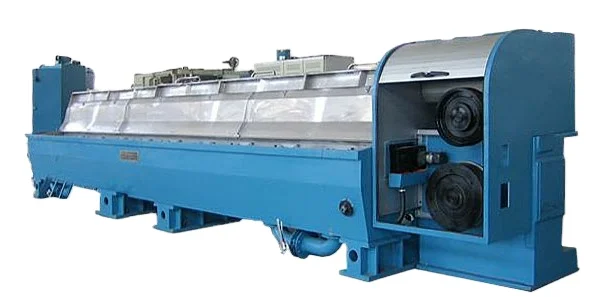

8.0 Copper wire drawing machine for electric wire production
Size Information
inlet size | φ8.0mm(copper) | ||||
outlet size | φ2.2-3.5mm | S | M | L | XL |
drawing speed | 500m/min(Outlet size 3.0mm, the drawing speed at 450-500meters/per minute) | ||||
drawing cone diameter | φ400mm | ||||
cone speed ratio | 1.25 | ||||
main motor | AC 132kw | ||||
coiler m/c motor | AC 15KW | ||||
die size | φ45mm*25mm(thickness) | ||||
machine noise | ≤85db | ||||
total installed capacity | 125KVA | ||||
machine dimension(working area) | 18000mmL*4500mmW*3900mmH | ||||
Related Products
Company Introduction
Wuxi Baochuan/Shuochuan Machinery Manufacture CO., Ltd was established in 2009. We always insist on the company ideology of “High quality, consistent improvement, conscientious service”,and spare no effort to build our brand and service.
Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
FAQ
Q: Could you please arrange the installation?
A: Yes, we could and the buyer pay the charge.
Q: Could you arrange the production education?
A: Yes, we could do it on line. The buyer pay the charge if we fly to your country.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment.
Q:Can you produce according to the samples or designs?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:Do you test all your goods before delivery?
A: Yes, We have 100% test before delivery.
