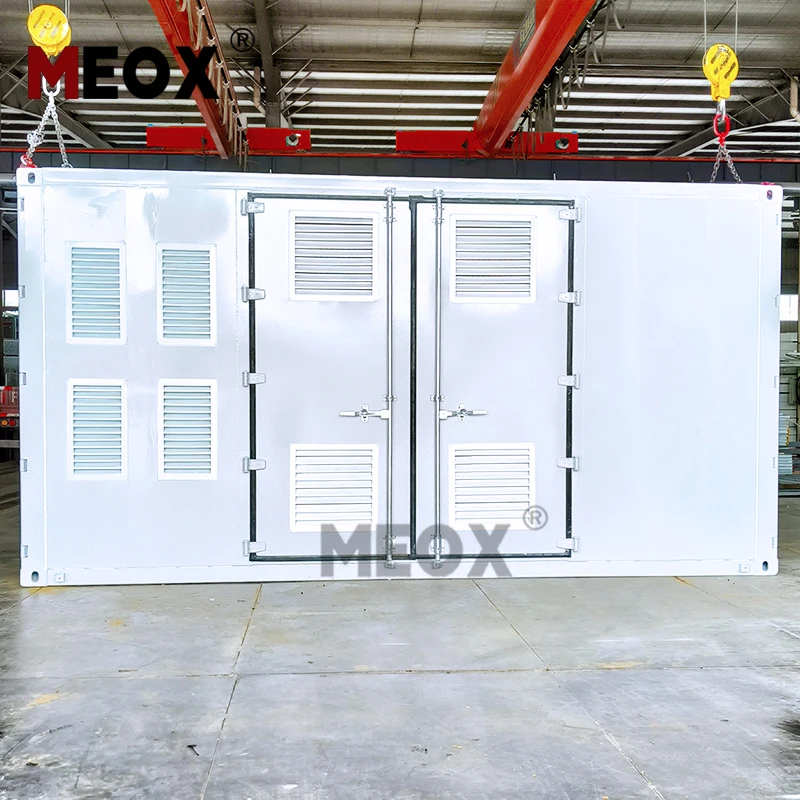

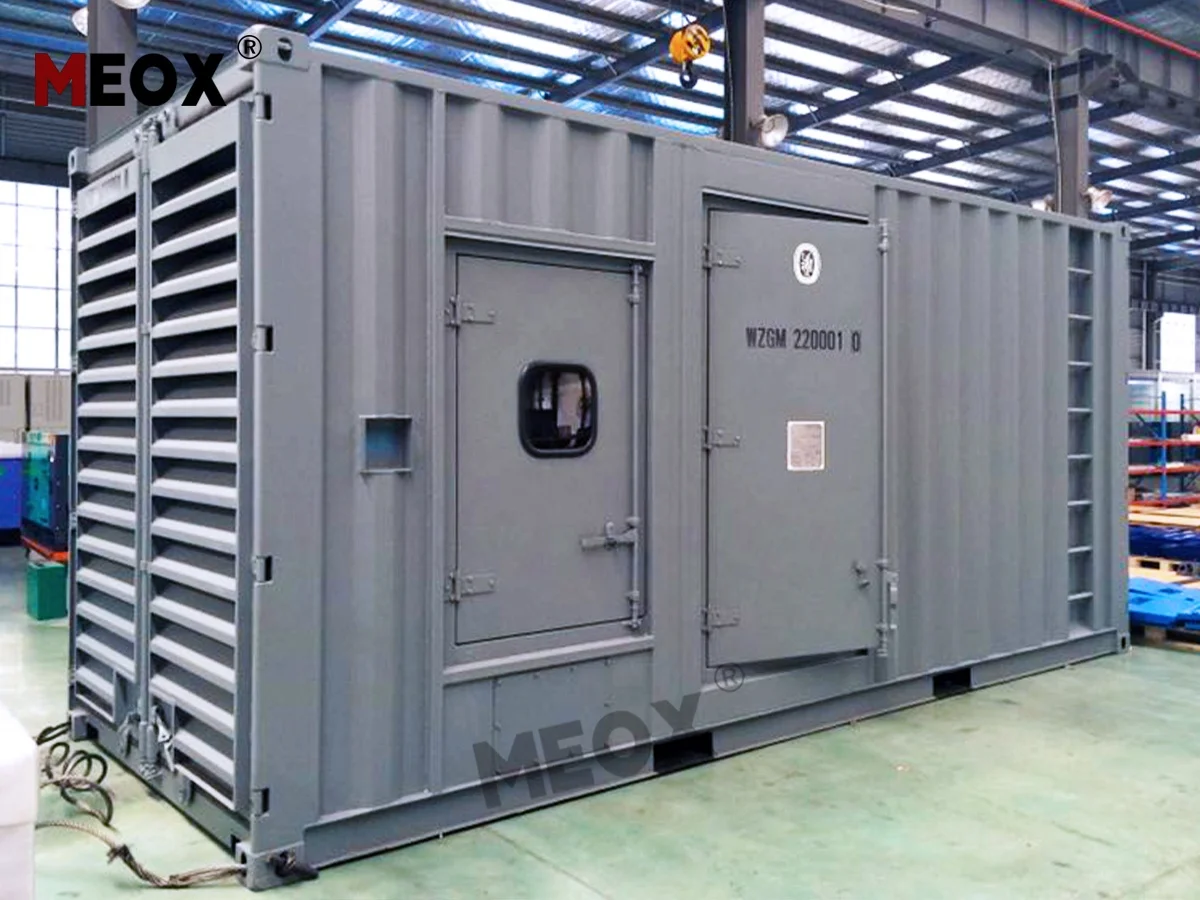

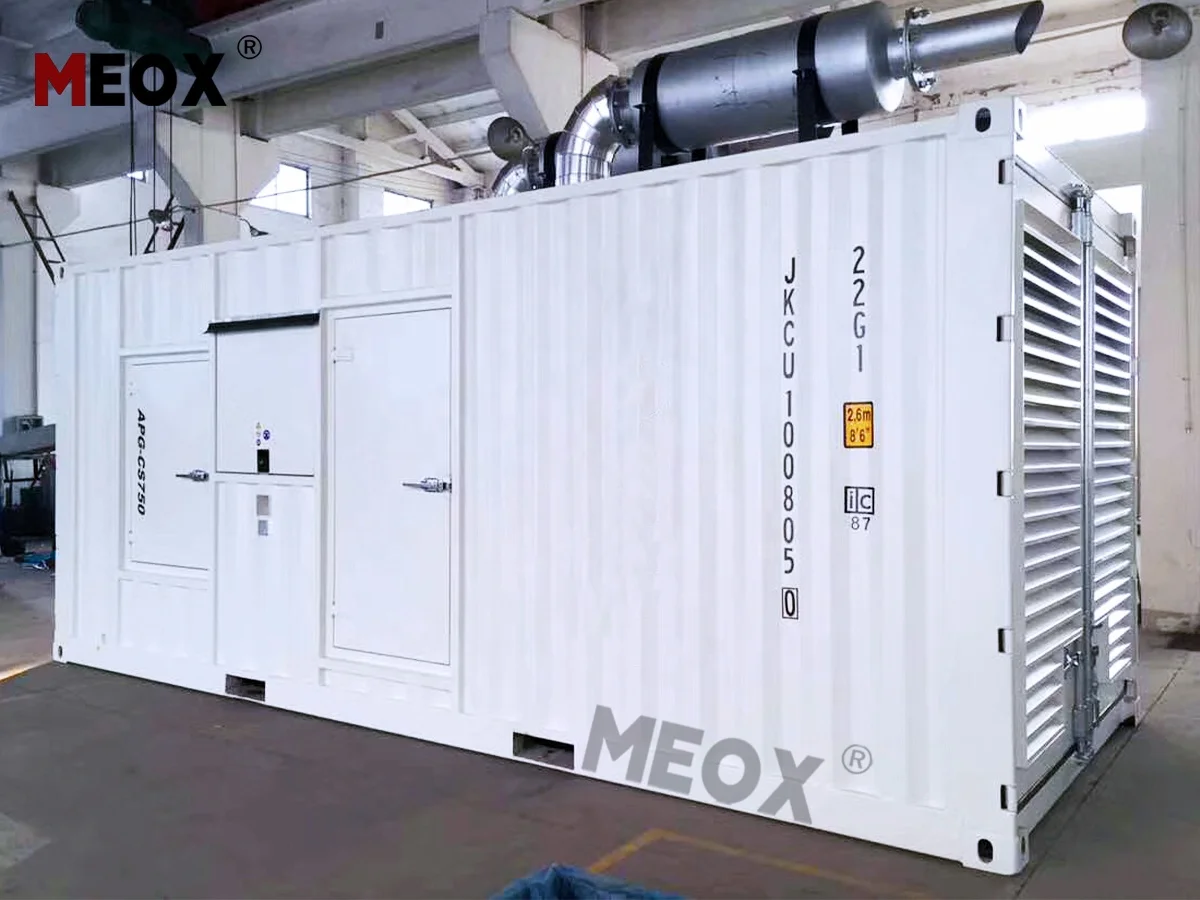

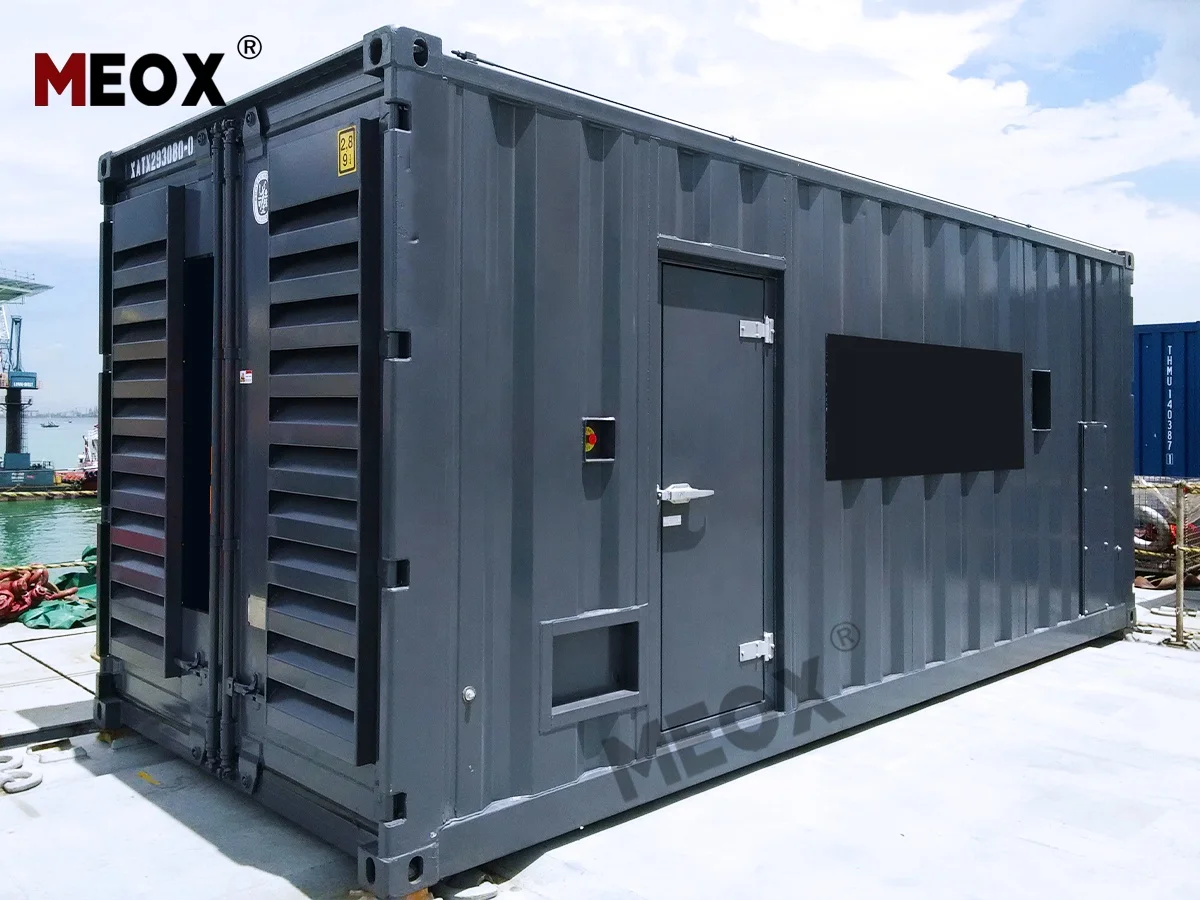

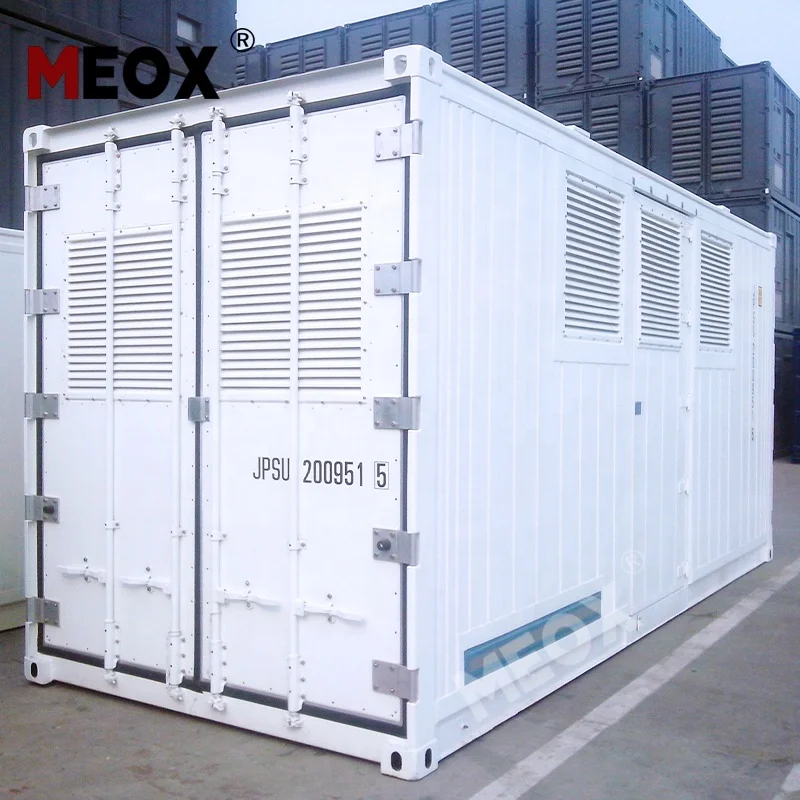

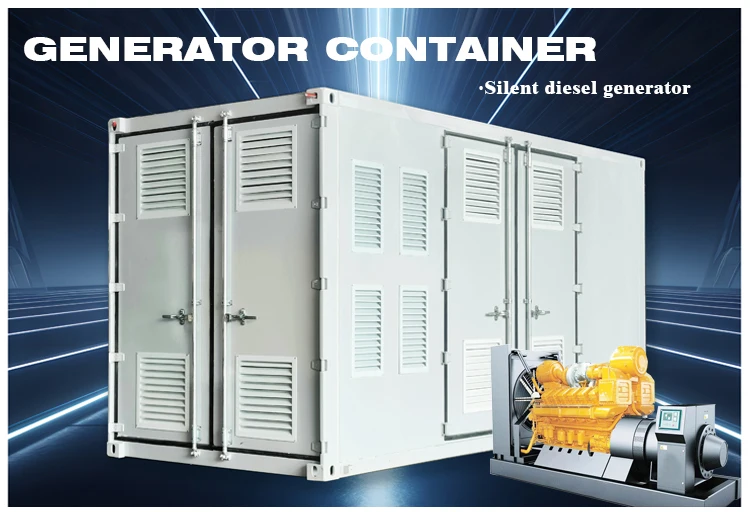

20ft shipping containers with electrical switch gears and control systems power generation generator container
- Category: >>>
- Supplier: Suzhou Zhongnan Intelligent Equipment Co. Ltd.Suzhou Ltd.
Share on (1600920136154):
Product Overview
Description
Products Description
Basic configuration and requirements of the power container：
1. The front inspection channel is laid with 5mm thick, 35kV insulated rubber pad;
2. The interior of the container is equipped with lighting (three anti-lamp), emergency light, travel switch, smoke alarm, heater, socket and other equipment, and the secondary line is led to the cable trench at the bottom of the container, pay attention to the dark line (customer's choice), wherein the smoke alarm, heater, socket to the distribution container.
3. With a distribution container, the low-voltage distribution of the entire container and the low-voltage control power supply of the secondary cabinet are completed by the distribution container. Open holes in the panel of the distribution container to place the HMI. The specific distribution container configuration depends on the actual production.
4. The container is provided with a manhole under the cable trench, the size is not less than 600mm*600mm; The lower manhole cover plate cannot be designed as a removable type, and is required to be fixed together with the container, and the opening and closing of the hinge and other components are realized. At the same time, the cover plate is clearly marked with signs such as careful stepping and falling danger.
5. The non-live part of the container has a grounding device, and the whole is grounded. Ensure that the non-live metal parts of all the electrical equipment in the container are properly connected to the electrical ground. The outside of the container should have a grounding device and be sprayed with a grounding mark.
6. Warning signs such as "High pressure danger" are set on each door of the container;
7. The container material has the functions of fire prevention, moisture resistance, earthquake resistance, corrosion prevention, low temperature prevention, no fading, no peeling and anti-aging, and the overall life of the container should be greater than 15 years.
8. Ensure that the top of the container does not accumulate water and does not leak rain; The welding of the top and side edges can make the rain and pressure water spray can be effectively prevented from the outside of the container and not rust during the life period (Note: because the equipment is running, the negative pressure is formed in the container, so it is easy to deal with bad water!) .
9. The end of the container is a pair of open doors (note that the door is fully open), so that the cabinet can enter from the end of the container. container structure design to meet the requirements of container transport and lifting transport, according to the weight distribution of the equipment to carry out the bearing strength of the container structure design, reasonable distribution of internal equipment layout. The container itself is provided with the maintenance door, equipment door and human door according to the maintenance and maintenance needs of the equipment.
10. The container should be provided with air inlet holes, air inlet holes inside the installation of dust filter, filter should be easy to disassemble and clean, and fully consider the air inlet force on the filter screen.
2. The interior of the container is equipped with lighting (three anti-lamp), emergency light, travel switch, smoke alarm, heater, socket and other equipment, and the secondary line is led to the cable trench at the bottom of the container, pay attention to the dark line (customer's choice), wherein the smoke alarm, heater, socket to the distribution container.
3. With a distribution container, the low-voltage distribution of the entire container and the low-voltage control power supply of the secondary cabinet are completed by the distribution container. Open holes in the panel of the distribution container to place the HMI. The specific distribution container configuration depends on the actual production.
4. The container is provided with a manhole under the cable trench, the size is not less than 600mm*600mm; The lower manhole cover plate cannot be designed as a removable type, and is required to be fixed together with the container, and the opening and closing of the hinge and other components are realized. At the same time, the cover plate is clearly marked with signs such as careful stepping and falling danger.
5. The non-live part of the container has a grounding device, and the whole is grounded. Ensure that the non-live metal parts of all the electrical equipment in the container are properly connected to the electrical ground. The outside of the container should have a grounding device and be sprayed with a grounding mark.
6. Warning signs such as "High pressure danger" are set on each door of the container;
7. The container material has the functions of fire prevention, moisture resistance, earthquake resistance, corrosion prevention, low temperature prevention, no fading, no peeling and anti-aging, and the overall life of the container should be greater than 15 years.
8. Ensure that the top of the container does not accumulate water and does not leak rain; The welding of the top and side edges can make the rain and pressure water spray can be effectively prevented from the outside of the container and not rust during the life period (Note: because the equipment is running, the negative pressure is formed in the container, so it is easy to deal with bad water!) .
9. The end of the container is a pair of open doors (note that the door is fully open), so that the cabinet can enter from the end of the container. container structure design to meet the requirements of container transport and lifting transport, according to the weight distribution of the equipment to carry out the bearing strength of the container structure design, reasonable distribution of internal equipment layout. The container itself is provided with the maintenance door, equipment door and human door according to the maintenance and maintenance needs of the equipment.
10. The container should be provided with air inlet holes, air inlet holes inside the installation of dust filter, filter should be easy to disassemble and clean, and fully consider the air inlet force on the filter screen.
11. The hinged strength of the container door is sufficient to meet the requirements of local wind strength; Measures (such as welding stoppers, etc.) should be taken inside the container door to prevent the door from being sucked into the container due to excessive wind.
12. The container body is designed according to the size required by the equipment. The side panel and top panel are special container panels, the floor is thickened, and the beam and ground beam are channel steel to ensure that the strength of the container should meet the requirements of the equipment and maintenance personnel.
13. The container door seam adopts the structural design of wrong sealing sealing seal to avoid rain and dust entering. The top and two sides of the container are designed to ensure effective drainage measures under rain conditions and avoid overflow of the container. The top of the container, the shell of the container, the door seal, etc., should be well prevented from sand, rain and snow. To prevent blowing in.
14. Make a flat plate in 40mm around the air duct outlet (inner wall and outer wall) to fix the air duct with bolts; Install 3mm thick and 50mm wide rubber sealing strips around the outside of the air duct outlet, and make an air hood outside the container.
15. Reserve air conditioner supports for containers to facilitate air conditioner installation.
16. container 50mm rock wool purification board insulation decoration.
17. The exterior of the container is sprayed with a total of three layers of paint, zinc-rich primer, epoxy cloud iron intermediate paint, acrylic polyurethane paint, color to be determined.
18. The container material should have fire protection (meet 4h), moisture-proof, anti-corrosion, anti-low temperature, do not fade, do not fade and anti-aging function, the overall life of the container is greater than 20 years.
12. The container body is designed according to the size required by the equipment. The side panel and top panel are special container panels, the floor is thickened, and the beam and ground beam are channel steel to ensure that the strength of the container should meet the requirements of the equipment and maintenance personnel.
13. The container door seam adopts the structural design of wrong sealing sealing seal to avoid rain and dust entering. The top and two sides of the container are designed to ensure effective drainage measures under rain conditions and avoid overflow of the container. The top of the container, the shell of the container, the door seal, etc., should be well prevented from sand, rain and snow. To prevent blowing in.
14. Make a flat plate in 40mm around the air duct outlet (inner wall and outer wall) to fix the air duct with bolts; Install 3mm thick and 50mm wide rubber sealing strips around the outside of the air duct outlet, and make an air hood outside the container.
15. Reserve air conditioner supports for containers to facilitate air conditioner installation.
16. container 50mm rock wool purification board insulation decoration.
17. The exterior of the container is sprayed with a total of three layers of paint, zinc-rich primer, epoxy cloud iron intermediate paint, acrylic polyurethane paint, color to be determined.
18. The container material should have fire protection (meet 4h), moisture-proof, anti-corrosion, anti-low temperature, do not fade, do not fade and anti-aging function, the overall life of the container is greater than 20 years.

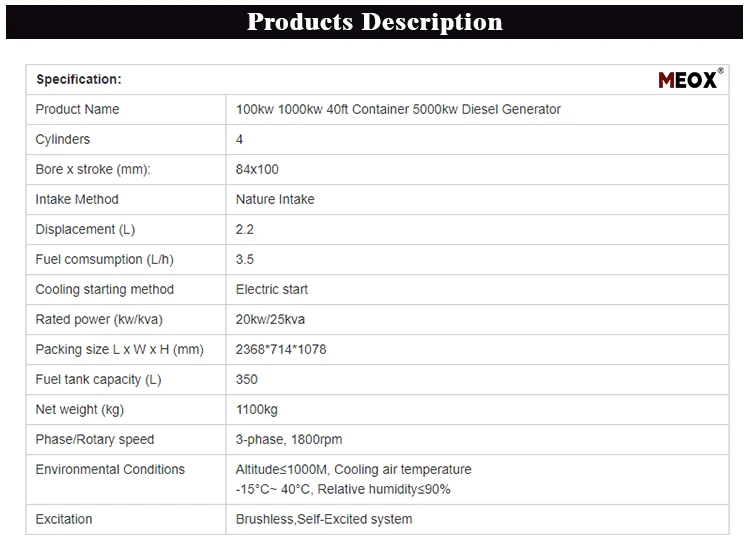

Product Paramenters
