16MP USB Camera Module Wide Angle Auto Focus Mini UVC Industrial Webcam Board With Digital Audio Microphone for Document Scan

Product Overview

Description

ELP 16MP USB Camera Module Wide Angle Auto Focus Mini UVC Industrial Webcam Board With Digital Audio Microphone for Document Scan



- Package includes -

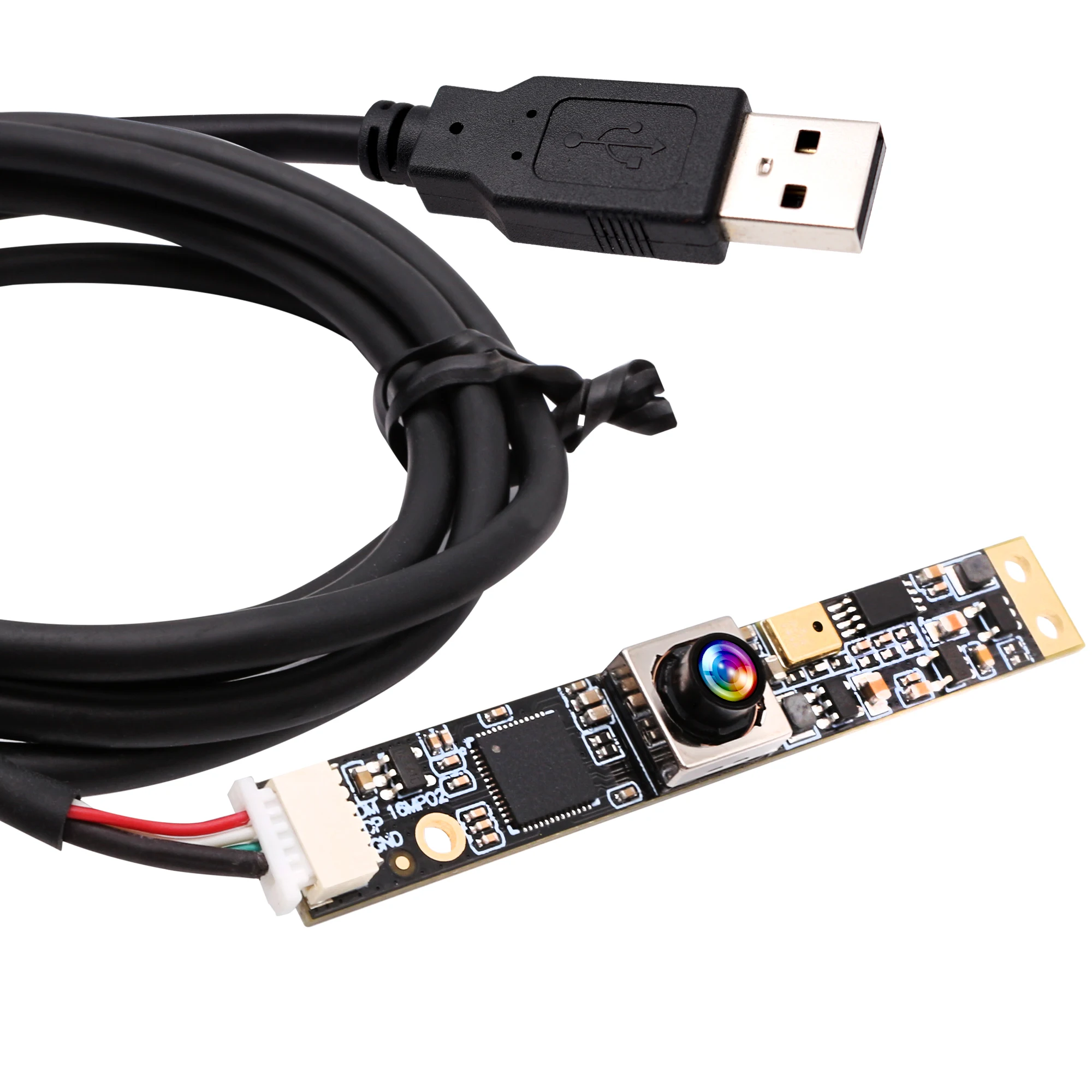

1) 1PC 16mp autofocus usb camera with 100degree lens

2) 1PC 1m usb cable





- 16MP Auto Focus USB Camera Module Features-



Ultra HD:This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

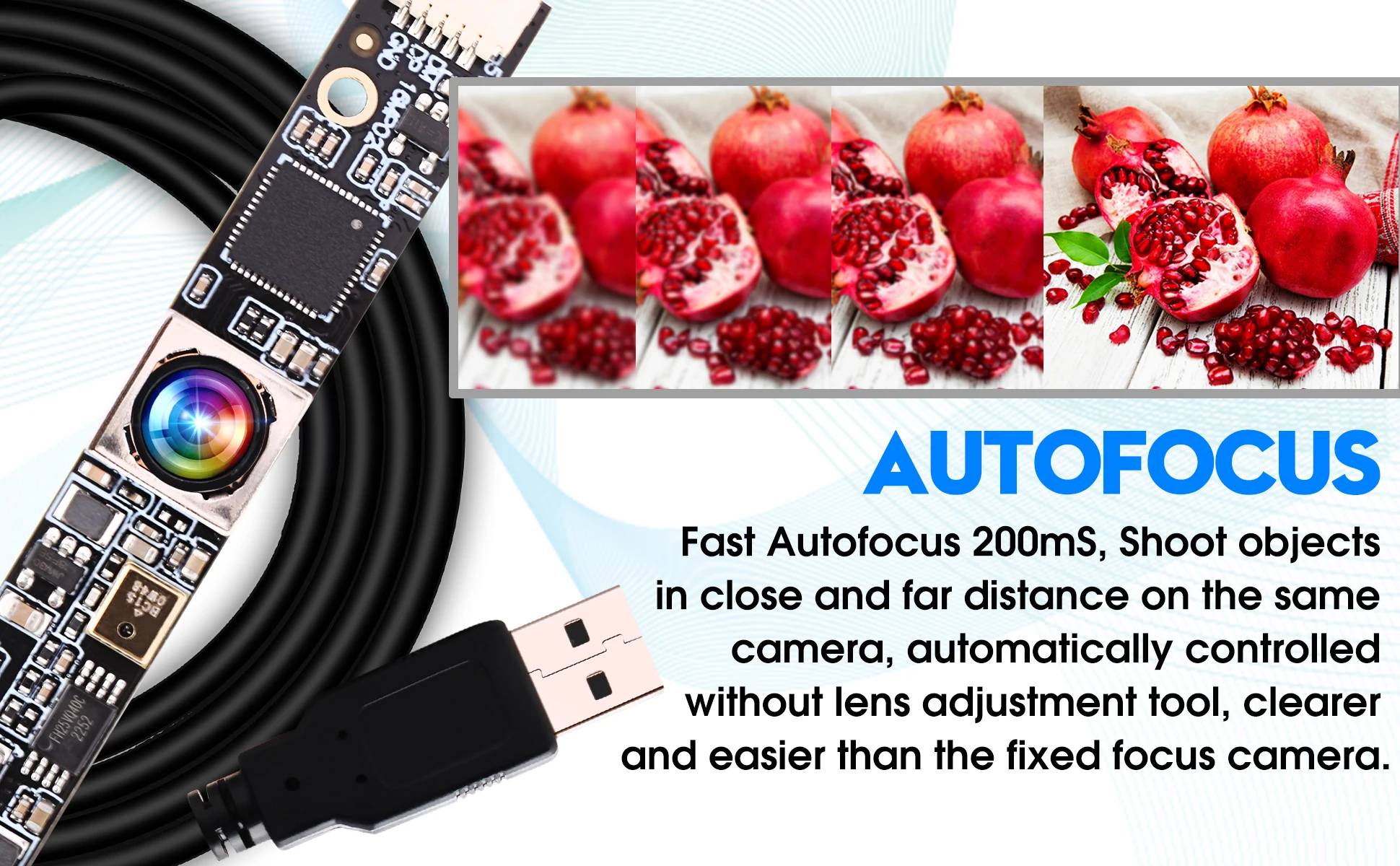

Autofocus:Mounted a High quality Autofocus lens, which can get about HOV 100 degree

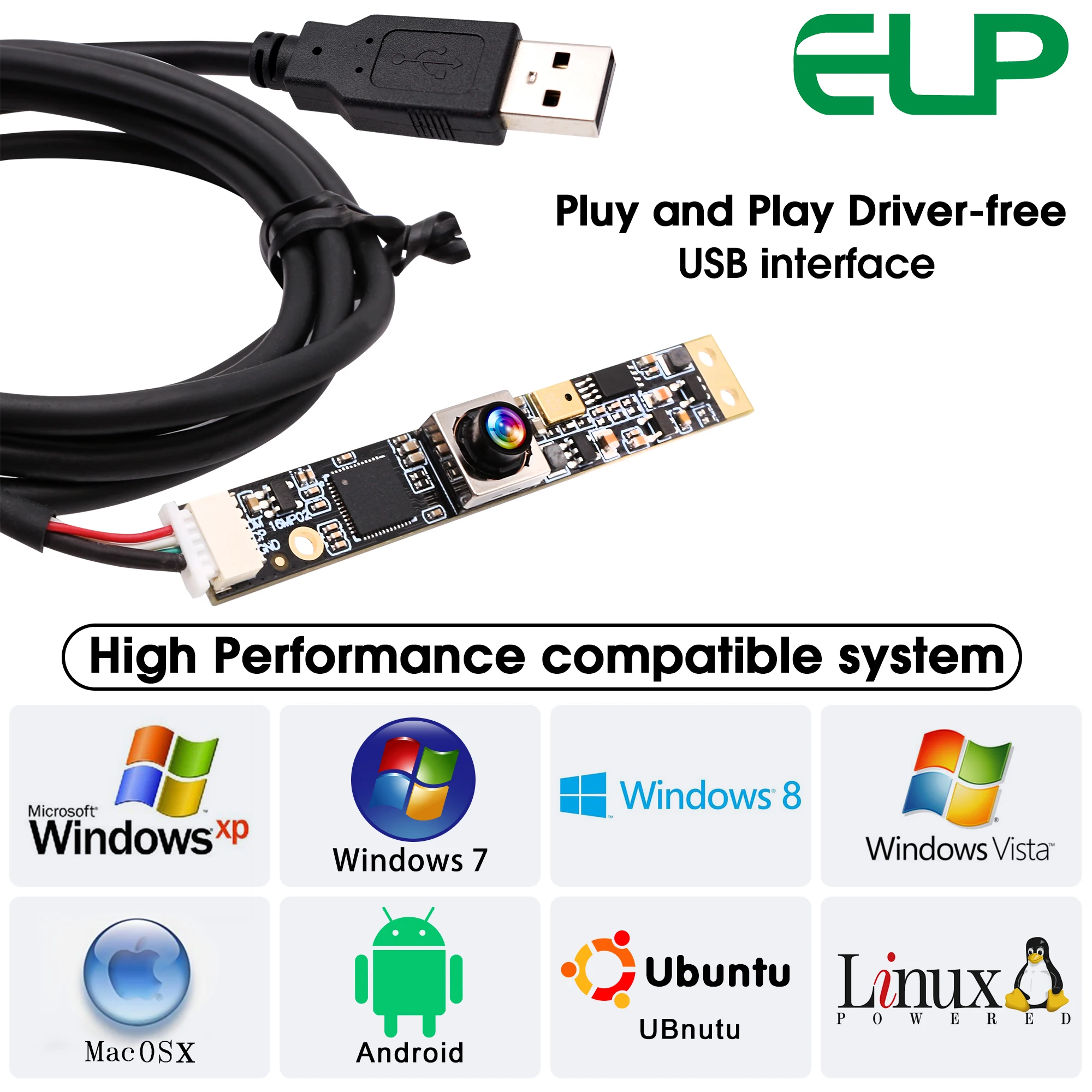

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.



High Frame Rates:MJPG 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, MJPG 30fps@2048X1536/1600X1200/1280X720;



Support OS: Android Linux Windows MAC OS



Applications:This micro mini size 62.3*9*7mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.Great for document scan or computer vision, machine vision, High Resolution Video Capture.



- Auto Focus Camera Module Main Specification -



Model	ELP-USB16MP02-AF100
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1. 12umx1.12um
Image Area	6.4mm x5.3mm
Max. Resolution	4656(H) X3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution& Frame Rate	4656 x3496 MJPEG@ 10fpsYUY2@ 1fps	4208 x3120 MJPEG@ 10fps
	4160 x3120 MJPEG@ 10fps	4000 x3000 MJPEG@ 10fps
	3264 x2448 MJPEG@ 10fpsYUY2@ 1fps	2592 x1944 MJPEG@ 10fpsYUY2@1fps
	2320 x1744 MJPEG@ 15fpsYUY2@1fps	2048 x1536 MJPEG@30fpsYUY2@ 1fps
	1920 x1080 MJPEG@30fpsYUY2@5fps	1600 x1200 MJPEG@30fpsYUY2@5fps
	1280 x960 MJPEG@30fpsYUY2@ 10fps	1280 x720 MJPEG@30fpsYUY2@ 10fps
	1024 x768 MJPEG@30fpsYUY2@ 10fps	800 x600 MJPEG@30fpsYUY2@ 15fps
	640 x480 MJPEG@30fps
Min Illumination	0.5 Lux
Shutter Type	ElectronicRollingShutter/ FrameExposure
Connecting Port Type	USB2.0 HighSpeed
Free Drive Protocol	USBVideoClass( UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, WhiteBalance,BacklightContrast,Exposure
Lens Parameter	AF LENS HFOV: about 100 Degree

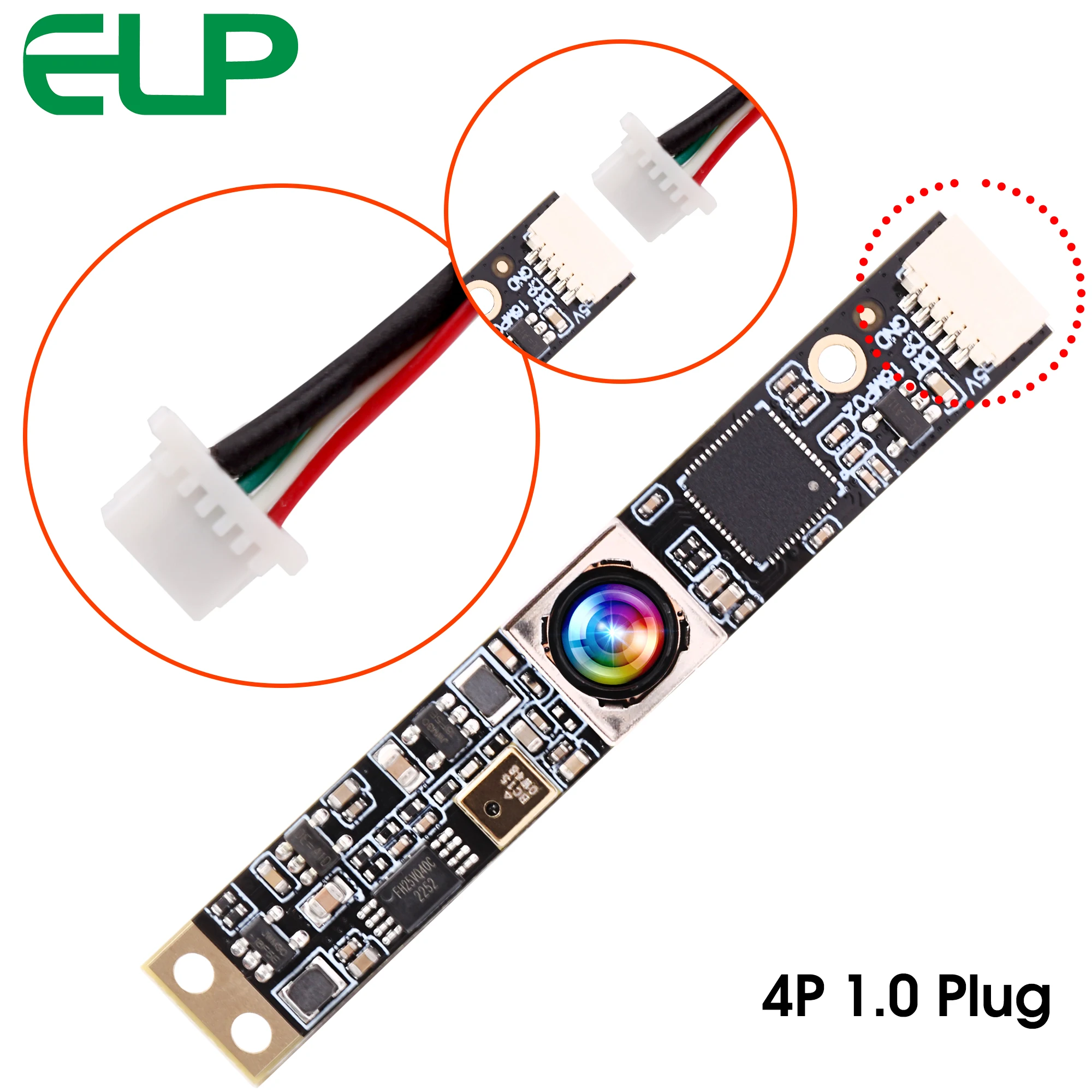

Power Supply	USBBUSPOWER4P- 1.0mmSocket
Digital Audio	Support
Operating Voltage	DC5V
Working Current	150mA~280mA
Working Temperature	-10~70C
Storage Temperature	-20~85C

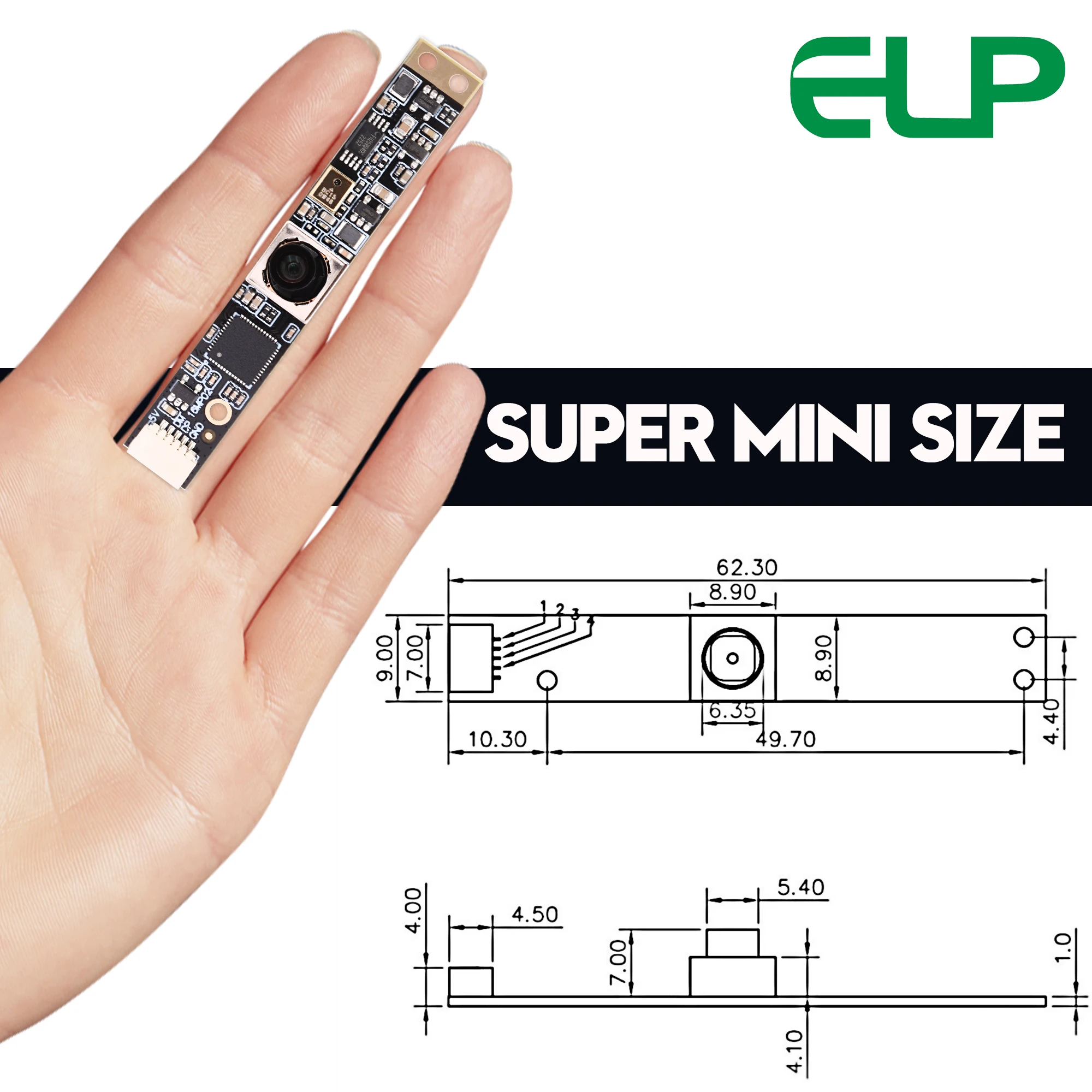

Board Size/Weight	62.3 x9 x5.5mm/ about20g
Cable	Standard1m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
	Linux with UVC (aboveLinux-2.6.26)
	MAC-OSX10.4.8 or later
	Android4.0 or abovewithUVC



- USB Camera Applications -



ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.



- 16MP Autofocus Camera Effect Image -



- 16MP Mini Camera Products details -
