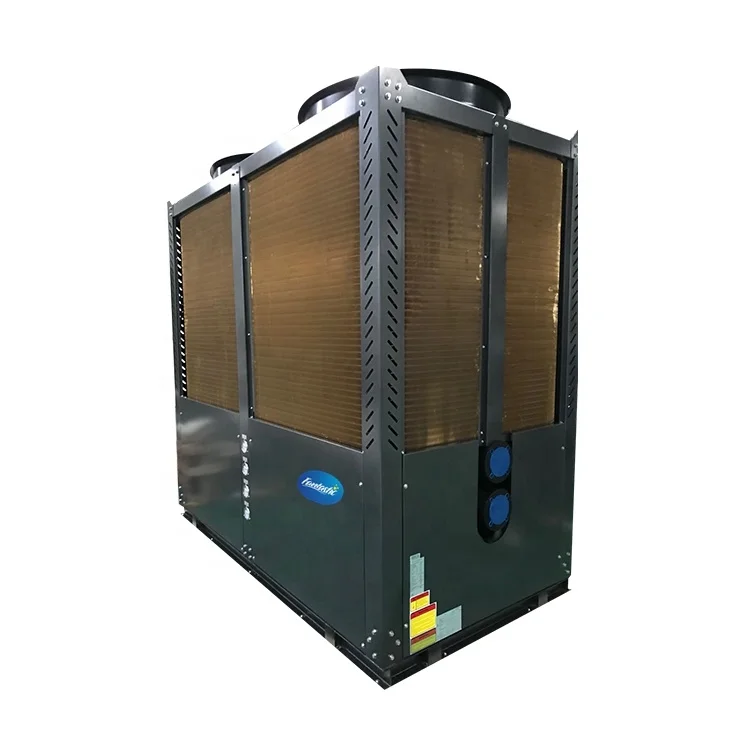

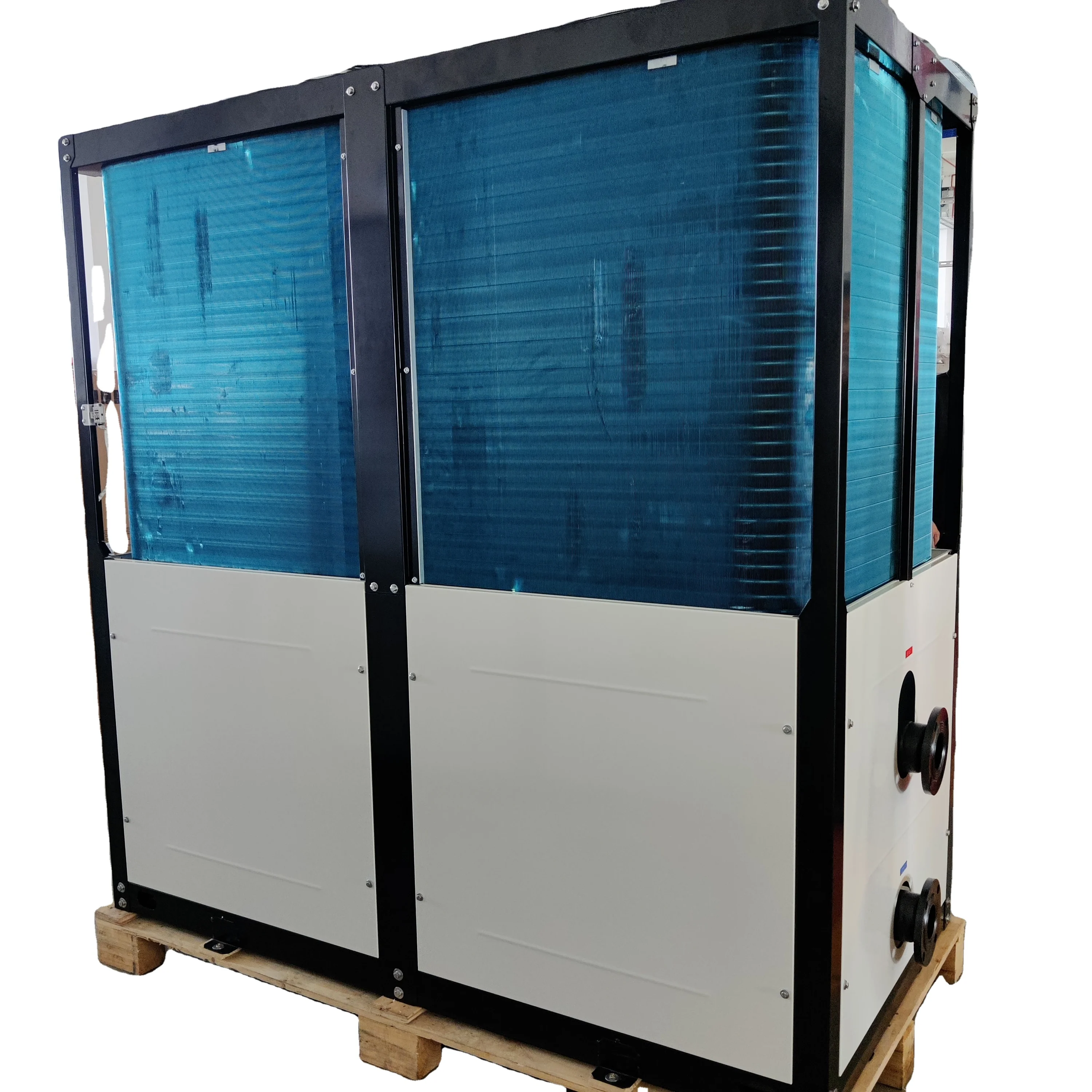

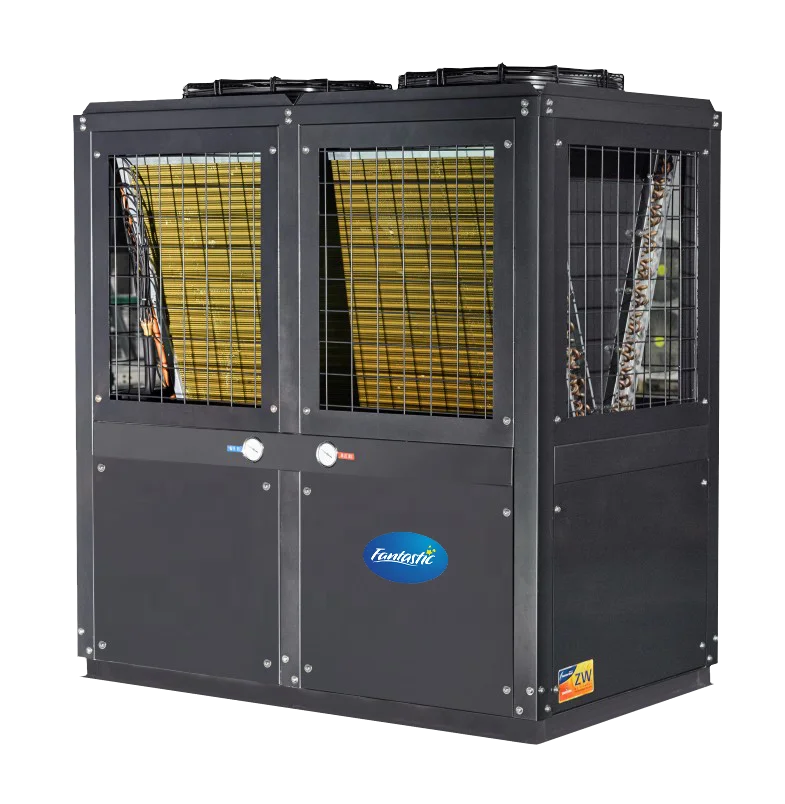

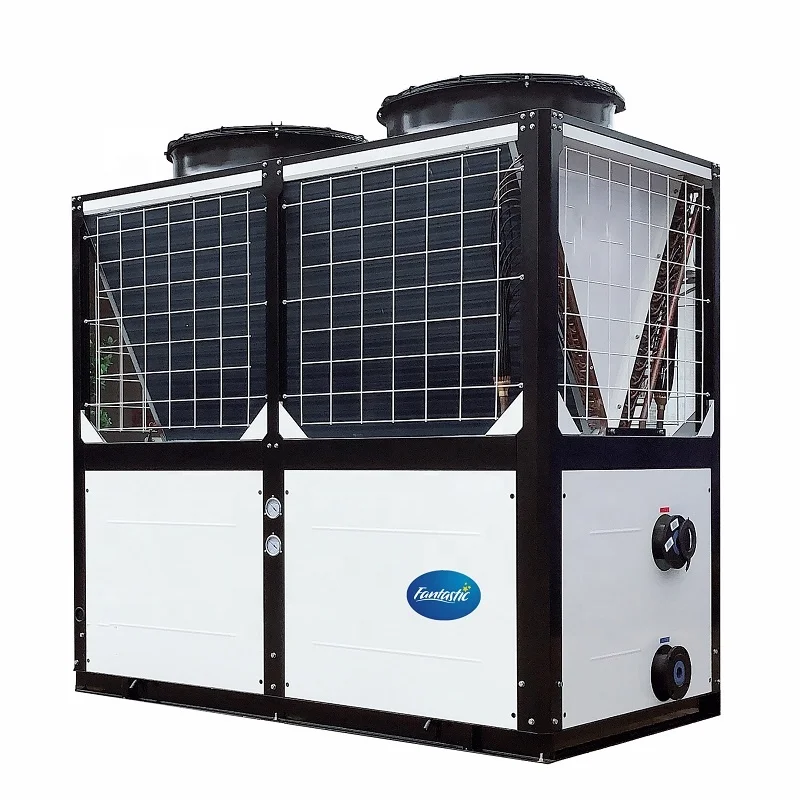

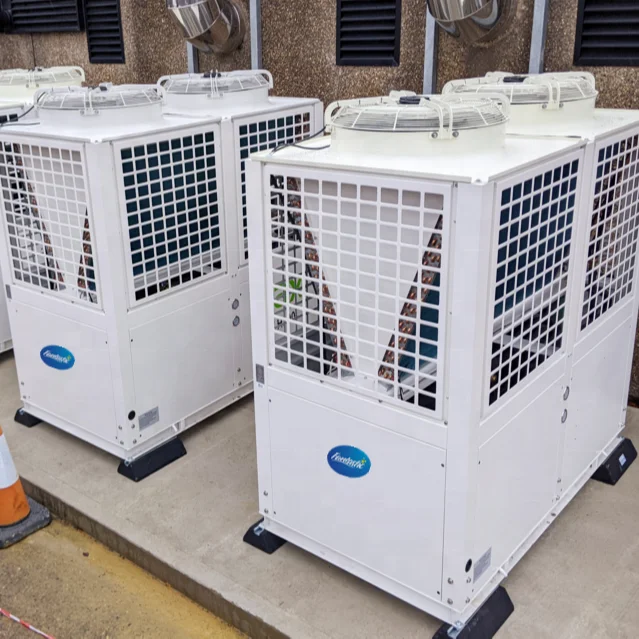

10KW 15KW 20KW 22KW DC Inverter Heat Pump Air To Water china heat pump heat pump factory
- Category: >>>
- Supplier: Fantastic Energy Saving Equipment Factory
Share on (1600920206447):
Product Overview
Description
Product Description
FANTASTIC R32 CE A+++ BAFA EVI DC Inverter Heat Pump For Heating Cooling Hot Water
1. Heating Capacity: EVI DC Inverter 6KW 10KW 12KW 15KW 18KW 24KW 30KW 36KW 45KW 60KW 75KW 90KW 150KW 180KW Inverter Heat Pump ASHP
2. Power Supply : 220V 1PH /380V 3PH
3. Best Selling Market: Germany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria,
Switzerland,USA, Canada,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia,New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.etc.
Switzerland,USA, Canada,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia,New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.etc.
4. Ambient Temp of Using: Minus 35C, max 60C Hot Water Output
5. Certificate: ISO9001, CE, EMC, BAFA, SG - READY, Scop, A+++ ERP Energy Label, ROHS

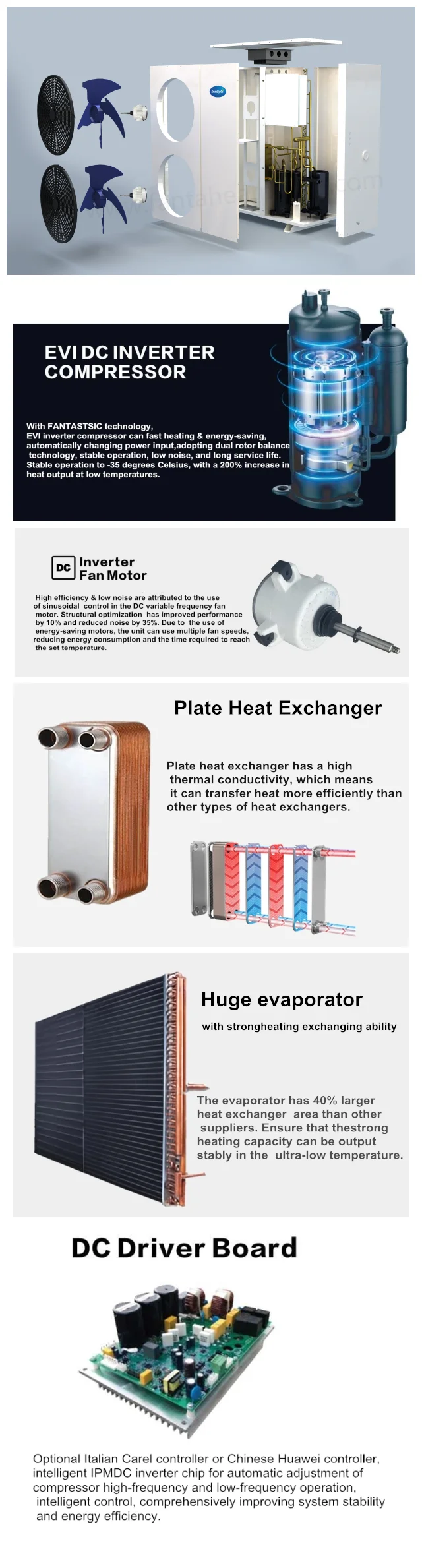

6. *Panasonic* or “Copeland” dual-rotor Compressor for EVI DC Inverter Heat Pump Series
7. High COP to be 5.65，super energy saving

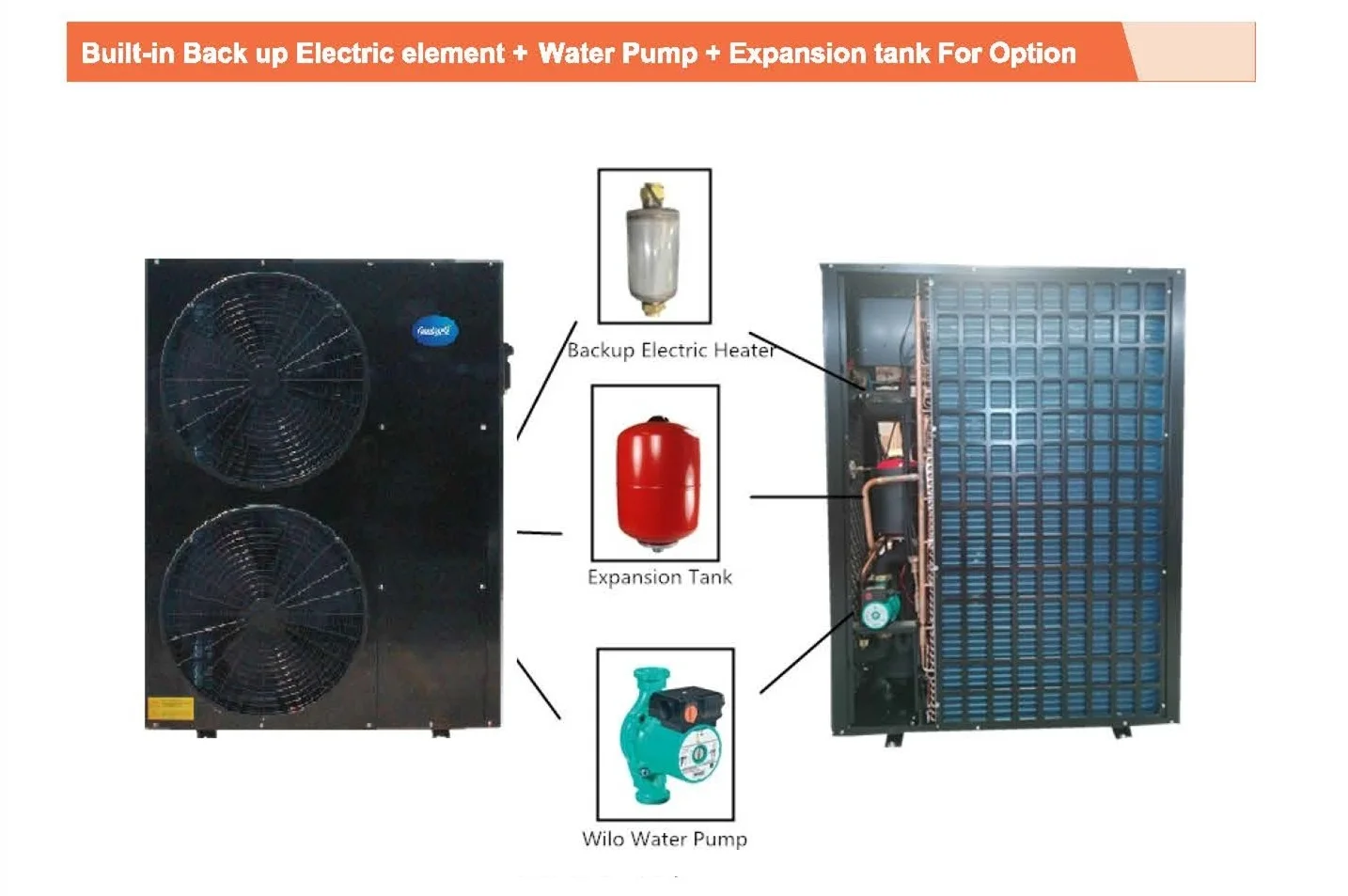

8. All in One Heat Pump design with built in water pump, expansion tank ,electric element and dc inverter brushless fan motor. (Low Noise less than 54dB)
9. FANTASTIC Inverter heat pump equipped wifi control function by phone which more convinent for you to control and
adjust your heat pump by phone anytime & anywhere
10. Multi-Function :
① Base function : Space heating/ cooling & domestic hot water ,
② Heating curve function to make out different water temp. by different ambient temp. automatically as a best
energy saving and meet heating demand logic.
③ Real time display of current heating capacity and COP function
④ Room temperature compens ation function
⑤ Automatic switch of other auxiliary heat sources
⑥ Wifi control by phone anytime& anywhere.

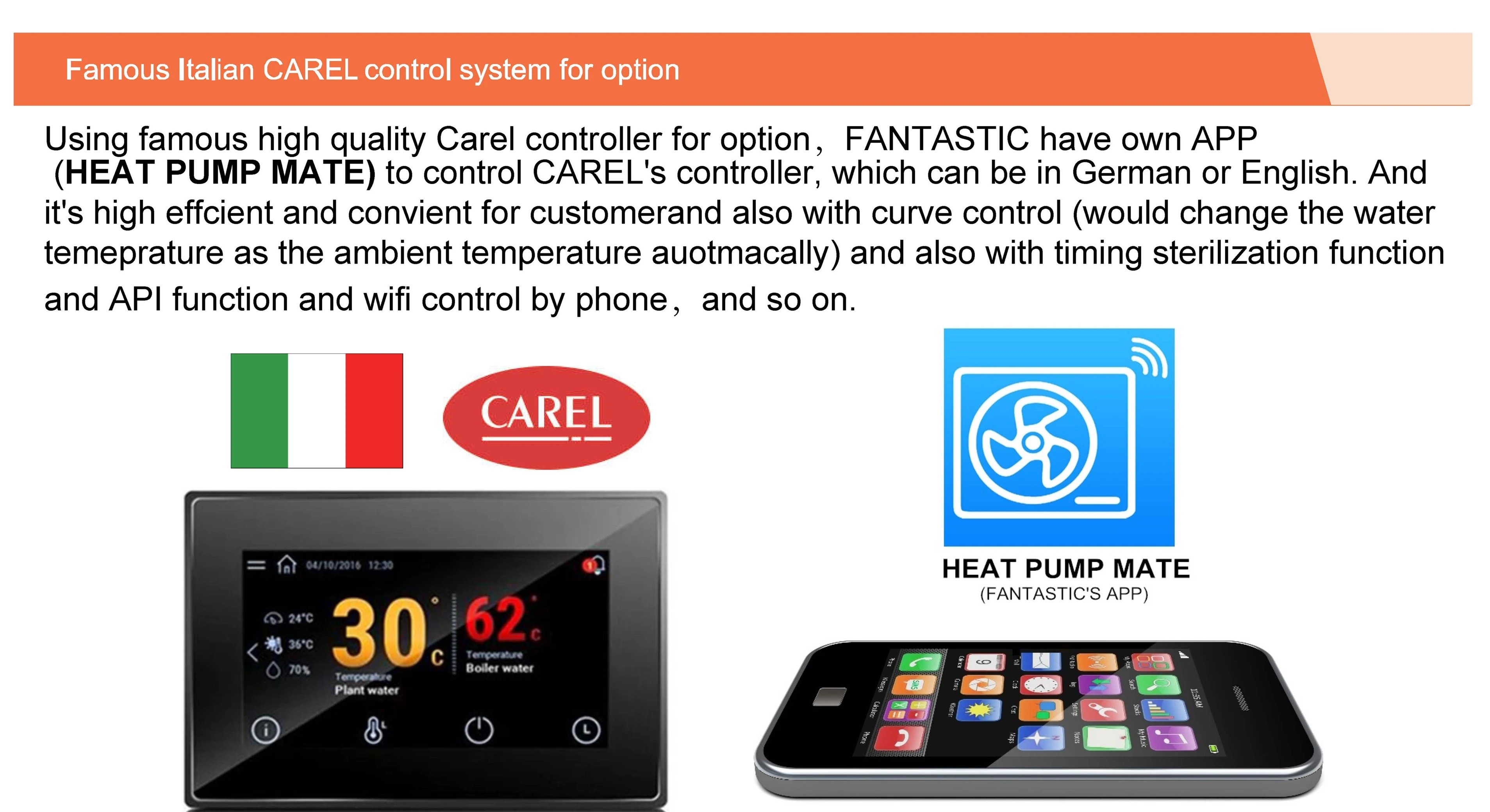

⑦ Carel controller for option with timing sterilization function and APl function,FANTASTIC have own heat pump control APP ( HEAT PUMP MATE).
⑧ Various system protection functions.etc.
MODEL | FEIHC020S | FEIHC035S | FEIHC040S | FEIHC050S | FEIHC060S | ||||
Power input [V/PH/Hz] | 220-240V,1N~/50Hz 60Hz | 220-240V,1N~/50Hz 60Hz | 220-240V,1N~/50Hz 60Hz | 220-240V,1N~/50Hz 60Hz | 220-240V,1N~/50Hz 60Hz | ||||
SCOP(Averange) | 4.6 | 4.65 | 4.85 | 4.76 | 4.9 | ||||
Heating Capacity | |||||||||
Heating Capacity Range : | 2500 ~ 6780 W | 2500 ~10300 W | 4000 ~ 12600 W | 5000 ~ 16500 W | 6200 ~ 20500 W | ||||
Heating condition: air DB/WB 7/6°C, water in/out 30/35°C | |||||||||
Heating capacity [kW] | 6 | 10 | 12 | 15 | 18 | ||||
Input power [kW] | 1.36 | 2.08 | 2.67 | 3.3 | 3.9 | ||||
Input current [A] | 6.31 | 9.65 | 12.38 | 15.00 | 17.73 | ||||
COP | 4.41 | 4.42 | 4.5 | 4.4 | 4.62 | ||||
Heating condition: air DB/WB 7/6°C, water in/out 50/55°C | |||||||||
Heating capacity [kW] | 5.5 | 8.5 | 10.9 | 13.5 | 16.3 | ||||
Input power [kW] | 1.96 | 2.98 | 3.73 | 4.82 | 5.64 | ||||
Input current [A] | 9.08 | 13.82 | 17.30 | 21.91 | 25.64 | ||||
COP | 2.81 | 2.85 | 2.92 | 2.8 | 2.89 | ||||
Cooling Capacity | |||||||||
Cooling Capacity Range : | 1800 ~ 6200 W | 2200 ~ 8600 W | 3500 ~ 10800 W | 4200 ~ 13000 W | 5500 ~ 17500 W | ||||
Cooling condition: air DB 35°C, water in/out 12/7°C | |||||||||
Cooling capacity [kW] | 5 | 7.6 | 10.1 | 12.6 | 15 | ||||
Input power [kW] | 1.73 | 2.59 | 3.36 | 4.26 | 4.93 | ||||
Input current [A] | 8.02 | 12.01 | 15.58 | 19.36 | 22.41 | ||||
EER | 2.88 | 2.93 | 3.01 | 2.96 | 3.04 | ||||
Hot Water Capacity | |||||||||
Hot Water Capacity Range ： | 2900 ~ 8200 W | 3727 ~ 12300 W | 4969 ~ 16400 W | 6212 ~ 20500 W | 7454 ~ 24600 W | ||||
Heating condition: air DB/WB 20/15°C, water from 15°C to 55°C | |||||||||
Heating capacity [kW] | 8.2 | 12.3 | 16.4 | 20.5 | 24.6 | ||||
Input power [kW] | 1.70 | 2.69 | 3.50 | 4.48 | 5.37 | ||||
COP | 4.82 | 4.57 | 4.69 | 4.58 | 4.58 | ||||
Max running current [A] | 23 | 26.5 | 33.5 | 21.9 | 23.1 | ||||
Noise [dBA] | 47 | 48 | 50 | 52 | 53 | ||||
Controller | DC inverter controller (WIFI) | ||||||||
Fan motor | Match-Well / WELLING | ||||||||
Refrigerant Flow Control | EEV | ||||||||
Heat exchanger | Plate Heat Exchanger(Water) Fin-tube heat exchanger(Air) | ||||||||
Water pump (Built-in for option) | Wiilo (Built-in for option) | ||||||||
Expansion tank (Built-in for option) | 2L | 2L | 2L | 5L | 5L | ||||
Auxiliary electric element (Built-in for option) | 3KW | 3KW | 3KW | 3KW | 3KW | ||||
Refrigerant | R32 | ||||||||
Water flow [m3/h] | 1 | 1.5 | 2 | 2.4 | 3 | ||||
Certifications
Customers Feedback
Product Photos
Packing & Delivery
Company Profile
Established in 2002, FANTASTIC is one of the largest manufacturers of house heating/cooling heat pumps and swimming pool heat pumps and hot water heat pumps and other kinds of heat pump products in China.
With more than 500 professional staffs and 15 production lines focusing on heat pump manufacturing and technologies, 80% of staffs are more than 10 years experience. with 232,000 sqm workshop plant, 1 million set of annual production output .
FANTASTIC owns many unique technologies and patents, and products are certified CE, ROHS, BAFA, ,A+++ for Europe ,UV UL for North America ,, SAA, WATERMARK, STANDARD MARK, C-TICK ,SAA for Australia, ISO9001 and so on by TUV.
Technical testing
Warranty
Warranty
The warranty is 2 years at least.
