Free Shipping in the United States Region DENGFU E BIKE Mountain Bike E55 10S 52V bafang M620 UART motor
- Category: >>>
- Supplier: Dengfu Sports Equipments Co. Ltd.
Share on (1600920222282):
Product Overview
Description
The latest electric powered Mountain Bike in 2023, equipped with bafang1000W motor 1040WH battery
This is the new version of the Mountain Bike E-BIKE that Dengfu produced in 2023 and is available for sale with unlimited brushes worldwide. It has a good performance in terms of appearance and battery capacity.
TECHNICAL SPECIFICATION
FRAME
TORAY T700 carbon fiber, 150mm travel, internal cable routing, post mount disc brake, 148×12 thru axle
FORK
.DengFu suspension fork 160mm travel, 1 1/8″-1 1/2″(OD62mm,ID56m
SEATPOST
Aluminum seat post,31.6mm diameter, 350mm drop.

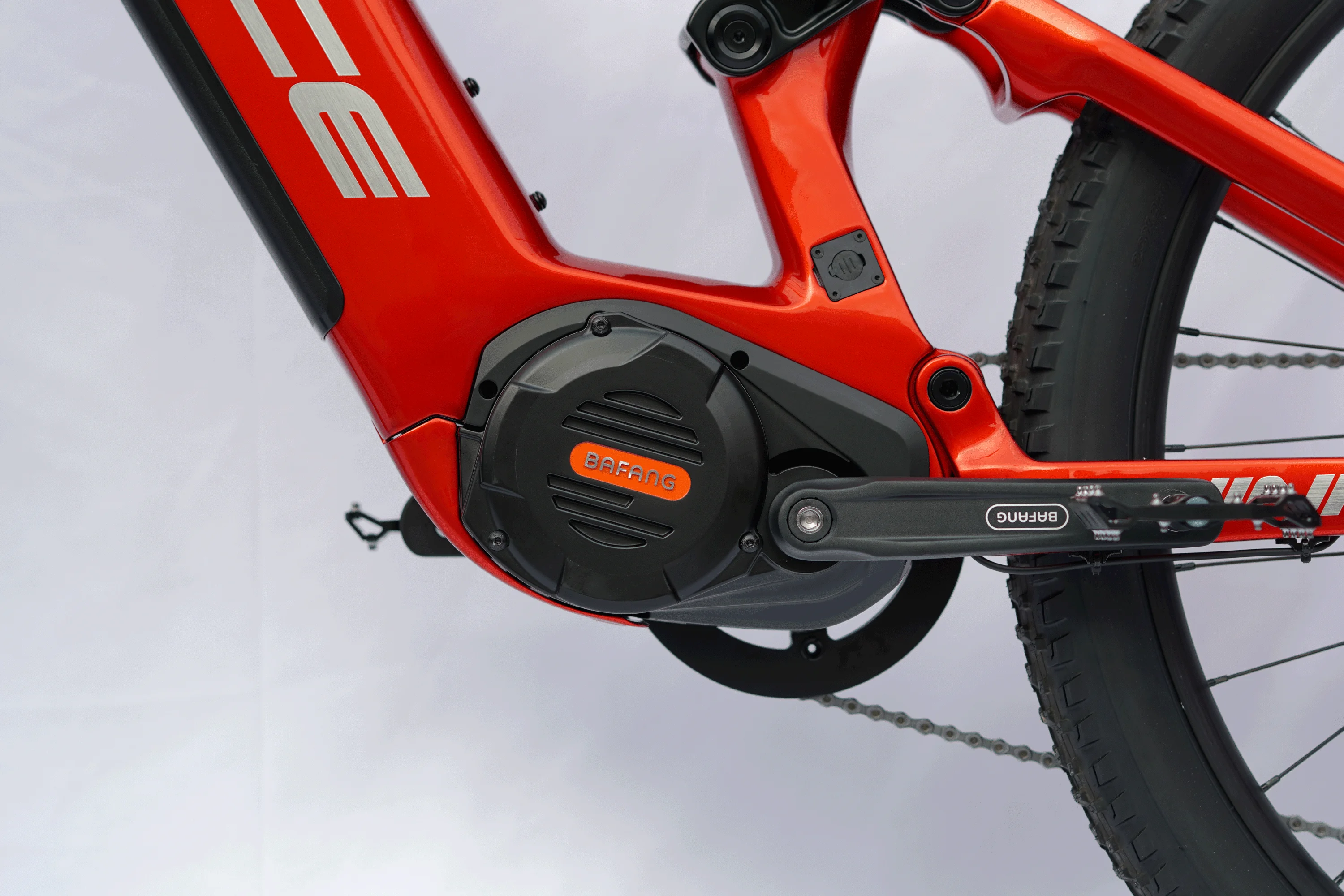

MOTOR
BAFANG M620 52V 1000W CAN protocol GEAR SENSOR
BATTERY
Rhino Lithium-ion 52V 20Ah 1040Wh, 4A Fast Charging.
DISPLAY
Bafang
CHAINRING
Bafang EB11, 170mm, 40T
CASSETTE
shimano M4100 11-46T 10S
REAR DERAILLEUR
shimano M4100
BRAKE
Taiwan attach brand 4 piston oil brake
SHIFT LEVER
shimano M4100
CHAIN
KMC 10S 128

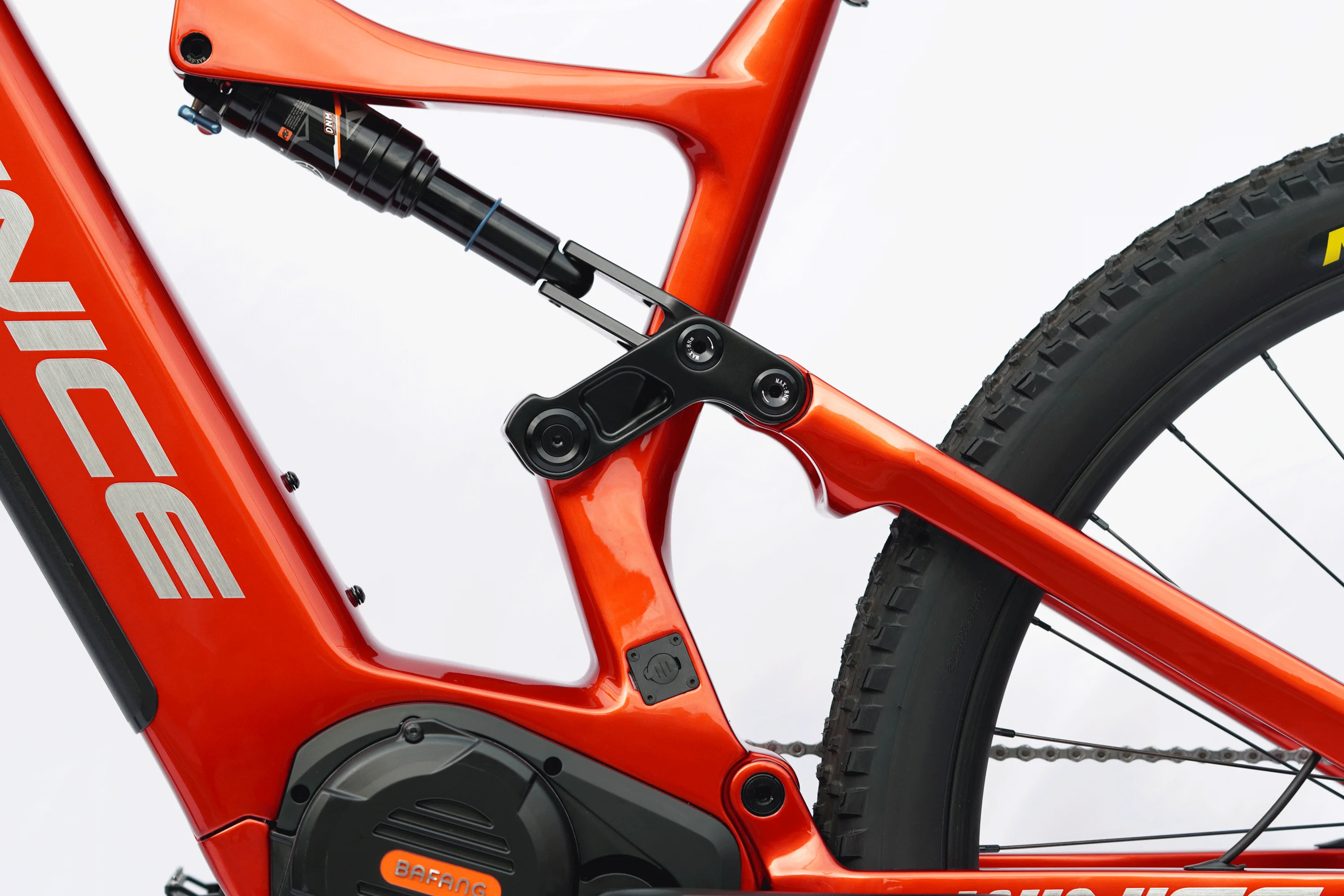

REAR SHOCK
DNM 210X55 air (70mm) 32.3/16.8bush 70mm connecting rod
HANDLEBAR
Aluminum Swallow handle 800mm
STEM
Aluminum 45mm
SADDLE
comfortable, black FIZIK
TIRE
MAXXIS 29X2.6
DISC
180mm Z8.
* The configuration can be customized according to your need. If need please contact us.
TORAY T700 CARBON FIBER
Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

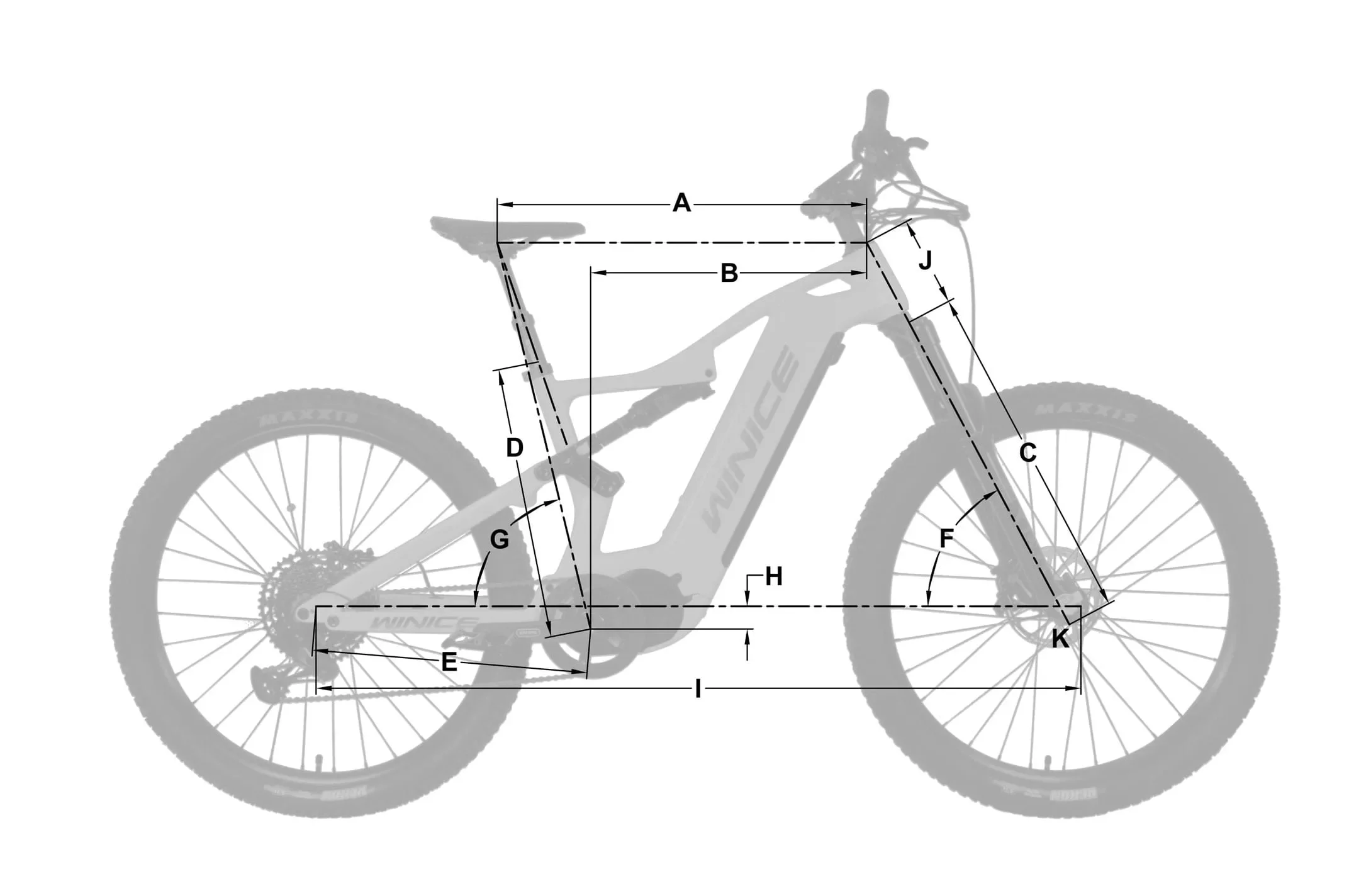

WHICH SIZE?
Size is very important. This is the geometry to help you find your correct size.
SIZE | 17 | 19 |
A | 609 | 632 |
B | 459 | 481 |
C | 573 | 573 |
D | 440 | 480 |
E | 478 | 478 |
F | 64° | 64° |
G | 77° | 77° |
H | -20 | -20 |
I | 1283 | 1307 |
J | 125 | 130 |
K | 51 | 51 |
B2B
As a factory, we sincerely welcome B2B business, both OEM and ODM. If you are looking for new products, new partners or exploring new market, we are confident and willing to help you realize it.
As the demand of electric bikes grows rapidly, the market becomes huge. At present there are very few brands providing carbon electric fat bikes, means less competitors in the market. Thus we see a big opportunity, to fill the blank of the need of carbon fat ebikes. Now this opportunity is waiting for someone to catch. If you are interested in this market, we are willing to help you catch the opportunity.
You can start with this E55 or open your own mould. Or just buy a sample to test the market. We also provide branding and custom paint to help you reduce the time and costs. A confidentiality agreement or buyout agreement cam be provided between us if need to protect your business.
If this is not what you are looking for, we have other models for your choice, electric, road, mountain, etc. (find out all our products). We would like to become your loyal supplier.
For more information, please visit About Us. Thanks for your precious time.
As the demand of electric bikes grows rapidly, the market becomes huge. At present there are very few brands providing carbon electric fat bikes, means less competitors in the market. Thus we see a big opportunity, to fill the blank of the need of carbon fat ebikes. Now this opportunity is waiting for someone to catch. If you are interested in this market, we are willing to help you catch the opportunity.
You can start with this E55 or open your own mould. Or just buy a sample to test the market. We also provide branding and custom paint to help you reduce the time and costs. A confidentiality agreement or buyout agreement cam be provided between us if need to protect your business.
If this is not what you are looking for, we have other models for your choice, electric, road, mountain, etc. (find out all our products). We would like to become your loyal supplier.
For more information, please visit About Us. Thanks for your precious time.
