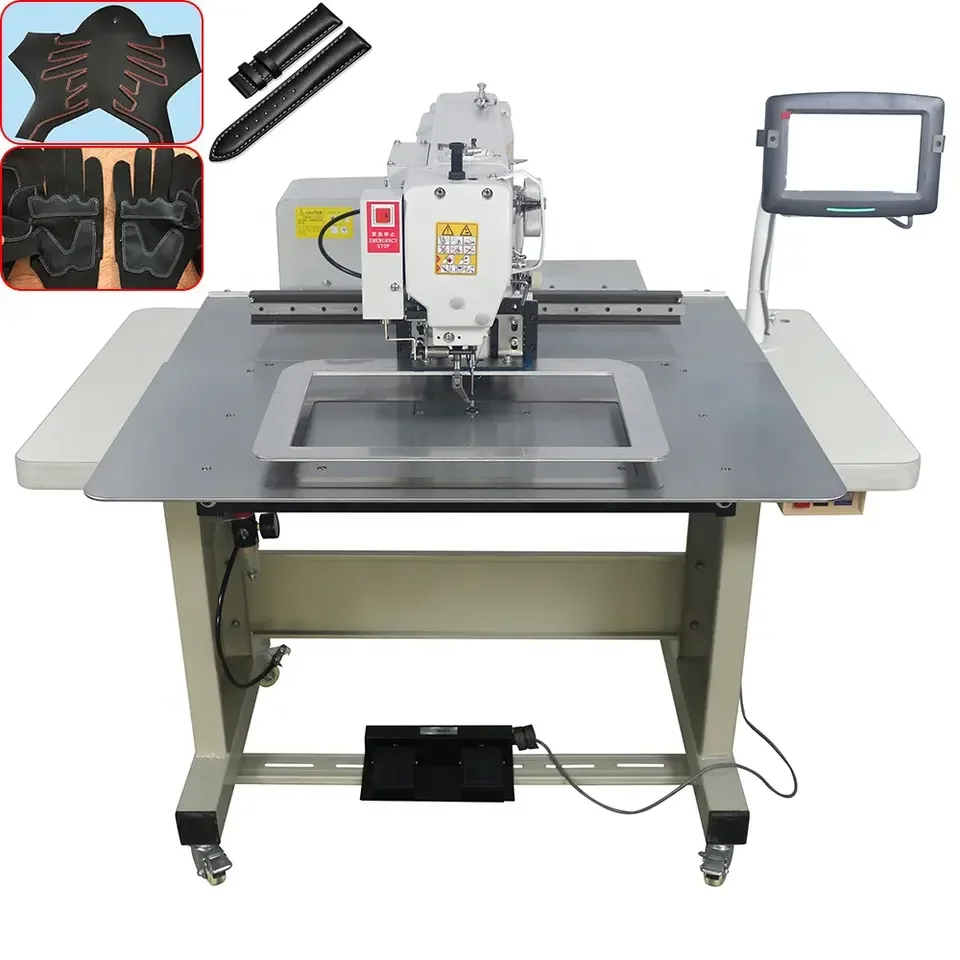

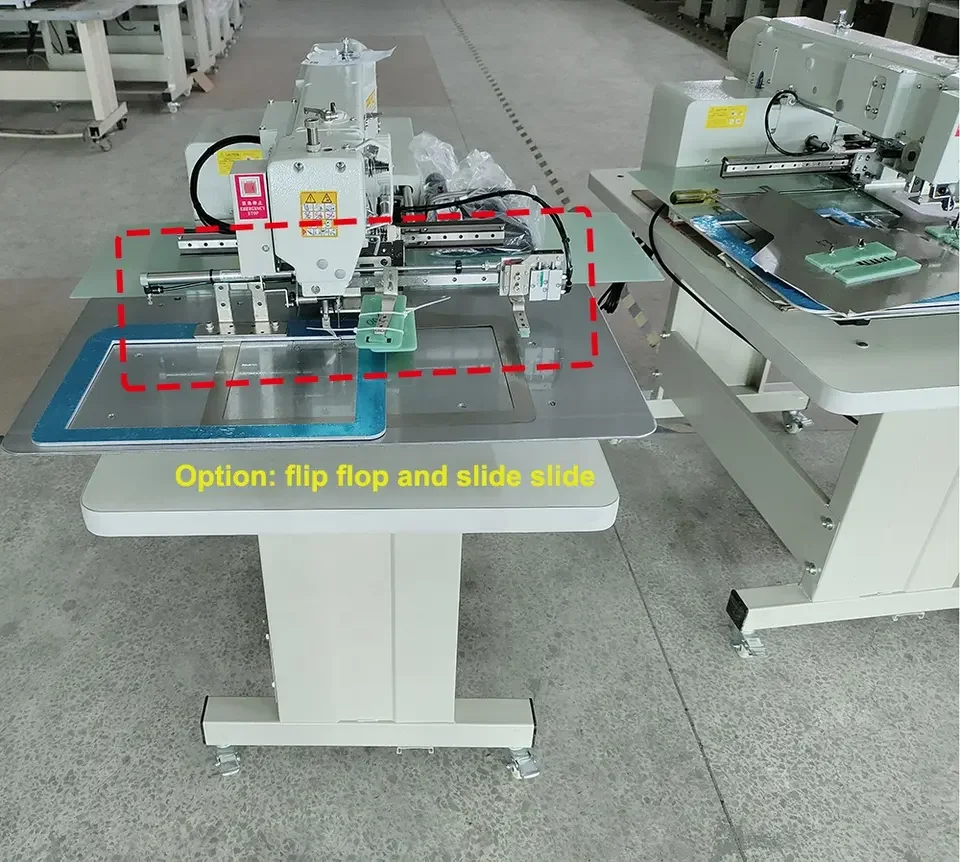

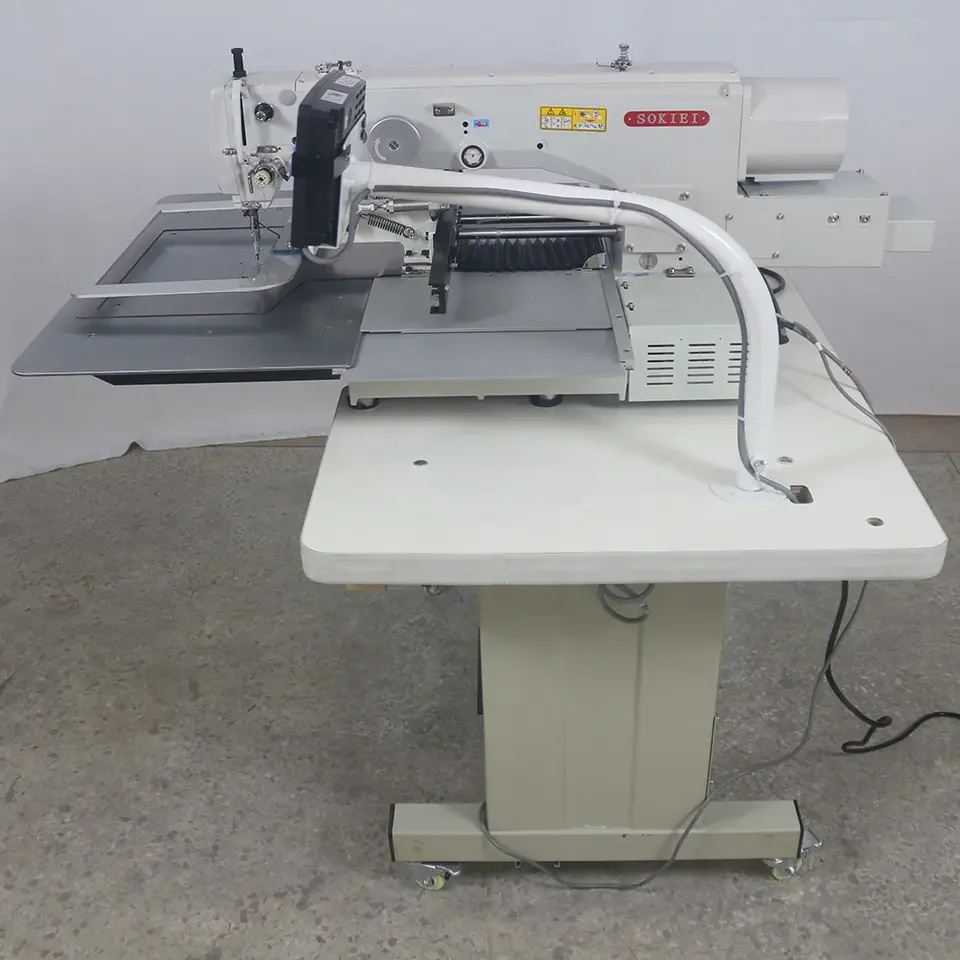

3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine
3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine

3020 maquina de costura template stitching machine automatic computerized woven label pattern sewing machine

Share on (1600920502575):


Price:$500.00 - $1,239.00

Quantity:


Product Overview

Description



Specification


1
Commodity
Computerized pattern sewing Machine
2
Sewing Area
X(Lateral) Direction Y(Longitudinal) Direction
300(mm) x 200(mm)
3
Max. Sewing Speed
3000rpm（with stitch interval below 3mm）
4
Stitch Length
0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution:
0.10mm）
5
Feed Motion of Frame
Intermittent feeding (2-shaft driven by pulse motor)
6
Needle Bar Stroke
41.2mm
7
Needles
DP×5、DP×17
8
Lift of Frame
Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm）
9
Intermediate Presser
Stepping Driving (Range: 0～8mm)
10
Lift of Intermediate Presser
20mm
11

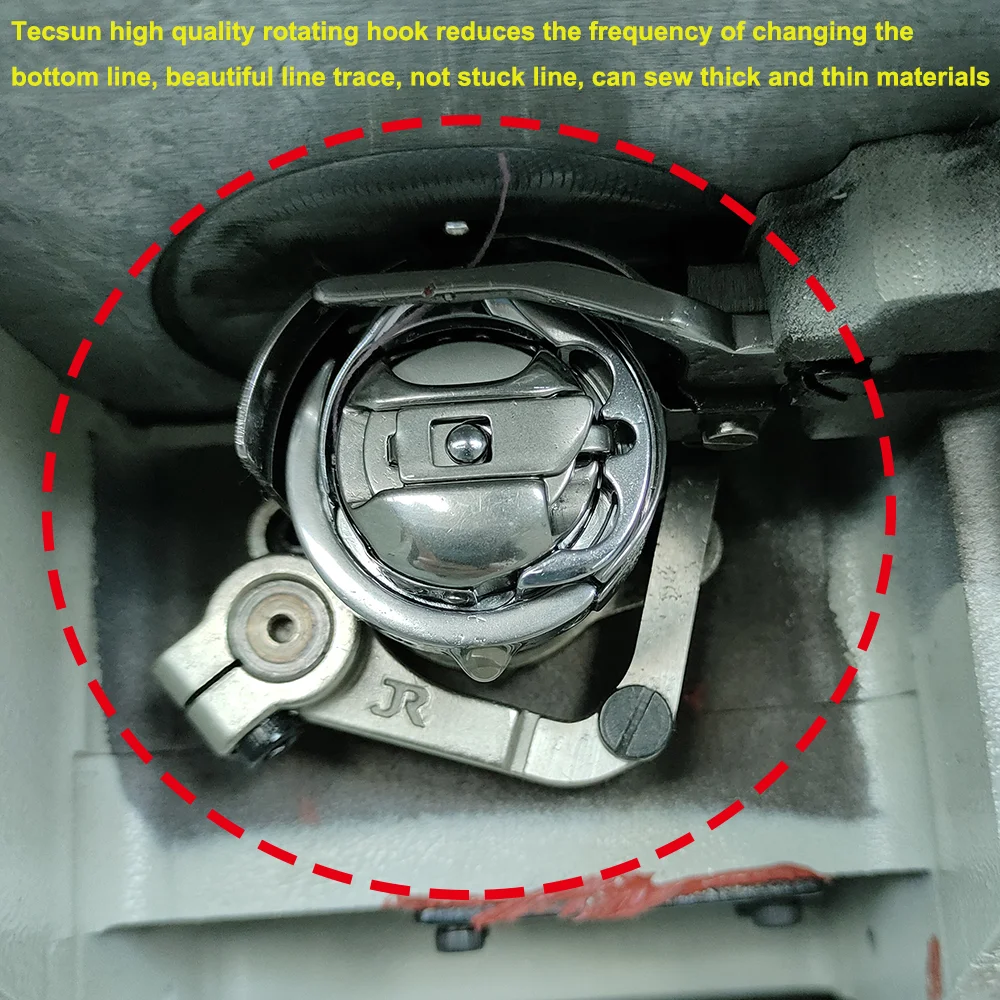

Hook
Tecsun high quality rotating hook
12
Memory of Pattern Data
Memory/U Disk
13
Pause function
Stop the machine during the sewing
14
Scaling Up/Down Function
Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step)
15
Scaling Up/Down Method
Increasing / decreasing stitch length & Increasing / decreasing stitch number
16
Sewing Speed Limitation
200～3000rpm（100rpm per step）
17
Pattern Selection Function
Pattern No. selection method
18
Up counter
No Count/Count of Pattern /Count of Cycle (0～99999)
19
Down Counter
No Count/Count of Pattern /Count of Cycle (0～99999)
20

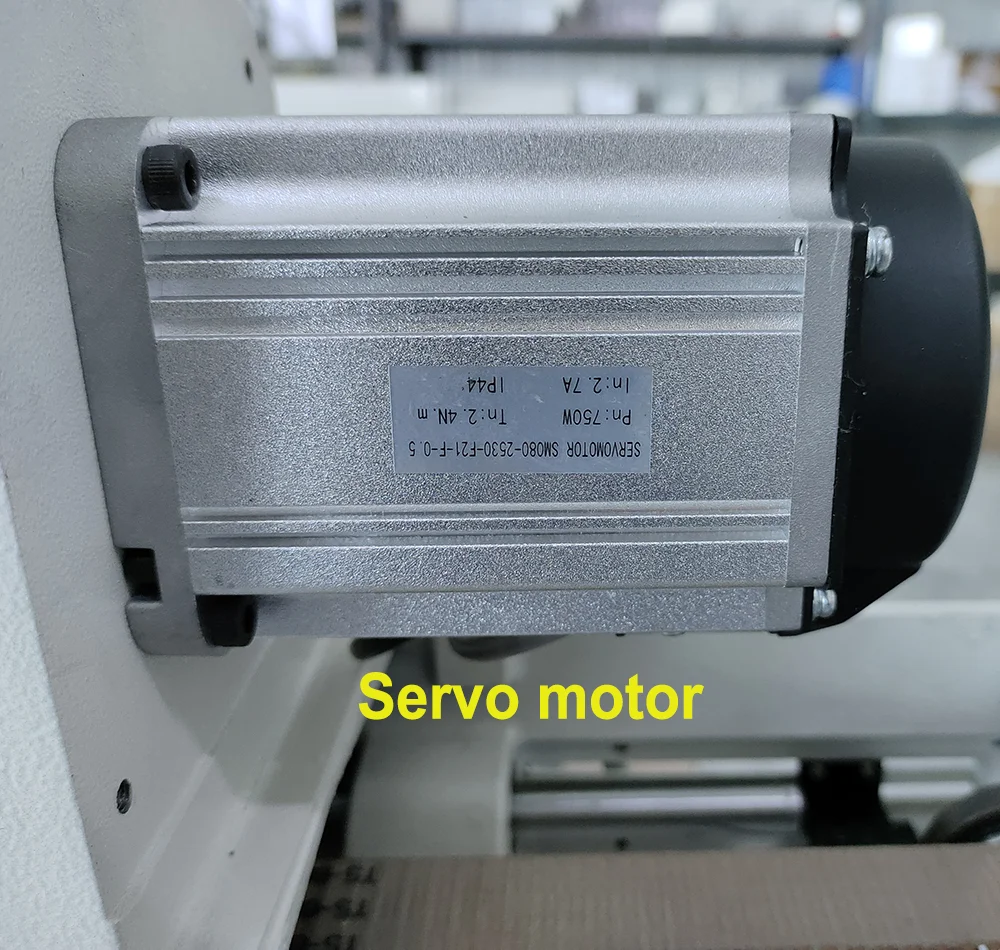

Sewing Machine Motor
Servo Motor
21
Stop Needle at Highest Position Function
After the completion of sewing, the needle can return to its highest position
22
Rated Power
750W
23
Operation Temperature Range
0℃～45℃
24
Operation Humidity Range
35%～85% （No Dew Condensation）
25
Line Voltage
AC 220V ± 10%；50/60Hz
26
Plywood box size
124*82*132cm
27
Packing volume
1.342cbm
28
Gross weight
195kg
29
Application
Cap visor, shoes upper, leather, bag, luggage, thick materials, etc.
30
Certification
CE
31
Language
Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.
32
OEM
yes
33
Working lasting
24 hours long lasting
34
HS code
8452219000


Product Description

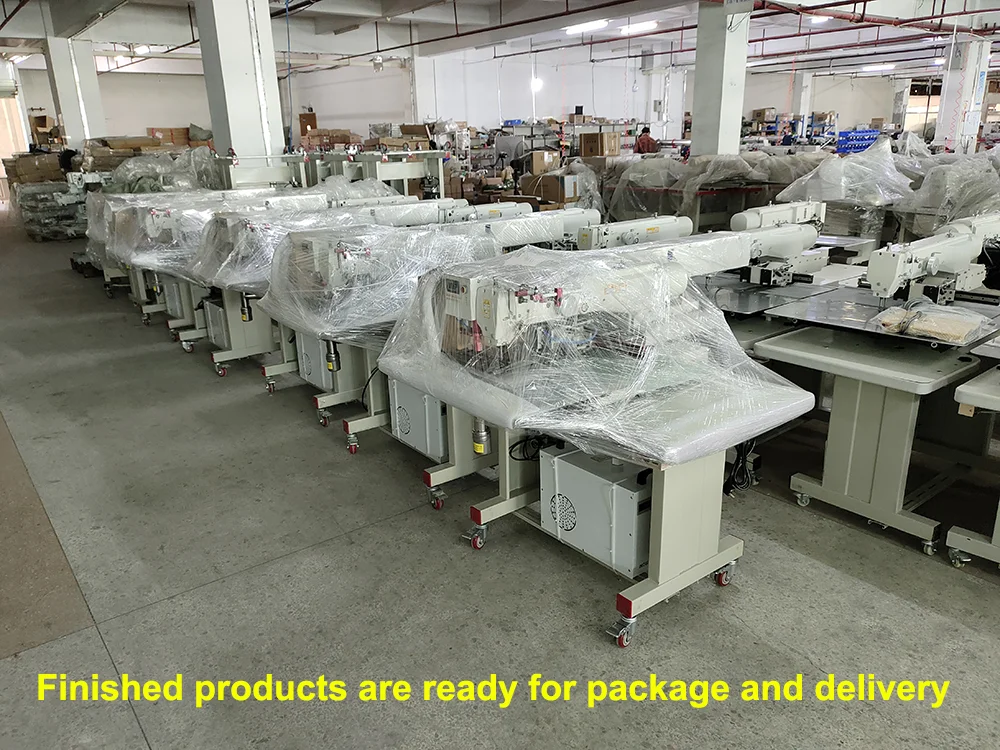

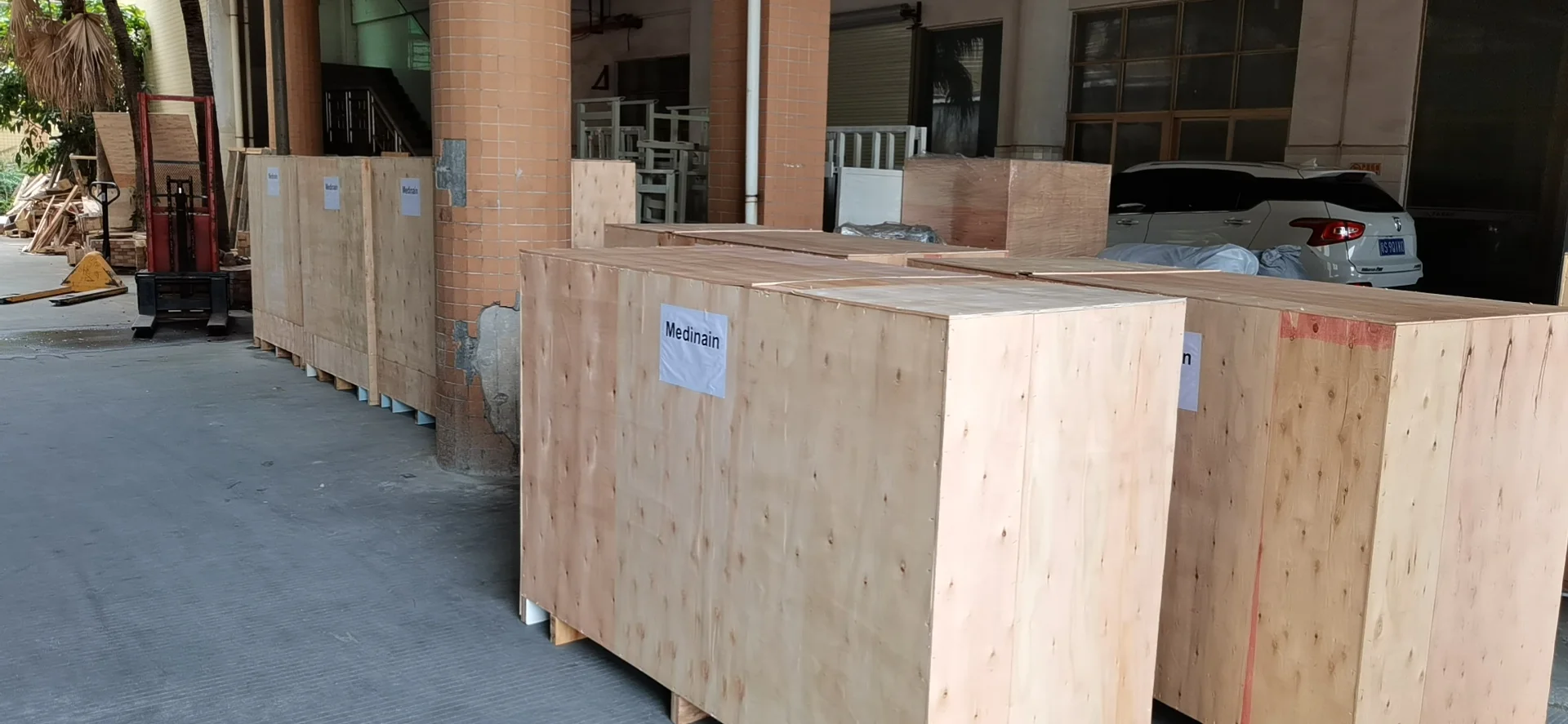

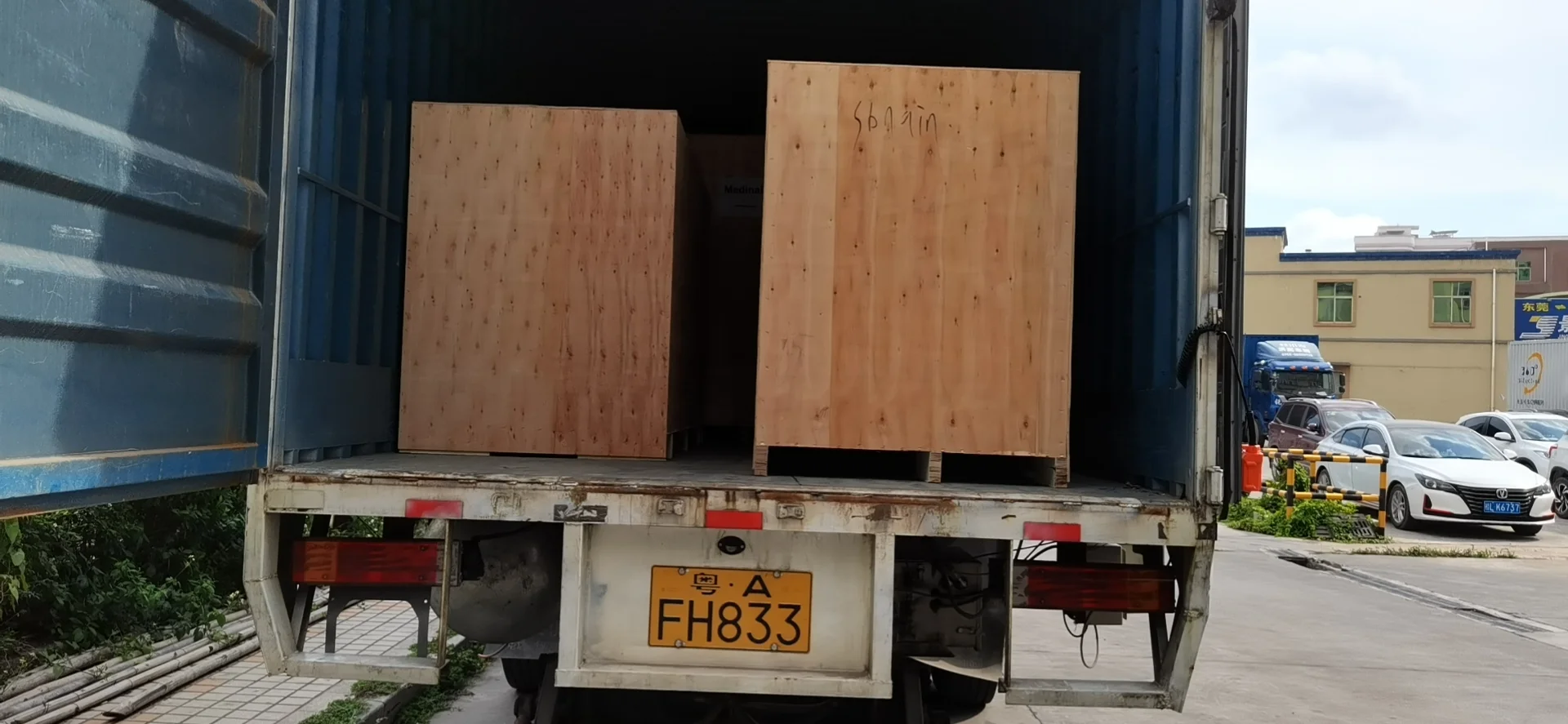

Packing & Delivery




Standard plywood box, plastic film wrapped outside for waterproof. To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging services will be provided.

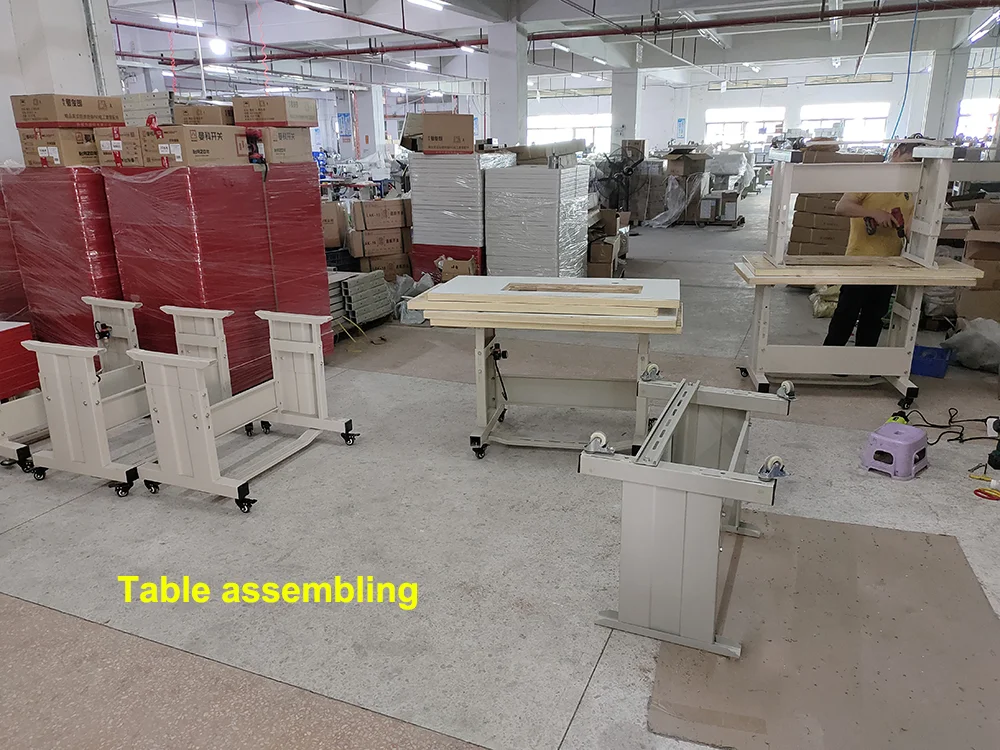

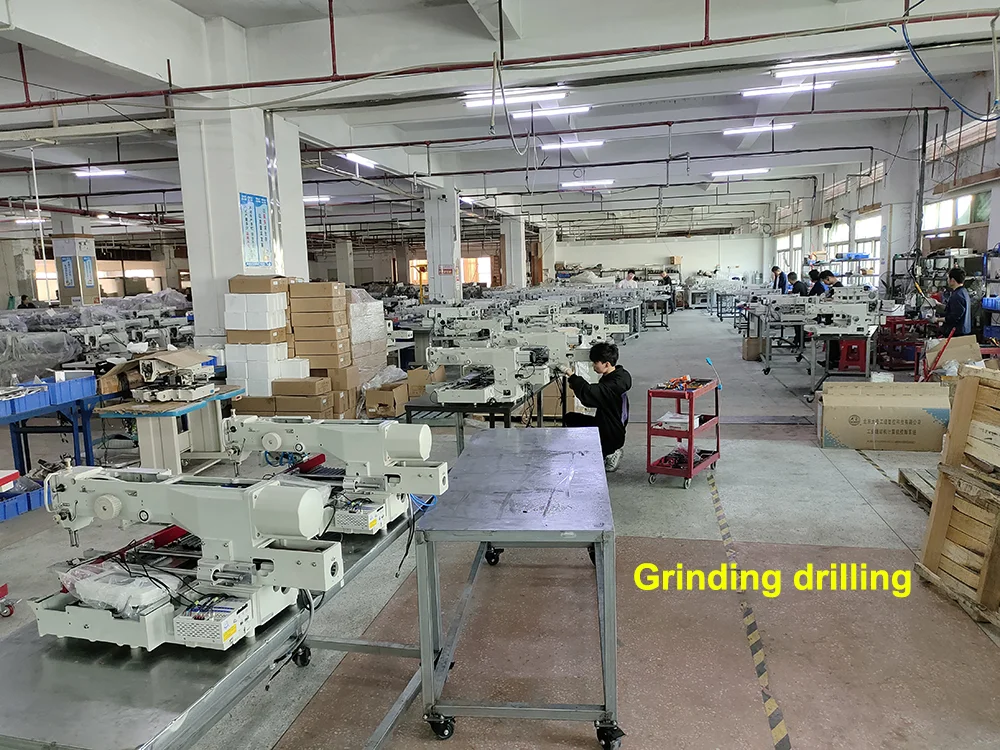

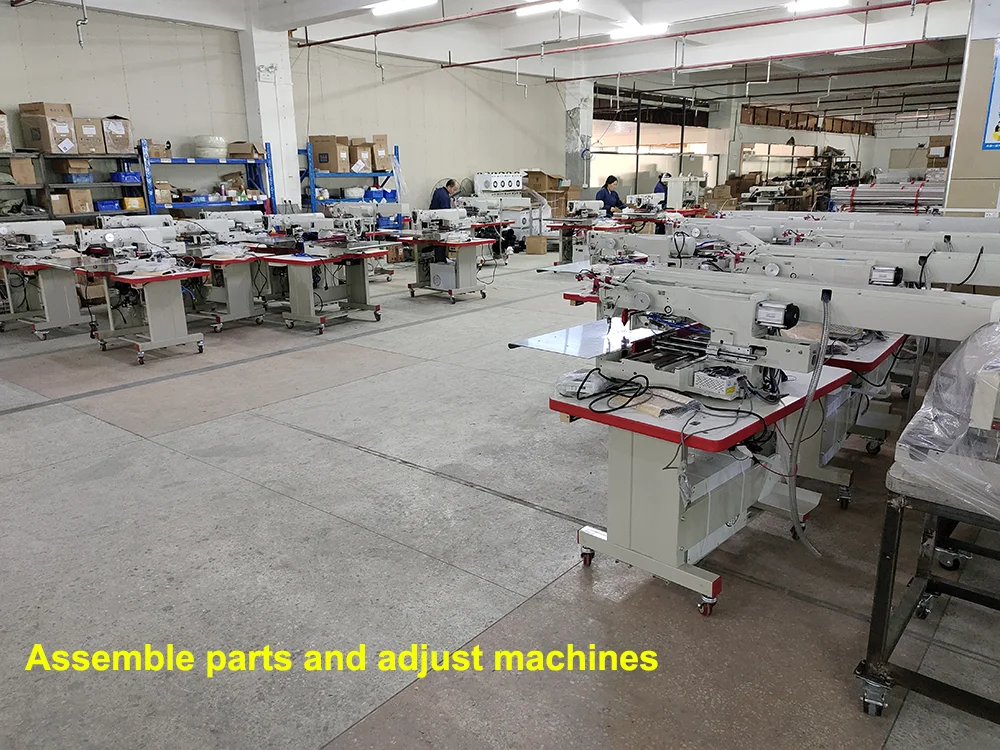

Company Profile








Shenzhen Haobai Technology Co., Ltd. is a manufacturer specializing in the production and sales of computerized pattern sewing
machines, producing models such as

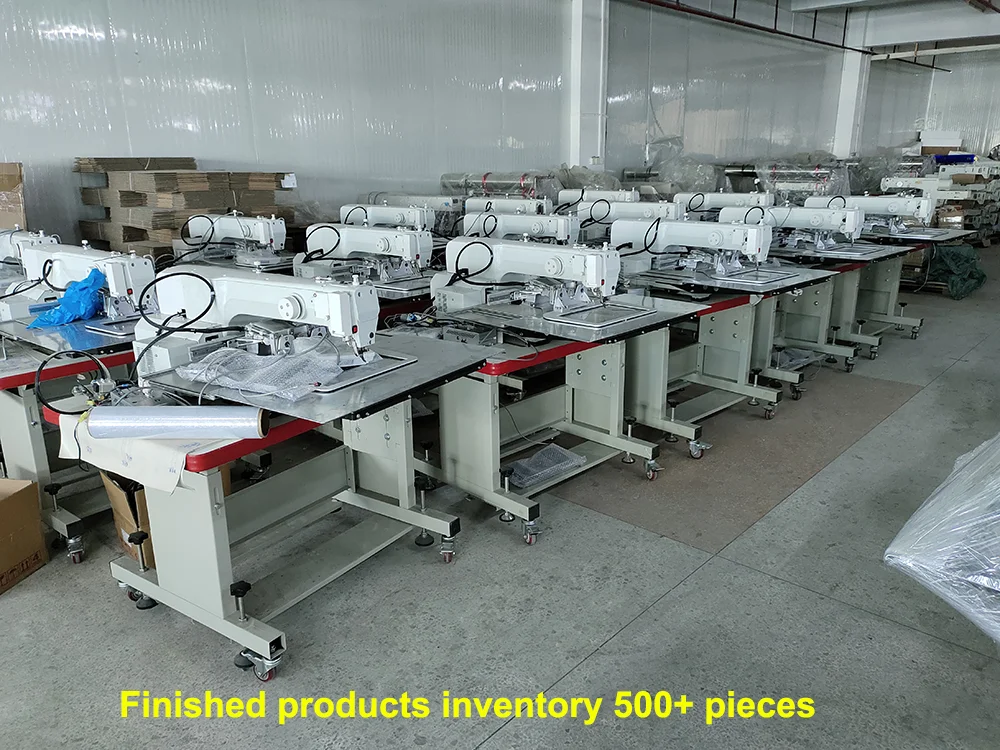

Brother pattern sewing machines and Mitsubishi pattern sewing machines, with a complete range of models. 500 finished products are
in stock in the warehouse, which can be shipped quickly. The computerized pattern sewing machine can be applied to any pattern
sewing of trademarks, Velcro, shoes, jeans, webbing, seat belts, bags and handbags, etc. It has the advantages of fast speed,
standard sewing, beautiful stitching and easy operation.


FAQ


Q1. Are you manufacturer?
Re. Yes. we are manufacturing factory, and we only focus on excellence sewing machine.

Q2. How about your machine quality?
Re. I can not answer to you from our side. But our customers said to us our machine quality is good and high,
use it about two years no change voice and vibration. After you use it, you will more understand our quality.

Q3. How about your price?
Re. Our price is not expensive, but also not very cheap, in generally, quality is better than price

Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.

Q5. What is the shipping port?
Re. We ship the goods via Guangzhou, Shenzhen port or as you like.

Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will
try to accept DP OR DA payment

Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.

Q8. Can you supply spare parts?
Re. Yes, of course we can.

Q9. What guarantee you can supply ?
Re: Limited spare parts 1 year guarantee, not including quick-wear parts, like needle, hook, needle plate.

Q10. Do you have whatsapp, wechat, email?
Re. Email: hawkli188@163.com
WhatsApp / WeChat / Mobile: +86 15710770797
