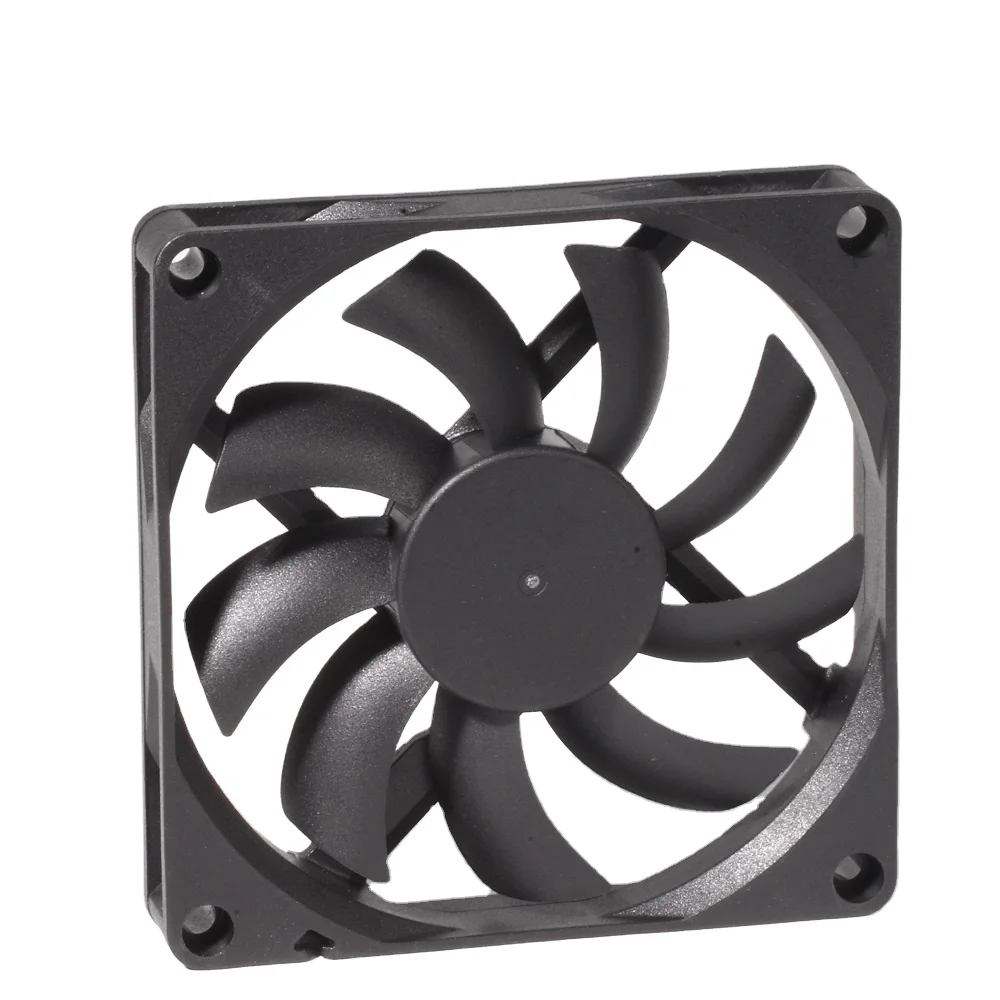

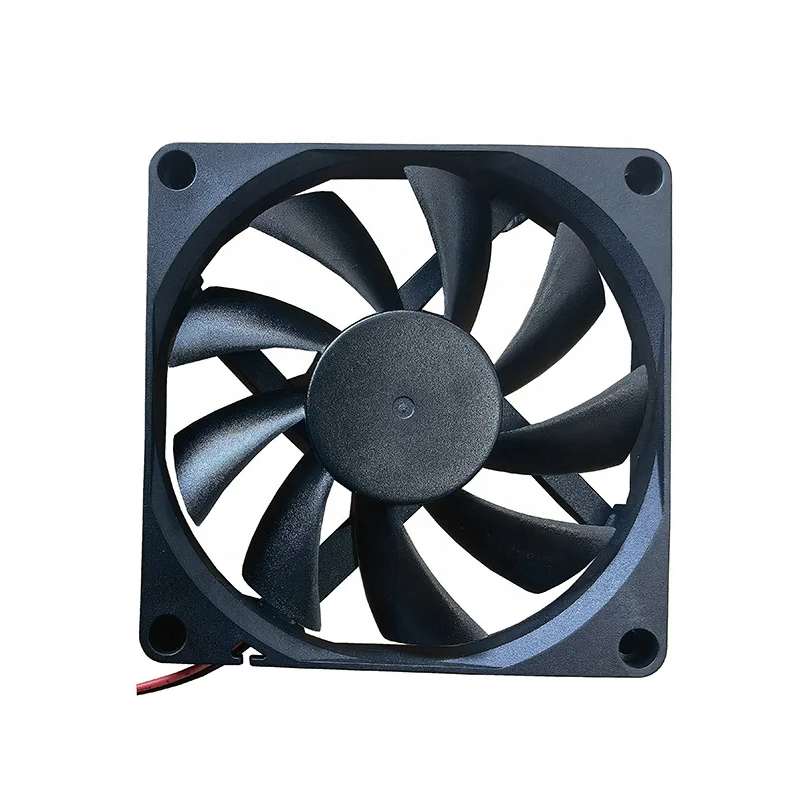

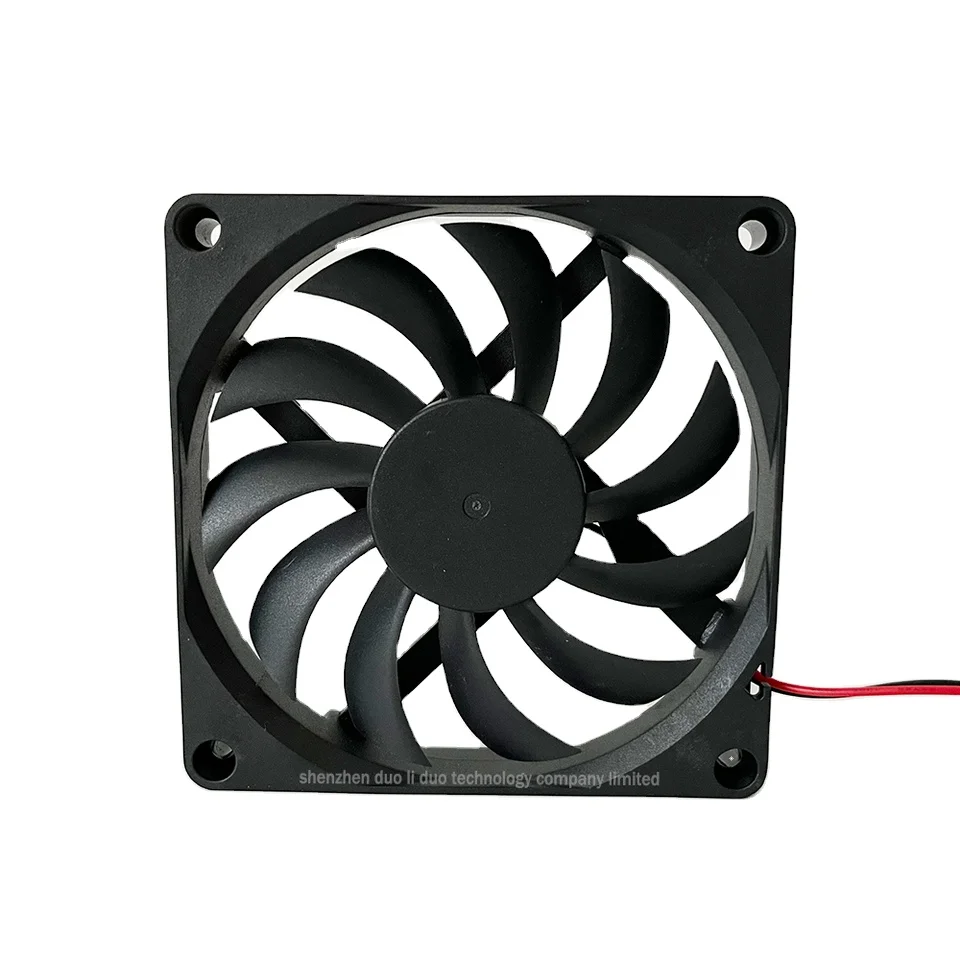

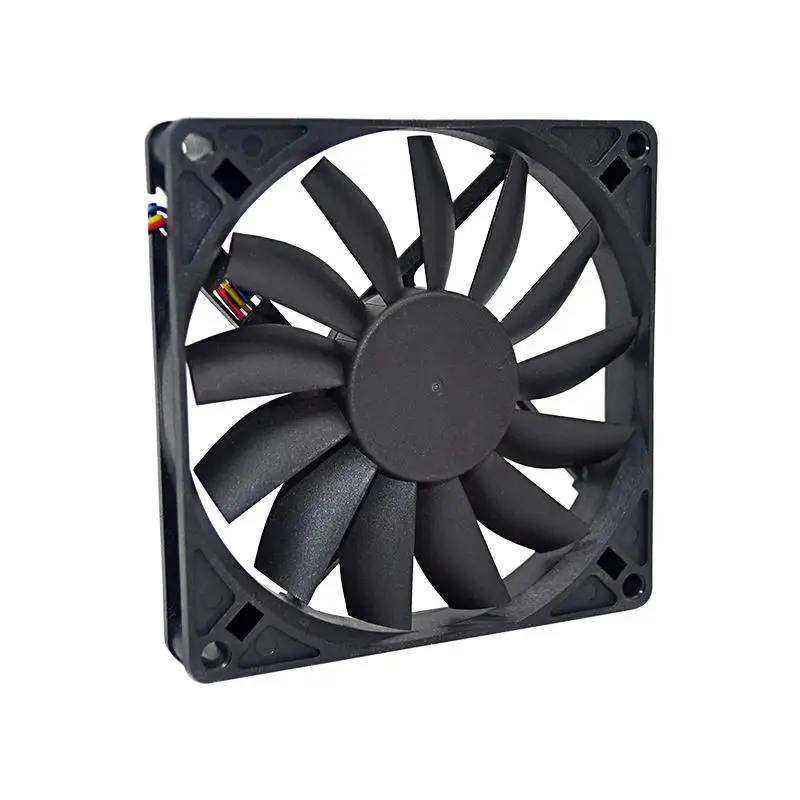

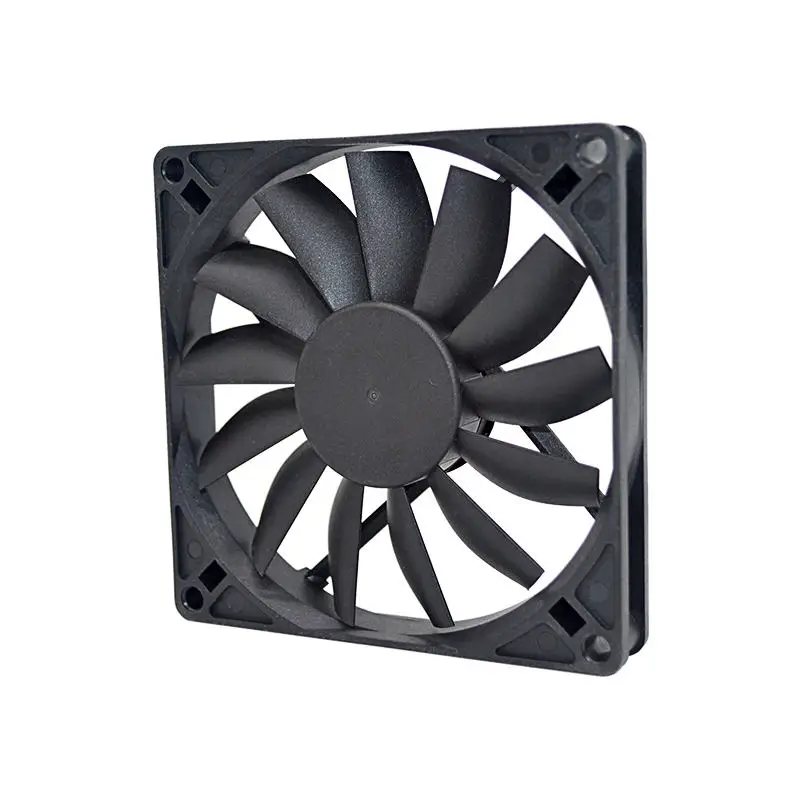

92MM 90MM Dc Motor Axial Cooling Fan 92x92x15 12 Volt Dc Brushless Computer Cooling Fan
- Category: >>>
- Supplier: Shenzhen Feng Huishun Technology Development Co. Ltd.
Share on (1600920535374):
Product Overview
Description
Product Description
Product Name | DC Brushless Fan |
Product Dimension | 92x92x15mm(Length* Width *Thickness) |
Material | Plastic Blade and Plastic Frame |
Voltage | DC 24V (12V 4824V Optional, Accept Customized requirement) |
Max Speed | 3000RPM |
Max Air Flow | 28.6CFM |
Noise Level | 32.8 dB-A |
Bearing Type | Double ball bearing |
Storage temperature range | -40~+80 C° |
Operating temperature range | -10~ +70 C° |
Life Expectancy of Ball Bearing | 7,0000 HR at 25 degreess; 50,000 HR at 40 degreess; |
Weight | 70g |
Package | Carton box,we can also according to the requirements of customers. |
Details Images
Product Specification
The specifications of some models are as follows:
Model | Bearing Type | Rated Voltage | Operating Volt | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | ||||||||
Part NO. | B.S.Y | VDC | VDC | Amp | Watt | RPM | CFM | Pa | dB-A | ||||||||

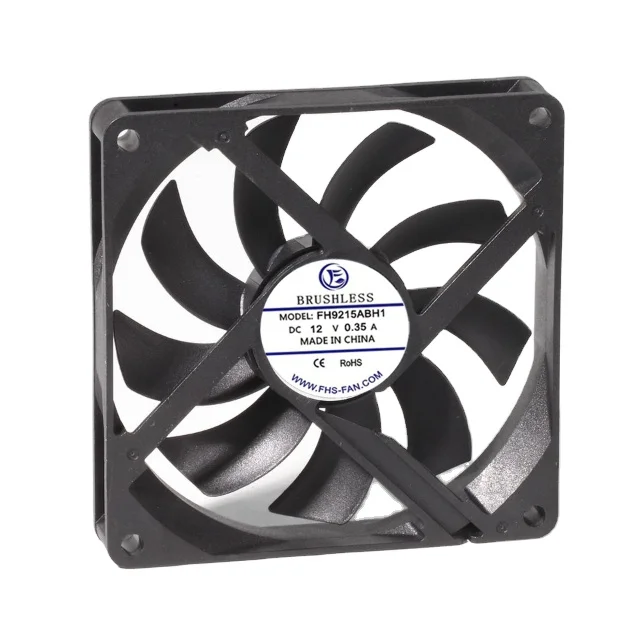

FH9215AB(S)H1 | B/S | 12 | 7.0-13.8 | 0.35 | 4.20 | 4000 | 54.73 | 29.8 | 32 | ||||||||
FH9215AB(S)M1 | B/S | 12 | 7.0-13.8 | 0.25 | 3.00 | 3000 | 46.46 | 20.7 | 28.6 | ||||||||
FH9215AB(S)L1 | B/S | 12 | 7.0-13.8 | 0.16 | 1.92 | 2000 | 39.87 | 16.4 | 25.9 | ||||||||
FH9215AB(S)H2 | B/S | 24 | 14.0-26.8 | 0.25 | 6.00 | 4000 | 54.73 | 29.8 | 32 | ||||||||
FH9215AB(S)M2 | B/S | 24 | 14.0-26.8 | 0.20 | 4.80 | 3000 | 46.46 | 20.7 | 28.6 | ||||||||
FH9215AB(S)L2 | B/S | 24 | 14.0-26.8 | 0.08 | 1.92 | 2000 | 39.87 | 16.4 | 25.9 | ||||||||
More Models | Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs | ||||||||||||||||

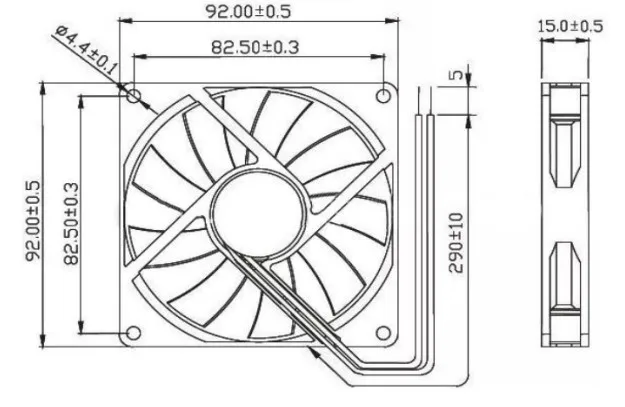

Dimensions(Unit：mm)
Others products：

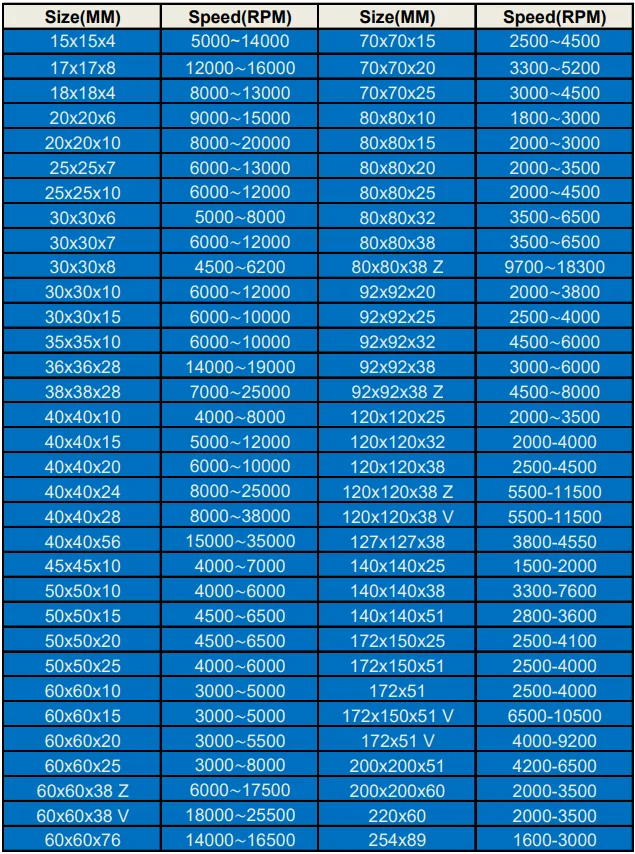

The DC fan sizes from 15mm to 254mm are available for your choice. We can aslo deisgn and developm customized product.
Recommend Products

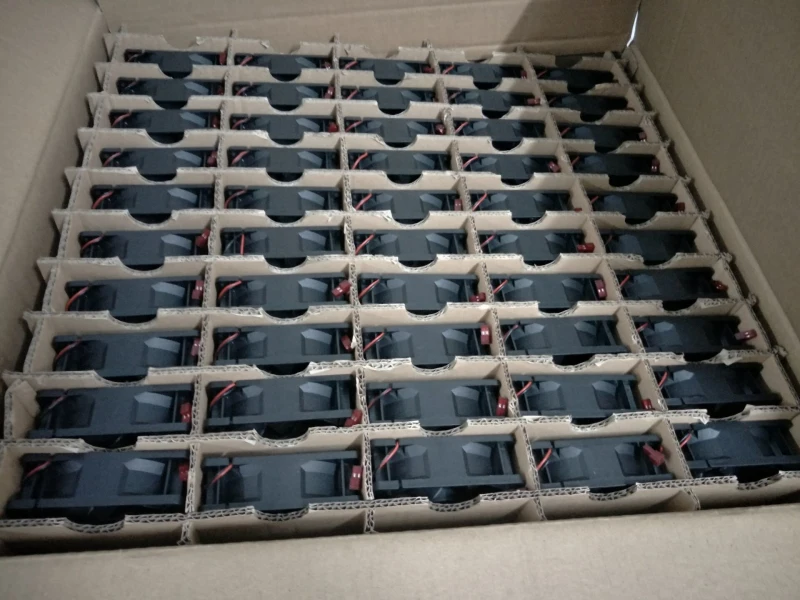

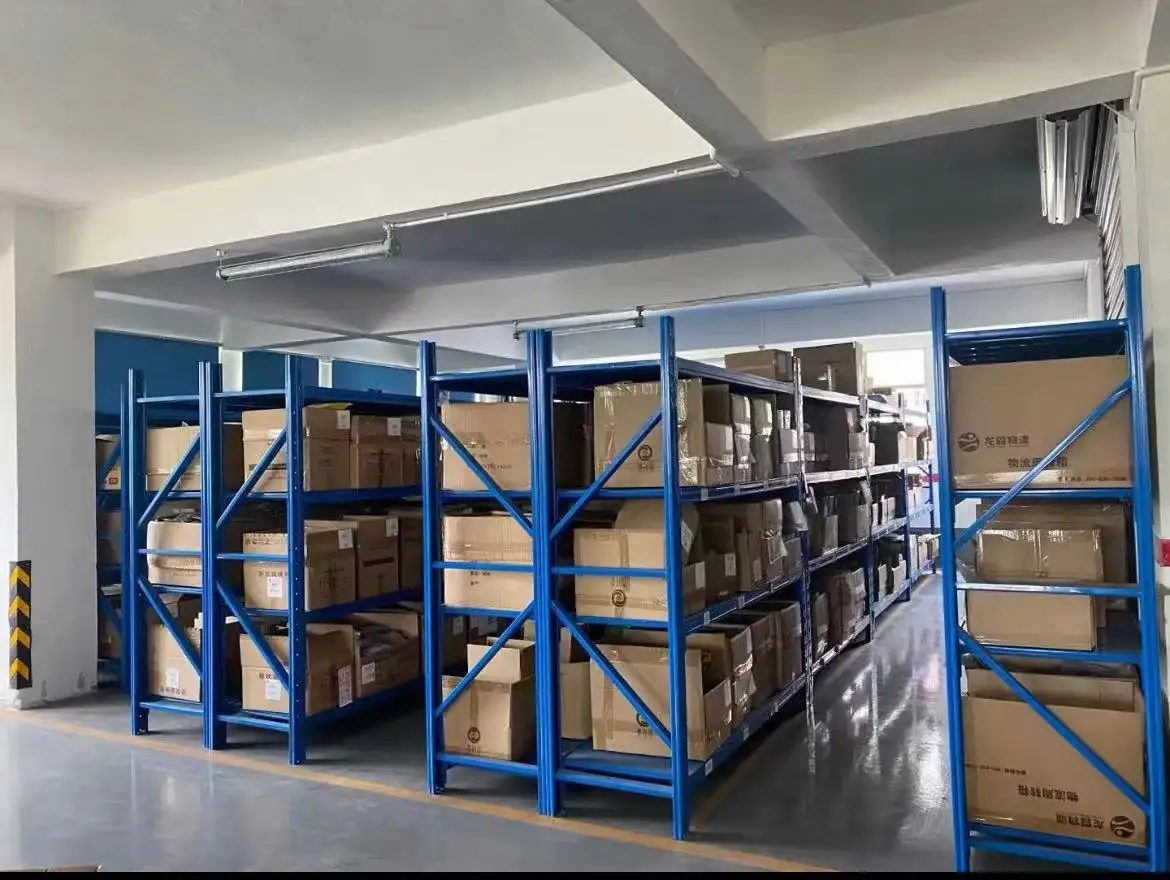

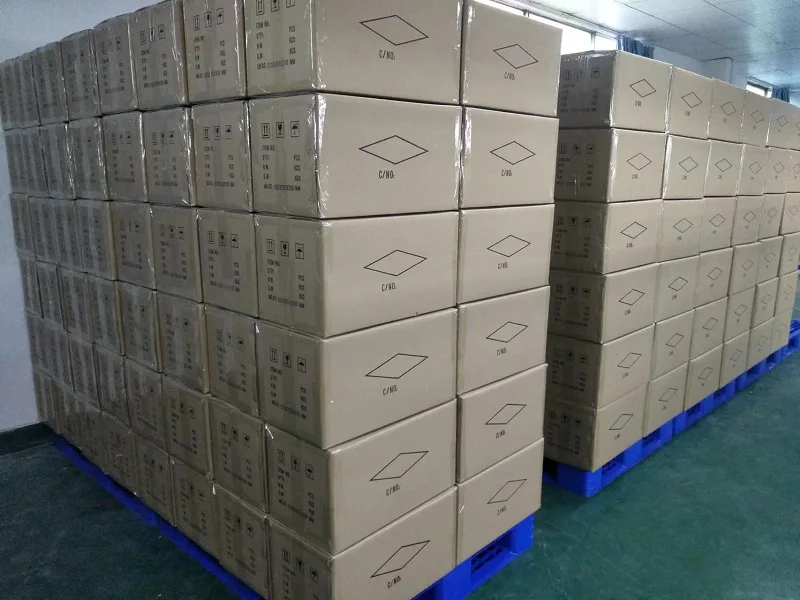

Packing&Shipping
1. Standard Packaging, inside single package, out carton package.
2. Upon customers' request, but the price is different with neutral packing.
Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.
Our Advantages
Our Services & Strength
Our products has the following advanges:
1. Fan with large air volume,low noise, long life (according to your requirements) fire,water,corrosion-resistant and so on.
2. We have a strong design capability,according to customer requirements design and manufacture of special fan.
3. We understand te specific needs of fans in various industries and can provide you with a variety of standard products to choose from.
4. Our fans using high-quality bearings, silicon steel, enameled wire, with higher reliability.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
5.1 Incoming inspection (including inspection of frame blade, fan blade and other parts).
5.2 Semi finished products (mainly motor stator assembly test).
5.3 OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)
5.4 Aging test (about 2-3 days).
5.5 Random sampling inspection.
5.6 Double layer customized packaging (mainly to ensure that customers can receive goods intact)
6. We provide thoughful and meticulous service,as well as fast on-time delivery.
7. We can deisgn and developm customized product.We are able to research best solutions for customers if needs.
FAQ
1. What are kinds of cooling fan or centrifugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.
Answer: we offer an 12 months warranty and on line engineer support.
7. Can you produce according to the samples?
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
