Hdpe Ldpe Bottle Washing Plant Pp Woven Bags Recycling Washing Machine with centrifugal dryer
- Category: >>>
- Supplier: Zhangjiagang Greenlandplast Machinery Co. Ltd.
Share on (1600920572298):
Product Overview
Description
Product Overview
Waste plastic washing and drying line polythene recycling machine waste plastic crushing and washing machine
The HDPE Bottles ,Jerry Cans Crushing Washing Recycling Machine is mainly used for waste HDPE/LDPE/PP bottle,drum,pallet, crushing, washing recycling.

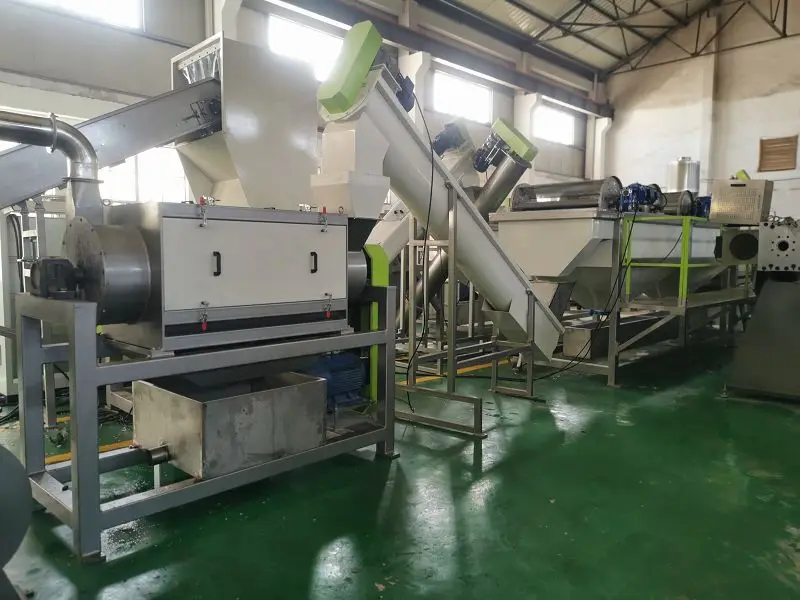

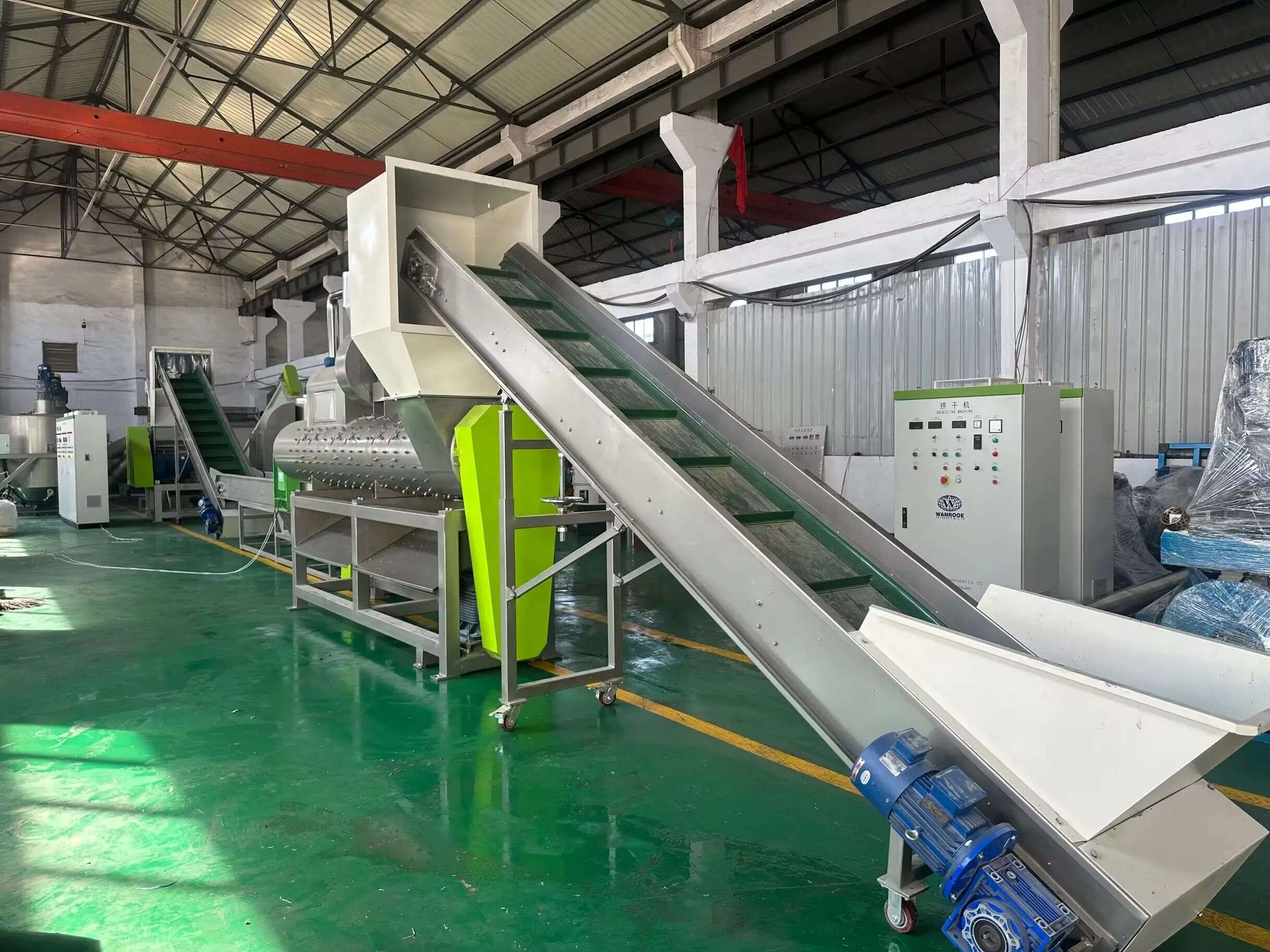

The production line includes conveyor ,crushing (with water), rinsing, high-speed friction washing, dewatering, drying, collection and packaging systems;
According to the size of the raw materials and the difficulty state of crushing, single shaft shredder or double-shaft shredder can be installed optionally before crusher, to increase the output of the crusher, thereby increasing the final output of production line.
Production line scheme can be specially designed according to the pollution state of customer's raw material ,the quality requirements of the finished product.
The production line includes conveyor ,crushing (with water), rinsing, high-speed friction washing, dewatering, drying, collection and packaging systems;
According to the size of the raw materials and the difficulty state of crushing, single shaft shredder or double-shaft shredder can be installed optionally before crusher, to increase the output of the crusher, thereby increasing the final output of production line.
Production line scheme can be specially designed according to the pollution state of customer's raw material ,the quality requirements of the finished product.
PRODUCT SPECIFICATIONS
Model | Capacity | Total power | Water supply | Labor | Area required |
GLW-300 | 300kg/h-500kgh | 130KW | 5-6 ton/h | 1~2 | 38*4.5*5m (L*W*H) |
GLW-500 | 500kg/h-000kgh | 145KW | 6-8ton/h | 1~2 | 38*4.5*5m (L*W*H) |
GLW-1000 | 1000kg/h- 2000kgh | 190KW | 8-10 ton/h | 2~3 | 43*5*5m (L*W*H) |
PRODUCT CONFIGURATION

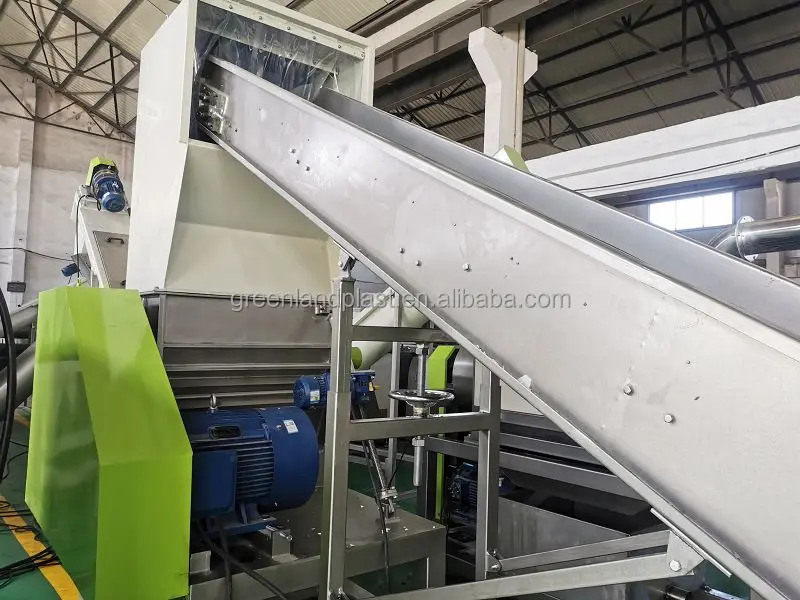

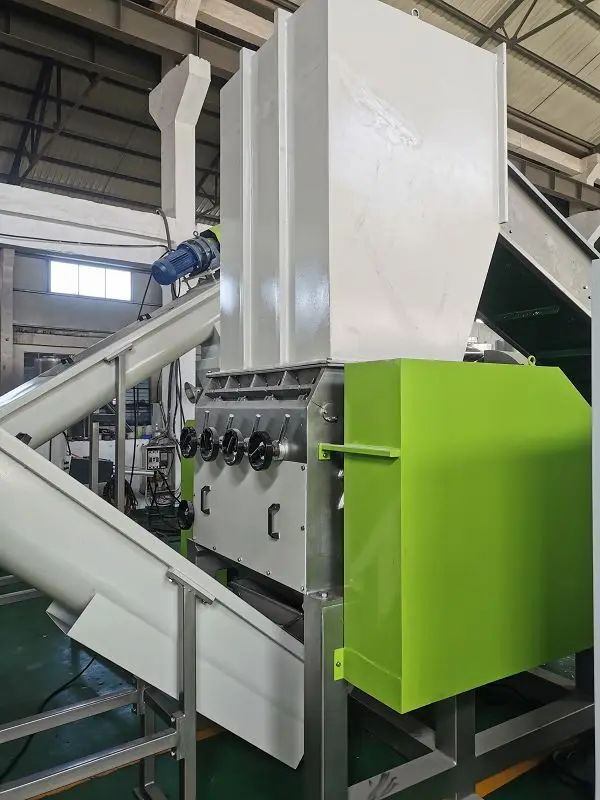

Crusher
SKD-11 quality material blade,
with water flushing function

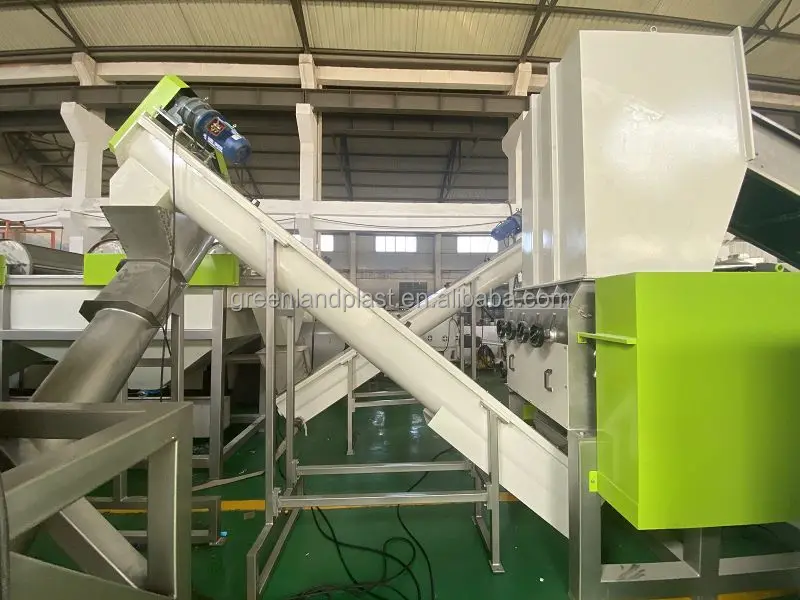

Screw Loader
Stainless steel 304 quality ,to convey crush
flakes into next process

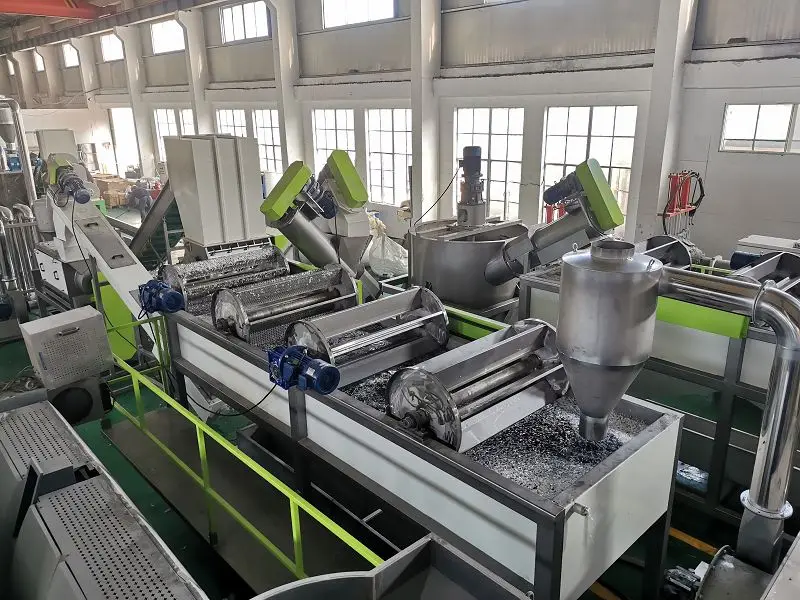

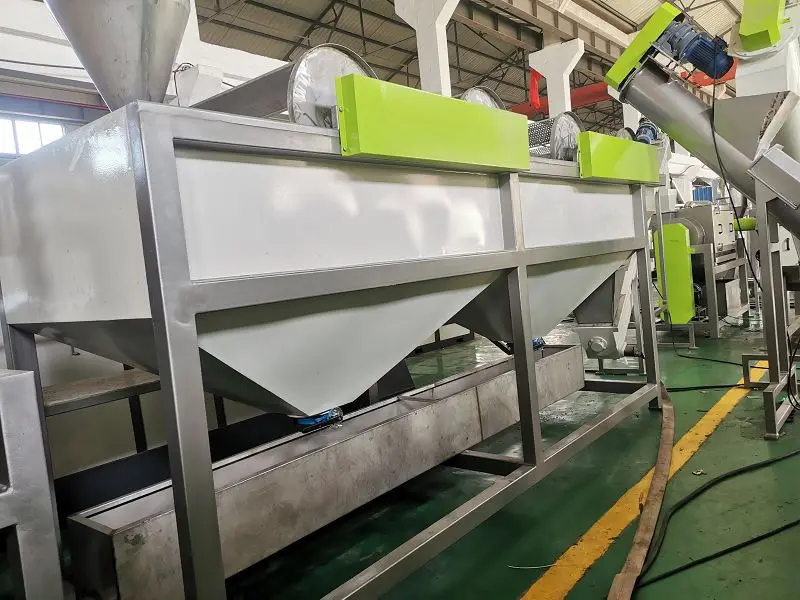

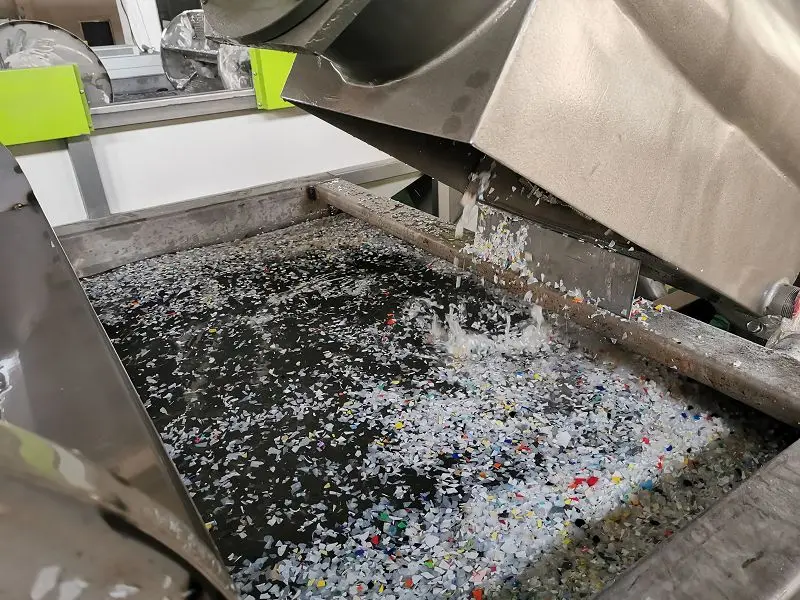

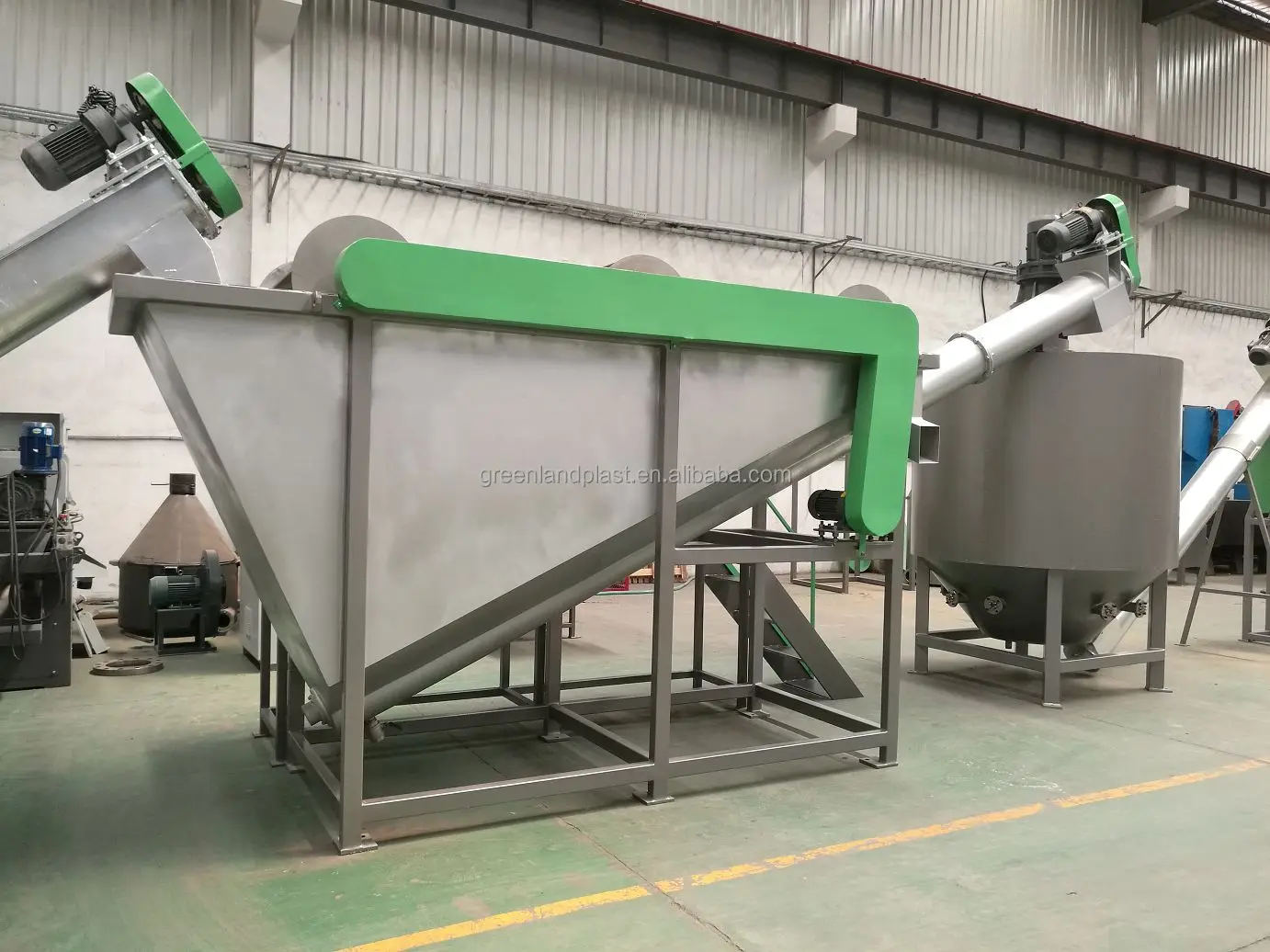

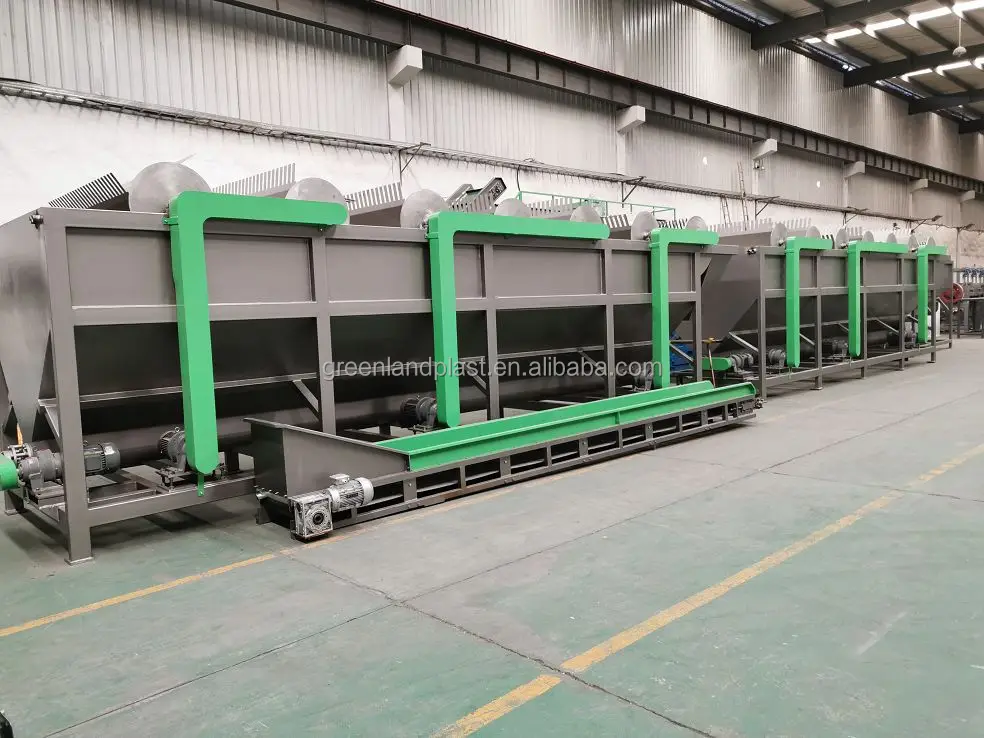

Floating washing tank
stainless steel 304 quality material

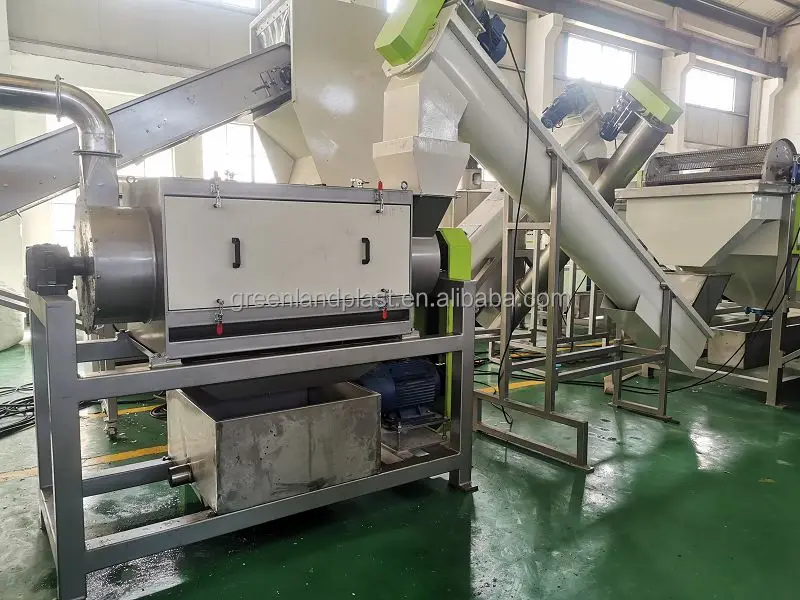

High speed friction washing machine
clean crushed flakes by high speed rotation's sefl friction ,very important process of plastic washing recycling line

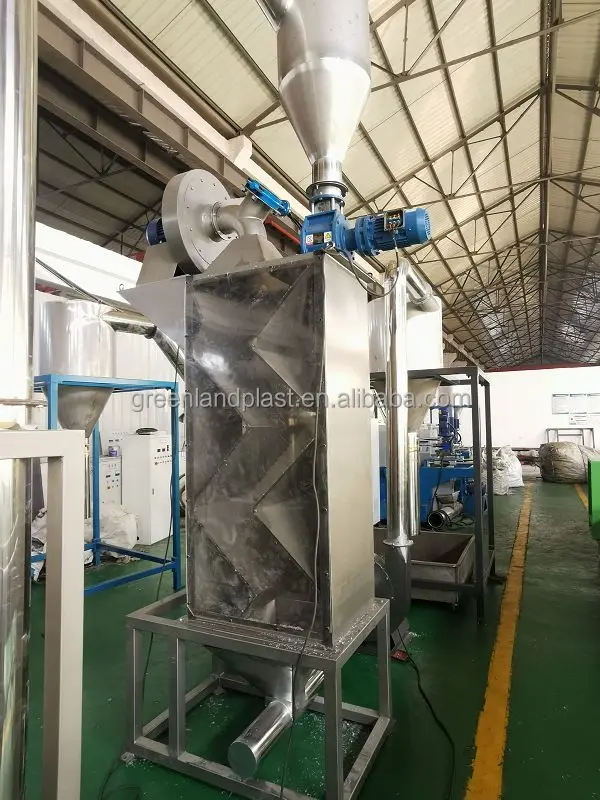

Label inhaling machine
to get rid of unnecessary chips further step
SIMILAR PRODUCTS
Why Choose Us
Technical innovation ,Quality first
Greenlandplast Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
