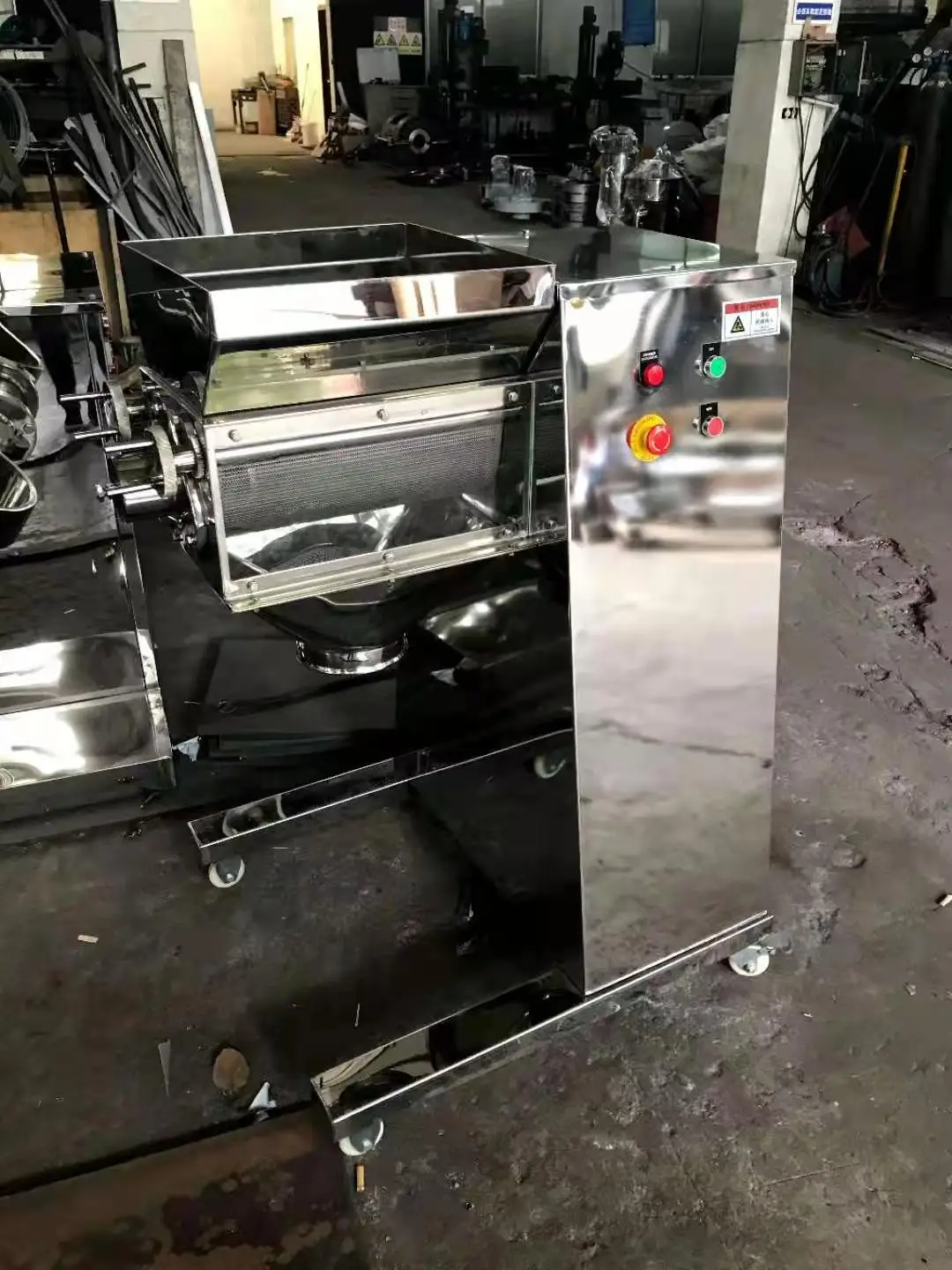

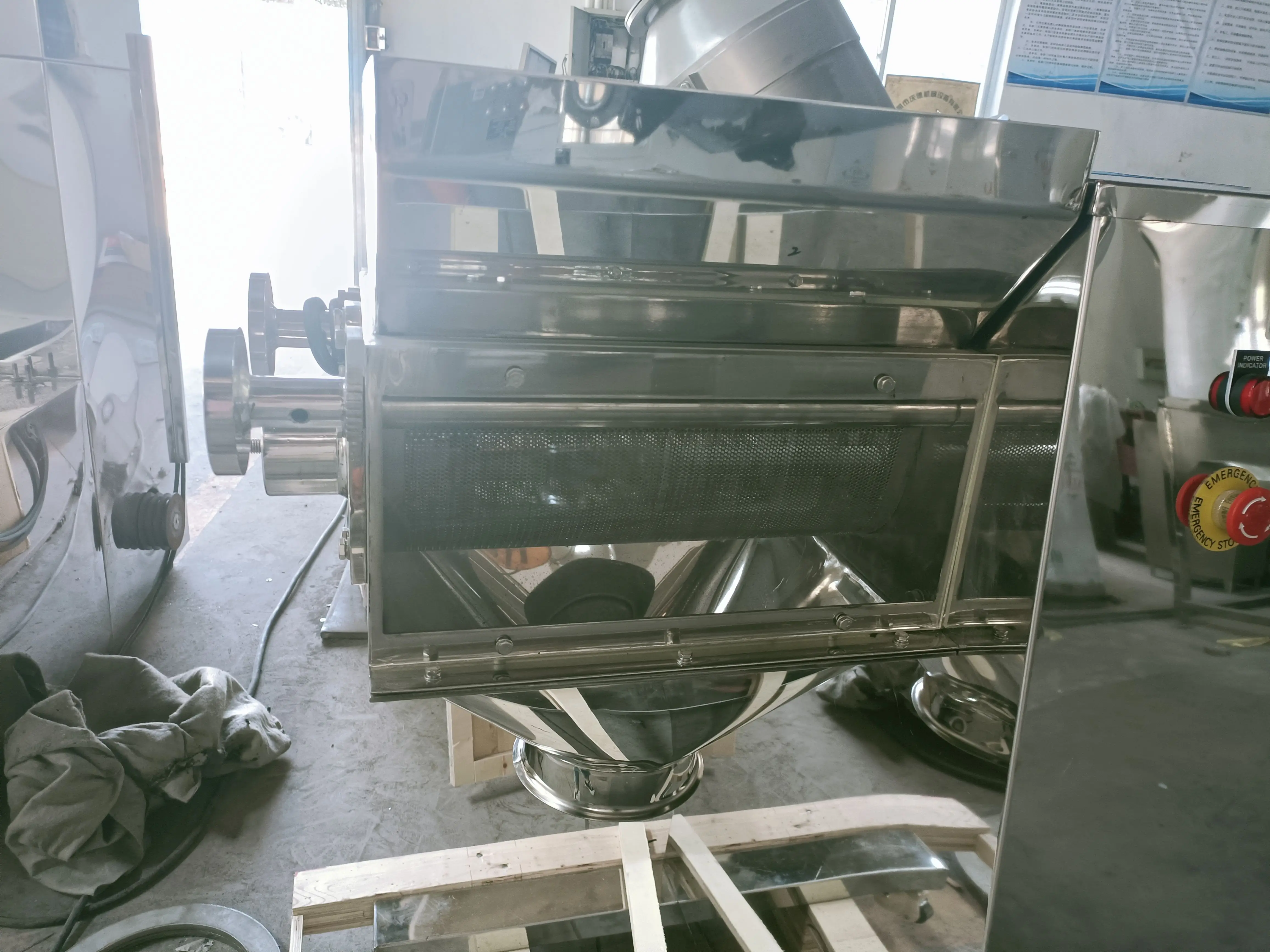

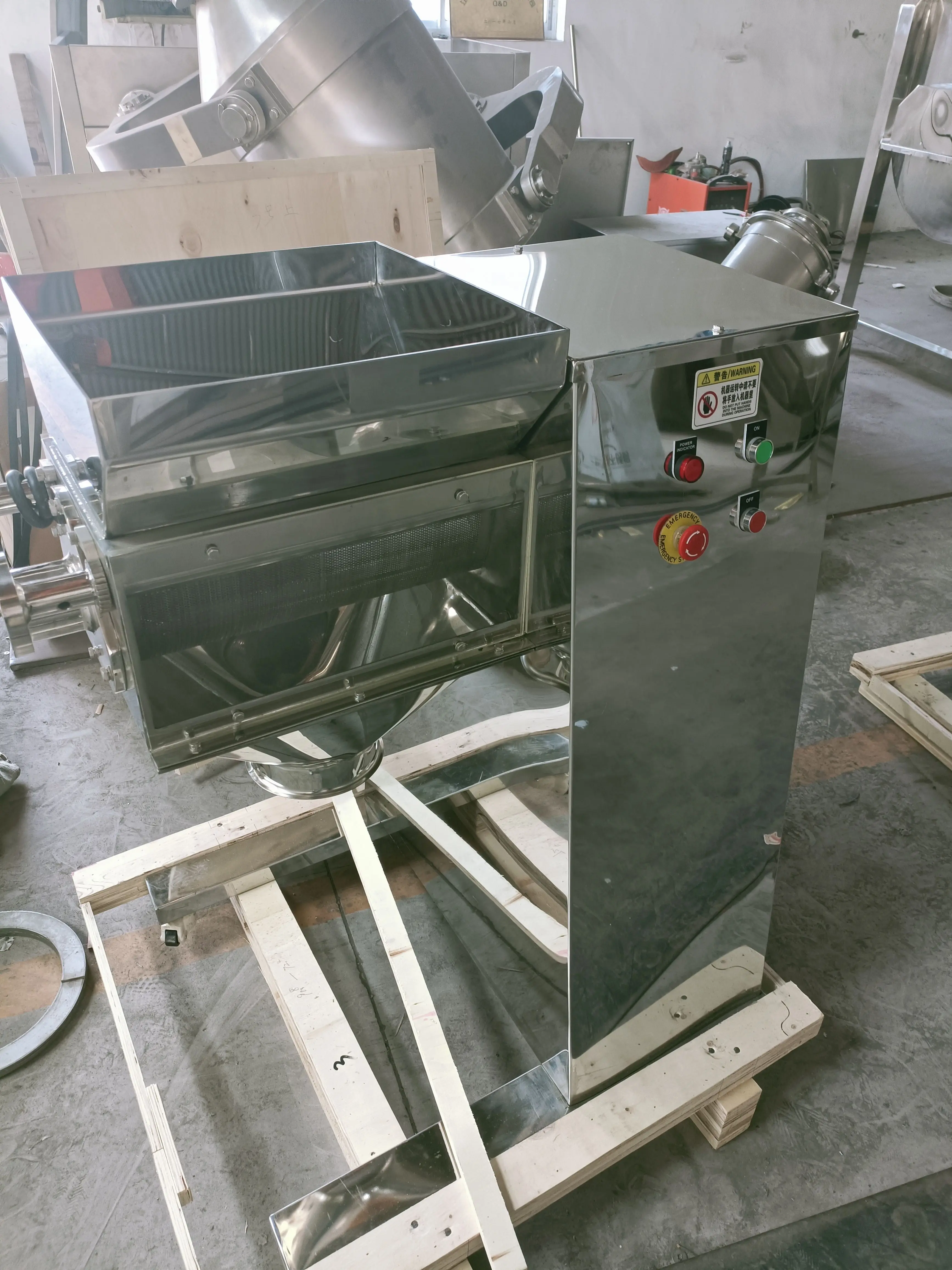

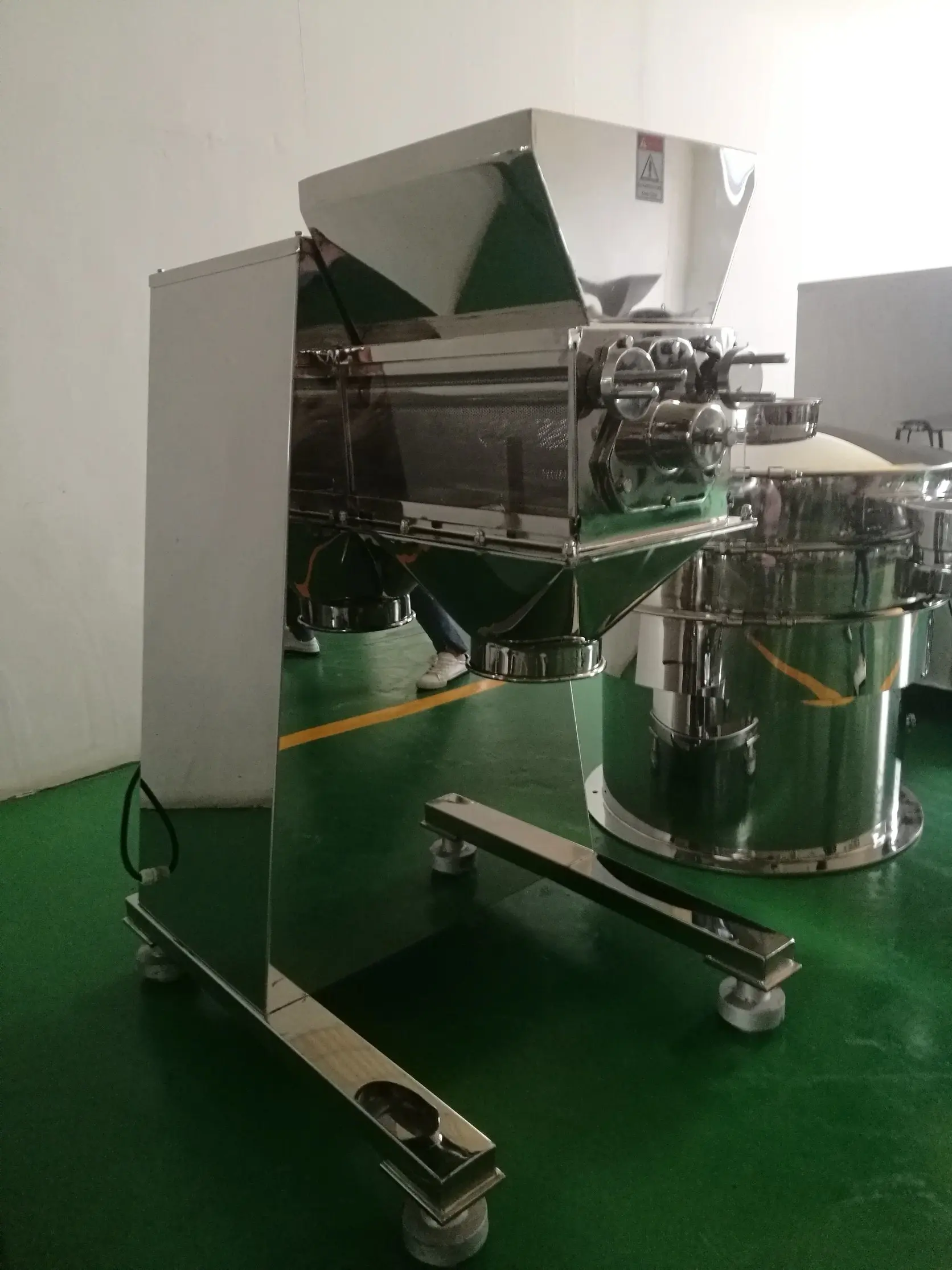

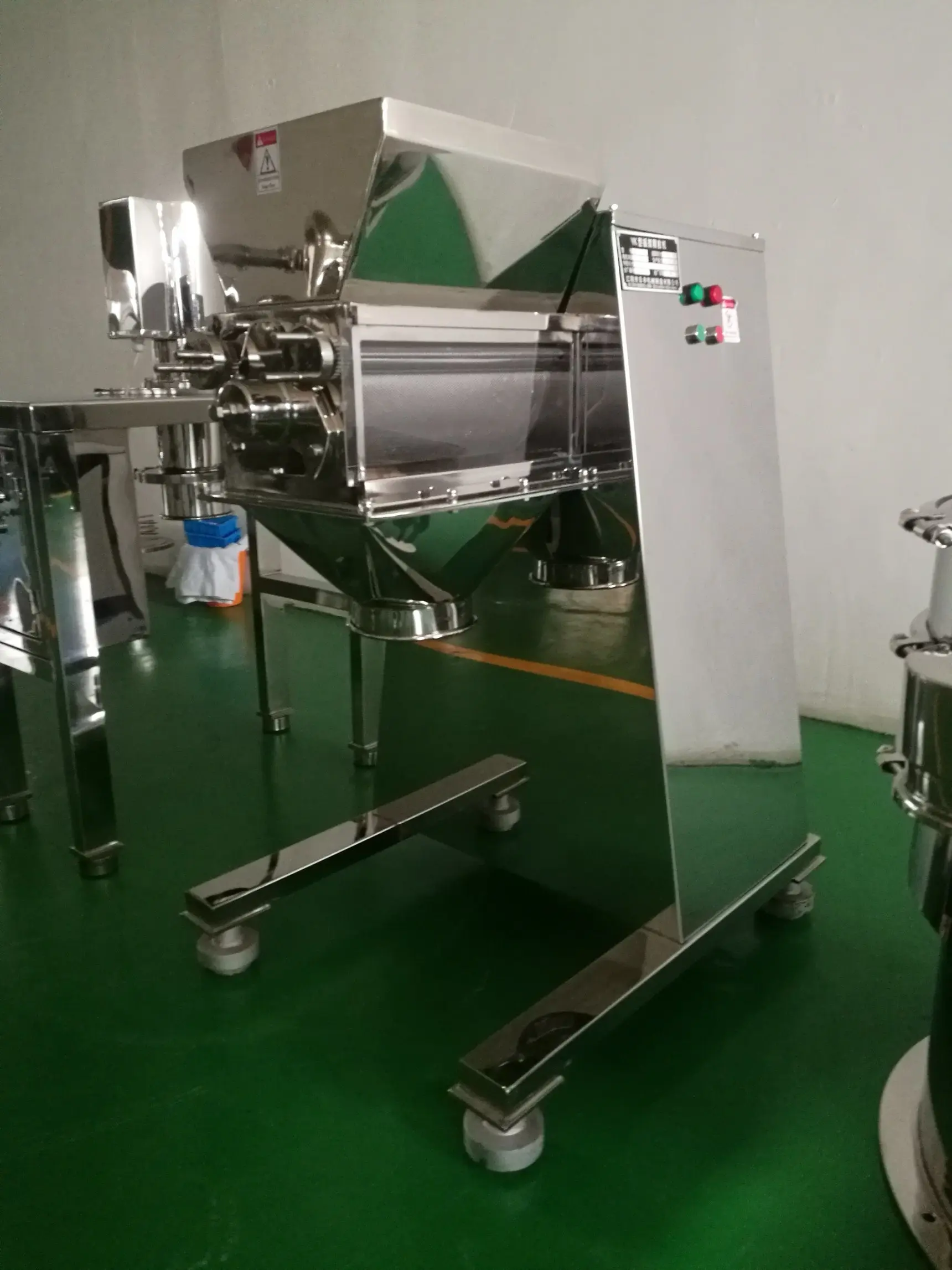

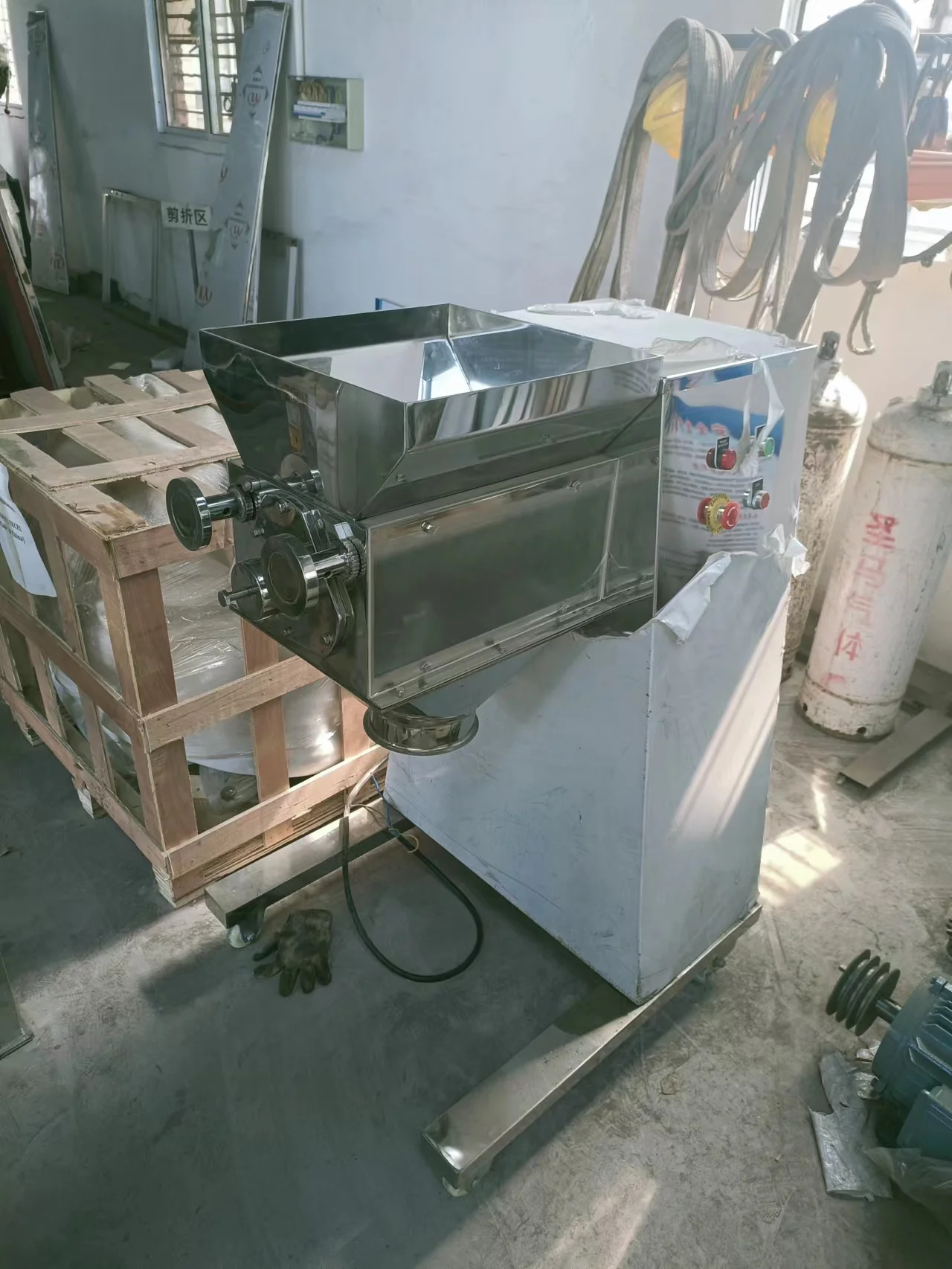

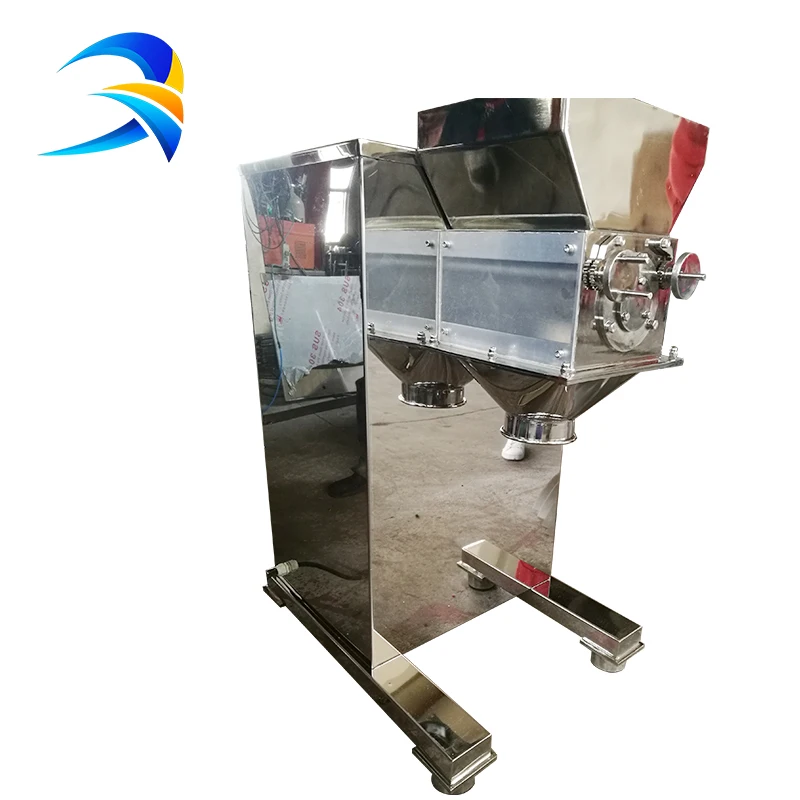

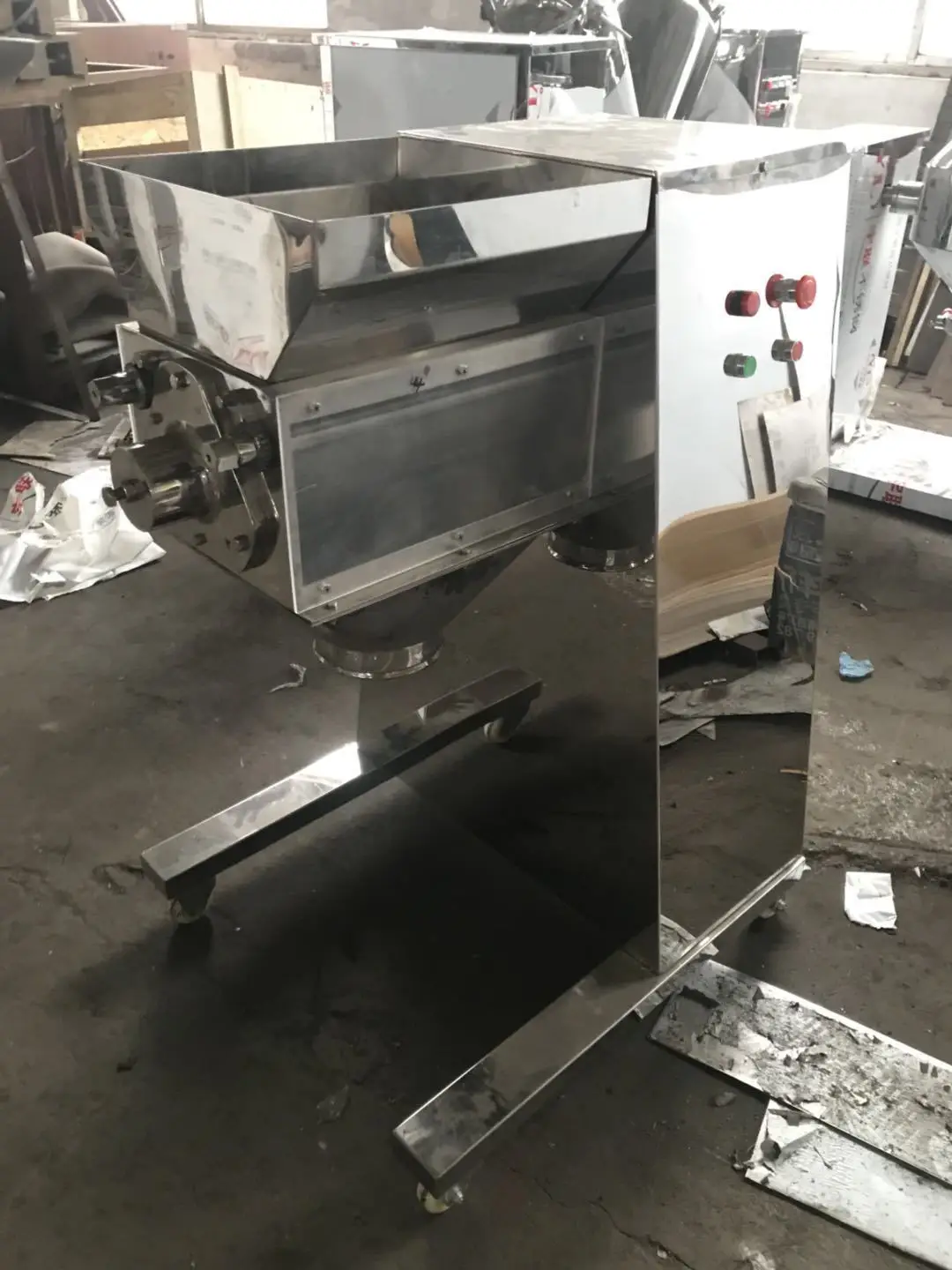

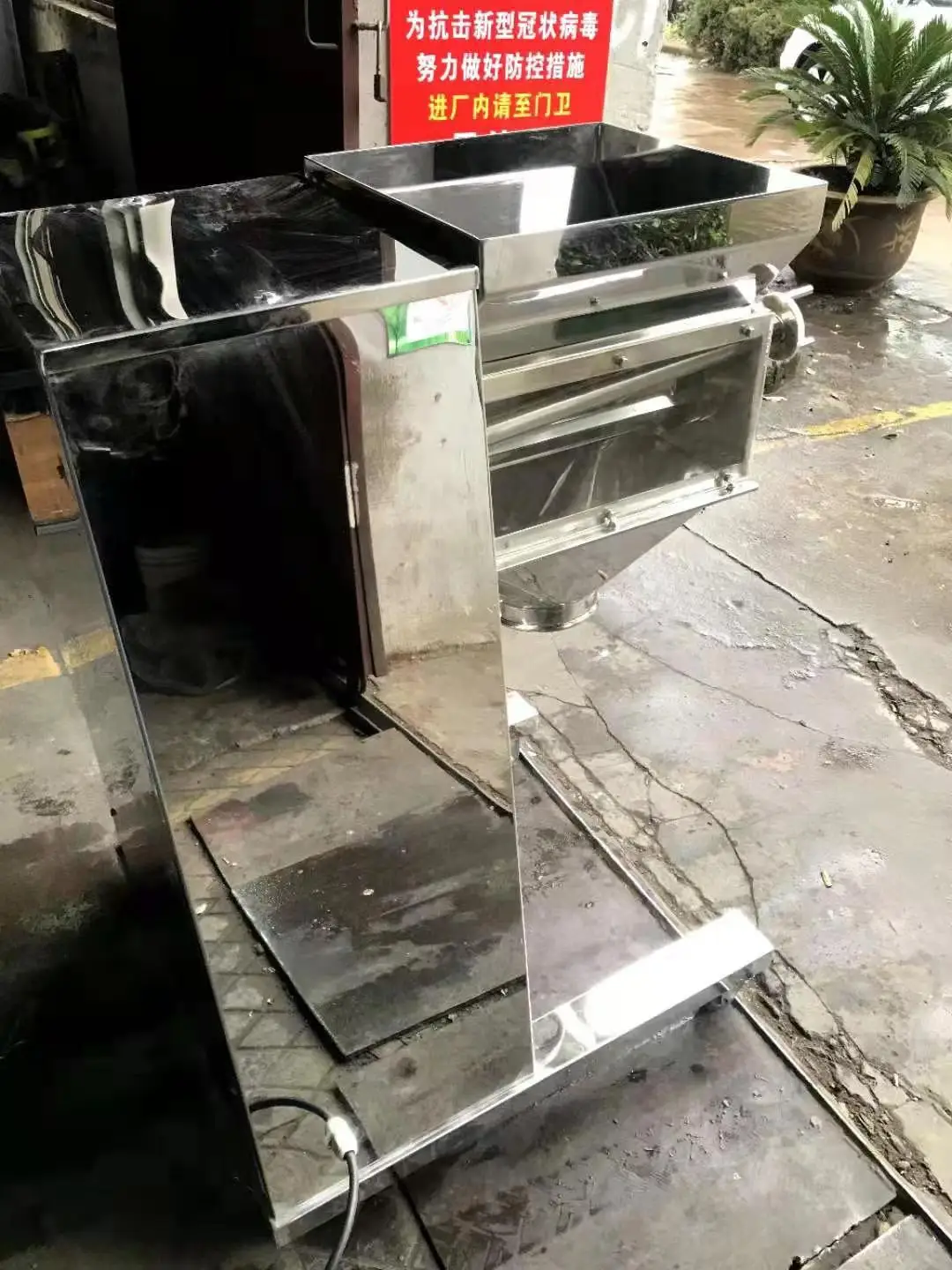

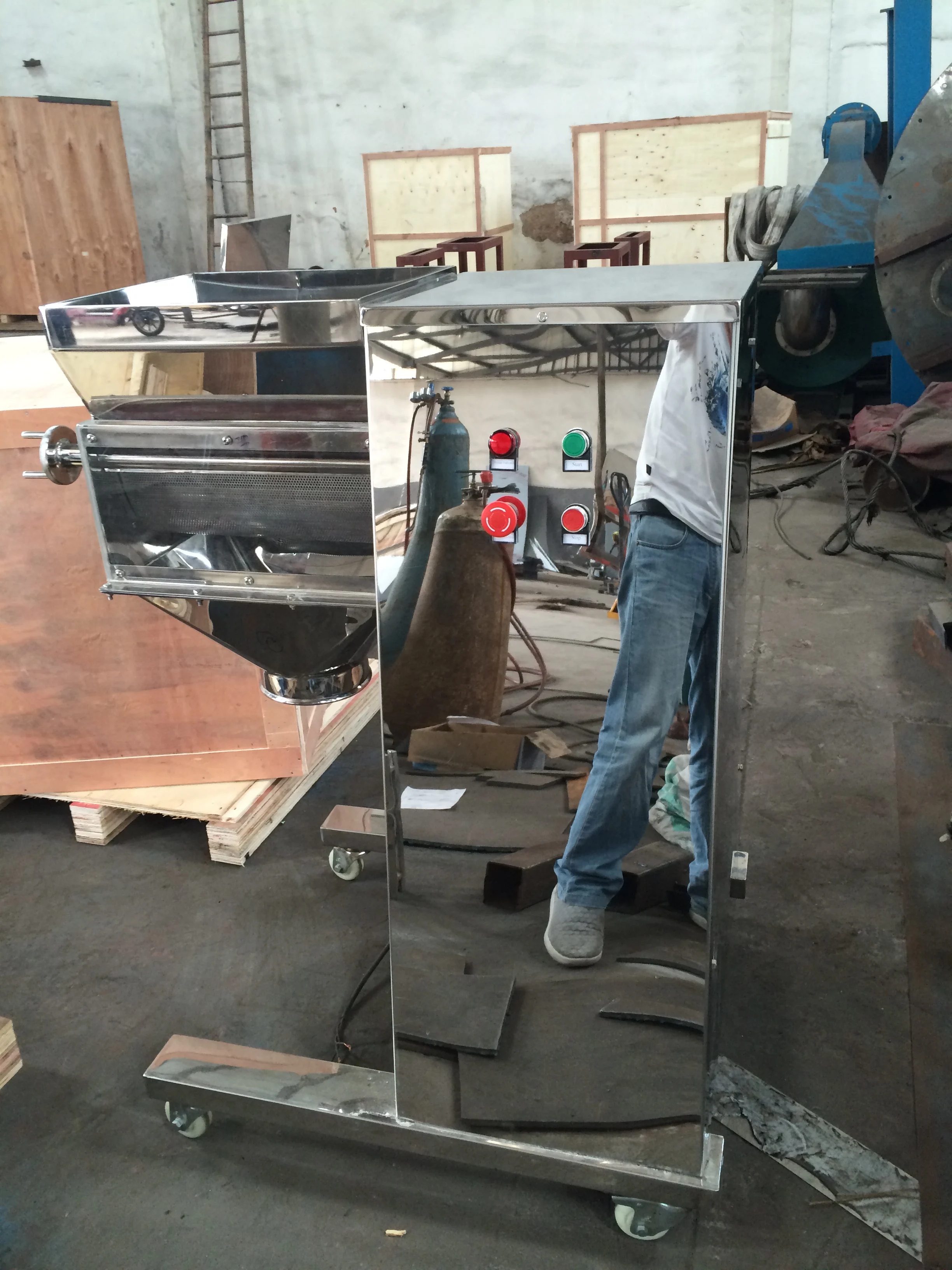

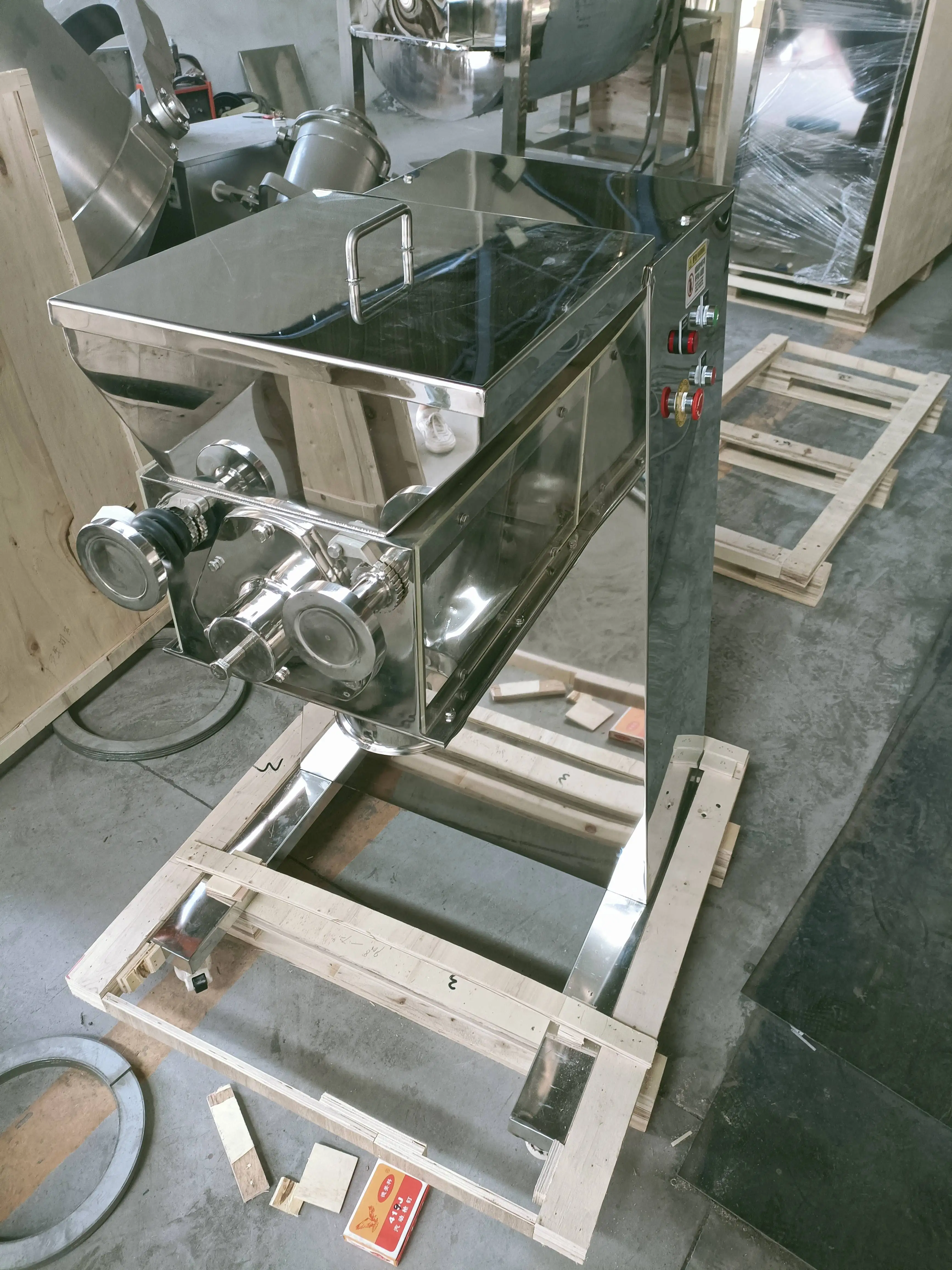

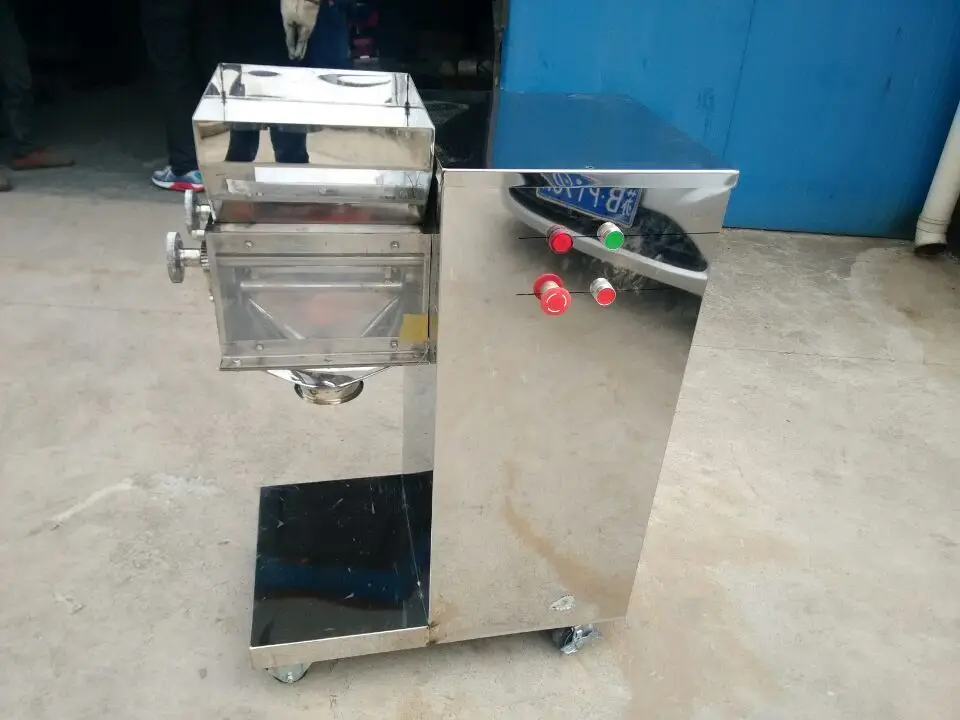

YK Series Swing Granules Maker
Main application
The machine can make granules from wet powder materials or break down the dry lumpish material, which is widely used by the industries of chemical and foodstuff.

Working Method

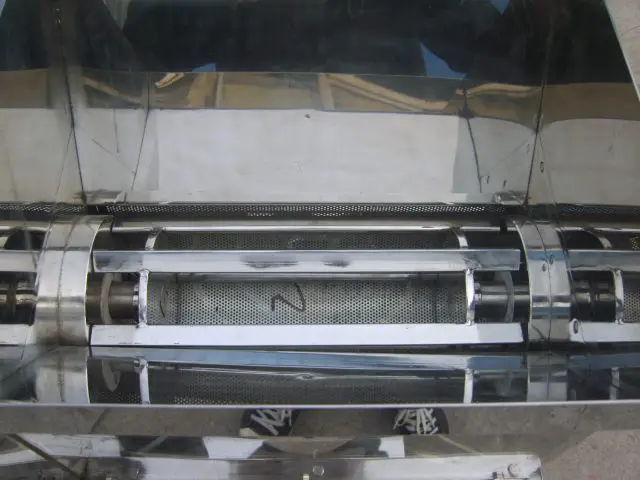

By driving of mechanism, the cylinder is swinging to-and-fro to force the target material squeezed from sieve to make out granules or to smash it as granules.




MODEL
60
100
160
Capacity（kg/h）
20-50
30-200
50-300
Motor power（kw）
0.37
1.1
2.2
Cylinder speed（r/min）
46
55
55
Swing angle（° ）
360
360
360
Cylinder diameter（mm）
Ф60
Ф100
Ф160
Weight（kg）
55
280
450
Overall size（L×W×H）（mm）
460*550*570
700×600×1050
1000×800×1300

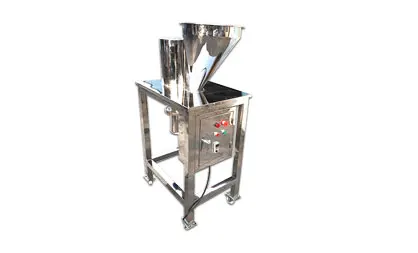

FZ GRINDING &GRANULATE MACHINE
1.raw material grinding, wet process of granules, dry material granulation, For those tablets not in requirement,they can
be recycled according to the size of particles.
2.Foodstuff: for the reuse of biscuits
3.Others: for the grinding and granulation of coarse materials, block materials and agglomerated materials.




V SHAPE MIXER
1.Suitable for mixing dry material powder in food and chemical industry.
2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.

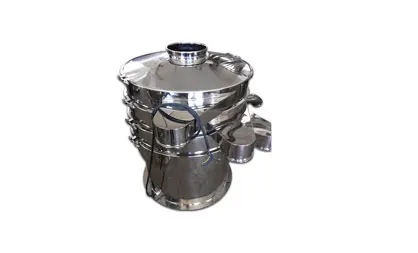

ZS SIFTING MACHINE
1.The machine is applied for the sorting of the
granule size of dry power material in the trades chemical and foodstuff etc.
2.Can be used for single screen or multi screen sorting, easy operation and maintenance, smooth operation. Low noise, wide applicability and so on.

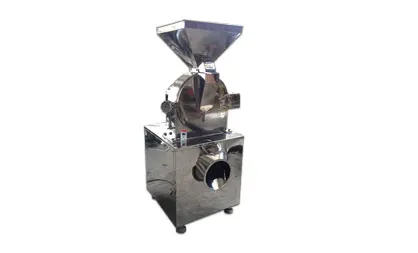

UNIVERSAL PULVERIZER
1.With water cooling system, widely used in food, chemical industry.
2.Simple operation, powder can reach 100-120 mesh after crushing. By changing the screen to obtain different sizes of powder.




WQJ TO&FROM CUTTING MACHINE
1. This machine is suitable for cutting root, obsolete and leaf of Chinese herbal.
2. It Can also be used for food cutting, such as tobacco, tea, kelp and so on.
