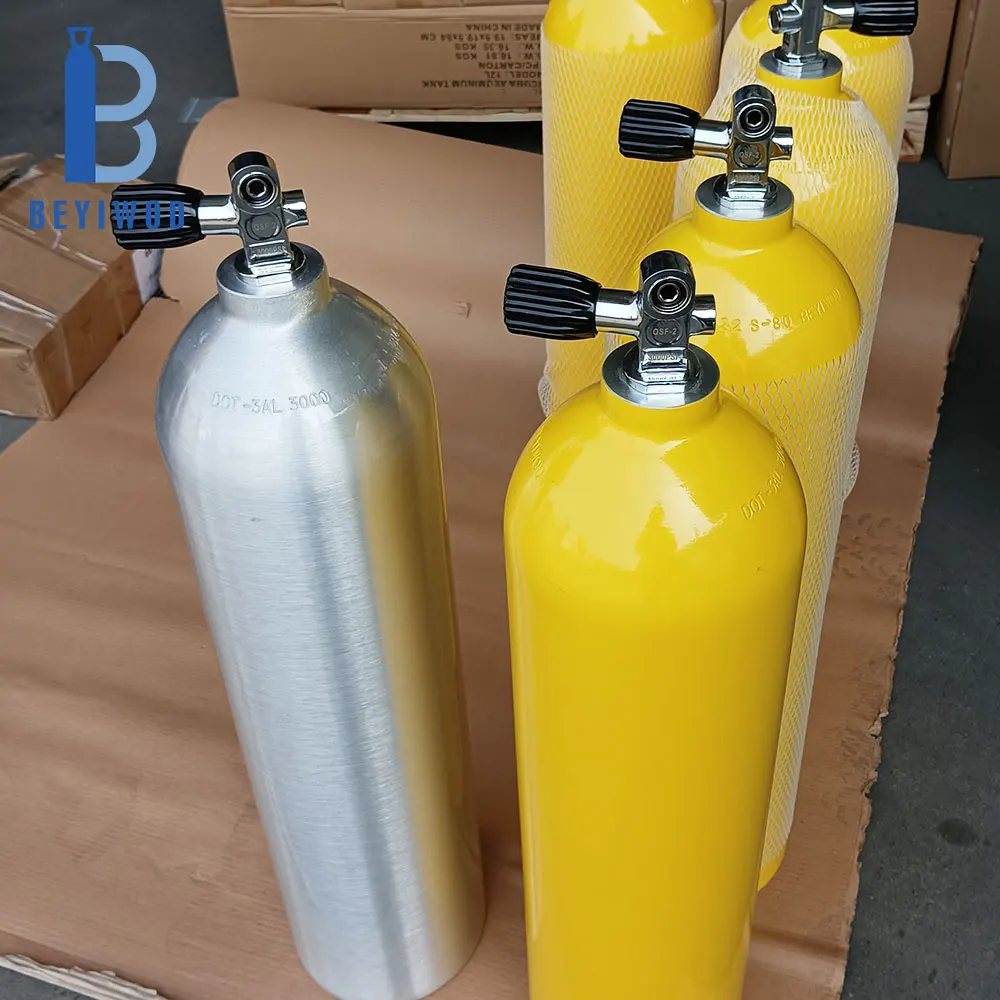

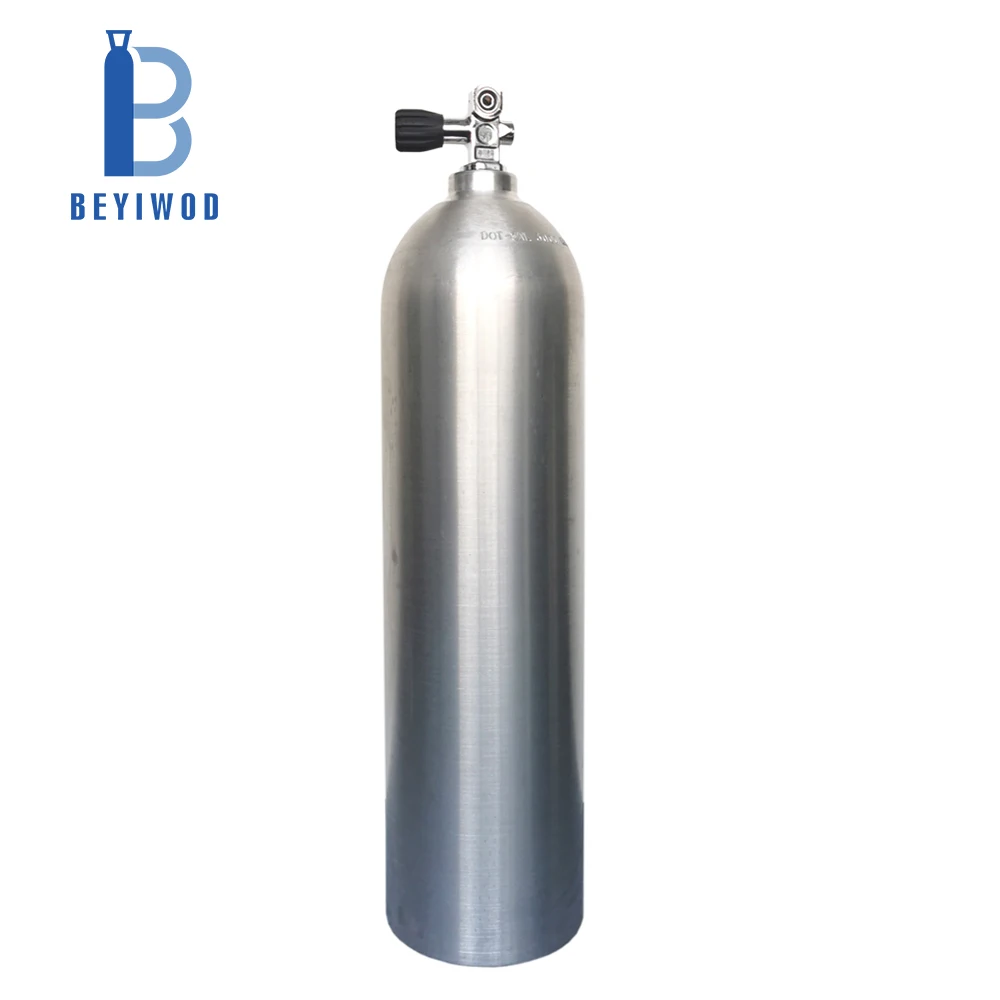

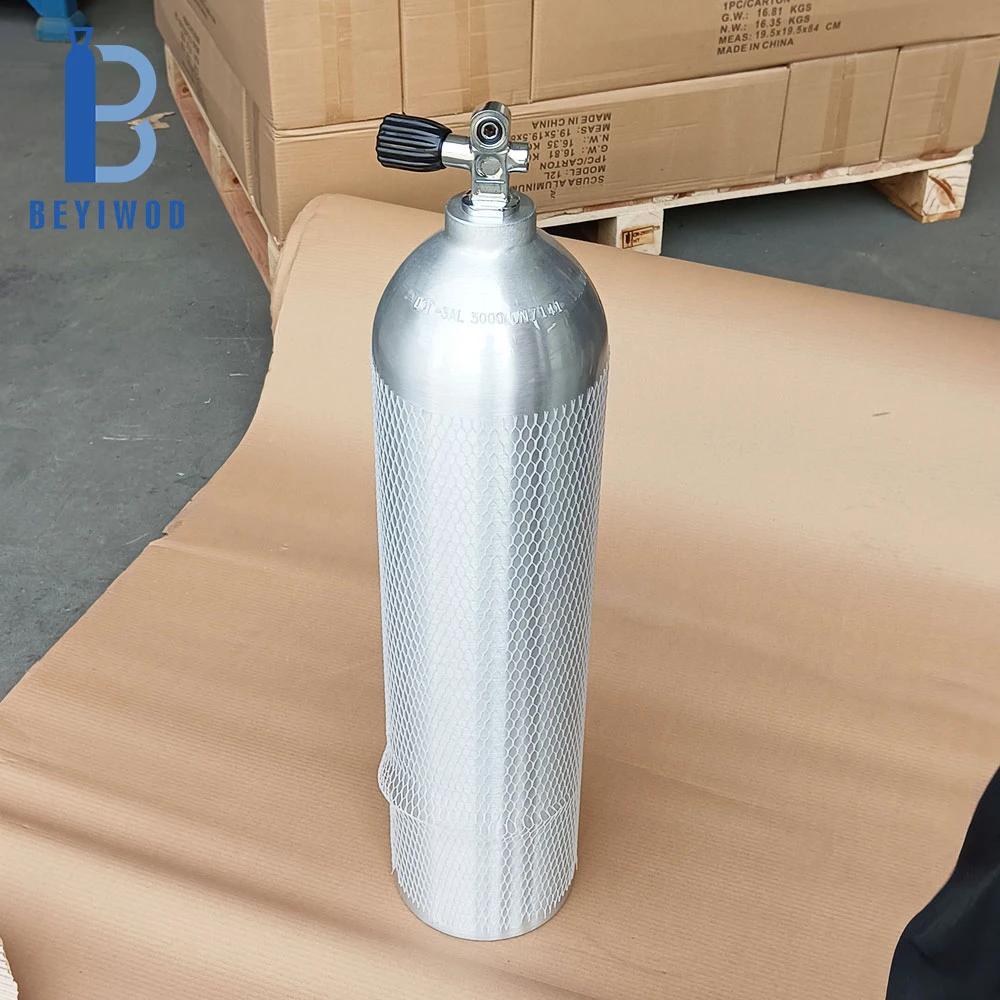

China cheap S80 11L 12L DOT3AL 3000psi Scuba Tank Diving Cylinder Scuba Air Tank For Scuba Diving/air Breathing
- Category: >>>
- Supplier: Shanghai Bene High Pressure Container Co. Ltd.
Share on (1600920601767):
Product Overview
Description
Product Description

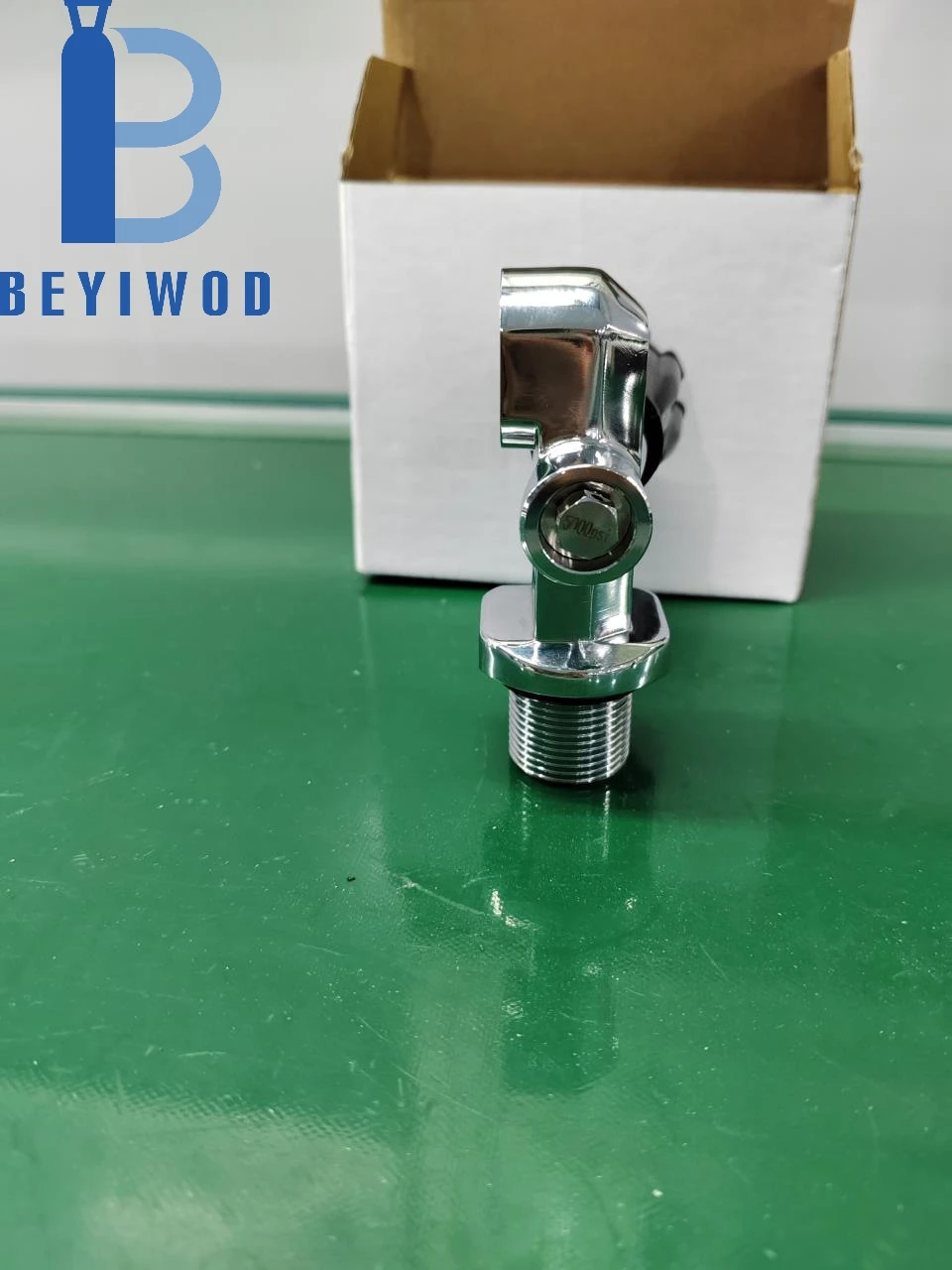

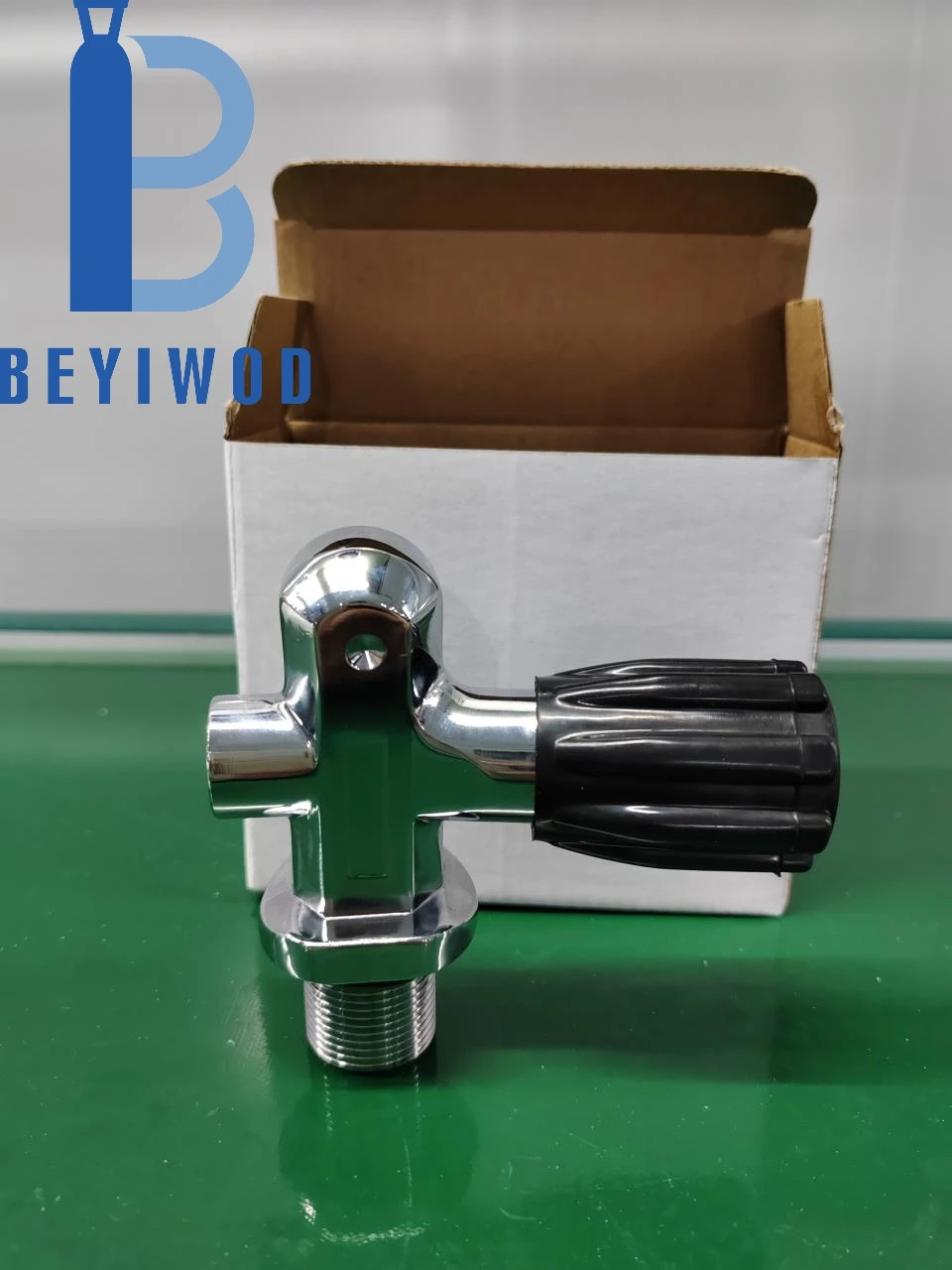

Valve for diving cylinder
Product specification
Type | DOT 3AL Diving Cylinder | Outside diameter | 184mm | ||
Water capacity | 11.1L | Height | 675mm | ||
Working pressure | 3000Psi | Standard | DOT-3AL | ||
Test pressure | 5000Psi | Weight | 14.2kg | ||
Storage gas | Oxygen | Material | 6061A | ||
Filling medium | oxygen | ||||

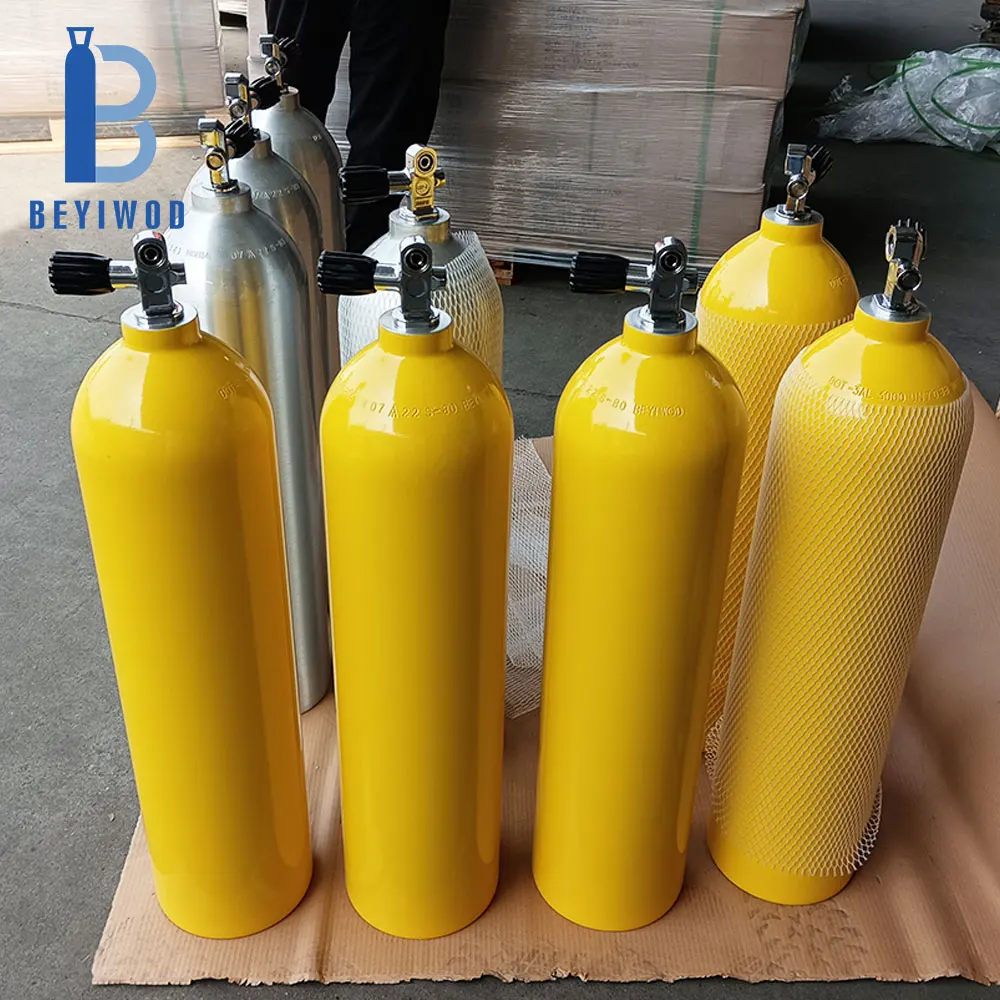

Color | Aluminum primary color, Yellow, as Requested/as per your requested for Diving oxygen tank. | ||||
Packing | 1.bulk loading; 2.packed in plastic woven net; 3.packed in wooden pallets; 4.as required. | ||||

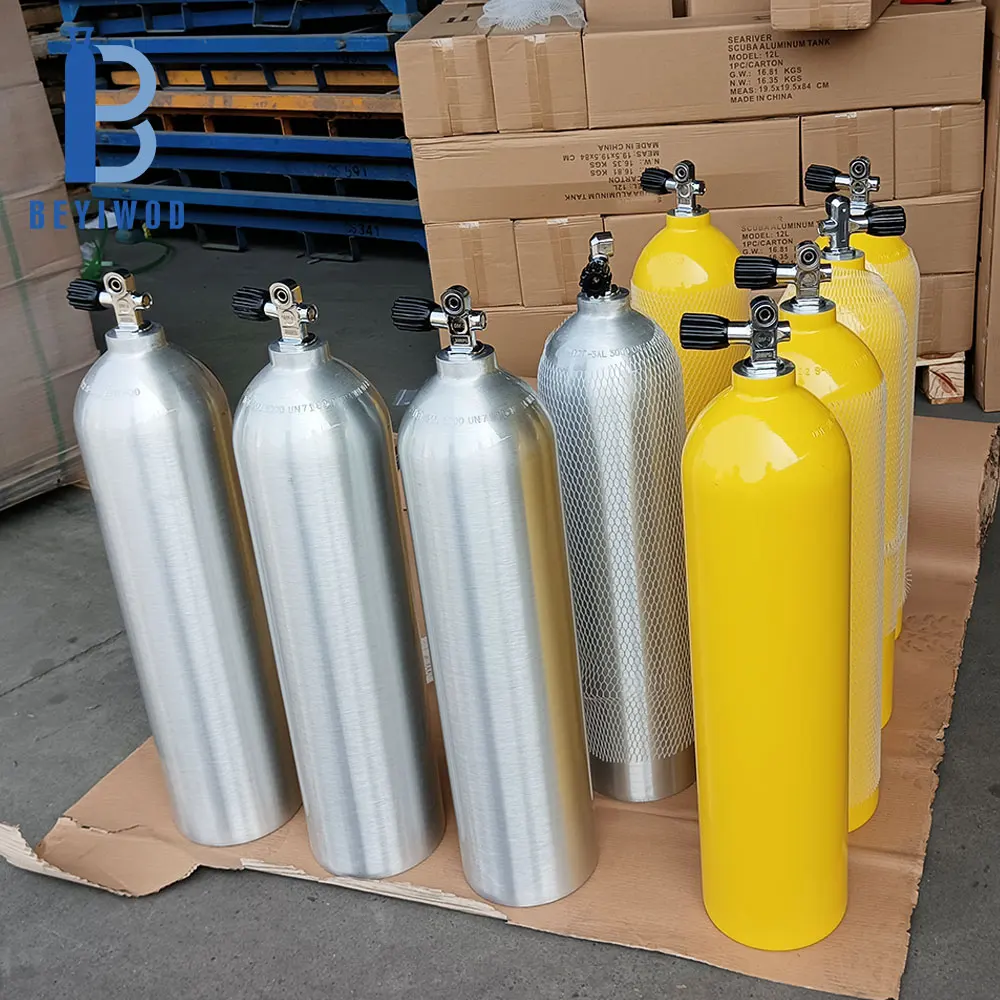

Other dive cylinder models
Model | Scuba Tank | Outer metter (mm) | Test Pressure(psi) | Working Pressure(psi) | Hight (mm) | Material |
S53 | 7.8L | 184 | 5000 | 3000 | 505 | AA6061 |
S63 | 9L | 184 | 5000 | 3000 | 555 | AA6061 |
S13 | 1.9L | 111 | 5000 | 3000 | 346 | AA6061 |
S6 | 0.9L | 81 | 5000 | 3000 | 222 | AA6061 |
S30 | 4.3L | 133 | 5000 | 3000 | 510 | AA6061 |
S40 | 5.8L | 133 | 5000 | 3000 | 656 | AA6061 |
S45 | 6.4L | 175 | 5000 | 3000 | 460 | AA6061 |
S50 | 7.2L | 175 | 5000 | 3000 | 505 | AA6061 |
Product introduction
1.Dive tank mainly used in underwater self-contained breathing apparatus. The cylinder is clean inside, can be filled with air, breathing gas mixture, suitable for diving activities at different depths. The gas cylinder is made of AA6061 aluminum alloy, which has strong corrosion resistance and is suitable for working in corrosive environment such as seawater.2. When the oxygen cylinder is used, turn the hand wheel counterclockwise to open the oxygen valve, turn clockwise to close the valve, open the valve is the operator should stand behind the valve side, the action should be gentle and slow, after the valve is opened, observe the pressure gauge to see whether the pressure in the bottle can be used, wear a mask on the personnel can breathe out the gas from the lungs, Through the mask, tee, exhalation hose and exhalation valve into the cleaning tank, after the absorbent in the cleaning tank absorbs the carbon dioxide in the exhaled gas, the rest of the gas into the air bag; In addition, the oxygen stored in the oxygen cylinder enters the air bag through the high pressure catheter and pressure reducer, and the gas joins to form the oxygen-containing gas. When the wearer inhales, the oxygen-containing gas enters the human lungs from the air bag through the suction valve, the suction hose and the mask, thus completing a respiratory cycle.
Common uses
1. There are many types of gas cylinders related to diving operations. From the pressure point of view, there are high-pressure (working pressure is 15MPa~20MPa), medium pressure (working pressure is 2.5MPa~4.0Mpa) and low pressure (working pressure is 0.7mpa~1.5mpa) gas cylinders. From the use point of view, there are self-carrying underwater breathing gas, gas storage cylinder (built-in gas can be used as the main gas source, but also as a backup gas source for emergency use) and so on.
2. Because the pressure and volume of the cylinder determine the volume of atmospheric gas contained in the cylinder, the selection of the cylinder needs to comprehensively consider the pressure and volume of the cylinder.
3. In general, high-pressure gas cylinders are mostly used for Marine pressurization systems and land pressurization systems with higher pressure to meet the requirements of small volume and large gas storage; Low-pressure cylinders are mostly used in high-pressure oxygen chambers and pressurized chambers with working pressure below 0.7mpa.
4. The choice of cylinder size mainly depends on the main function of the cylinder to be completed, whether it is used as a buffer or for gas storage.
5. If the function of the gas cylinder is used as a buffer, the small volume gas cylinder can be used. If the function of the cylinder is to store gas, a larger volume of cylinders is usually required to fill multiple cylinders at the same time to meet peak demand.
6. If the average gas volume requirements are large, it is not necessary to prepare a large cylinder, but should be equipped with a compressor with a higher inflation capacity, and there is a comprehensive balance between the size of the cylinder and the compressor.
1. There are many types of gas cylinders related to diving operations. From the pressure point of view, there are high-pressure (working pressure is 15MPa~20MPa), medium pressure (working pressure is 2.5MPa~4.0Mpa) and low pressure (working pressure is 0.7mpa~1.5mpa) gas cylinders. From the use point of view, there are self-carrying underwater breathing gas, gas storage cylinder (built-in gas can be used as the main gas source, but also as a backup gas source for emergency use) and so on.
2. Because the pressure and volume of the cylinder determine the volume of atmospheric gas contained in the cylinder, the selection of the cylinder needs to comprehensively consider the pressure and volume of the cylinder.
3. In general, high-pressure gas cylinders are mostly used for Marine pressurization systems and land pressurization systems with higher pressure to meet the requirements of small volume and large gas storage; Low-pressure cylinders are mostly used in high-pressure oxygen chambers and pressurized chambers with working pressure below 0.7mpa.
4. The choice of cylinder size mainly depends on the main function of the cylinder to be completed, whether it is used as a buffer or for gas storage.
5. If the function of the gas cylinder is used as a buffer, the small volume gas cylinder can be used. If the function of the cylinder is to store gas, a larger volume of cylinders is usually required to fill multiple cylinders at the same time to meet peak demand.
6. If the average gas volume requirements are large, it is not necessary to prepare a large cylinder, but should be equipped with a compressor with a higher inflation capacity, and there is a comprehensive balance between the size of the cylinder and the compressor.
In order to protect goods, aluminum cylinder are usually packed in separate cartons and then use pallets
