BOPP OPP cardboard paper box disc cutter chain knife film laminator machine (ZFM 1080B)
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (1600920755746):
Product Overview
Description
PRODUCT INFORMATION

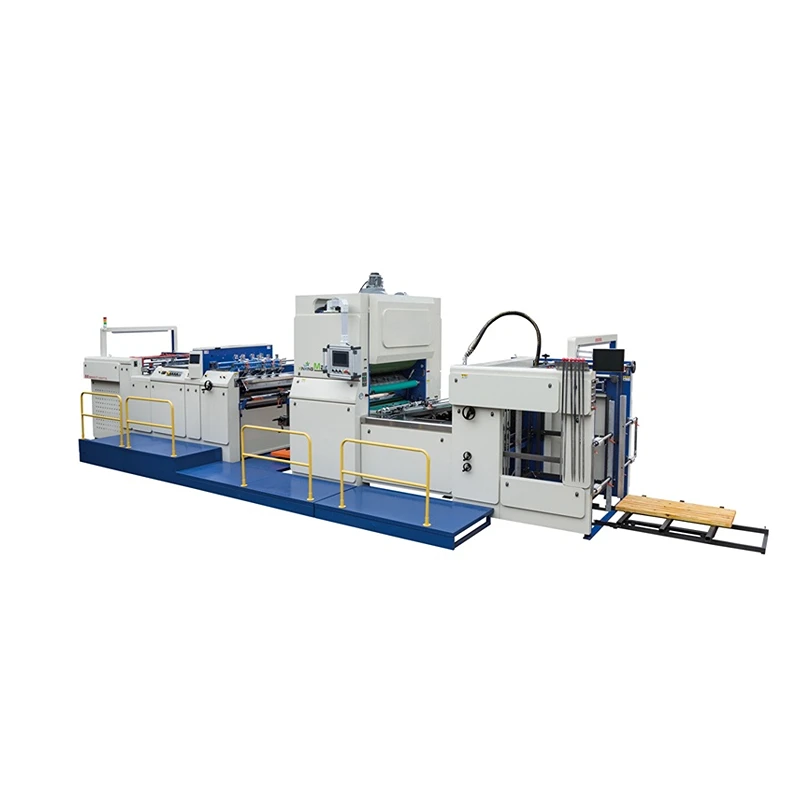

ZFM-800B Automatic Film Laminating Machine With Flying Knife
Glue laminating/ Thermal laminating PET/PVC/BOPP/CCP/Metallized film/Soft touched film…..
Product Paramenters
Max. sheet size | 760*760mm |
Min. sheet size | 260*260mm |
Paper thickness | 80-500Gsm |
Height of feeding pile | 1060mm |
Height of stacker pile | 1060mm |
Machine speed | 65m/min |
Working speed | 50-60m/min |
Machine power | 55kw |
Working power | 20-25kw/h |
Dimension of machine | L9000xW2800xH3000mm |
Machine weight | 7500kg |
Configuration & Functions
1.Automatic Feeder: Adopts offset feeder with advanced side lay, which fastest can feed around 15000 sheet/h. Non-stop and pre-stack feeding can improve work efficiency.
2.Overlapping Regulator: Adopts Servo system to control the overlapping that
guarantee accurate and stable, and make sure the overlap error within 2mm.
3. Drying and Heating System: Bulk 800mm diameter drying roll, that could bring the highest glue drying effect, large heating roll by oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.
4.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.
5. Two Rows Chain Driving System with Gear box: Special structure design in minimum transmission line, adopts two rows chain with gear box to drive the laminating unit to guarantee the high laminating speed with low noise.
6. Hydraulic Pressure System: The machine adopts hydraulic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.
7.Man-Machine Interface System: Advanced 10inch color screen with PLC system makes the operation easy and convenient.
8.Flying Knife: Adopts imported ultrasonic probe with German chain, servo control system with high accuracy.
9. Anti-Curvature Device: Avoid paper curvature and make the paper smooth, especially for thin paper.
10. Corrugated Delivery: Better and easier for collecting paper.
11 Car Body: Whole machine cover adopts car body, glossy and wear-resisting.
12 Automatic Stacker: Fully automatic with sensor to rise and down the paper pile, heighten structure that can load paper pile height in 1060mm, side and front tidy devices to make sure paper pile collect well.
1.Automatic Feeder: Adopts offset feeder with advanced side lay, which fastest can feed around 15000 sheet/h. Non-stop and pre-stack feeding can improve work efficiency.
2.Overlapping Regulator: Adopts Servo system to control the overlapping that
guarantee accurate and stable, and make sure the overlap error within 2mm.
3. Drying and Heating System: Bulk 800mm diameter drying roll, that could bring the highest glue drying effect, large heating roll by oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.
4.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.
5. Two Rows Chain Driving System with Gear box: Special structure design in minimum transmission line, adopts two rows chain with gear box to drive the laminating unit to guarantee the high laminating speed with low noise.
6. Hydraulic Pressure System: The machine adopts hydraulic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.
7.Man-Machine Interface System: Advanced 10inch color screen with PLC system makes the operation easy and convenient.
8.Flying Knife: Adopts imported ultrasonic probe with German chain, servo control system with high accuracy.
9. Anti-Curvature Device: Avoid paper curvature and make the paper smooth, especially for thin paper.
10. Corrugated Delivery: Better and easier for collecting paper.
11 Car Body: Whole machine cover adopts car body, glossy and wear-resisting.
12 Automatic Stacker: Fully automatic with sensor to rise and down the paper pile, heighten structure that can load paper pile height in 1060mm, side and front tidy devices to make sure paper pile collect well.
Details Images

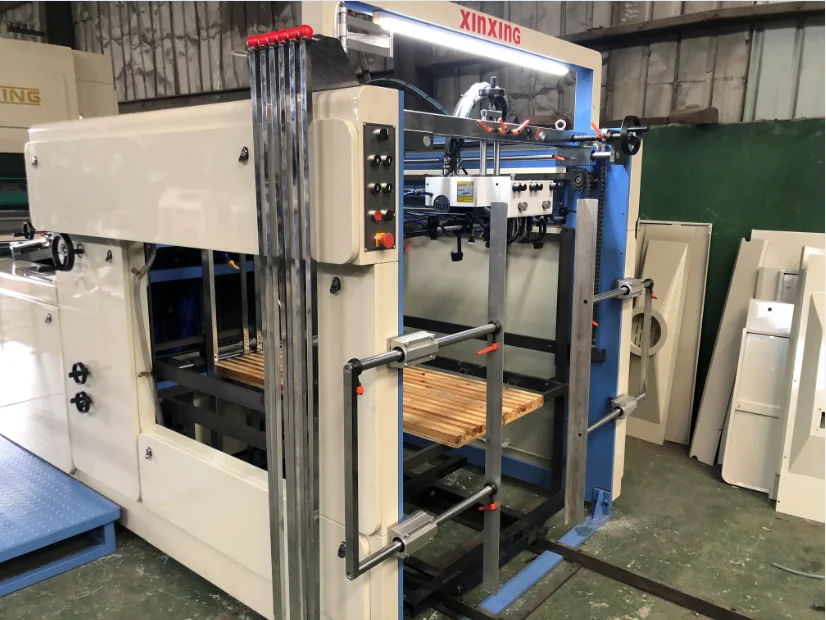

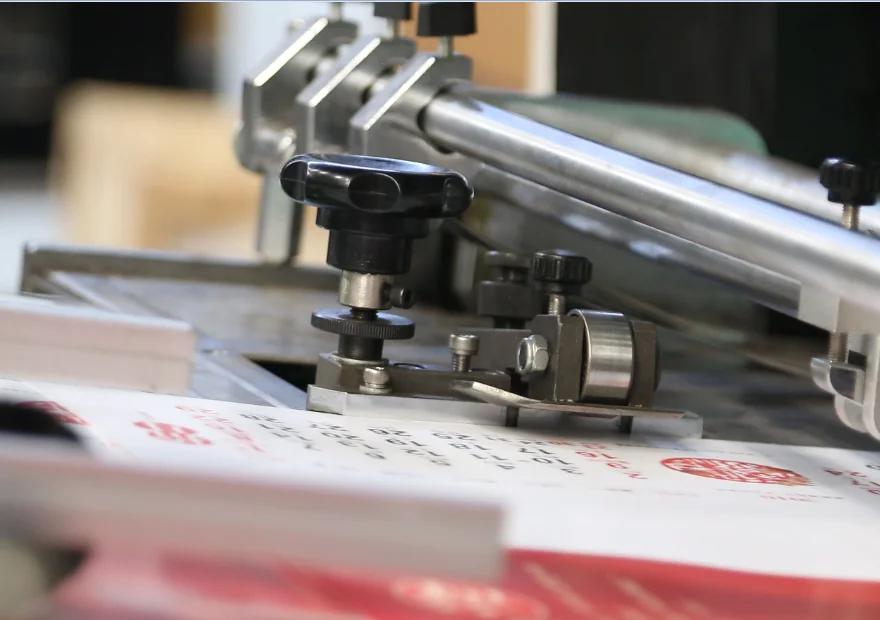

Automatic Feeder

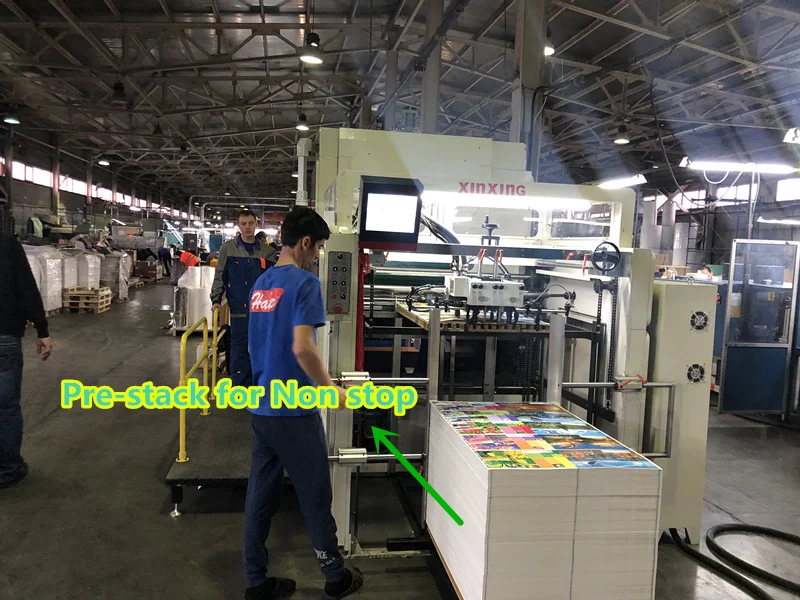

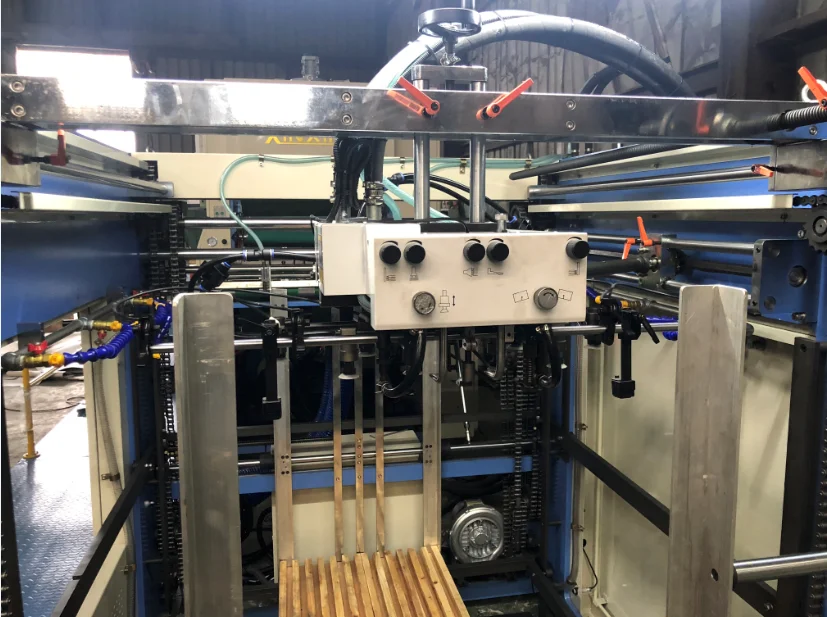

We adopt offset feeder head (max speed 15000sheet/ hour), that makes the sheet feed more stable and smoother. The feeder is non-stop type with pre-stack guide device, which can keep the machine running when run out the paper pile. Taiwan vacuum pump guarantee the stable feeding.

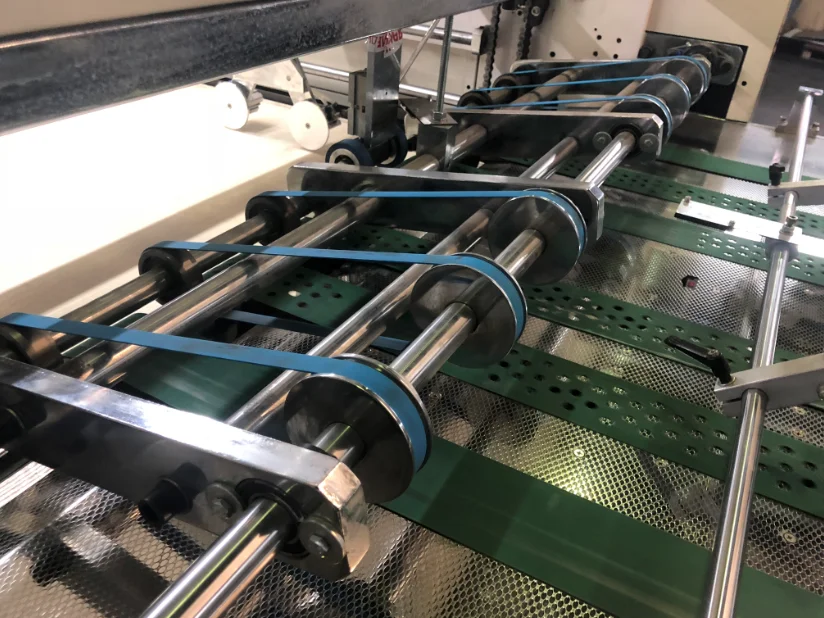

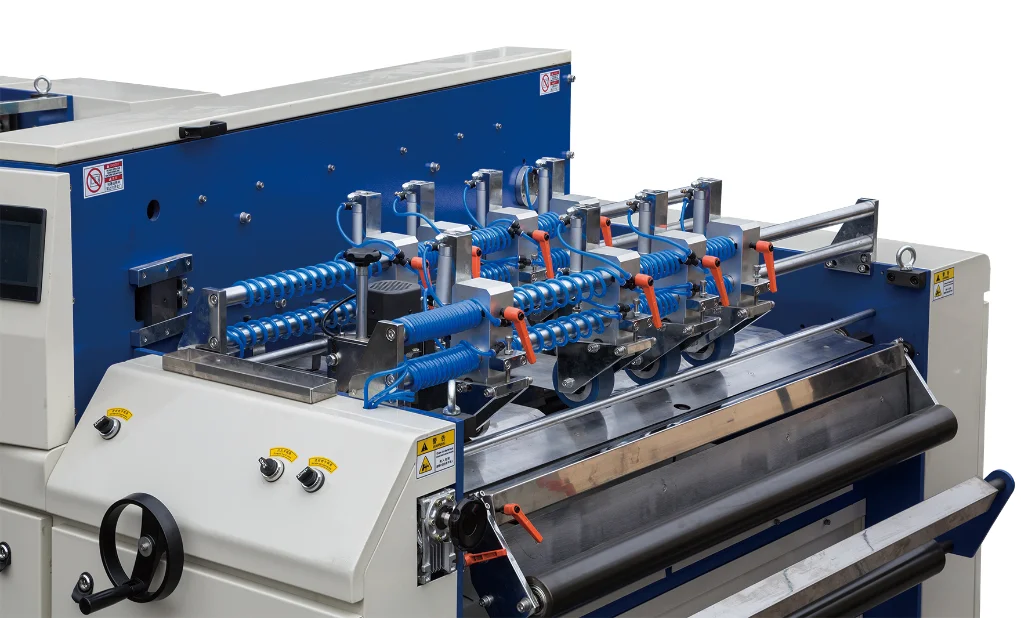

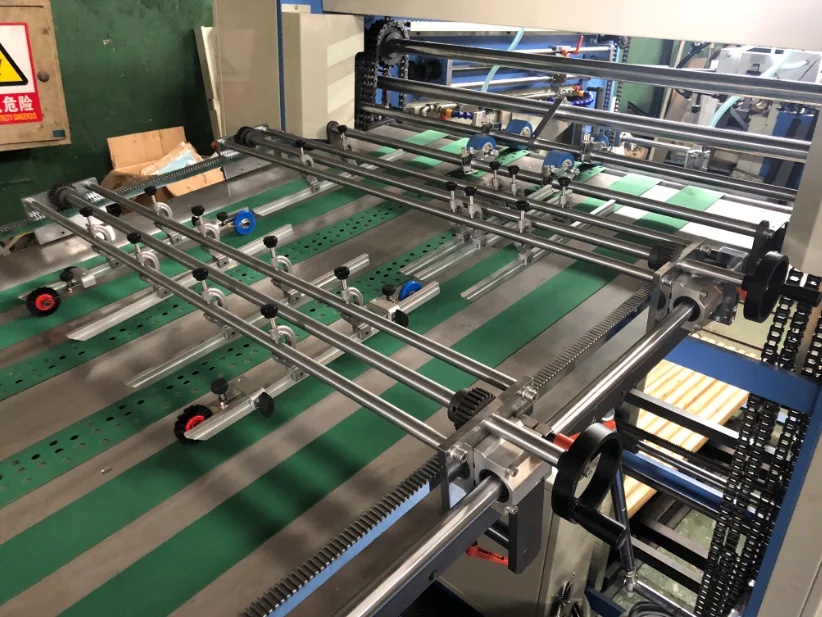

Sheet Delivery Platform

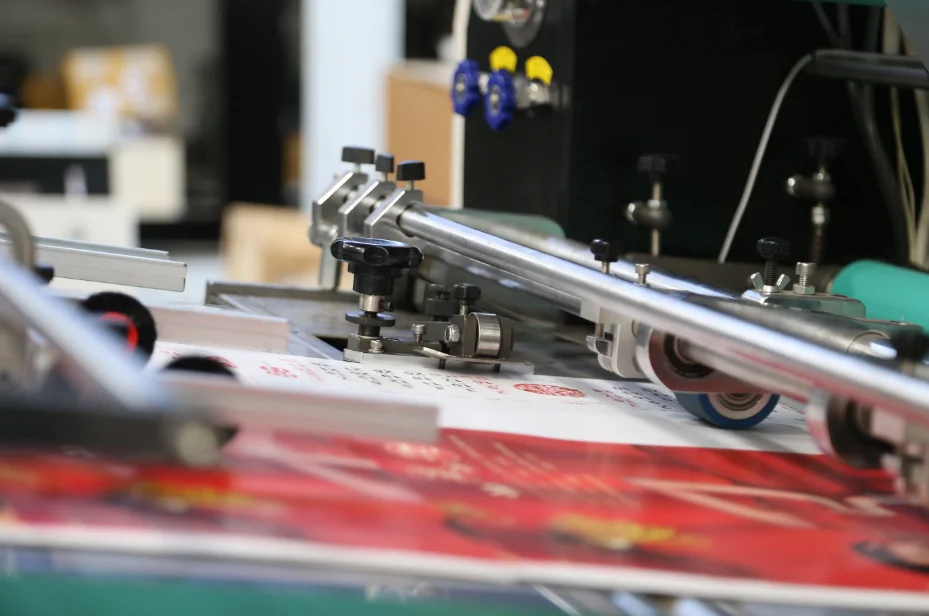

Servo system to control the side lay and front lay connect with feeder in high precision, that guarantee the overlapping error within 2mm.Moveable gear adjustment sheet deliver table that convenient for different sheet size
Servo system to control the side lay and front lay connect with feeder in high precision, that guarantee the overlapping error within 2mm.Moveable gear adjustment sheet deliver table that convenient for different sheet size

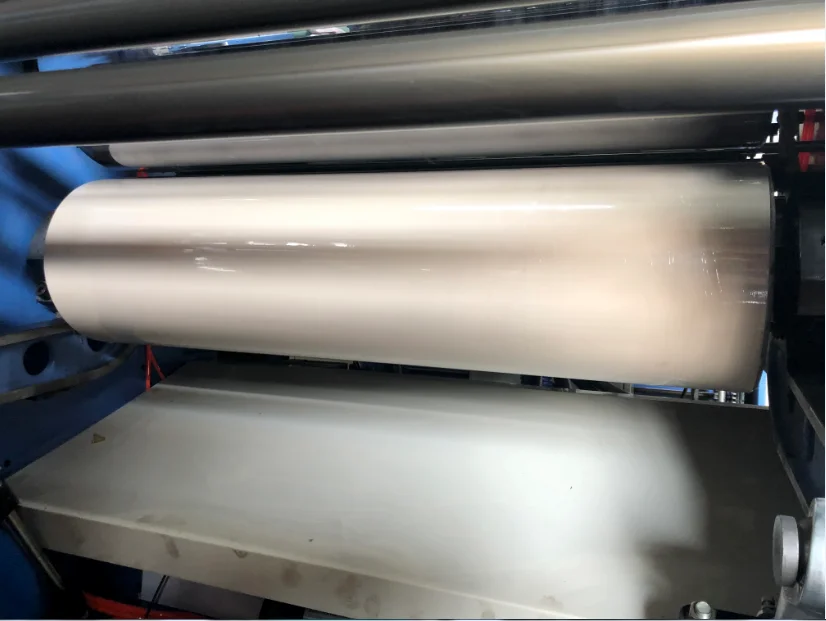

Laminating Unit
Heating roller by electromagnetic heating or oil heating, guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.
Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform
and easy to adjust without bubbles、spots or wrinkle
Heating roller by electromagnetic heating or oil heating, guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.
Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform
and easy to adjust without bubbles、spots or wrinkle

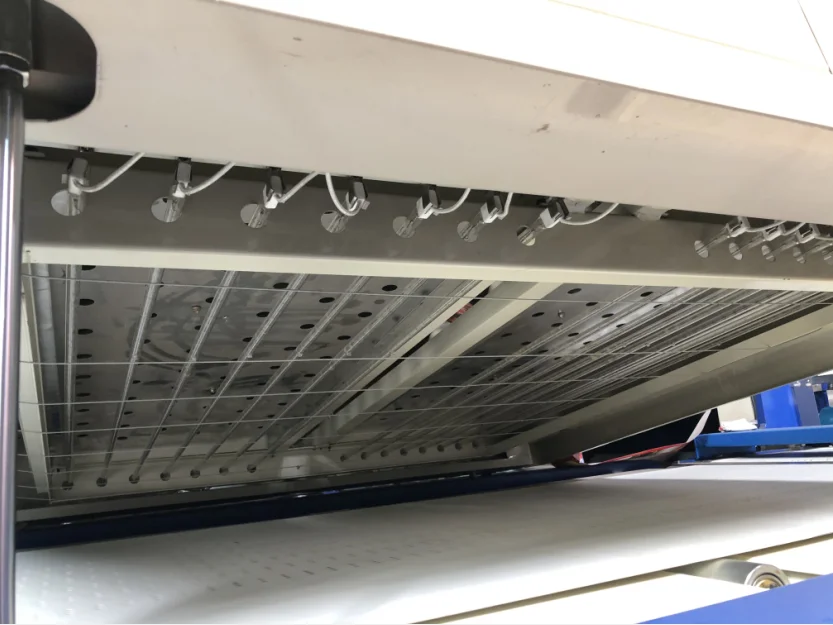

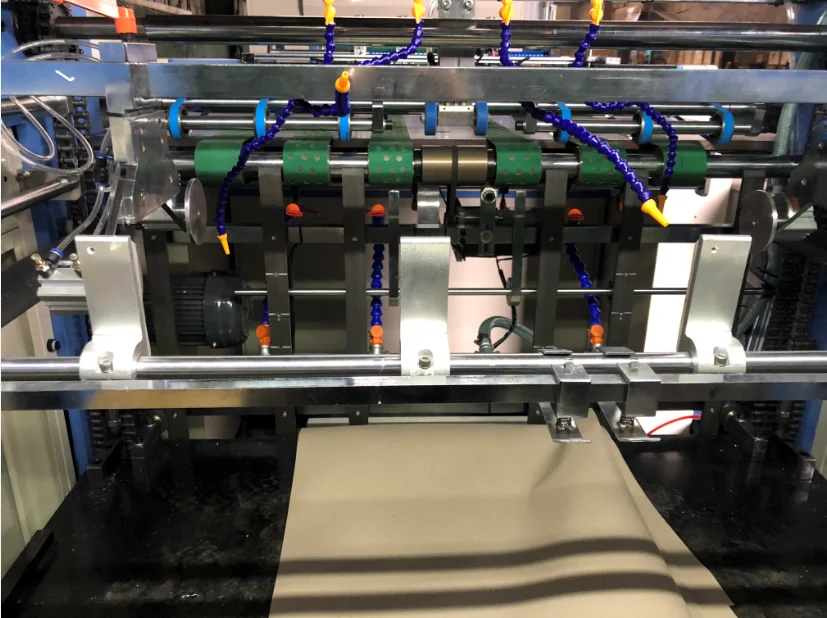

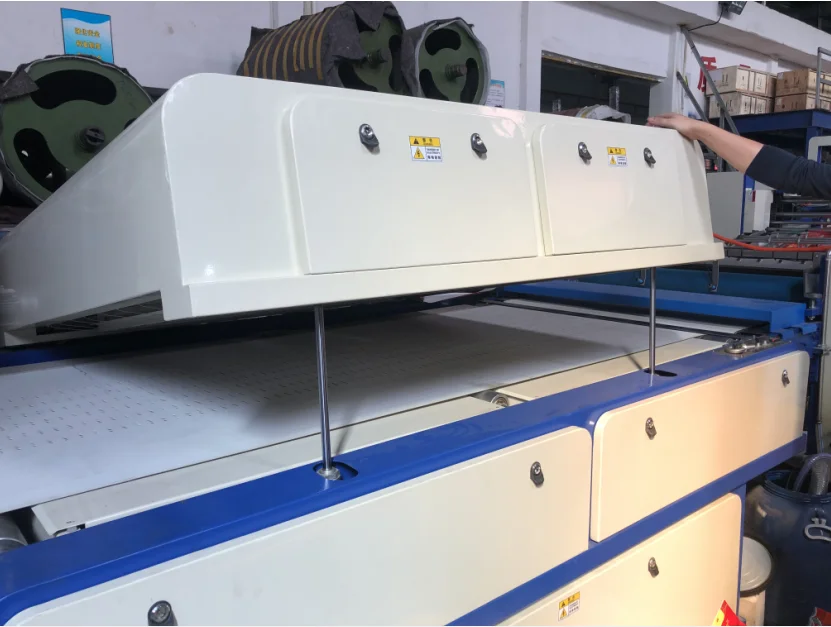

Drying system

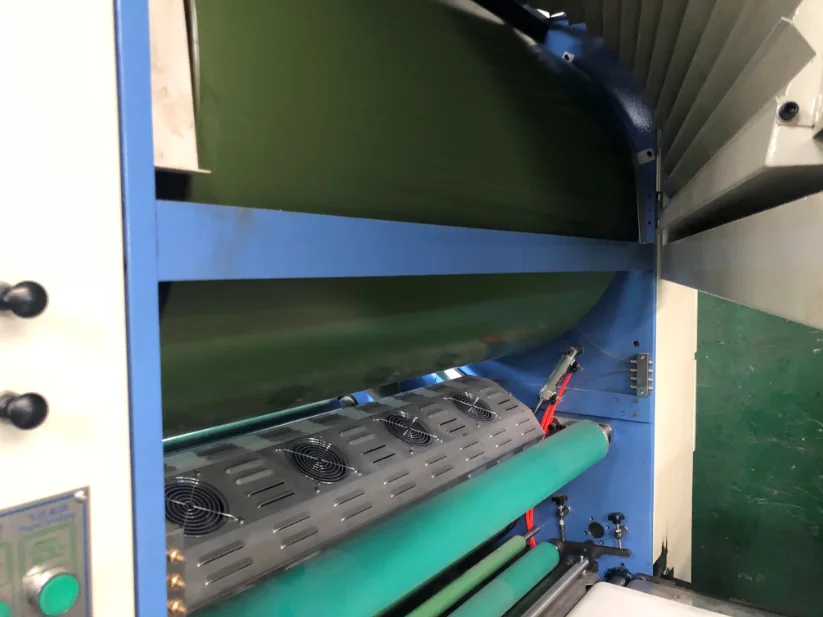

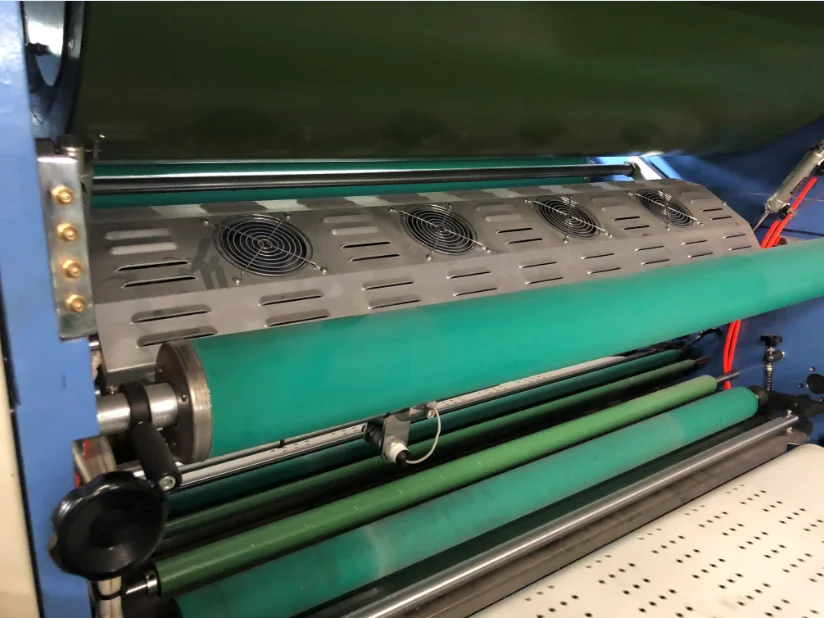

Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power consumption.Blowing fans plus exhaust fan recycle the hot air and energy saving Teflon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain
Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power consumption.Blowing fans plus exhaust fan recycle the hot air and energy saving Teflon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain

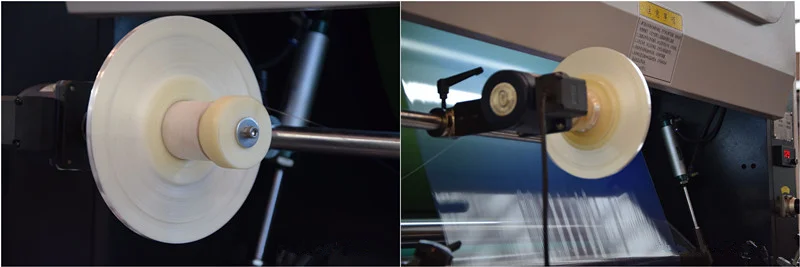

Film Unwinding

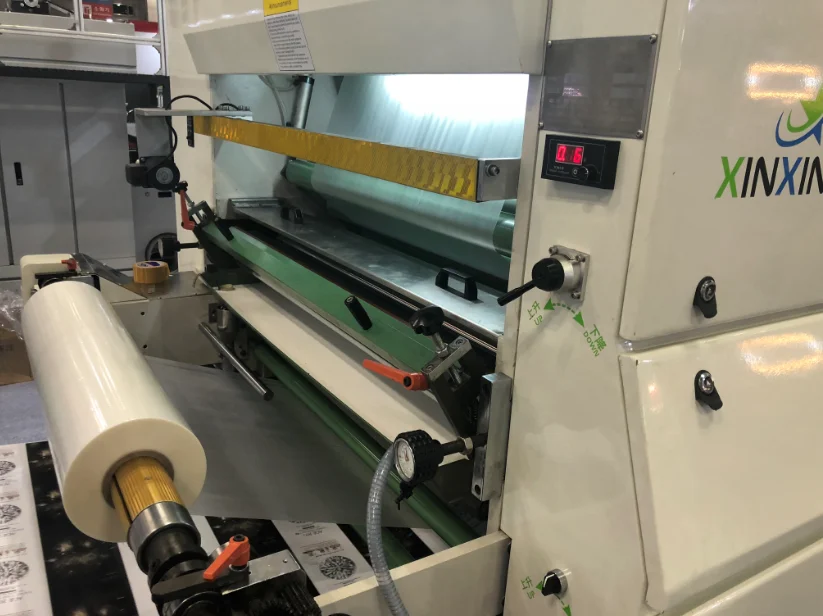

Install air shaft for film unwinding with auto tension controller. Special design for big diameter film roll and the roll can be adjusted to right and left.
Install air shaft for film unwinding with auto tension controller. Special design for big diameter film roll and the roll can be adjusted to right and left.

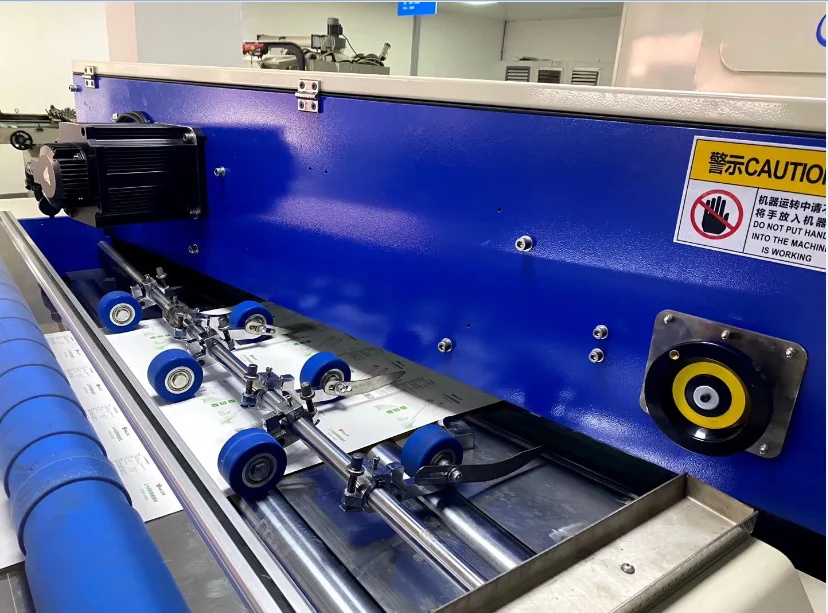

Waste Film Slitting and Rewinding

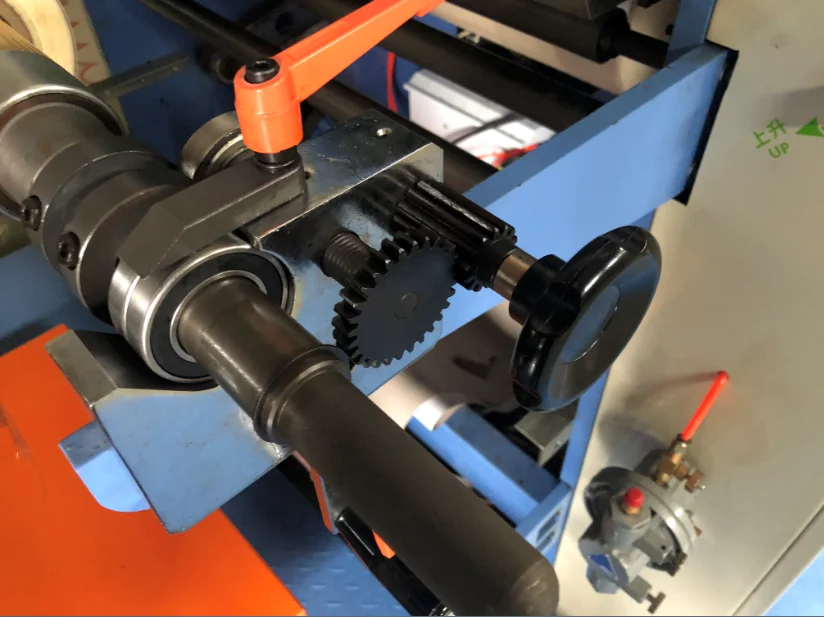

Moveable waste film rewinding to modify the jumbo film width that can fit for paper sheet size.

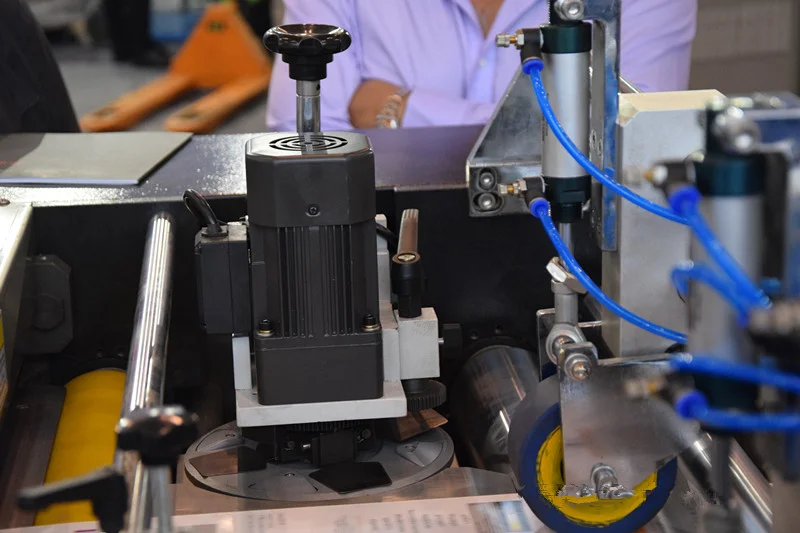

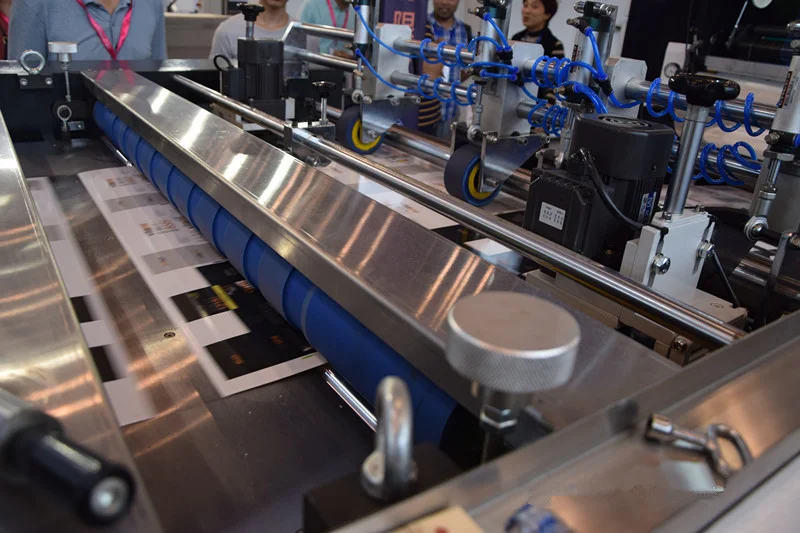

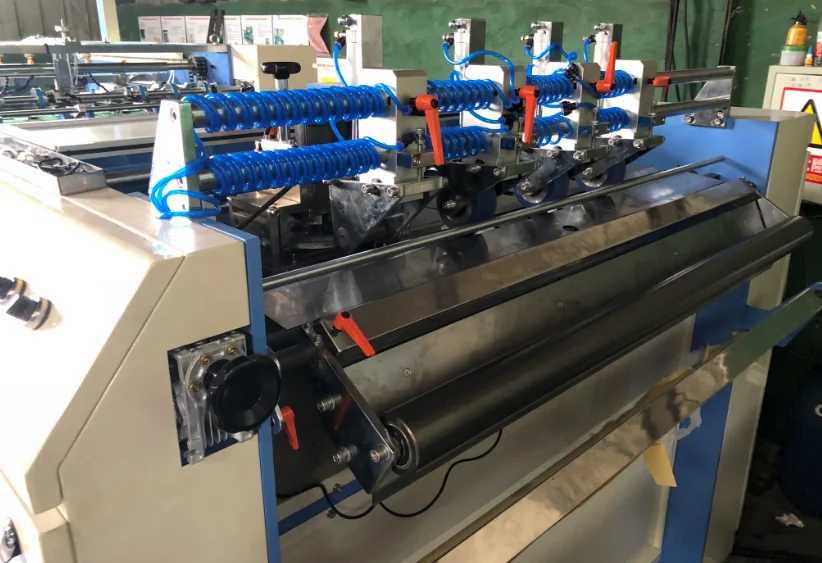

Disc Cutter with Pneumatic System

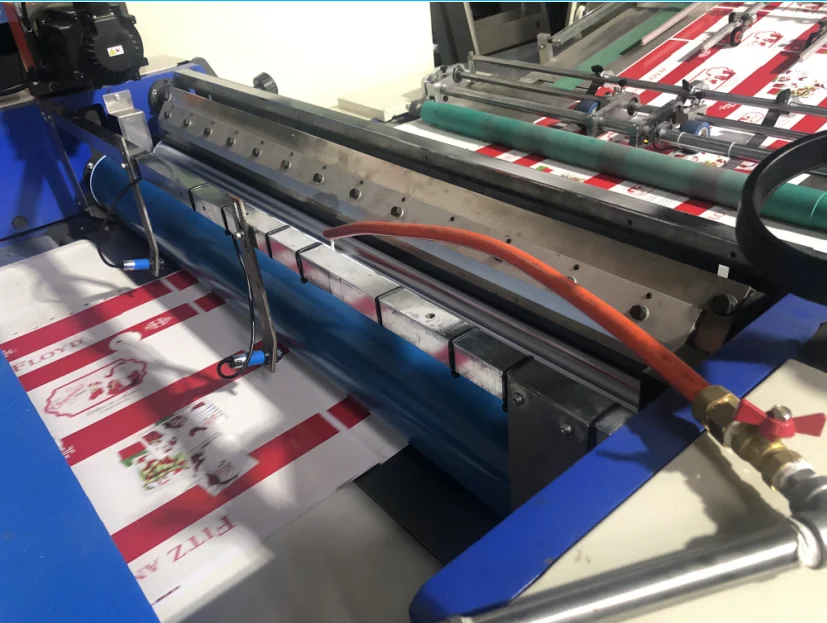

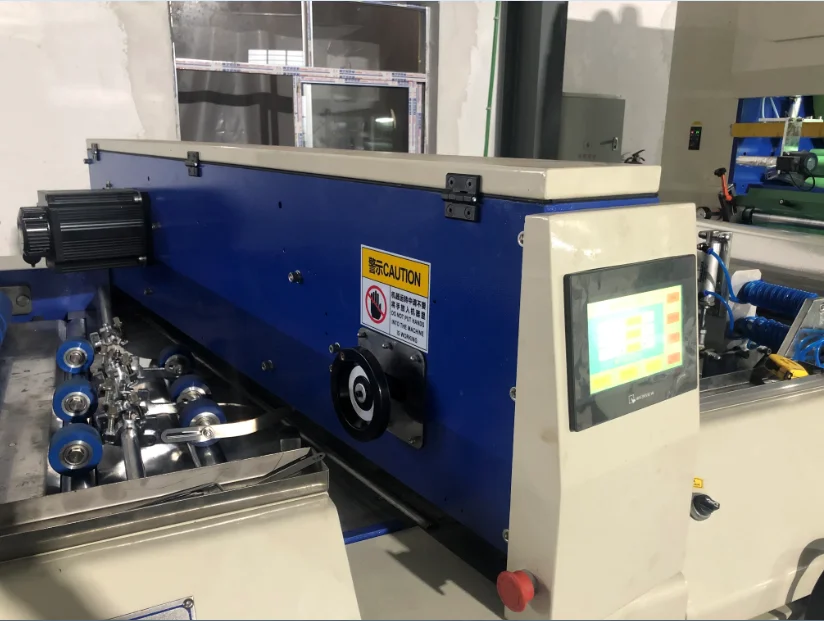

Multiple blades disc cutter for BOPP film with pneumatic sheet separating, that makes the laminated sheets without margin, and prepare for next process. Two sheeting roll system can effectively sheet paper, special concave-convex roll make sheet smoothly and antislip
Multiple blades disc cutter for BOPP film with pneumatic sheet separating, that makes the laminated sheets without margin, and prepare for next process. Two sheeting roll system can effectively sheet paper, special concave-convex roll make sheet smoothly and antislip

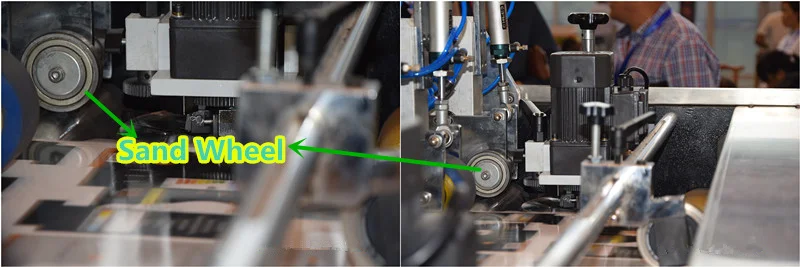

Sand wheel
instead of disc cutter for middle side film lamination, that prepare for pneumatic sheeting.

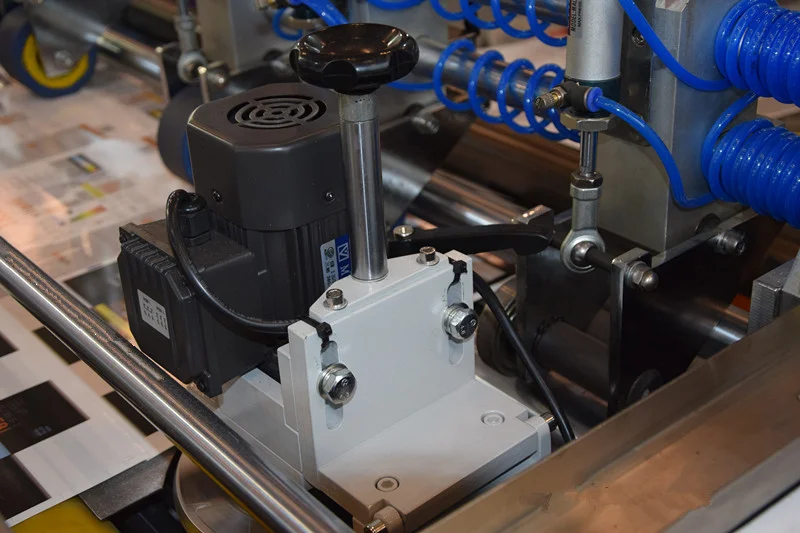

Flying Knife

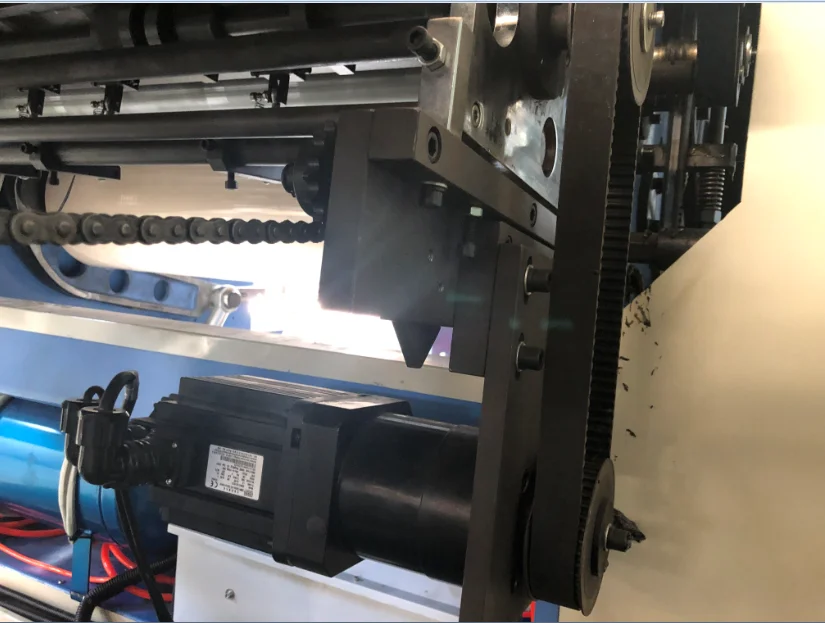

We adopt big chain knife that it work in low rotate speed but with great line cutting speed

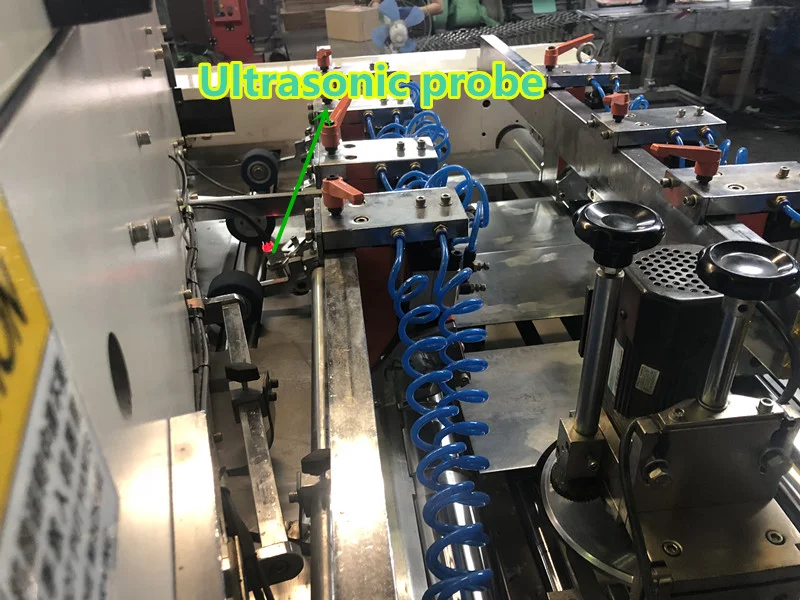

Imported German ultrasonic probe with German chain, servo control system with high accuracy.
Touch screen connect with PLC system that keep same step with main machine.
We adopt big chain knife that it work in low rotate speed but with great line cutting speed
Imported German ultrasonic probe with German chain, servo control system with high accuracy.
Touch screen connect with PLC system that keep same step with main machine.

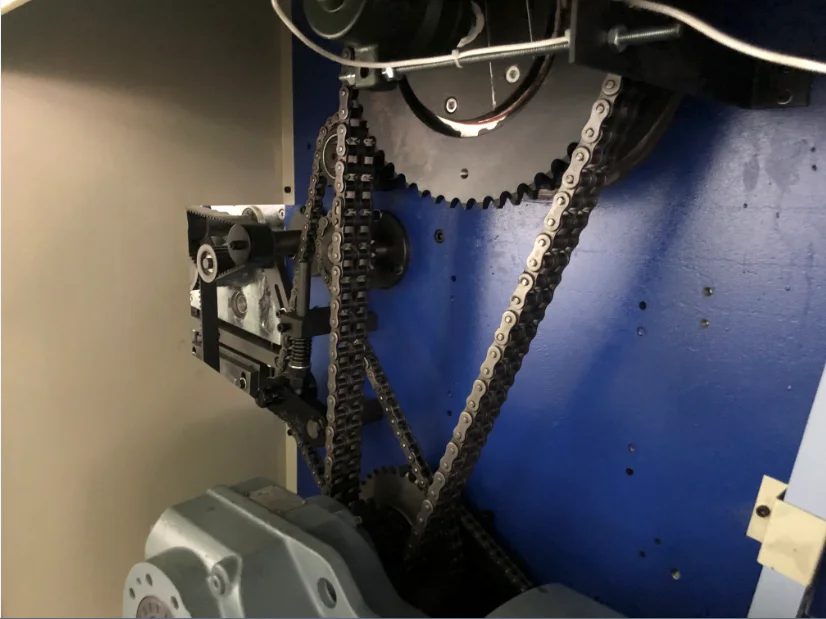

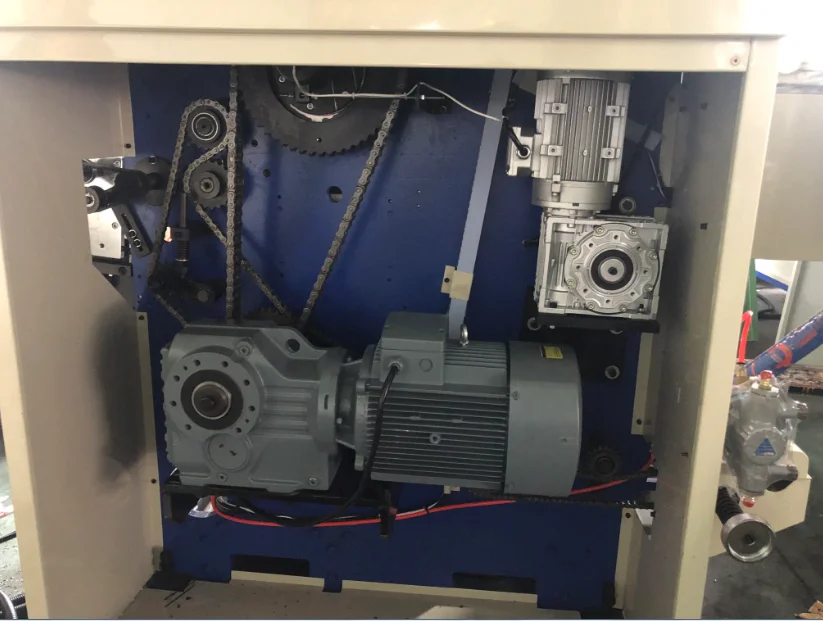

Two rows chain with gear box driving system
For the main laminating part adopts two rows chain with gear box driving system, that support machine run in high speed with high precision and low noise.
This structure also support machine run in long time but keep stability
This structure also support machine run in long time but keep stability
Pneumatic guiding system

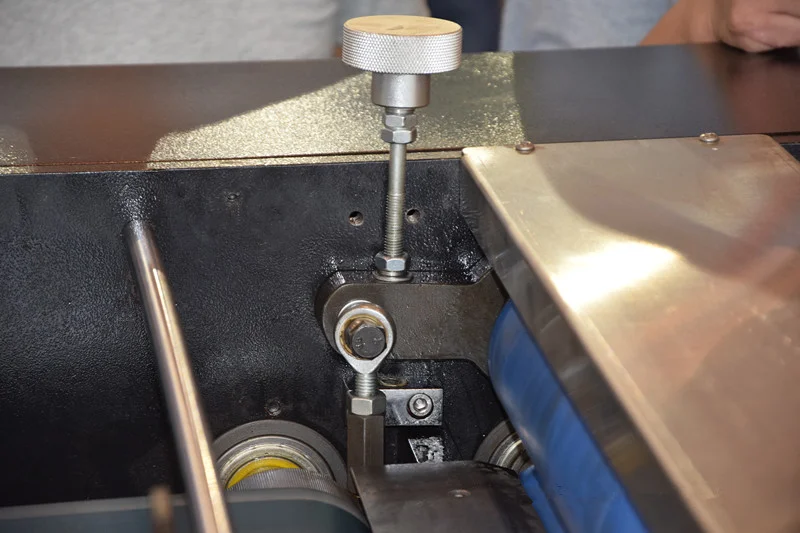

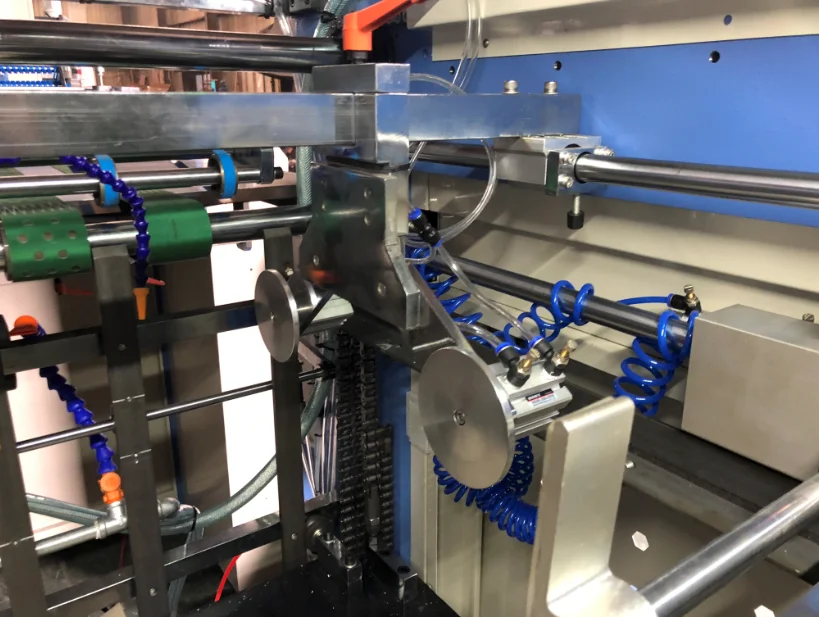

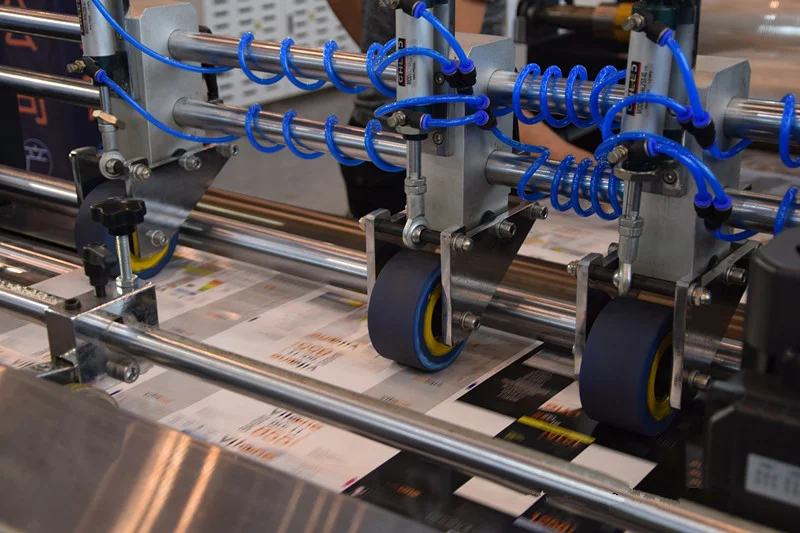

Removable guide wheels with pneumatic system to adjust the pressure that easy to operate and maintain.
Removable guide wheels with pneumatic system to adjust the pressure that easy to operate and maintain.

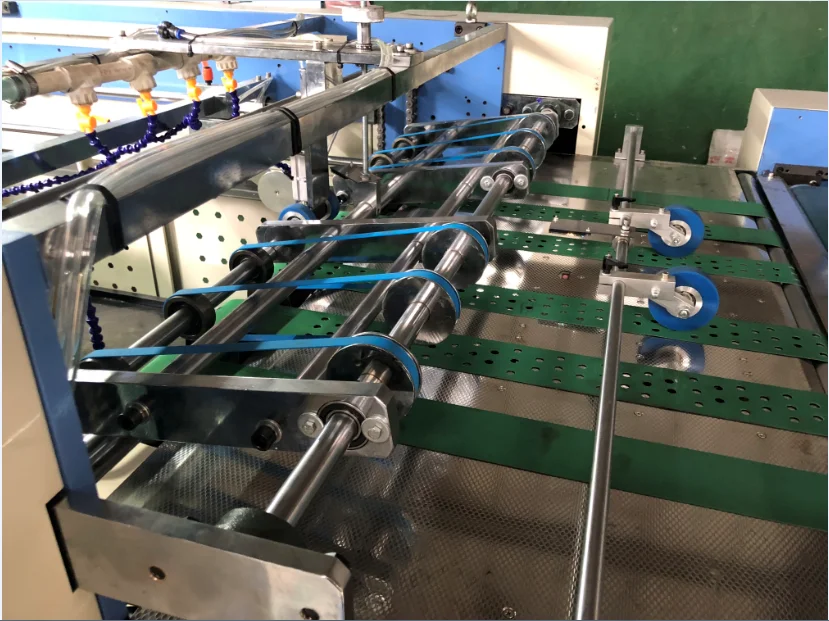

Corrugated Delivery
Corrugated delivery with conveyor belt that better and easier for collecting paper.
Corrugated delivery with conveyor belt that better and easier for collecting paper.

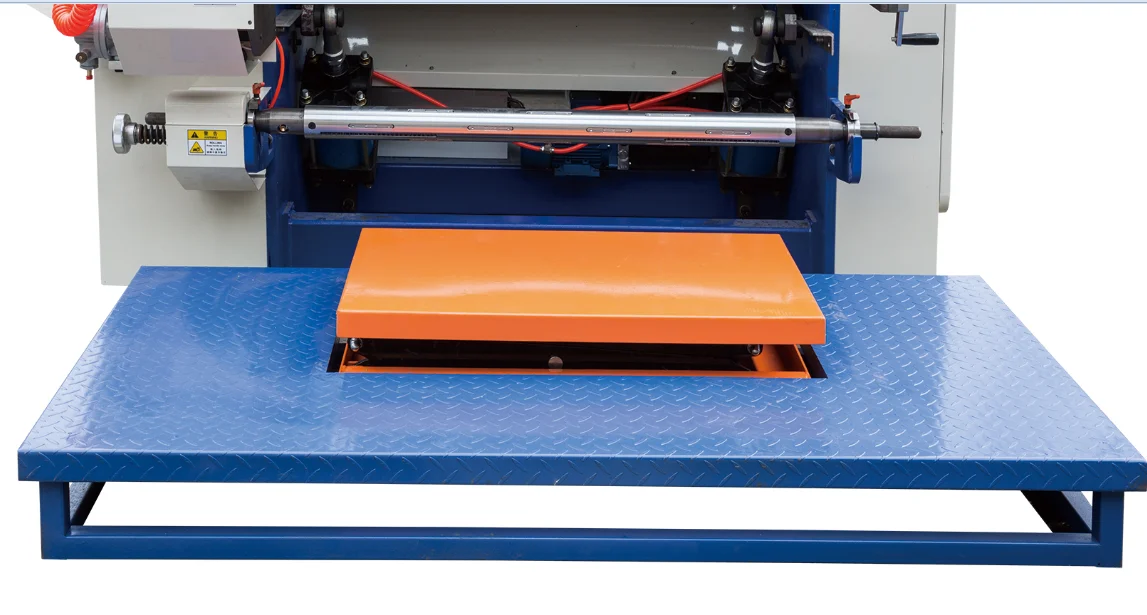

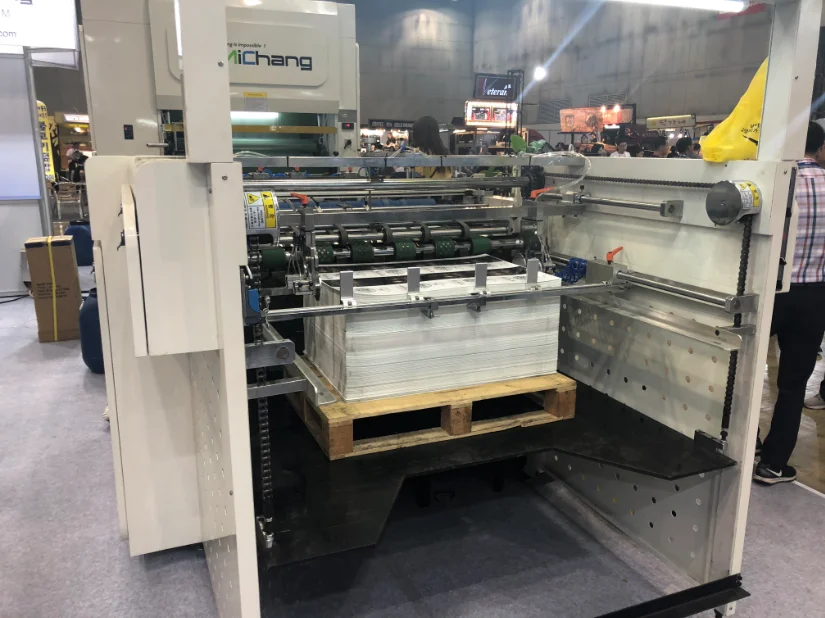

Automatic Stacker
Full automatic with sensor to rise and down the paper pile Heighten structure that can load paper pile height in 1060mm
Side and front tidy devices to make sure paper pile collect well
Full automatic with sensor to rise and down the paper pile Heighten structure that can load paper pile height in 1060mm
Side and front tidy devices to make sure paper pile collect well

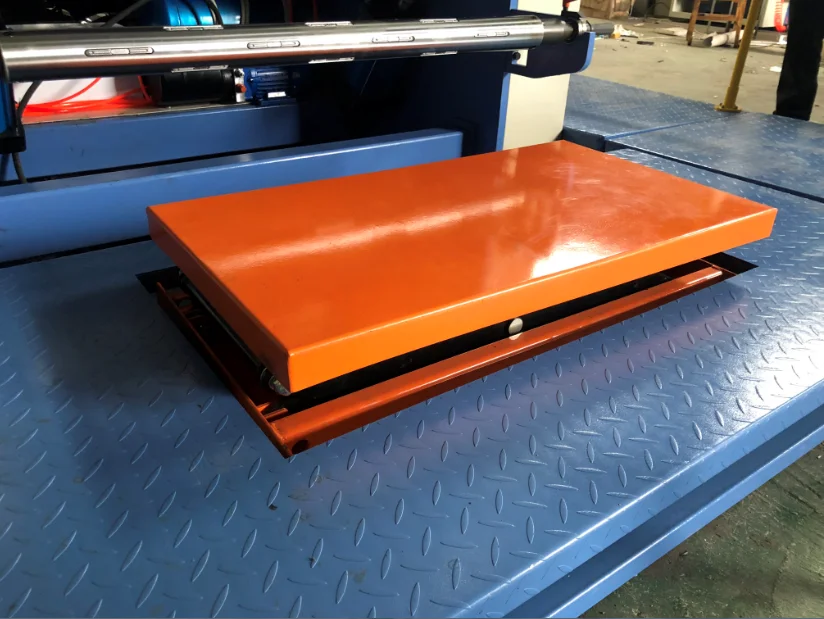

Hydraulic lifting for loading film roll
Optional
Monitor
Designed for one machine one operator, that could check whole machine running
Designed for one machine one operator, that could check whole machine running
FAQ
1. What is the machine warranty?
one year.
2. Does your machine with CE certificate?
Yes, it does
3. What is the production time while placing order?
About 30 days
4. What is the delivery time?
Within 30 days after get the payment.
5. Can your company handle shipping for customers?
Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6. Does the packing strong?
Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7. How about after-sales service process?
When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8. Are you manufacturer?
Yes, we are manufacturer with 10-year experience and profession.
9. Do you have stock product to sell?
Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need
custom one for you, and your order will be highly attention to manufacture.
10. Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping to ensure there is nothing problem of the machine
.
11. What's the payment term?
T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
