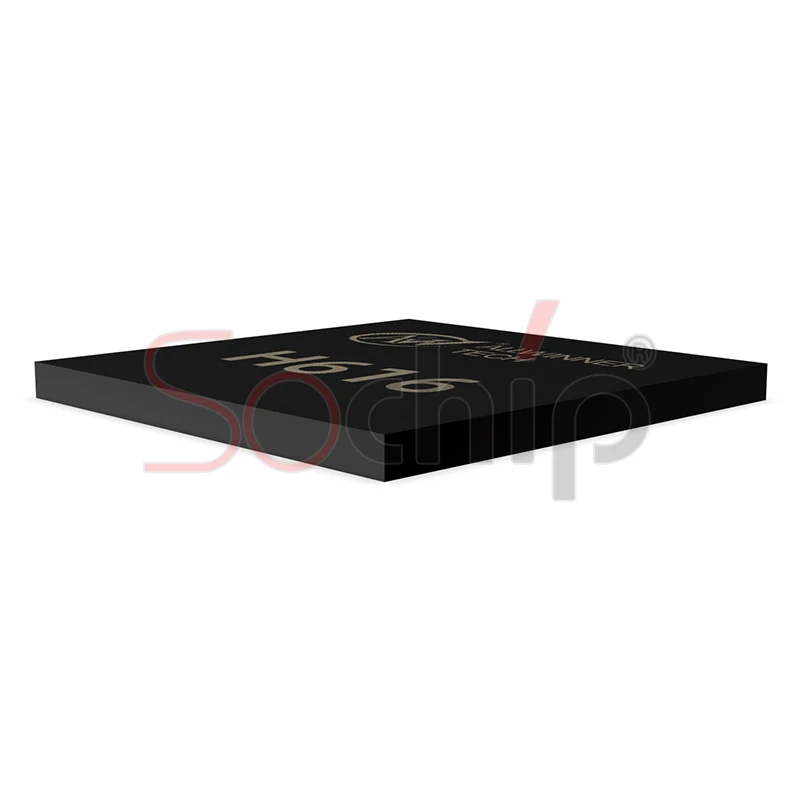

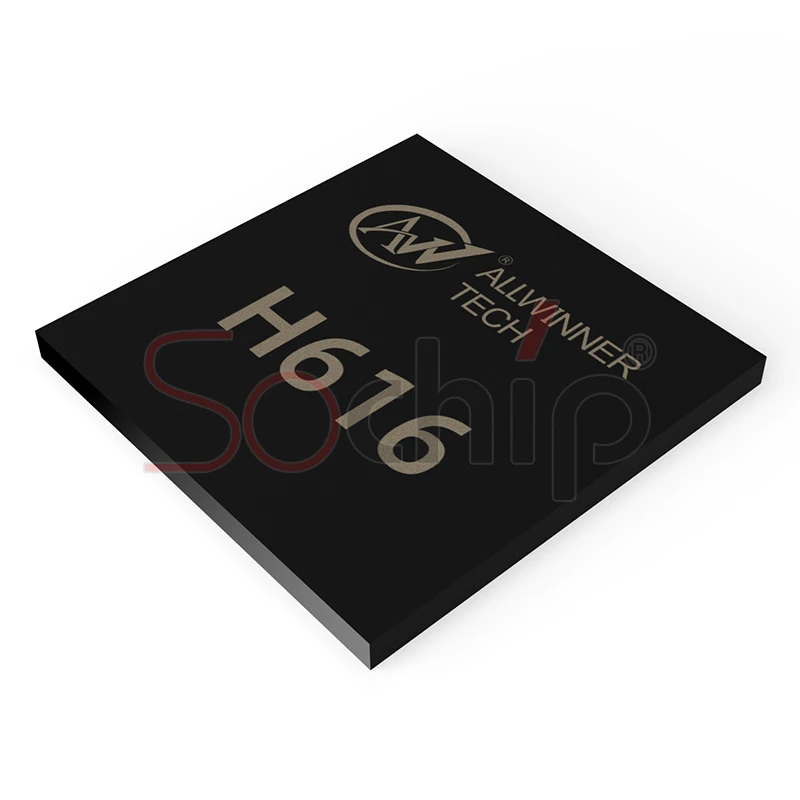

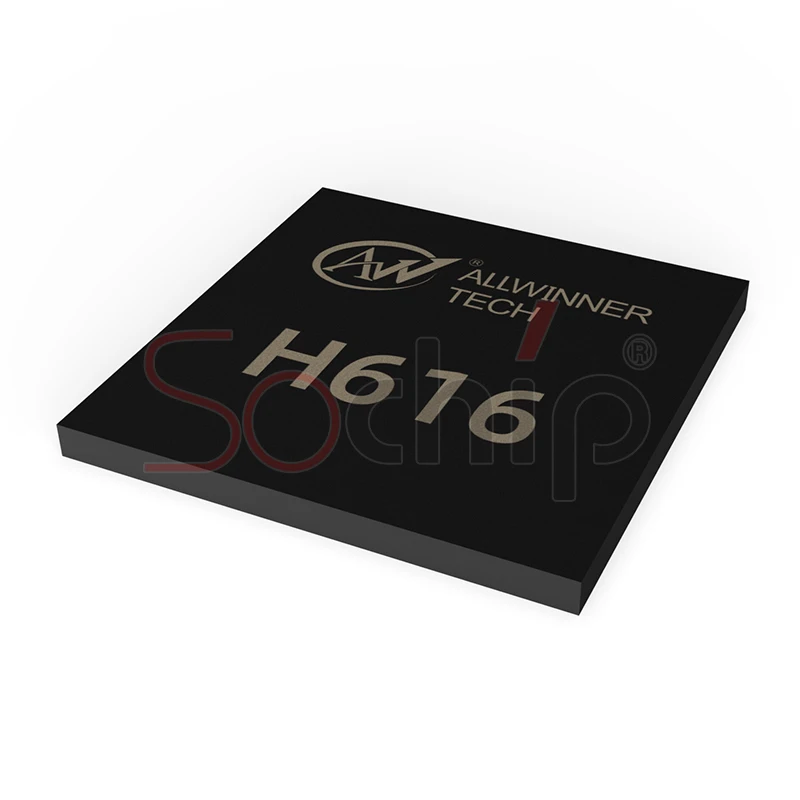

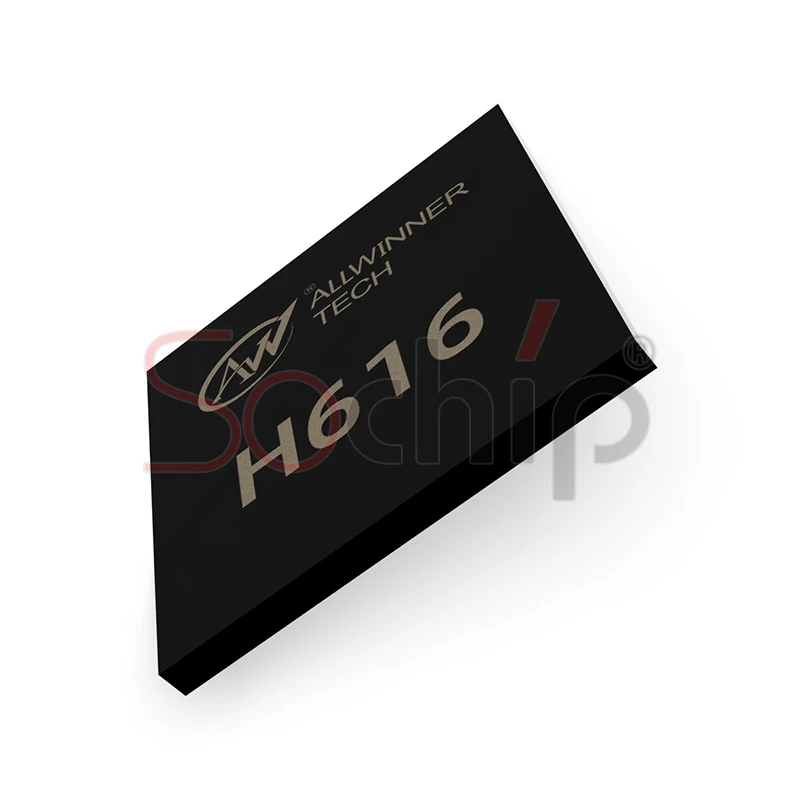

ALLWINNER H616 ic chip android for Tv Box Android quad core OTT Box ready to ship 6K@30 H265 Decoder
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600920757983):
Product Overview
Description
Product Description
Dear Friends,
The price will increase soon, please order soon if you need that
Happy to get your attention for our parts, we are Allwinner's official distributor in China, all our selling parts are original new, with optimistic , positive pre- and after- sales and technical R&D, we are willing to give you a comfortable shopping experience, please feel free to contact us at any time.
Please contact us for full datasheet
Overview
H616 is a new-generation high picture quality 64-bit 4K@60fps decoding SoC provided by Allwinner for the
OTT and IPTV markets. It integrates the quad core 64-bit CortexTM-A53 processor, and the new G31 GPU engine of ARM that supports
OpenGL ES 3.2/Vulkan 1.1. Besides, H616 supports full-format 4K@60fps
10-bit ultra-HD video decoding, Allwinner self-developed SmartColor3.3TM picture enhancement engine, Dolby, and DTS audio
processing. H616 adopts the new generation of power consumption technology, and reduces power consumption of 20% than the last
generation.
Highlights
* Quad core ARM CortexTM-A53, 64-bitarchitecture
* High performance multi-core G31 GPU, supporting OpenGL ES 3.2/Vulkan1
* Full formats H.265/VP9/AVS2 4K@60fpsdecoding
* Maximum 6K@30fps H.265 decodingperformance
* Low latency H.264 4K@25fps videoencoding
* Supports HDR10,HLG
* SmartColorTM 3 picture enhancementengine
Features
CPU
* Quad-core ARMCortexTM-A53
GPU
* G31 MP2
* Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL0
Memory
* 32-bit DDR4/DDR3/DDR3L/LPDDR3/LPDDR4interface, supporting maximum capacity of 4GB
* 0/eMMC5.0interface
* 8-bit Nand flash interface with maximum 80-bit/1KBECC
Video Engine
Video decoder:
* 265 Main10@L5.1decoder up to 4K@60fps or 6K@30fps
* VP9 Profile 2 decoder up to4K@60fps
* AVS2 JiZhun 10bit decoder up to4K@60fps
* 264 BP/MP/HP@L4.2decoder up to 4K@30fps
* Multi-format 1080p@60fps video playbackformats, including H.264 BP/MP/HP, 263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4
SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc
Video encoder:
* 264 BP/MP/HP encoder up to 4K@25fps or1080p@60fps
* JPEG snapshot performance of1080p@60fps
Display and Graphic
* Output size up to 4096 x2048
* Six alpha blending channels for maindisplay
* Four overlay layers in each channel, and hasan independent scaler
* Potter-duff compatible blendingoperation
* Supports AFBCbuffer
* Supports keystonecorrection
* FramePacking/Top-and-Bottom/Side-by-Side Full/Side-by-Side Half 3D format data
* Supports 10-bit processing path for HDRvideo
* Supports SDR/HDR10/HLG EOTF and colorspace conversion
* Supports SmartColor™ 3.3 for excellent displayexperience
* Supports one hardware accelerator for 2Dgraphic
* Supports one de-interlacingmodule
Display Output
* HDMI 2.0a up to4K@60fps
* TV CVBS output, supporting PAL/NTSC
Package
* TFBGA284balls
H616 is a new-generation high picture quality 64-bit 4K@60fps decoding SoC provided by Allwinner for the
OTT and IPTV markets. It integrates the quad core 64-bit CortexTM-A53 processor, and the new G31 GPU engine of ARM that supports
OpenGL ES 3.2/Vulkan 1.1. Besides, H616 supports full-format 4K@60fps
10-bit ultra-HD video decoding, Allwinner self-developed SmartColor3.3TM picture enhancement engine, Dolby, and DTS audio
processing. H616 adopts the new generation of power consumption technology, and reduces power consumption of 20% than the last
generation.
Highlights
* Quad core ARM CortexTM-A53, 64-bitarchitecture
* High performance multi-core G31 GPU, supporting OpenGL ES 3.2/Vulkan1
* Full formats H.265/VP9/AVS2 4K@60fpsdecoding
* Maximum 6K@30fps H.265 decodingperformance
* Low latency H.264 4K@25fps videoencoding
* Supports HDR10,HLG
* SmartColorTM 3 picture enhancementengine
Features
CPU
* Quad-core ARMCortexTM-A53
GPU
* G31 MP2
* Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL0
Memory
* 32-bit DDR4/DDR3/DDR3L/LPDDR3/LPDDR4interface, supporting maximum capacity of 4GB
* 0/eMMC5.0interface
* 8-bit Nand flash interface with maximum 80-bit/1KBECC
Video Engine
Video decoder:
* 265 Main10@L5.1decoder up to 4K@60fps or 6K@30fps
* VP9 Profile 2 decoder up to4K@60fps
* AVS2 JiZhun 10bit decoder up to4K@60fps
* 264 BP/MP/HP@L4.2decoder up to 4K@30fps
* Multi-format 1080p@60fps video playbackformats, including H.264 BP/MP/HP, 263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4
SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc
Video encoder:
* 264 BP/MP/HP encoder up to 4K@25fps or1080p@60fps
* JPEG snapshot performance of1080p@60fps
Display and Graphic
* Output size up to 4096 x2048
* Six alpha blending channels for maindisplay
* Four overlay layers in each channel, and hasan independent scaler
* Potter-duff compatible blendingoperation
* Supports AFBCbuffer
* Supports keystonecorrection
* FramePacking/Top-and-Bottom/Side-by-Side Full/Side-by-Side Half 3D format data
* Supports 10-bit processing path for HDRvideo
* Supports SDR/HDR10/HLG EOTF and colorspace conversion
* Supports SmartColor™ 3.3 for excellent displayexperience
* Supports one hardware accelerator for 2Dgraphic
* Supports one de-interlacingmodule
Display Output
* HDMI 2.0a up to4K@60fps
* TV CVBS output, supporting PAL/NTSC
Package
* TFBGA284balls
Specification
item | value |
Model Number | ALLWINNER H616 |
Type | integrated circuit |
Place of Origin | China |
Guangdong | |
Brand Name | allwinner |
D/C | 2022+ |
Package | TFBGA 284 |
Description | ALLWINNER H616 ic chip |
Application
Company Profile
Sochip is a high-tech company engaged in the development and design of consumer electronics products with well-equipped testing facilities and strong technical force. It focuses on the development of portable digital entertainment multimedia products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Packing & Delivery
Allwinner standard package
