Original Gpon Olt 16 Port Pon 1g 10g Ac Dc Class C Optical Pon Module HW Ma5680t Ma5608t
- Category: >>>
- Supplier: Guangzhou Huitou Information Technology Co. Ltd.
Share on (1600920765371):
Product Overview
Description
Products Description
Why Choose MA5608T olt

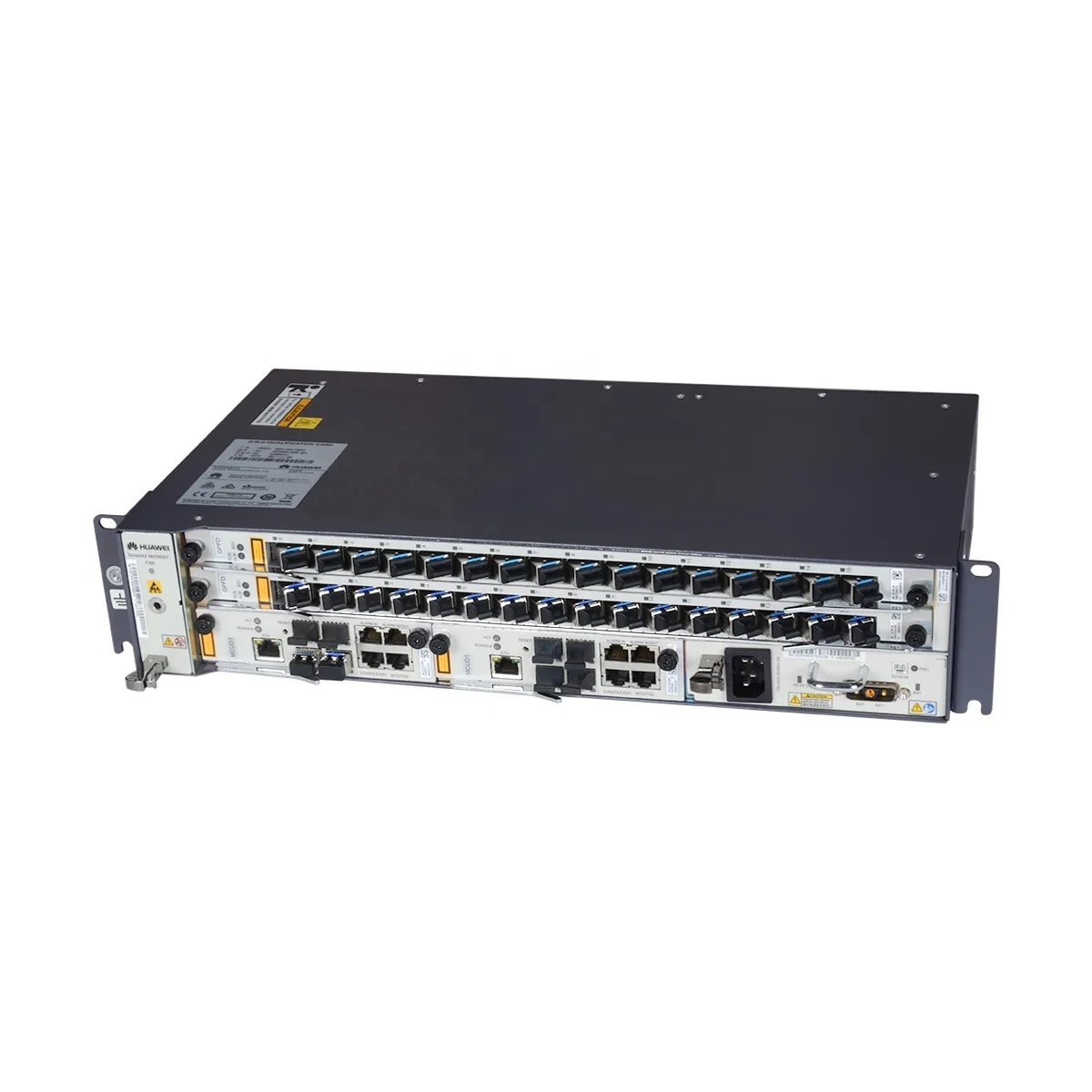

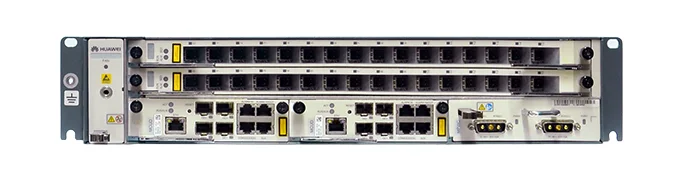

The high-performance and compact box-type OLT device SmartAX MA5608T enables FTTx access coverage in small-capacity scenarios such as townships.
2U high box-type OLT equipment MA5608T, with the large-capacity OLT at the central office, can achieve long-distance PON coverage of up to 100 kilometers and 2000 user access
Mini-OLT MA5608T supports 32 channels of GPON/EPON ports or 96 channels of FE/GE downstream, and the service board is compatible with large and medium-sized OLTs; it supports dual master control, dual power supply redundancy design, TypeB/C/D protection and Type C Dual-homing, etc., meet high reliability requirements and low-latency service access requirements such as WiFi/LTE; support 10G-GPON/10G-EPON evolution.
Specification

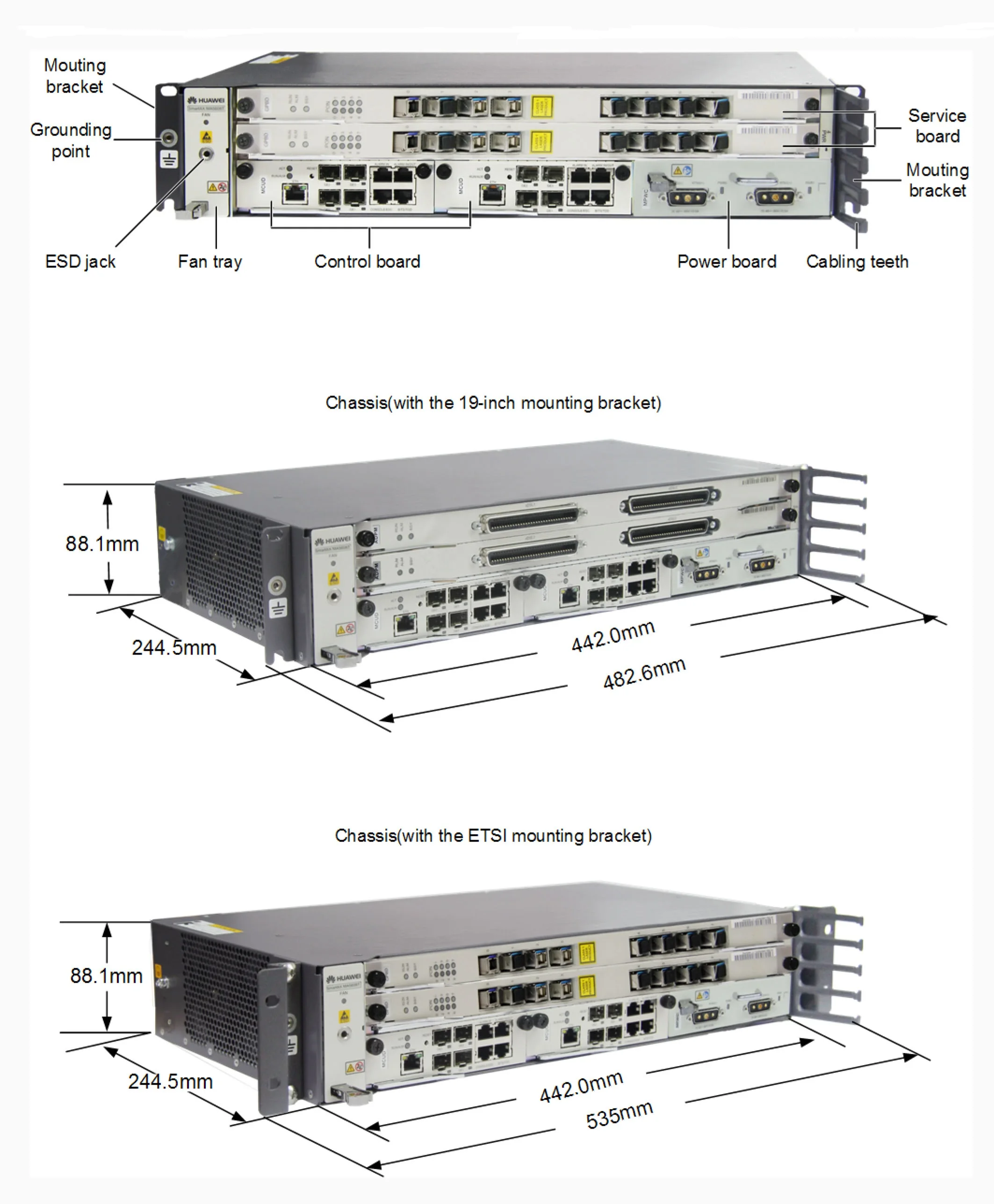

OLT | Model | Classic | 1G GPON OLT (upstream/control board) | 10G GPON OLT (upstream/control board) | Power Board | service board*2 | |||||
MA5608T (19inch) | H801MABR | MCUD*2 | MCUD1*2 | MPWC*1 | 8-port Gpon/Epon 16-port Gpon/Epon (+ optical modules) | ||||||
MA5608T (19inch)AC | H801MABR (AC) | MPWD*1 | |||||||||
backplane bus switching capacity: 720 Gbit/s Benefit: •reduces the uasge of ODM backbone optical cables •lower the ODM deployment cost and difficulty •minimizes the CO equipment room space. Accessory: •management frame*2, •uplink module*2, •power cable*2, •groud line*1 | |||||||||||
DSLAM | broadband access services: ADSL2+, VDSL2, SHDSL, POTS. provides Internet access, voice, video services | ||||||||||

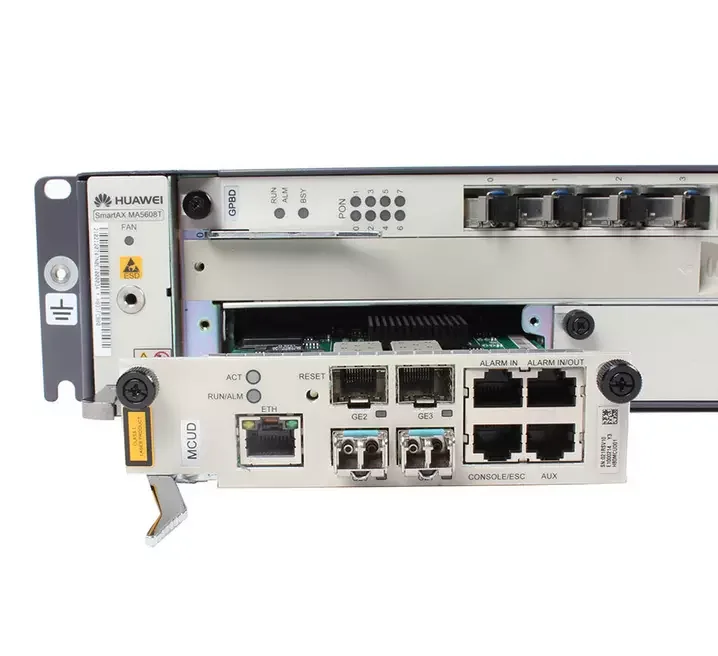

switching capacity (control board) / System Layer 2 packet forwarding rate | MCUD/MCUD 1: 128 Gbit/s (active/standby mode), 256 Gbit/s (load-sharing mode) |
Switching/Forwarding delay | The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
System reliability specifications | System: redundant configuration. System availability for the typical configuration: > 99.999%. Mean time between failures (MTBF): about 45 years. (for reference). |
Operating environment | Operating temperature: -40°C ~ +65°C, Operating humidity: 5% ~ 95% RH, Atmospheric pressure: 61 ~ 106 kPa, Altitude: ≤ 4000 m |
Max. number of ADSL2+ / VDSL2 / POTS ports | 128 |
Max. number of EFM SHDSL /ISDN BRA / ISDN PRA ports | 64 |
Max. number of TDM SHDSL / GPON ports | 32 |
Max. number of 10G GPON ports | 8 |
Max. number of P2P FE / GE ports | 96 |
Interface Boards to Choose
Service Board | ADPM / ADPE / H805ADPD / VDPM / VDPD / VDPE | ADPM / ADPE / H805ADPD / VDPM / VDPD / VDPE | 64port ADSL2+ over POTS service board | ||
VDQM | VDQM | 64port ADSL2+ over ISDN service board | |||
H805GPBD / GPBH | 8port GPON OLT Interface board | ||||
GPFD | GPFD | 16port GPON OLT Interface board | |||
XGBC | XGBC | 4port 10G GPON OLT Interface board | |||
H802EDTB | H802EDTB | 16port SHDSL and 16port E1 service board | |||
DSRD / DSRE | DSRD / DSRE | 32port ISDN digital subscriber board | |||
ASPB | ASPB | 64port VoIP subscriber board | |||
CVME | CVME | 48port VDSL2&POTS combo board | |||
CAME | CAME | 48port ADSL2+&POTS combo board | |||
SPUB | MPLS service process unit board | MPLS service process unit board | |||
ETHB | ethernet service access board | ||||
OPGD / OPGE | 48port GE/FE optical interface board | ||||
TOPA | TDM traffic over PSN board | ||||
SHGM | 32 port SHDSL. bits service board | ||||
SHLM | 16 port SHDSL. bits service board | ||||
Power board | MPWC | double DC power board | |||
MPWD | AC power board | ||||
