Max. Speed 350m/min 10 Colors Automatic Set Type Rotogravure Printing Machine
- Category: >>>
- Supplier: Zhejiang Allwell Intelligent Technology Co. Ltd.
Share on (1600920796929):
Product Overview
Description

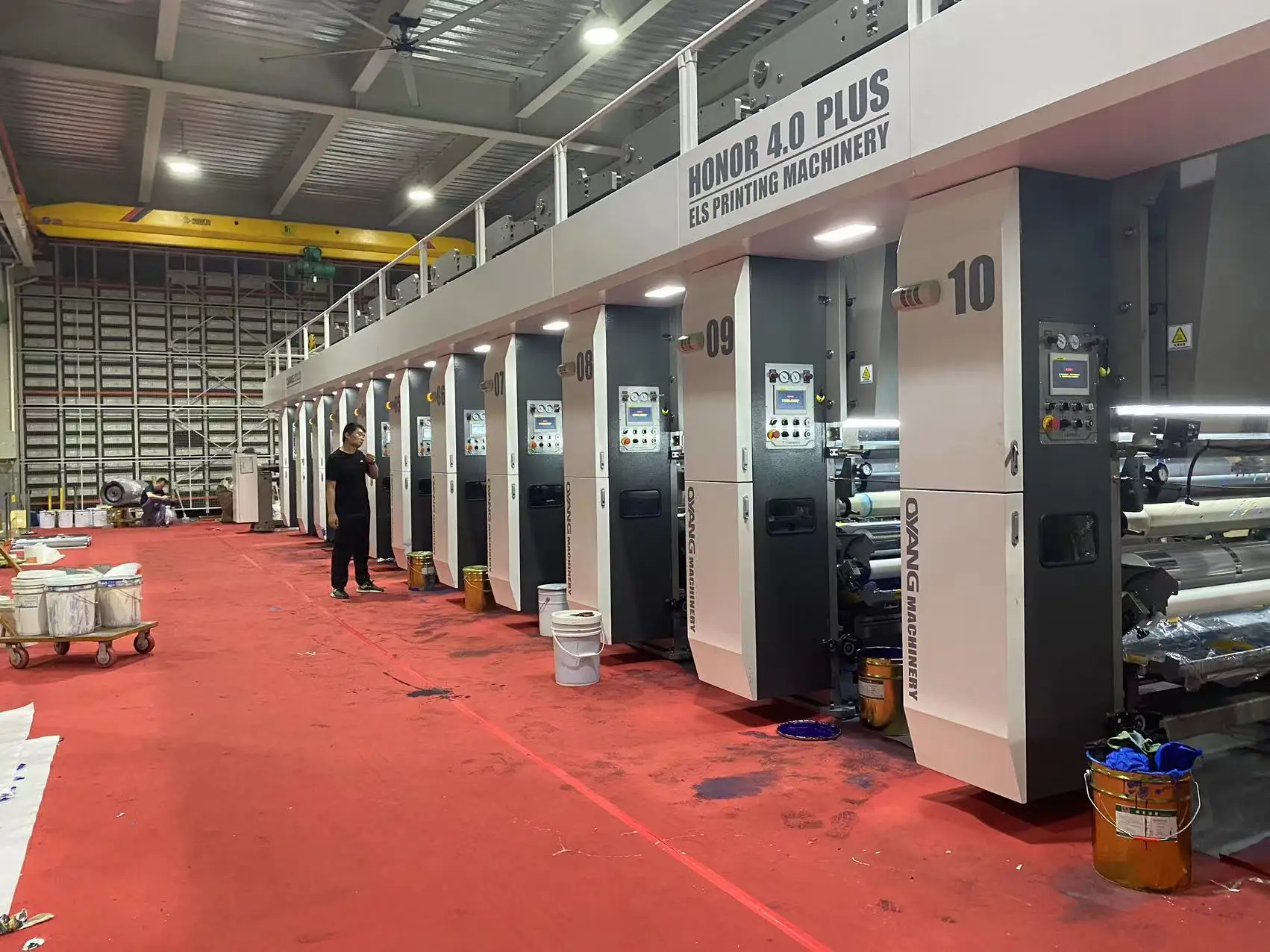

ON-400ELS ROTOGRAVURE PRINTING MACHINE

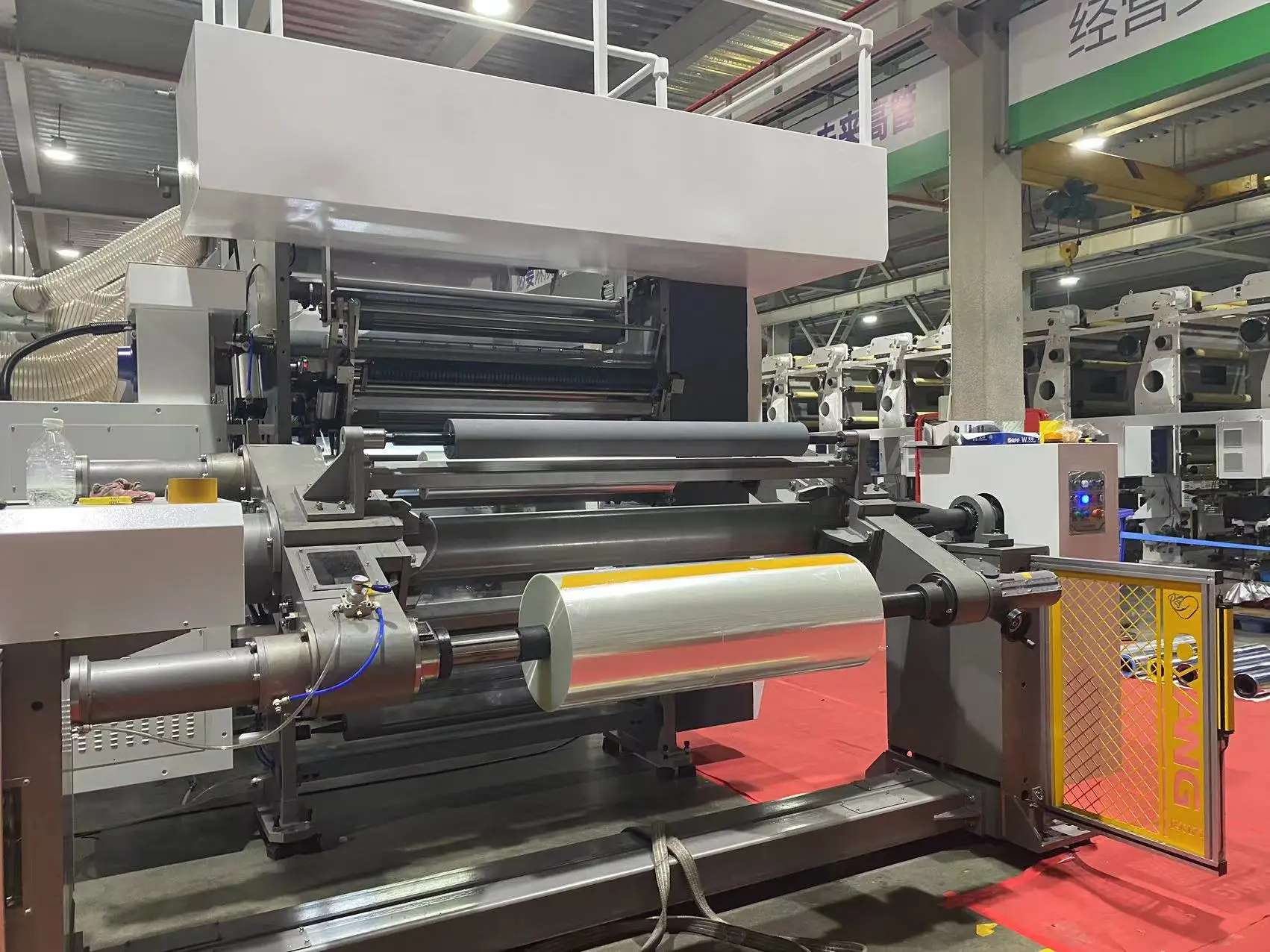

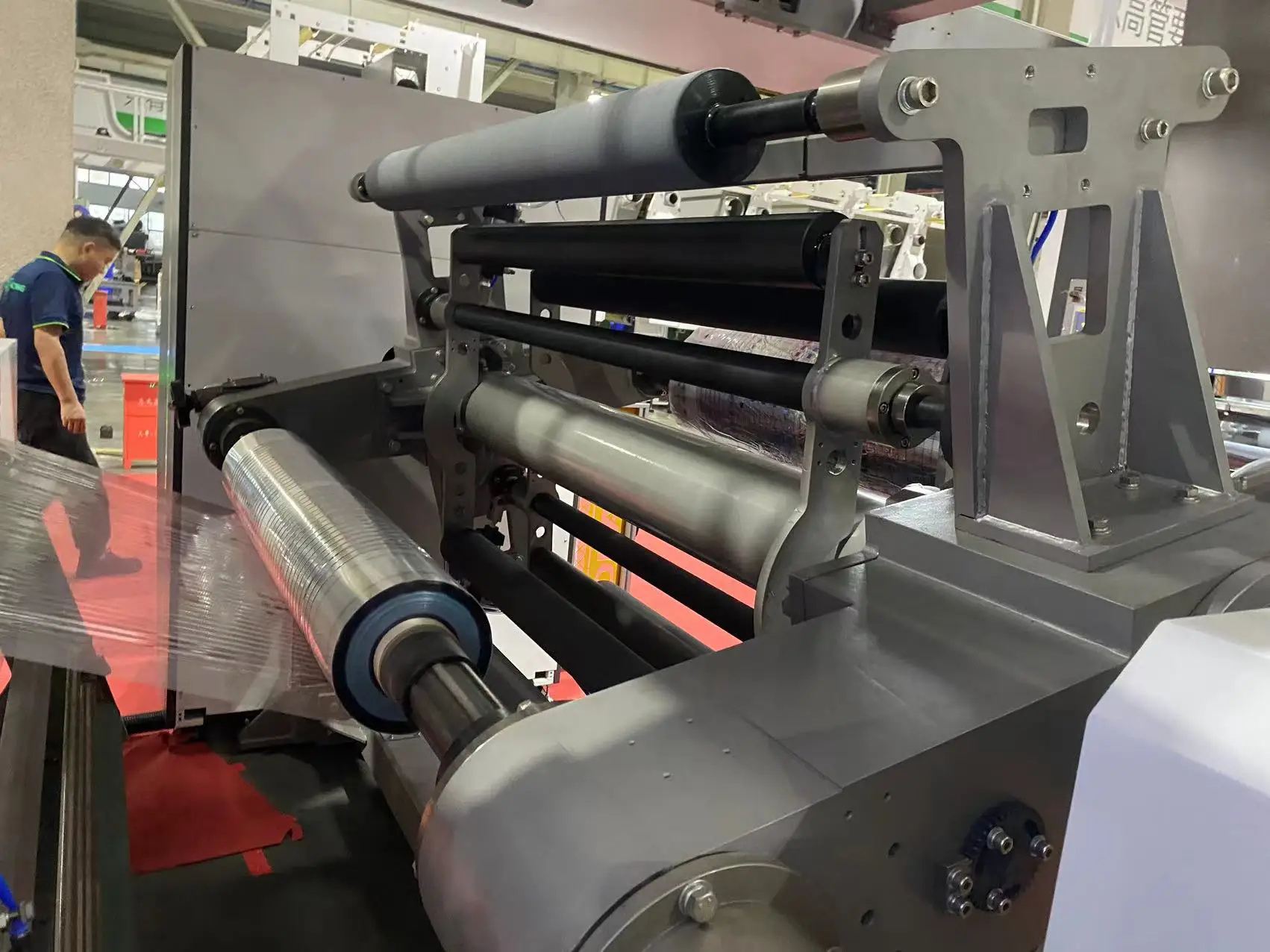

1, Efficient and stable winding mechanism
- Adopt tower type double station receiving and discharging structure, realize the whole process without stopping, without slowing down stable coil replacement;
- Adopt tower type double station receiving and discharging structure, realize the whole process without stopping, without slowing down stable coil replacement;

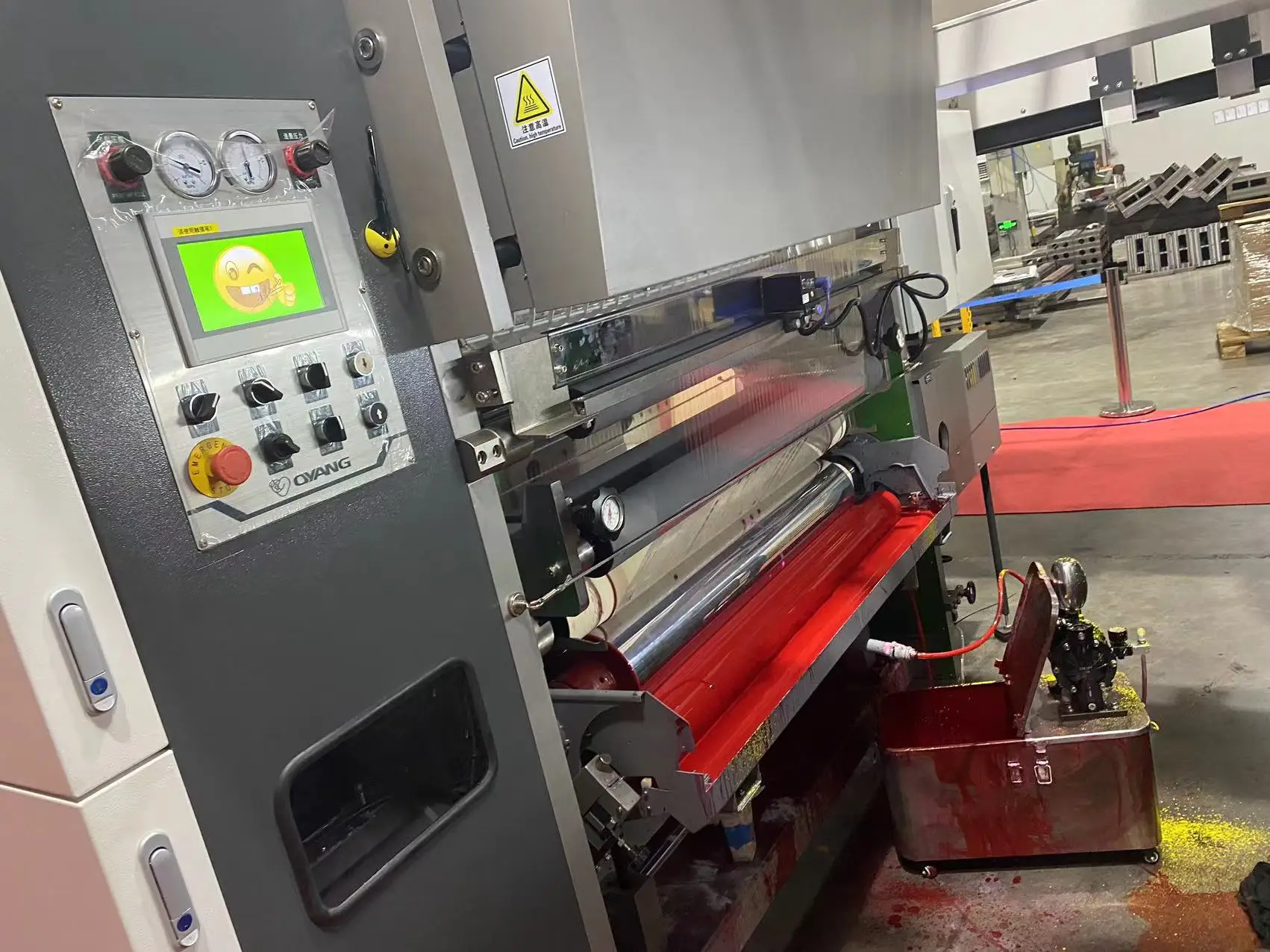

2. Intelligent and accurate printing unit
- Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to
the person's skills;
3, Advanced, and the drying system of environmental protection
- Oven adopts half suspension structure, guide roller exquisite layout, streamline material resistance;
4, Comprehensive, reliable safety equipment
- Equipment in line with the CE certification; handling equipment, the implementation of software and hardware double protection, risk control more thoroughly.
- Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to
the person's skills;
3, Advanced, and the drying system of environmental protection
- Oven adopts half suspension structure, guide roller exquisite layout, streamline material resistance;
4, Comprehensive, reliable safety equipment
- Equipment in line with the CE certification; handling equipment, the implementation of software and hardware double protection, risk control more thoroughly.
Product Paramenters
Printing color number | 10colors（Increase or decrease） |
Maximum printing width | 1250 mm |
Maximum machine speed | 400 m/min（Standard plate roll diameter φ170） |
Roll diameter range | φ120mm－φ300mm |
Roll length range | 900 mm -1350mm |
Alignment accuracy | ≤±0.1mm（automatic） |
Maximum diameter of unwinding | φ800mm |
Maximum diameter of winding | φ800mm |
Receiving and discharging paper core | Φ76mm×Φ92mm（3"） |
Tension range | 3-30KgF |
Tension accuracy | ≤±0.3 KgF（Full amplitude accuracy） |
Heating mode | Electric heating/steam/natural gas/hot oil, etc |
Heating temperature | Max.80℃（indoor temperature 20℃） |
Temperature control accuracy | ±2℃ |
Total machine power | Approx.175Kw（主） |
Machine dimensions | Approx.L.23400 * W.4756 * H.4378（mm） |
Machine weight | Approx.72000kg |
Printing material | OPP、 BOPP、 CPP、PE、PET、PVC、NY etc. |
Company Profile
Founded in 2006,covering an area of 130,000㎡, more than 400 workers, Zhejiang Ounuo Machinery Co,.Ltd is a comprehensive company, we are the biggest paper bag machine & nonwoven bag making machine manufacturer in China. we offer complete solutions to customer in the eco-friendly bag making project,including paper bag making solutions, nonwoven bag making solutions,nonwoven fabric production line, we had exported them to all over the world in the past years. Every year we have at least one new design machine.Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 100-150 USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In
addition, they can use body language to communicate with customer.
Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after
sales specialist at any time.Our after-sales department with 30 engineers.Our engineers will take a solution video according your description.
Q9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 100-150 USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In
addition, they can use body language to communicate with customer.
Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after
sales specialist at any time.Our after-sales department with 30 engineers.Our engineers will take a solution video according your description.
Q9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
