adjustable scaffolding u head jack and base jack for construction

Share on (1600920802967):


Price:$2.85 - $3.00

Quantity:


Product Overview

Description





Product Description

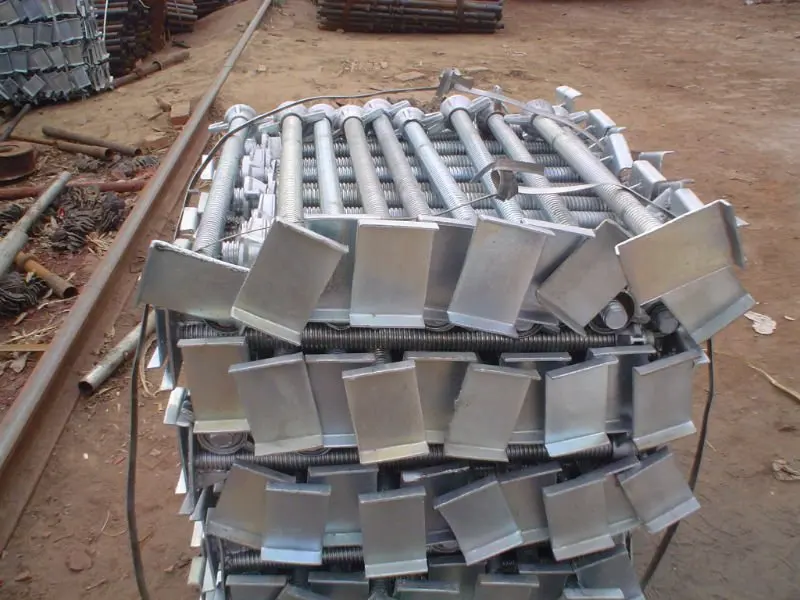

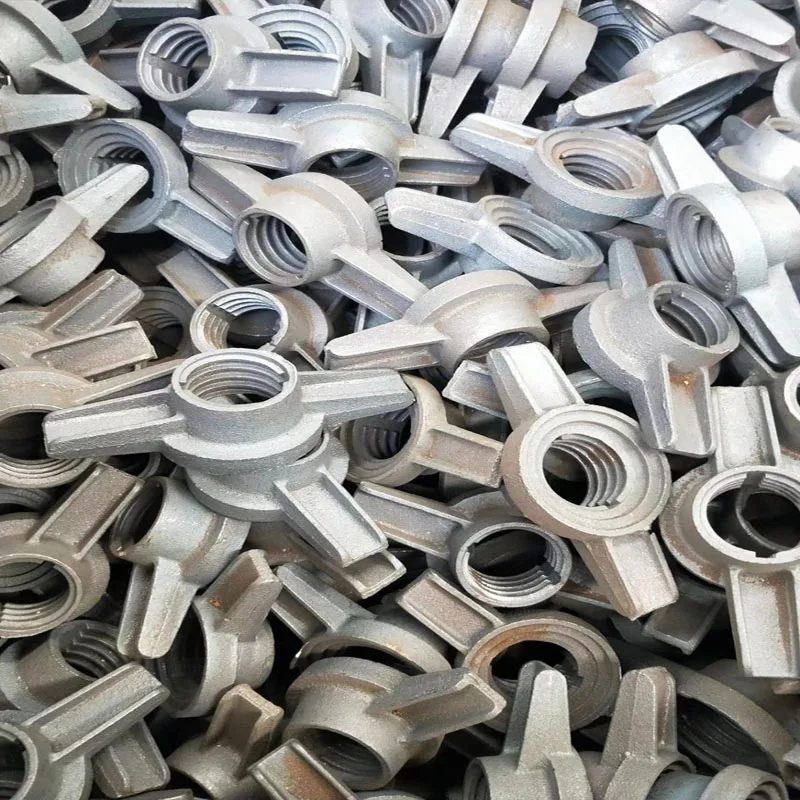

scaffolding adjustable base jack and u head jack accessories nut hollow and solid scaffolding

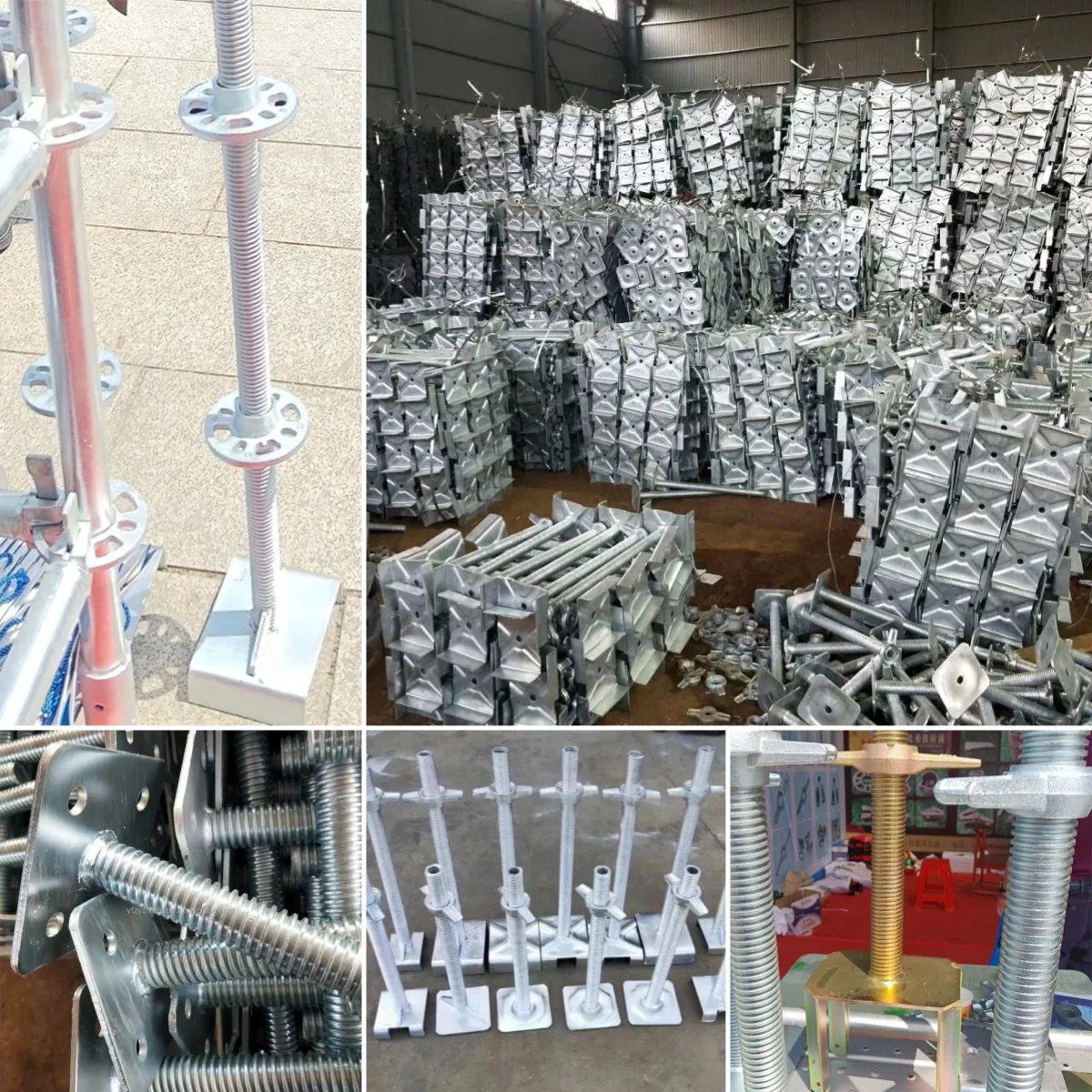

Scaffold Base Jacks are used as the base for scaffolding bays, in which standards are put on. Provide stability by adjusting the level of the bay on uneven ground.Adjustable screw jack base can be used in engineering construction, bridge construction, and used with all kinds of scaffold, play the role of top and bottom support.The surface treatment :hot dip galvanized or electro galvanized .Head base is usually U type,the base plate is usually square or customized by customer.The most common size of scaffold adjustable base jacks are OD38mm scaffold adjustable base jacks.OD30mm scaffold adjustable base jacks are compatible with walk-through, ladder, and other traditional scaffolding frames. Frame scaffolding can also use OD 32-36mm adjustable base jacks. Heavy Duty Shoring Scaffolding System has selected to employ OD 48mm scaffold adjustable base jacks..

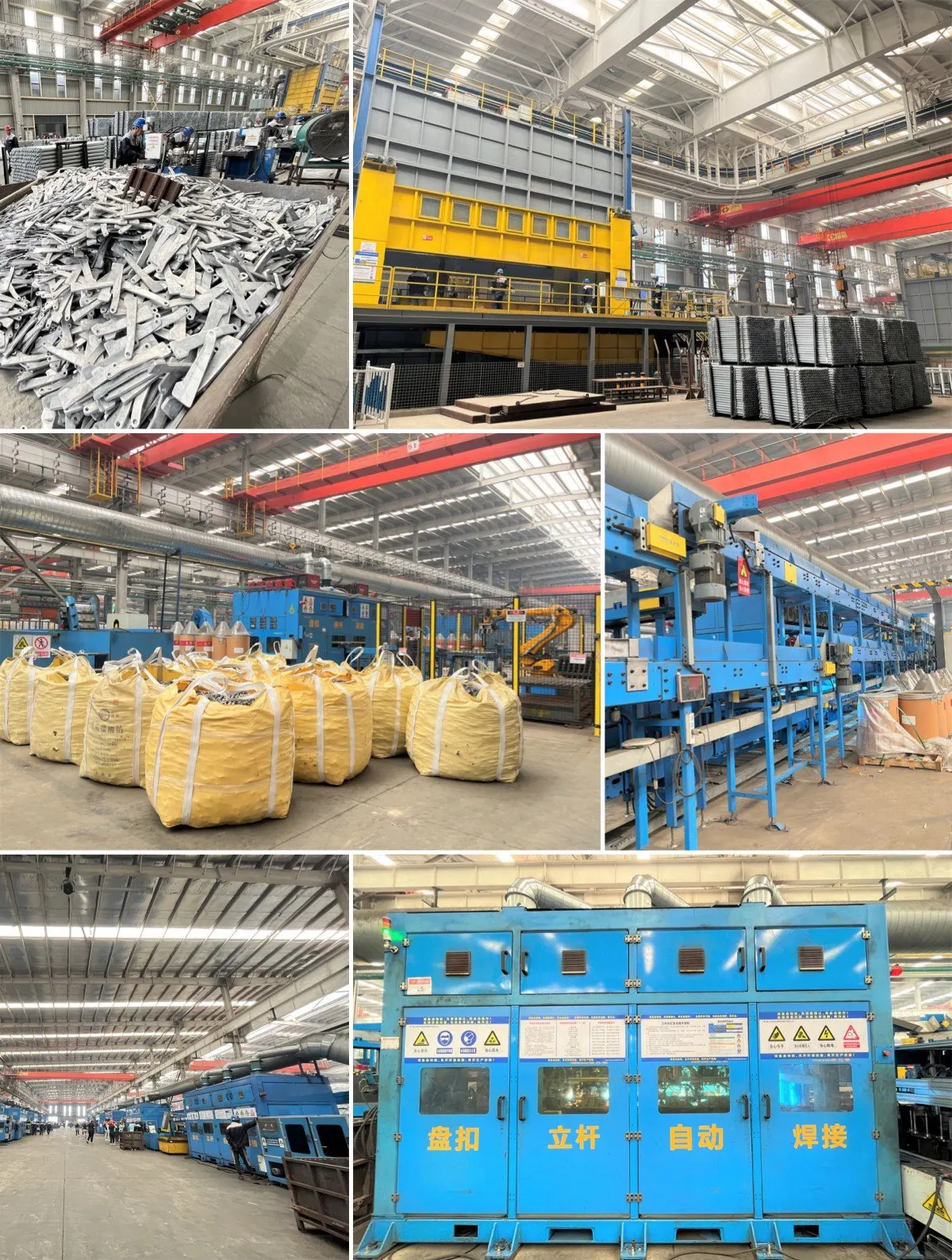

Manufacturing Technique






Specification


Jack Base
Type
Specification
Base Plate size
Solid
30*400 mm
120*120*4 mm
Solid
30*600 mm
120*120*4 mm
Solid
32*400 mm
120*120*4 mm
Solid
32*600 mm
120*120*4 mm
Solid
34*400 mm
120*120*4 mm
Solid
34*600 mm
150*150*5 mm
Hollow
38*4*600 mm
150*150*5 mm
Hollow
38*4*660 mm
150*150*5 mm
Hollow
38*4*760 mm
150*150*5 mm
Hollow
48*4*600 mm
150*150*5 mm
Hollow
48*4*900 mm
150*150*5 mm

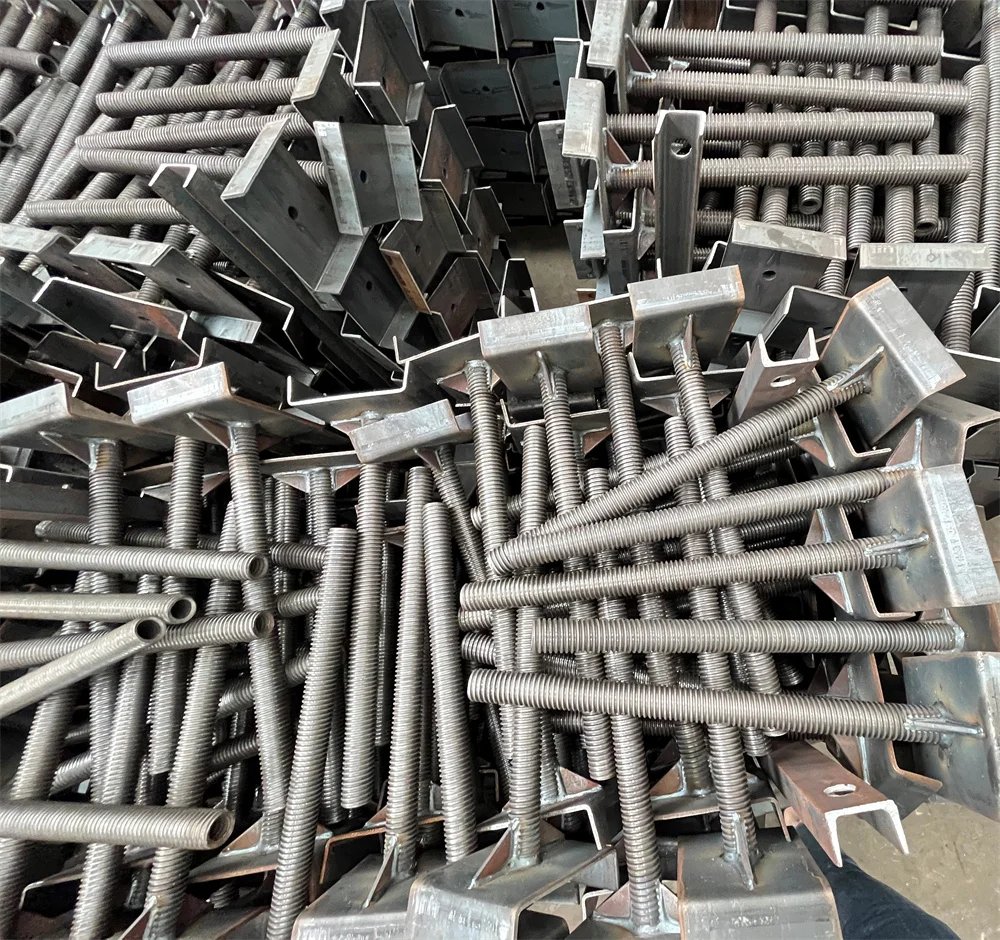

U head Jack
Type
Specification
U Base Plate size
Solid
30*400 mm
150*150*50*4 mm
Solid
30*600 mm
150*120*50*4 mm
Solid
32*400 mm
120*120*50*4 mm
Solid
32*600 mm
150*120*50*4 mm
Solid
34*400 mm
120*120*50*4 mm
Solid
34*600 mm
150*120*50*4 mm
Hollow
38*4*600 mm
150*150*50*5 mm
Hollow
38*4*660 mm
170*150*80*6 mm
Hollow
38*4*760 mm
165*150*50*5 mm
Hollow
48*4*600 mm
150*150*50*8 mm
Hollow
48*4*900 mm
200*200*50*8 mm

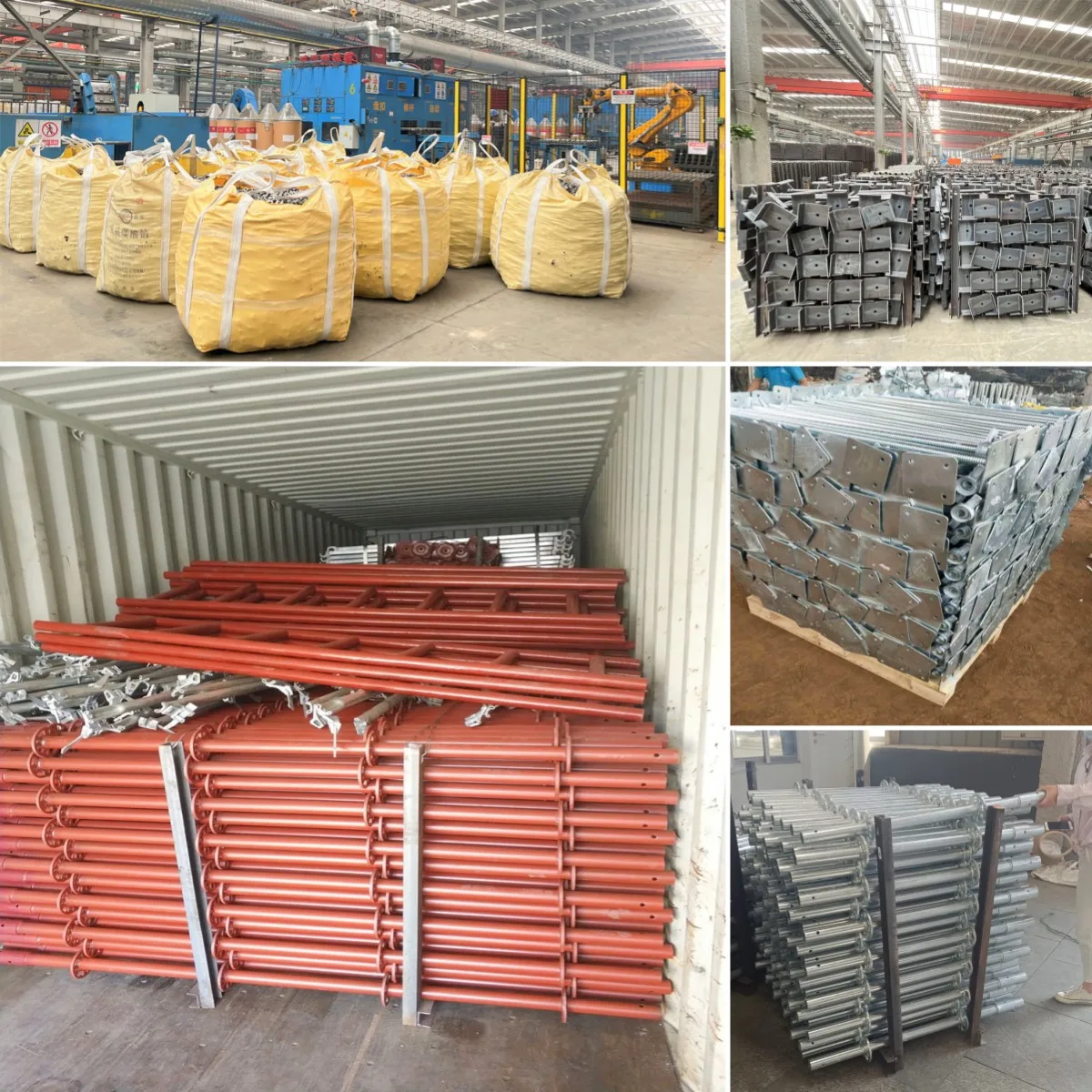

Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

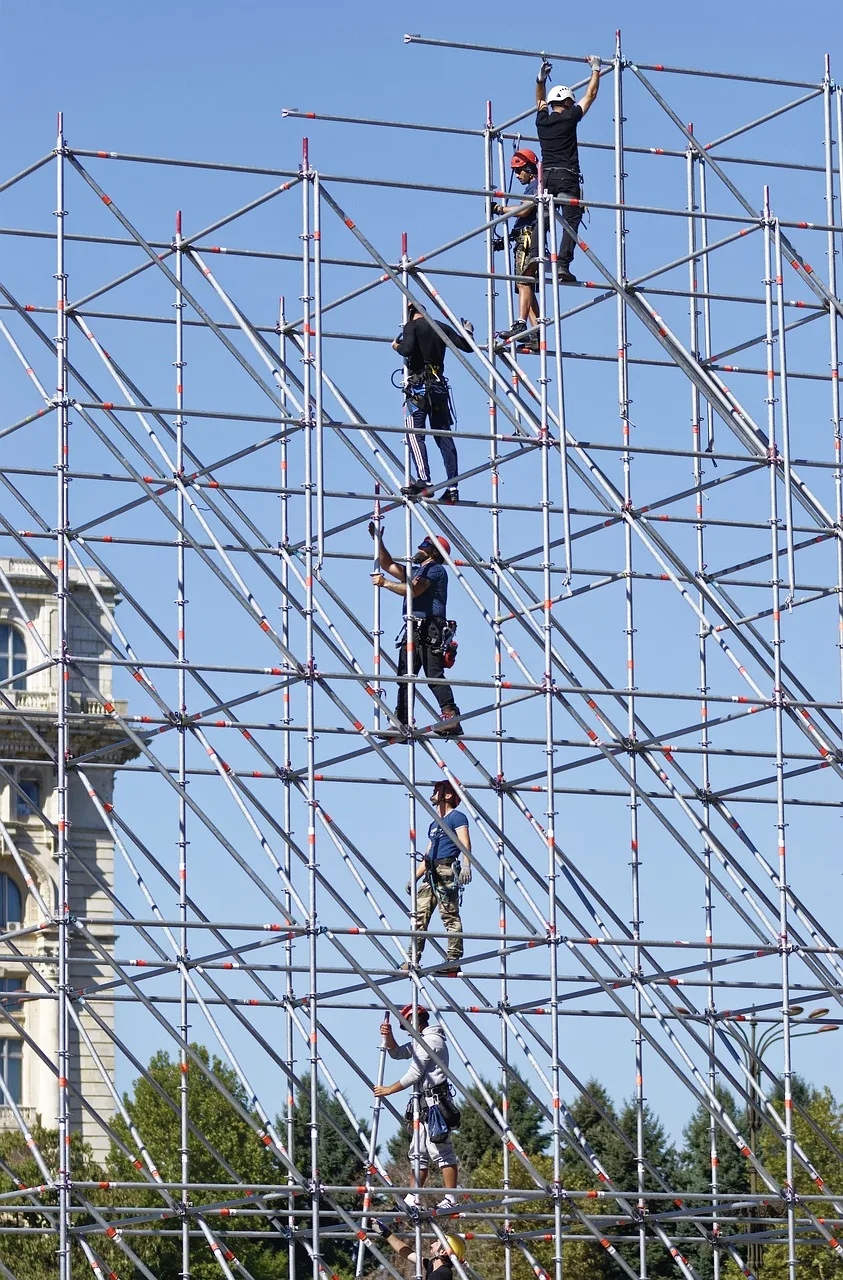

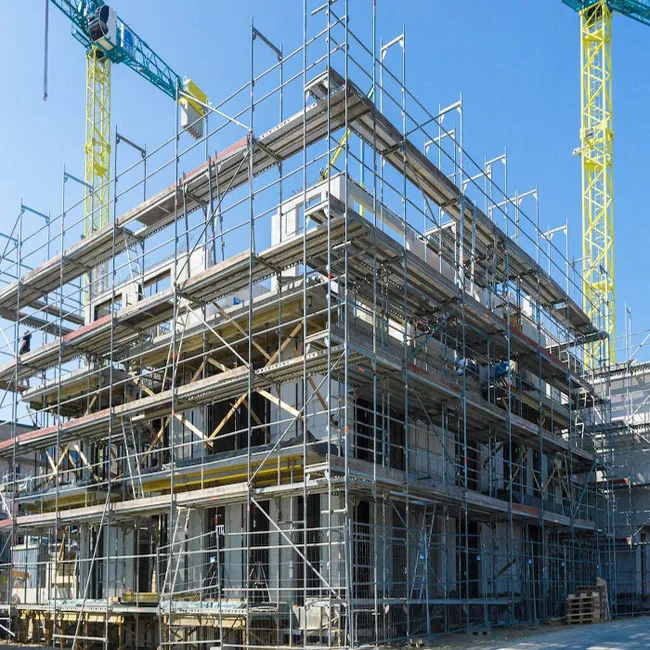

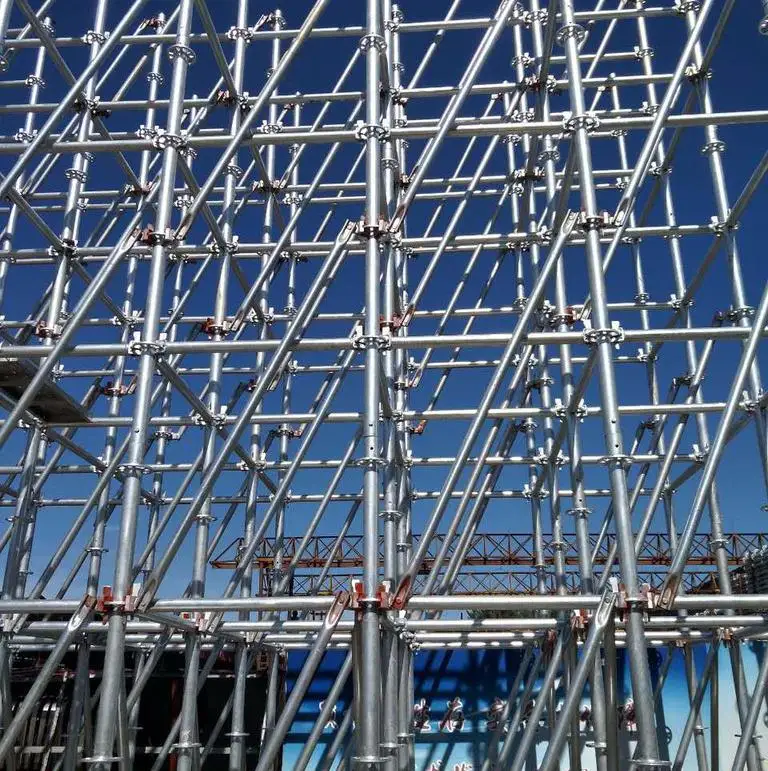

Application

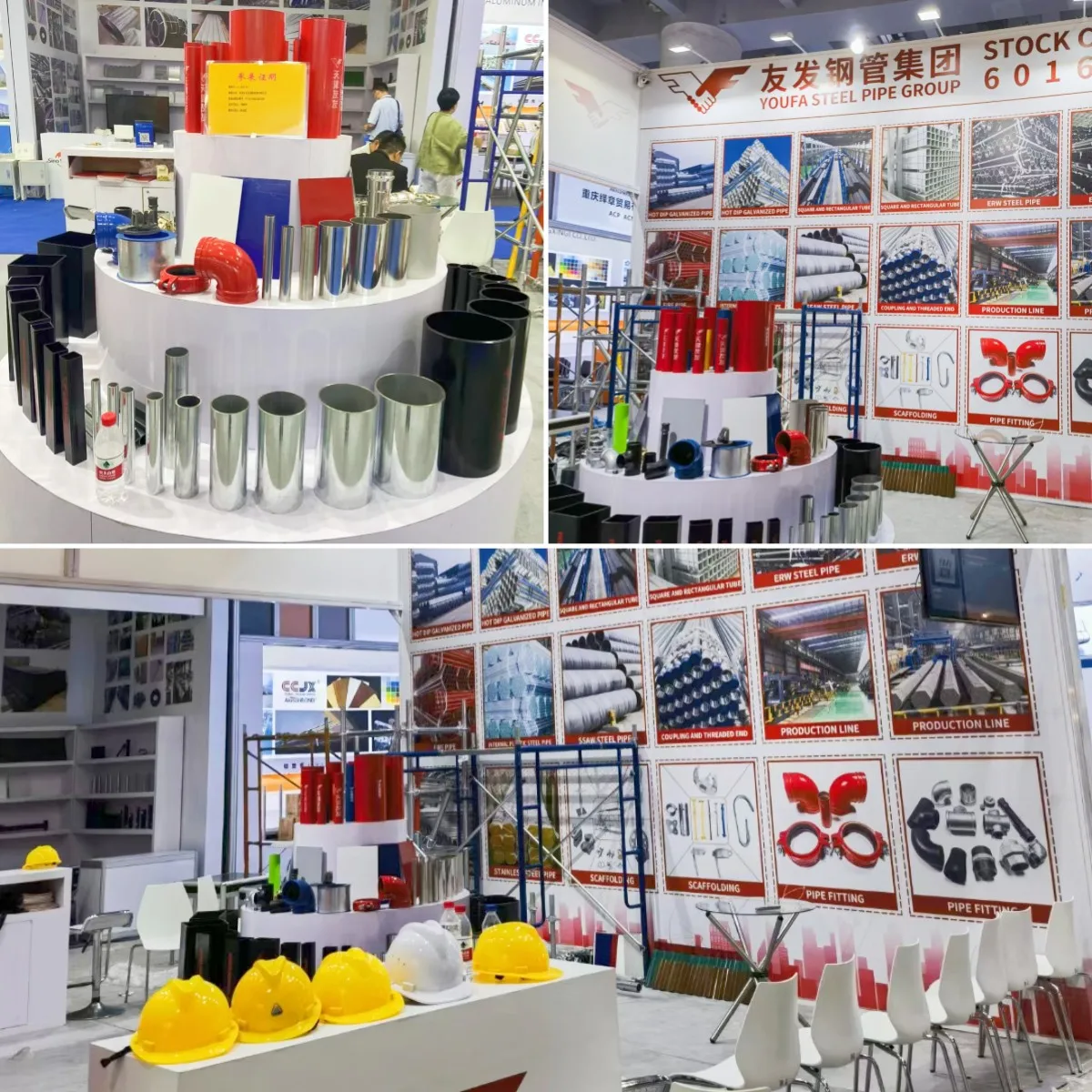

Exhibition

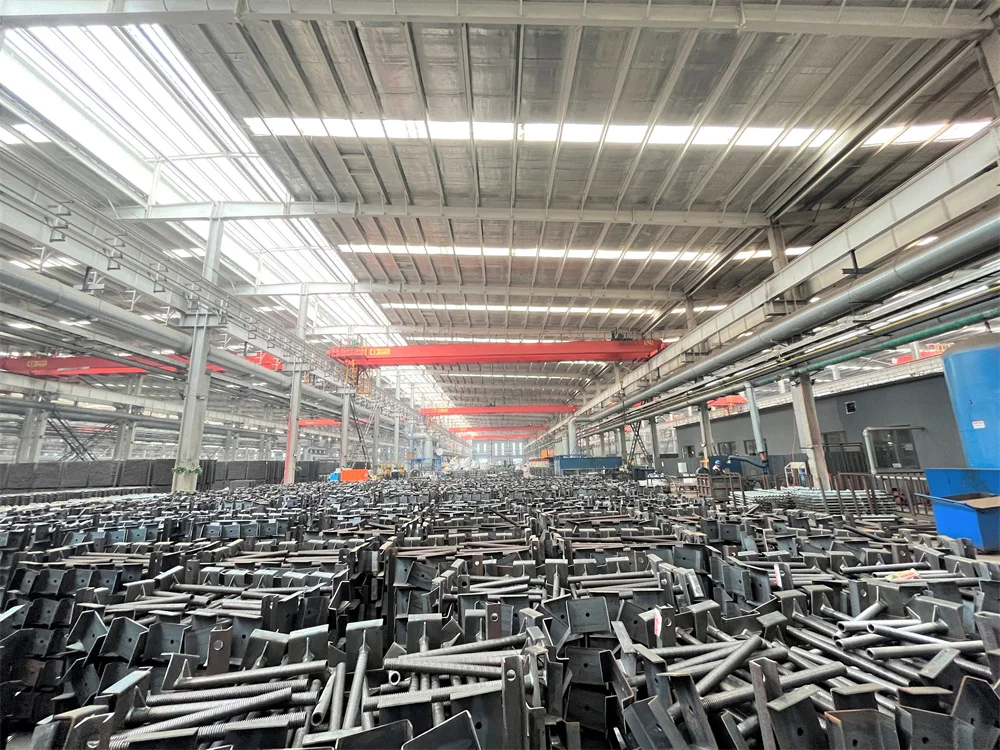

Company Profile








Tianjin Youfa International Trade Co., Ltd. was founded in March 2010, as a subsidiary of Youfa Steel Pipe Group. Our company is located at 12-24# Dafeng Road, Hongqiao District, Tianjin. There are about 30 employees, and among them 20 employees have CET-6 certificates or even better. The annual sales amount of the steel is nearly 100,000 tons. In order to adapt to the strategy of"Being International and Serving the World", at the beginning of 2010, we established Tianjin Youfa International Trade Co., Ltd.as a foreign trade window of Youfa Steel Pipe Group which will be responsible for the import and export of our products. Our products have been manufactured according to API, ASTM, EN, BS, ISO, DIN and JIS internationally advanced standards, and also approved by the third party. They are widely used in oil and natural gas, low pressure liquid and mineral powder delivery, and also can be used for structure and piling field in industrial and civil construction. Paying attention to the quality of products and services, possessing normative QAS, we have acquired certificates of API5L/5CT, ISO9001 and EN10219. Based on the high quality and considerate service, our products have set up a prominent brand image in markets at home and abroad. Our markets mainly are Middle & South America, Southeast Asia, the Middle East and Africa and so on, covering nearly 100 countries and obtaining a well-deserved reputation. We have built long-term cooperation with many clients and have received wide acclaim. Pursuing theprinciple of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!
