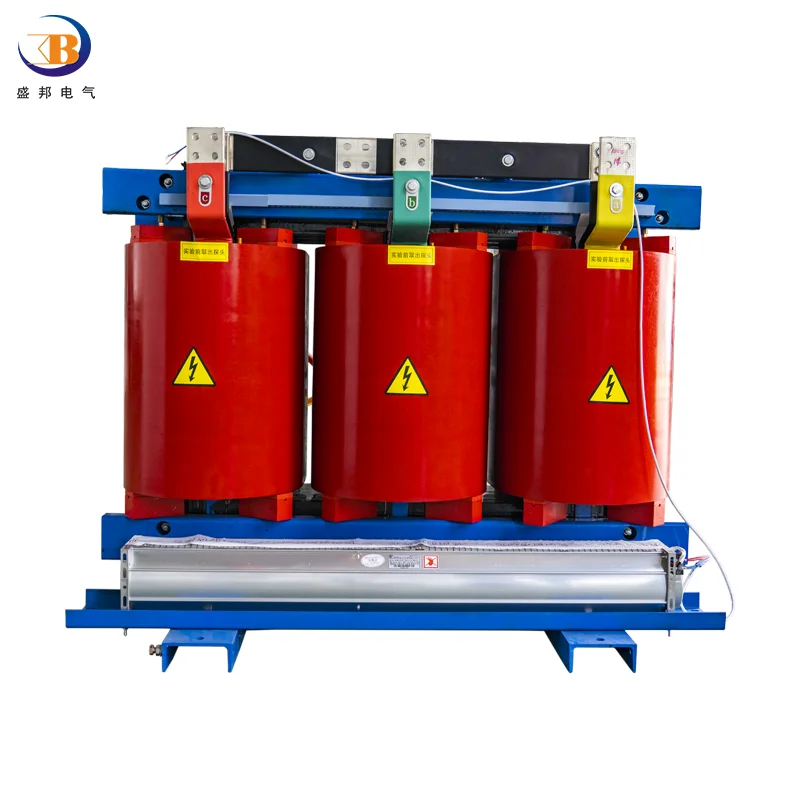

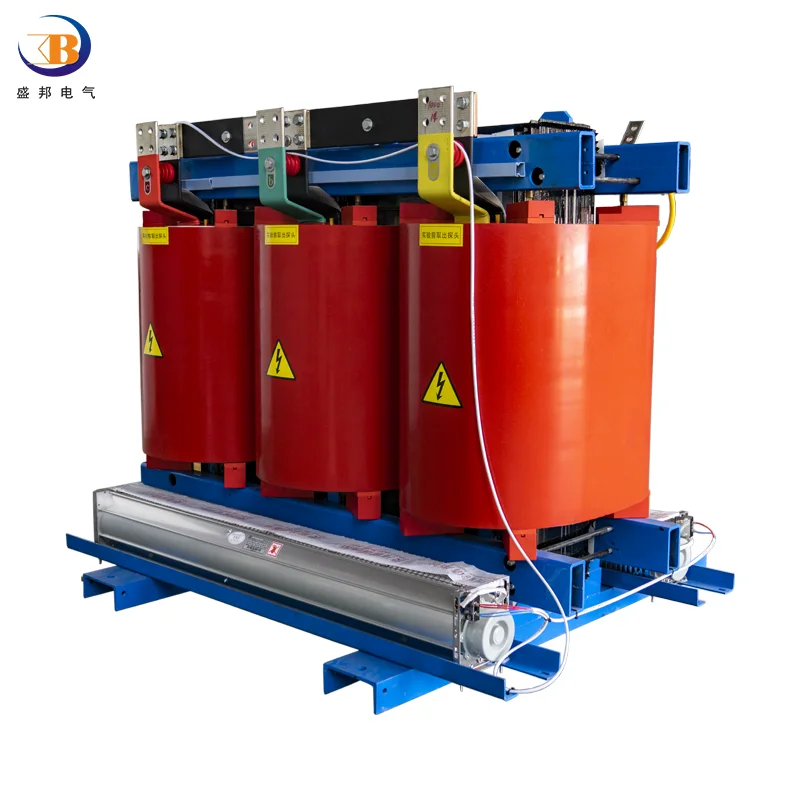

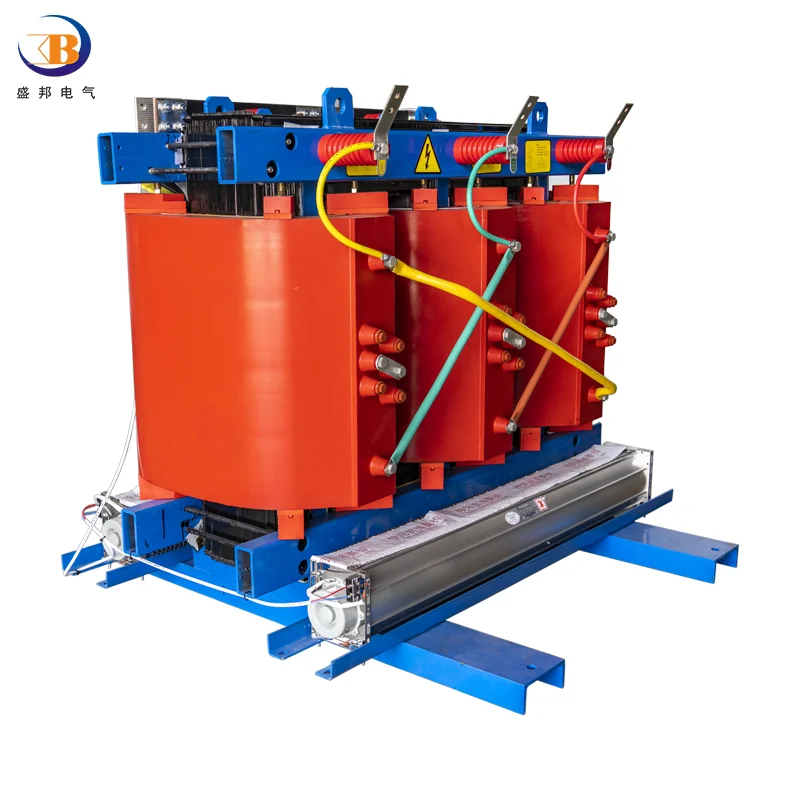

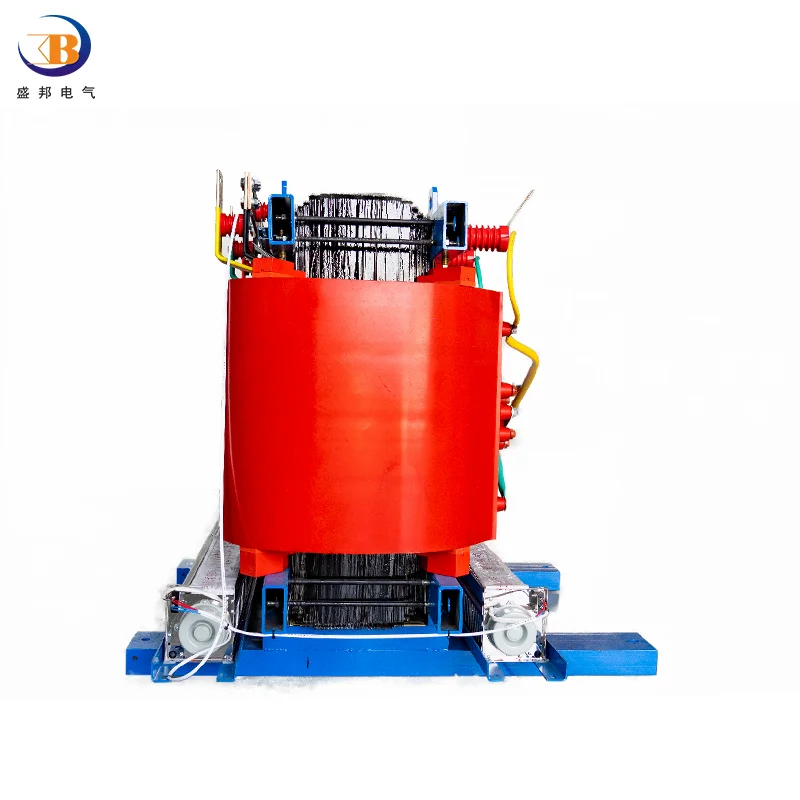

Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer
Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer

Customized High Quality Resin Insulation Dry Type Power Transformer Dyn11 From 50 kva To 4000 kva Step Up Transformer

Share on (1600920817261):


Price:

Quantity:


Product Overview

Description

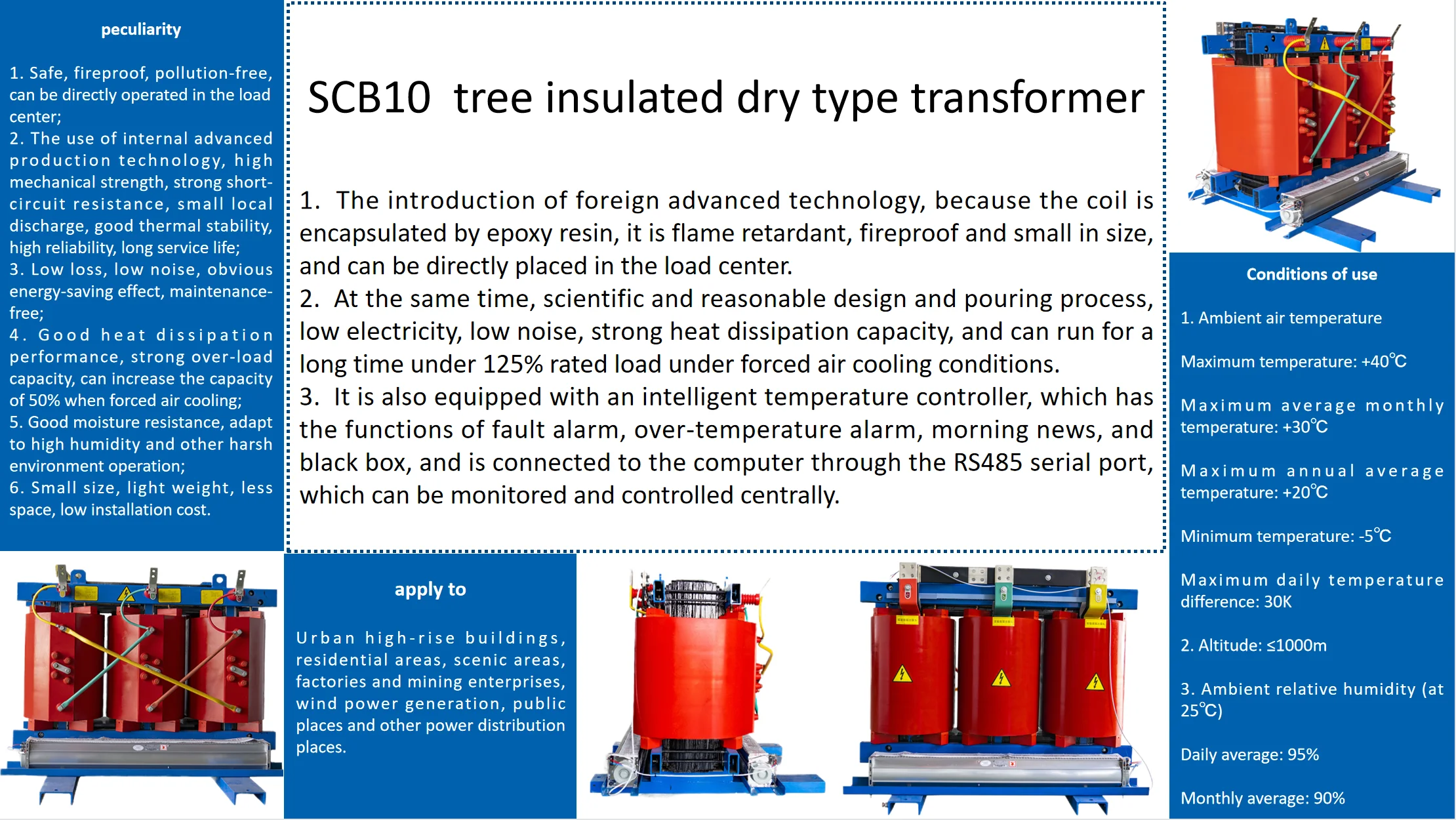

SCB10 tree insulated dry type transformer
1. The introduction of foreign advanced technology, because the coil is encapsulated by epoxy resin, it is flame retardant, fireproof and small in size, and can be directly placed in the load center.
2. At the same time, scientific and reasonable design and pouring process, low electricity, low noise, strong heat dissipation capacity, and can run for a long time under 125% rated load under forced air cooling conditions.
3. It is also equipped with an intelligent temperature controller, which has the functions of fault alarm, over-temperature alarm, morning news, and black box, and is connected to the computer through the RS485 serial port, which can be monitored and controlled centrally.








item
transformer
Place of Origin
Hebei China
Brand Name
Shengbang
Model Number
dry transformer
Phase
Three
Coil Number
3
Usage
power
Coil Structure
layer coil
Rated Secondary Voltage
0.4
Power
1600kva
Certification
ISO9001:2008
Standard
IEC60076
Winding material
Copper\\Aluminum
Warranty
2 Years
Cooling Method
ONAN ONAF
Frequency
50/60 Hz
Rated capacity
1600kva
Secondary voltage
400v
Capacity/KVA
1600kva




1)IEC60076,ISO,CCC,Type test report
2)Top 3 and more than 23 Years' experience
3)Sold to Malaysia,HK,Ethiopia, Mozambique, Kenya, Congo, Philippines,Nigeria,HK....and so on


1. Standard: IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
2. Voltage Grade: 6KV to 35KV
3. Voltage Regulation Mode: No-load tap changing or On-load tap changing
4. Tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Frequency: 50Hz; 60Hz
6. Phase: three phase
7. Connection Sign: Dyn5,Dyn5,Yyn0, Dyn11 or others

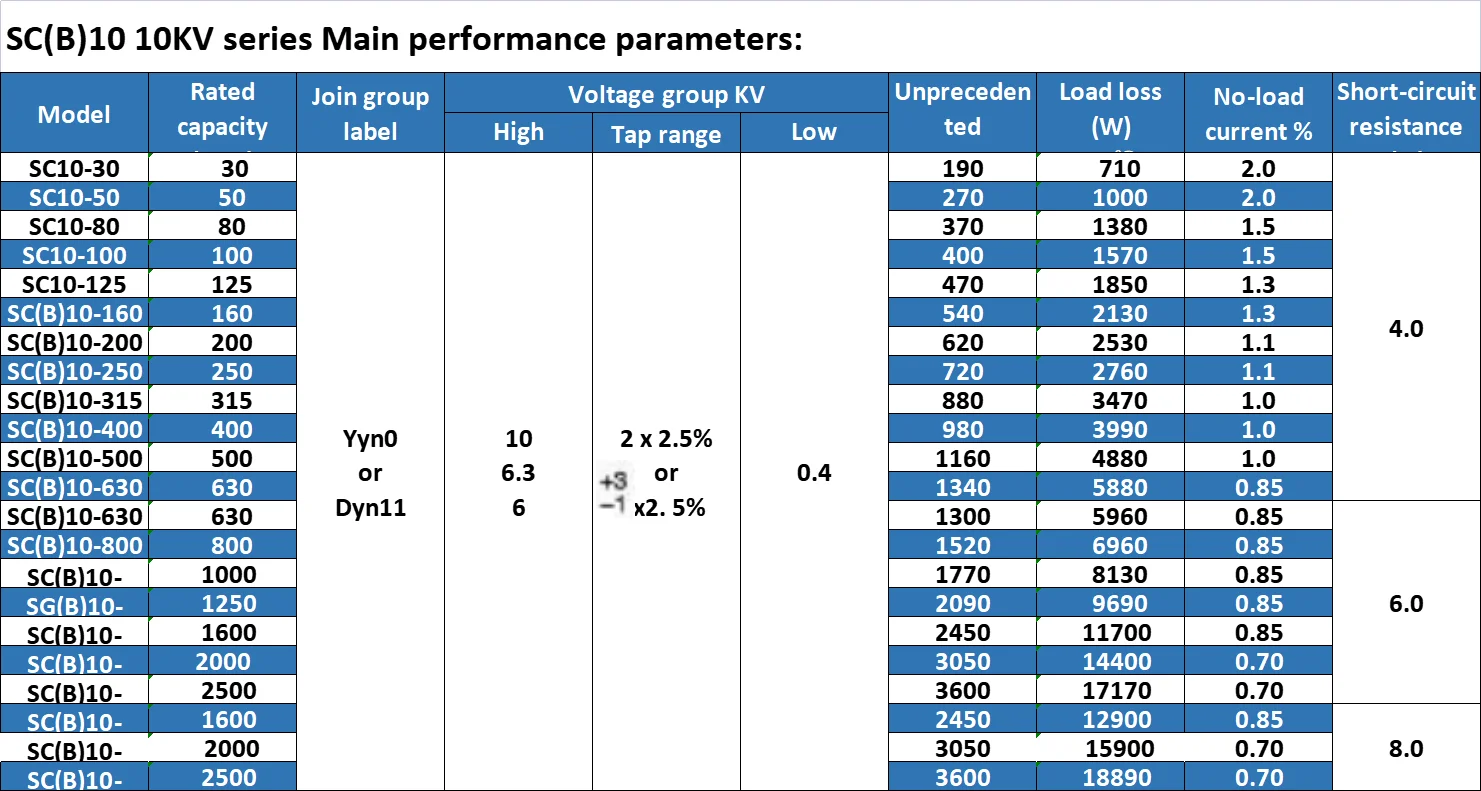

8. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
