Plastic 250ml 500ml 1000ml PP HDPE Reagent Chemical Bottle Wide Mouth Extrusion Blow Molding Making Machine

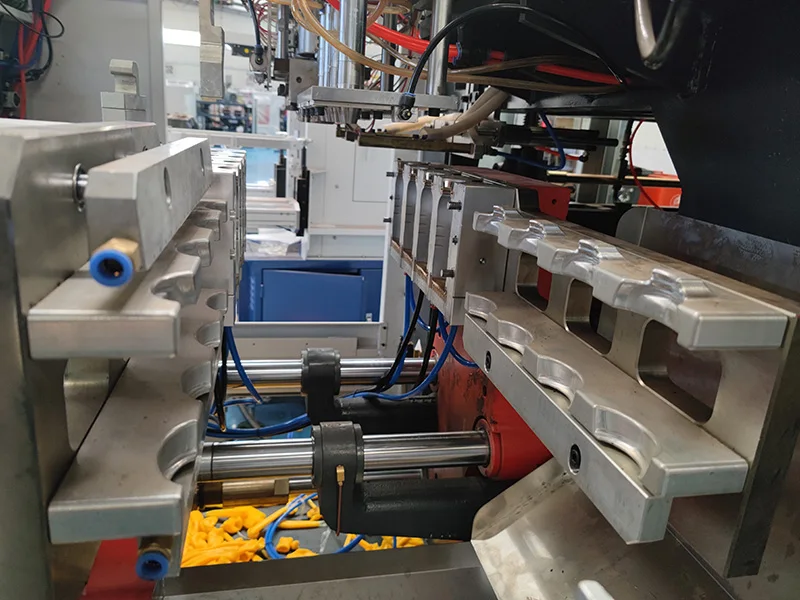

The extrusion blow molding machine adopts parallel carriage moving, with automatic lubricationsystem.The movements is stable and easy operate, two layerdie head is optional.This series machine is widely used infood packing, pharmacy and cosmetic area. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products.

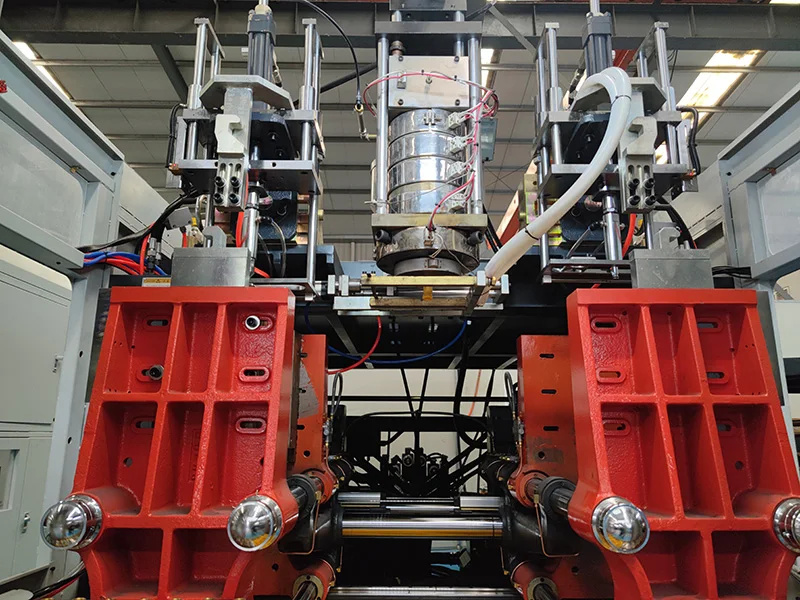

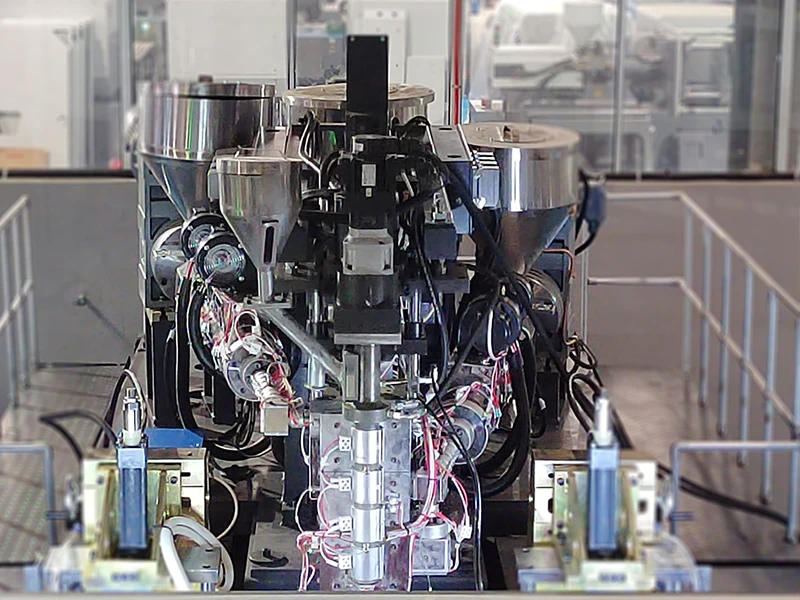

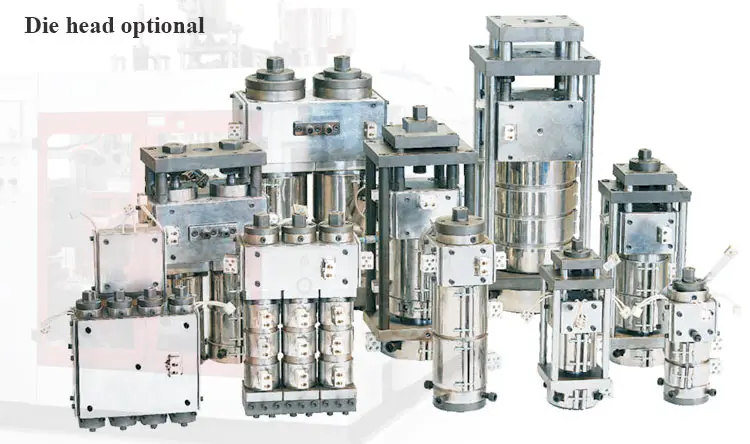

Die head optional
1 head,2 head,3 head,4 head...

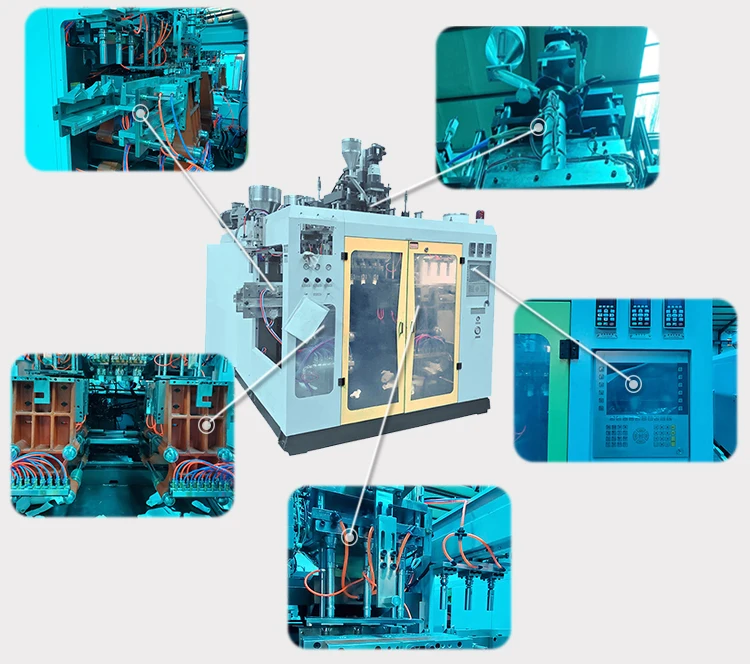

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
SPECIFICATIONS | HJS80D |
Material | PE PP PVC PA... |
Max container capacity | 10L |
Number of die | 123,4,6 |
Machine Dimension(LxWxH) | 3.3*5.5*2.8m |
Total weight | 8.2ton |
CLAMPING UNIT | |
Clamping force | 150kN |
Platen openning stokes | 220-620mm |
Carriage stroke | 540mm |
Max mould size(WxH) | 520*460mm |
EXTRUSION UNIT | |
Screw diameter | 80mm |
Screw L/D ratio | 24 L/D |
(HDPE) Plasticizing capacity | 108kg/h |
Screw heating zone | 4 zone |
Screw heating power | 15.6kw |
Screw fan power | 0.14kw |
Extrusion motor power | 30kw |
DIE HEAD | |
Die head heating zone | 3 zone |
Power of die heating | 13.5kw |
ENERGY CONSUMPTION | |
Total power of machine | 74.98kw |
Power of oil pump motor | 11kw |
Air pressure | 0.6-0.8 Mpa |
Average energy consumption | 35kw |
Consumption compression air | 1.5m3/min |
Consumption cooling water | 40L/min |
Finished products
Our machine can produce kinds of bottles.
Material:PE,PP,PVC.ABS,HDPE,LLDPE etc.

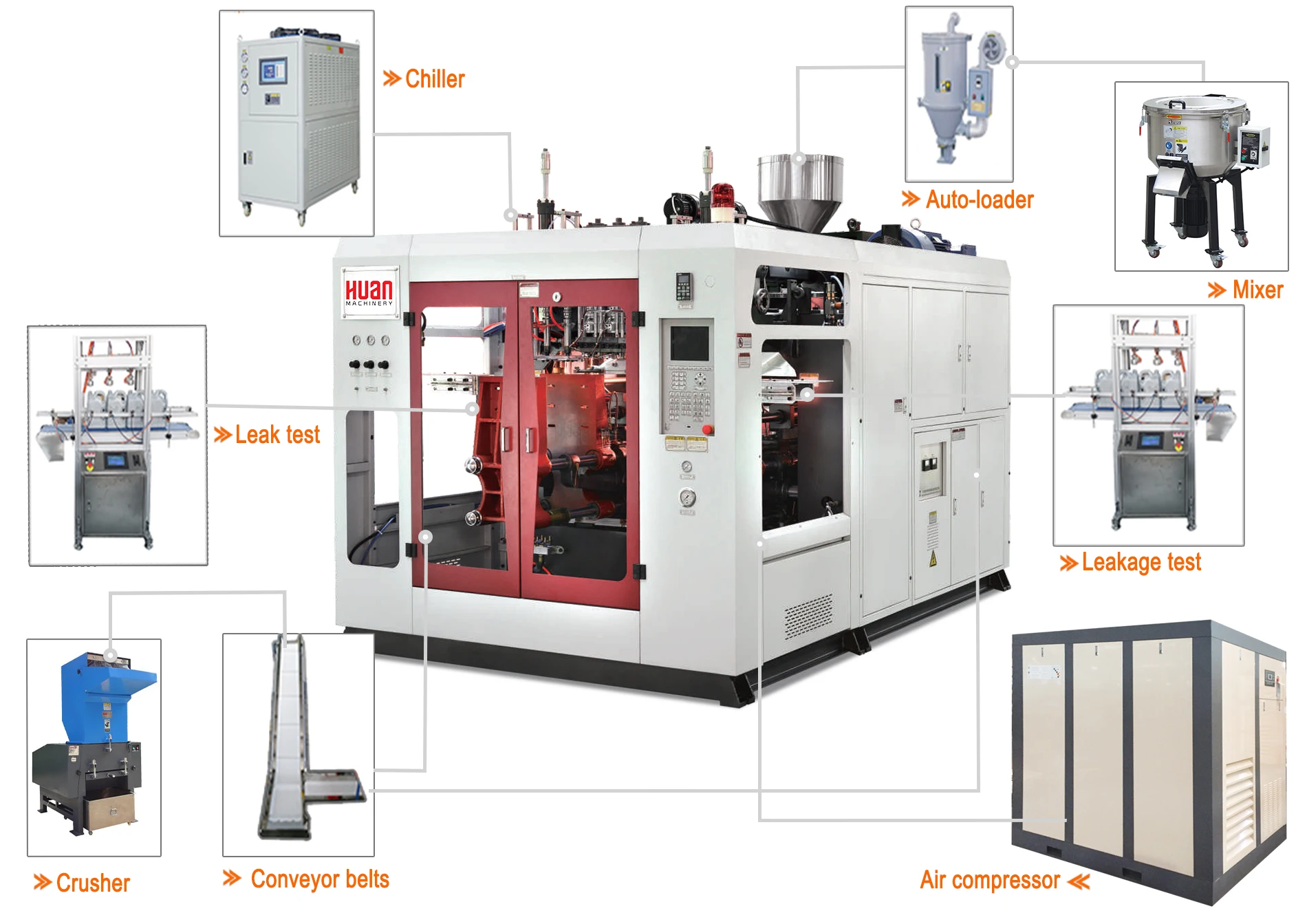

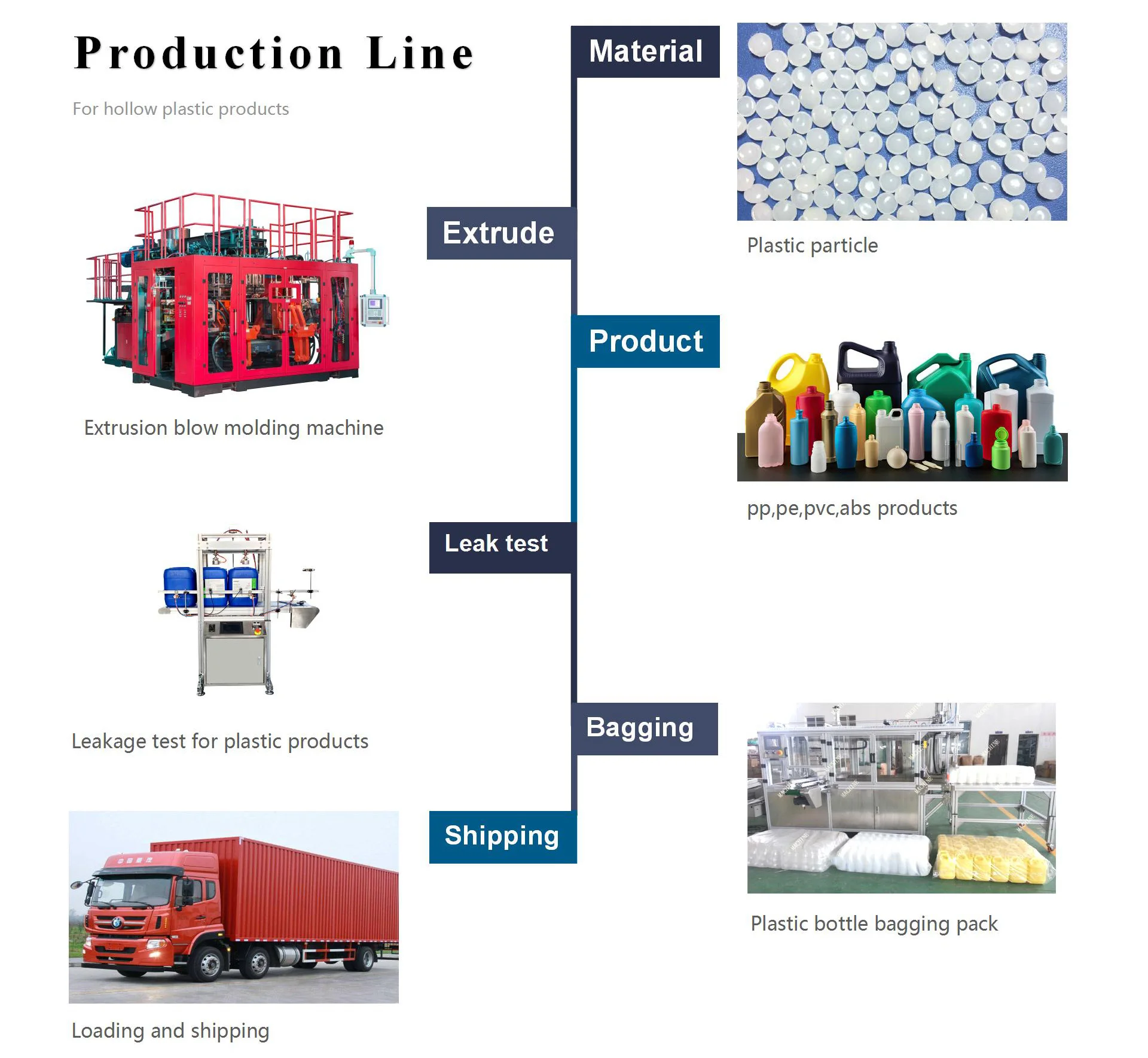

WHOLE PRODUCTION LINE
Auxiliary equipment
We also supply quxiliary machine for plastic as follows.Whole solution can be provided for you.Please contact us !
SALES AND SERVICE NETWORK
Packing and shippping
1. Wrap plastic wrap around the machine
2. The accessories and auxiliary machines are packed in wooden cases
3. Wire the machine into the container
SIMILAR PRODUCTS
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, our machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. Q: -How about the machine mould?
A: - Customized machine mould can be supplied for you.Our Machine and mould can be tested for samples and smooth matching before shipping. Mould raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed .
B. Port of Loading: SHANGHAI, CHINA.
C. Payment: T/T/LC,alibaba trade assurance
4. Q: -What is the warranty period?
A: - Our machine main parts is one year warranty with a lifelong maintenance.
A: - Yes, our machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. Q: -How about the machine mould?
A: - Customized machine mould can be supplied for you.Our Machine and mould can be tested for samples and smooth matching before shipping. Mould raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed .
B. Port of Loading: SHANGHAI, CHINA.
C. Payment: T/T/LC,alibaba trade assurance
4. Q: -What is the warranty period?
A: - Our machine main parts is one year warranty with a lifelong maintenance.
