Good Price Customized Poly Solar PV Modules Solar Panel 150W 160 W 160wp Solar Panel for Shed House
- Category: >>>
- Supplier: Guangzhou Future Green Technology Co. Ltd.
Share on (1600920855246):
Product Overview
Description
Product Description
FUTURE GREEN Good Price Customized Poly Solar PV Modules Solar Panel 150W 160 W 160wp Solar Panel for Shed House
In well-protected carton or wooden box with pallets.
2pcs in one package27pcs per pallet, 324pcs fill into 20GP, 648pcs fill into 40HQ.
ELECTRICAL DATA @ STC | FGET 36 150W-P | FGET 36 155W-P | FGET 36 160W-P | FGET 60 295W-M | FGET 60 300W-M | |||||
Peak Power Watts-PMAX (Wp)* Power | 150 | 155 | 160 | 295 | 300 | |||||
Open Circuit Voltage-VOC (V) | 22.3 | 22.4 | 22.5 | 39.65 | 39.85 | |||||
Maximum Power Voltage-VMPP (V) | 18.0 | 18.2 | 18.5 | 32.03 | 32.26 | |||||
Output Tolerance-PMAX (W) | 0/+5 | 0/+5 | 0/+5 | 0/+5 | 0/+5 | |||||
Short Circuit Current-ISC (A) | 8.92 | 9.11 | 9.25 | 9.66 | 9.75 | |||||
Maximum Power Current-IMPP (A) | 8.33 | 8.52 | 8.65 | 9.21 | 9.30 | |||||
Module Efficiency ηm (%) | 15.2 | 15.7 | 16.2 | 18.05 | 18.36 | |||||
STC: 800 W/m², Ambient Temperature 20 °C, Wind Speed 1 m/s | ||||||||||
Solar Cells | Polycrystalline | |||||||||
Cell Orientation | 36 cells | |||||||||

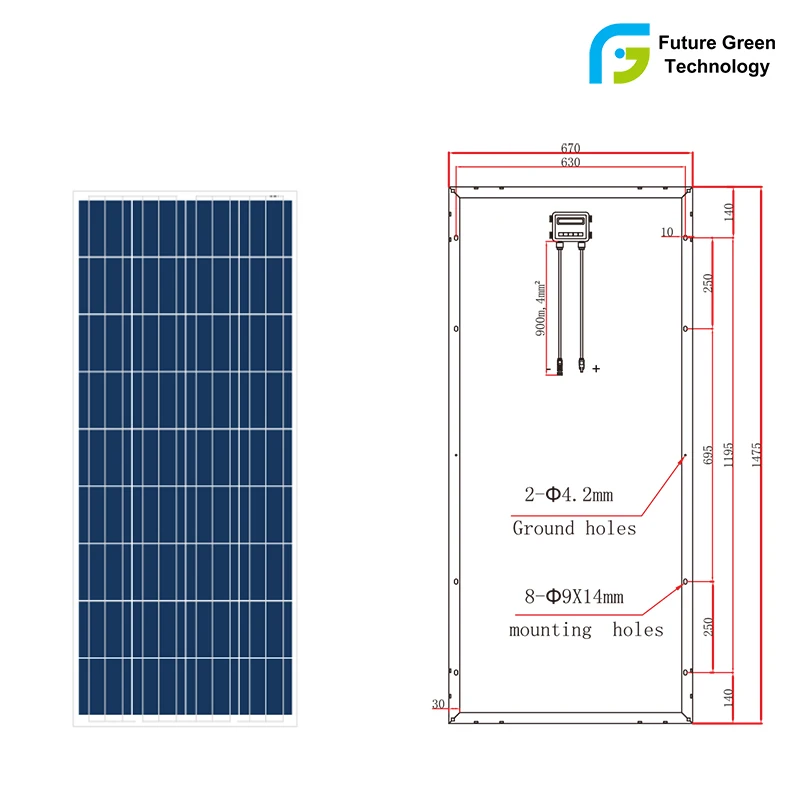

Module Dimensions | 1480×670×30mm | |||||||||
Weight | 15kg±3% | |||||||||
Glass | 4.0 mm for PERC Poly; 3.2 mm for Std Poly | |||||||||
Backsheet | White | |||||||||
Frame | Silver Anodized Aluminium Alloy | |||||||||
J-Box | IP 67 or IP 68 rated | |||||||||
Cables | Photovoltaic Technology Cable 4.0mm², 1200 mm | |||||||||
Details Images
Solar Cell
> High efficiency 5BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
Glass
> Ture clear low iron glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years

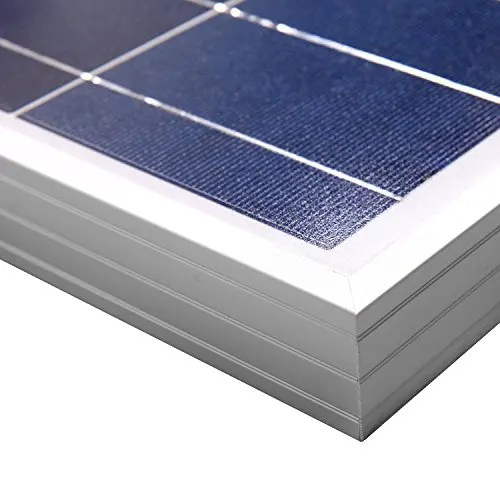

Frame
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
Humanized design
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Back sheet
>Low moisture permeability against snail trail defect
>Excellent electric insulation for high system voltage up to 1500v
>Outstanding weatherproof performance
>Excellent electric insulation for high system voltage up to 1500v
>Outstanding weatherproof performance
Certifications
Recommend Products
Production Process
Cell sorting
Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area
Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame
Clearing and Label
Package
Product packaging
CARTONFive layers anti-pressure carton
CARTON 2 PCS in one carton
1680*997*88mm (60 Cells)
2000*997*88mm (72 Cells)
1680*997*88mm (60 Cells)
2000*997*88mm (72 Cells)
10 to 20 cartons on one pallet Corner protector
Top protector
Top protector
60 cells panel 1640*992*35mm
72 cells panel
1960*992*40mm
72 cells panel
1960*992*40mm
60 cells -30 pcs in one carton 1680*1150*1090mm72 cells- 27 pcs in one carton
2000*1150*1110mm
2000*1150*1110mm
60 cells in 40 HQ 28 pallets, 840 pcs
72 cells in 40 HQ
24 pallets, 648 pcs
72 cells in 40 HQ
24 pallets, 648 pcs
Company Profile&Service
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the life span for solar panels?
A4: 25 years life span on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the life span for solar panels?
A4: 25 years life span on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
