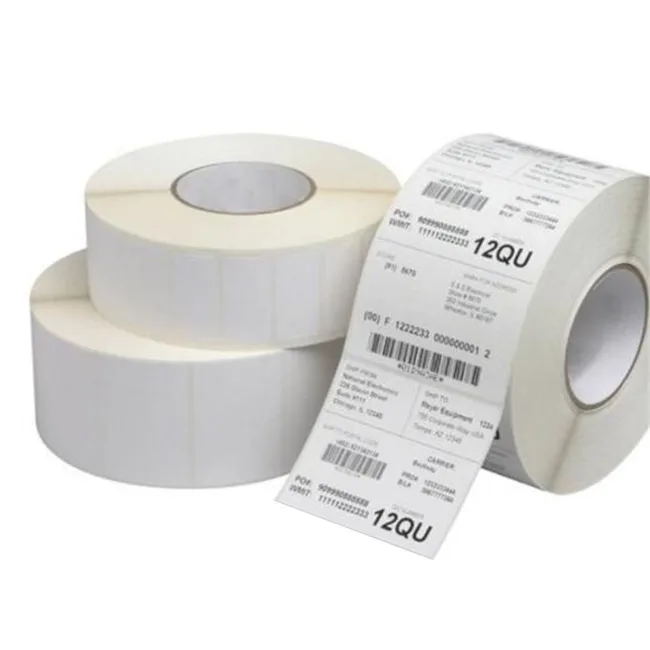

Jinya Multiple proof Direct Thermal Label Paper Roll Hot Melt Adhesive Plasticizer Resistance Thermal Sticker Paper
- Category: >>>
- Supplier: Jinya Intelligent Technology Shanghai Co. Limited
Share on (1600920866634):
Product Overview
Description
Product Description
Thermal Printed Labels PDT70A1-W58HM
PDT70A1-W58HM Thermal Printed Labels are intended for usage in industrial settings. When printed using industrial printers, these labels produce high-quality, long-lasting labels since they are made of specialty-grade materials.
Specification
PDT70WB-W58EP | Weight | Thickness | Materials | ||
Face Material | 70±10%g/m2 ISO 536 | 0.075±10%mm ISO 534 | Smooth, bright white paper with thermal protective coating resistance to water, oil, scratch and plasticizer | ||
Liner | 58±10%g/m2 ISO 536 | 0.053±10%mm ISO 534 | White glassine treated with super calender | ||
Adhesive | Rubber based permanent adhesive. This is an adhesive with a medium initial viscosity. It has excellent adhesion performance on non-polar surfaces; and has a certain degree of softness, which can be used for indirect to food, direct contact labeling of advertising stickers and cosmetics. | ||||
Peel adhesion | Initial adhesion 10N/25mm FTM 9 st.st | 20 minutes Peel adhesion value on steel at 180° 16N/25mm or tear off FTM 1 st.st | 20 minutes Peel adhesion value on steel at 90° 8N/25mm or tear off FTM 2 st.st | ||
Temperature | Min. Appl. Temp. 8 ºC | Service Temp. -5ºC+60ºC (after 24hrs) | |||
Applications of Thermal Printed Labels PDT70A1-W58HM
The thermal sensitivity of this thermal product is suitable for electronic scale printing. It is recommended to test it before use to avoid any long-term exposure to an environment above 50°C or direct sunlight to protect product quality. The product is suitable for the occasions that are currently sold and discounted. Not recommended for use in pre-loaded environments. It is not suitable for immersion in water or stored in a humid environment. After the label is printed, it cannot be placed in a place that is easily contaminated with animal and vegetable oils or chemicals, so as to avoid the barcode being unscannable. The above suggestion, application, and elaboration are not intended as the guarantee of Jinya. All sales of Jinya products shall
be tested by customer in the final environment to confirm compliance with the requirements of the use of environment.
be tested by customer in the final environment to confirm compliance with the requirements of the use of environment.
Printing Methods of Thermal Printed Labels PDT70A1-W58HM
It can be used for many traditional printing. Processing environments above 50°C have to be avoided due to the thermal nature of the product. The ink containing alcohol or volatile organic solvent may damage the thermal layer. Advise to use the original ink without any additives for processing and printing as much as possible. For spot color inks or inks with additives, please test ink before printing.
Shelf life 12 months, applicable only to the material delivered by Jinya which has not undergone further processing, under the following STORAGE CONDITIONS:
* This material must be stored at a temperature of 23±2ºC and 50±5% of Relative Humidity.
* Storage area must be dry and clean.
* Keep the material in the original packaging when not used in order to protect it from dust and contamination.
* Do not expose to direct sunlight or heat sources.
Shelf life 12 months, applicable only to the material delivered by Jinya which has not undergone further processing, under the following STORAGE CONDITIONS:
* This material must be stored at a temperature of 23±2ºC and 50±5% of Relative Humidity.
* Storage area must be dry and clean.
* Keep the material in the original packaging when not used in order to protect it from dust and contamination.
* Do not expose to direct sunlight or heat sources.
Packing & Delivery

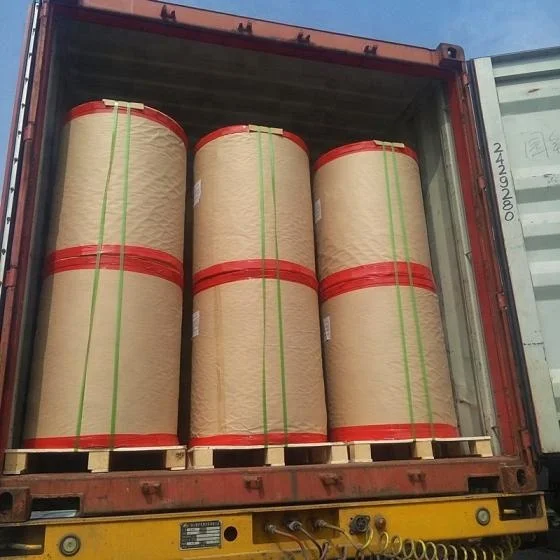

Plastic film Wrapping + Pallet
Company Profile
Professional Self-Adhesive Materials
& Labels Manufacturer

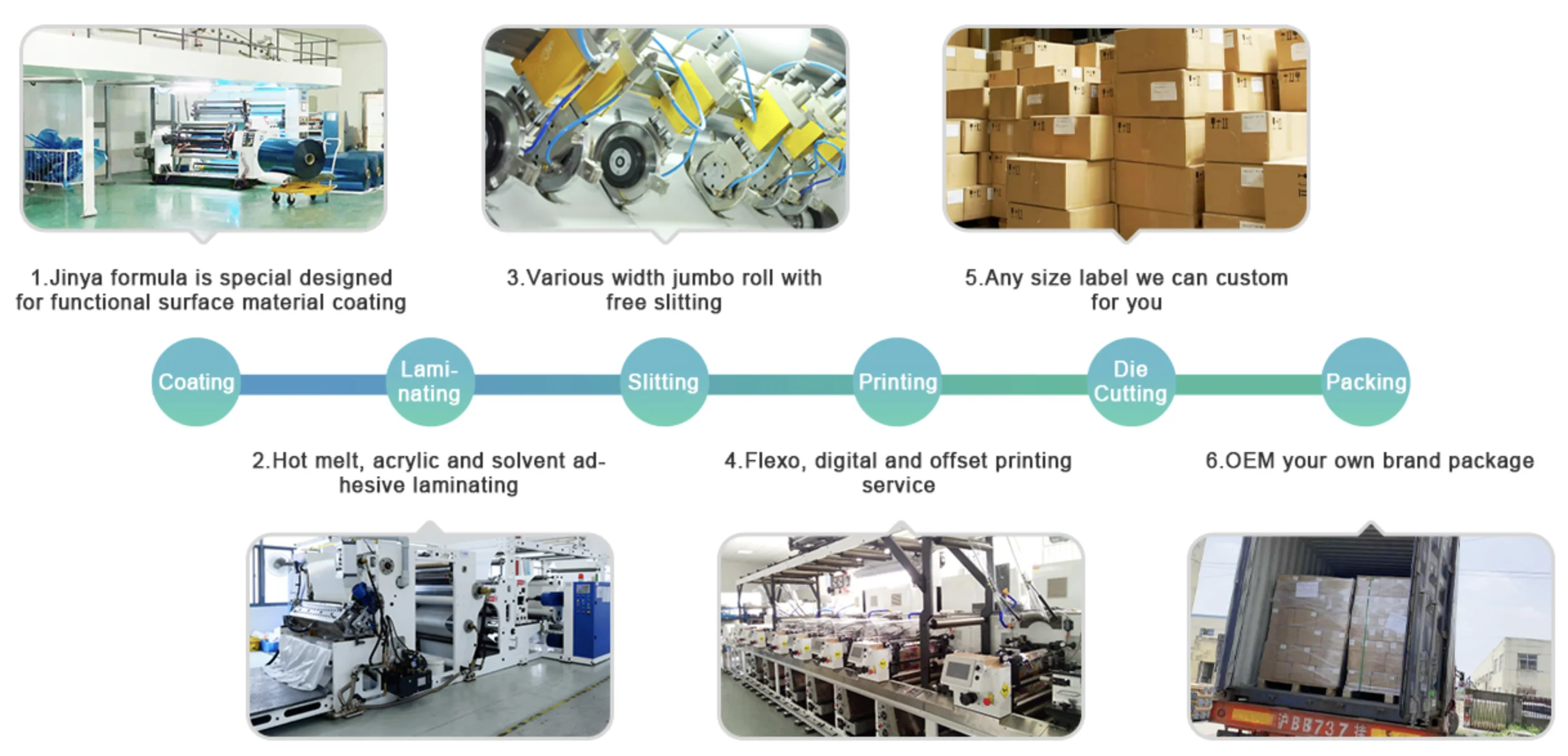

JINYA, formerly known as Hubei Jinya, was established in 2017 and relocated to Shanghai in 2019. Hubei, Anhui, and Shanghai each have three industrial hubs. Jinya is striving to provide the best user experience to customers worldwide by utilizing the best domestic and foreign resources. Jinya established a research and development department as well as a skilled product testing facility with the development concept of "green sustainable printing." The tools and fresh goods that Jinya independently researched and created can satisfy customers' growing demand for company expansion. All of Jinya's goods, which are primarily used in express, logistics, and FMCG, among other industries, are high-quality, environmentally friendly, and well-served. Jinya is now assembling the best resources available to the label business and establishing itself as a global provider of label material solutions, servicing customers both inside and outside of China.
Exhibition
Certifications
FAQ
1. What is your advantages?
More than 10+ years experience in the technical and manufacturing for adhesive label materials and products;
More than 10+ years experience in the technical and manufacturing for adhesive label materials and products;
Own production facilities in both nothern and southern area in China;
Professional sales, technical and production team;
Direct factory prices as we are manufacturer for both jumbo roll and printed labels;
2. How can we guarantee quality?
Advanced quality inspection equipment;
Systematic management for strict quality control;
3. What is the lead time normally?
For small orders, normally we can finish the production within 2-3 working days, for long term bulk orders, we will make production schedule according to the quantities for each shipment.
4. How will you ship it and how long will it take?
For small quantities or samples, we can ship it by international express such as FedEx, DHL, UPS etc. For bigger quantities we will arrange it by sea shipping accordingly.
5. What is the general terms you can accept?
Delivery Terms: FOB,CFR,CIF；
Payment Terms: T/T, L/C in USD or CNY
2. How can we guarantee quality?
Advanced quality inspection equipment;
Systematic management for strict quality control;
3. What is the lead time normally?
For small orders, normally we can finish the production within 2-3 working days, for long term bulk orders, we will make production schedule according to the quantities for each shipment.
4. How will you ship it and how long will it take?
For small quantities or samples, we can ship it by international express such as FedEx, DHL, UPS etc. For bigger quantities we will arrange it by sea shipping accordingly.
5. What is the general terms you can accept?
Delivery Terms: FOB,CFR,CIF；
Payment Terms: T/T, L/C in USD or CNY
