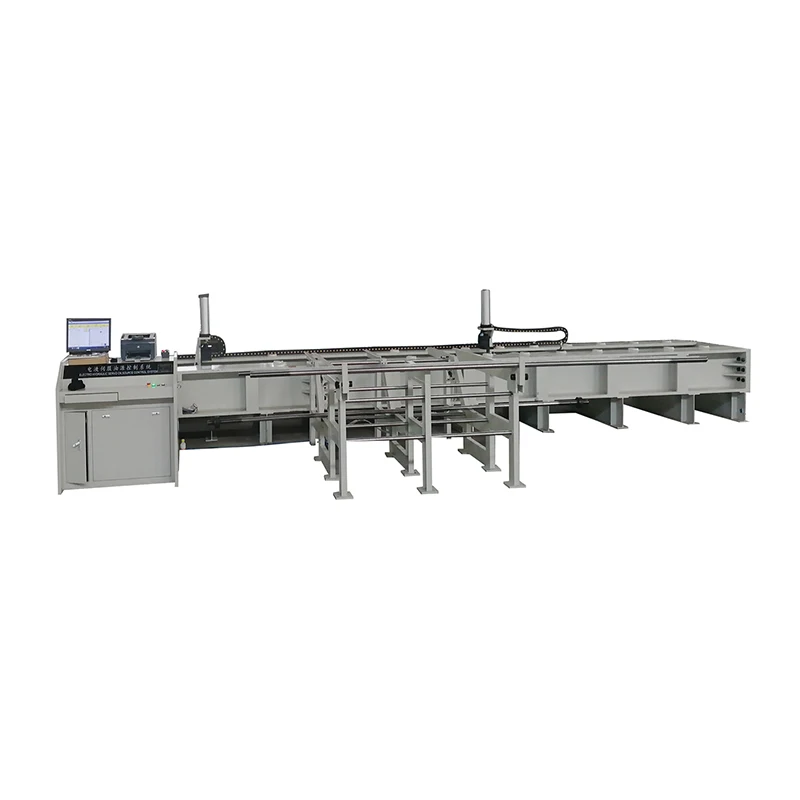

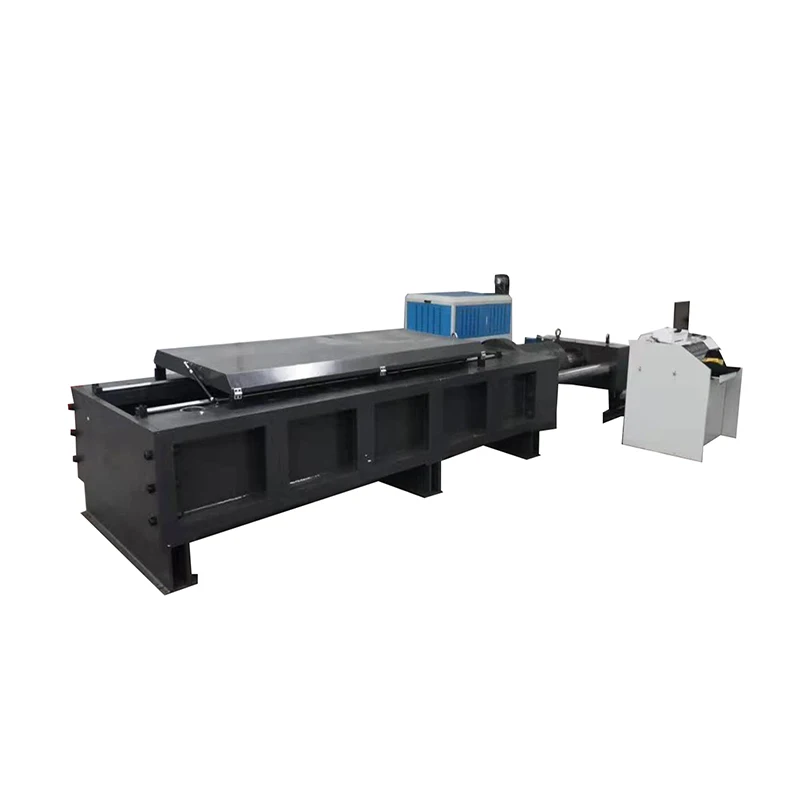

600kN Horizontal tensile test bench Wire Rope Chain Webbing Sling Horizontal Tensile Testing Machine utm manufacturer
- Category: >>>
- Supplier: Jinan Xinguang Test Machine Manufacturing Co. Ltd .
Share on (1600920869089):
Product Overview
Description

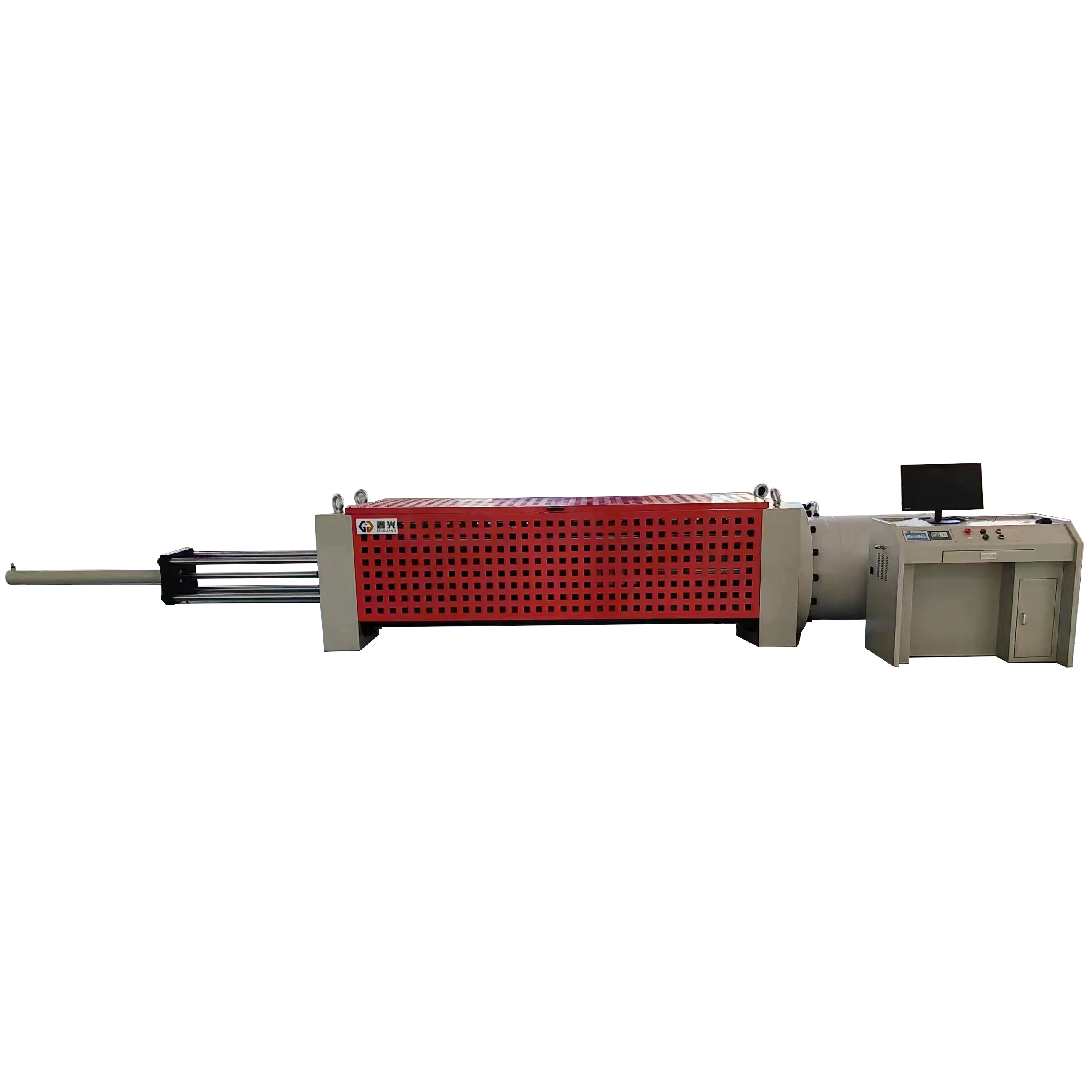

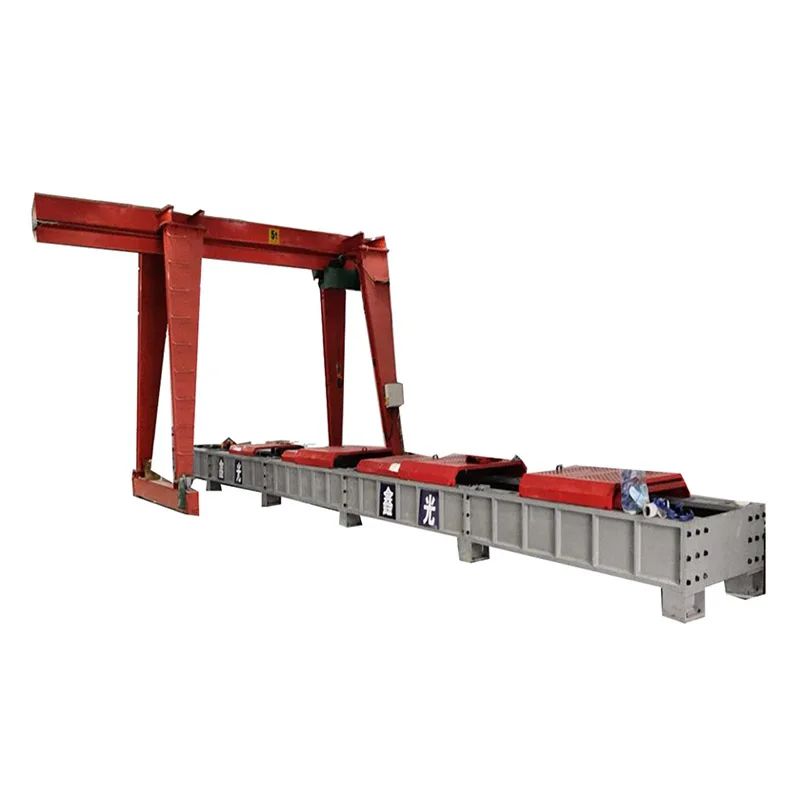

According to the national standard, the test force and displacement (deformation) are displayed. The setting of test parameters, tracking of test process, data acquisition, processing, analysis and display, and measurement precision are completed. The horizontal testing machine is mainly composed of main engine (frame structure), fixed beam, movable beam, loading cylinder, relevant test software and other necessary accessories. The testing machine adopts steel plate welding frame structure, sectional moving beam adjusting test space, single rod double acting piston cylinder exerting test force, manual control test process, load sensor measuring force, displaying test force and test curve, which is suitable for tensile test of hoisting belt, traction belt, cable, steel wire rope and other test pieces.

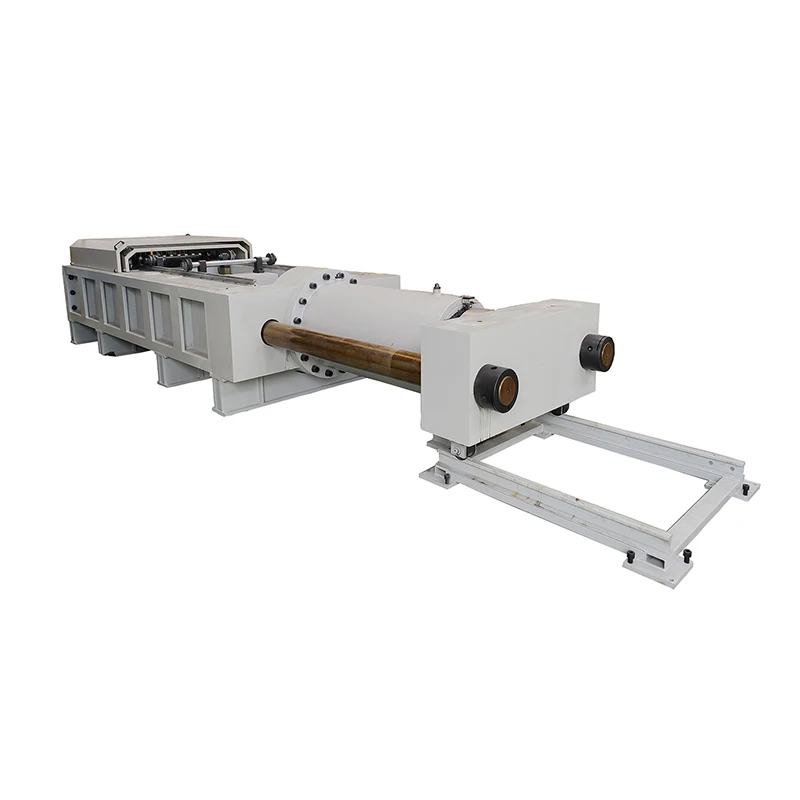

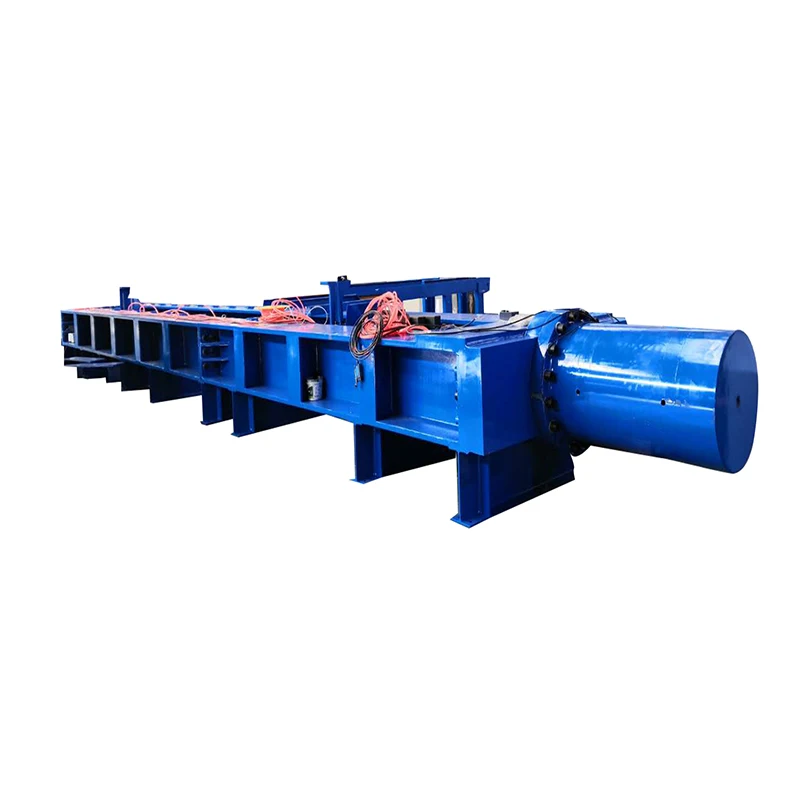

The main engine is mainly composed of structure frame, oil cylinder seat, cylinder piston, fixed beam, movable beam, jaw, load sensor and other components. The oil cylinder base, steel plate welding frame and moving beam form the stress frame. The fixed beam and movable beam are equipped with different clamps according to different samples.
This part is the executive part of the test. The two ends of the sample are respectively installed on the fixed beam and the movable beam. The sample is connected by the pin, and then the test force is exerted on the sample by the moving beam driven by the tension oil cylinder. According to different types of specimens, the moving fixed beam is manually adjusted to adjust the test space. The loading speed is controlled automatically until the end of the test.
Features
Safety protection device
a) When the test force exceeds 2% - 5% of the maximum test force of each gear, overload protection and shutdown are carried out.
b) When the piston rises to the upper limit position, the stroke protection and the oil pump motor stop.
c) Hydraulic oil system overload, overpressure, overheating, overflow protection;
d) Automatic shutdown protection after test;
a) When the test force exceeds 2% - 5% of the maximum test force of each gear, overload protection and shutdown are carried out.
b) When the piston rises to the upper limit position, the stroke protection and the oil pump motor stop.
c) Hydraulic oil system overload, overpressure, overheating, overflow protection;
d) Automatic shutdown protection after test;
Installation site requirements:
a. The relative humidity is not more than 80% in the range of 10 ℃ - 35 ℃;
b. On a stable concrete foundation (bearing capacity of 100kN / m2), it is installed correctly,
a. The relative humidity is not more than 80% in the range of 10 ℃ - 35 ℃;
b. On a stable concrete foundation (bearing capacity of 100kN / m2), it is installed correctly,
Test machine level | 1grade |
Maximum test force (KN) | 600kn |
Test force measurement range | 2% - 100% of the maximum test force |
Relative error of indication value of test force | ≤ 1% of indication value |
Test resolution | the maximum test force 1 / 200000 |
Relative error of displacement indication | ≤ 1% of indication value |
Displacement resolution (mm) | 0.01 |
Adjustment range of displacement rate (mm / min) | 0.01-50 |
Relative error of displacement rate indication | ≤ 1% of indication value |
Equipment height (mm) | 750 |
Test stroke (mm) | 0-1000mm |
Total length of equipment | about 5m |
Fixture connection mode | bolt structure connection is adopted |
Control mode | computer control to achieve data processing |
Power supply | AC380V ± 10% |
Working environment | room temperature 10 ℃～ 35 ℃, humidity 20% ～ 80% |
The space adjustment mode of moving crossbeam | manual push adjustment and bolt type fixation are adopted. |
