1500 KG Factory Customized Double Trailer Air Suspension Parts Rubber Torsion Electric Brake Axle Electric Assembly
The brake drum is generally made of a special type of cast iron that is heat-conductive and wear-resistant. It rotates with the wheel and axle. When a driver applies the brakes, the lining pushes radially against the inner surface of the drum, and the ensuing friction slows or stops rotation of the wheel and axle, and thus the vehicle. This friction generates substantial heat.

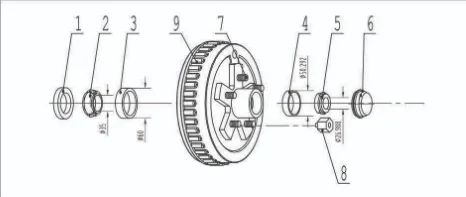

Install this hub-and-drum assembly on your trailer. For electric or hydraulic brakes. Fits 3,500-lb E-Z Lube axles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, and lug nuts included.
Seal oil 1.719"
L68149 bearing cone(1.D.1.378")
L68111 inner bearing cup(O.D.2.362")
L44610 outer bearing cup(O.D.1.98")
L44649 outer bearing cone(1.D.1.063")
Grease cap(1.99" dia)
1/2"-20 pressed wheel stud
1/2"-20 cone nut head 13/16"
Hub/Drum 10"X 2 1/4",5 on 4.5 BC
|Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated|
|Compatible with electric and hydraulic drum brakes|
|E-Z Lube-compatible grease cap makes lubricating bearings fast and easy|
|Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub|
|Sturdy iron construction|
|Zinc-enriched paint on drum adds durability|
|Zinc-finished bolts resist corrosion|
|Bearings, races, grease seal, grease cap, and lug nuts are included|
Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,
As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.
We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.
Production workshop and equipment:
Pengyuan is well-equipped with all kinds of trailer parts.
We has 487 sets of physical performance, chemical analysis,
metallographic inspection and other testing equipment.
Our products include:
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
2) U-bolt kit
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
