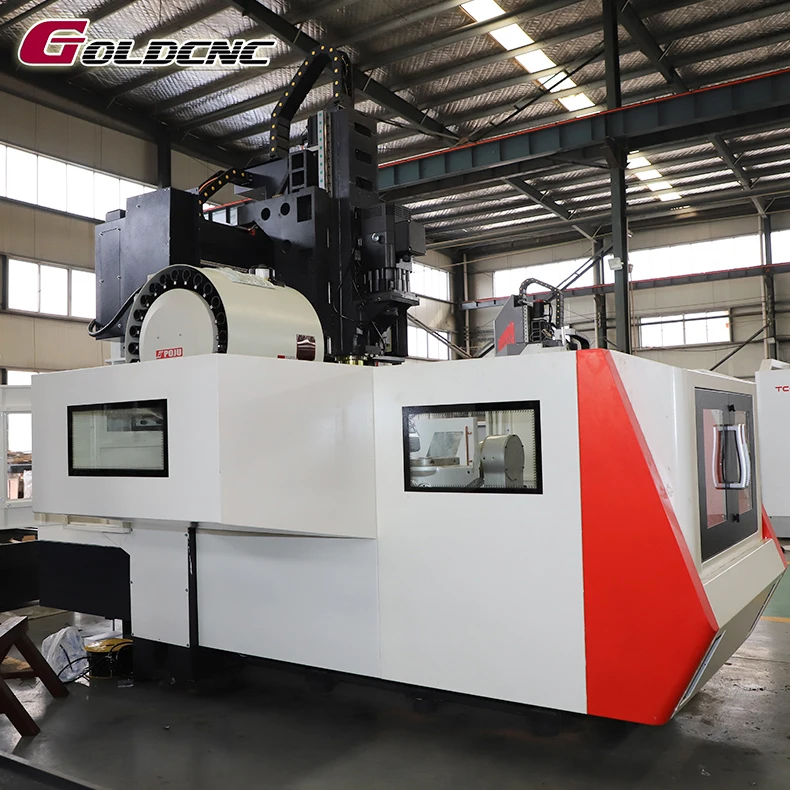

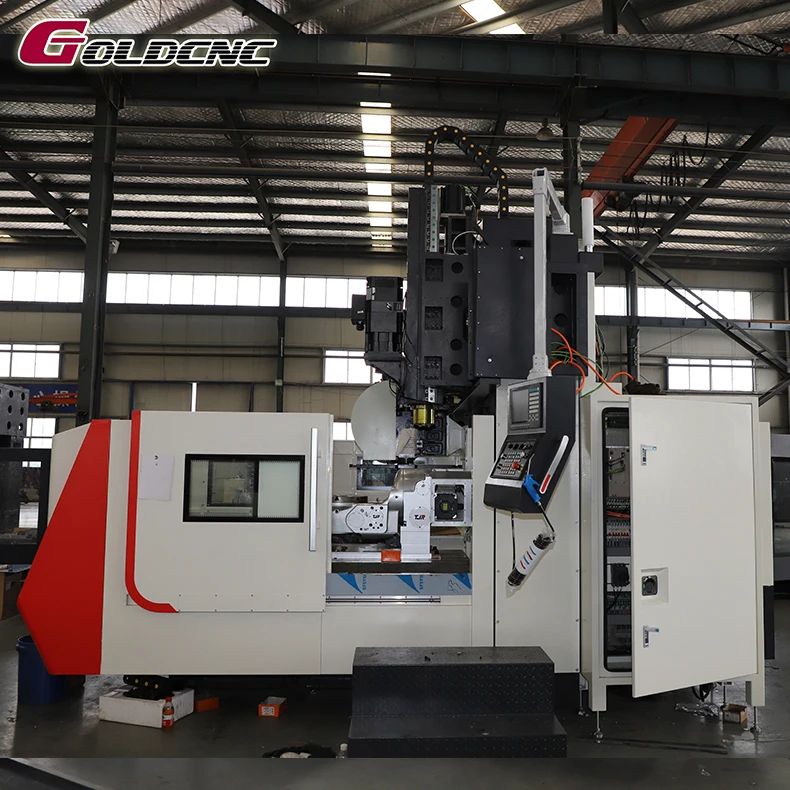

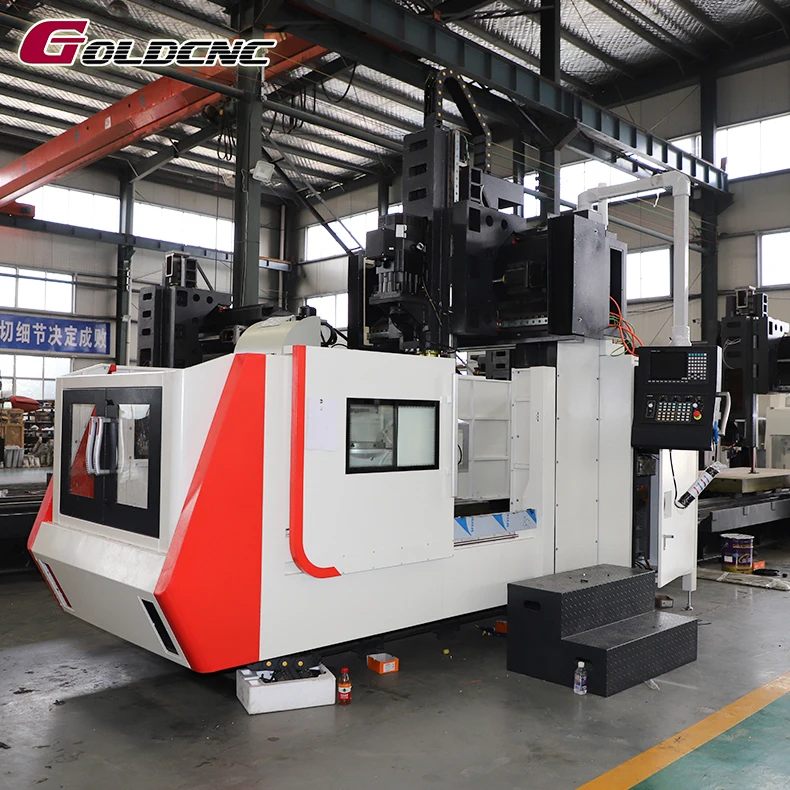

New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine
New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine

New Product double column vmc machine GV1000 gantry cnc machining center gantry milling machine

Share on (1600920873232):


Price:$86,000.00 - $87,000.00

Quantity:


Product Overview

Description





Product Description

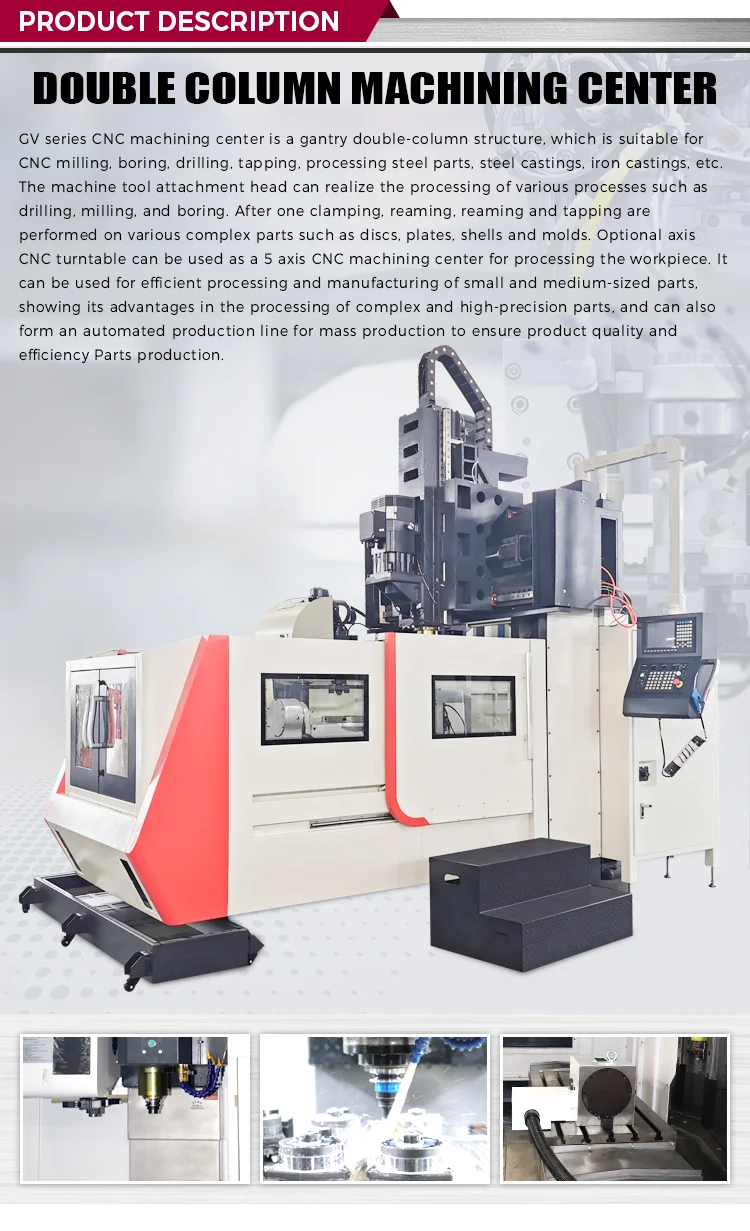

GV series gantry machining center is mainly used for machining steel parts, steel castings, iron castings and other workpieces such as CNC milling, boring, drilling, tapping, etc. The machine tool uses accessory heads to realize various types of disks, plates, and shells. Complicated parts such as, molds, etc. complete five-sided processing of multiple processes in one clamping.


Specification


Specifications
Unit
GV1000
Worktable size
mm
600x1200
X/Y/Z axis travel
mm
1000/600/600
Distance between spindle
end and worktable
mm
120-720
Distance between spindle
center to column
mm
785
Maximum weight of table
kg
650
Worktable type T groove
mm
5-18-110
X/Y/Z axis rapid feed
m/min
32/32/32
Three axis cutting feed
mm/min
10000
Positioning accuracy
mm
±0.005/300
Repeatability positioning
accuracy
mm
±0.003
Spindle speed
rpm
8000
Taper of spindle nose
mm
BT40/150
Spindle motor torque
nm/kw
7.5/11
X/Y/Z motor torque
N.M
20/20/20
Pressure requirement
Kg/Cm²
6
Power consumption
kva
25
Outline size
mm
3000x2500X2680
Mechanical weight
kg
6200

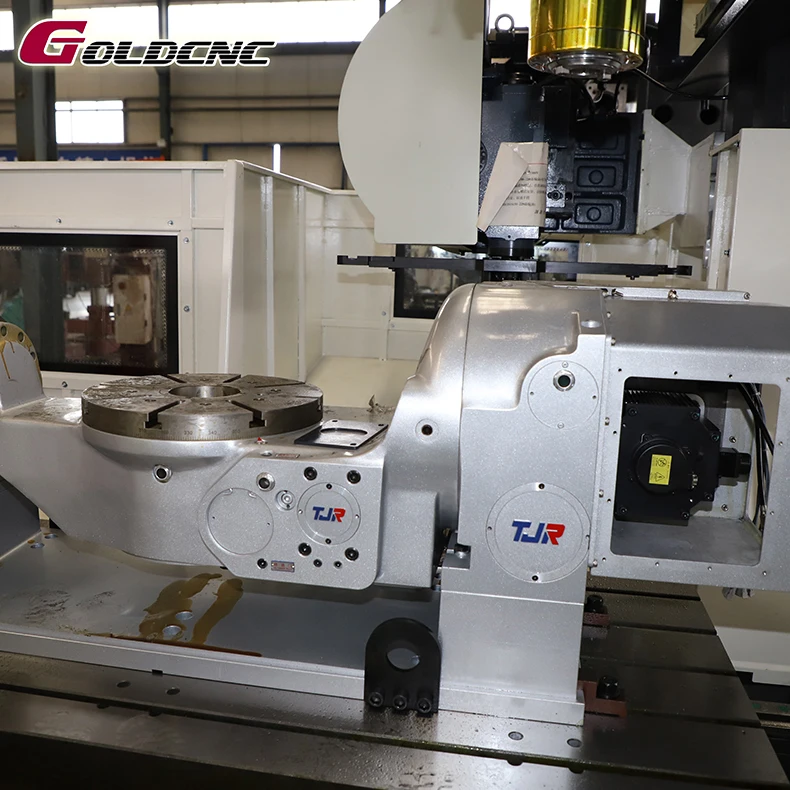

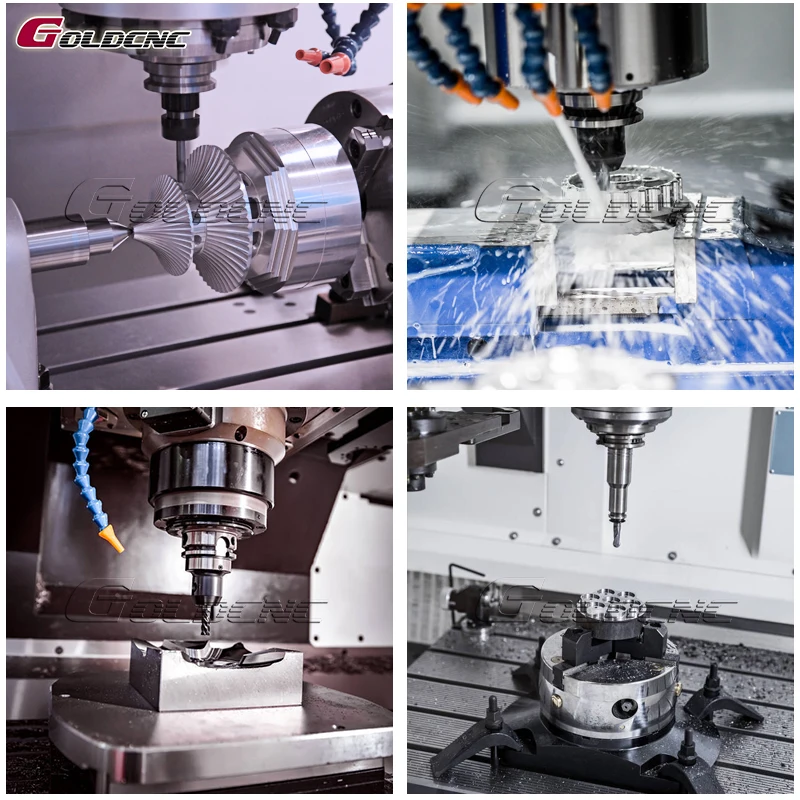

Detailed Images

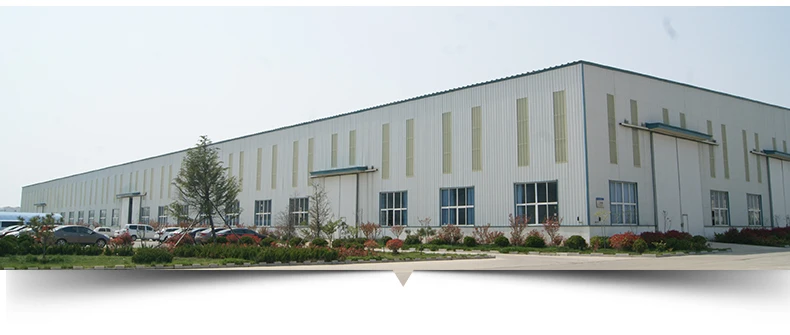

Company Introduction




Shandong GOLD CNC Machine Tool Co. Ltd. established in 1988, is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe. We are located in Tengzhou with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.




Gold CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields. Golden CNC, committed to the global manufacturing of high-end equipment. Selling well in wordwide, we have obtained CE certificate, our products are also exported to clients in such countries and regions as more than 50 countries and regions, such as the United States, Germany, Japan, Greece and Korea. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.




Packing&Shipping










FAQ


1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(45.00%),Africa(8.00%),North America(8.00%),Southeast Asia(7.00%),South America(6.00%),Eastern Asia(5.00%),Eastern Europe(4.00%),South Asia(4.00%),Mid East(3.00%),Oceania(3.00%),Northern Europe(2.00%),Southern Europe(2.00%),Western Europe(2.00%),Central America(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Milling Machine; CNC Sawing Machine; Milling Machine; Drilling Machine; Lathe

4. why should you buy from us not from other suppliers?
Shandong GOLD CNC Machine Tool Co., Ltd. established in 2010, is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
