Automatic Gate Opener Electric Lock
US $110.00-$156.00
High Speed Door Control System Industrial Automatic Slide Gate Opener Motor Electric Rolling Shutter Door Motor
- Category: >>>
- Supplier: Guangzhou Dmke Motor Co. Ltd.
Share on (1600920875658):
Product Overview
Description
Products Description
Feature:
1. Leading power-cut braking technology. Motor is isolated from controller's HV output circuit. Contact point is disconnected after stopping. No charged door body spontaneous combustion, fire and electric leakage hazards! Quiet, soft braking, more stable operation and safer braking;
2. There are only 2 connecting cables between motor reducer and electric box. Simple installation and wiring on site;
3. Absolute value encoder or mechanical limit switch can be selected
4. Controller adopts IPM intelligent module with compact structure and has stronger functionalities.
5. It has inching/manual/automatic, fully open/partially open, single button, adjustable light ineffective position, interlocking, double-door interlocking automatic door opening, air curtain machine control, door opening in place, door
closing in place, fault output, RS485 Internet of Things remote control functionalities;
6. Unified installation dimensions 220V/0.75KW, 1.5KW and 2.2KW
7. Simple and friendly operation interface, convenient debugging and maintenance;
8. Real-time monitoring on signal and alarm, and one-key to restore factory preset value.
3. Absolute value encoder or mechanical limit switch can be selected
4. Controller adopts IPM intelligent module with compact structure and has stronger functionalities.
5. It has inching/manual/automatic, fully open/partially open, single button, adjustable light ineffective position, interlocking, double-door interlocking automatic door opening, air curtain machine control, door opening in place, door
closing in place, fault output, RS485 Internet of Things remote control functionalities;
6. Unified installation dimensions 220V/0.75KW, 1.5KW and 2.2KW
7. Simple and friendly operation interface, convenient debugging and maintenance;
8. Real-time monitoring on signal and alarm, and one-key to restore factory preset value.

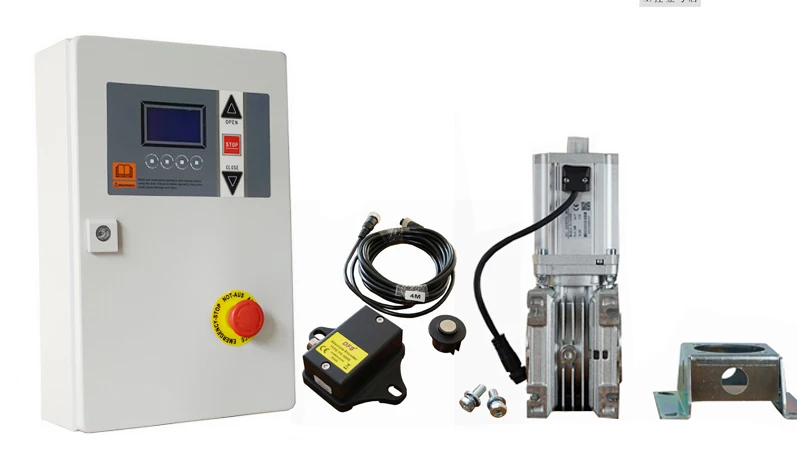

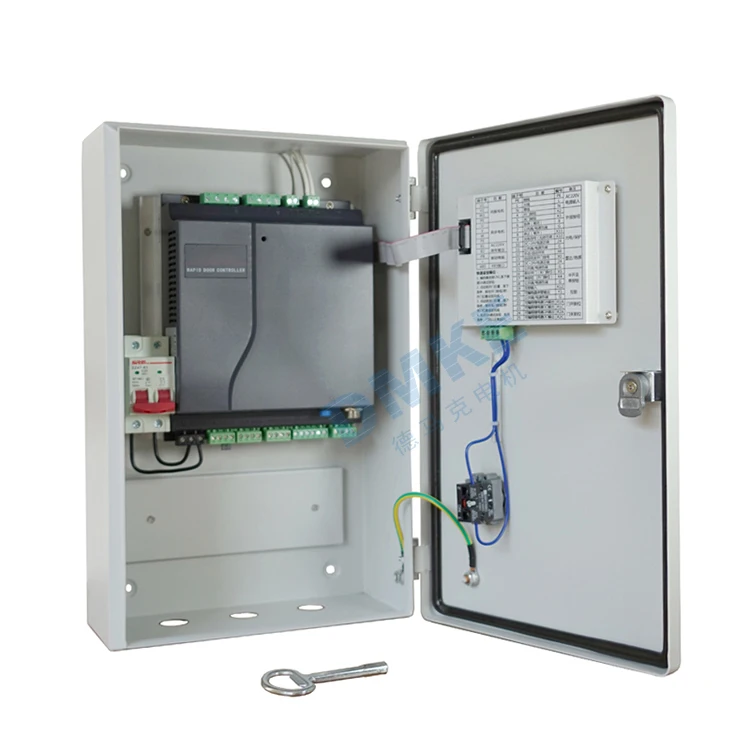

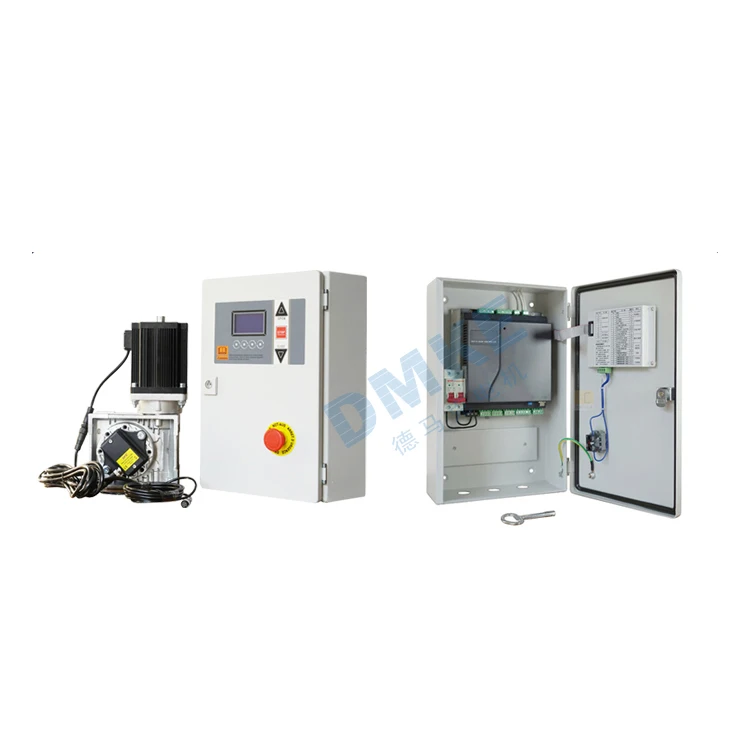

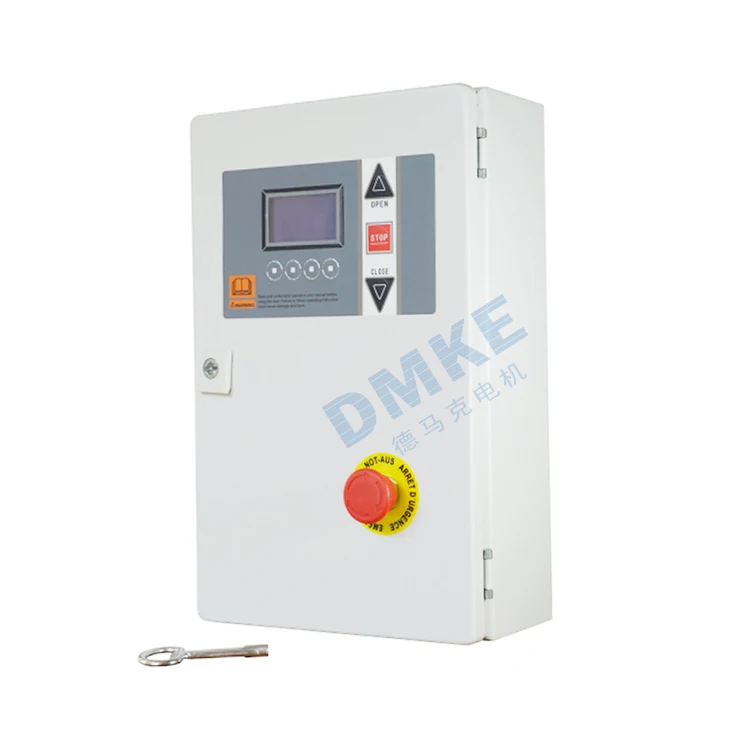

The DM400 series products include a set of servo control boxes, servo motors, and absolute encoders, which are used to support the control of PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, sliding doors and other industrial categories.Plug and play, stable performance, friendly interface for control parameters, powerful functions, easy to debug and maintain.

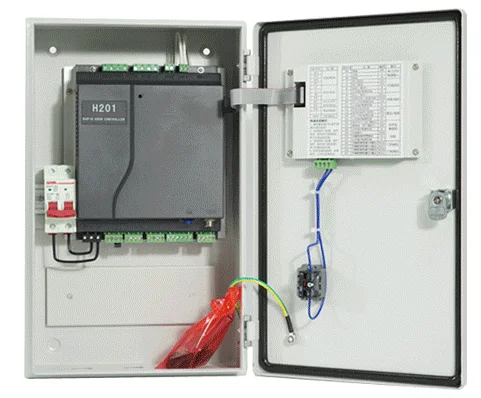

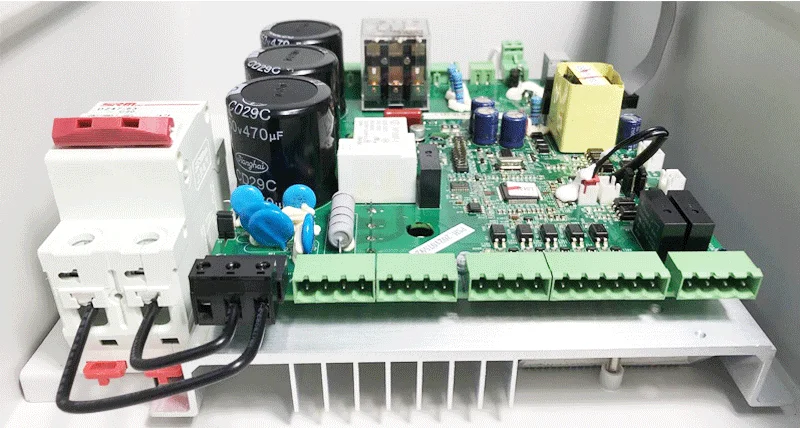

IPM intelligent power module design
Model | DM400 | DM401 | DM402 | ||
Rated power | 0.75kw | 1.5kw | 2.2kw | ||
Shell size (Length x Heightx Depth) | 250 x 400 x 130 mm | ||||
Power supply voltage | Single-phase AC220V~240V 50~60Hz | ||||
Control voltage | DC24V, Max. current 400 mA | ||||
Position control | Absolute value encoder or mechanical limit switch | ||||
Overload capacity | 150% rated current for 1 minute | ||||
Operating ambient temperature | -10~50℃ | ||||
Place of use | Free from oil mist, dust, corrosive or flammable gas,etc. | ||||
Weight | 6Kg | ||||
Motor model | DM-2430 | DM-4030 | DM-6030 | ||
Rated power | 0.75KW | 1.5KW | 2.2KW | ||
Rated current | 3A | 5A | 6A | ||
Lifting weight | 50KG | 100KG | 150KG | ||
Applicable door size | 10M² | 30M² | 50M² | ||
Rated voltage | AC220V | ||||
Insulation grade | F | ||||
Operating ambient temperature | -40~+50℃ | ||||
Protection grade | IP54 | ||||
Kindly remind:
As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. Thanks a lot!

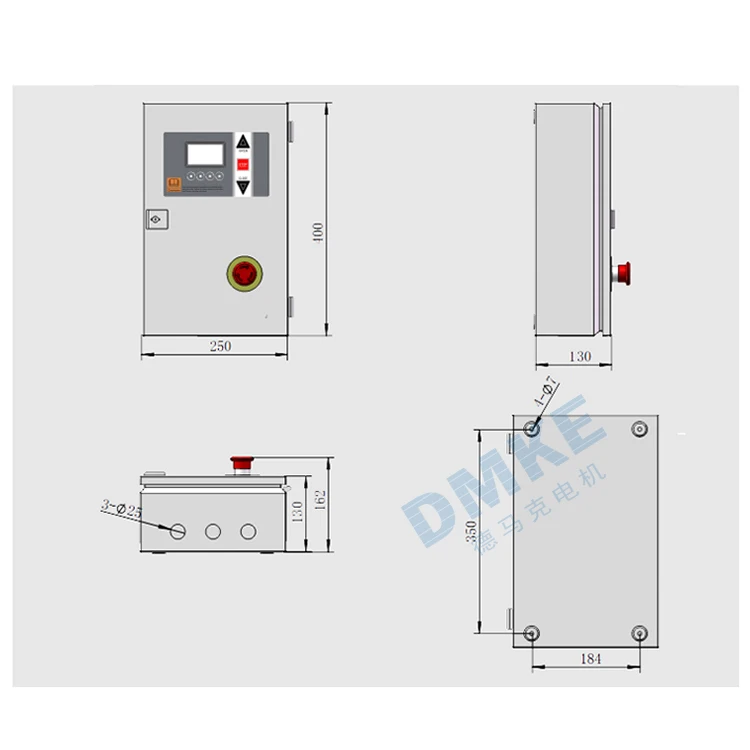

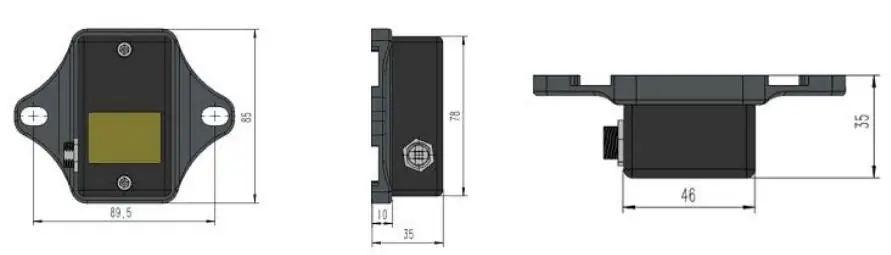

Dimensions (Unit: mm )
Mounting screws are included with gearhead
Dimensions (Unit: mm )
Mounting screws are included with gearhead

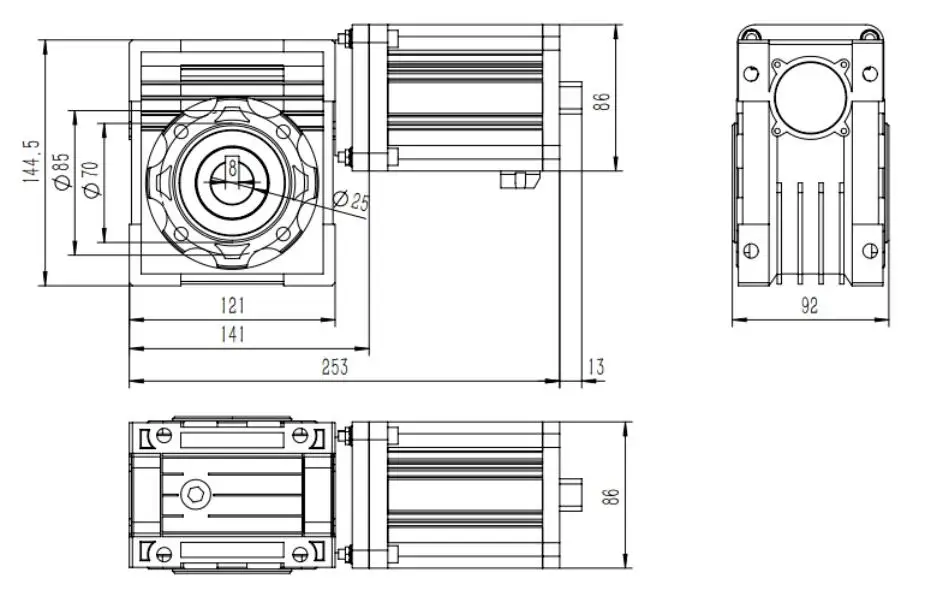

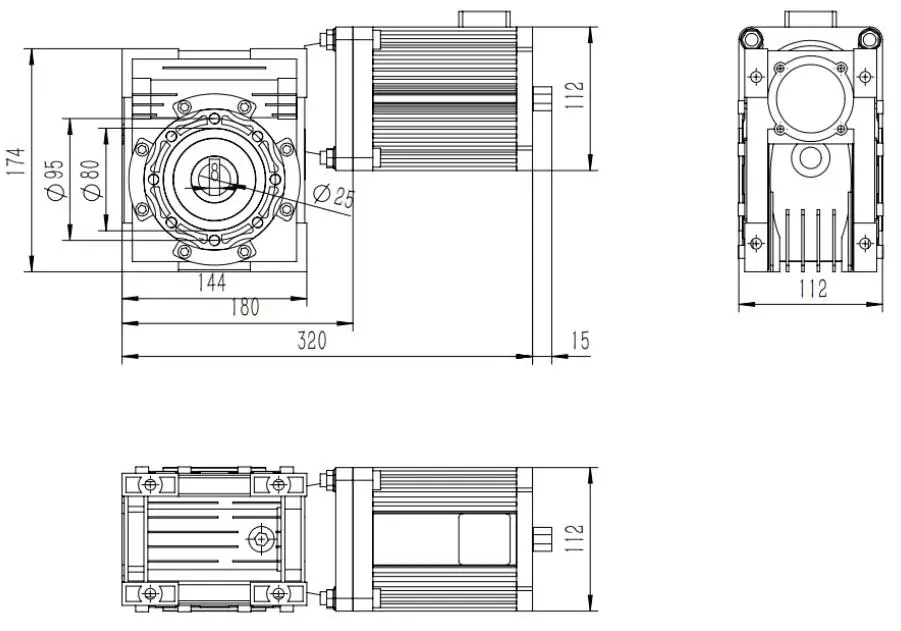

0.75KW Servo Motor Size Drawing
1.5KW Servo Motor Size Drawing
For More Details Of Product Specifications,
Please Consult Customer Service To Obtain The Product Catalog.
Please Consult Customer Service To Obtain The Product Catalog.
