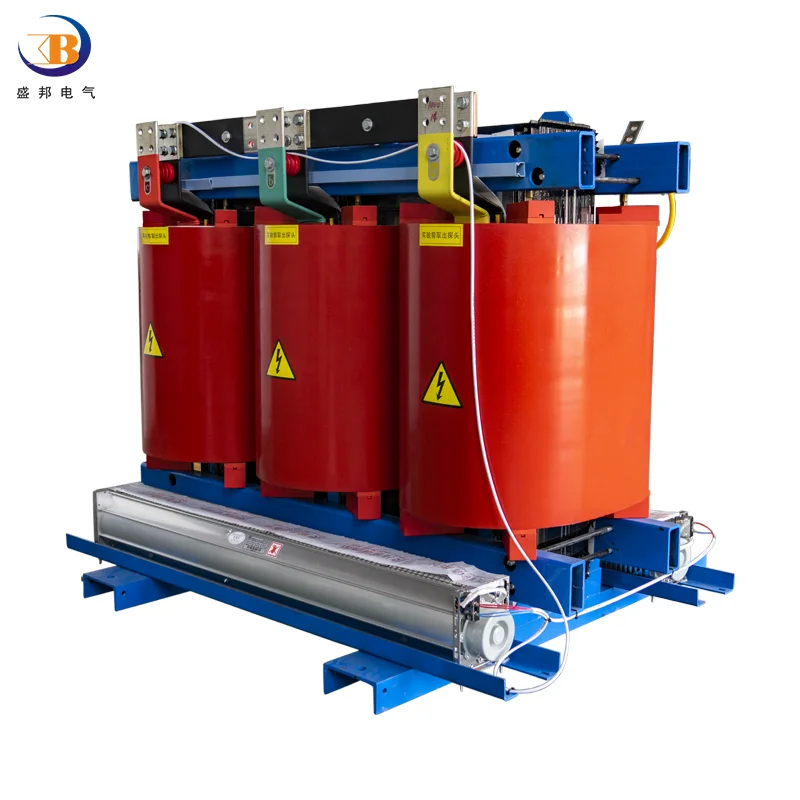

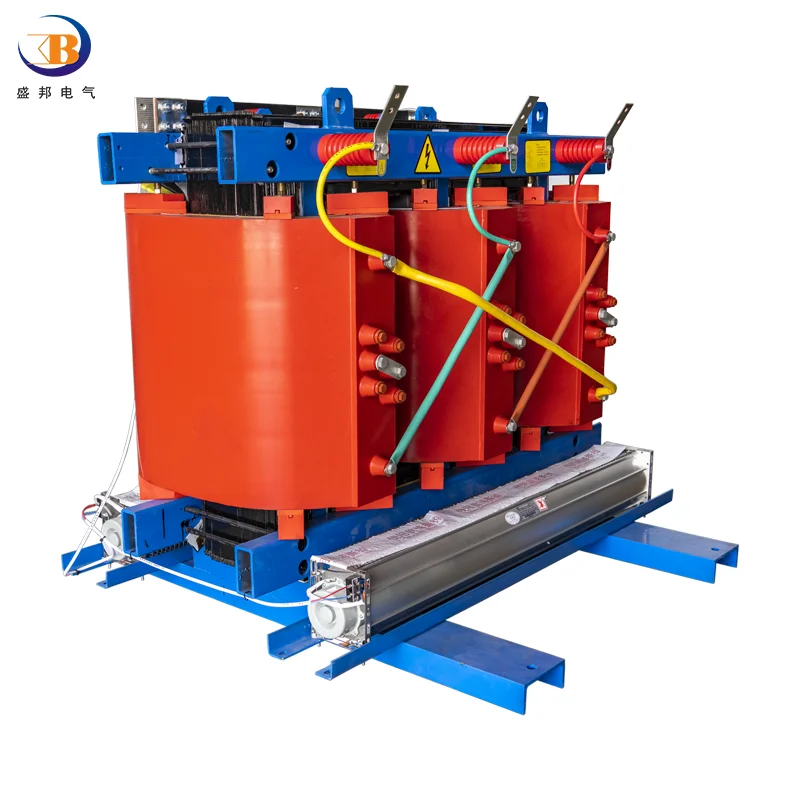

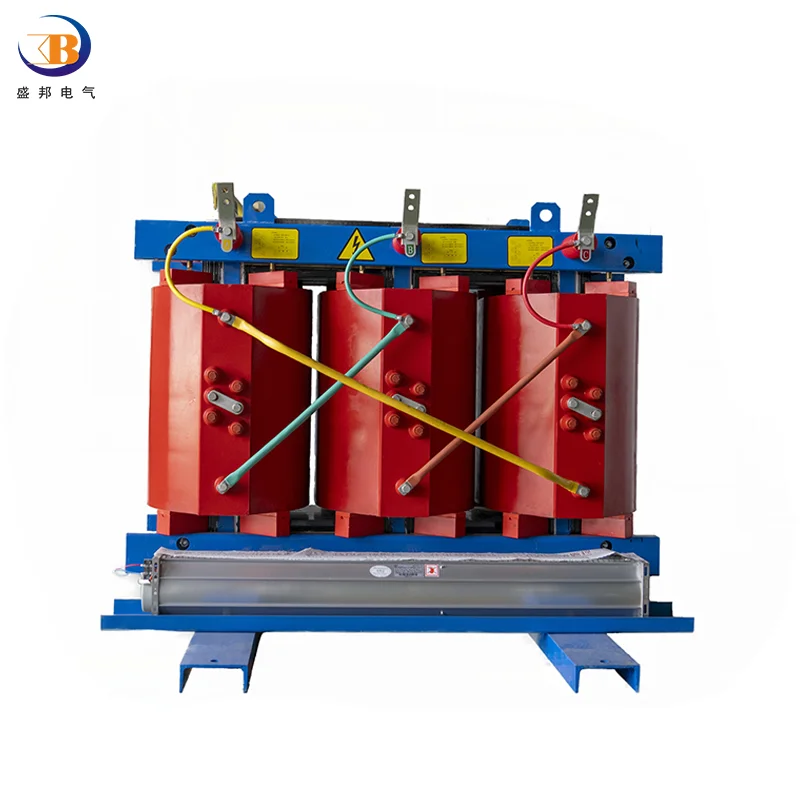

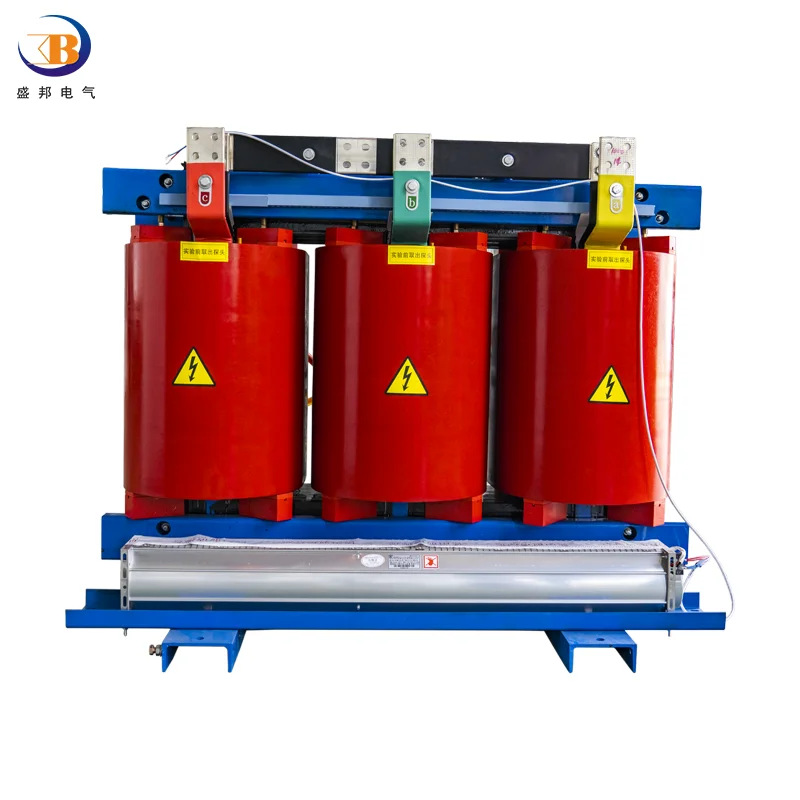

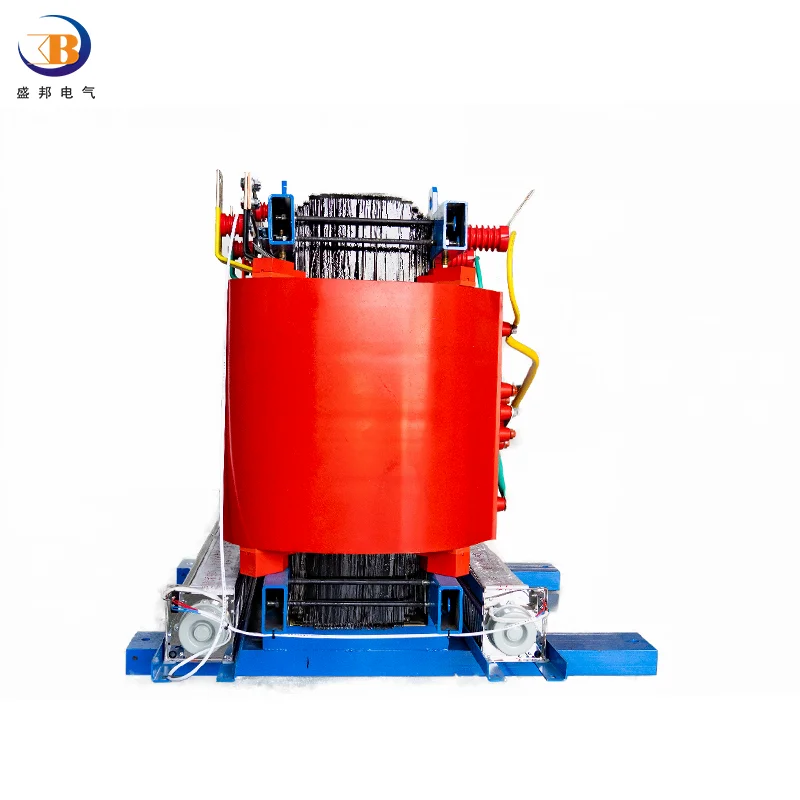

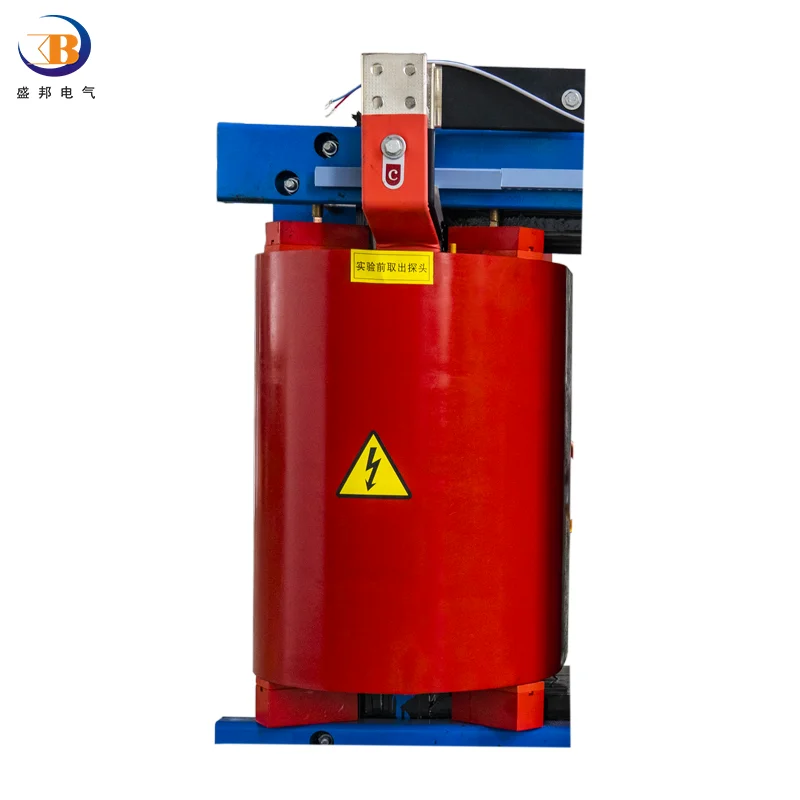

Shengbang customized dry type transformer Low Price 35kv dry type outdoor current 1600 kva dry type cast resin transformer
- Category: >>>
- Supplier: Shenyang Shengbang Electrical Technology Co. Ltd.
Share on (1600921255083):
Product Overview
Description

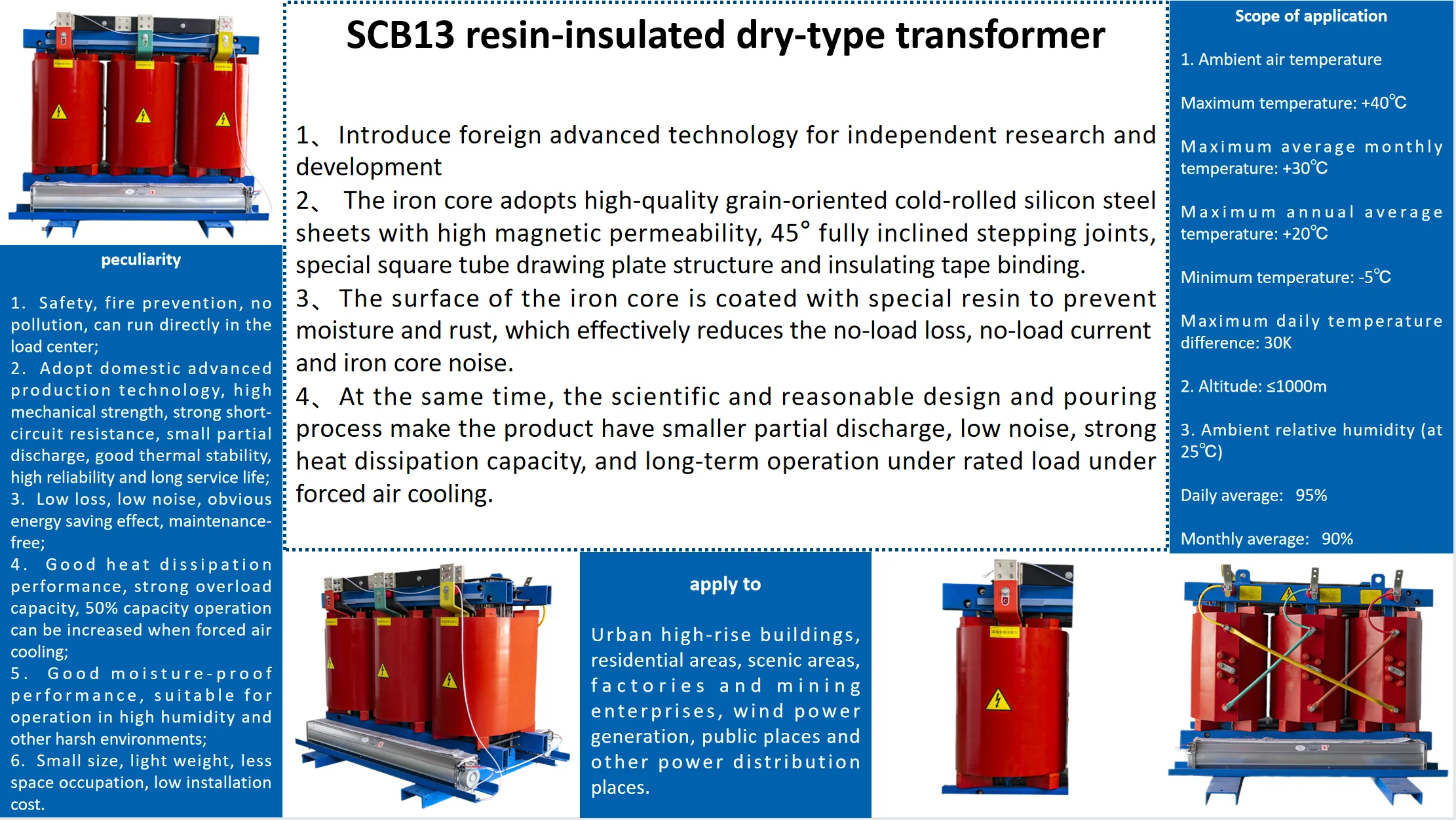

SCB13 tree insulated dry type transformer
1、Introduce foreign advanced technology for independent research and development
2、 The iron core adopts high-quality grain-oriented cold-rolled silicon steel sheets with high magnetic permeability, 45° fully inclined stepping joints, special square tube drawing plate structure and insulating tape binding.
3、The surface of the iron core is coated with special resin to prevent moisture and rust, which effectively reduces the no-load loss, no-load current and iron core noise.
4、At the same time, the scientific and reasonable design and pouring process make the product have smaller partial discharge, low noise, strong heat dissipation capacity, and long-term operation under rated load under forced air cooling.
2、 The iron core adopts high-quality grain-oriented cold-rolled silicon steel sheets with high magnetic permeability, 45° fully inclined stepping joints, special square tube drawing plate structure and insulating tape binding.
3、The surface of the iron core is coated with special resin to prevent moisture and rust, which effectively reduces the no-load loss, no-load current and iron core noise.
4、At the same time, the scientific and reasonable design and pouring process make the product have smaller partial discharge, low noise, strong heat dissipation capacity, and long-term operation under rated load under forced air cooling.
item | transformer |
Place of Origin | Hebei China |
Brand Name | Shengbang |
Model Number | dry transformer |
Phase | Three |
Coil Number | 3 |
Usage | power |
Coil Structure | layer coil |
Rated Secondary Voltage | 0.4 |
Power | 1600kva |
Certification | ISO9001:2008 |
Standard | IEC60076 |
Winding material | Copper\\Aluminum |
Warranty | 2 Years |
Cooling Method | ONAN ONAF |
Frequency | 50/60 Hz |
Rated capacity | 1600kva |
Secondary voltage | 400v |
Capacity/KVA | 1600kva |
1)IEC60076,ISO,CCC,Type test report
2)Top 3 and more than 23 Years' experience
3)Sold to Malaysia,HK,Ethiopia, Mozambique, Kenya, Congo, Philippines,Nigeria,HK....and so on
2)Top 3 and more than 23 Years' experience
3)Sold to Malaysia,HK,Ethiopia, Mozambique, Kenya, Congo, Philippines,Nigeria,HK....and so on
1. Standard: IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
2. Voltage Grade: 6KV to 35KV
3. Voltage Regulation Mode: No-load tap changing or On-load tap changing
4. Tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Frequency: 50Hz; 60Hz
6. Phase: three phase
7. Connection Sign: Dyn5,Dyn5,Yyn0, Dyn11 or others
8. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
2. Voltage Grade: 6KV to 35KV
3. Voltage Regulation Mode: No-load tap changing or On-load tap changing
4. Tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Frequency: 50Hz; 60Hz
6. Phase: three phase
7. Connection Sign: Dyn5,Dyn5,Yyn0, Dyn11 or others
8. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
