Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange
Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange

Expansion Joint/rubber Bellow/rubber Joint High Quality Flange Connection Flexible Rubber Round Forged 3 Years Ptfe Pipe Flange

Share on (1600921266751):


Price:$3.50

Quantity:


Product Overview

Description



Related Products




Product Description

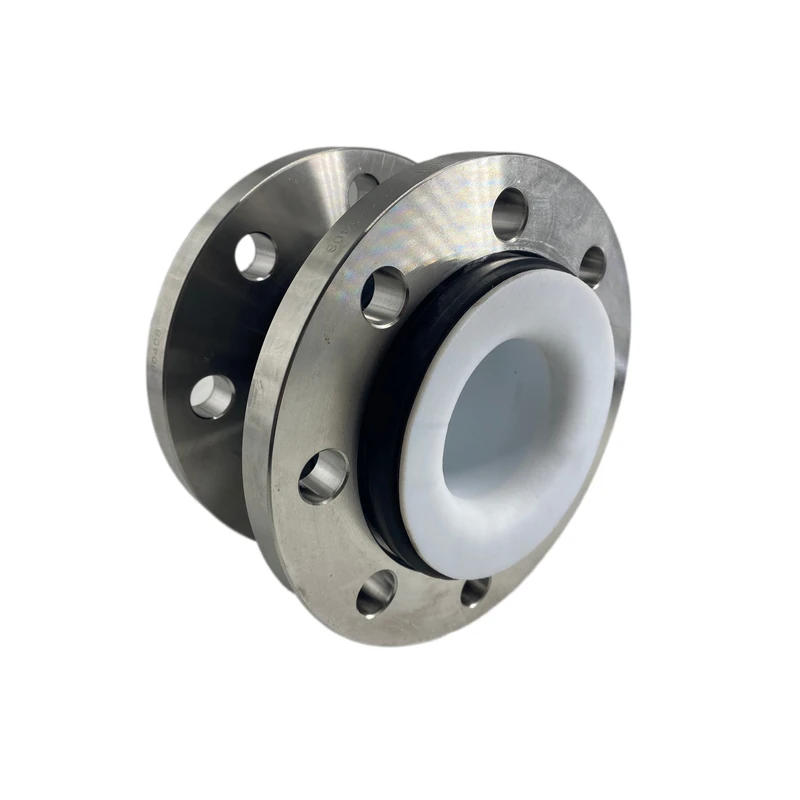

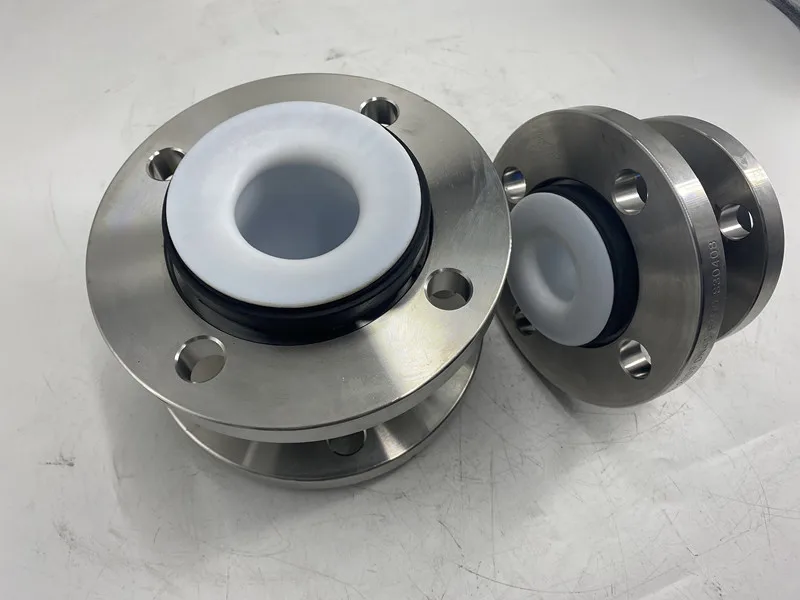

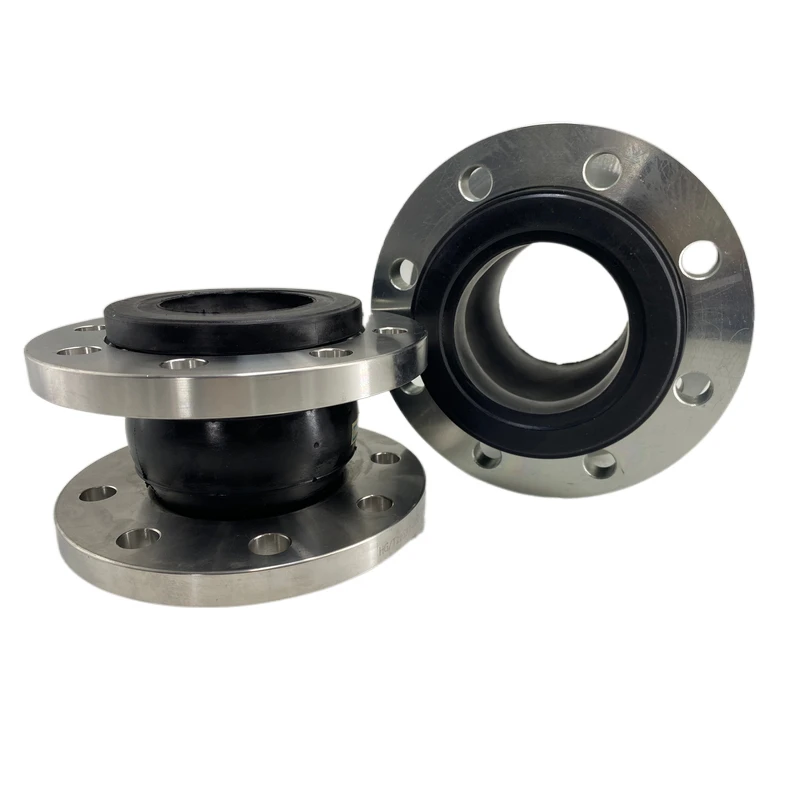

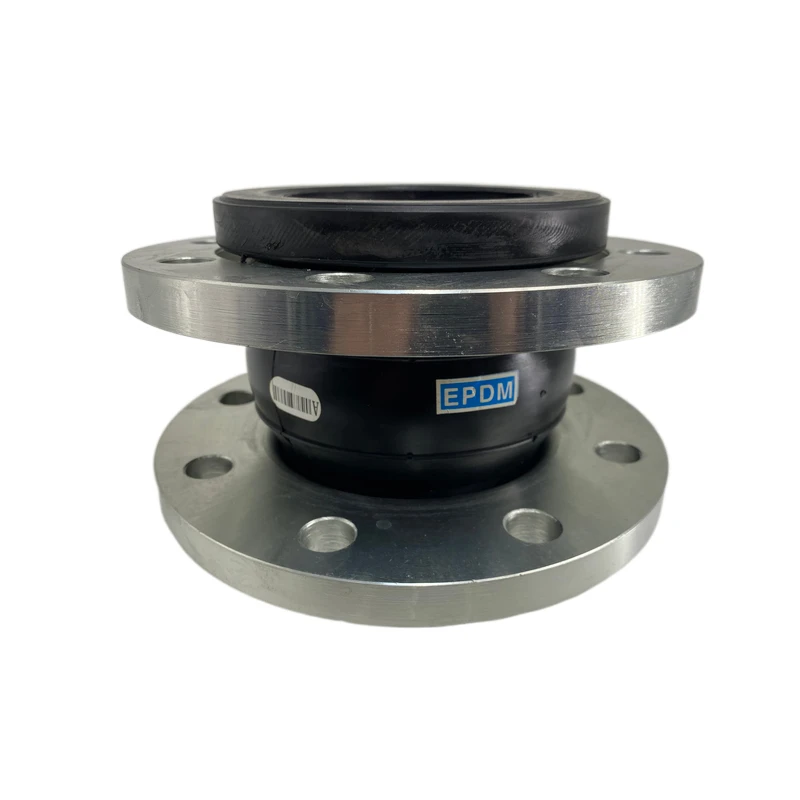

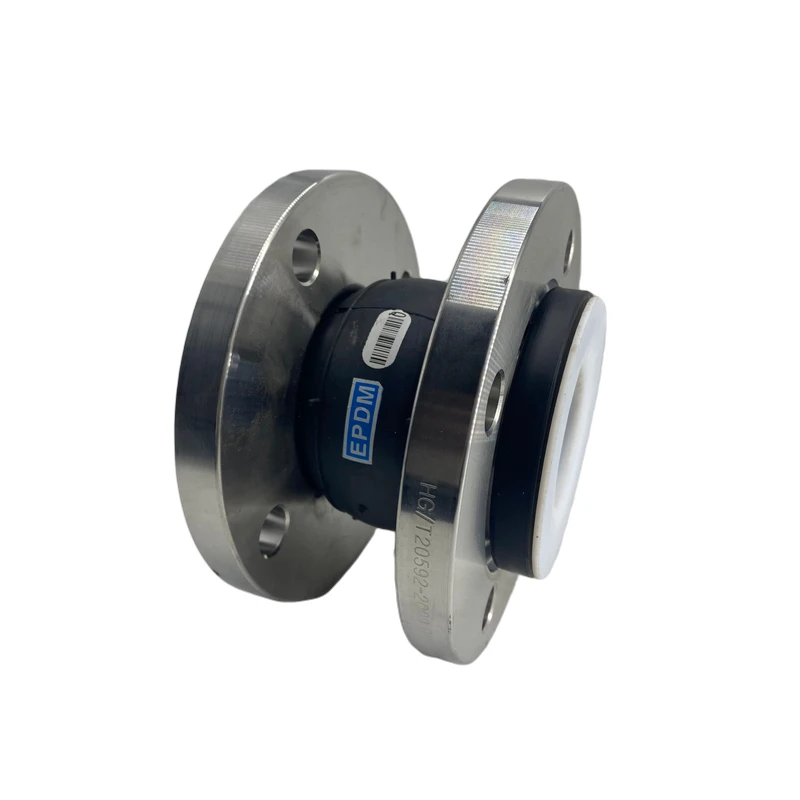

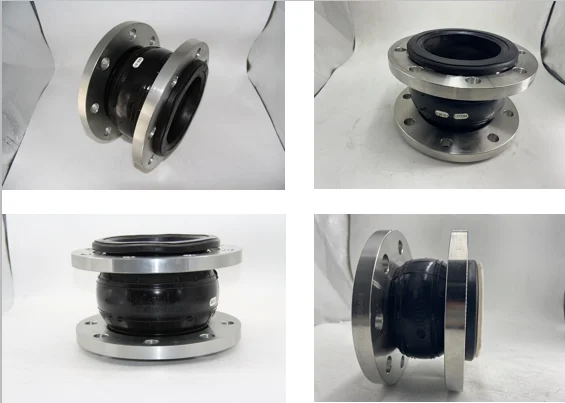

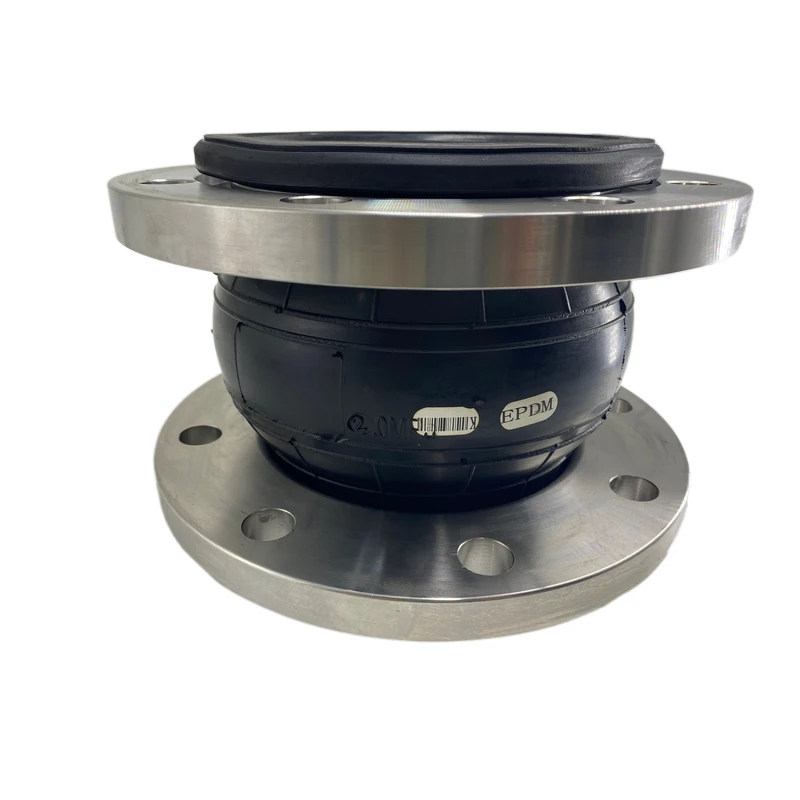

Description of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint

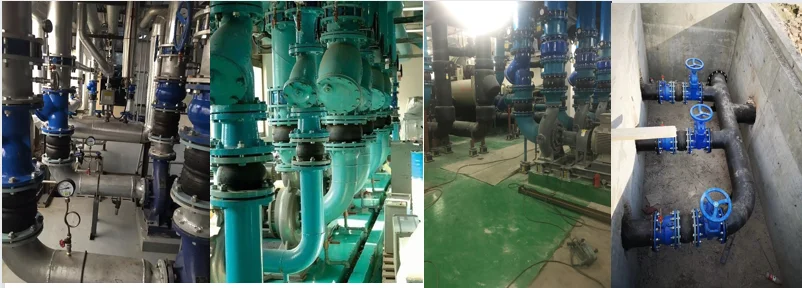

ptfe pipe afa flex high pressure flexible bellows rubber expansion joint can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

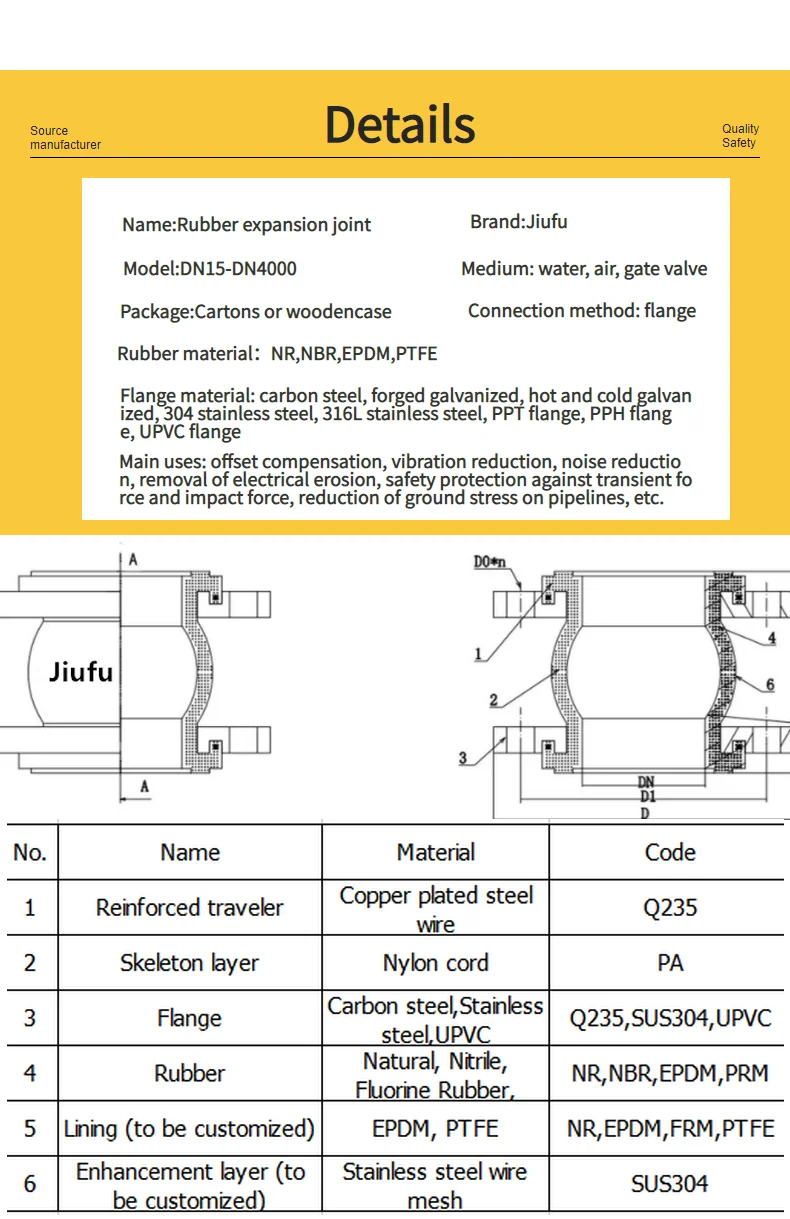

Technical parameters


Technical parameters of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint


Nominal diameter
Length（mm)
Axial displacement mm
Horizontal displacement
Angle of deflection
mm
Inch
extension
compress
a1+a2
32
11/4
95
6
9
9
15°
40
11/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
21/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
6
25
22
15°
600
24
260
6
25
22
15°
700
28
260
16
25
22
15°
800
32
260
16
25
22
15°

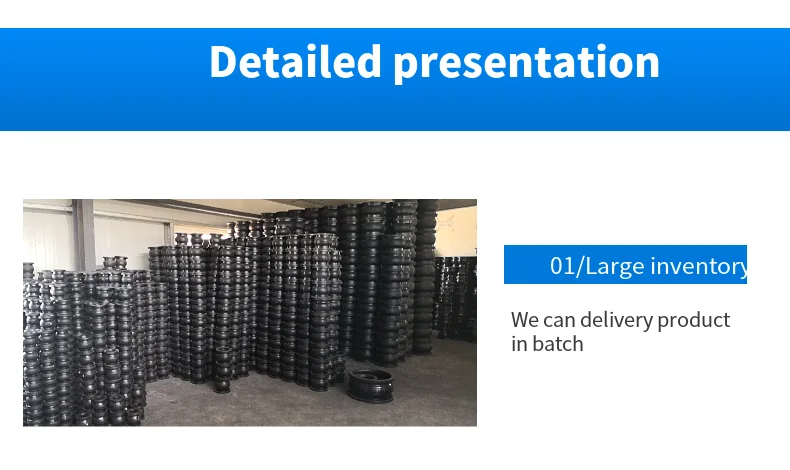

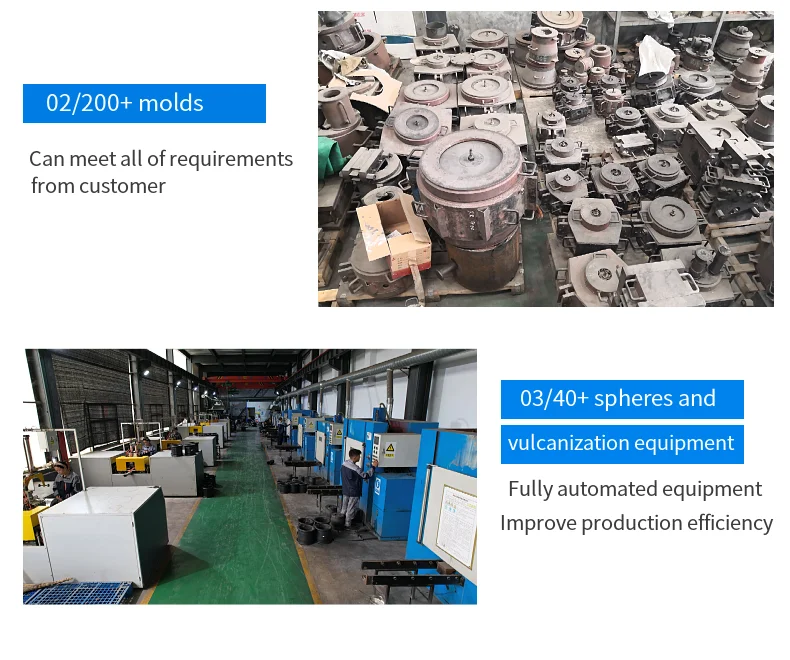

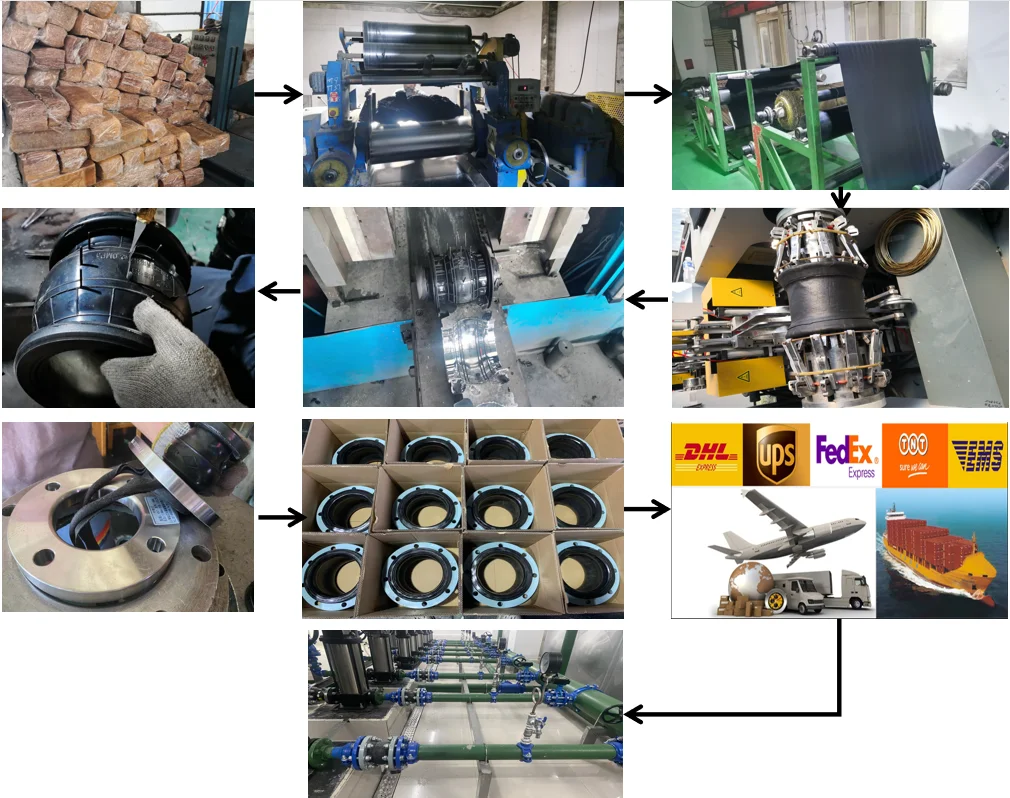

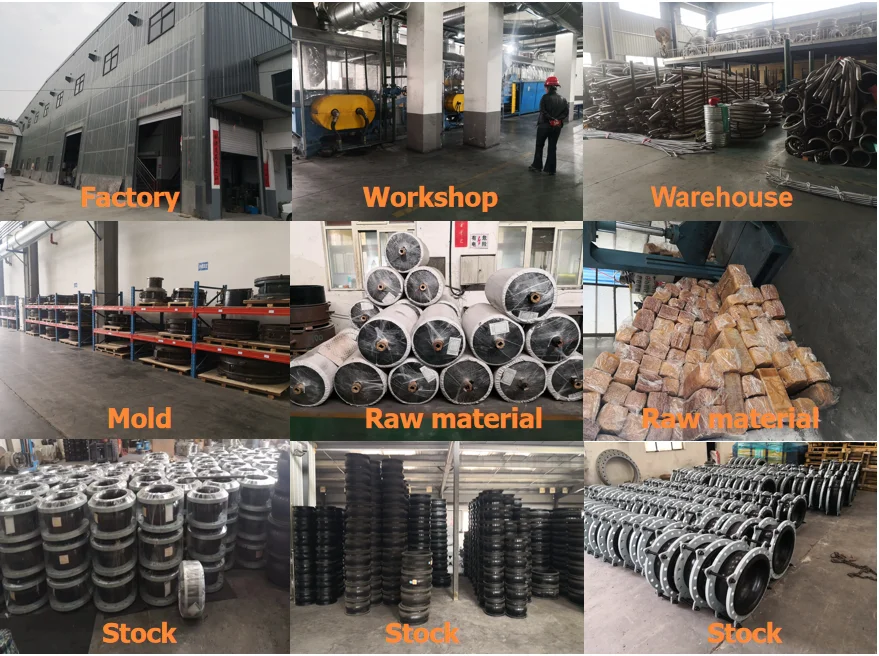

Production line


Production line of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint

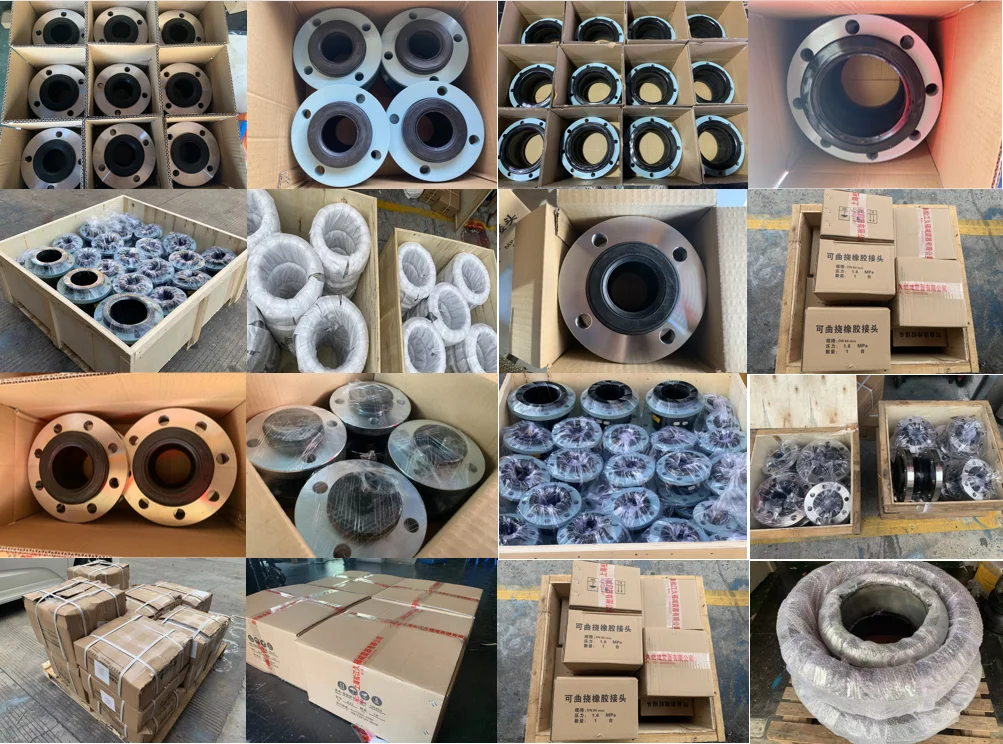

Packing&Shipping




Inner packing of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint:
Plastic film

Outer packing of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint:
Cartons/Wooden case
Delivery of ptfe pipe afa flex high pressure flexible bellows rubber expansion joint:
Within 5-7 days after received deposit


Company Introduction




Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. has always pursued the business tenet of "survive by quality and development by science and technology", the quality policy of "integrity-based, technological innovation, wholeheartedness and perfection" and a warm and thoughtful after-sales service system. "Building a brand-name enterprise and opening up the international market" is our eternal goal to move towards a first-class enterprise with an internationally synchronized management level.








ISO Certificate




Our service




1. 24 hours all day service, tel/whatsapp/wechat: 86 13761130991

2. Can be customized according to customer needs

3. check again before we send the goods

4. send the goods on time

5. The more you need, the cheaper the unit price is




FAQ


Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery, and approve the delivery after qualified
B: Support third-party inspection

Q: Do you accept small quantity order?
A: Of course we do.
