Product Overview

Description

Good For The Body Warmer Pad Making Forming Machine

Machine Introduction

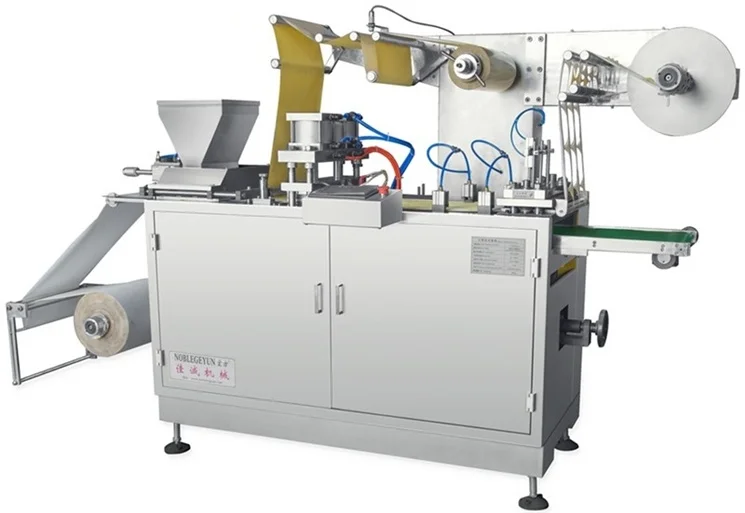

NB-330C Automatic Warm Pad Forming Machine is a fully automatic packaging machine is designed and developed by our company according to the market demand and heat semi-automatic low-capacity, poor product quality and poor production environment. Our company has a number of patents of independent intellectual property Rights. Updated the heating packaging production process and developed a more complete industry standard. The packaging mold of machine can be customized according to customer requirements without the shape and weight, enriching the product category of the heating package industry.

The machine has reliable mechanical transmission mechanism, photoelectric detection system, PLC programmable control system, and integrates the assembly line operation mode into one equipment for production operation. The technology is advanced and reliable, and the operation is simple and safe. The complete replacement of artificial bag making, filling, sealing and other processes, saving labor costs for the majority of users, reducing environmental pollution, improving product quality and output, small footprint, economical and practical. Widely used in daily chemical, pharmaceutical, health care and other industries.



Machine Features
1) Strong power, high intensity, compact structure, stable operation , easy maintenance, longer usage.

2) Automatic film feeding, plate heating, four-sides sealing , firmly sealed , the bag is flat and beautiful.

3) Speed reducer, main-rotating connection, main shaft are on one line (to decrease driving error) for mechanical transmission.

4) Sensor controls are adopted in pneumatic system. PLC controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long-distance.

5) Touch screen operation, configuration of servo traction system. The traction length and time can be programmed by PLC, and the operation can be set directly in the touch screen.

6) Automatic film feeding, automatic feeding, upper and down netting, cylinder sealing, servo traction, stable running, easy operation, high automatic grade. Optional bottom film or cover film cursor tracking for version sealing configuration, double film roll automatic film feed.

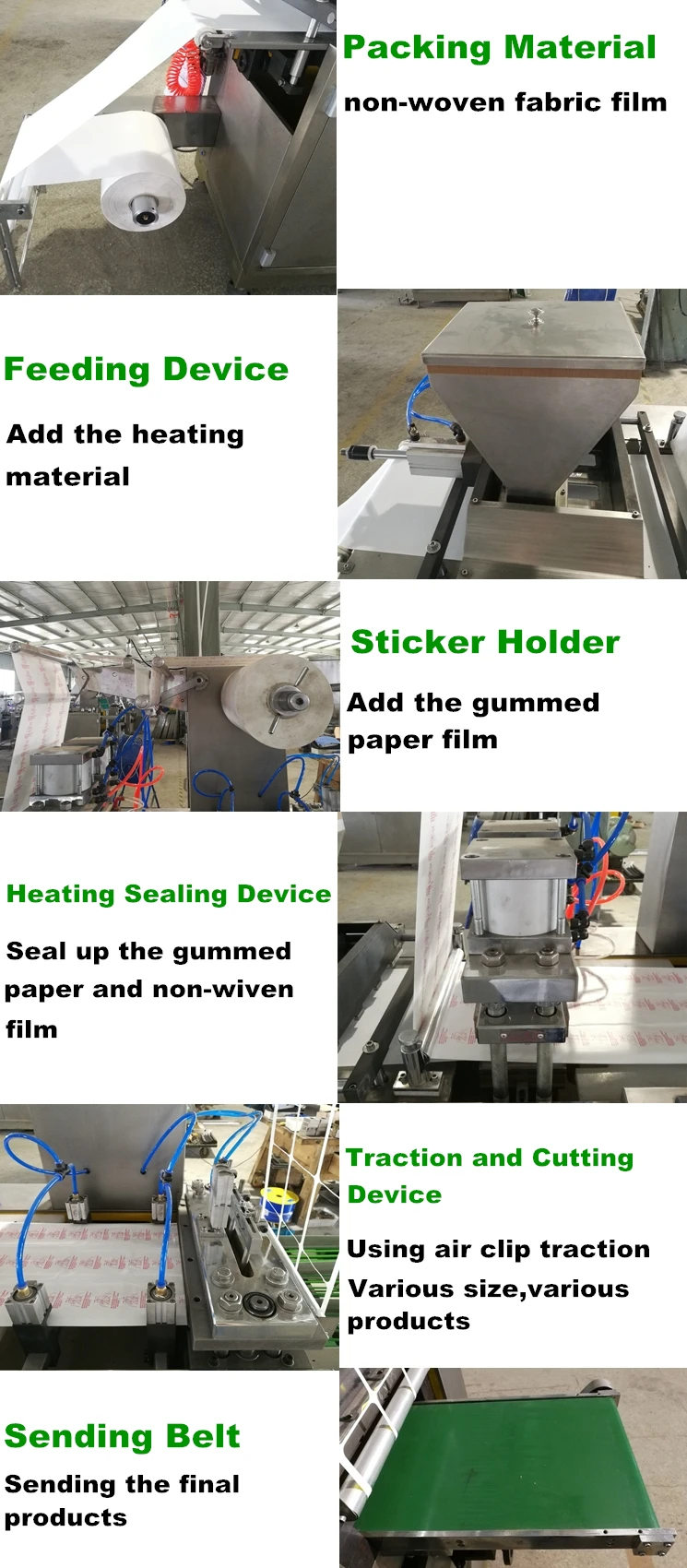

Machine Details



Main Machine Technical Parameters

Production capacity	15-40times/minute, 1~4pieces/time
Max. Pack size	330*180mm
Section size	Standard size:130×100mm  Reference size:128×96 95×70 90×70  (can design according client’s requests)
Weight of each pieces	Can be design according the requirements of customer
Packaging material	Non-woven fabric 0.15~0.5×330mm  Gummed paper film 0.02~0.35×330mm  Diameter of scroll 70~76mm
Heating power consumption	Up and down heating of sealing part:1.5Kw
Total power	6.5Kw (380V/220V, 50HZ, customization)
Pump capacity	>0.2m3(provide by yourself)  pressure:0.6~0.8Mpa
Mold cooling	Tap water or recycle water  60L/h
Overall dimension	2650×880×1650mm
Weight	1000kg

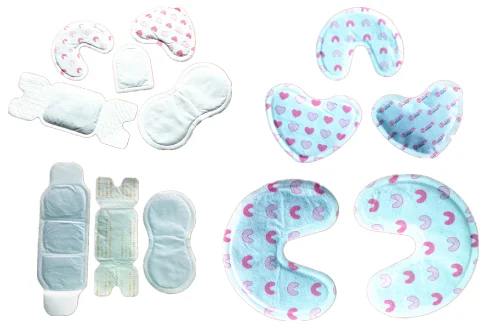

 Applications

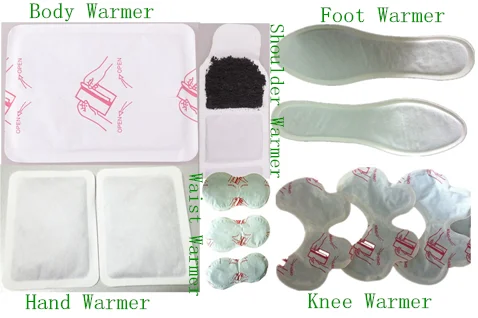

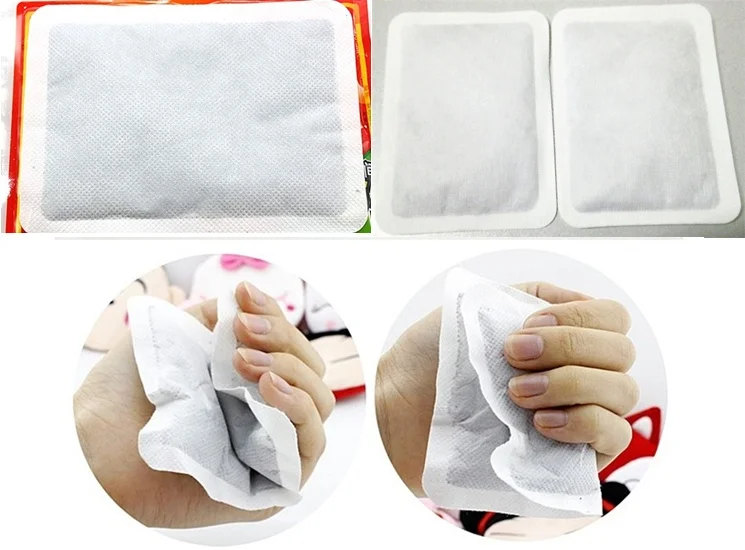

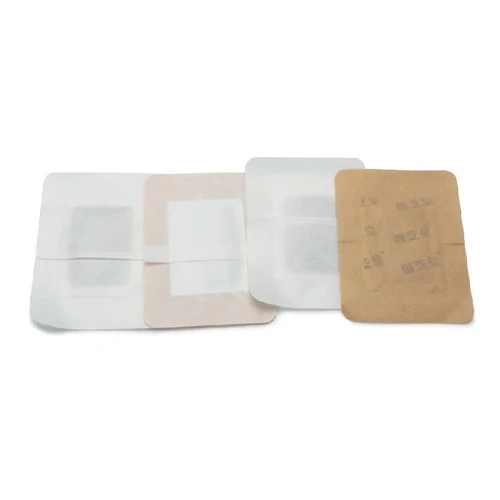

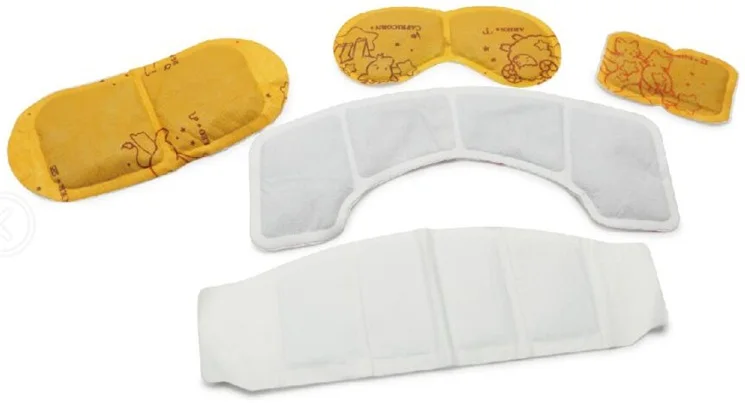

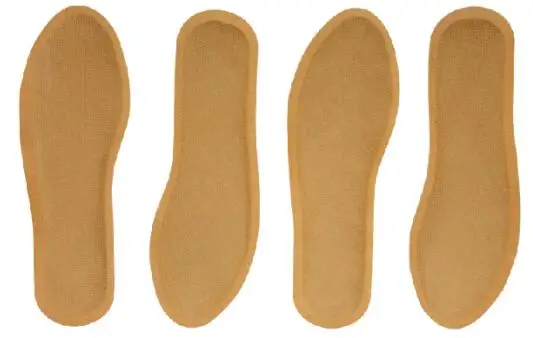

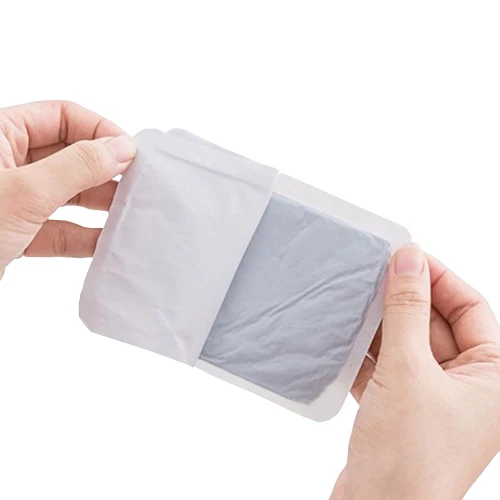

t is suitable for packing active carbon natural fever, such as: body warmer, foot warmer, handbag warmer, palace warmer, breast warmer, eye warmer, knee and shoulder warmer, neck warmer and so on.

Related Machine

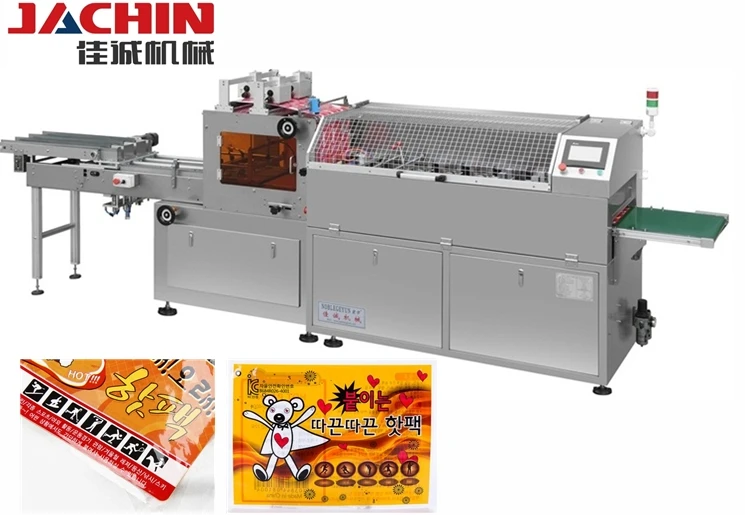

Automatic Warm Pad's Bag Horizontal Four Side Sealing Packing Machine
