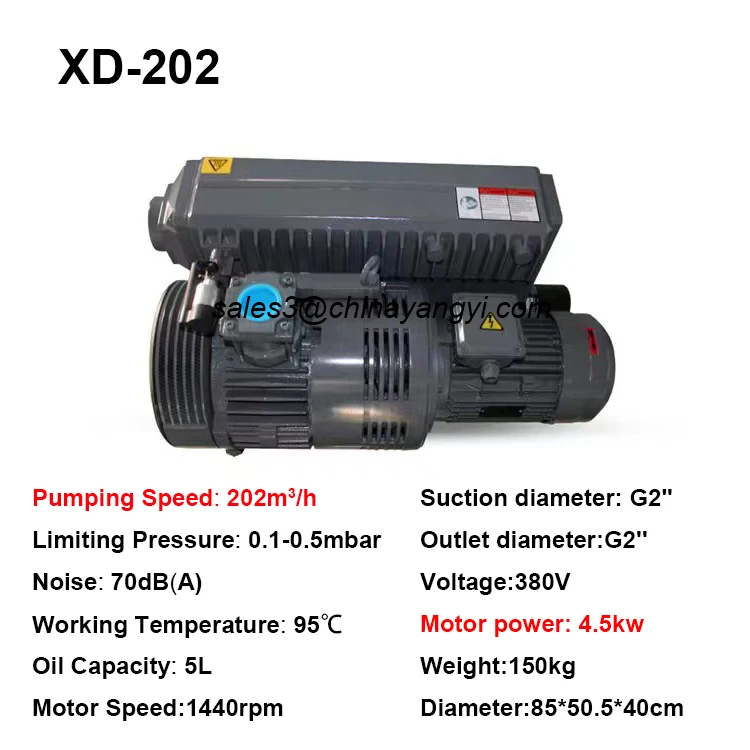

200m3/h Good Quality Industrial Vacuum Pump SV 200 Oil Sealed Single Stage Rotary Vane Vacuum Pump for Vacuum packaging
- Category: >>>
- Supplier: Wenling Yangyi Mechanical And Electrical Products Co. Ltd.
Share on (1600921587021):
Product Overview
Description
Product Description
SV (XD) single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment.
The comprehensive range (pumping speeds ranging from 10 to 750 m 3 / h) allows every customer to select the right pump for his particular needs.
The comprehensive range (pumping speeds ranging from 10 to 750 m 3 / h) allows every customer to select the right pump for his particular needs.
Technical Data
Technical Data:

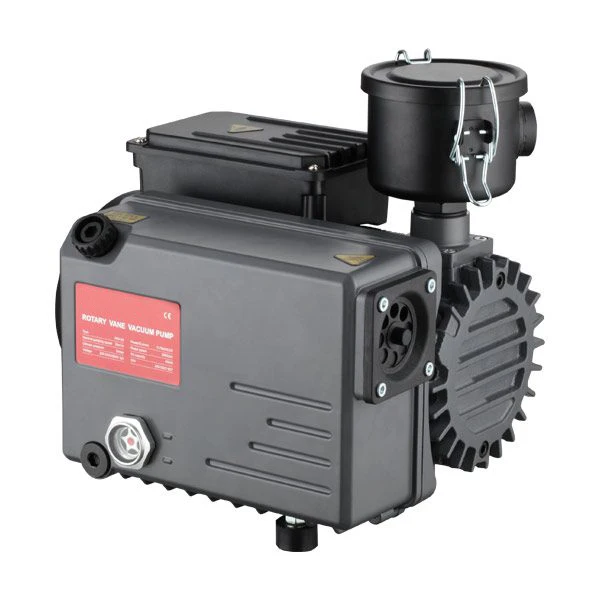

* Model: ASV-20
* Displacement: 20 m^3/h
* Ultimate Pressure: 2 mbar
* Intake: G3/4″, G1/2″
* Motor Power: 0.75 kW @220V/50Hz
* Nominal Speed: 3000 rpm
* Noise: 68 dB
* Oil Capacity: 0.45 L
* Weight: 18.5 Kg
* Displacement: 20 m^3/h
* Ultimate Pressure: 2 mbar
* Intake: G3/4″, G1/2″
* Motor Power: 0.75 kW @220V/50Hz
* Nominal Speed: 3000 rpm
* Noise: 68 dB
* Oil Capacity: 0.45 L
* Weight: 18.5 Kg

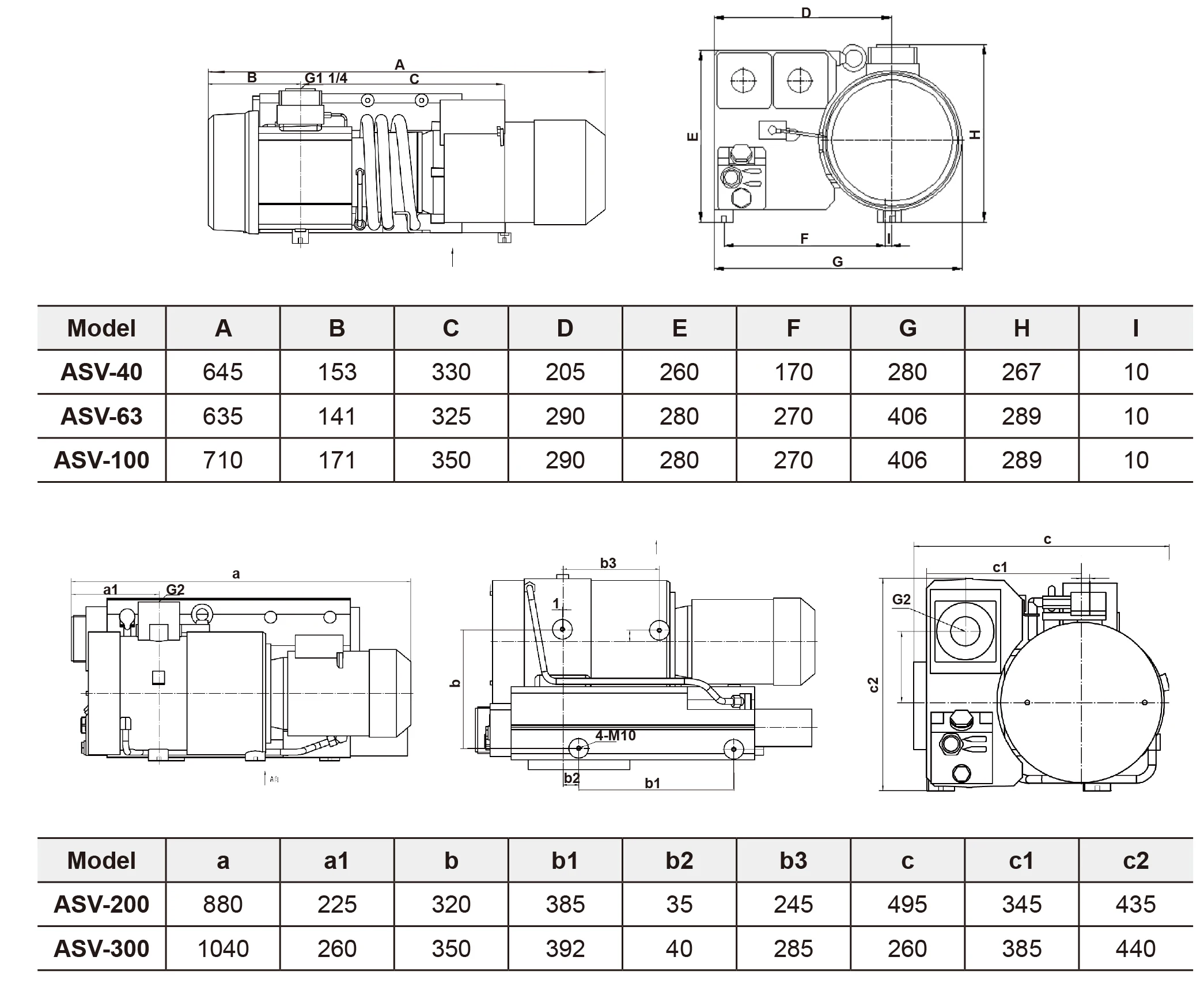

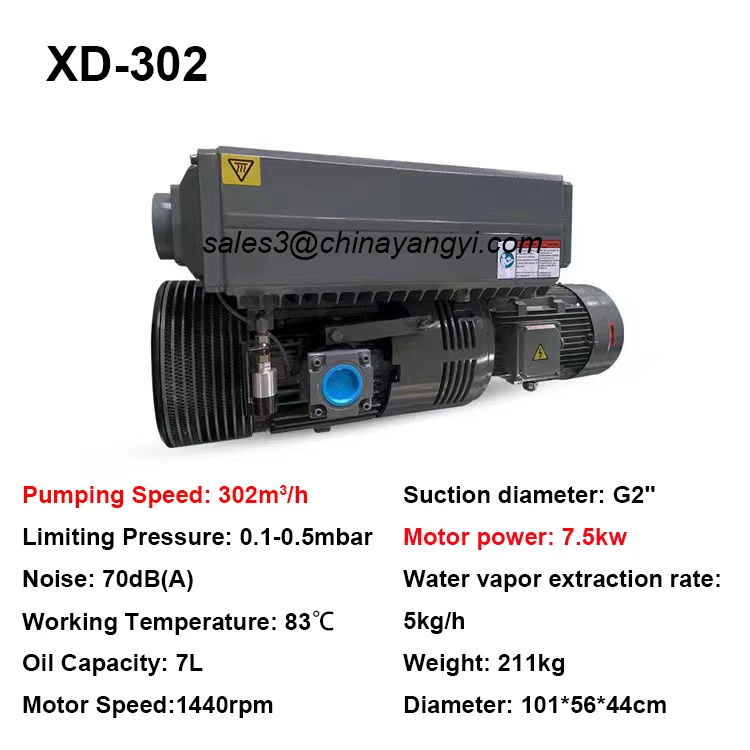

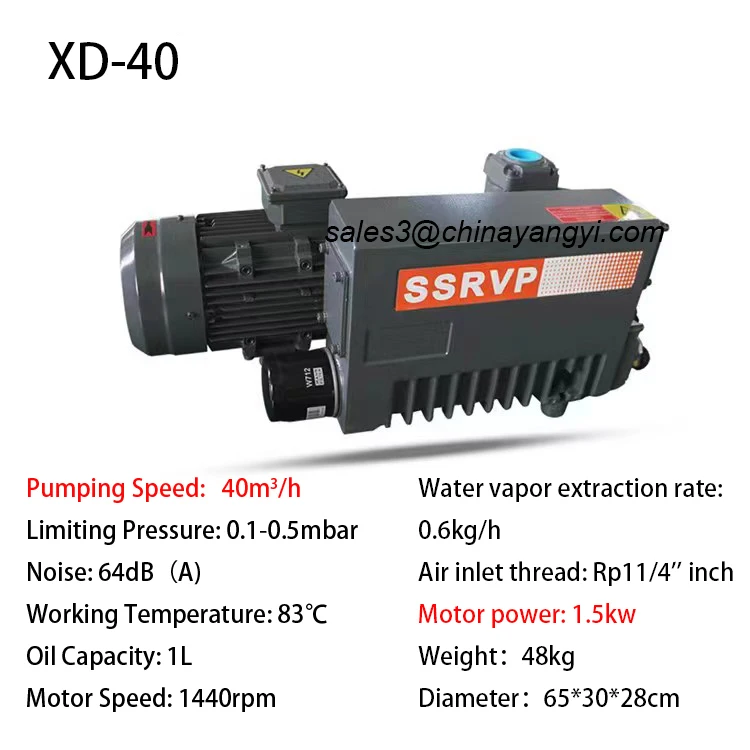

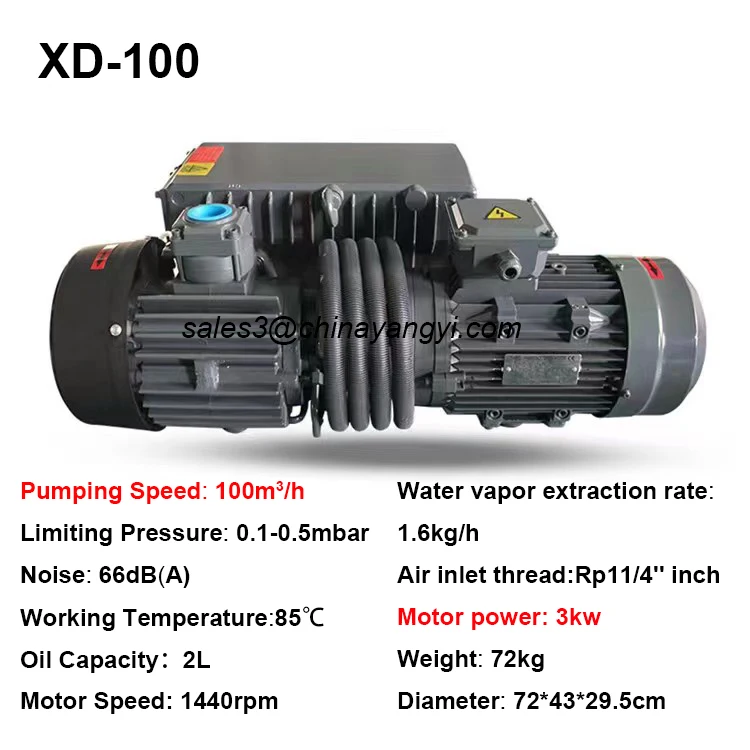

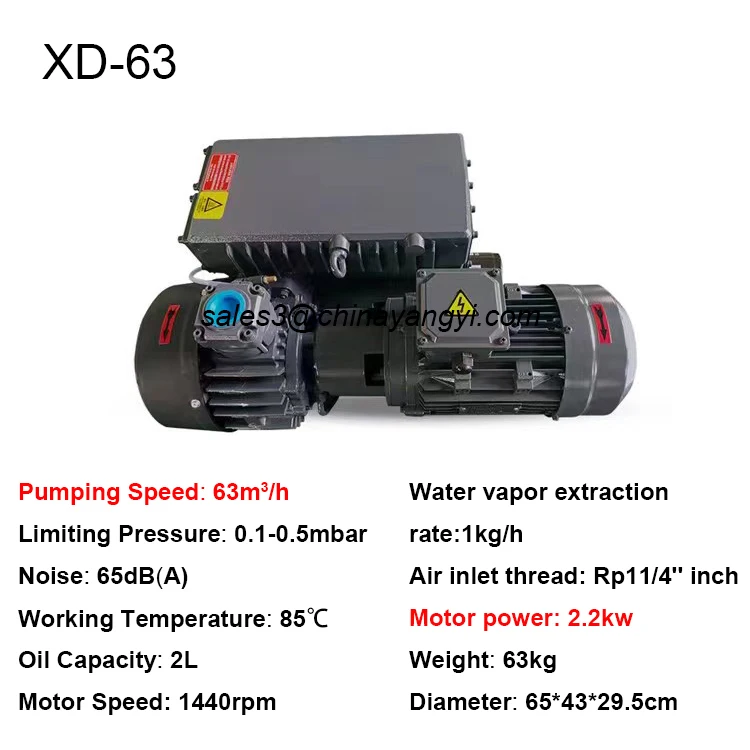

Model | ASV-40/XD-40 | ASV-63/XD-63 | ASV-100/XD-100 | ASV-200/XD-202 | ASV-300.XD-302 | ||||
Displacement (m3/h) | 40 | 63 | 100 | 200 | 300 | ||||
Ultimate Pressure (mbar) | 0.5 | 0.5 | 0.5 | 0.1 | 0.1 | ||||
Power Supply | 3-ph, 200-240V/345-415V | ||||||||
Motor Power (kW) | 1.5 | 2.2 | 3.0 | 5.5 | 7.5 | ||||
Speed (rpm) | 1440 | 1440 | 1440 | 1455 | 1455 | ||||
Noise (dB) | 63 | 64 | 65 | 69 | 72 | ||||
Oil Capacity (L) | 1.5 | 2 | 2 | 6 | 8 | ||||
Weight (kg) | 43 | 56 | 70 | 149 | 193 | ||||
Details
Application
Application:
Food industry , Vacuum packaging, Material drying, Car industry , Furnaces and plants , chemical, Laser technology , Medicinal technology , Metallurgy , Power engineering , Space simulation , Vacuum coating , vacuum loading, electronics, semiconductor, scientific research

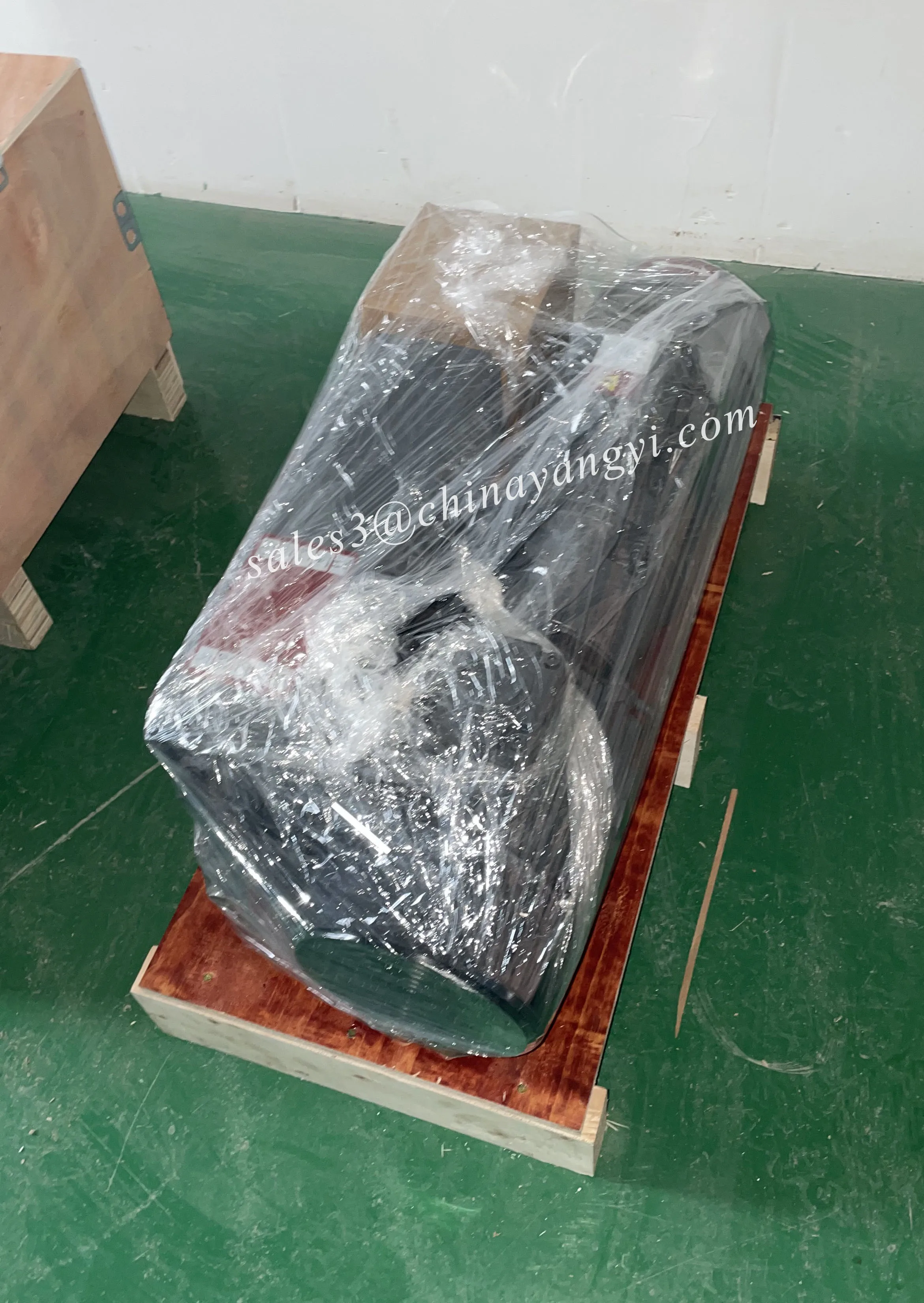

Shipping and Delivery
Southeast Asia | South America | Southern Europe | |||
Port | Ningbo/Shanghai/FOB/CIF/EXW/CFR | ||||
By Sea | 4-5 days | about 30 days | about 25 days | ||
By Air | 1-2 days | 1-2 days | about 4 days | ||
Company Profile
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order. We could reduce the sample cost from your real order if you purchase big quantity next time.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order. We could reduce the sample cost from your real order if you purchase big quantity next time.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
Q4. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
Q6.Are you a factory?

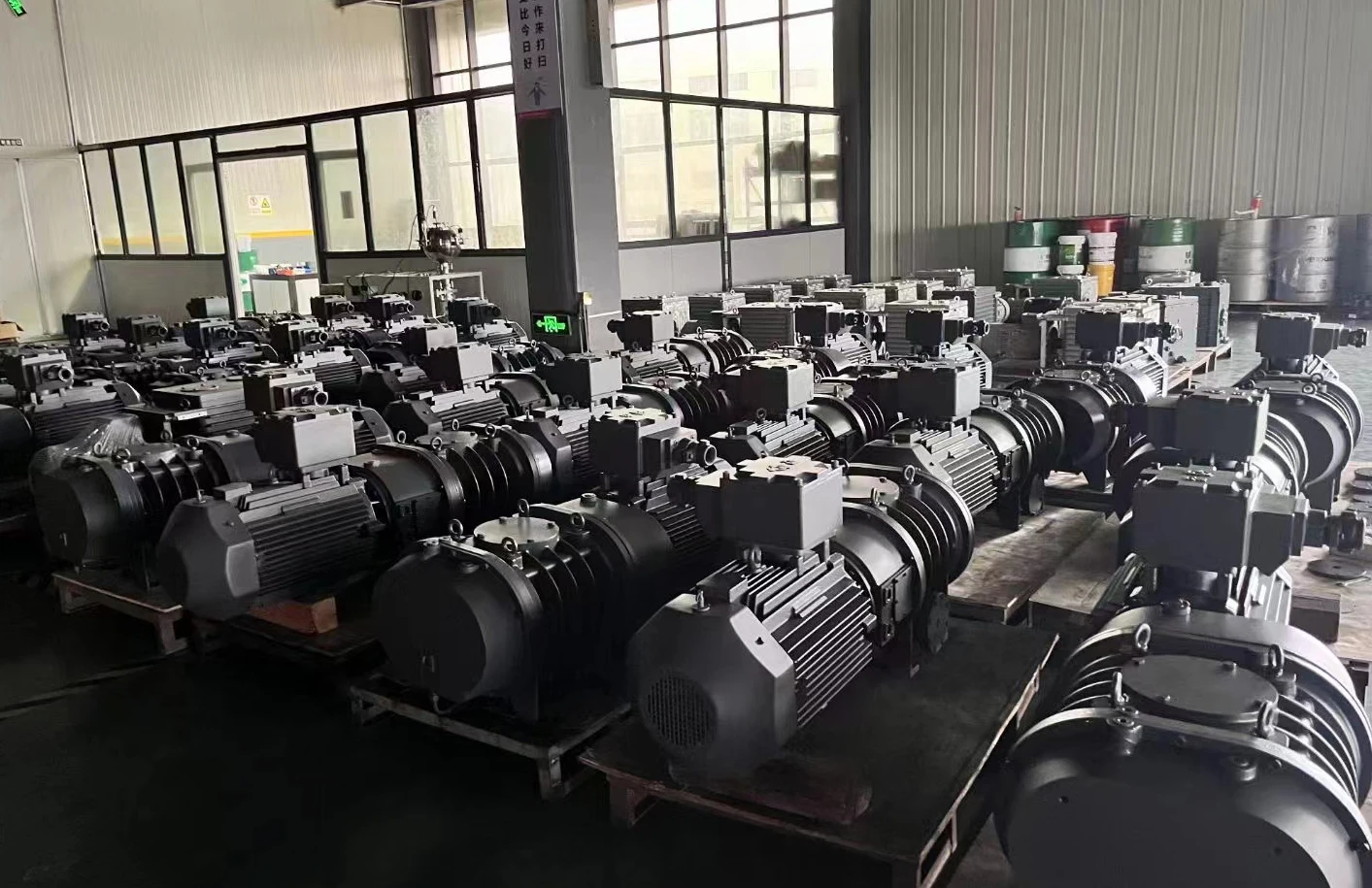

A: YES. We are a factory speciiazed in manufacturing vacuum pump recovery machine and some flaring tools and other things for about 15 years.
Q7: May I visit your factory?
A: Sure, warmly welcome.address:1st Rd, Chengxi Industrial zone ,Wenling,Zhejiang,China,317500
