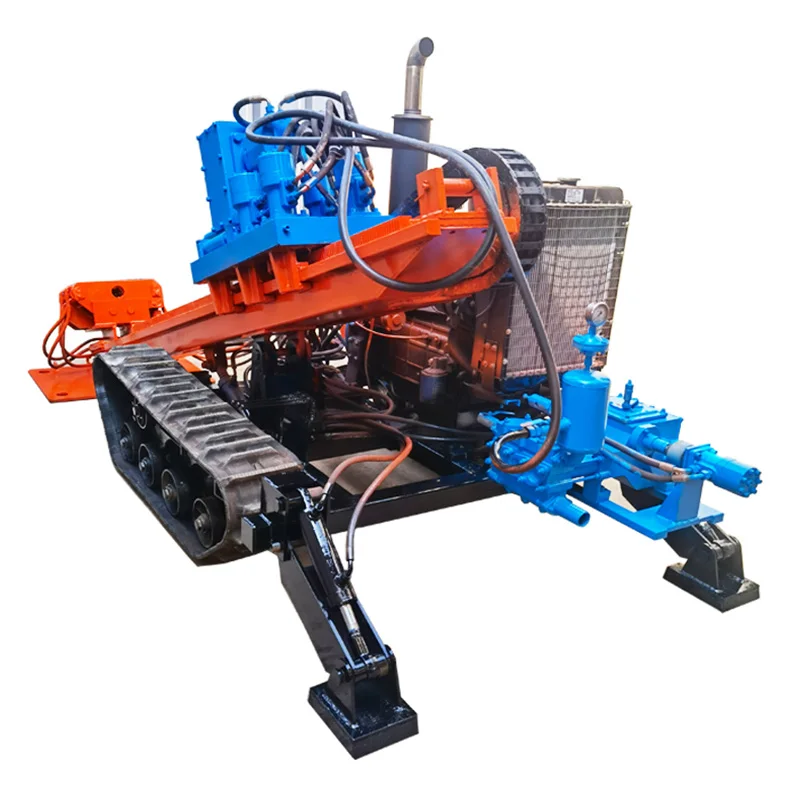

Ground Roof Bolter Anchor Drilling Machine MQT130 Pneumatic Horizontal Directional Drilling Rig Directional Drilling Rig
- Category: >>>
- Supplier: Henan Yulu Machinery Co. Ltd.
Share on (1600921972811):
Product Overview
Description
Products Description
Drilling rig system-it is composed of a main drilling rig, a turntable, etc. The main drilling rig is placed on the drilling frame to complete drilling operations and towing operations. The turntable is installed at the front end of the main body of the drilling rig, connected to the drill rod, and by changing the rotation of the turntable and the output speed and torque to meet the requirements of different operating conditions.
Model | YG-160A | YG-180 | YG-280 | YG-320 | YG-320A |
Engine rated power | 100KW | 97KW | 160KW | 140KW/160KW | 160KW |
Push and pull | Cylinder | Motor | Motor | Cylinder | Motor |
Maximum drag/feed force | 160/100KN | 180/180KN | 280/280KN | 320/320KN | 320/320KN |
Maximum torque of power head | 5000N.n | 6000N.n | 10000N.n | 12000N.n | 12000N.n |
Power head speed | 0-180r/min | 0-140r/min | 0-120r/min | 0-140r/min | 0-140r/min |
Moving speed of power head | 30m/min | 20m/min | 20m/min | 20m/min | 20m/min |
Maximum reaming hole diam | Φ600mm | Φ600mm | Φ750mm | Φ800mm | Φ800mm |
Drill rod length (single) | 3m | 3m | 3m | 3m | 3m |
Drill pipe diameter | Φ60mm | Φ60mm | Φ73mm | Φ73mm | Φ73mm |
Drill angle | 10-23° | 10-22° | 10-23° | 10-20° | 10-20° |
Maximum mud flow | 160L/min | 250L/min | 320L/min | 320L/min | 320L/min |
Maximum mud pressure | 100bar | 80bar | 80bar | 80bar | 80bar |
Overall quality | 6700kg | 8500kg | 12500kg | 11500kg | 11200kg |
Dimensions (length*width*height) | 5700*1820*2400 mm | 6400*2270*2340 mm | 7100*2260*2450 mm | 7100*2250*2450 mm | 7662*2162*2450 mm |
