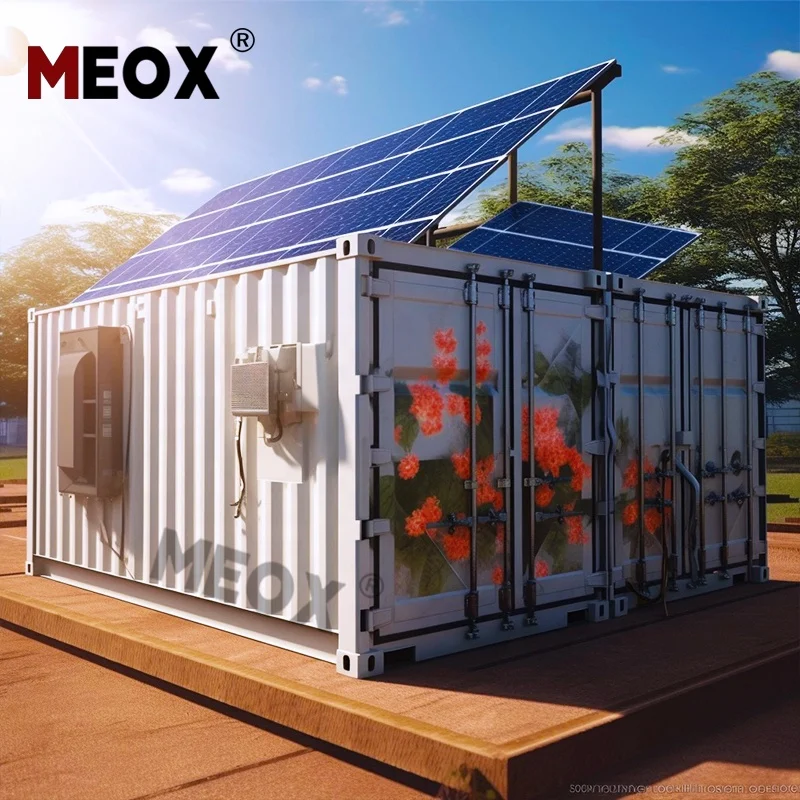

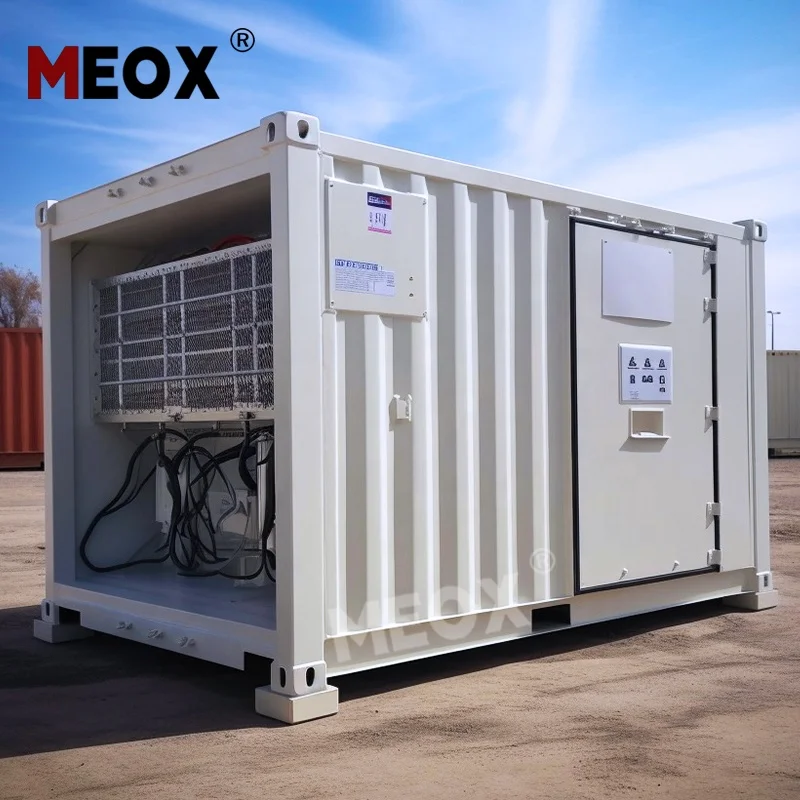

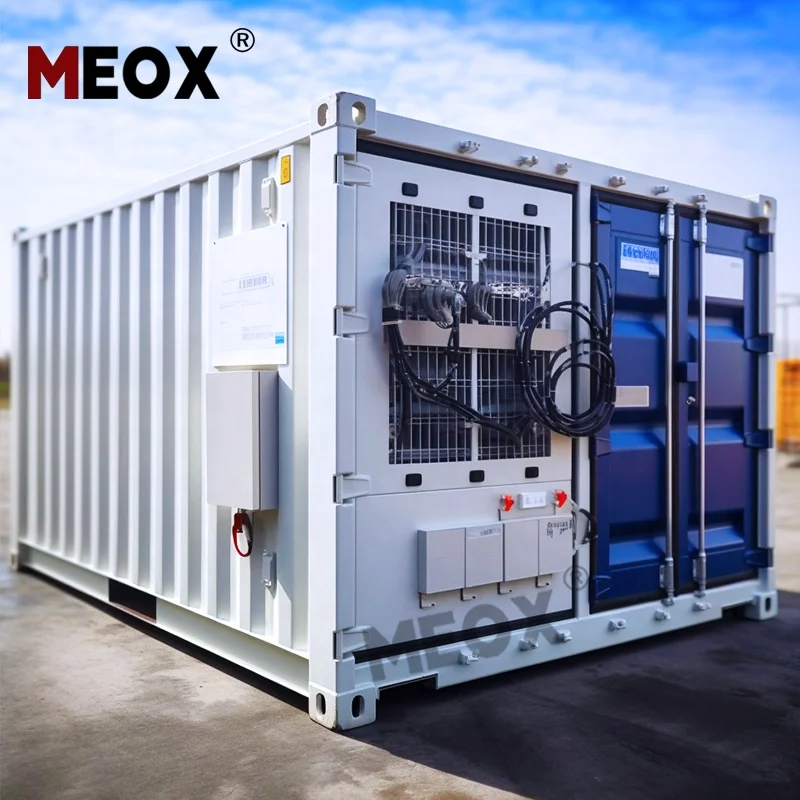

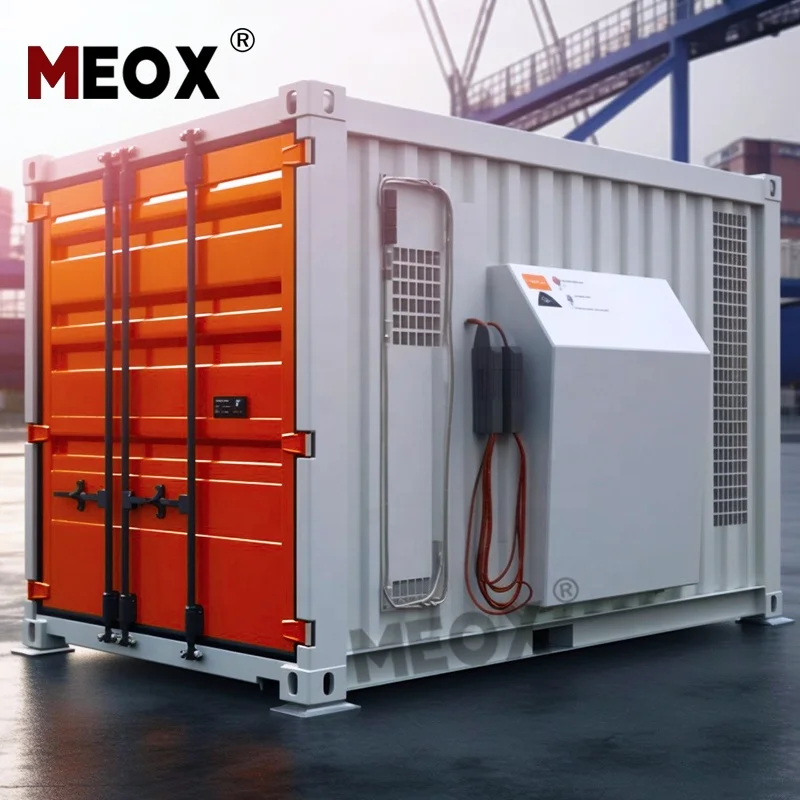

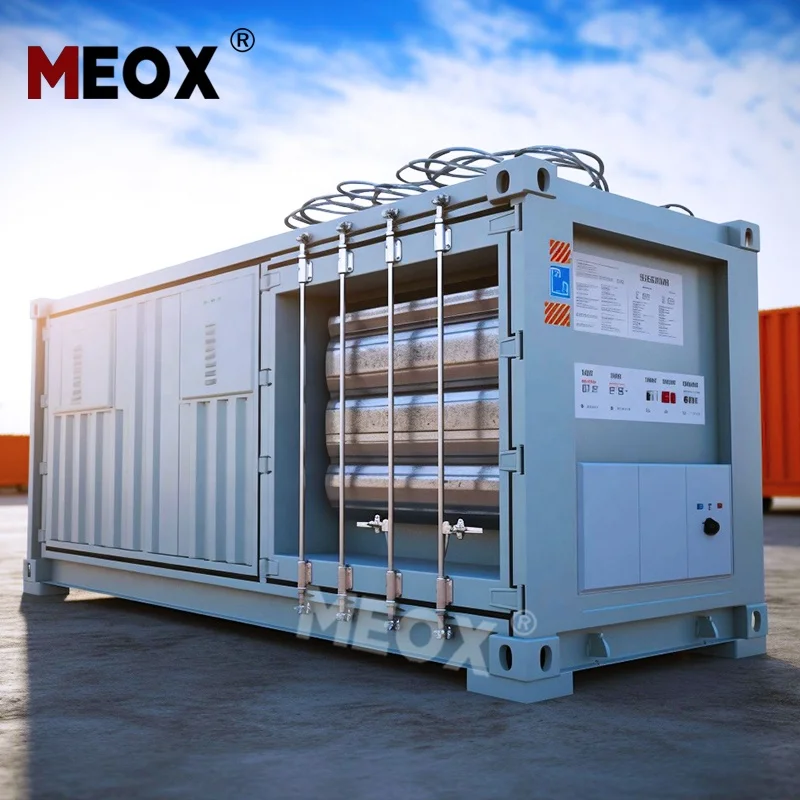

MEOX European quality 20 40 foot freezer units containerized energy storage 12m powered off grid shipping solar panel container
- Category: >>>
- Supplier: Suzhou Zhongnan Intelligent Equipment Co. Ltd.Suzhou Ltd.
Share on (1600922007818):
Product Overview
Description
Overall Configurations | ||||
CS Package | Package Products Model | CS20GP-M-84K | ||
Solar Array Capacity (Pmax / kWp) | 84 | |||
Total Weight (Tons) | 13 | |||
Folding & Unfolding Time (Min.) | 30-45 | |||
Operating Temperature ( ℃) | -40 ~ +85 | |||
Unfolded Footprint (L*W*H/m) | 87*5*1 | |||
Folded Footprint (L*W*H/m) | 6*2.4*2.6 | |||
Max. Slope Limit | 0.6% | |||
Complete Installation Time (hrs) | 3 | |||
Installation Persons | 4 | |||
Compatiblity (Option 1) | DC output without Inverter | |||
Compatiblity (Option 2) | with Lithium battery container | |||
Orientation | Any azimuth | |||
Container | Type of Container | 20GP ① | ||
External Dimensions (L*W*H/mm) | 6058*2438*2591 | |||
Container Weight (Tons) | 6 | |||
Solar | Solar Panel Type | Mono cry sta lline | ||
Solar Panel Pow er (Pmax / Wp) | 400 ② | |||
Quantity of Solar Panels (pcs) | 210 | |||
Inverter | String Inverter Capacity (Pmax / kWp) | 40 ③ | ||
Output Pow er Volt.&Current (V / Hz) | 380/50 | |||
Quantity of String inverters (sets) | 2 | |||
Bracket Materials | Hot galvanized steel (ISO1461) | |||
Single Bracket Dimension (mm) | 5230*2051*96 | |||
Angle of Unfolding Bracket (°) | 15 | |||
Length of Unfolding Bracket (m) | 87 | |||
Projectd area of Unfolding Bracket (m²) | 467 | |||
