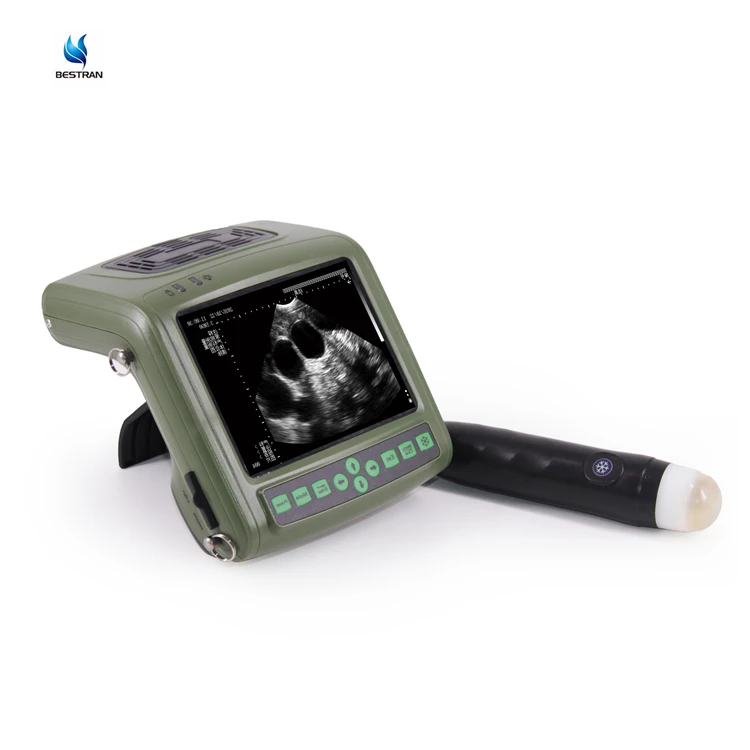

BT VUD69 Bestran fast delivery vet USG machine portable Veterinary Ultrasound Scanner with battery
- Category: >>>
- Supplier: Zhangjiagang Bestran Technology Co. Ltd.
Share on (1600922236549):
Product Overview
Description
Product Description
BT-VUD69 Clinic Full Digital Mechanical Sector probe Pet Veterinary
Ultrasound Scanner Machine
Standard configuration： | Standard configuration： |
Main unit: 1 pc | Option 1:Goggles |
3.5MHz waterproof mechanical sector probe : 1 pc. | |
Power adapter: 1 pc | |
Internal battery: 2 pcs | |
The leather Case: 1 unit | |
Base Charger, belt, bracket, shutter release: 1 pc for each. |

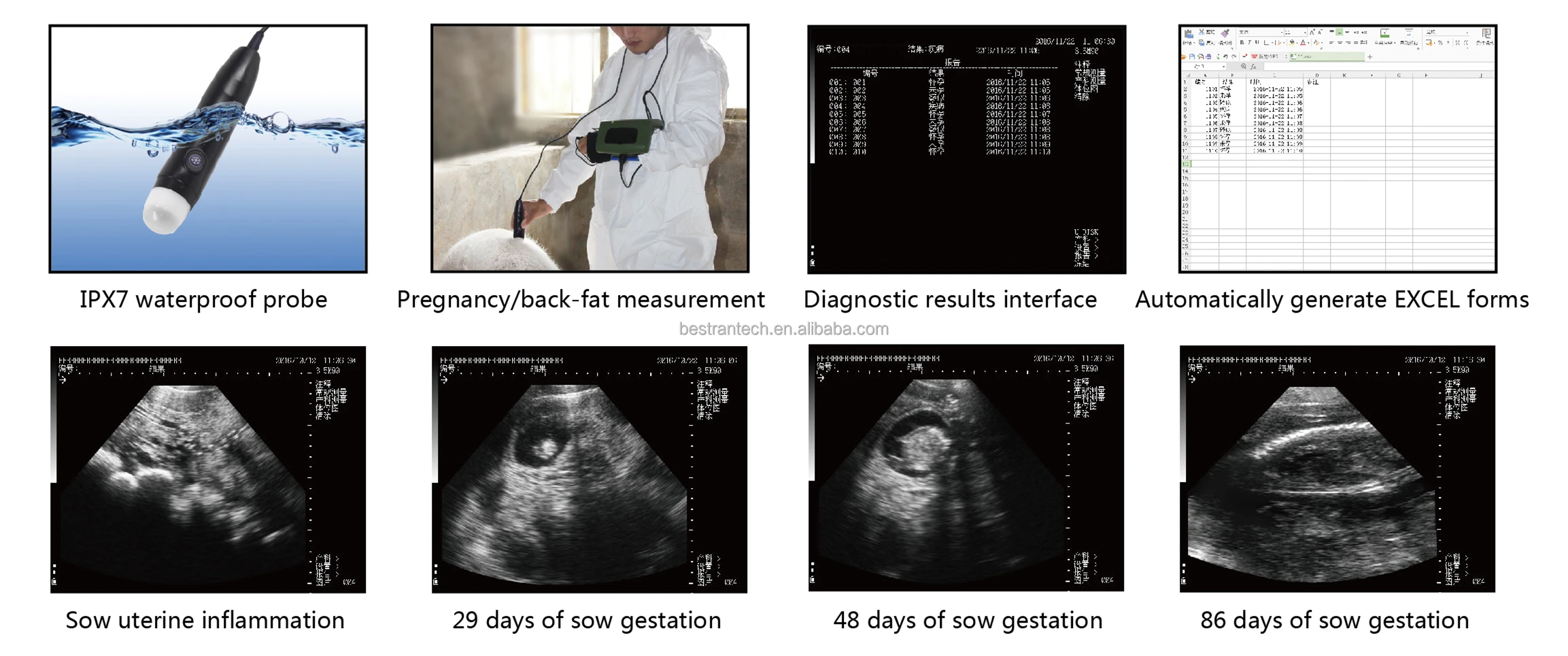

Detailed Images

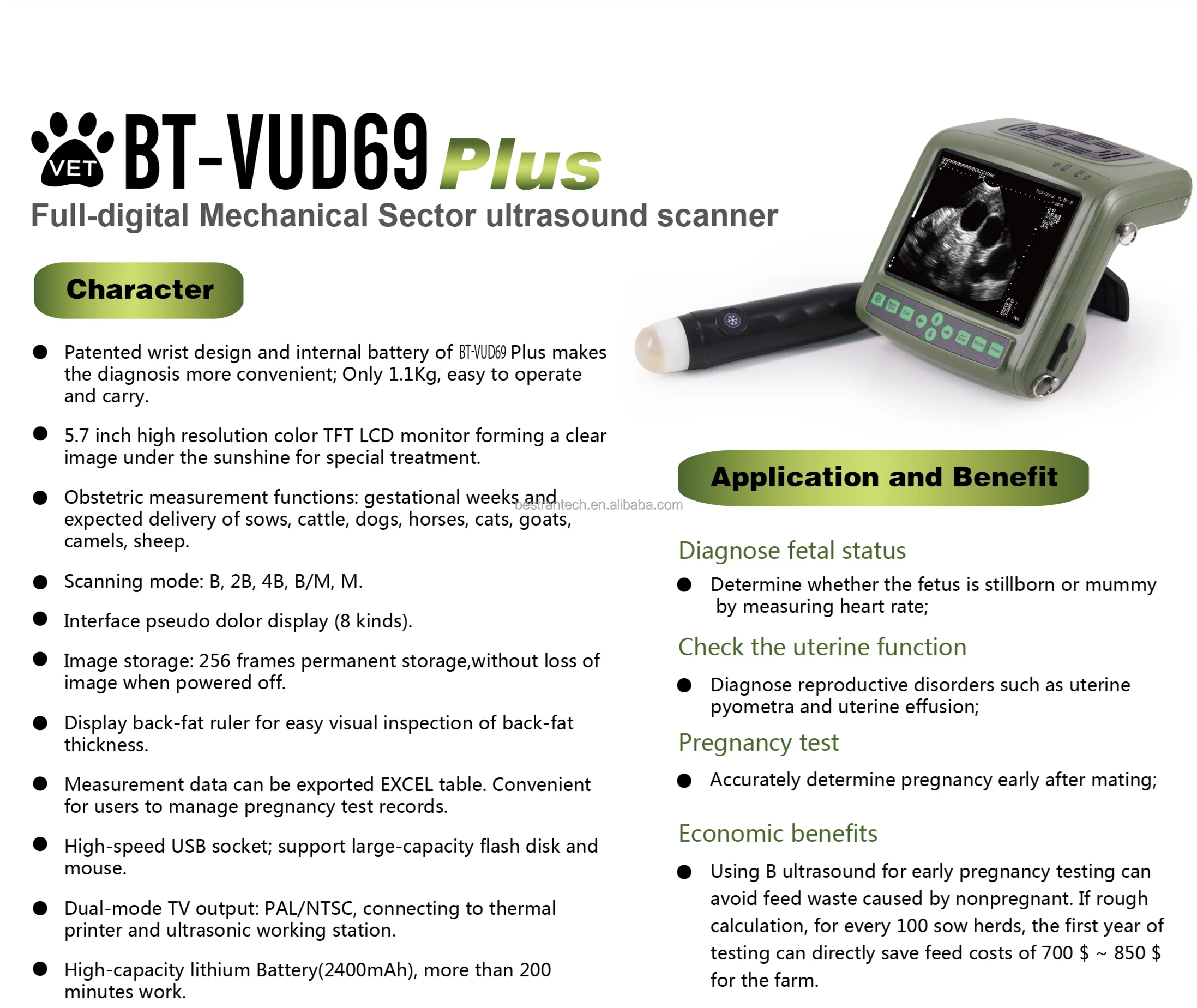

Features:
Economic price.
Wrist design: truely innovative.
Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
Menu operation. Very easy.
1 pcs Internal li-battery: work for 200 minutes.
USB port: directly store image to U disk.
Splash-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.
Technical Specification:
Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
Language: Chinese/English switchable.
Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
Display mode：B、2B、4B 、B/M、M, total 5 kinds.
5 kinds of Magnification, maximum display depth is 200mm.
Gain range：0～127dB
Dynamic range：27～90dB
Gray：256
Frame frequency：30 framescond.
Pseudo-color: 8 kinds (incl. B/W).
Local zoom and coloring.
Dual-mode TV output：ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
Net weight：1.0kg.
Main unit size：155x180x80mm（length x width x height）.
Image storage:
Permanent image storage: 100 frames.
USB port support one-key storage image to USB.
Measurement and analysis:
Puncture guiding function,（ 2 guiding lines, angel and position adjustable）
General measurement：distance、Perimeter, area (trace method, ellipse method), volume, etc.
Cardiac measurement: depth, slope, heart rate, time.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
OB report function
Power supply:
Dual power supply. Power：AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
Battery: two pcs of high-capacity lithium Battery( ２４００MＡｈ) ,more than 400 minutes work
Standard configuration
Main unit: 1 pc
3.5MHz waterproof mechanical sector probe : 1 pc.
Power adapter: 1 pc
Internal battery : 1 pc
leather case: 1 pc
Base Charger, belt, bracket, shutter release: 1 pc for each.
Optional configuration:
USB flash disk
Mouse
Thermal printer （P93W-S）
Battery（2400mAH）
Black suitcase
