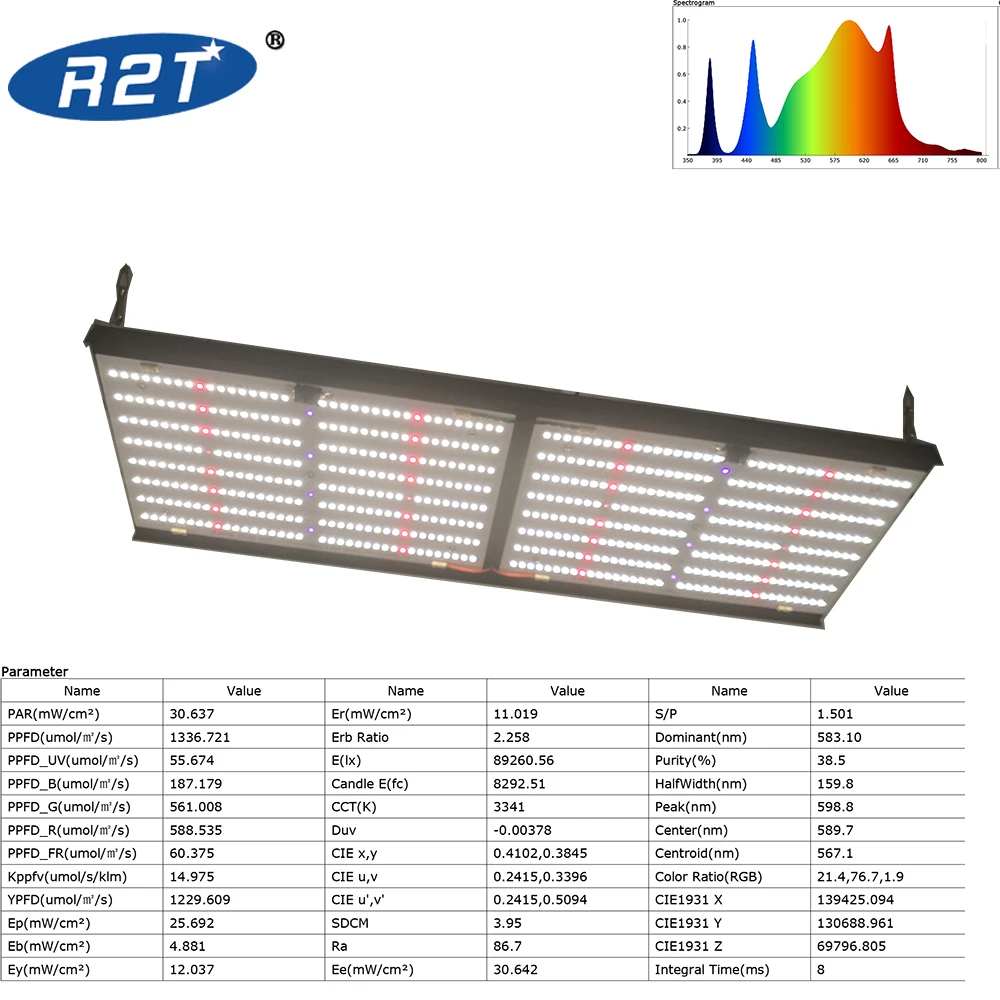

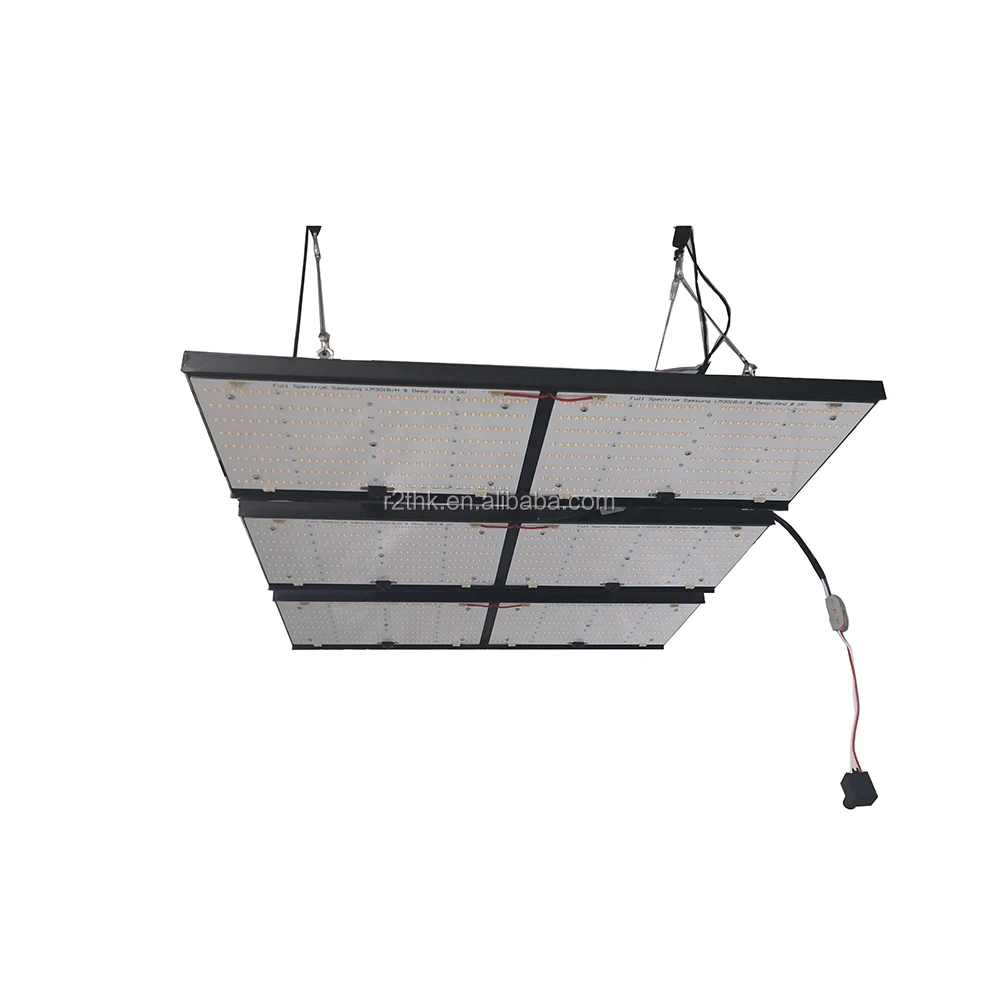

240W R2T288 V4 Full spectrum Samsung LM301B LM301H LED grow light quantum bar for indoor plants
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (1600922239925):
Product Overview
Description
240W R2T288 V4 Full spectrum Samsung LM301B LM301H LED grow light quantum bar
Specifications of products
2 in1 led grow light kit
color option: 2700K/3000K/3500K/4000K/5000K/6500K
Power chips option: 385nm/450nm/660nm/730nm
Chips Switch: 385nm/450nm/660nm/730nm
Driver: Meanwell Dimmable driver: 240W
Max Power per board: 150W
Chips Quantity: 276pcs
Color temperature: 3000/4000K mixed LEDStar 303H chips, equal Samsung LM301H SL bin
16pcs Epileds 660nm/730nm chips
4pcs LG UVA 385nm with Switch On/OFF chips
Max. input voltage is 54V/2.7A
Initiator | Forest Yao | Date: | 2014-12-04 |
Project Name | R2T-New board | Project Code | QP276 |
Function Request | |||
Electronic Requirement: | Baord Sepc 173.6*285.8*2mm, HASL, 1oz,2.0w/m.k,272pcs white chips Samsung LM301H SL ,16in parallel 16 in series , and 16pcs Deep red 660nm and 4pcs UVA 385nm , UVA with Switch. 4in parallel 2in series XPE660nm chips, 46.8~58V/2000mA(Max) | ||
Optic Requirement: | 288+8pcs chips | ||
Mechanical & Outline Request | |||
Circuit Board Requirement:
| N.Layer: | Single layer | |
substrate: | aluminum | ||
Board thickness: | 1.0mm | ||
Copper thickness: | 1oz | ||
Finishing: | H.A.S.L | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | 2pcs/panel | ||
Special Requirement |
| ||
Silkscreen Design: | N/A | ||
Location hole: | Dia.: | 3mm | |
location | center | ||
Testing Data---Temperature:30Degree Celsious,Humidity: 65%
Testing with Meanwell XLG-150-H-A-B driver in Sphere

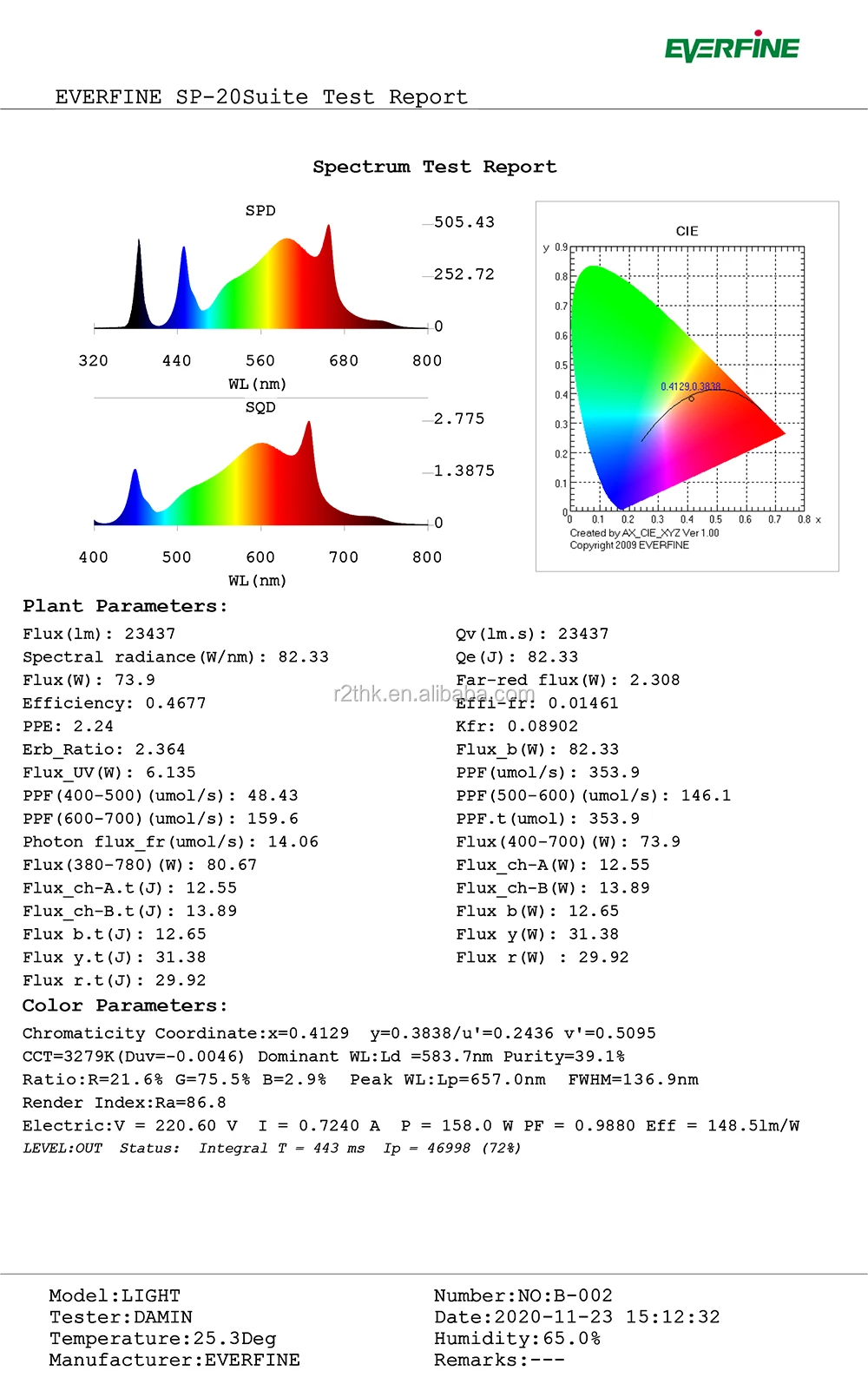

UV ON

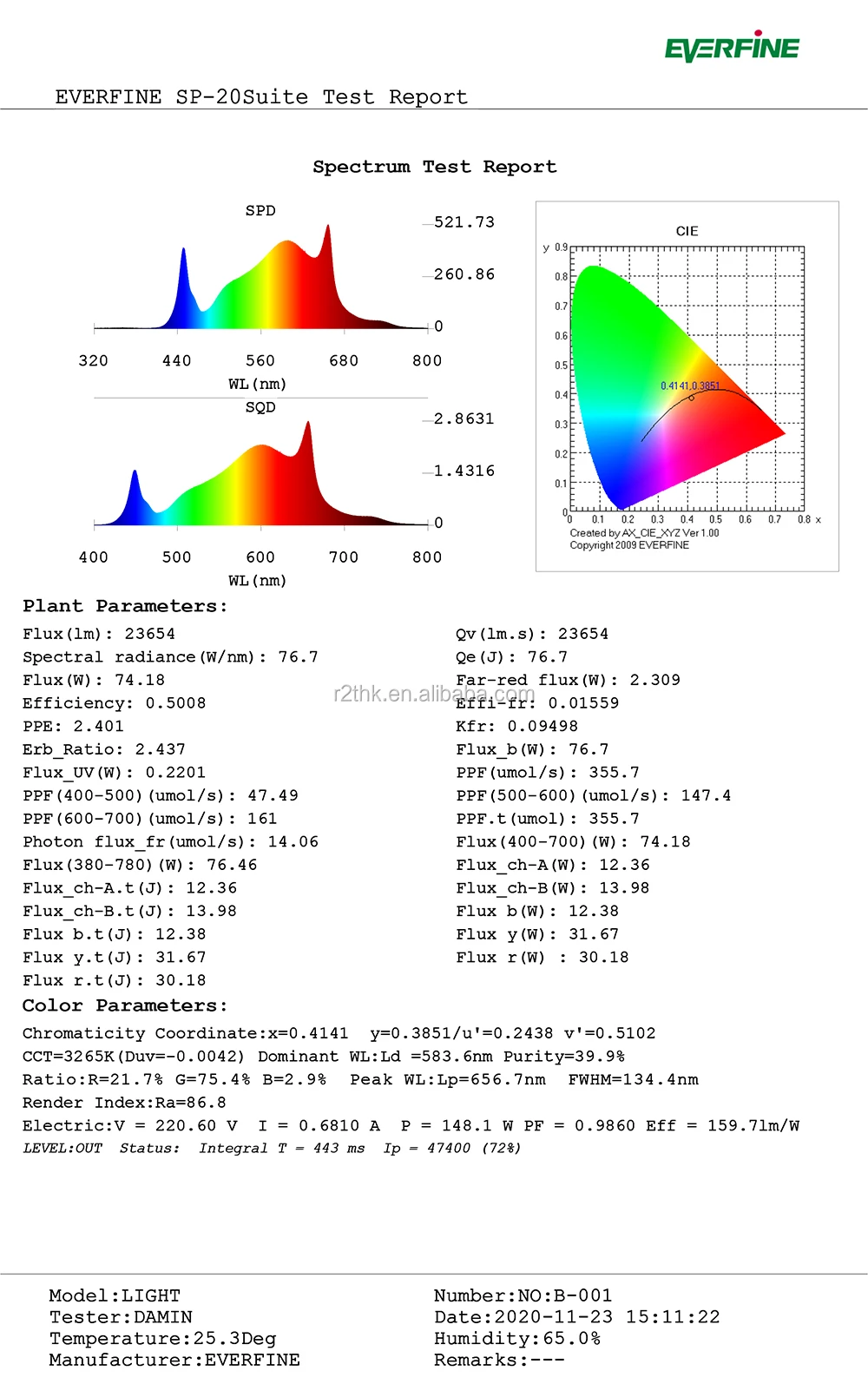

UV OFF
Testing data for 240w Inventronic driver under Hope testing instrument.

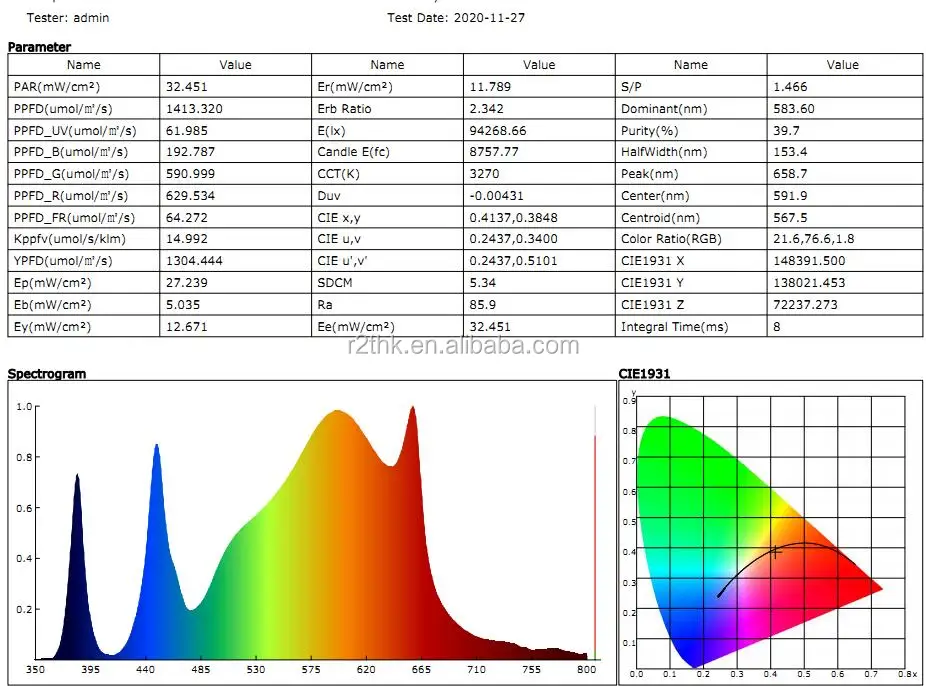

1: 12inch height

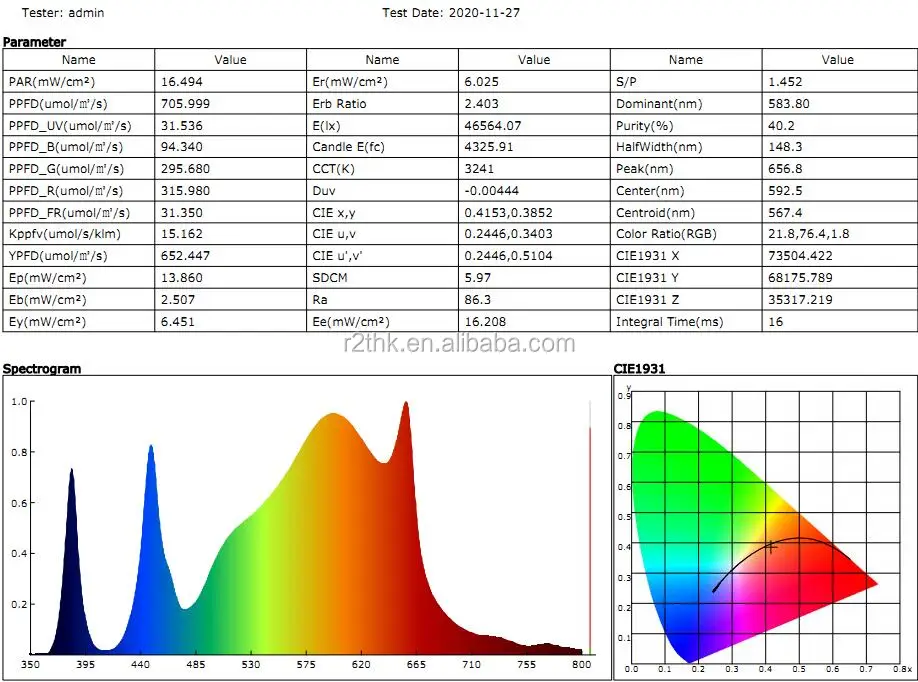

2. 20inch Height

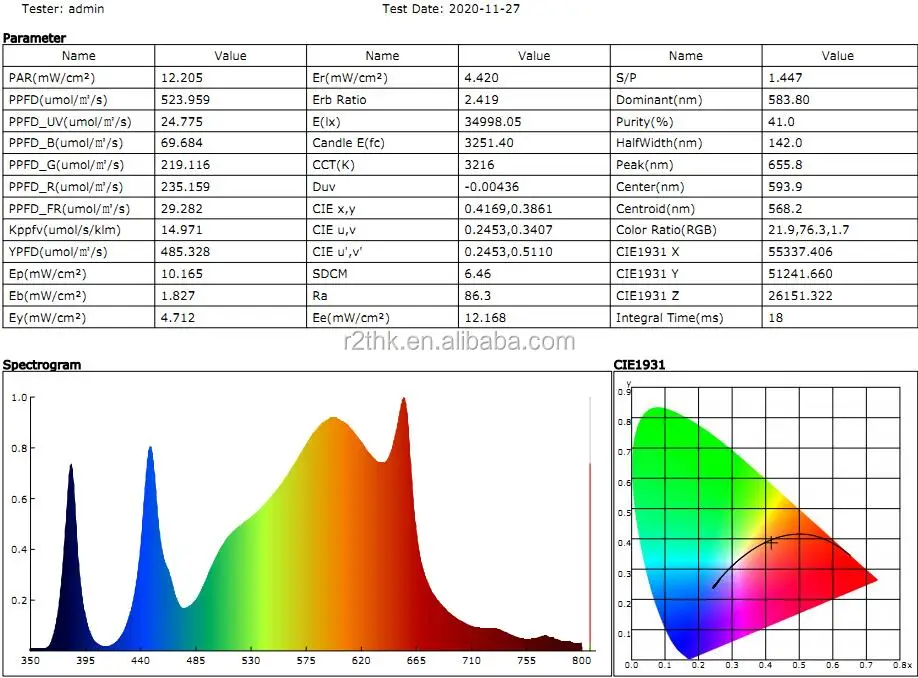

3. 24inch height
Combo kit application:
1. 240watt combo kit
coverage : 2*4FT
2. 320watt Combo kit
Coverge: 2*6ft
3.480Watt combo kit
Coverage: 4*4ft tent

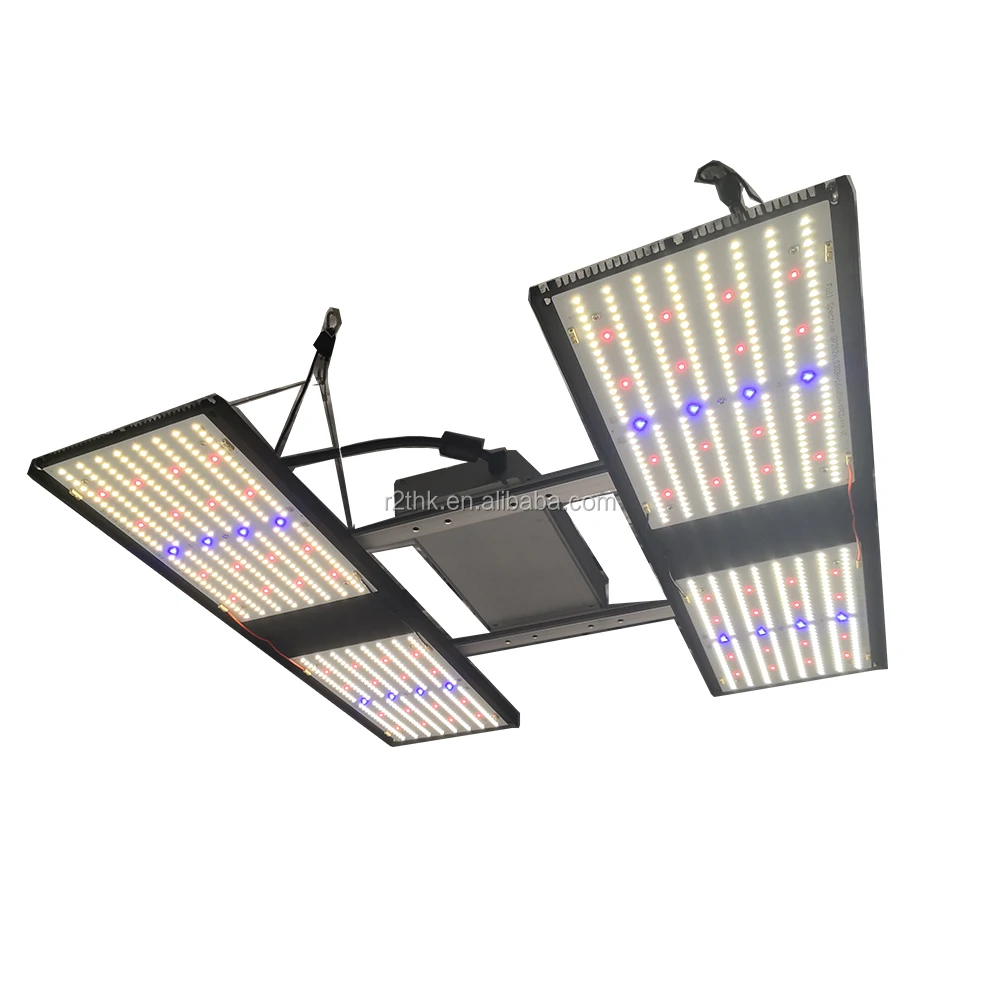

4. 600W combo kit
Coverage: 5*5ft
Q: Why we set the default color as 3000/4000/660 and 385nm(On/Off)
A: Many of ours clients feedback, this color is much better for full cycle of growing
also, the popular CCT is 3500K/660nm in U.K market
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
