Planetary epoxy floor polishing machines

Product Overview

Description

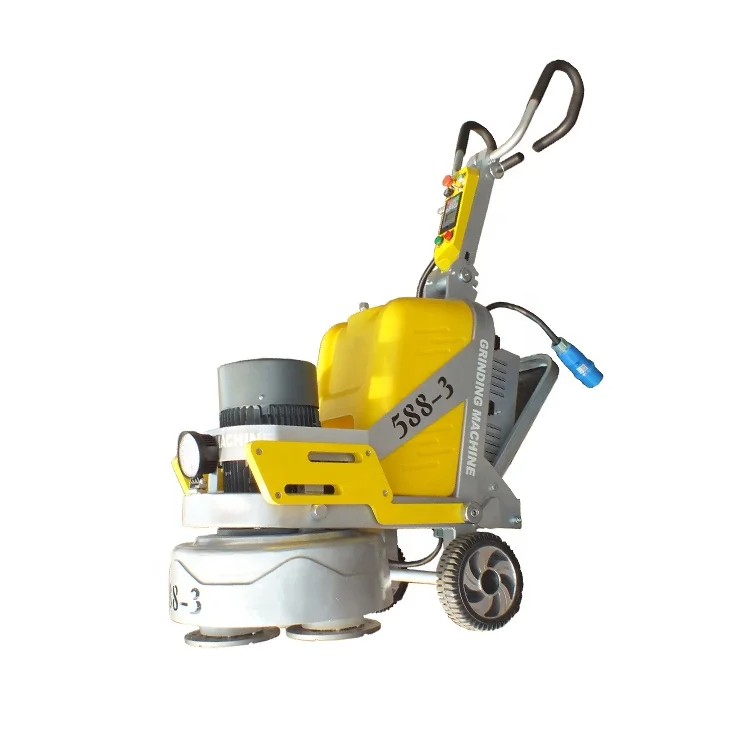

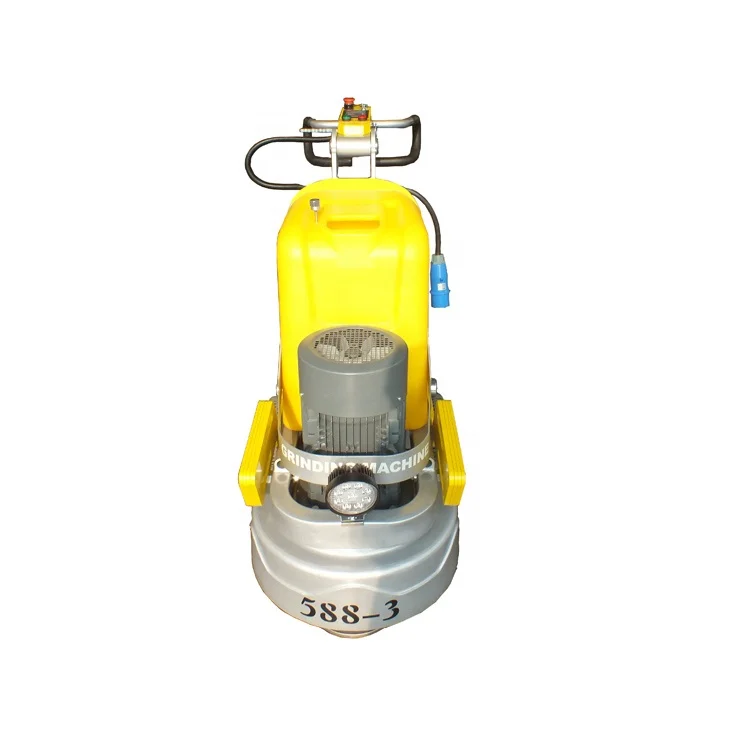

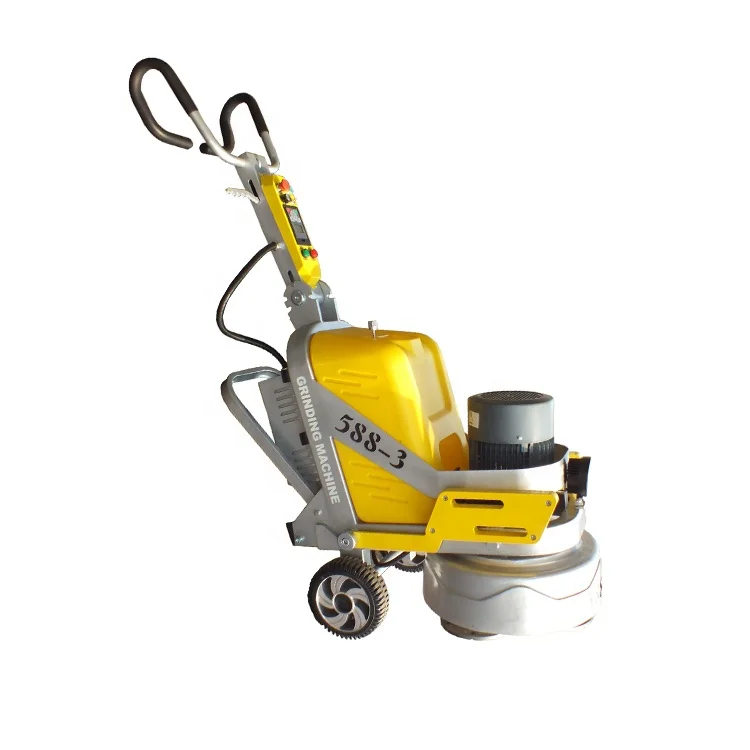

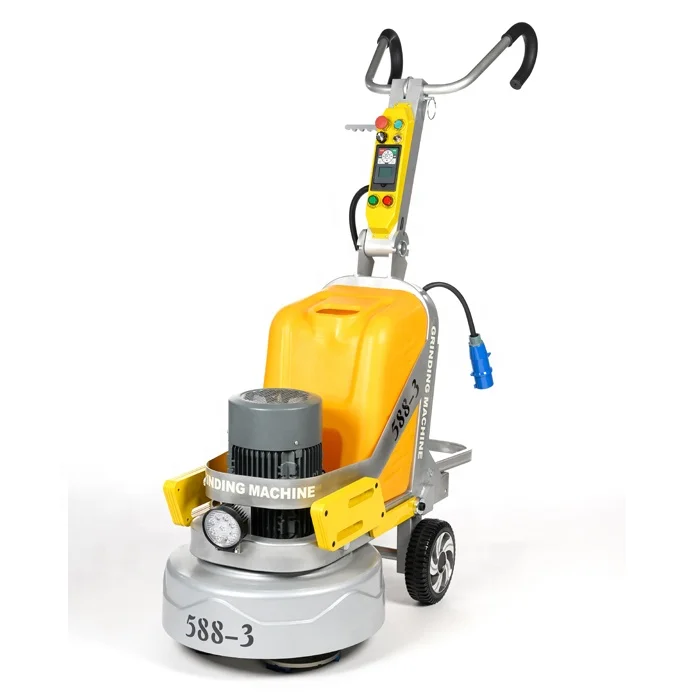

Planetary epoxy floor polishing machines

It uses All-aluminum alloy gearbox and gear-drive planetary head reduce noise and improve surface flatness.

The S-shape shelf design allows for a larger angle to be seen when changing the grinding disc,and the grounding is more stable.

Iron block transforms the center of gravity through the slider,not only increase the weight of the machines,but also help you lift the bottom and carry it easily.



Model	588-3	688-4	788-4
Voltage	220v/380v	380v	380v
Phase	1phase/3phase	3 phase	3 phase
Inverter	7.5kw(10hp)	7.5kw(10hp)	15kw(20hp)
Frequency	50/60hz	50/60hz	50/60hz
Working width	570mm	670mm	770mm
Disc quantity	9pcs	12pcs	24pcs
Rotating speed	300-1800rpm	300-1800rpm	300-1800rpm
Water tank volume	68L	68L	80L
Weight	295kg	380kg	480kg
Packing size	105x80x120cm	120x80x130cm	135x85x130cm

We have old style and new style planetary concrete floor grinder for you choose as below

It could be fixed with diamond blades or resin polishing pads, and could connect with dust vaccum machine

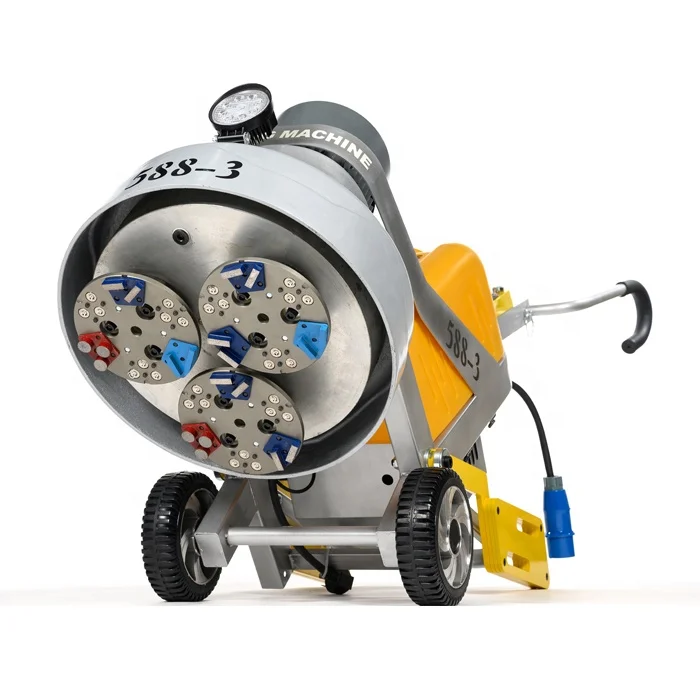

The planetary grinder concrete floor grinder polisher machine is with 3 plates, and could be fixed with 9 heads, stick with diamond metal pads or resin polishing pads.

If you are interest or need any information please contact annie freely
