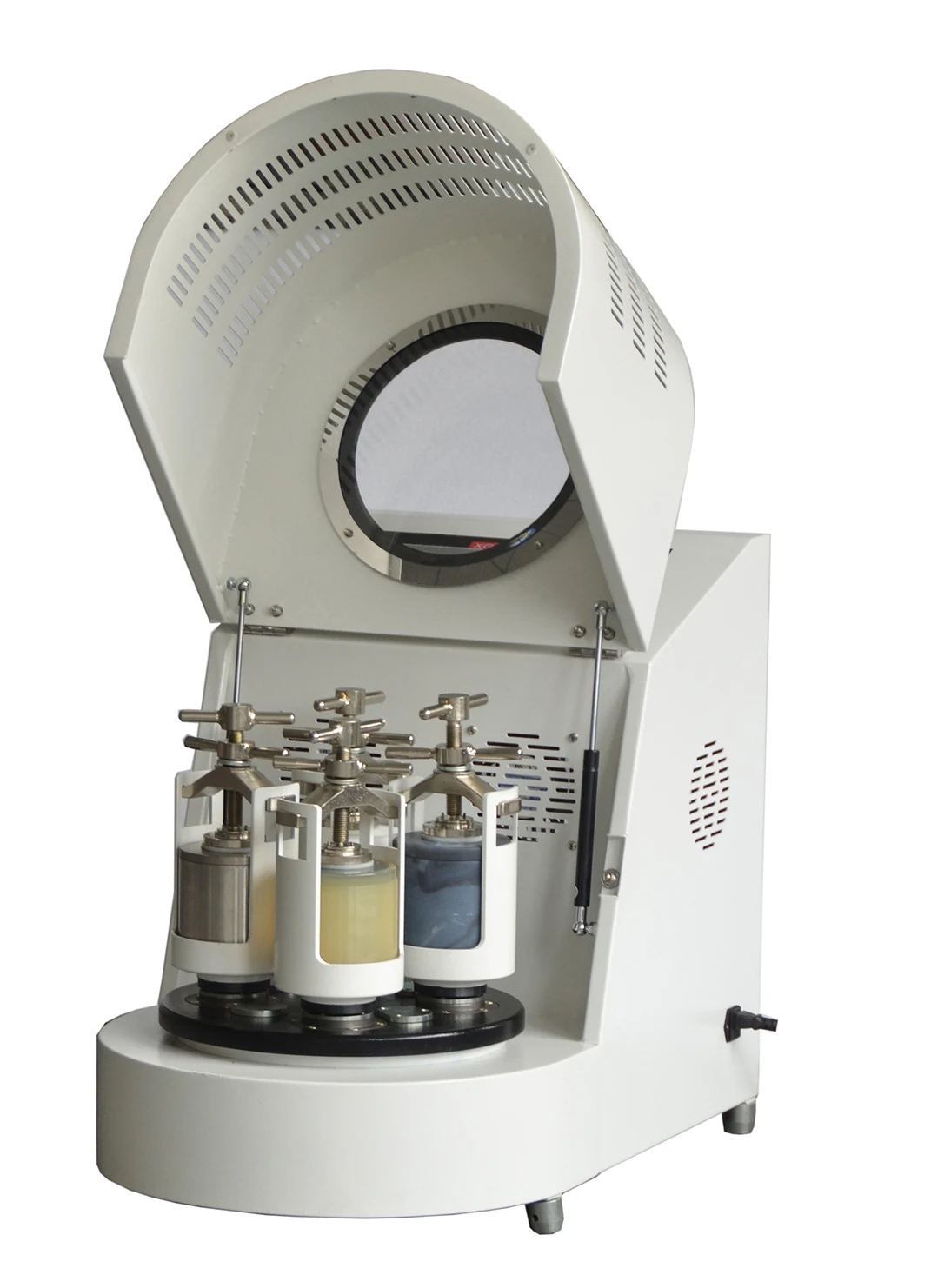

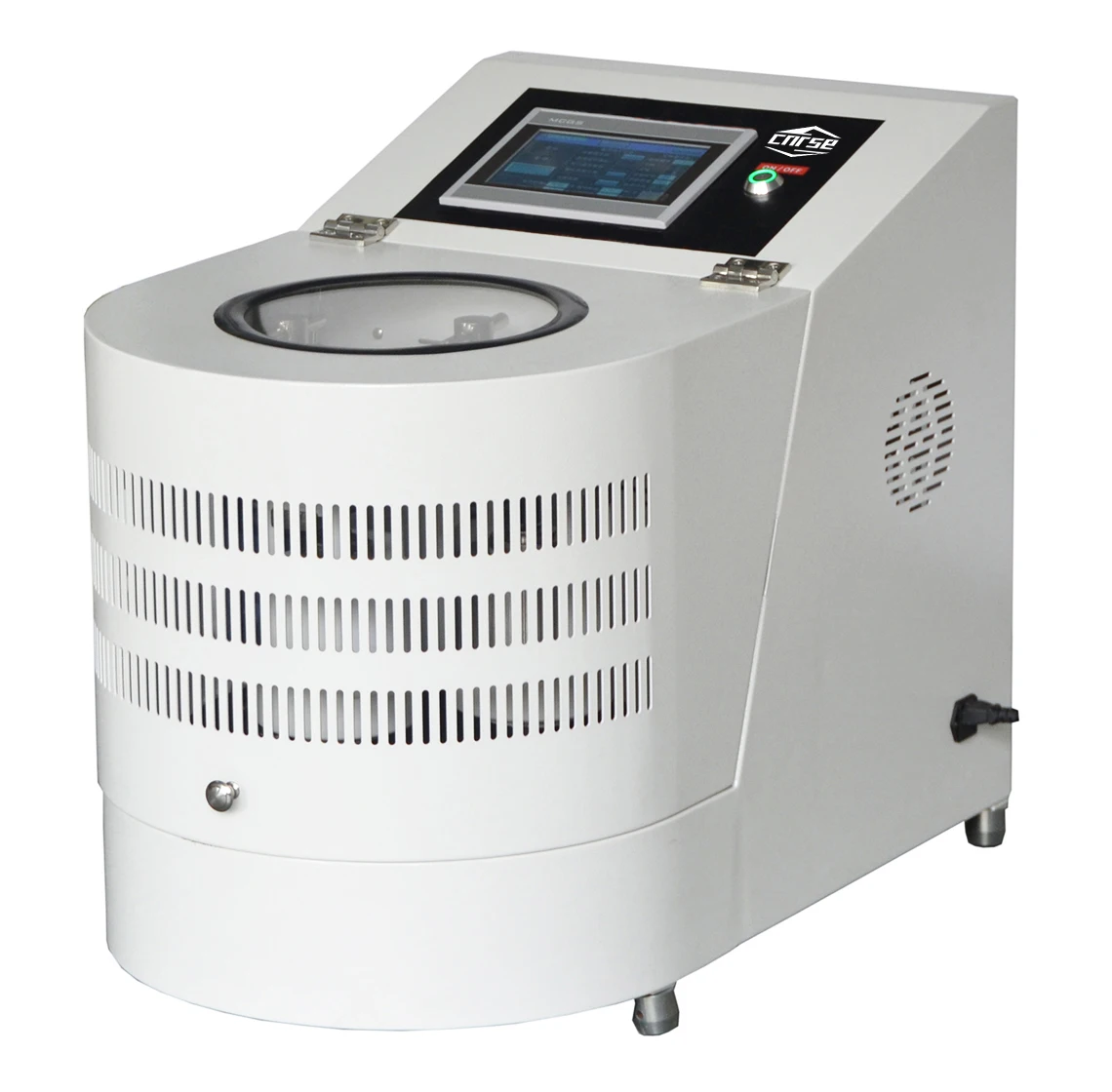

2l laboratory small planetary vertical ball mill Used as anode material for lithium batteries
- Category: >>>
- Supplier: Dongguan Redstone Equipment Co. Ltd.
Share on (1600922308951):
Product Overview
Description
1、 Product Overview
Planetary ball mills can grind or mix solid particles, suspensions, and pastes with different particle sizes and materials using both dry and wet methods. If a vacuum ball milling tank is used, the sample can be ground and mixed in vacuum or inert gas. This series of ball mills is widely used in fields such as geology, metallurgy, soil, building materials, chemical industry, light industry, electronics, ceramics, batteries, environmental protection, etc
merit.
1. Adopting gear transmission, gear transmission will not slip and can ensure the consistent rotational speed of four cans! In the case of ball milling the same material, it can ensure good consistency of the materials in four tanks after ball milling! And it can ensure that the effect of each ball milling is consistent with the same material and process! It has good repeatability and consistency!
2. Fast rotation, high energy, high efficiency, and fine particle size
3. Four samples of different sizes and materials can be ground simultaneously in one experiment.
4. This ball mill has functions such as frequency conversion and programmable stepless speed regulation, and the ideal speed is selected based on the test results.
5. Equipped with timed shutdown, automatic timed forward and reverse devices, which can be freely selected according to needs, practical and convenient.
6. This machine has the advantages of low center of gravity, good rigidity, compact structure, convenient operation, safety and reliability, low noise, no pollution, and low loss.
7. The planet grinder in this row is equipped with 4 wheels, and next to the wheels is a height adjustment screw that can adjust the position balance of the ball mill
2. Fast rotation, high energy, high efficiency, and fine particle size
3. Four samples of different sizes and materials can be ground simultaneously in one experiment.
4. This ball mill has functions such as frequency conversion and programmable stepless speed regulation, and the ideal speed is selected based on the test results.
5. Equipped with timed shutdown, automatic timed forward and reverse devices, which can be freely selected according to needs, practical and convenient.
6. This machine has the advantages of low center of gravity, good rigidity, compact structure, convenient operation, safety and reliability, low noise, no pollution, and low loss.
7. The planet grinder in this row is equipped with 4 wheels, and next to the wheels is a height adjustment screw that can adjust the position balance of the ball mill
working principle
Planetary ball mills are equipped with four ball milling tanks on a large plate. When the plate rotates (revolution), it drives the ball milling tanks to rotate (self rotation) around its own axis, thus forming planetary motion. The transmission ratio between revolution and rotation is 1:2 (one revolution per revolution, two revolutions per revolution). The grinding balls and abrasives inside the tank collide, crush, grind, and mix the test samples under the action of two centrifugal forces: revolution and rotation.
SPECIFICATION
product name | Vertical Planetary Ball Mill | ||||||||||||
Model No. | RSE-XQM-2L | ||||||||||||
Working Principle | impact and friction force | ||||||||||||
Compatible Grinding Jars | 500ml * 4 | ||||||||||||
Max Feeding Capacity | 1/3 capacity of the grinding jar | ||||||||||||
Operation Mode | 2 or 4 grinding jars working simultaneously | ||||||||||||
Feeding Granularity* | Soil materials < 10mm, others materials < 3mm | ||||||||||||
Discharging Granularity | down to 0.1μm | ||||||||||||
Sample Type | hard, medium-hard, soft, fibrous, brittle, moist | ||||||||||||
Rotational Speed of Grinding Jar | 580rpm | ||||||||||||
Rotational Speed Ratio | 1 : -2 | ||||||||||||
Drive Mode | gear drive and belt drive | ||||||||||||
Speed Control | stepless speed regulation | ||||||||||||
Electrical Details | AC110/220V, 50/60Hz, 0.25KW | ||||||||||||
Max Continuous Grinding Time | 72hours (full-load) | ||||||||||||
Weight (Net /Gross) | 110KG | ||||||||||||
Dimension (L*W*H) | 460×760×600（mm） | ||||||||||||
PRODUCT DESCRIPTION
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
