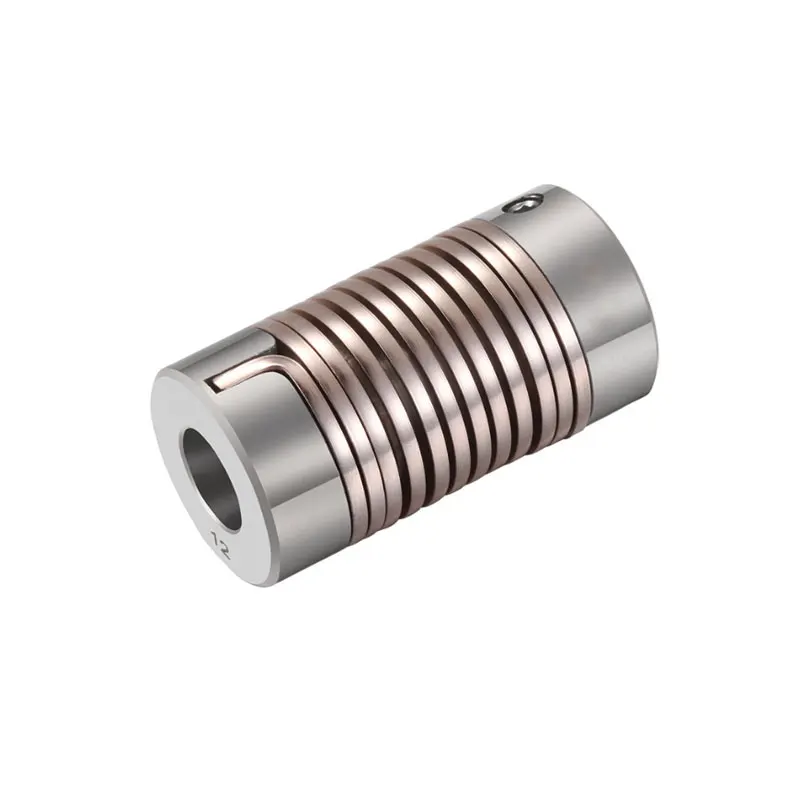

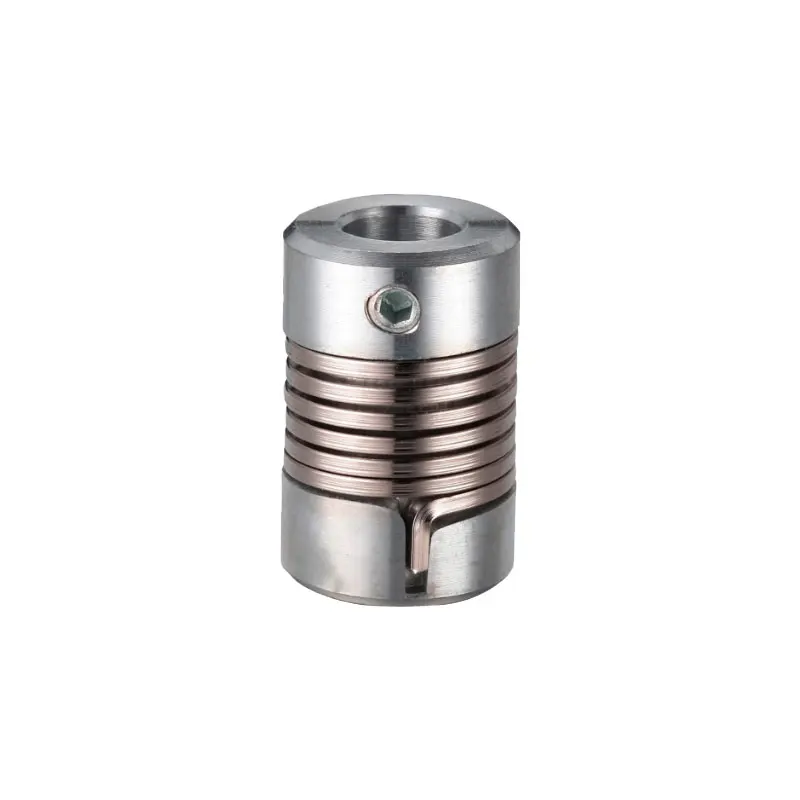

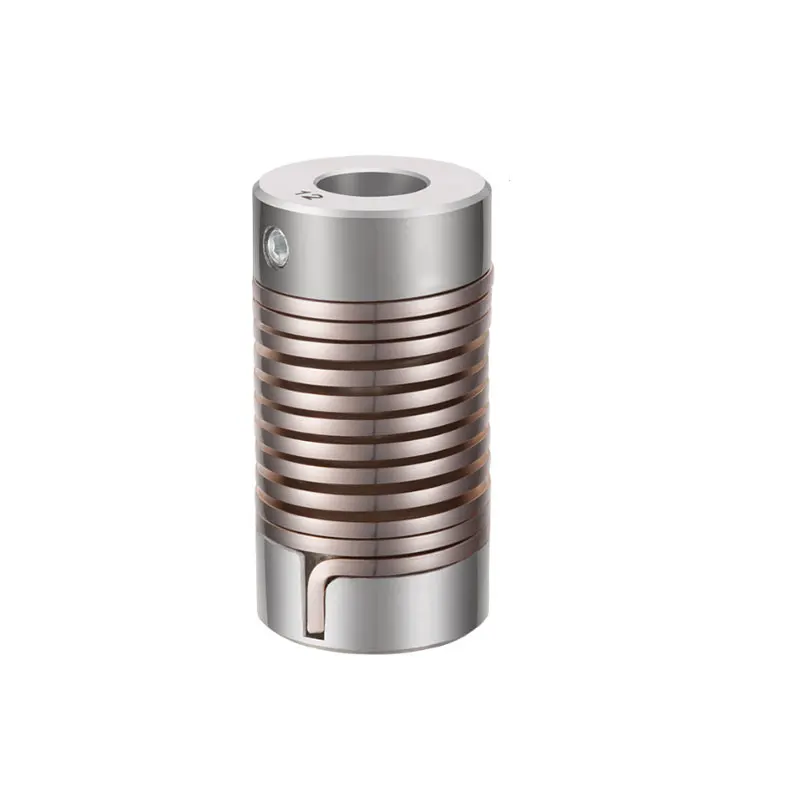

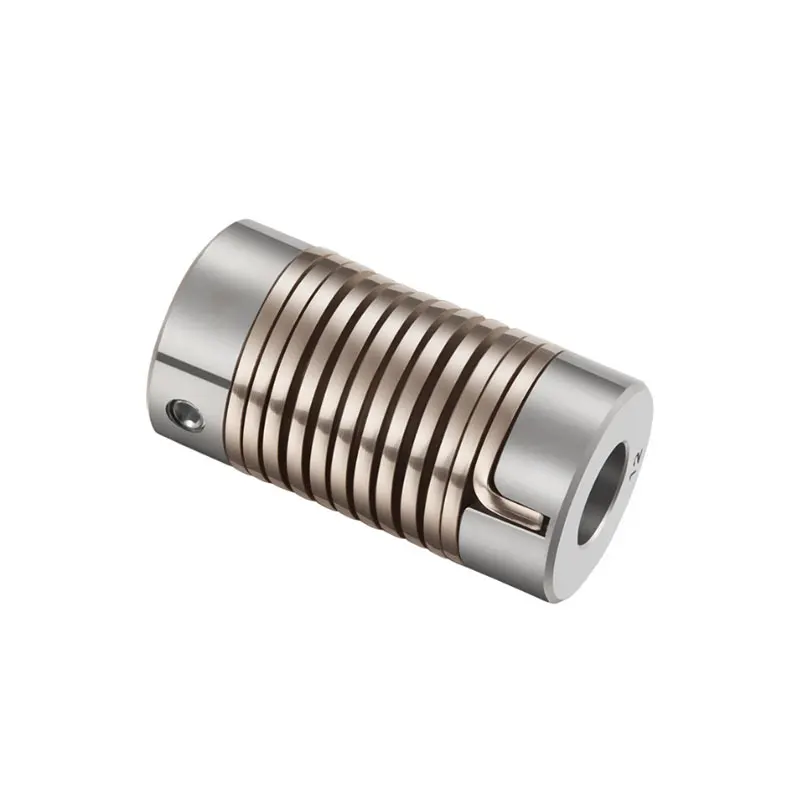

Encoder Special Coupling Aluminum Tpu 8 Fonts Encoder Flexible Coupler For Servo Motor Cnc Router Diameter 30mm Length 26mm
- Category: >>>
- Supplier: Suzhou Konlida Precision Electronic Co. Ltd.
Share on (1600922318946):
Product Overview
Description
Products Description

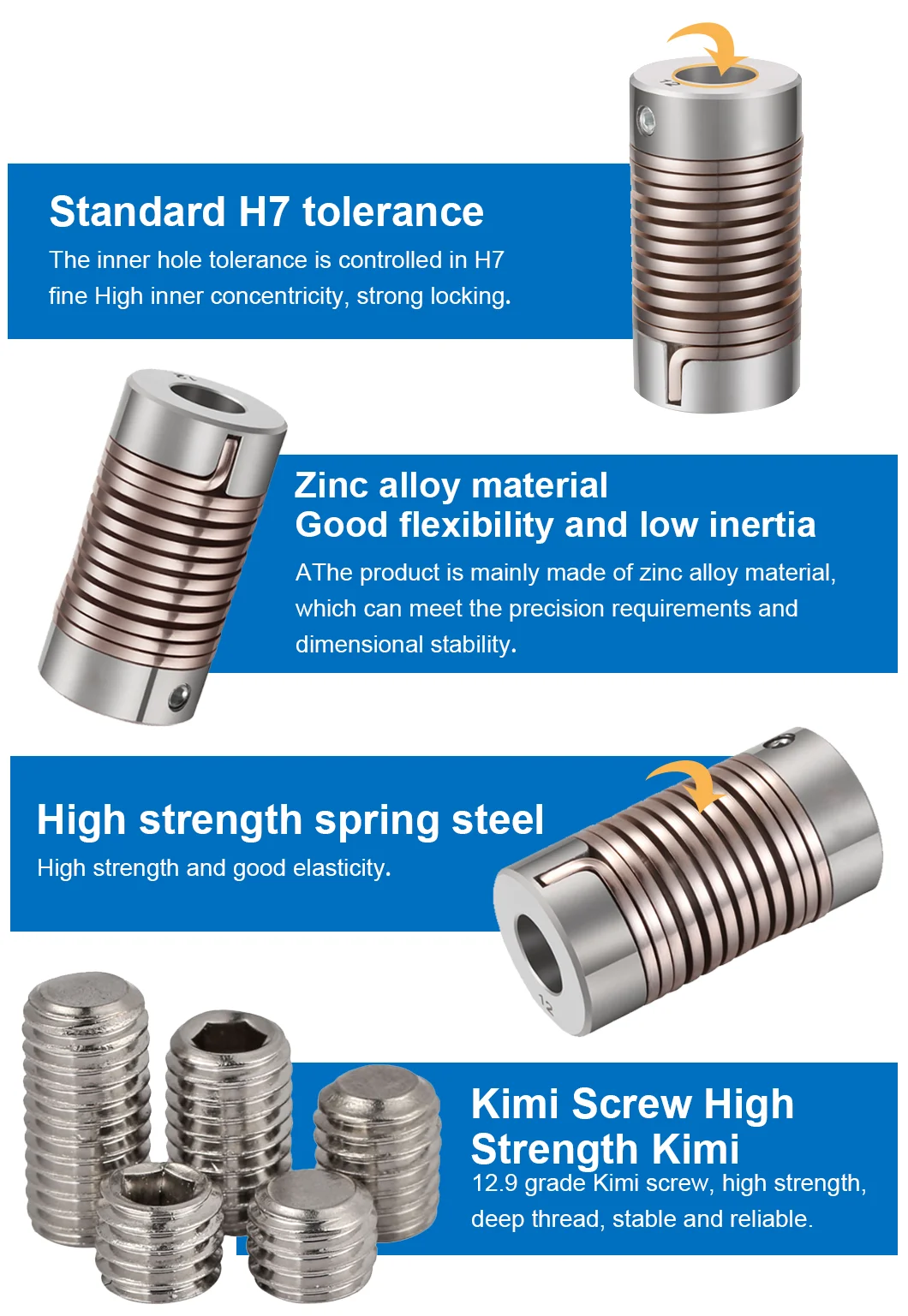

Features:
● Bushings made of Zinc alloy● Elastomer made of Spring steel
● Simple structure,flexible, low inertia,allowing angular misalignments
● The installation is easy, the spring steel is more efficiently absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
● Simple structure,flexible, low inertia,allowing angular misalignments
● The installation is easy, the spring steel is more efficiently absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
Specification

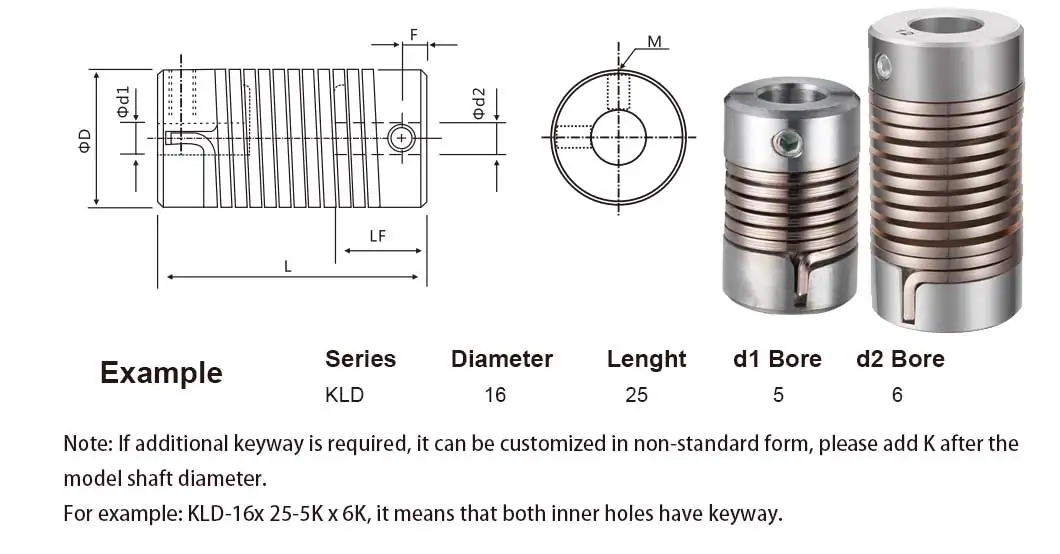

Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | LF | F | M | Tightening Screw Torque (N.M) | |||||||
KLD-16X25 | 5,6,6.35,7,8,9,10 | 16 | 25 | 11.45 | 4.0 | M3 | 0.7 | |||||||
KLD-16X35 | 5,6,6.35,7,8,9,10 | 16 | 35 | 12.5 | 3.8 | M4 | 1.7 | |||||||
KLD-26X50 | 6,6.35,7,8,9,10,11,12,12.7,14 | 26 | 50 | 17 | 5.0 | M5 | 4 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||
Specifications(Unit:mm)
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection Angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Moment of Inertia (N· m) | Coupling Weight (g) | |||||||
KLD-16X25 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 30 | |||||||
KLD-16X35 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 70 | |||||||
KLD-26X50 | 1.5 | 3 | 8 | ±1.0 | 3000 | 1.15x10-5 | 130 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||

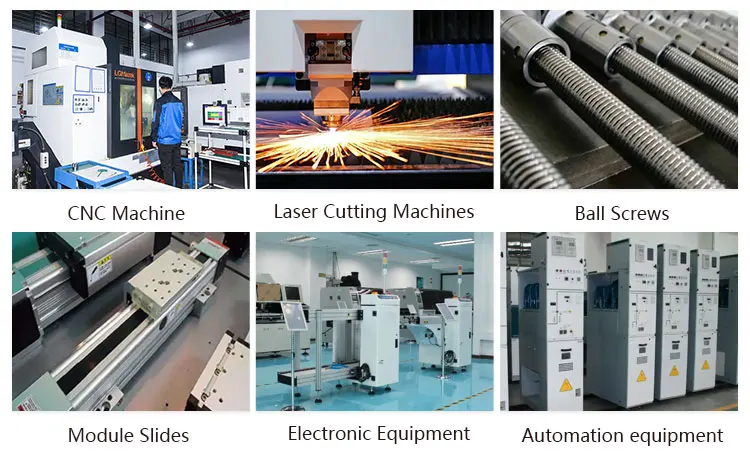

Application
Applied to CNC Machine、Laser Cutting Machines 、Ball Screws、Module Slides、Electronic Equipment、Automation equipment. Block Gimbal Cardan Drive Shaft Universal Joints Coupling

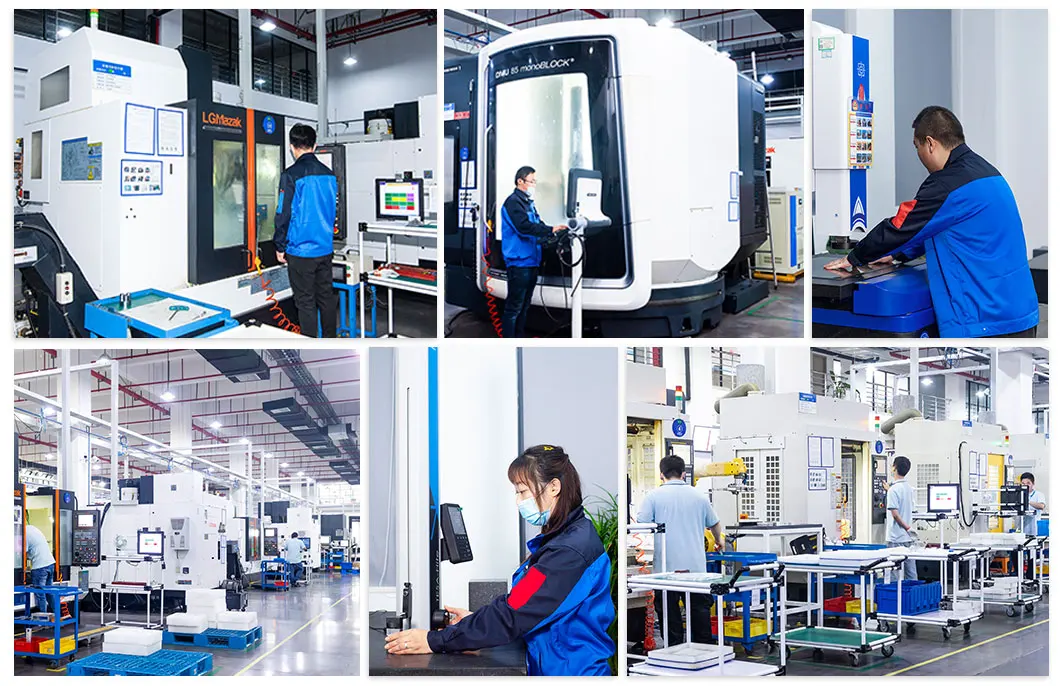

Factory
Package& Delivery
Packaging:
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirements. Block Gimbal Cardan Drive Shaft Universal Joints Coupling
Company Profile
Suzhou Konlida Precision Electronic Co., Ltd. Established in 2006, the headquarter is in suzhou. KONLIDA is aspecialized supplier
of a full range of standard / special gears, racks, synchronous pulleys, sprockets, worms, conveyor belts, couplings and other
products.
of a full range of standard / special gears, racks, synchronous pulleys, sprockets, worms, conveyor belts, couplings and other
products.
One stop service, source factory, support small batch customization, worry free delivery, quality assurance, after-sales
assurance.
assurance.
FAQ
Q1. Can I get 1 or more samples? Encoder Shaft Coupling Spring Coupling
A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.
Stainless Steel Parallel Lines Clamp Flexible Shaft Coupling Series D12 L18.5 Encoder Stepmotor Coupling
Q2. OEM/ODM accepted?
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your
required. We will also provide professional advices of the products to make the design to be maximize the performance.
Stainless Steel Parallel Lines Clamp Flexible Shaft Coupling Series D12 L18.5 Encoder Stepmotor Coupling
Stainless Steel Parallel Lines Clamp Flexible Shaft Coupling Series D12 L18.5 Encoder Stepmotor Coupling
Q3. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could
Stainless Steel Parallel Lines Clamp Flexible Shaft Coupling Series D12 L18.5 Encoder Stepmotor Coupling
