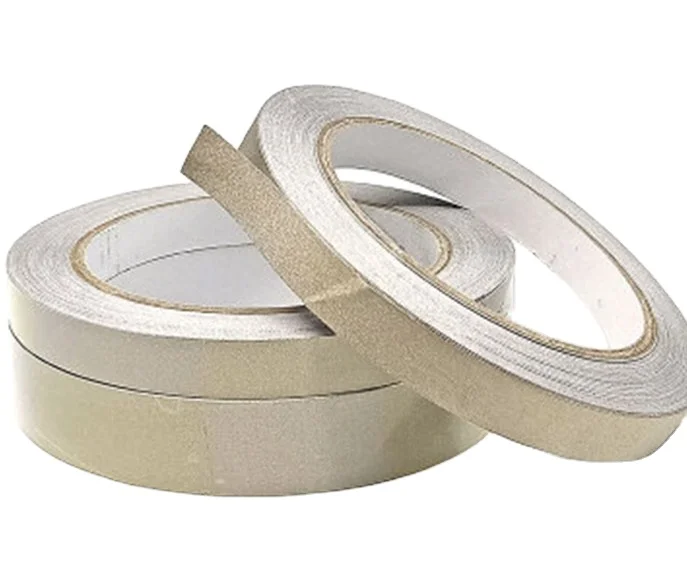

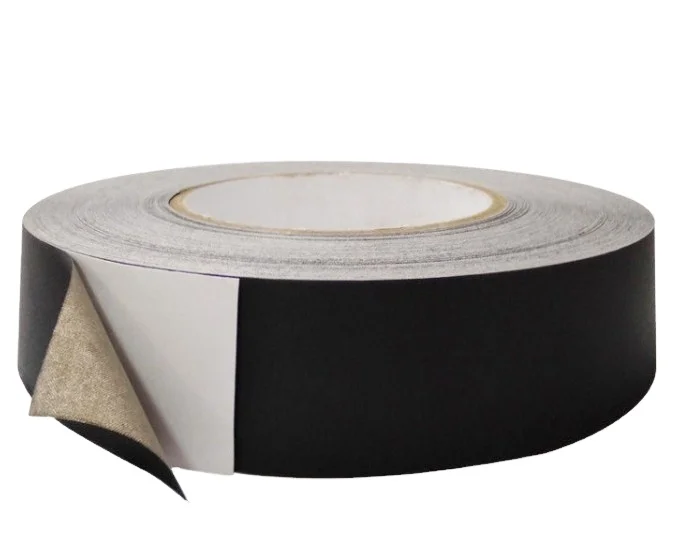

FID RF fabric tape EMI Shielding copper nickel Conductive double side fabric tape roll For Phone Laptop Conductive tape
- Category: >>>
- Supplier: Beijing Landingji Engineering Tech Co. Ltd.
Share on (1600922335637):
Product Overview
Description
Product Description
Feature:
Properties: Single-Sided Conductive Performance Is Strong, Good Adhesion, Excellent Shielding Effect.Both Sides Can Be Electrified
Uses:
1). Daily electrical equipment protective cover (mainframe computers, etc.), family daily operation of induction cooker, microwave ovens and other equipment protection, etc.
2). Isolate radiation cloth, curtain, office (if there is a television, mobile phone towers, high tension line equipment such as
radiation, suggested production shielding curtain)
3) Conductive cloth tape is a product coated with conductive adhesive on the surface of conductive fiber cloth. It has the
properties of viscosity, conductivity and shielding. It also has excellent softness, can be fitted on the curved surface or moving part.
Properties: Single-Sided Conductive Performance Is Strong, Good Adhesion, Excellent Shielding Effect.Both Sides Can Be Electrified
Uses:
1). Daily electrical equipment protective cover (mainframe computers, etc.), family daily operation of induction cooker, microwave ovens and other equipment protection, etc.
2). Isolate radiation cloth, curtain, office (if there is a television, mobile phone towers, high tension line equipment such as
radiation, suggested production shielding curtain)
3) Conductive cloth tape is a product coated with conductive adhesive on the surface of conductive fiber cloth. It has the
properties of viscosity, conductivity and shielding. It also has excellent softness, can be fitted on the curved surface or moving part.
4) Light weight, good wear resistance, easy to install.3) With tape or without tape for option, single-sided tape or double-sided tape available.
5) We can make products by die cutting according to the specification and shapes provided by customers.(1mm1010mm)
Product Name
Conductive cloth tape / Conductive fabric tape / Conductive cloth adhesive
Material :Polyester fiber+ Conductive adhesive
Color : Silver-gray / Black
Total Thickness:0.035mm / 0.05mm / 0.1mm / 0.13mm / 0.15mm / 0.2mm
Surface Resistance ( Ω/sq ):≤0.05 (Test standard ASTM F390)
Salt Spray Test:( 5% 48H 35℃ Ω/sq)≤0.5 (Test standard ASTM B117-03 )
Binding Force of Metal Layer(grad):Four above
Adhesion (kgf/in):≥0.5 (Test standard PSTC 1 Mod)
Shielding Effectiveness ( dB ):60(min)in 10MHz~3GHz (Test standard SJ20524-1995 )
5) We can make products by die cutting according to the specification and shapes provided by customers.(1mm1010mm)
Product Name
Conductive cloth tape / Conductive fabric tape / Conductive cloth adhesive
Material :Polyester fiber+ Conductive adhesive
Color : Silver-gray / Black
Total Thickness:0.035mm / 0.05mm / 0.1mm / 0.13mm / 0.15mm / 0.2mm
Surface Resistance ( Ω/sq ):≤0.05 (Test standard ASTM F390)
Salt Spray Test:( 5% 48H 35℃ Ω/sq)≤0.5 (Test standard ASTM B117-03 )
Binding Force of Metal Layer(grad):Four above
Adhesion (kgf/in):≥0.5 (Test standard PSTC 1 Mod)
Shielding Effectiveness ( dB ):60(min)in 10MHz~3GHz (Test standard SJ20524-1995 )
Specifications:

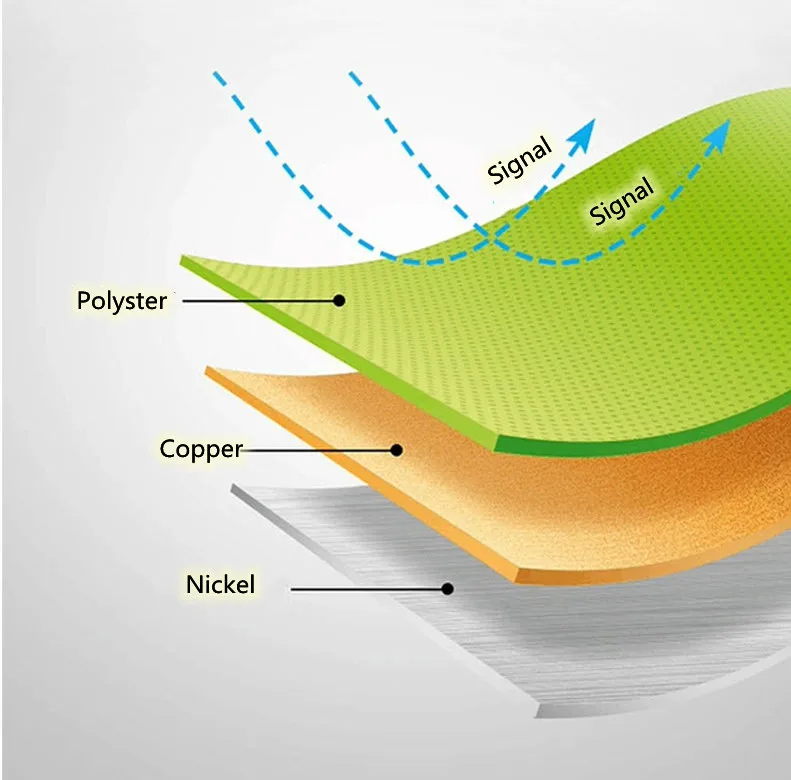

1.Composition: PET/Ni+Cu+Ni
2.Gram weight: 50-3-60g/m2
3.Thickness: 0.08-0.1mm
4.Tensile strength at break: 850 (N/warp direction), 680 (N/weft direction) GB/T3923.1-1997
5.Surface resistance: ≤0.03Ω/sq, 6.Shielding effectiveness reaches 99.99999% (60-70dB)
2.Gram weight: 50-3-60g/m2
3.Thickness: 0.08-0.1mm
4.Tensile strength at break: 850 (N/warp direction), 680 (N/weft direction) GB/T3923.1-1997
5.Surface resistance: ≤0.03Ω/sq, 6.Shielding effectiveness reaches 99.99999% (60-70dB)
Features:
1.The surface is smooth, with metallic luster and basically the same color;
2.Do not scrub or rub.
3.A single-layer wrapper can’t get through with a mobile phone. It can only be used as a lining for radiation protection clothing, not directly as a fabric.
2.Do not scrub or rub.
3.A single-layer wrapper can’t get through with a mobile phone. It can only be used as a lining for radiation protection clothing, not directly as a fabric.
Performance:
1. The shielding frequency band is: 20Hz-30GHz
2. Anti-electromagnetic radiation, anti-static, anti-ultraviolet, anti-wind, anti-moth, antibacterial, anti-odor, and far infrared rays promote human microcirculation.
2. Anti-electromagnetic radiation, anti-static, anti-ultraviolet, anti-wind, anti-moth, antibacterial, anti-odor, and far infrared rays promote human microcirculation.
Ripstop
Plain
Black
Diomand
Function:
1, To protect from electromagnetic radiation interference, and electronic attacks, to secure the normal operation of equipments.
2, To protect information security from electromagnetic leakage.
3, To Protect human body, high sensitive equipments, etc from electromagnetic radiation injury.
4, Good thermal insulation property, and suitable for tropical and cold areas target.

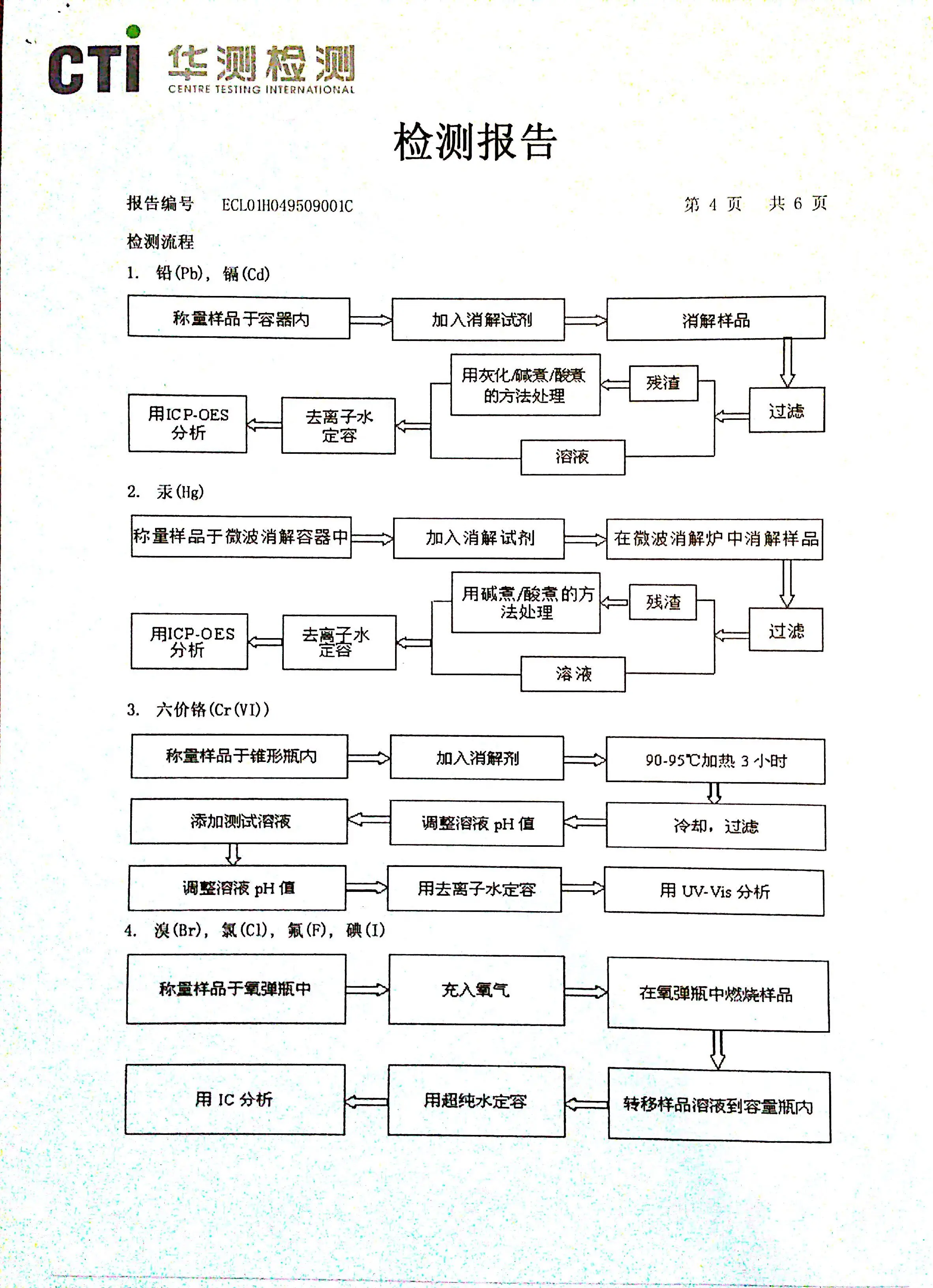

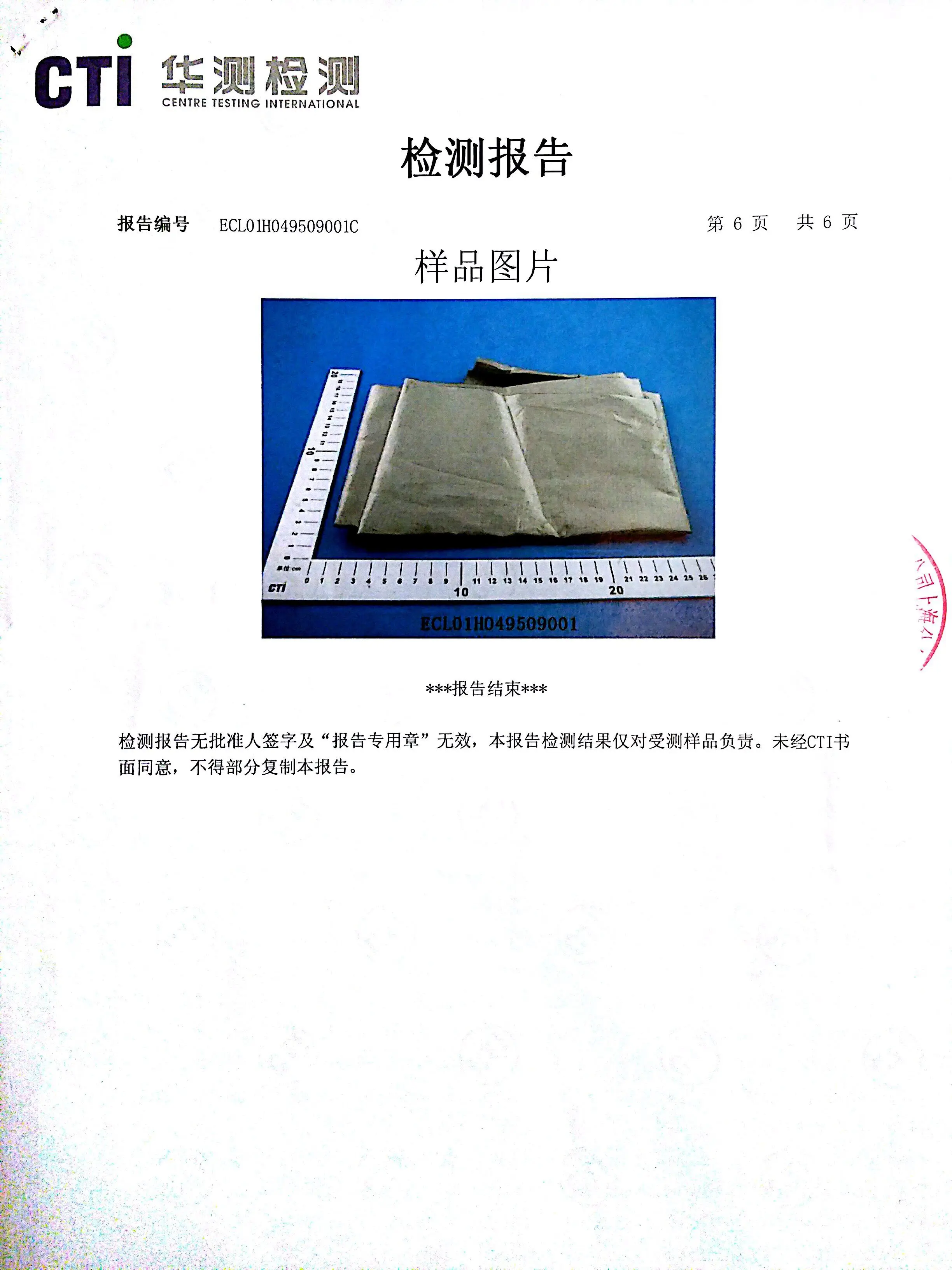

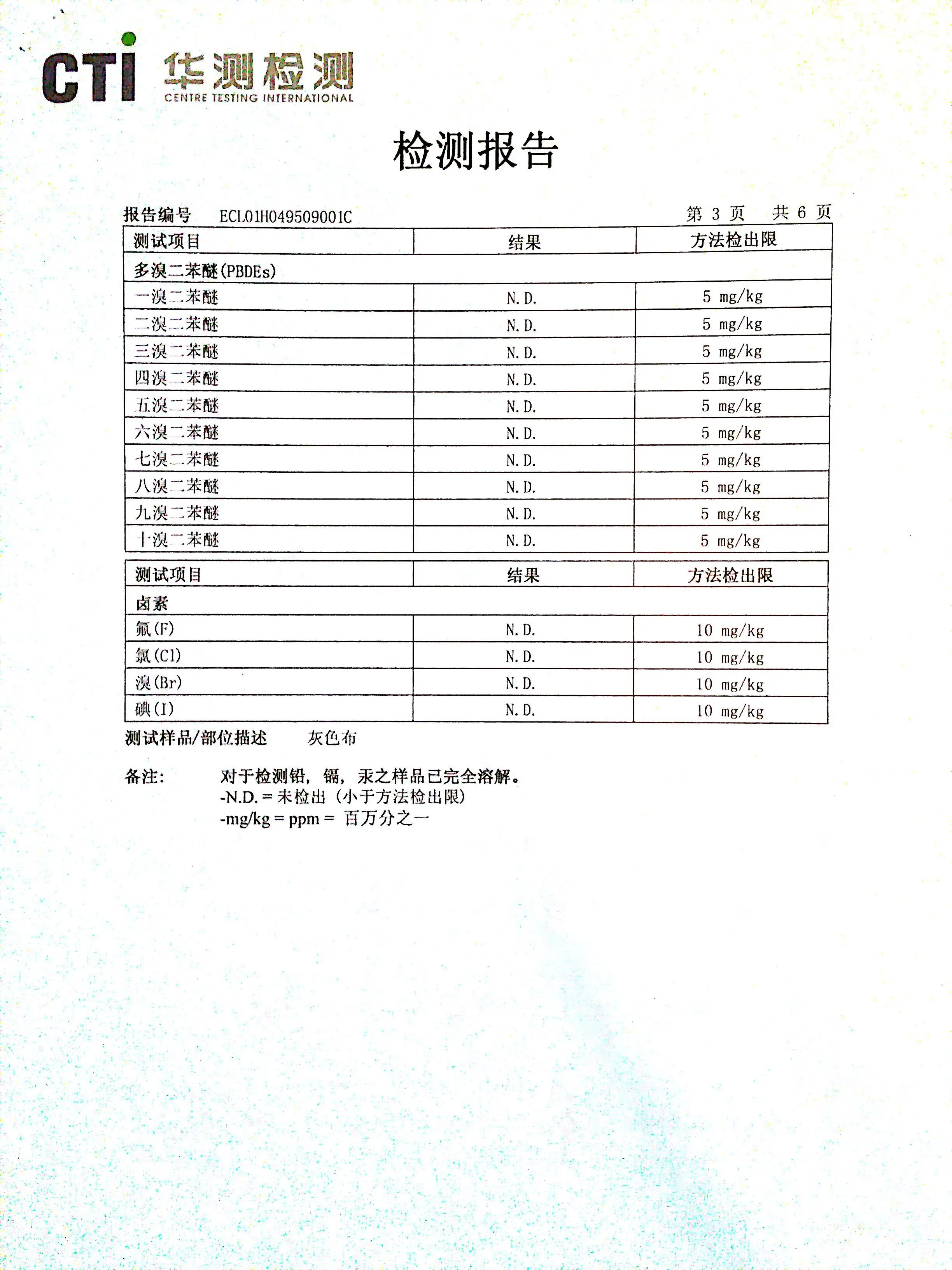

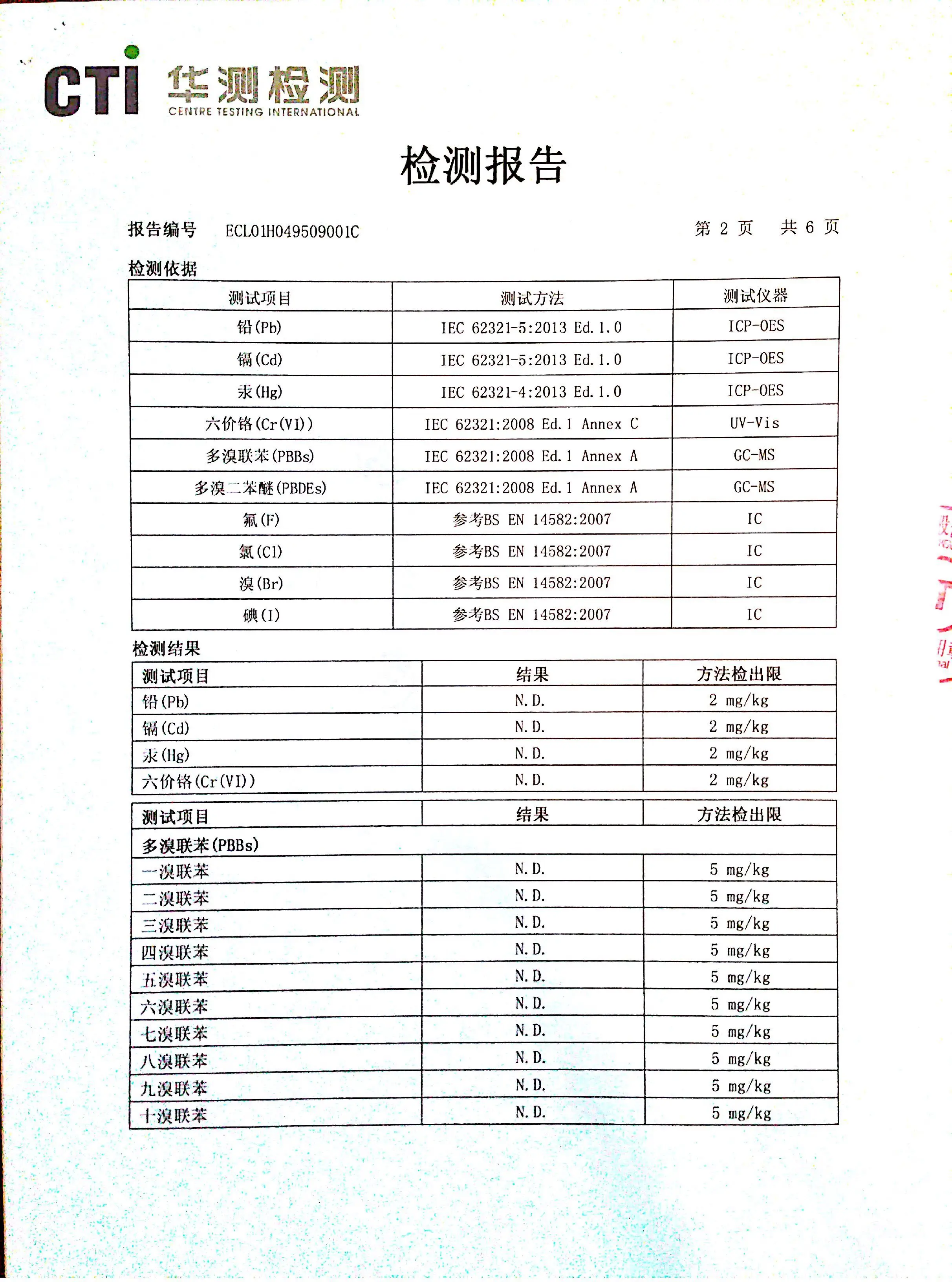

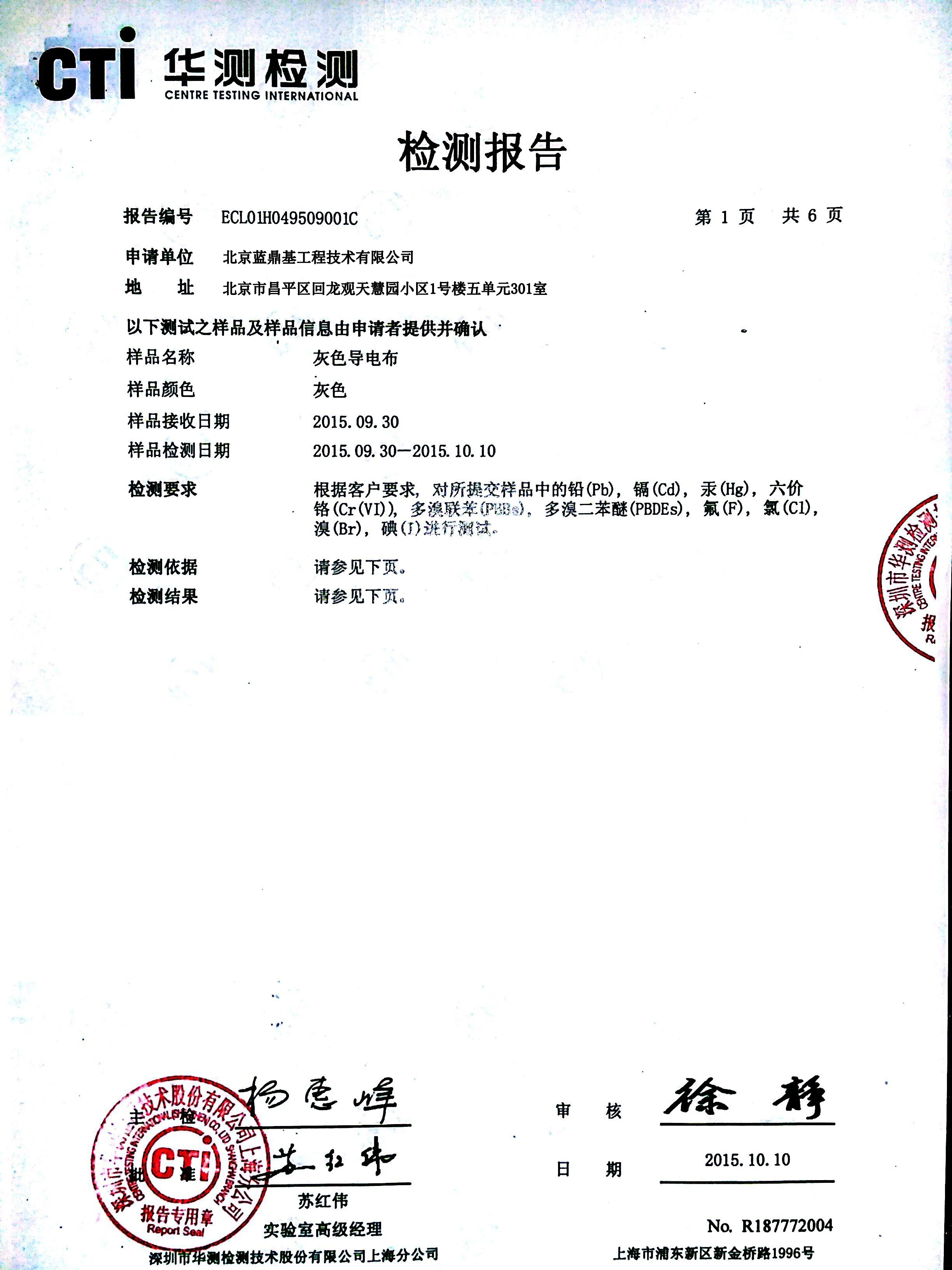

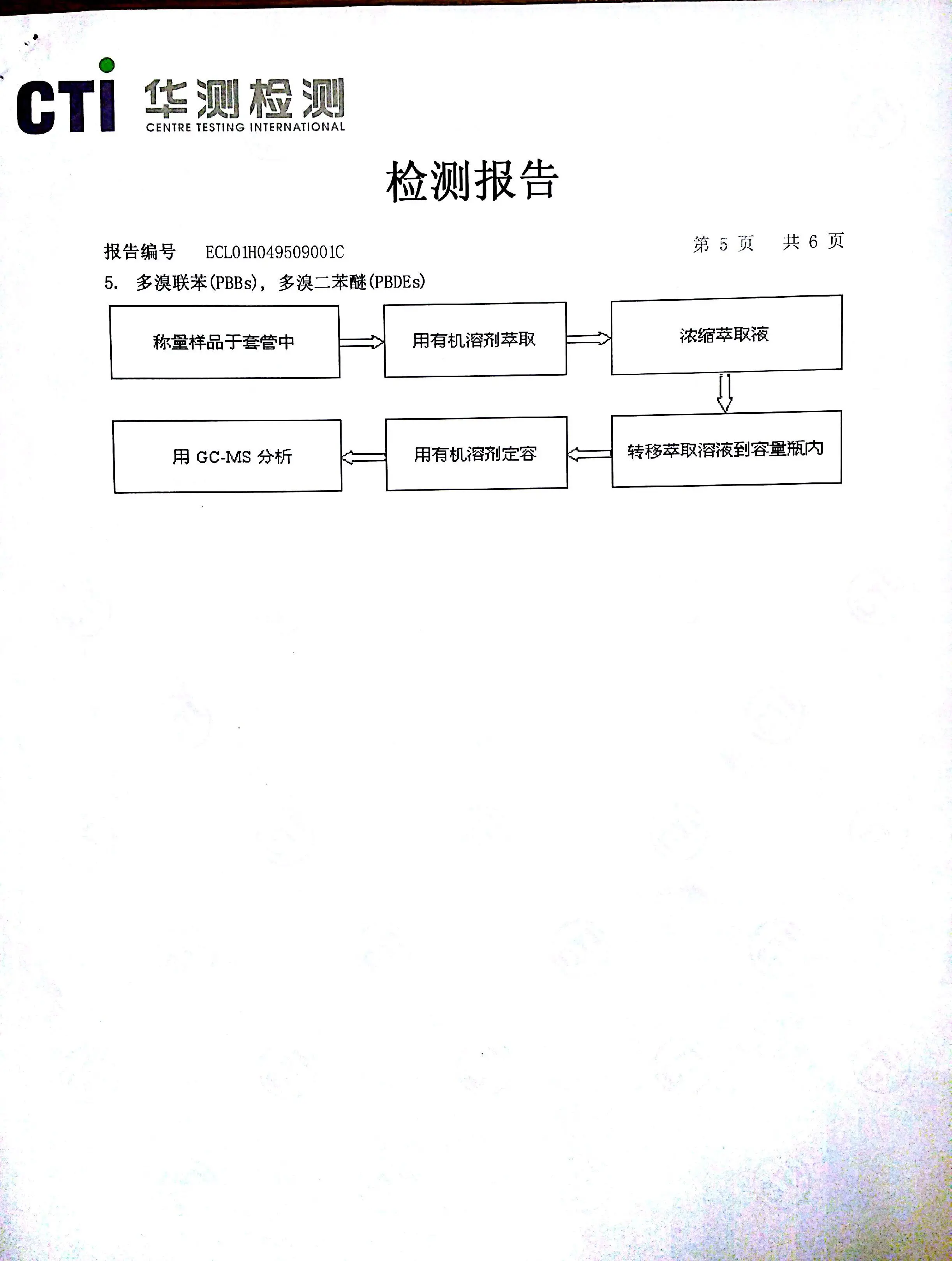

Certifications
