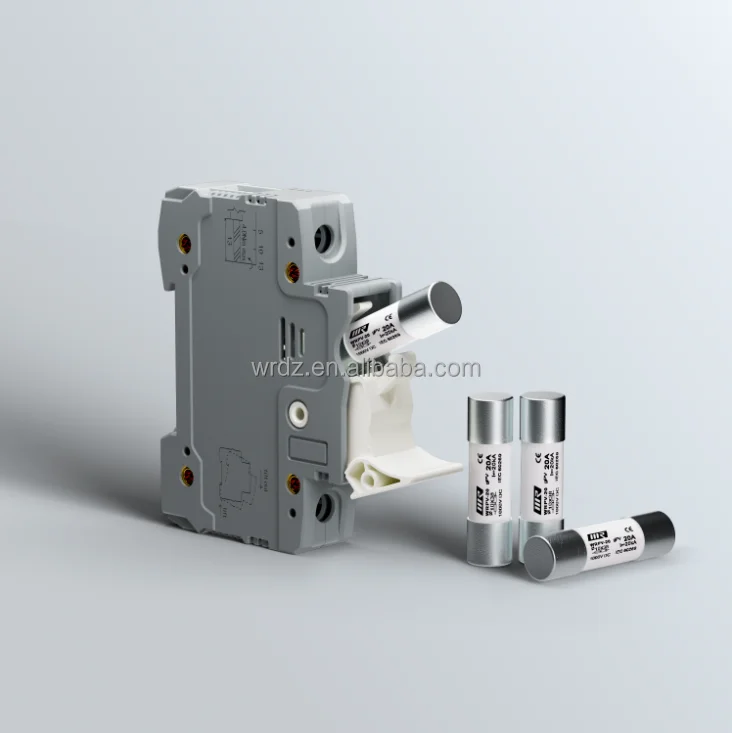

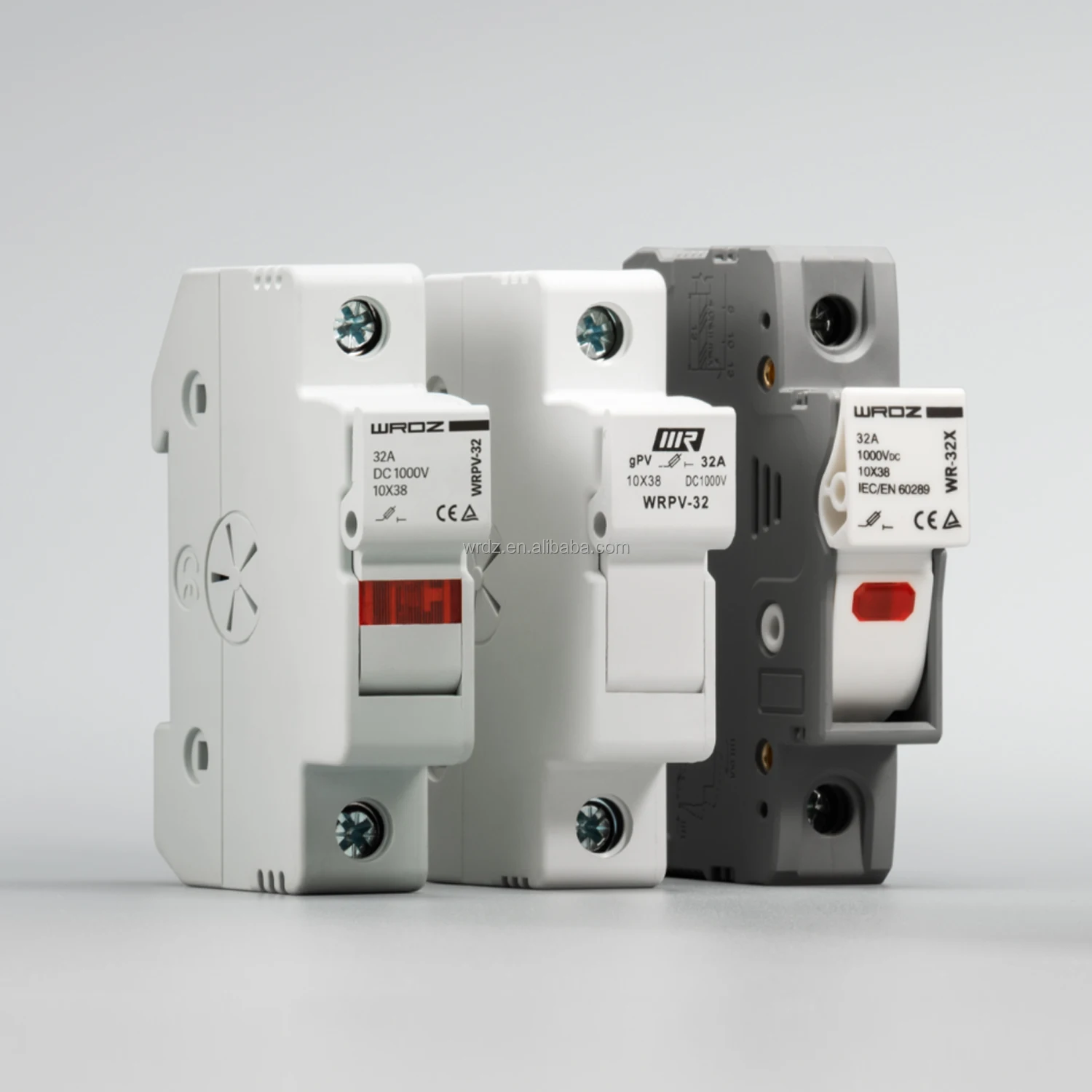

WRDZ 1000v Fuse Cylindrical Ceramic Fuses Low Voltage solar 1000V DC fuse holder
- Category: >>>
- Supplier: Zhejiang Wrdz Electronics Co. Ltd.
Share on (1600922335915):
Product Overview
Description
Product Description

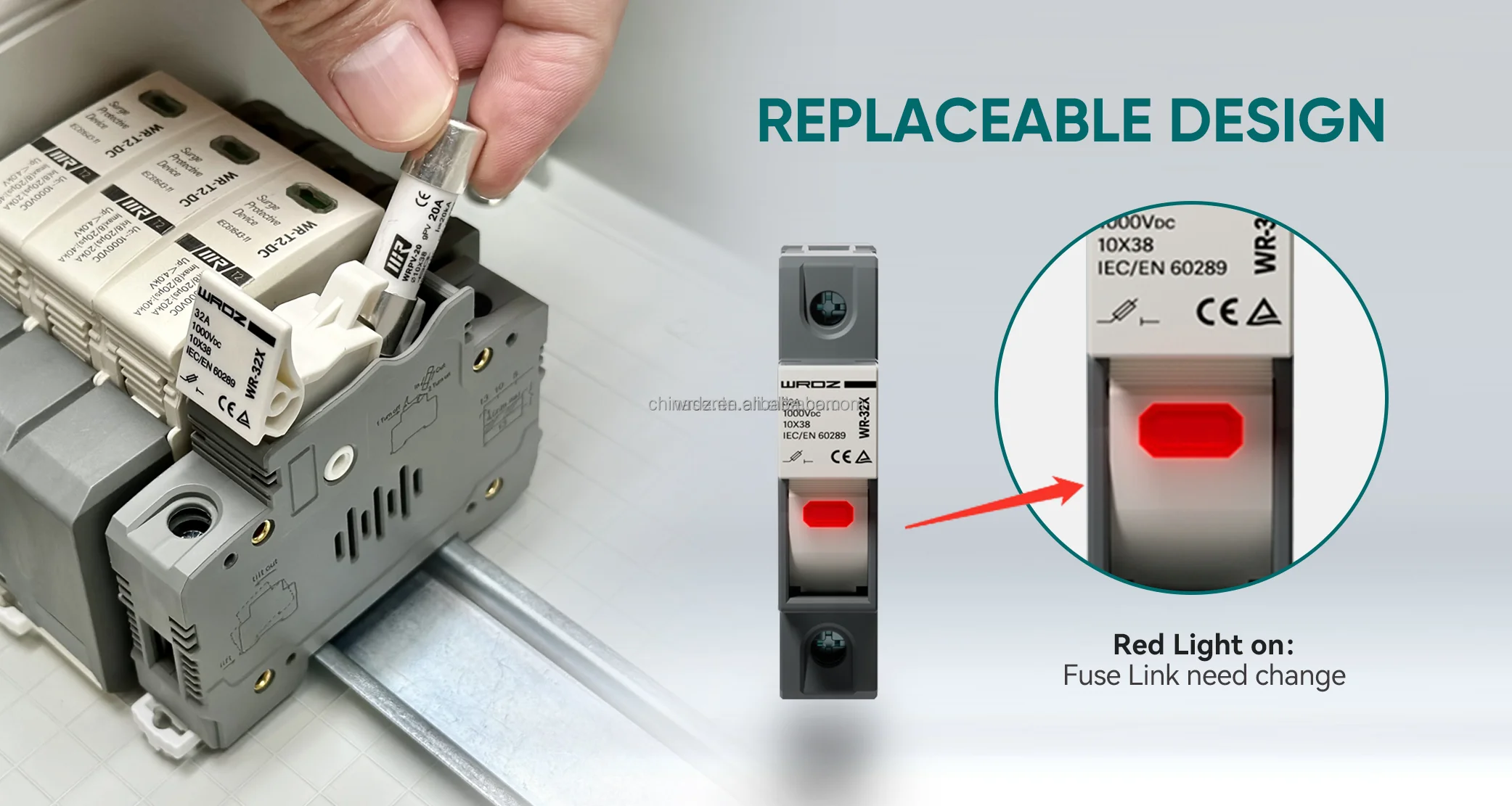

WR-32X DC 1000V 15A Solar PV Fuse Holder and Fuse Link has passed TUV CE certificate
* fuse manufacturer for 20 years
* Direct Factory Price
* ODM / OEM Available
* gPV Fast Acting Fuse
* Excellent performance at temperature extremes
* Standard EN/ IEC 60269-6
* Time constant under 1ms
* Minimum interrupting rating 1.3x In
* Rated breaking capacity 20kA dc

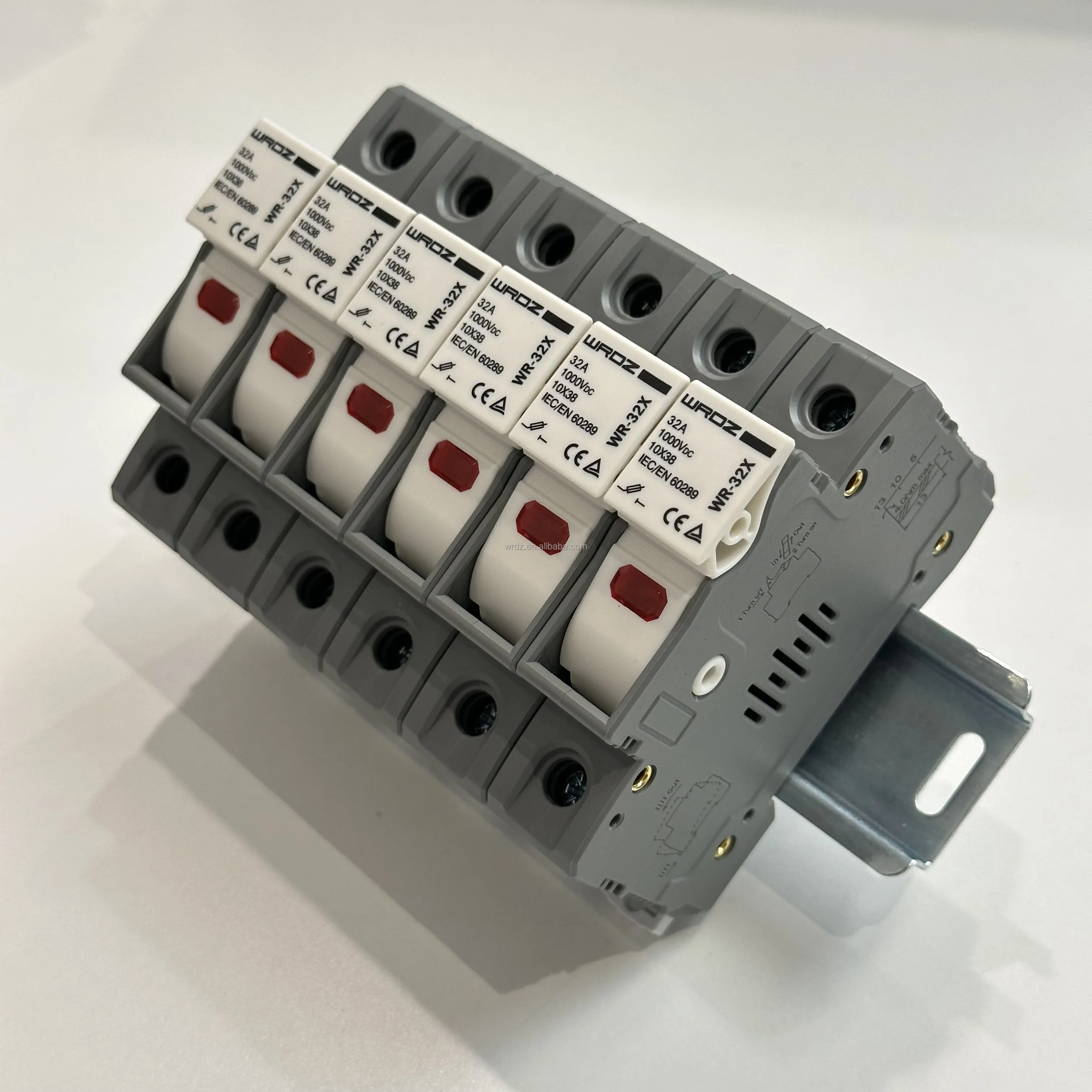

* Rail installation 35mm
* Direct Factory Price
* ODM / OEM Available
* gPV Fast Acting Fuse
* Excellent performance at temperature extremes
* Standard EN/ IEC 60269-6
* Time constant under 1ms
* Minimum interrupting rating 1.3x In
* Rated breaking capacity 20kA dc
* Rail installation 35mm
Product Model | WR- 32X |
Applicable Fuse Link Size | 10*38cm |
Rated Voltage | 1000V |
Rated Current | 1,2,3,4,5,6,8,10,12,15,20,25,32A |
Short-circuit breaking capacity | 33KA |
Max power attenuation | 3.5W |
Connection | 2.5-10mm² |
Operation ambient temperature | -30~+70°C |
Resistance and damp hot | Class 2 |
Elevation | ≤ 2000 |

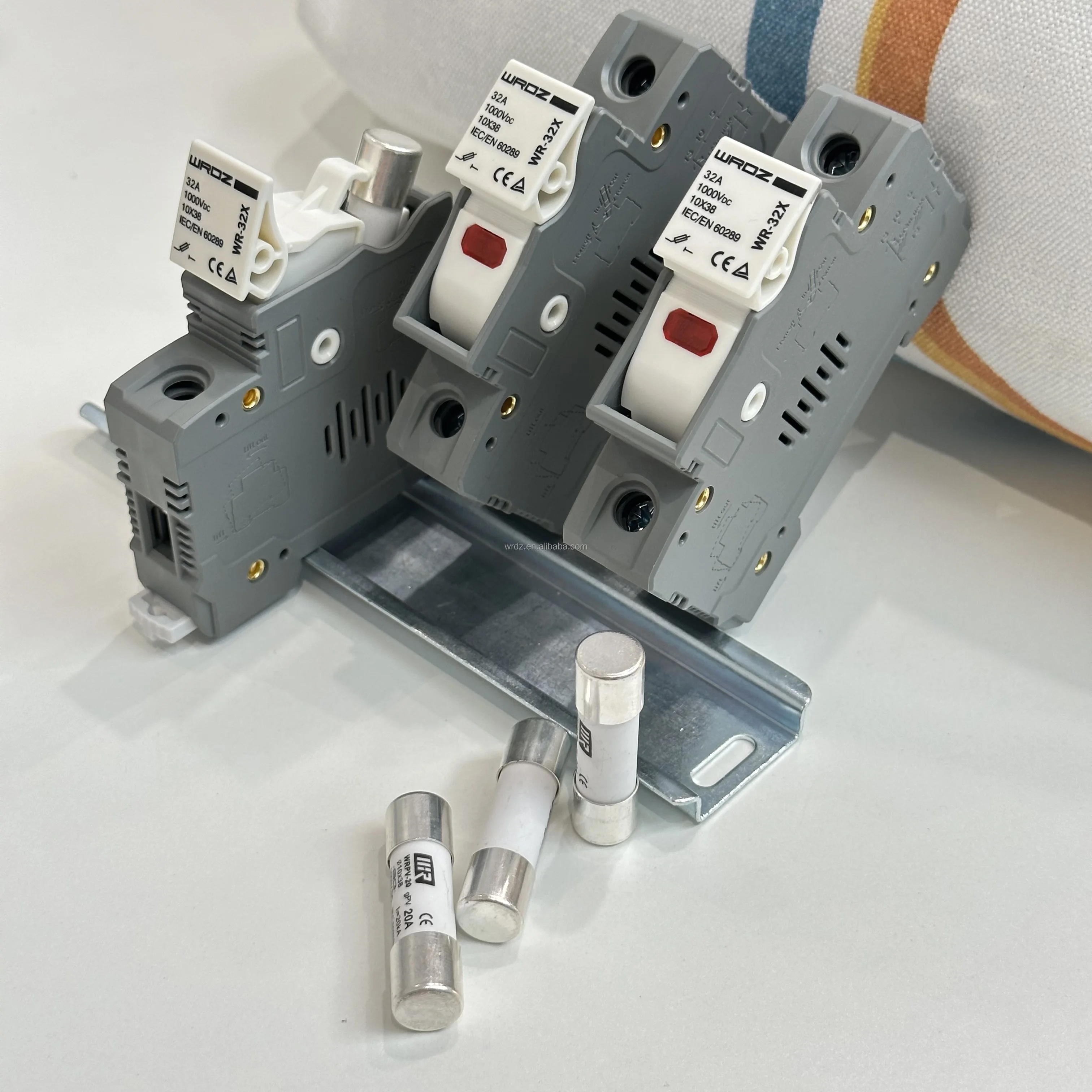

Installation way | TH35-7.5/DIN35 Rail installation |
RH(relative air humidity) | when +20 °C not exceed 95%when +40 °C,not exceed 50% |
Pollution class | 3 |
Installation environment | the place of no abvious vibrate & impact |

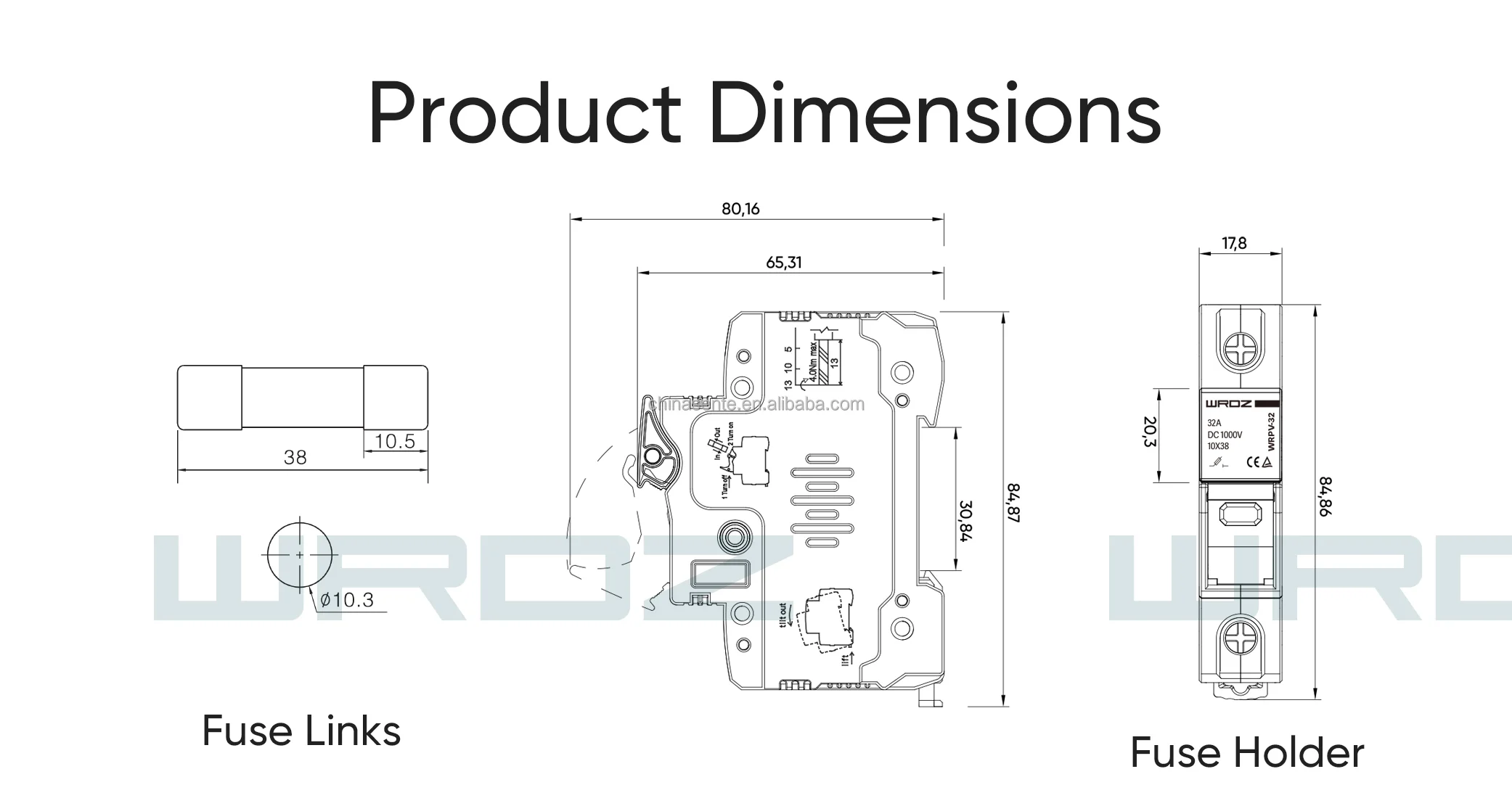

WxHxL and Weight(kg) | W18 x H80 x L80mm 0.07kg |
Before order the Fuse Holder ,plz ask us for the Fuse Rated Current！！！

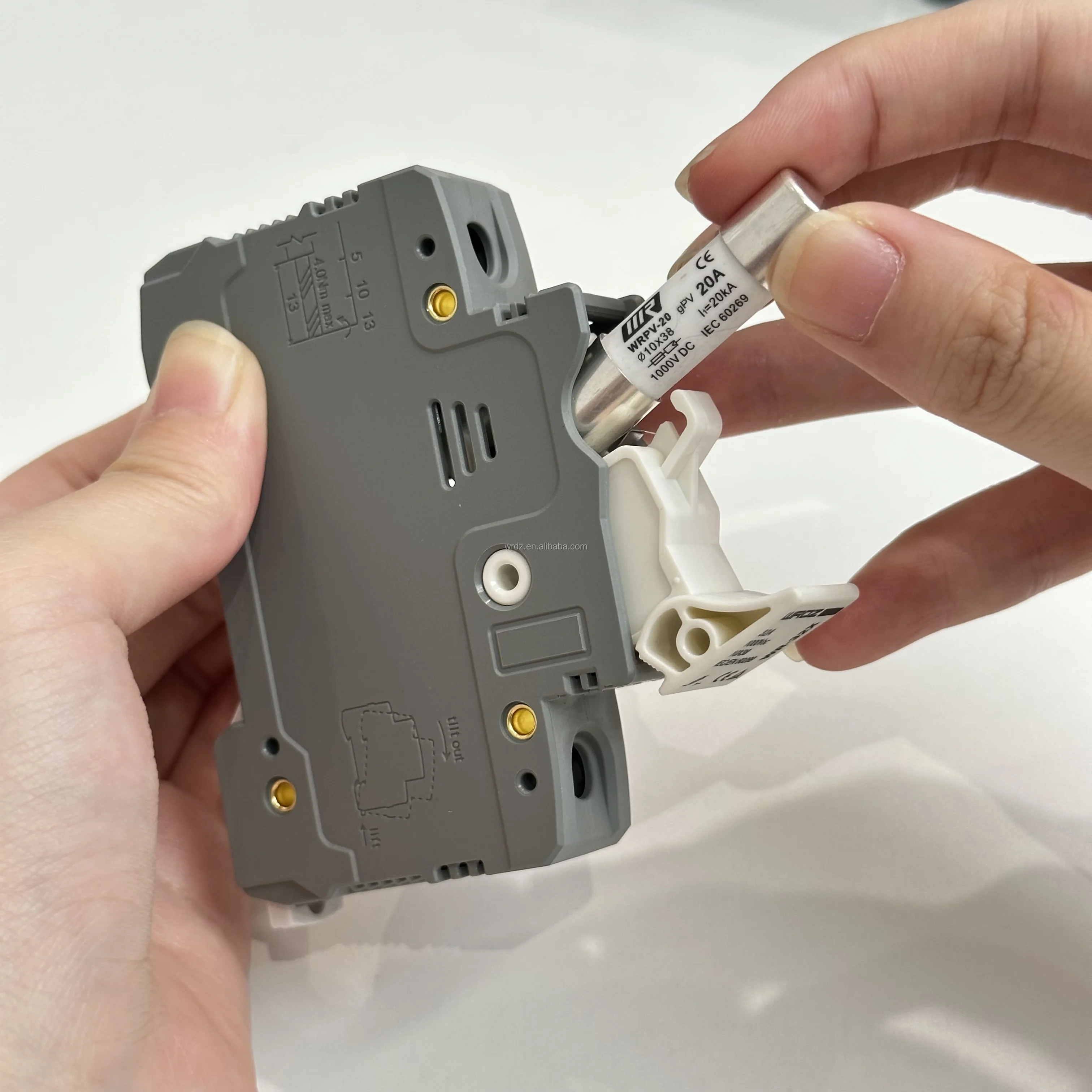

CYLINDRICAL COPPER CAP STRUCTUREUsing high-quality materials, exquisite workmanship Both ends are firmly connected to the contactcap, Provides more stable and accurate performance, Built-in insulating spacer.
Certifications

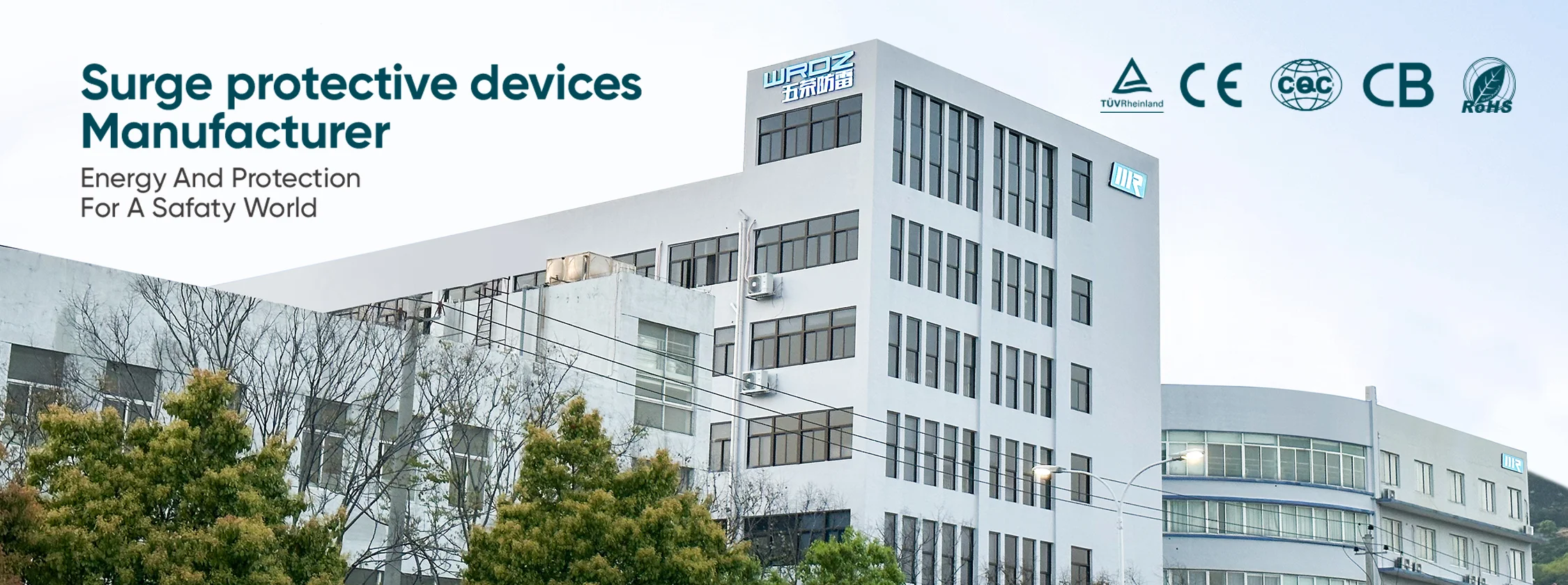

We are factory
Independent production of accessories
All accessories of WRDZ are independently produced, including shell, copper parts and chips.Therefore, the quality and production cycle of each order can be fully guaranteed.
Own test laboratory
WRDZ have testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV.If necessary, we can provide the parameters of each test for customers' reference.

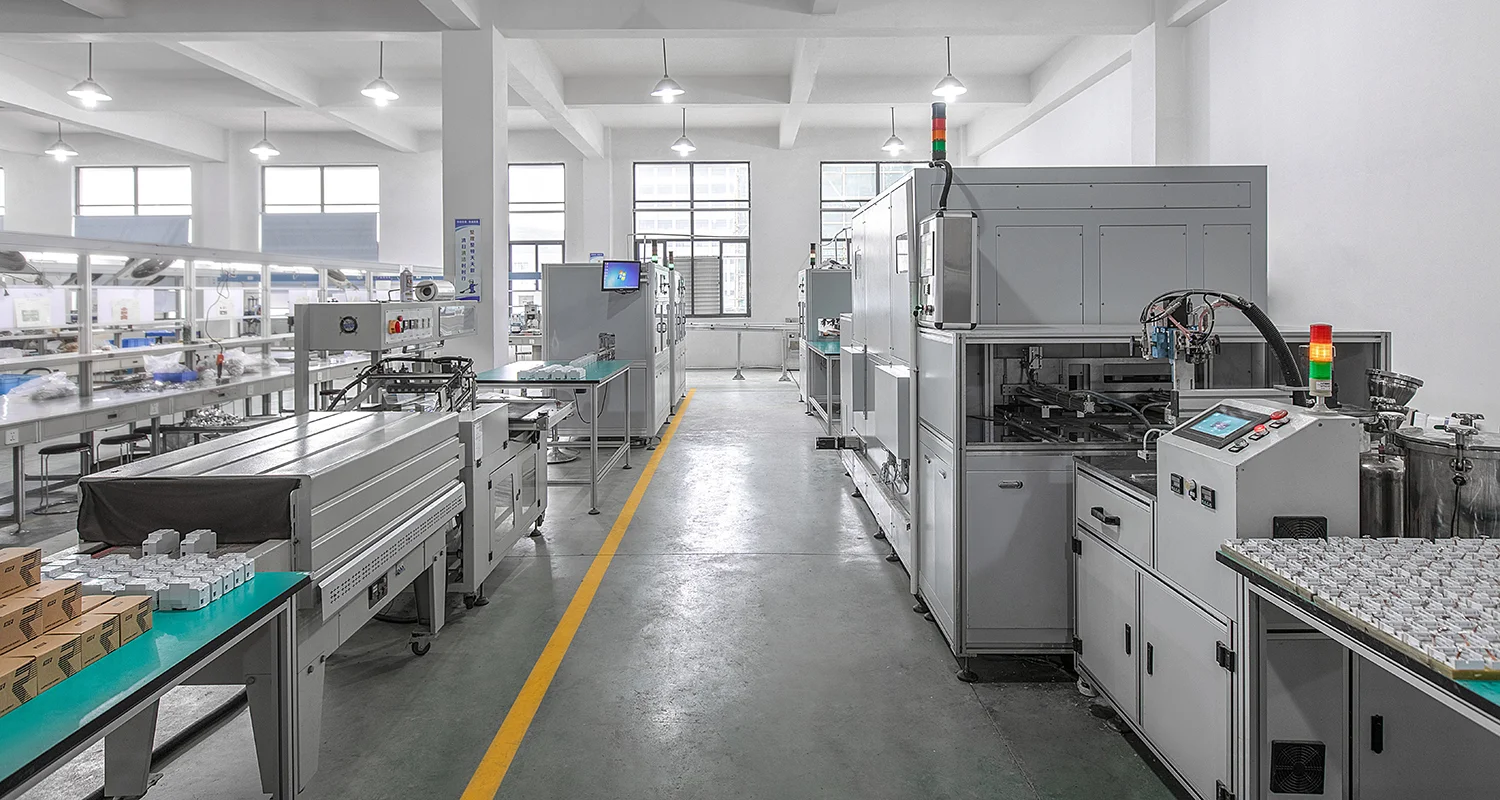

Automatic Production Line
WRDZ have automatic production line, can control the production cycle and product quality of each batch of orders
1.Automated assembly line
2.Press
3.Product Testing
4.Laser or Pad Printing
5.Heat-Wrapping
6.Packing
Customer Case
FAQ
Q：Are you factory or trade company?
A：We are factory and can provide OEM,ODM with your demand.Plz confirm our factory video.
Q: Which TYPE of surge protector you can offer?
A: We can produce both DC and AC surge protectors.Ac types SPD will provide T1,T1T2,T2,T3 type in single-phase or three-phase .Dc types of SPD can provide 600V to 1200V in voltage.Also can customize with your demand.
Q: How to select the SPD to protect your system?
A: In the main distribution box of the facility,usually will use T1 and T1T2 type.In the secondary distribution box,usually will
use T1T2 or T2 type.In the terminal of distribution box like residence,usually will use T2 or T3 type.Plz contact with salesman to select the specs.
Q: Which certification or standard do you have?
A: Our company currently has CE and RoHS certification and related test reports.And all conforms to IEC 61643-11 and national standard GB/T18802.1.
Q: How to control product quality?
A: From the chip to copper part,We use good material to produce all accessories ourself. Each procedure of producing is controlled by automated equipment and will test by machine so we can keep the quality and delivery term.
Q: About the dc type surge protector
A: At present,we can provide T1T2 and T2 type dc spd. T1T2 type will be used in mian distribution box for PV system.T2 type will be used in distribution box for personal solar system.
Q: About the mov/varistor
A: We can sell the chip separately and you can choose mov with different currents and voltage.
Q: About the delivery term
A: At present,we dont make enough stock for all models. Plz confirm with salesman to get the accurate delivery term.
A：We are factory and can provide OEM,ODM with your demand.Plz confirm our factory video.
Q: Which TYPE of surge protector you can offer?
A: We can produce both DC and AC surge protectors.Ac types SPD will provide T1,T1T2,T2,T3 type in single-phase or three-phase .Dc types of SPD can provide 600V to 1200V in voltage.Also can customize with your demand.
Q: How to select the SPD to protect your system?
A: In the main distribution box of the facility,usually will use T1 and T1T2 type.In the secondary distribution box,usually will
use T1T2 or T2 type.In the terminal of distribution box like residence,usually will use T2 or T3 type.Plz contact with salesman to select the specs.
Q: Which certification or standard do you have?
A: Our company currently has CE and RoHS certification and related test reports.And all conforms to IEC 61643-11 and national standard GB/T18802.1.
Q: How to control product quality?
A: From the chip to copper part,We use good material to produce all accessories ourself. Each procedure of producing is controlled by automated equipment and will test by machine so we can keep the quality and delivery term.
Q: About the dc type surge protector
A: At present,we can provide T1T2 and T2 type dc spd. T1T2 type will be used in mian distribution box for PV system.T2 type will be used in distribution box for personal solar system.
Q: About the mov/varistor
A: We can sell the chip separately and you can choose mov with different currents and voltage.
Q: About the delivery term
A: At present,we dont make enough stock for all models. Plz confirm with salesman to get the accurate delivery term.
