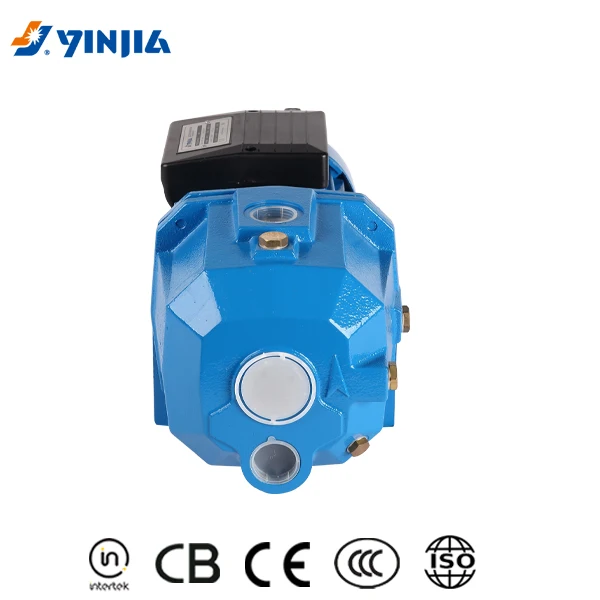

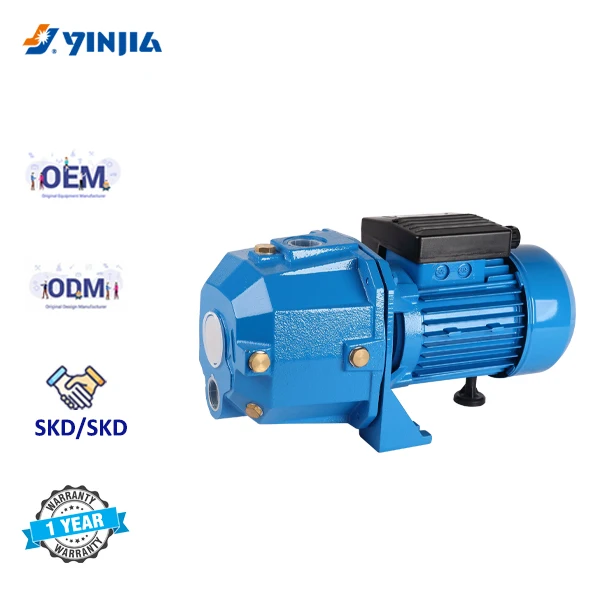

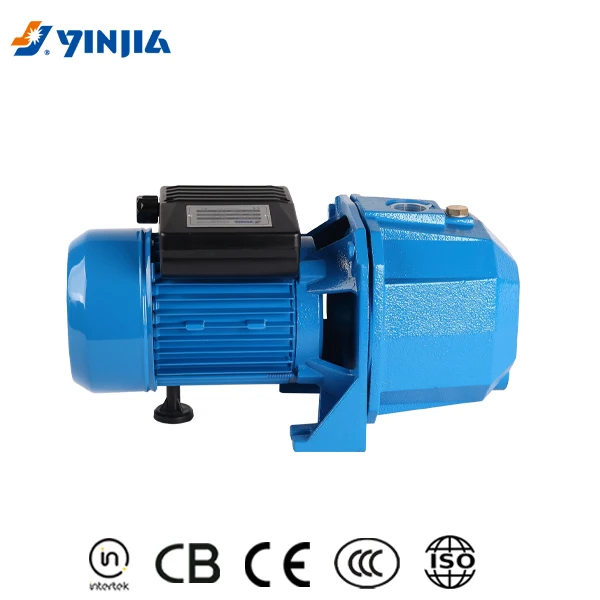

YINJIA Surface Deep Suction High Lift 1hp Shallow Well Jet Water Pump
- Category: >>>
- Supplier: Fujian New Yinjia Pump Co. Ltd.
Share on (1600922376519):
Product Overview
Description
APPLICATION - Self priming water pumps for deep suctions up to 25m to be used in case of important water level gaps. - Suitable to drain water from wells and in domestic fittings by small and medium sized tanks. - Before installing the pump verify that all pipes (iron, plastic or rubber) are clean inside so to avoid any obstruction to the ejector nozzle. At the foot of the ejector must be installed a foot valve or a check valve. Installed the pump, fill completely both pipes and pump body with clean water. To preserve an efficient priming it is necessary a certain pression in the circuit, therefore it is recommended to install a membrane tank at the delivery of the pump. | ||||||||
OPERATING LIMITS -Total suction lift up to 9 mt. with foot valve -Max. operating pressure: 8 bar. -Max. ambient temperature: +40℃ -Lliquid temperature up to: +60℃ -Max. altitude: +1000 m. | MOTOR -Single phase power supply with capacitor permanently activated -Insulation class: B -Protection: IP44 -Speed of rotation: 2850rpm -Continuous duty: S1 | |||||||

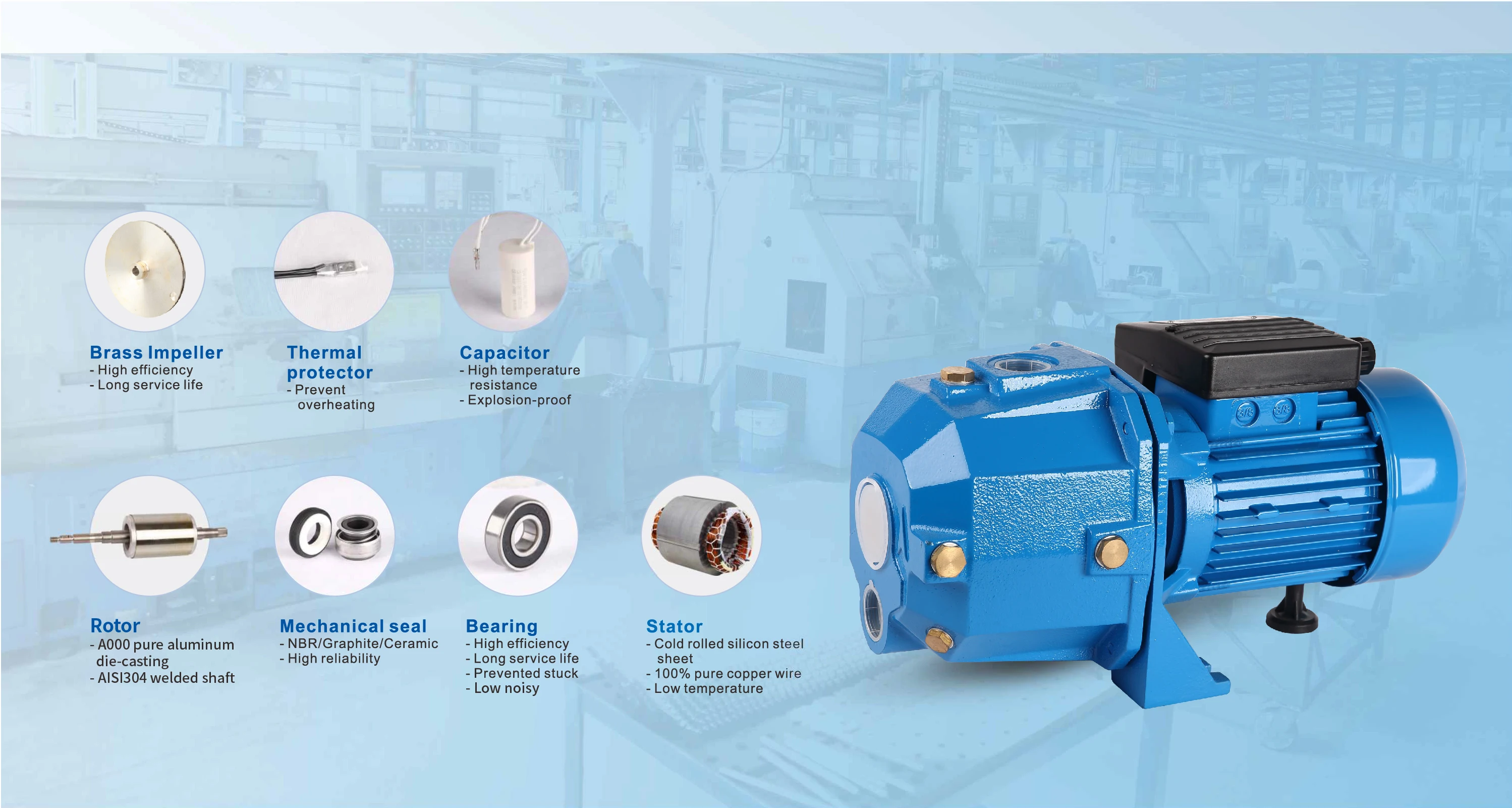

DESIGN FEATURES -Pump body:cast iron -Impeller: Brass -Ejector union:PPO -Internal thermal protector -Motor shaft: AISI1045 -Mechanical seal: NBR/Graphite/Ceramic | SPECIAL FEATURES ON REQUEST -Stainless steel welding shaft. -PPO or SUS304 impeller -FPM/EPDM/SIC/WC mechanical seal -Other voltage and frequency -Three phase power. -Electrophoresis anti-rust treatment | |||||||

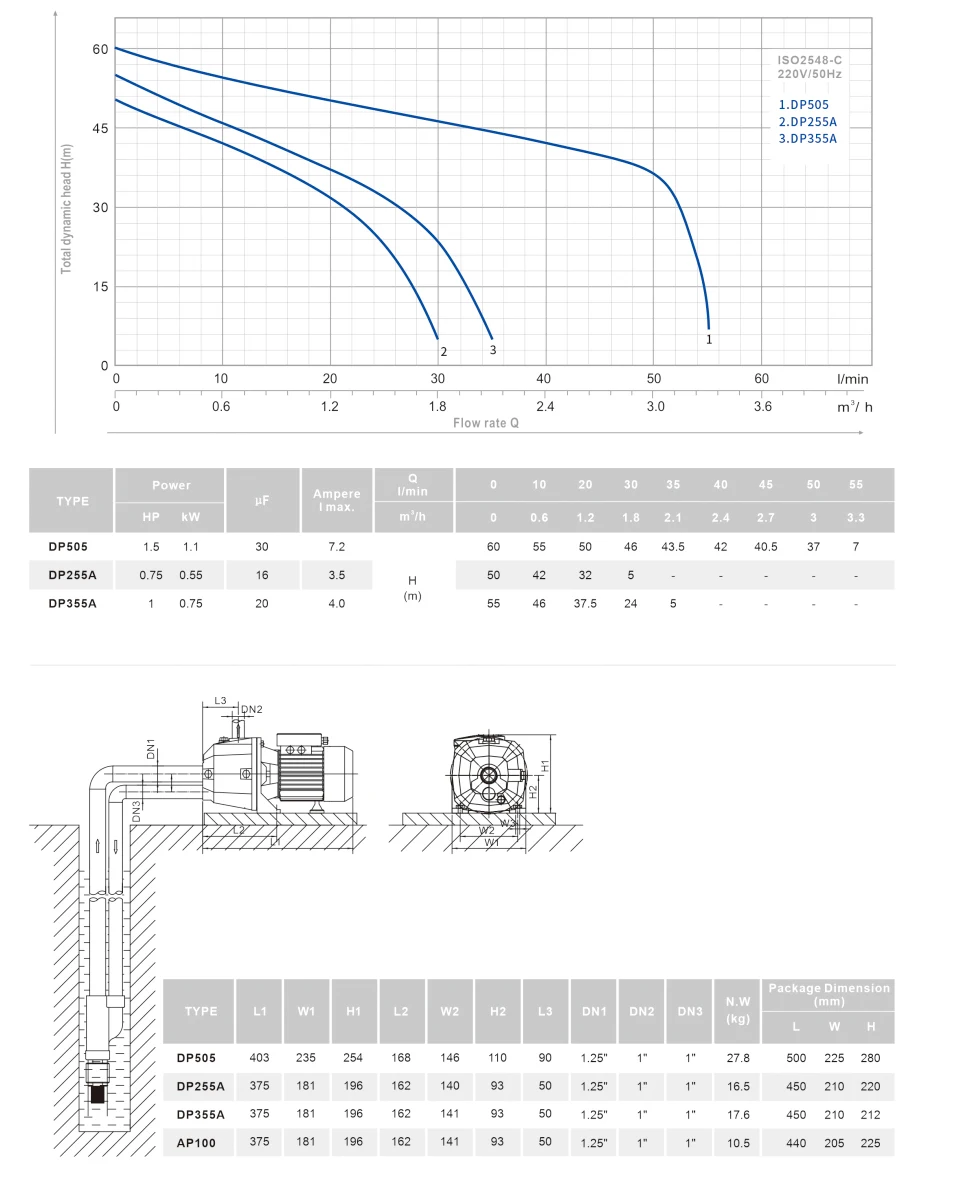

Performance
Fujian New Yinjia Pump Co.,Ltd established in 1990, has specialized in various of surface clean water pumps. Covering an area of 66,000m², with 250 employees, monthly capacity 60,000pcs. Thanks to advanced production equipment and strict QC system, we keep providing high quality pumps with factory direct price, and support 1 year guarantee. Welcome to inquiry Yinjia pump, always at your service!
FAQ
Q: Are you a factory or trading company?
A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q: Do you provide OEM/ODM service?
A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q: What is the feature of your products ?
A: Our products have 3 obviously features: quite, powerful, heavy duty.
Q: What is your MOQ ?
A: 100 pcs per model for factory brand and package.
300 pcs per model for OEM brand and package.
Q: How do you control the quality ?
A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q: What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q: Do you provide OEM/ODM service?
A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q: What is the feature of your products ?
A: Our products have 3 obviously features: quite, powerful, heavy duty.
Q: What is your MOQ ?
A: 100 pcs per model for factory brand and package.
300 pcs per model for OEM brand and package.
Q: How do you control the quality ?
A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q: What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
