China High Quality Lab Phase Contract Microscope
- Category: >>>
- Supplier: Guangzhou Iclear Healthcare LimitedGuangzhou Limited
Share on (1600922582212):
Product Overview
Description
Product Description

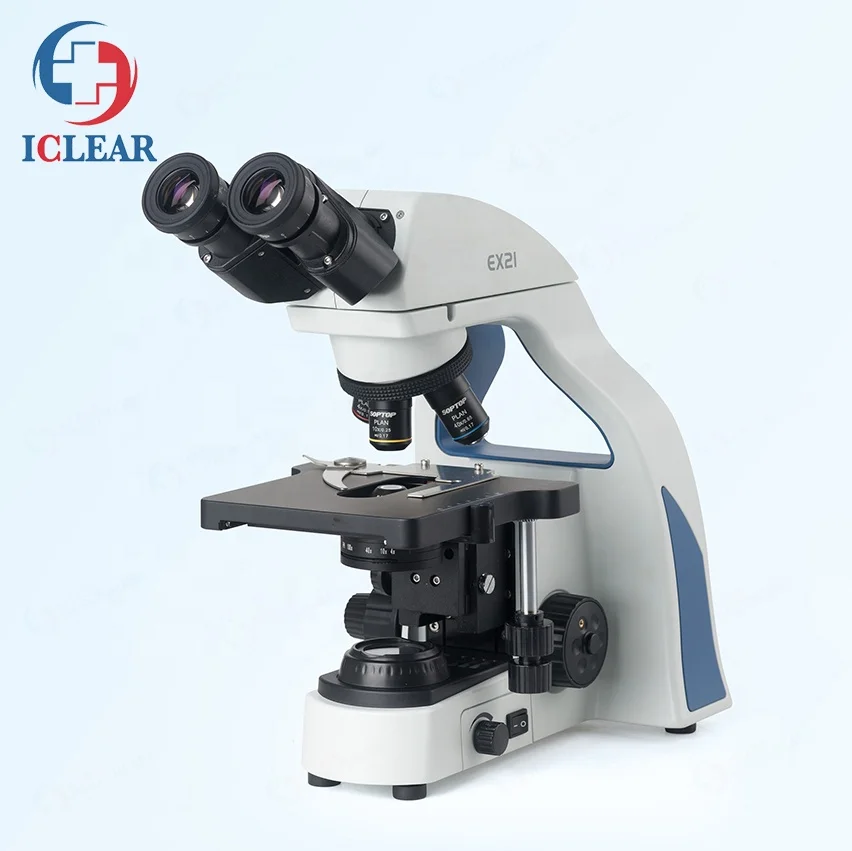

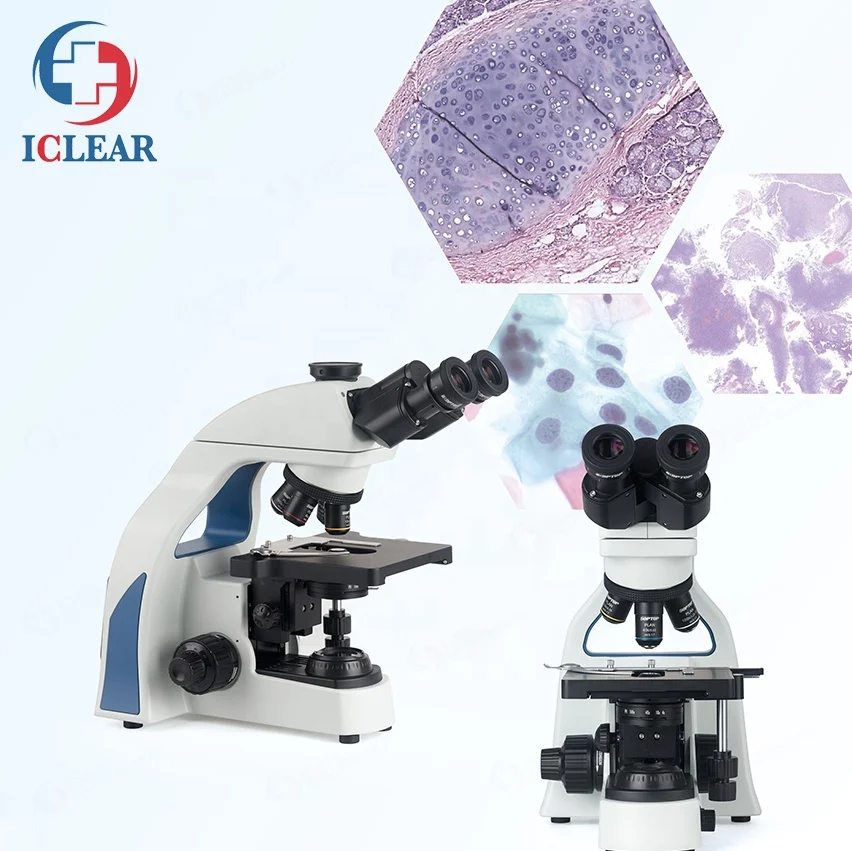

China High Quality Lab Phase Contract Microscope
CHL-EX21
Helicobacter pylori (Hp) is one of the most common bacterial pathogens, and more than half of the world’s population has been infected with Helicobacter pylori. Hp infection is related to a variety of gastrointestinal diseases, such as chronic gastritis, duodenal ulcer, gastric ulcer, non-ulcer dyspepsia, gastric cancer and gastric mucosal-associated lymphoma, and even parenteral diseases. Early diagnosis and treatment of Hp infection are particularly important. The clinical detection methods of Hp infection are mainly divided into two types: invasive and non-invasive. Invasive testing is somewhat traumatic, with poor coagulation function and poor compliance in patients or children taking anticoagulant drugs; non-invasive testing methods are less invasive and make up for the lack of poor compliance in invasive testing.
C13/C14 breath test Principle: After the subject takes urea C13/C14 capsules orally, if there are Helicobacter pylori in the stomach, the urease produced by it can quickly decompose urea into carbon dioxide and ammonia. The carbon dioxide enters the lungs through the blood and is excreted from the body. After the CO2 gas with the marker is collected and measured on the instrument, it can be judged whether there are Helicobacter pylori in the stomach. Clinically, this method is often used as the "gold standard" for diagnosis, and it is widely used.
Specifications:
| Item Code | Specification and description | QTY |
| Eyepiece | High point Wide field plan eyepiece PL10X/20mm,diapter adjustable | 2 |
| Objective (PH) | Plan positive phase contrast objective 10X/0.25,WD=12.1mm | 1 |
| Plan positive phase contrast objective 20X/0.40,WD=1.56mm | 1 | |
| Plan positive phase contrast objective 40X/0.65,WD=0.36mm | 1 | |
| Plan positive phase contrast objective 100X/1.25,WD=0.18mm | 1 | |
| Head | 30°inclined,gemel trinocular viewing head,diapter range:47~75mm, splitting ratio R:T=8:2 | 1 |
| Fram | Low position Coaxial coarse and fine adjustment,range 25mm, precision: 0.002mm, with coarse adjustment stop and tightness adjustment, with condenser braket(Preset Center, center elevated),100V-240V_AC input,highpower single 3W LED(cool/warm optional,cool light 4750K-5500K,warm light 2850K-3250K,center preset),intensity adjustable, with back storage space | 1 |
| Nosepiece | Quadruple nosepiece | 1 |
| Stage | 150mmX140mm double layer mechanical stage,double section ( slide glass)clamp, moving range:76mm-50mm, precision 0.1mm(Triangular guide rail) | 1 |
| Condenser | N.A.1.25condenser,fly eyes illumination system,phase contrast slot, dark field connector, ajustable field aperture, collecting mirror preset center. | 1 |
| Phase contrast parts | telecenter scope(Φ23.2) | 1 |
| phase contrast device, for 10X, 40X objective(infinity) | 1 | |
| phase contrast device, for 20X, 100X objective(infinity) | 1 | |
| Green filter Φ45mm | 1 | |
| Inner hexagon spanner M3 | 1 | |
| Inner hexagon spanner M1.6 (to use for phase contrase slide board) | 1 | |
| Spanner for coarse wheel tightness | 1 | |
| Packing | EPE and paper carton, 1pc / carton, carton size: 52.0X49.0X27.0cm, G.W./N.W. 9.5/7.2kgs | 1 |
