Chuanghuan oxygen machine spare part PSA oxygen generator 10L 5L portable oxygen concentrator
- Category: >>>
- Supplier: Guangzhou Chuanghuan Ozone Electric Appliance Co. Ltd.
Share on (1600922586441):
Product Overview
Description
High quality oxygen concentration molecular sieve air compressor air dryer in one machine 8L 10L
Features:

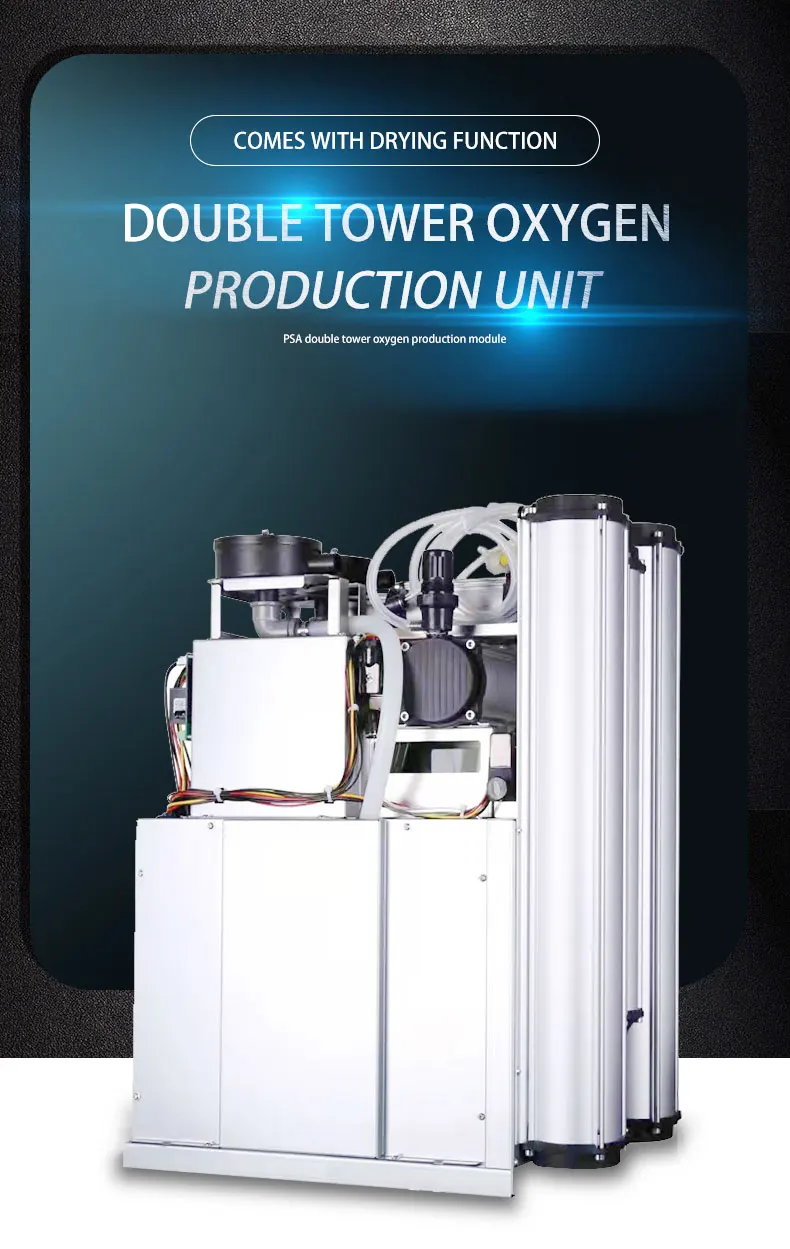

* The model of HY-GOX ( Integrated 2 tower oxygen molecular sieve concentrator) is specially used for equipment to
supply oxygen source.
supply oxygen source.
* It is prepared by the principle of sodium molecular sieve PSA.
* It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air. .
* Stable and reliable work, low working noise,

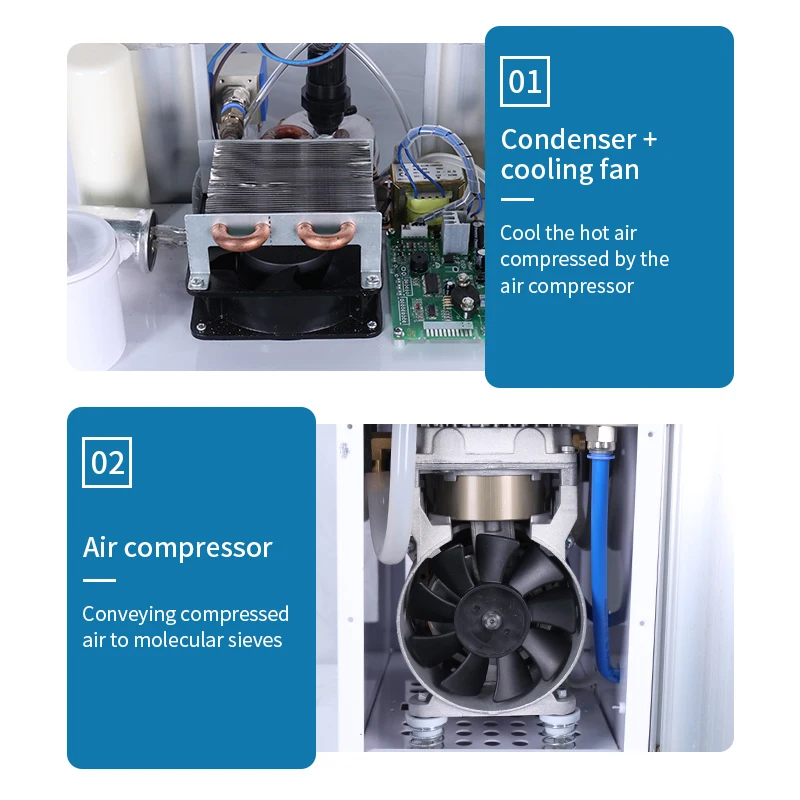

* It can be used independently or built into the ozone equipment system. Features: * Adopting double-row condensing radiator and powerful cooling fan, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
* The multi-stage automatic water filtering function of the water filter and the dryer can fully filter the water in the compressed gas and greatly extend the service life of the molecular sieve.
* Powerful heat dissipation at the bottom and condensation technology at the top of the air compressor ensure that the air compressor can run for a long time without getting hot.
* Adopt sodium type molecular sieve molecular sieve material, which is stable and durable in operation.
* This parts is manufactured according to the standard of medical oxygen generator, with high oxygen concentration, low
machine vibration and low noise.
machine vibration and low noise.
Components :

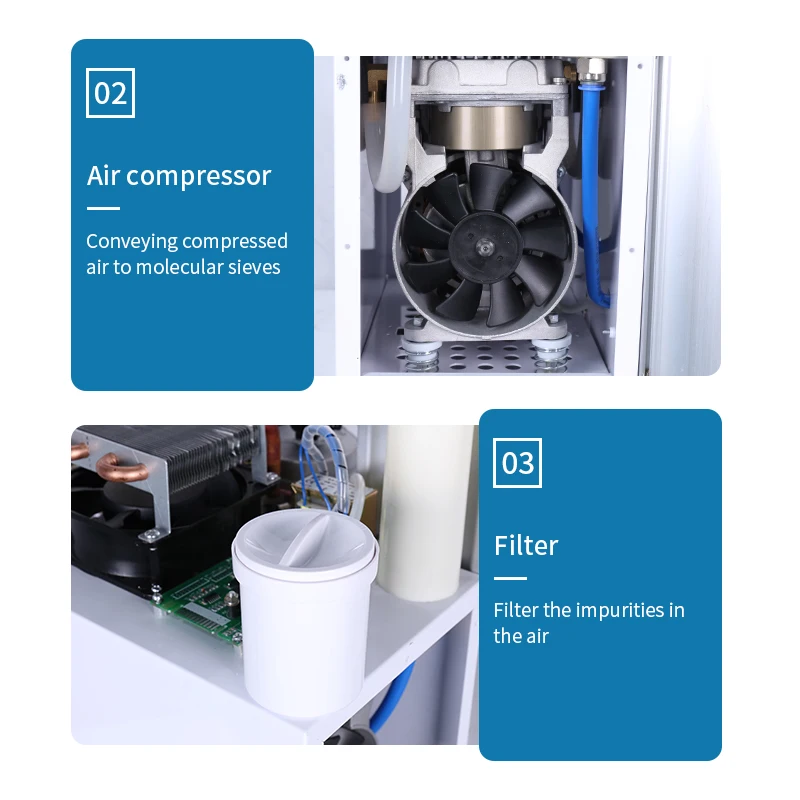

The oxygen molecular sieve concentrator is composed of an air compressor, intake filter, water filter, dryer, drain
valve, oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, and oxygen flow meter etc.
valve, oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, and oxygen flow meter etc.
Noted: One set including oxygen generating unit, air compressor, and chiller.

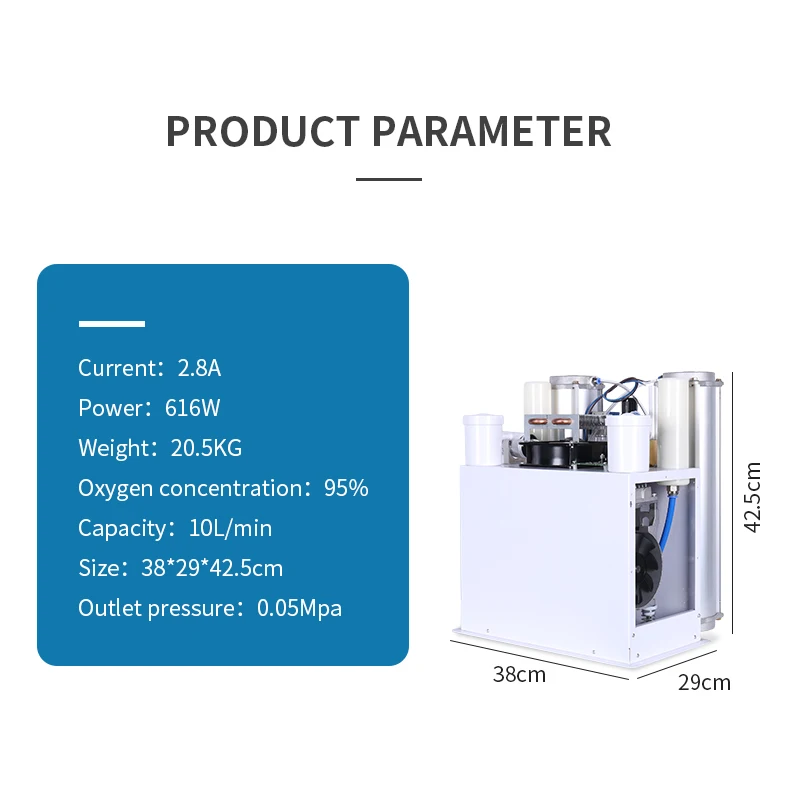

Product name | Integrated 2 tower oxygen molecular sieve concentrator | ||
Model no. | HY-GOX8L | HY-GOX10L | |
Oxygen output | 8L/min | 10L/min | |
Oxygen concentration | ≥93% | ||
Input voltage | AC100-240V/50-60Hz | ||
Power | ≤780W | ≤800W | |
Oxygen pressure: | ≥40KPa | ||
Working noise | ≤48dB(A) | ||
Ambient temperature | 5-45℃ | ||
Environment humidity | ≤80%RH | ||
Dimension | 460*260*510mm | 460*260*586mm | |
Net weight | 28kg | 30kg | |
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
