Spot Horizontal Small Cement Ball Mill Dry and Wet Dual purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment
Spot Horizontal Small Cement Ball Mill Dry and Wet Dual-purpose Mine Rod Mill Equipment

Spot Horizontal Small Cement Ball Mill Dry and Wet Dual purpose Mine Rod Mill Equipment

Share on (1600922600358):


Price:$20,560.00 - $20,572.00

Quantity:


Product Overview

Description



Products Description


Purpose and Scope of use of Ball Mill
The ball mill is the key equipment for crushing the material after it is broken. It is widely used in cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal mineral processing and glass ceramics and other production industries, for a variety of ores and other grindable materials dry or wet grinding. Ball mill is suitable for grinding various ores and other materials, is widely used in mineral processing, building materials and chemical industry, can be divided into dry and wet two kinds of grinding methods. According to different ore discharge methods, it can be divided into two types: lattice type and overflow type. Ball mill is a high-fine grinding machine widely used in industrial production. There are many kinds, such as hand ball mill, horizontal ball mill, ball mill bearing shell, energy-saving ball mill, overflow ball mill, ceramic ball mill, lattice ball mill and so on. Ball mill is suitable for grinding various ores and other materials, is widely used in mineral processing, building materials and chemical industry, can be divided into dry and wet two kinds of grinding methods. According to different ore discharge methods, it can be divided into two types: lattice type and overflow type.


Mechanical Structure of Ball Mill

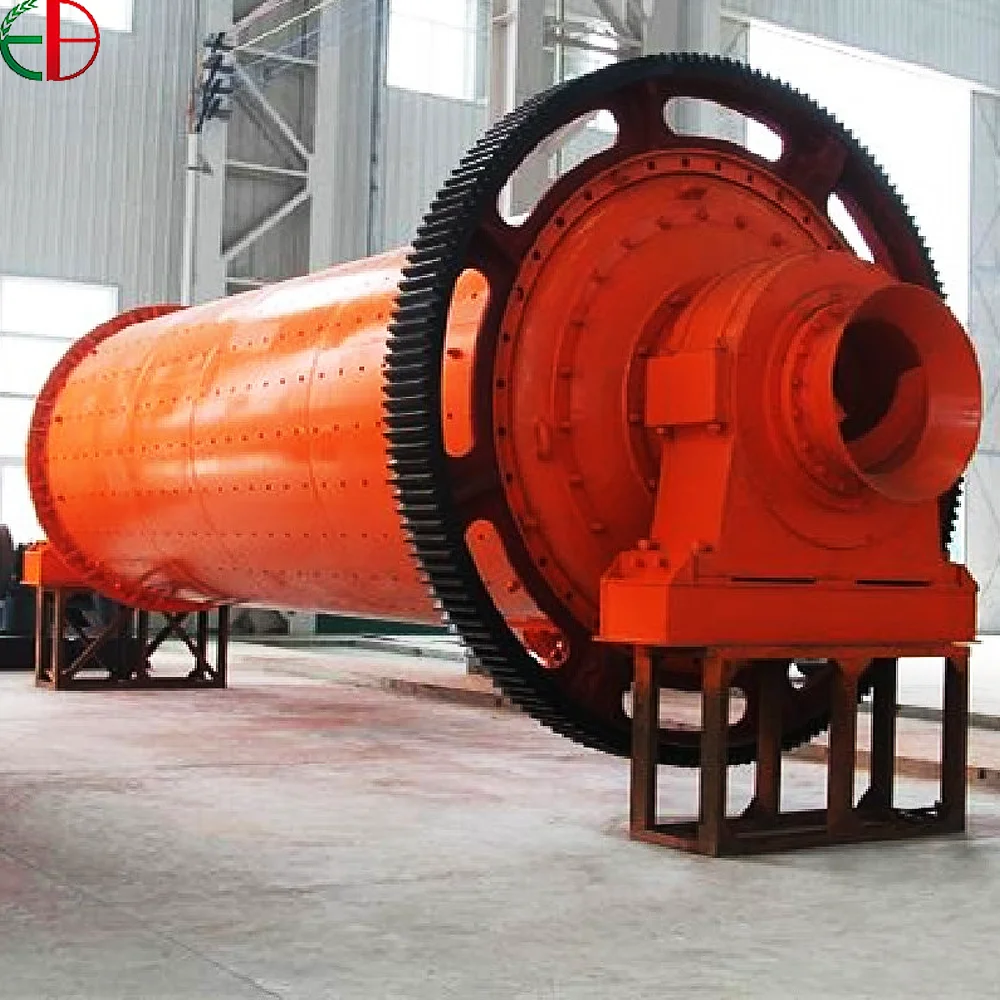

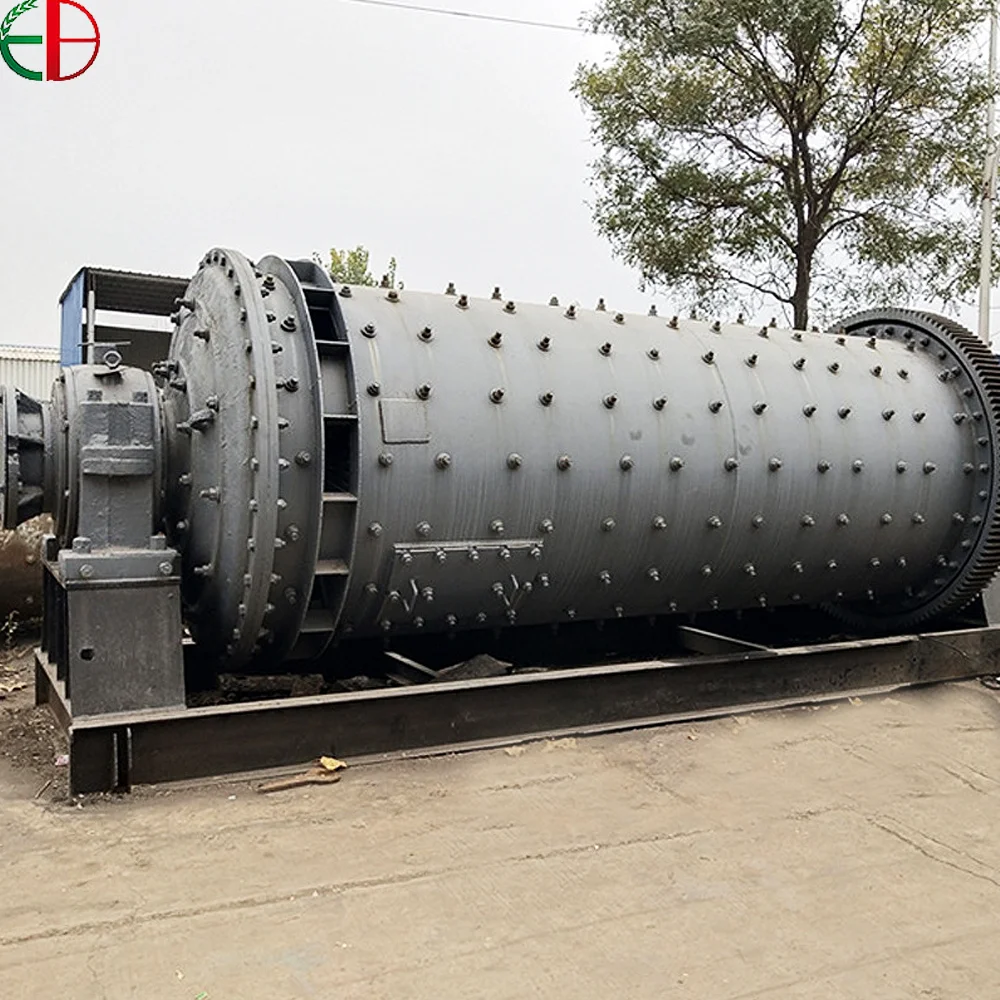

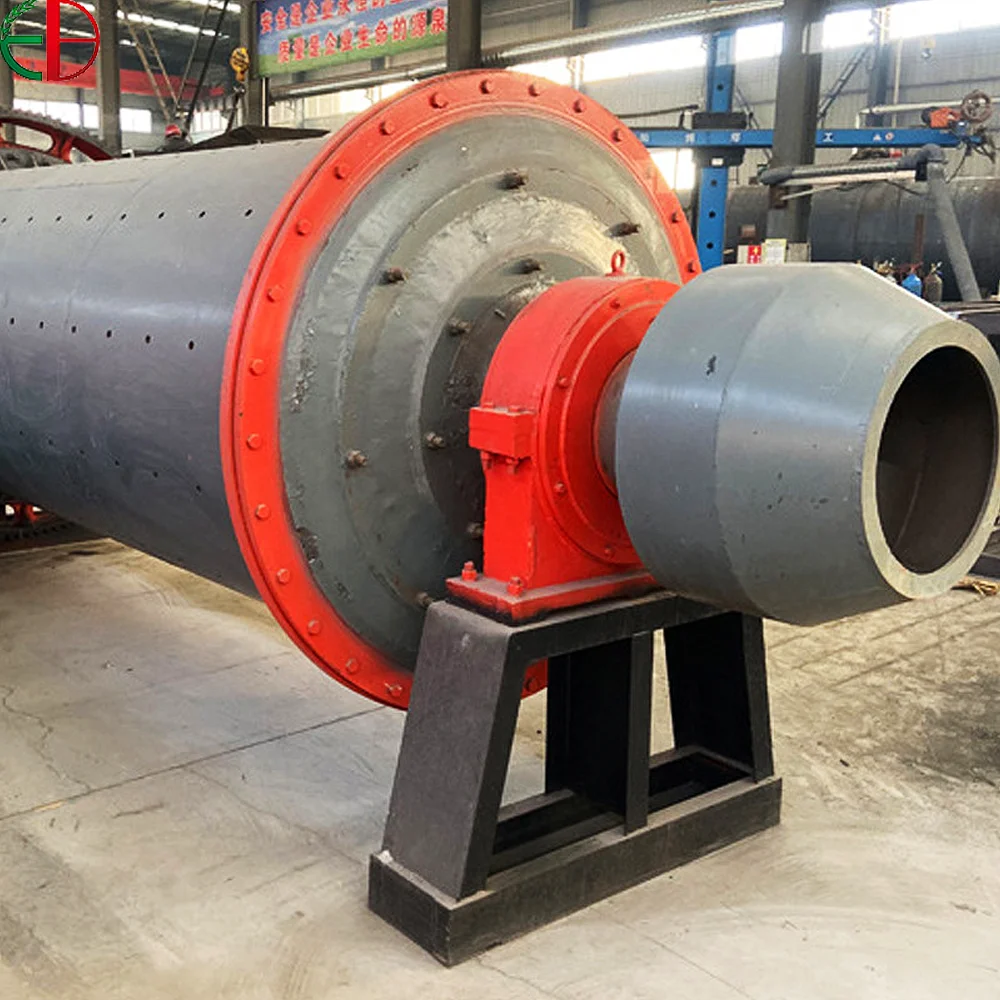

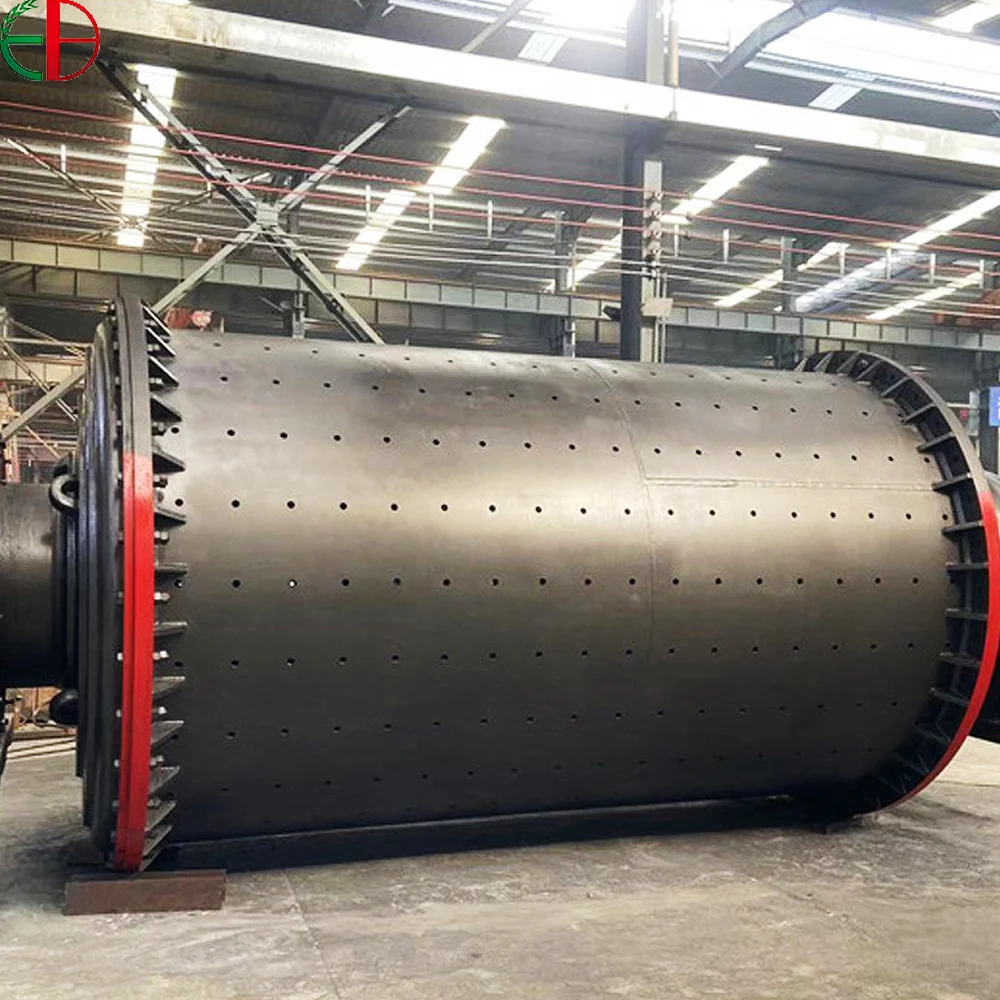

The ball mill is composed of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of steel casting, the inner lining can be disassembled, the rotary gear is made of casting hobbing, and the cylinder body is inlaid with wear-resistant lining plate, which has good wear resistance. The machine runs smoothly and works reliably. The main machine of the ball mill comprises a cylinder, which is inlaid with a liner made of wear-resistant material, a bearing that carries the cylinder and maintains its rotation, and a driving part, such as an electric motor, and a transmission gear, belt pulley, triangle belt, etc.

For the parts called blades, generally not the main parts, the internal spiral in the feed end of the component inlet can be called its internal spiral blade, and the internal spiral in the discharge end of the component outlet can also be called its internal spiral blade. In addition, if a spiral conveyor is used in the auxiliary equipment at the discharge end, there will be parts called spiral blades in the equipment, but strictly speaking, it is no longer a part of the ball mill. According to the material and discharge method, dry ball mill and wet lattice ball mill can be selected. Energy-saving ball mill, using automatic aligning double row radial spherical roller bearing, running resistance is small, energy saving effect is remarkable. In the cylinder part, a conical cylinder is added to the discharging end of the original cylinder, which not only increases the effective volume of the mill, but also makes the medium distribution in the cylinder more reasonable. This product is widely used in non-ferrous metals, ferrous metals, non-metallic mineral processing field and chemical industry, building materials for material grinding use.


 Technical Parameters of Ball Mill
Models
Cylinder Speed
Ball Load
 Feed Size
Discharge Size
Capacity
Motor Power
Total Weight
900x1800
36-38
1.5t
<20
0.075-0.89
0.65-2(T/H)
18.5KW
5.85T
1200x2400
36
2.7t
<20
0.075-0.89
1.1-3.5(T/H)
22KW
6.98T
1200x3000
36
3t
<25
0.075-0.6
1.5-4.8(T/H)
30KW
13.6T
1200x4500
36
3.5t
<25
0.074-0.4
1.6-5(T/H)
37KW
14.3T
1500x3000
32.4
5t
<25
0.074-0.4
1.6-5.8(T/H)
55KW
15.6T
1500x4500
29.7
7.5t
<25
0.074-0.4
2-5(T/H)
75KW
19.5T
1500x5700
28
11t
<25
0.074-0.4
3-6(T/H)
110KW
22T


Details Images




Certifications




Our Advantages




Product packaging




Our Services


Pre-Sale Services
1. 24 hours online, your inquiries will be answered quickly.
2. Help you choose the most suitable machine.
3. Introduce the detailed information of the machine to you with pictures or videos.
Sales Service
1. Customize the machine according to your requirements.
2. Test and inspect every machine with strict quality control.
3. After confirming the machine, pack it in a standard export wooden box or directly install it in a cabinet.
After-sales service
1.Provide professional engineers to help you use the machine.
2. Provide technical support and professional engineers to help you solve problems in use.
3. Quality guarantee for one year. This year, if there is a quality problem, it will be repaired or replaced free of charge.
