HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating
HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating

HRC60 4F End Mill Tungsten Steel Milling Cutter CNC Solid Carbide Mill with Coating

Share on (1600922625897):


Price:$5.00-15.00

Quantity:


Product Overview

Description



Product Description


Product Name

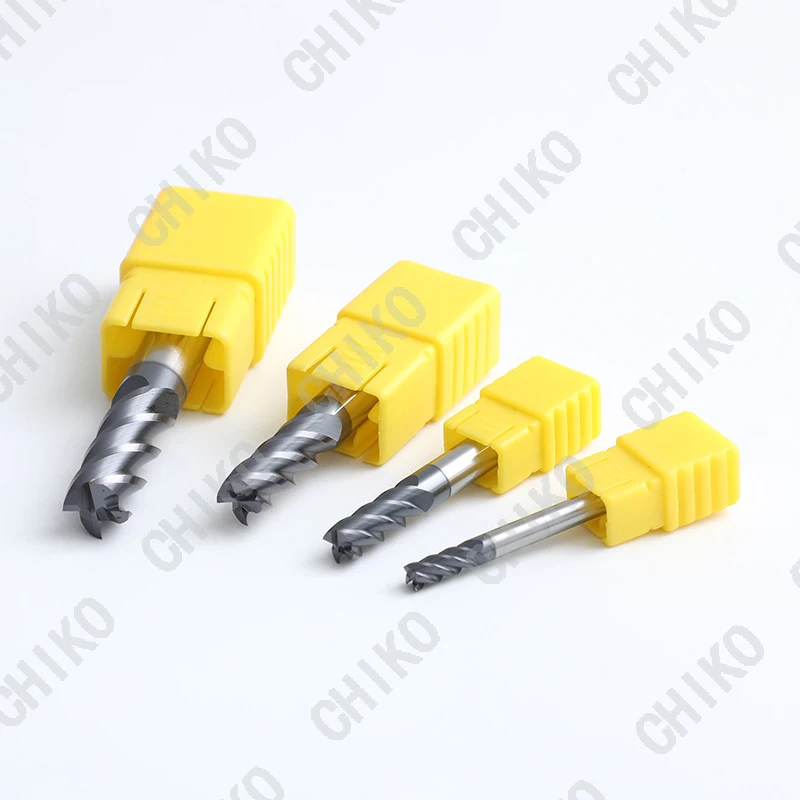

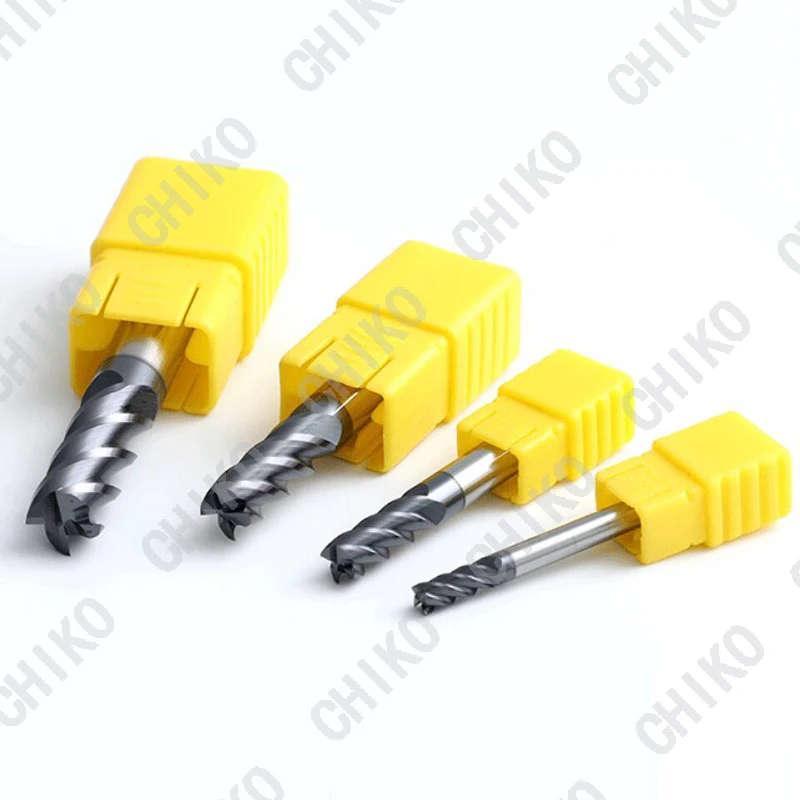

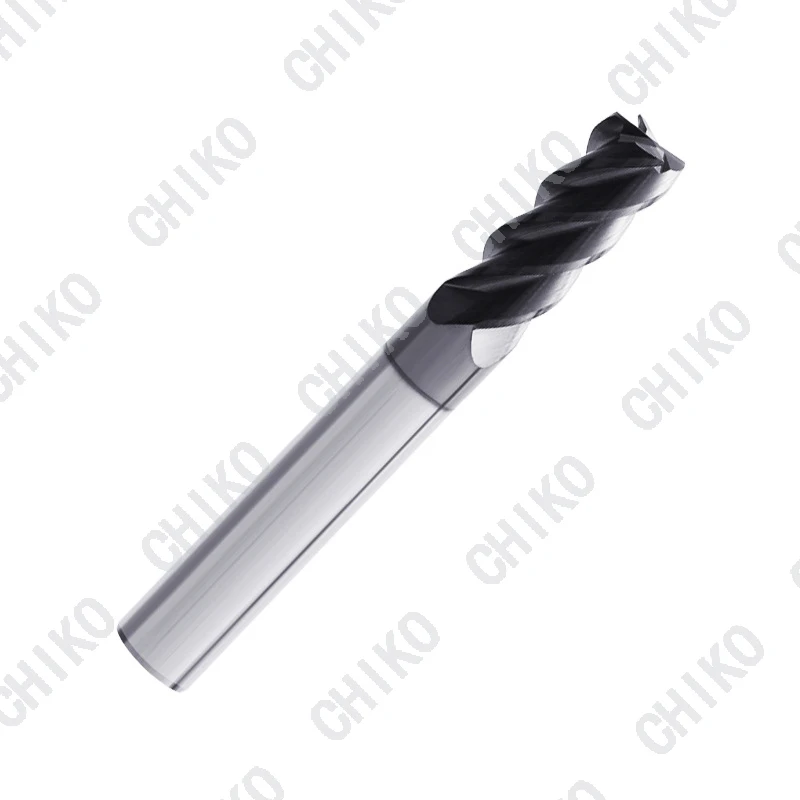

HRC60 4 Flutes End Mill Tungsten Steel Mold Milling Cutter CNC Solid Carbide Mill with Coating
Hardness
HRC60
Material
Tungsten Steel,Zigong ZK40SF
Flutes
4 flutes
Helix Angle
45°
Max Cutting Depth
65mm
Effective Length
3mm-65mm
Process Range
40-48°
Flute Length
3mm-65mm（mm）
Flute Diameter
1mm-20mm（mm）
Shank Diameter
3mm-20mm（mm）
Tolerance of End Mill Diameter
 1 ＜ D≤6 -0.010 ～ -0.030
6 ＜ D≤10 -0.015 ～ -0.040
10 ＜ D≤20 -0.020 ～ -0.050
Type
A Type: Double-edge design provides good smooth finish and is suitablefor semi-finish and finish machining
B Type: Single-edge design, sharp blade, good for chip removal, high cutting speed, widly used in rough machining
Cutting Parameters
Cutting Speed vc=220(100-800)m/min
Cutting Depth ap=1/2D(1/8-3/4D)
Cutting Widthae=1/2D(1/4-1D)
Single Blade Feeding fz=0.15mm(0.02-0.2)
Workpiece Material
Carbon Steel, Casting Iron,Aluminum Alloy,Copper Alloy,Stainless Steel, High hardness steel


Specification

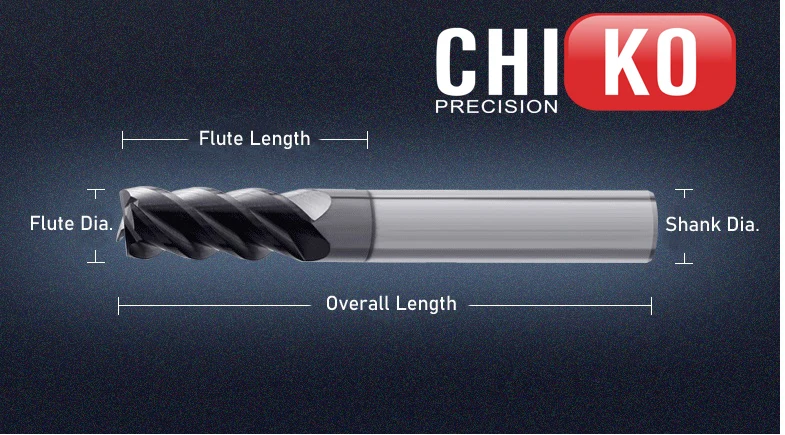

Flute Diameter x Flute Length x Shank Diameter x Overall Length
1
Φ1x3x4Dx50L
2
Φ1.5x4x4Dx50L
3
Φ2x6x4Dx50L
4
Φ2.5x8x4Dx50L
5
Φ3x8x4Dx50L
6
Φ3.5x10x4Dx50L
7
Φ4x10x4Dx50L
8
Φ4x20x4Dx75L
9
Φ5x13x5Dx50L
10
Φ6x15x6Dx50L
11
Φ6x20x6Dx75L
12
Φ6x30x6Dx100L
13
Φ8x20x8Dx60L
14
Φ8x25x8Dx75L
15
Φ8x35x8Dx100L
16
Φ10x25x10Dx75L
17
Φ10x40x10Dx100L
18
Φ12x30x12Dx75L
19
Φ12x45x12Dx100L
20
Φ14x40x14Dx100L
21
Φ16x40x16Dx100L
22
Φ18x40x18Dx100L
23
Φ20x40x20Dx100L
24
Φ6x30x6Dx150L
25
Φ8x40x8Dx150L
26
Φ10x50x10Dx150L
27
Φ12x50x12Dx150L
28
Φ14x60x14Dx150L
29
Φ16x65x16Dx150L
30
Φ18x65x18Dx150L
31
Φ20x65x20Dx150L


Advantage

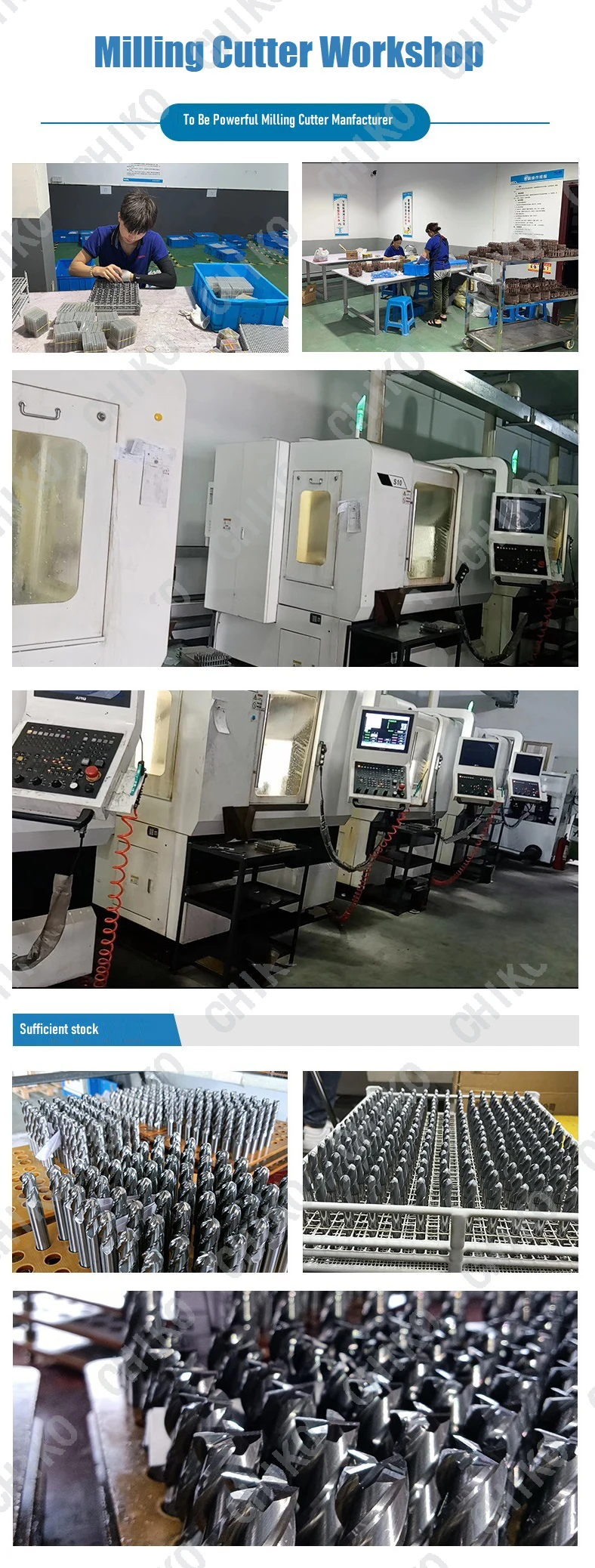

Workshop
