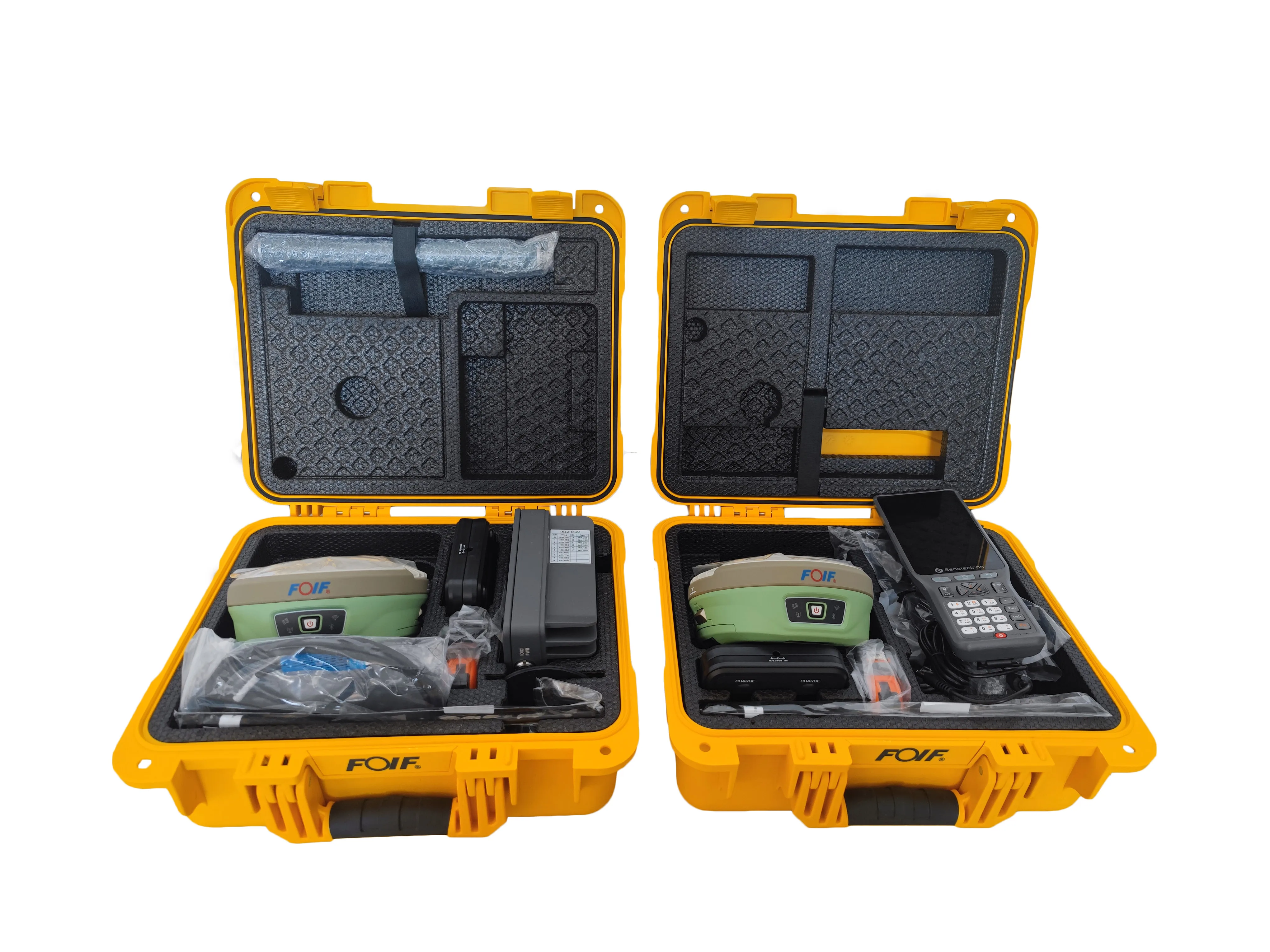

GPS RTK receiver 800 channels FOIF A90 gps surveying instrument gnss rtk Dual frequency land surveying gnss rtk receiver
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600922659415):
Product Overview
Description
Product Description
● Compact design, more productive
● Professional GNSS satellites tracked simultaneously(GPS, Glonass, Galileo, Beidou)
● Automatic data collection during centering
● It has IUM function. When the pole is tilted in 60 degrees, it still could get the right point data by automatic correct system.
● Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status
● Bundled Android field software brings a big change in user experience and accessibility

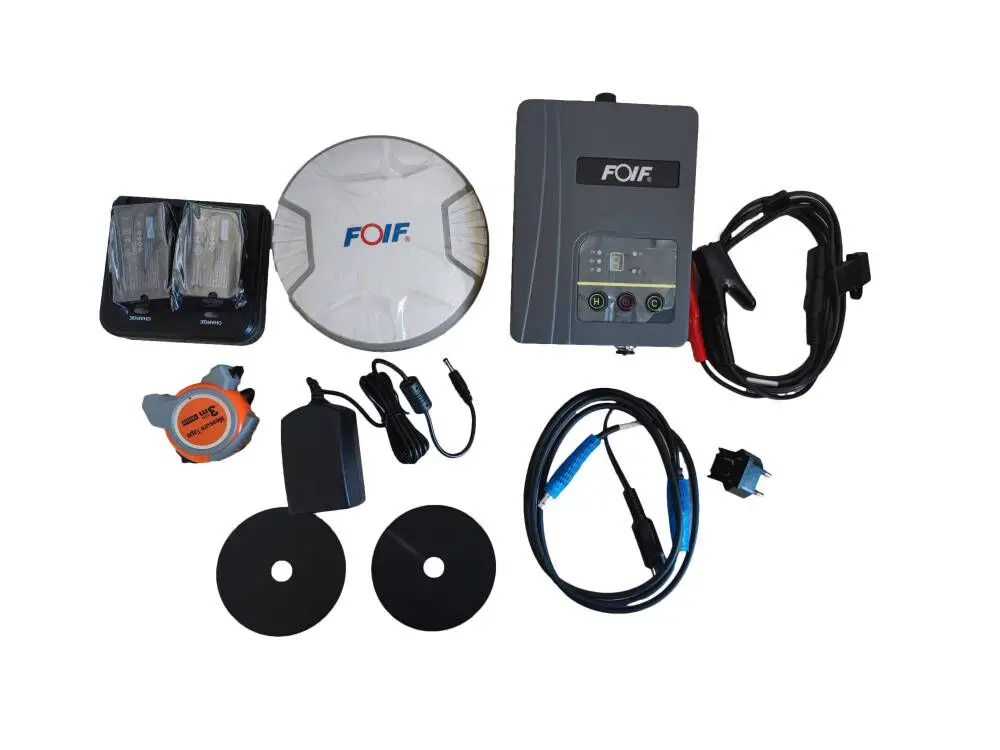

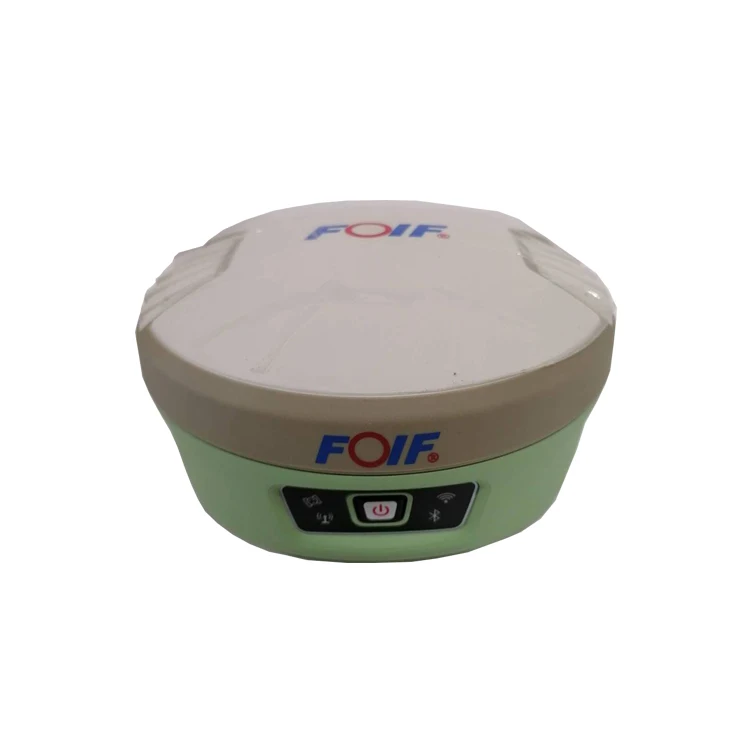

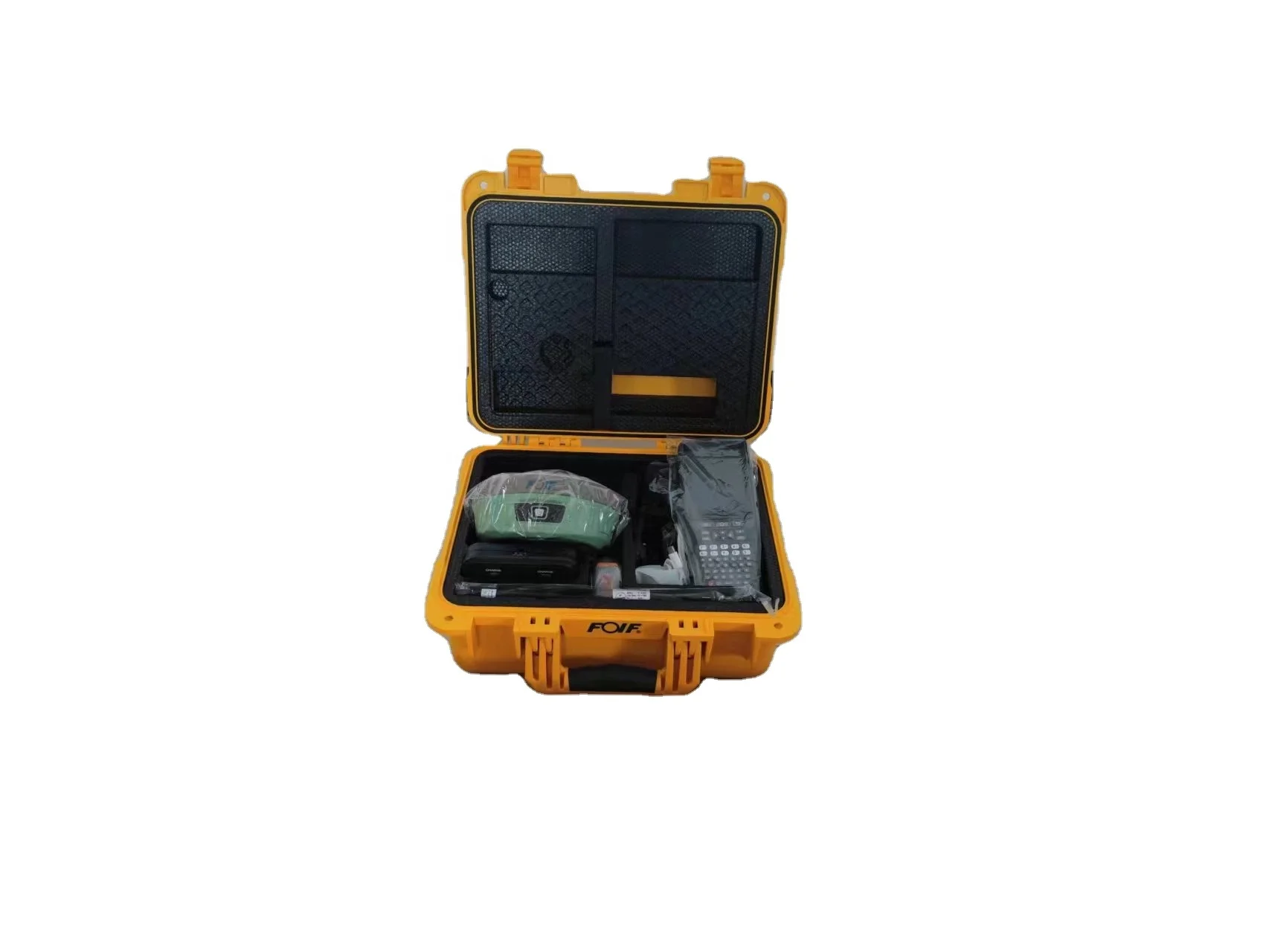

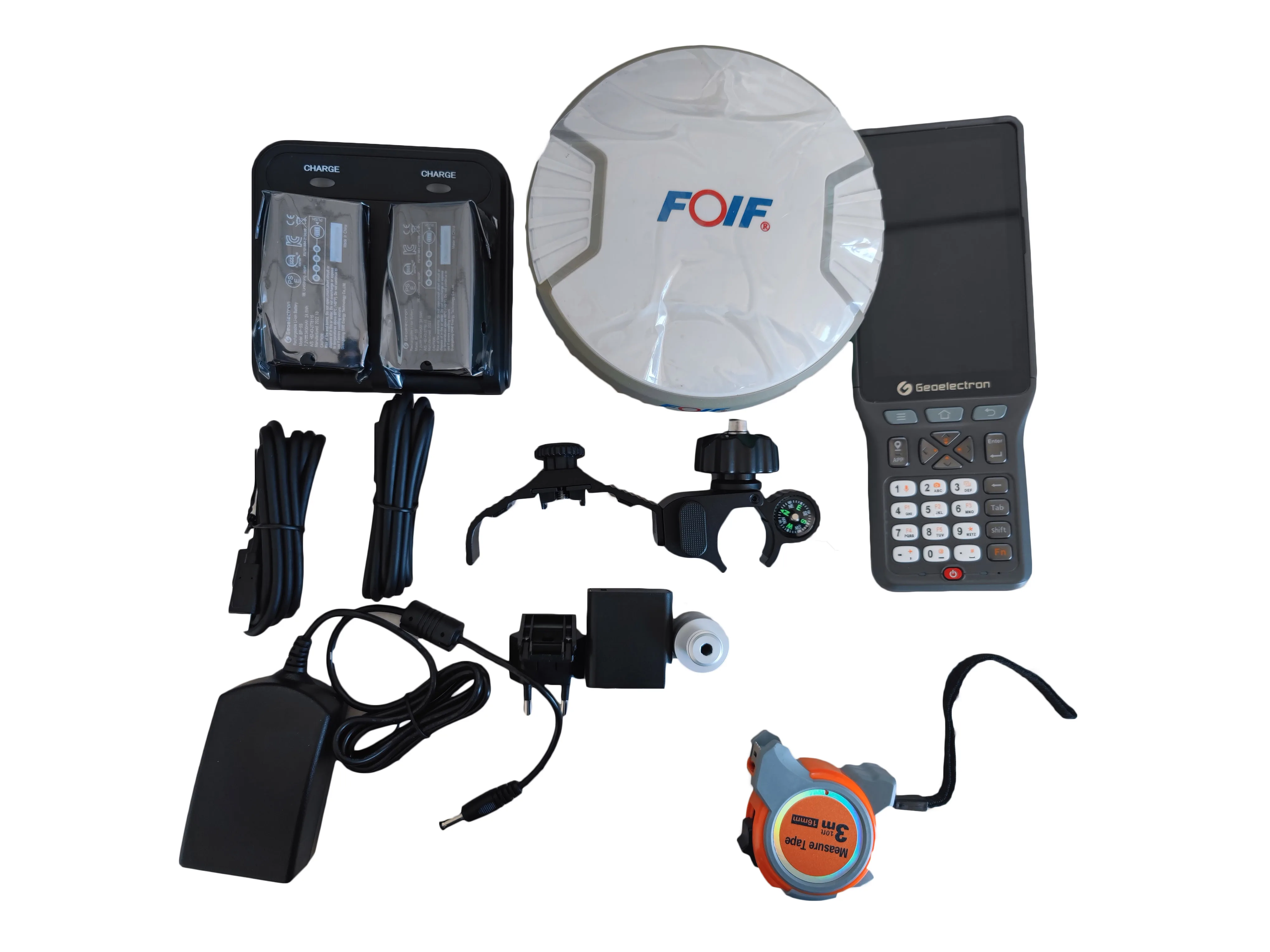

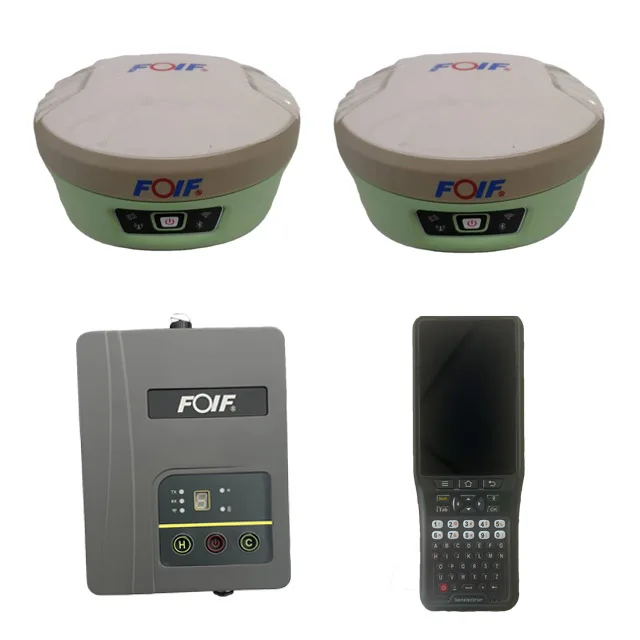

Detailed Images
Specification
Items | Specification | |
GNSS Engine | Model | A90 |
GNSS board | P20 | |
Channel | 800 channels | |
Satellites | GPS: L1C/A, L2E, L2C, L5 | |
GLONASS: L1C/A, L2 C/A, L3, CDMA | ||
BeiDou: B1I, B2I, B3I,B1C, B2a,B2b, ACEBOC | ||
Galileo: E1, E5 AltBOC, E5A, E5B, E6 | ||
NavlC (IRNSS): L5 | ||
SBAS: L1C/A, L5 | ||
QZSS: L1C/A, L1 SAIF, L1C, L2C, L5, LEX | ||
IMU function | tilt survey 60 degree | |
Performance Specifications | Time to First Fix | Cold Start: ＜45 seconds Warm Start: ＜30 seconds Signal Re-acquisition:＜2 seconds |
RTK Initialization time | Typically ＜8 seconds RTK Initialization Reliability ＞99.9% Position Latency: ＜20ms | |
Receiver Accuracy | Static post processing accuracy | Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm |
RTK Positiong accuracy | Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm | |
Code different positioning accuracy | 0.45m | |
Single point positioning | 1.5m | |
System | Operating system | Based on Linux, support Web UI |
Memory | 8G ,supports extending 32GB | |
Voice | Multi language support | |
Wi-Fi | IEEE 802.11 b/g/n | |
Blue Tooth | V2.1+EDR/V4.1Dual,Class2 | |
Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | |
Power | 7.2V 6800mAh , removable battery | |
over 13 hours when simultaneous use of 2 batteries | ||
Physical | Button | 1 Power Button |
Indication Light | 4 Indication Lights | |
Size | Φ156mm * H 76mm | |
Weight | 1.2kg | |
TNC port | connecting built-in radio antenna | |
5-pin lemo port | connecting external power supply and external radio | |
7-pin lemo port | (USB+serial port): connecting PC and handheld | |
Operating temperature | -30℃ to +65℃（-22°F to +149°F） | |
Storage temperature | -40℃ to +80℃（-40°F to +176°F） | |
Humidity | 100% condensing | |
Waterproof | IP68 | |
Shock | 2m (6.56ft) pole drop | |
1.2m (3.94ft) free drop |

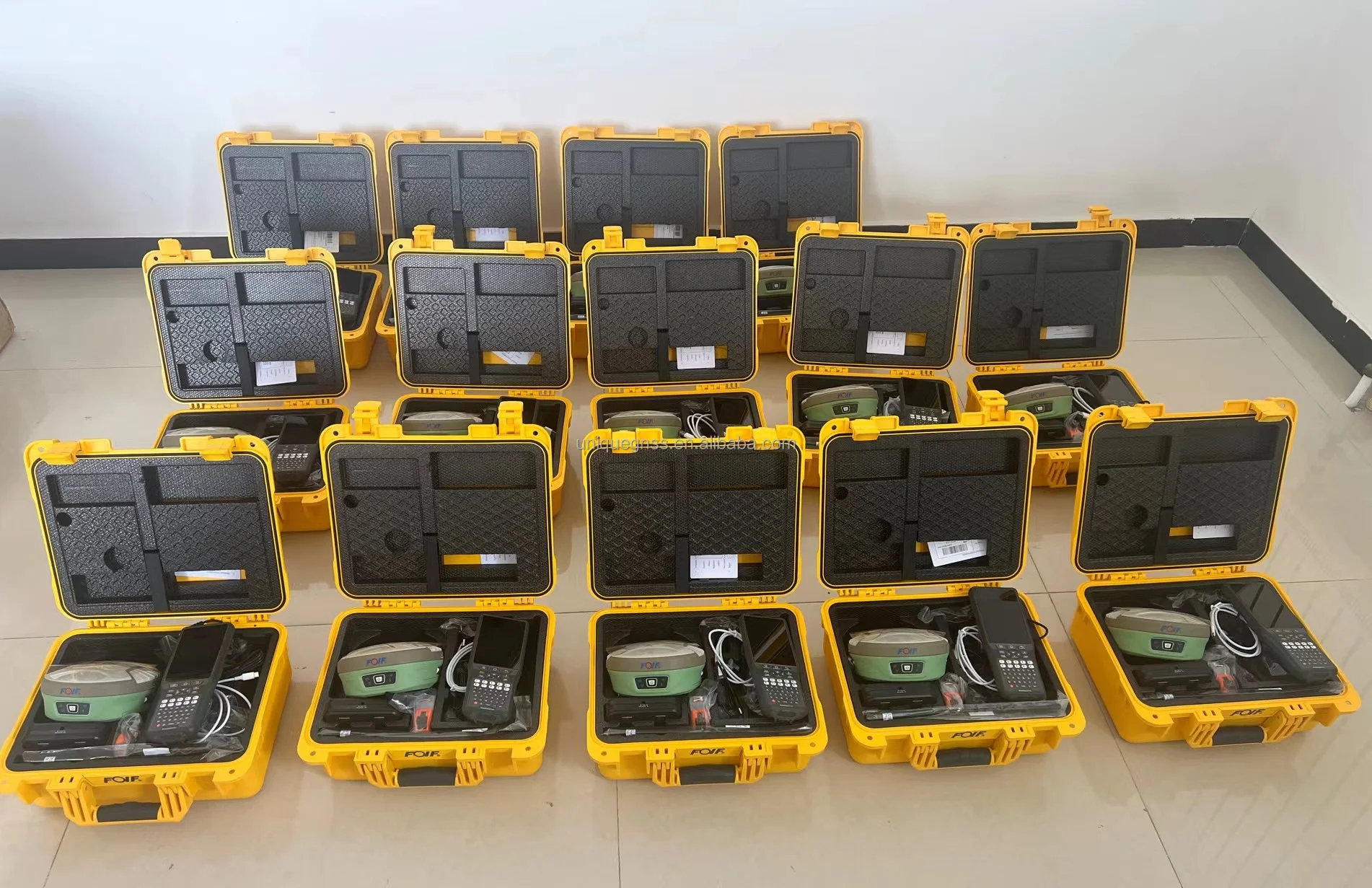

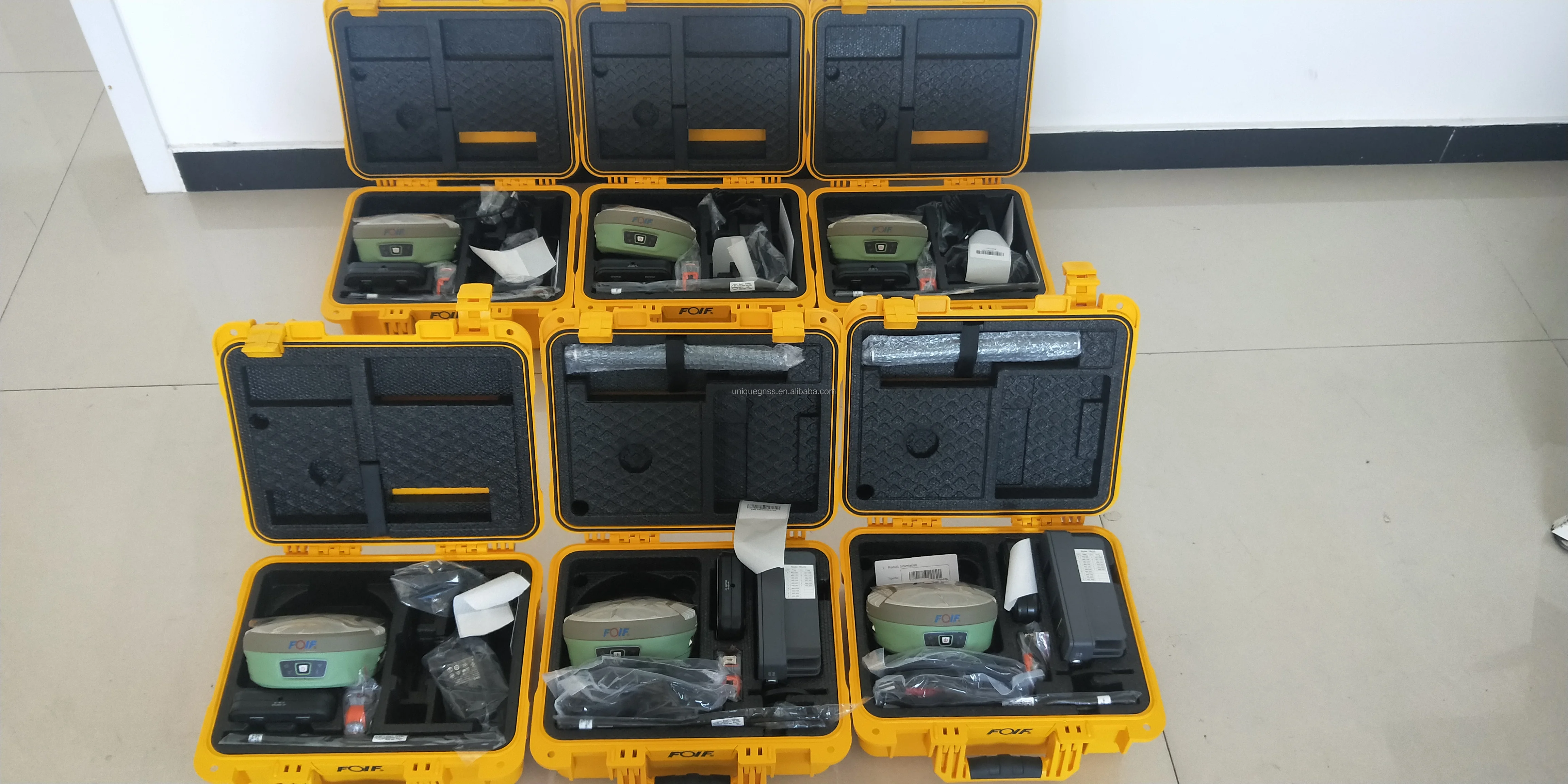

Package and Delivery
