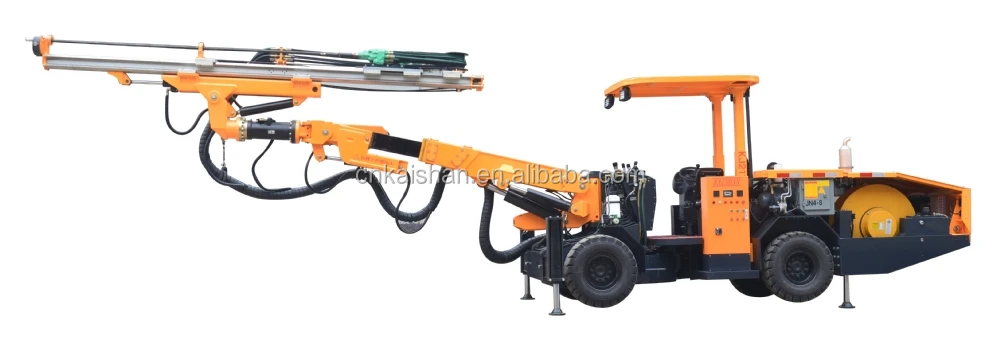

mining jumbo underground drilling rig automatic tunnel drilling rig
- Category: >>>
- Supplier: Zhengzhou Kaishan Mechanical & Electrical Equipment Co. Ltd.
Share on (1600922723438):
Product Overview
Description
Products Description

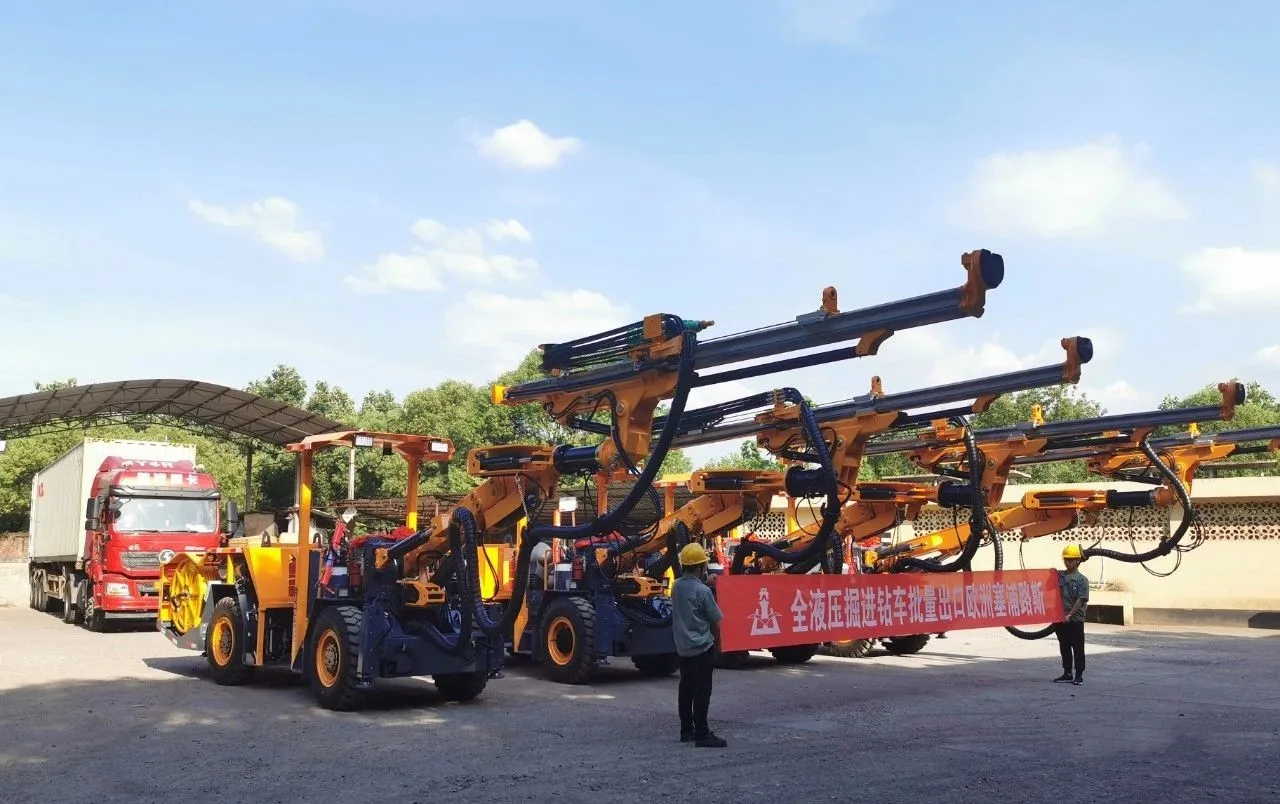

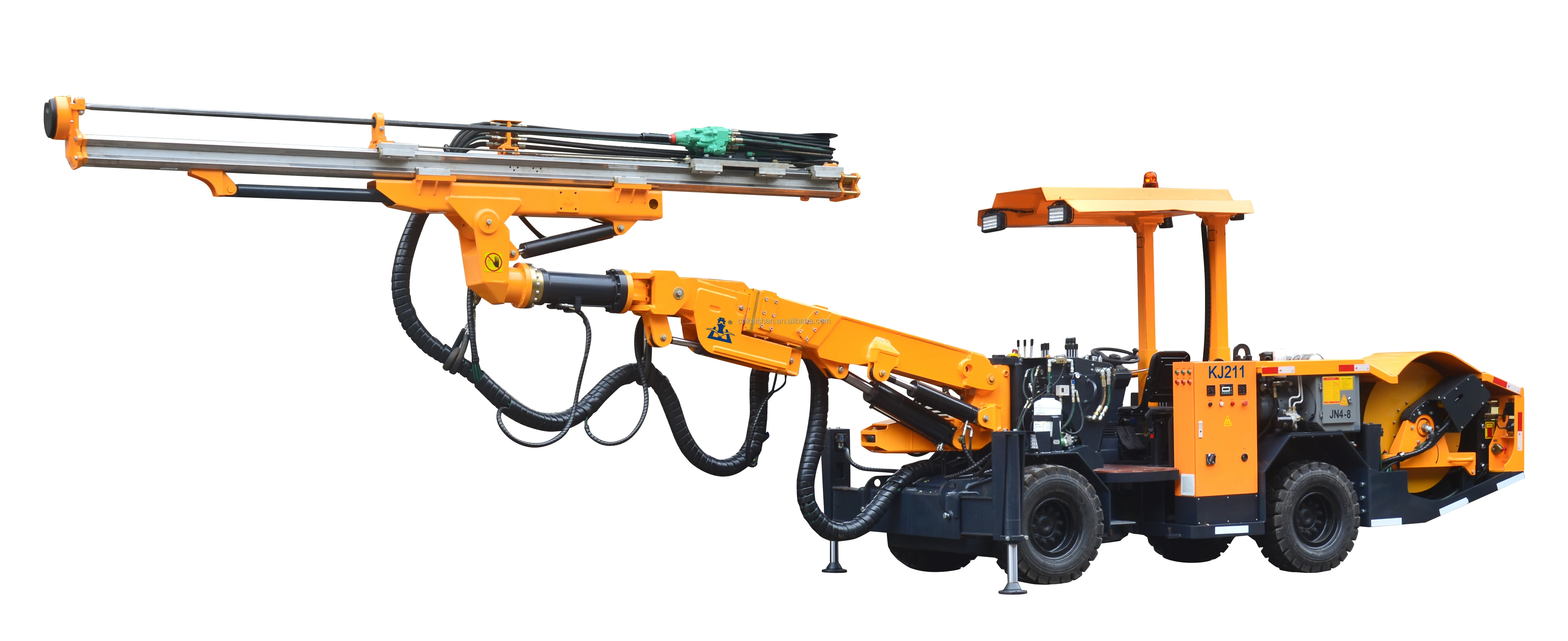

wheeled small mining jumbo underground automatic tunnel drilling rig
KJ211 intended for mining, preparation and tunneling, hydraulic drill rig to work independently, you can drill vertical, inclined and horizontal boreholes; for 12-35m2 section of for Hard Rock Excavation operations.Rugged and reliable universal boom section covering the best shape, advancing beam 360 ° flip and automatic flat allowing quick and easy to achieve drilling location. Lateral arm but it can also be used to open the Shihmen and anchor drilling operations. Drill operator arrangement ensures good vision.Arrangement balanced, powerful four-wheel-drive chassis is hinged in the narrow tunnel can ensure flexible, fast and safe driving. High impact drilling machine cascade optimized piston shock wave transmission efficiency, improve the drilling speed and reduces solder consumption and increasing the rate of well equipment.Spacious work space and a series of automatic functions help the driver concentrate on safe, fast and accurate drilling;Various maintenance parts are well protected, while easy maintenance

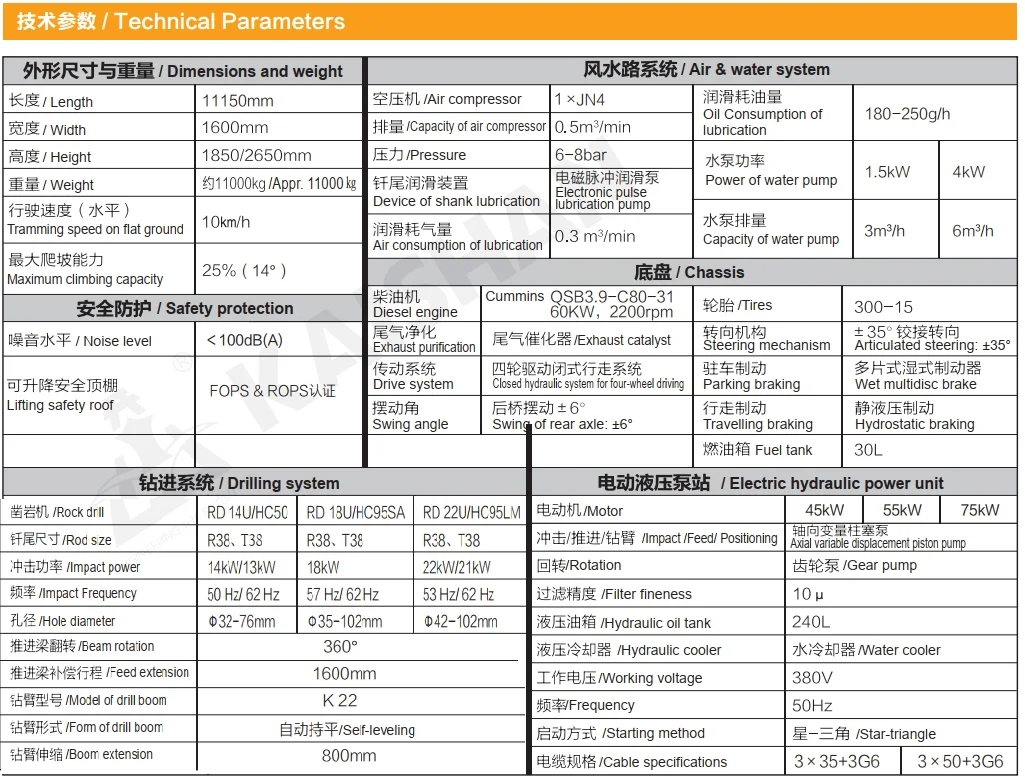

Product Parameters
KJ211 Main Features and Specification | |||||

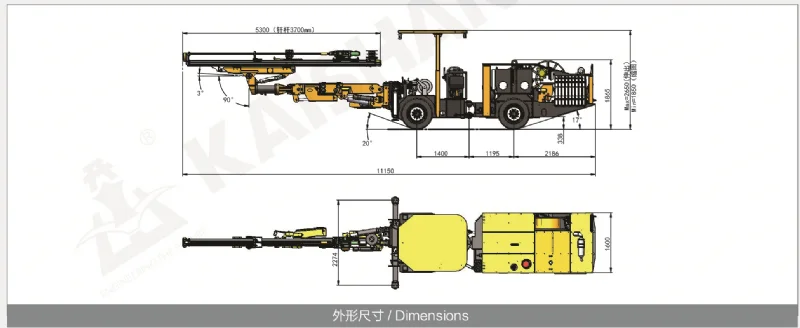

Dimension and Weight | Length (Running) | 10000mm | |||
Width (Running) | 1600mm | ||||
Height (Running) | 1850/2650 mm | ||||
Weight | About 11000 kg | ||||
Walking Speed,Horizontal | 10 km/h | ||||
Grade ability | 25% (20°) | ||||
Protection | Noise level | <110 dB(A) | |||
Adjustable safety canopy | POPS +ROPS | ||||
Drilling System | Drifter | 1×HC50/R38 | 1×HC109/R38 | ||
Weight | 112KG | 151KG | |||
Percussion power | 13kW | 18.8kW | |||
Percussion Flow | 105L/min | 135L/min | |||
Percussion power | 130bar | 130-160Bar | |||
Rotation pressure | 150bar | 150bar | |||
Frequency | 62 Hz | 47Hz | |||
Rotation torque | 325Nm | 780Nm | |||
Hole Dia. | 32-76mm | 45-102mm | |||
Rod Size | R38-H35-R32 -3700 | ||||
Hydraulic Pusher | Model | KJ311.3 | |||
Feed roll-over | 360° | ||||
Pushing Length | 3450mm | ||||
Extension Length | 1600mm | ||||
Elevation Angle | 90° | ||||
Blow Angle | 90° | ||||
Swing Angle | Left 45° Right 45° | ||||
Hydraulic Drilling Boom | Model | K26F | |||
Type | Automatic parallelism | ||||
Boom Extension | 1200mm | ||||
Electric Hydraulic Power Station | Motor Power | 45kW/55kW AC Three Phase | |||
Percussion+feed+boom | Variable piston pump | ||||
Rotation | Gear pump | ||||
Filtration | 10μ | ||||
Hydr. tank | 240L | ||||
Hydr. oil cooler | Water Cooler | ||||
Products Details

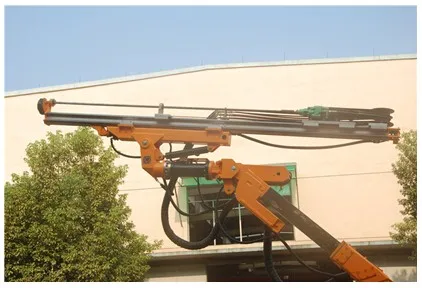

Drill Arm
The sturdy universal boom has the best cross-section coverage shape, and the 360-degree flip of the propelling beam and the automatic leveling facilitate quick and easy hollow positioning. The boom can also be used for lateral stone gate and bolt drilling operations.

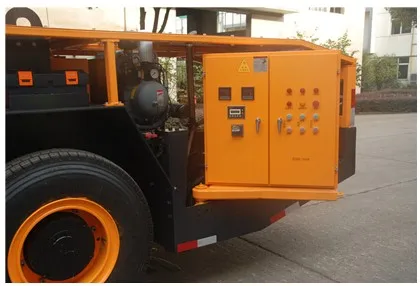

Electric Control Cabinet
Centralized control of the electrical box is simple to understand and easy to view and operate

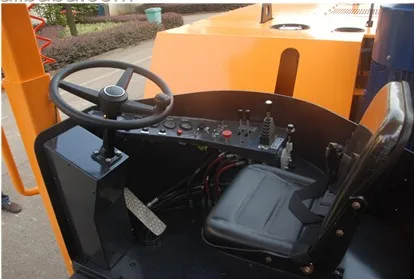

Independent Cab
Independent and spacious work space and a range of automatic functions help the driver focus on safe, fast and accurate drilling

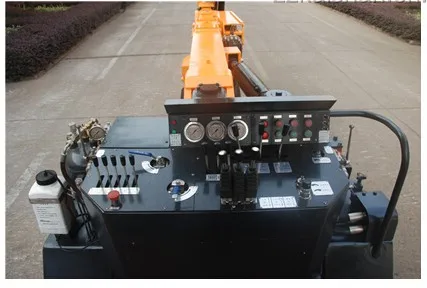

Operation
The centralized operation platform is convenient for one person to control the machine, which is more convenient and fast.
Related Products

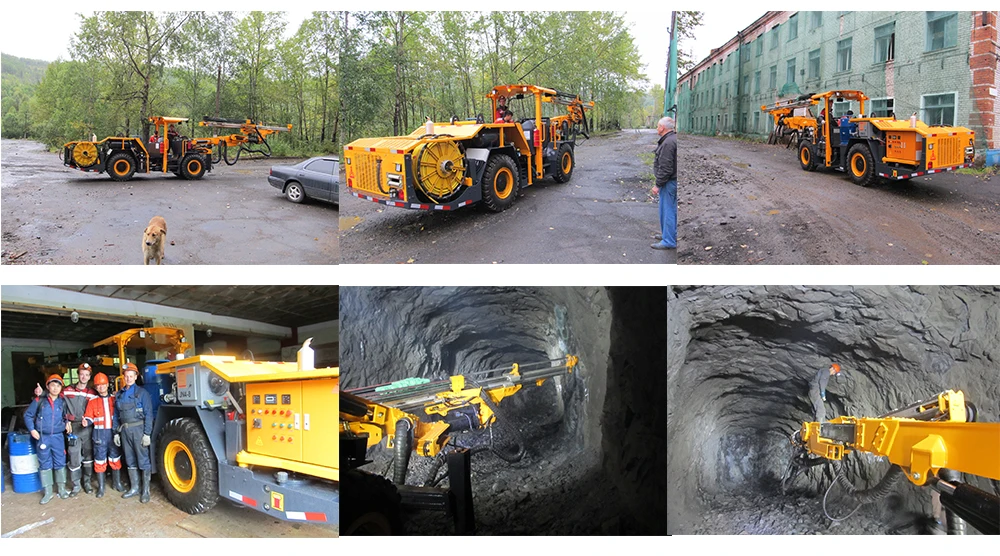

Exhibition
