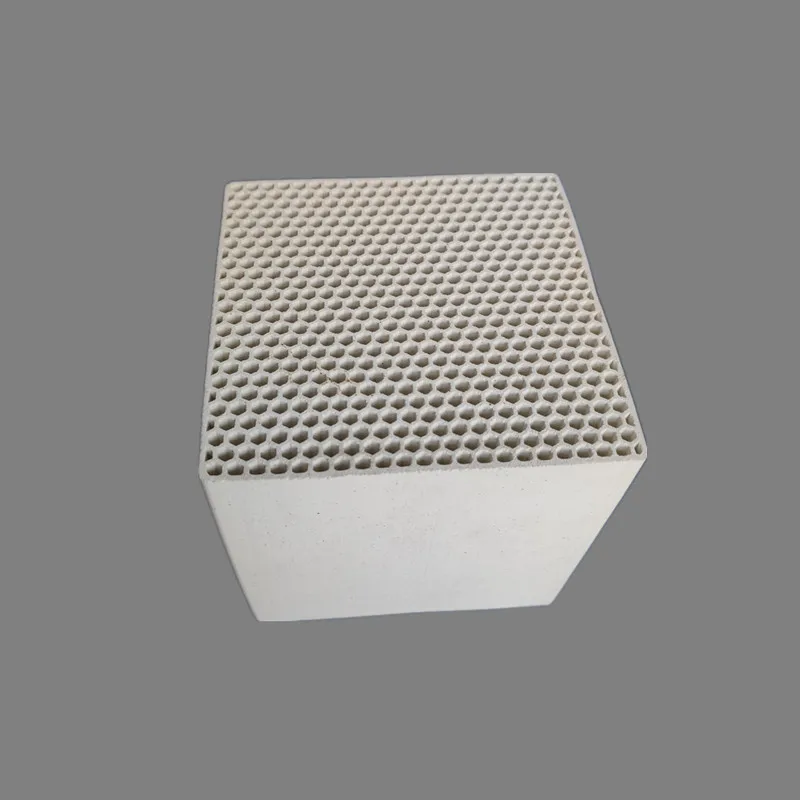

100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger
100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger

100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger

Share on (1600922749367):


Price:$5.00 - $10.00

Quantity:


Product Overview

Description



Products Description

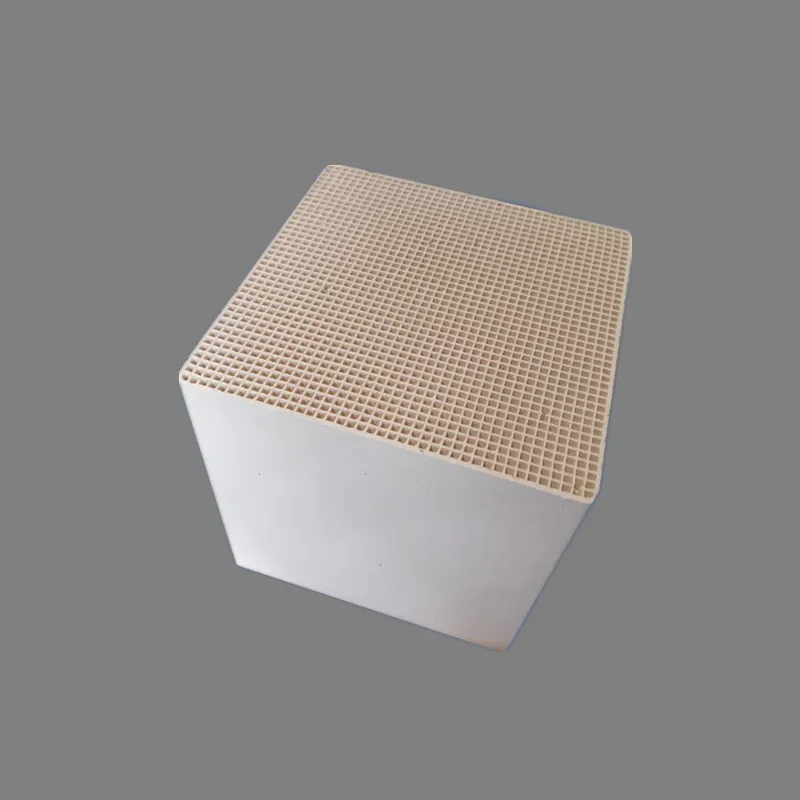

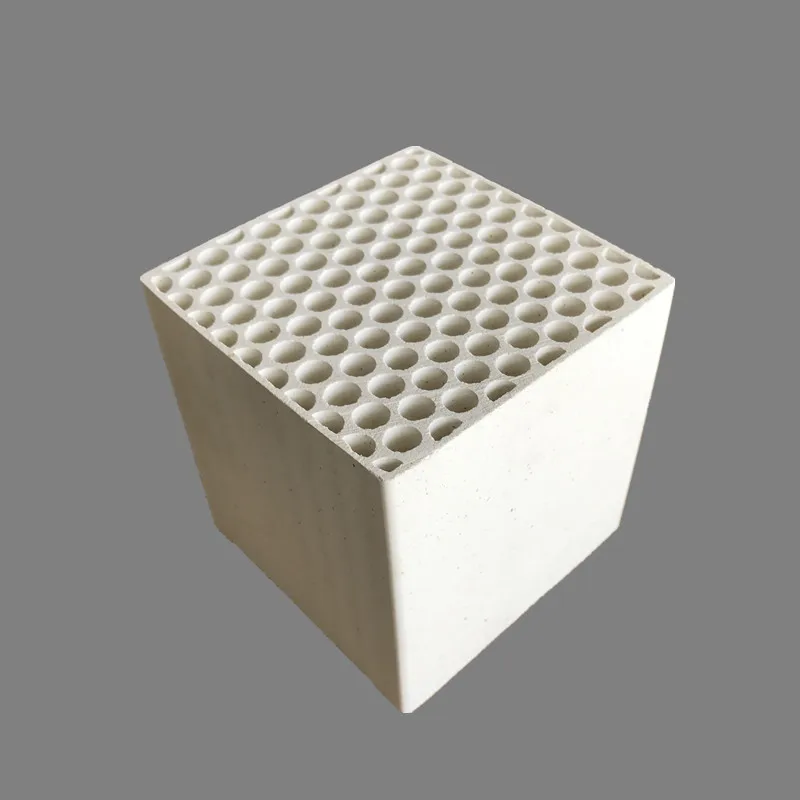

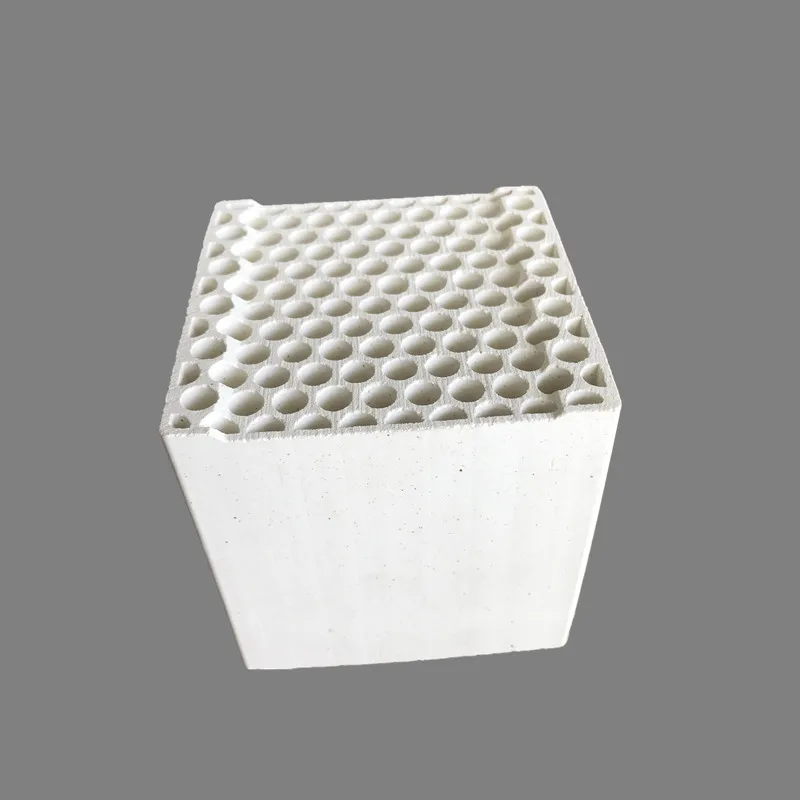

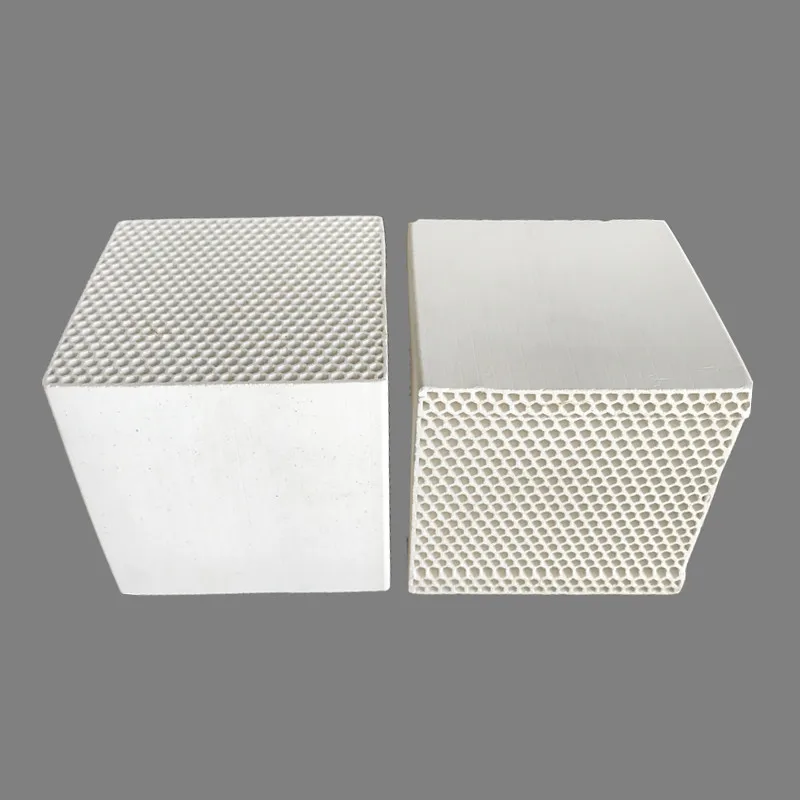

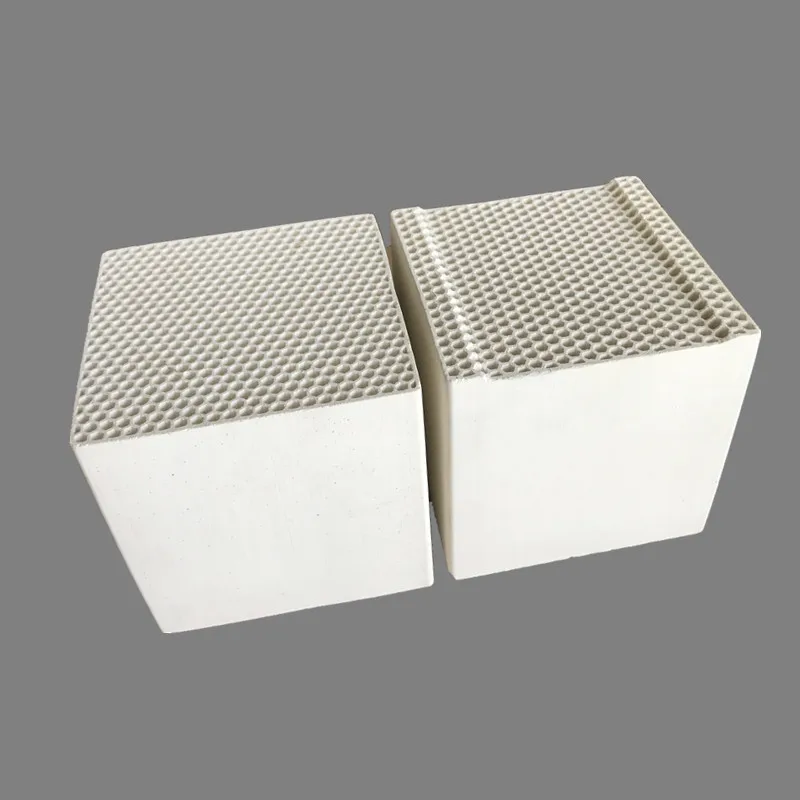

100*100mm Cellular Honeycomb Ceramics for RTO RCO Heat Exchanger

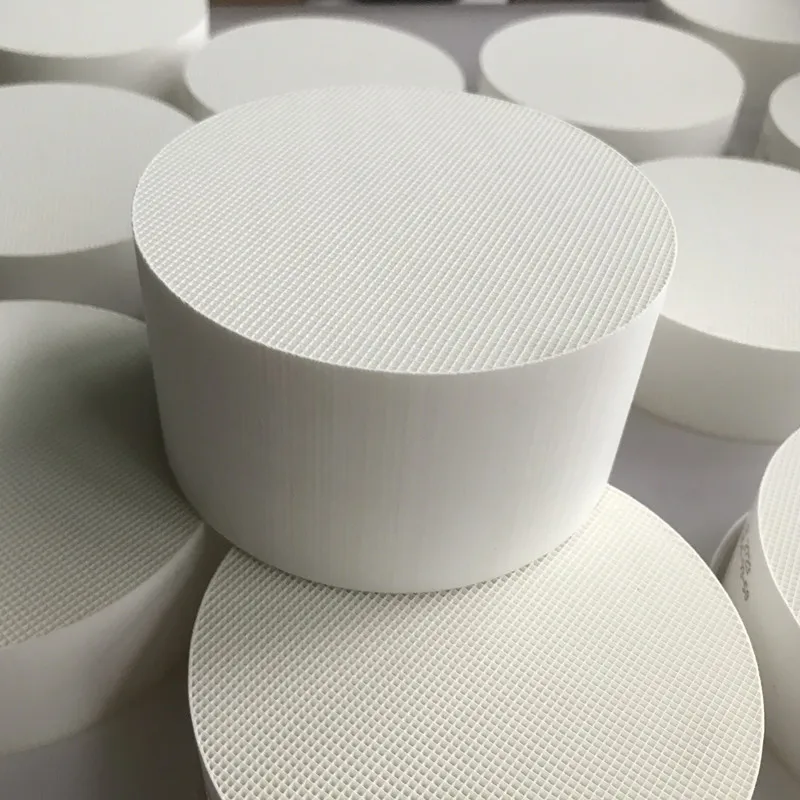

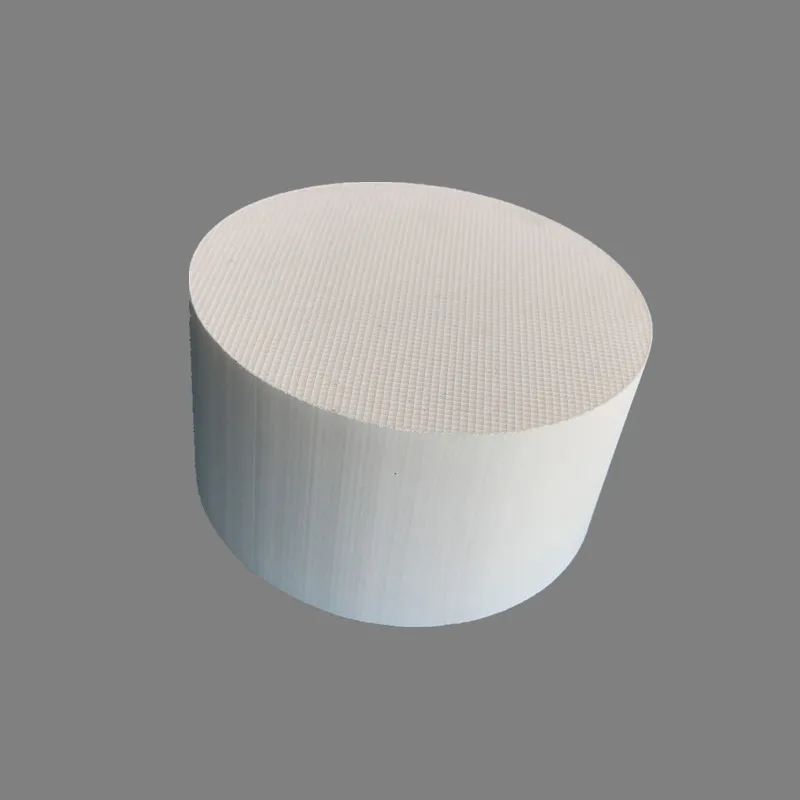

Honeycomb ceramic is used as DOC, SCR and DPF substrate. It features higher cpsi, thin wall and higher specific surface area, etc. After being coated with precious metal, it is applied to diesel and gasoline exhaust system and industrial gas treatment. We make customized production based on your specification.


Features of catalytic converter ceramic substrates:
* Environmental-friendly
* Wear-resistant, long lifespan
* Main raw material: cordierite ceramic and is the key component of three-way catalytic converter.
* High temperature resistance;
* High mechanical strength;
* 100cpsi, 200cpsi, 300cpsi, 400cpsi, 600cpsi;

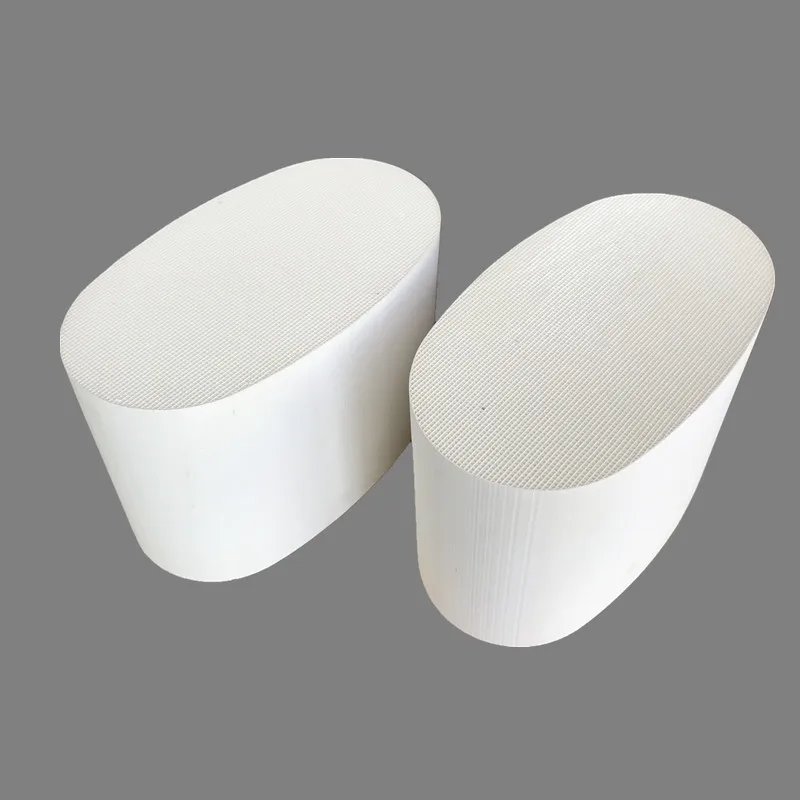

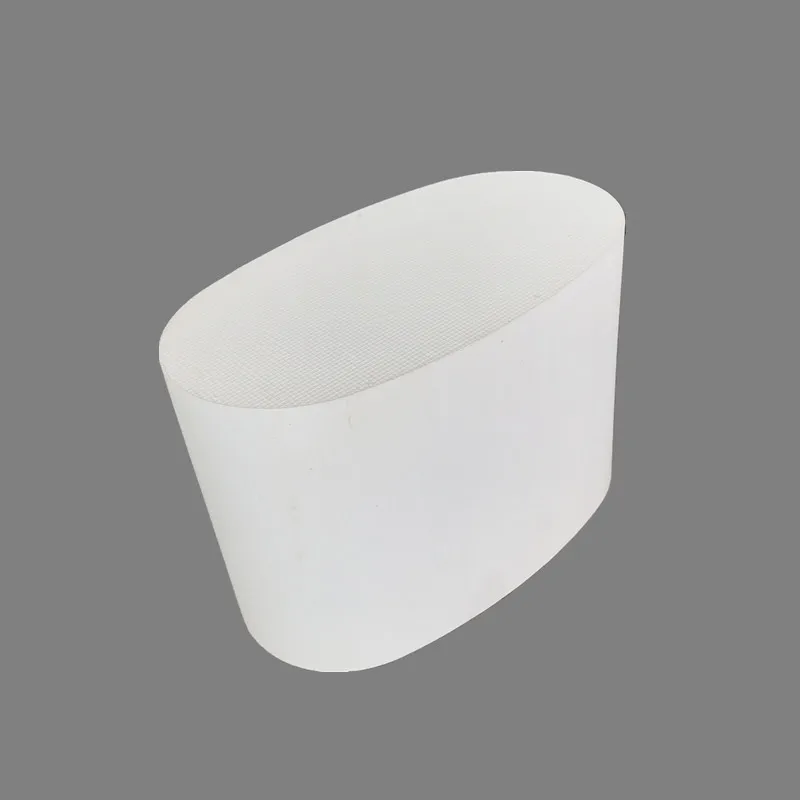

* Shape can be round, racetrack, oval, square based on request;


Application of catalytic converter ceramic substrates:
* Substrate for gasoline / petrol fuel engine exhausting system
* Substrate for diesel fuel engine exhausting system
* Substrate for air filtering;
* Substrate coated with precious metal (palladium, platinum and rhodium) to make catalytic converter. It removes harmful
chemicals of automobile exhaust purification system, such as HC, CO, NOX. It can meet Euro I, Euro II, Euro III, Euro IV and Euro V standard.

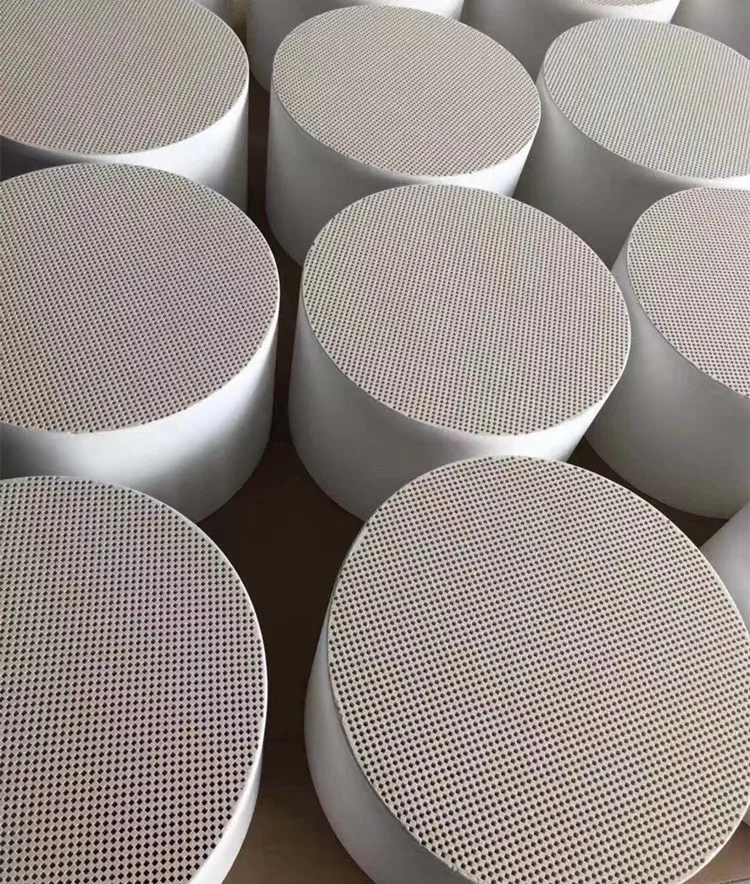

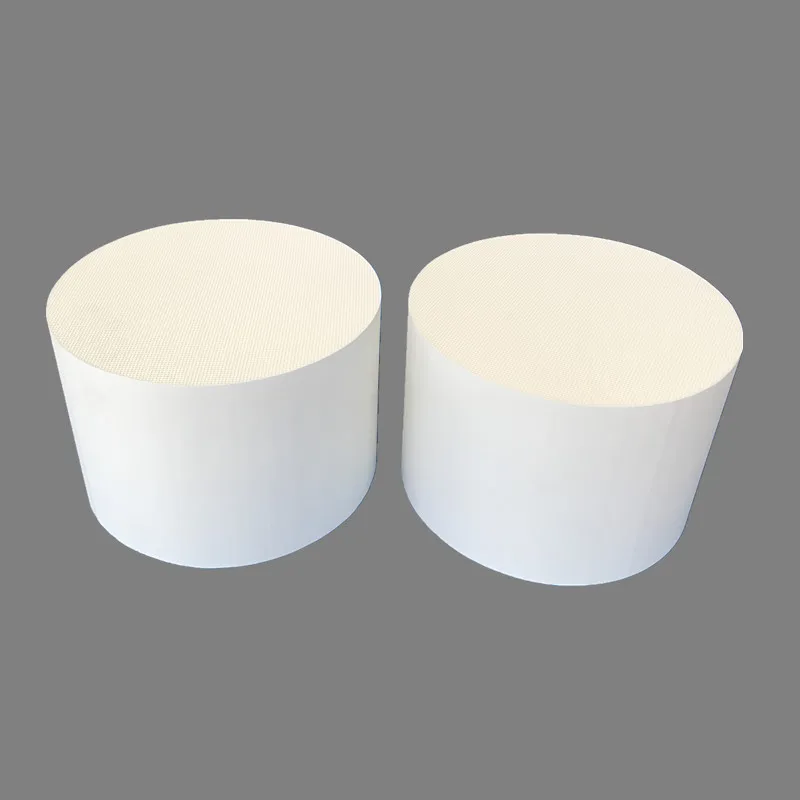

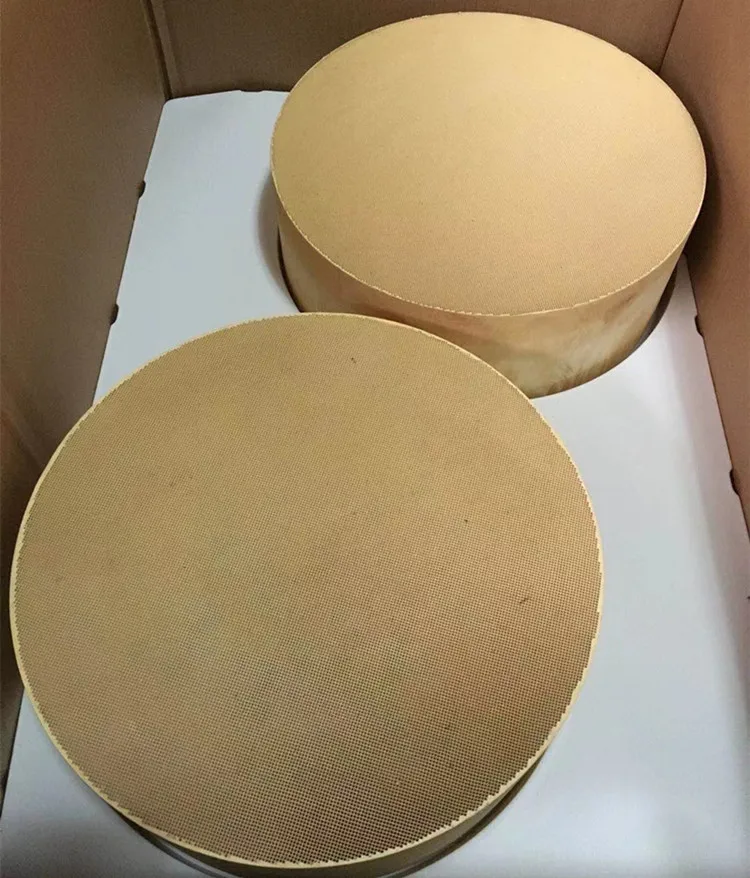

Details Images














Product Paramenters


Properties of Honeycomb Ceramics
Item
Unit
Alumina Ceramic
Dense Cordierite
Cordierite
Mullite
Density
g/cm3
2.68
2.42
2.16
2.31
Bulk Density
kg/m3
965
871
778
832
Thermal Expansion Coefficient
10-6/k
6.2
3.5
3.4
6.2
Specific Heat Capacity
j/kg·k
992
942
1016
998
Thermal Conductivity
w/m·k
2.79
1.89
1.63
2.42
Thermal Shock Resistance
Max K
500
500
600
550
Softening Temperature
℃
1500
1320
1400
1580
Maximum Service Temperature
℃
1400
1200
1300
1480
Average Heat Capacity
w/m·k/m3·k
0.266
0.228
0.219
0.231
water Absorption
%
≤20
≤5
15-20
15-20
Acid Resistance
%
0.2
5.0
16.7
2.5


Regular size of DOC/SCR ceramic substrate
Dimension (Dia*H)) (mm)
CPSI
Dimension (Dia*H) (mm)
CPSI
Dimension (Dia*H) (mm)
CPSI
190*101.6
300/400
240*152.4
300/400
305*101.6
300
190*152.4
300/400
267*101.6
300/400
305*152.4
300
228*101.6
300/400
267*152.4
300/400
330*101.6
300
228*152.4
300/400
286*101.6
300
330*152.4
300
240*101.6
300/400
286*152.4
300


Regular size of DPF ceramic substrate
Dimension
(Dia*H) (mm)
CPSI
Dimension
(Dia*H) (mm)
CPSI
Dimension
(Dia*H) (mm)
CPSI
118*152.4
100/200
228*203
100/200
267*203
100/200
127*200
100/200
228*254
100/200
267*254
100/200
144*152.4
100/200
228*305
100/200
267*305
100/200
144*203
100/200
240*152.4
100/200
286*203
100/200
144*254
100/200
240*203
100/200
286*254
100/200
190.5*152.4
100/200
240*240
100/200
286*305
100/200
190.5*203
100/200
240*254
100/200
305*254
100/200
190.5*254
100/200
240*305
100/200
305*305
100/200
190.5*305
100/200
267*152.4
100/200
330*305
100/200


Company Profile

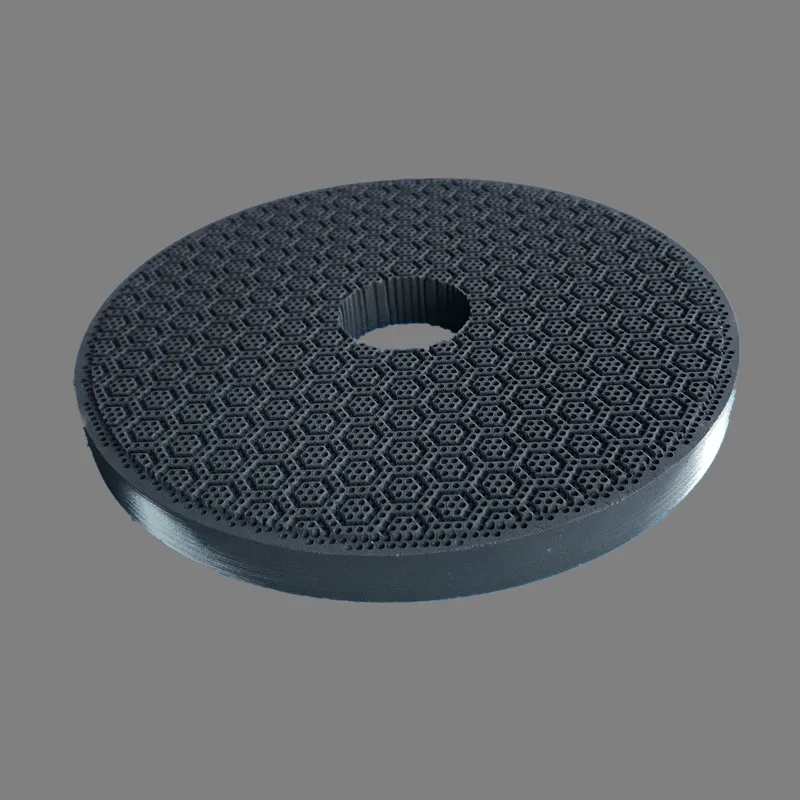

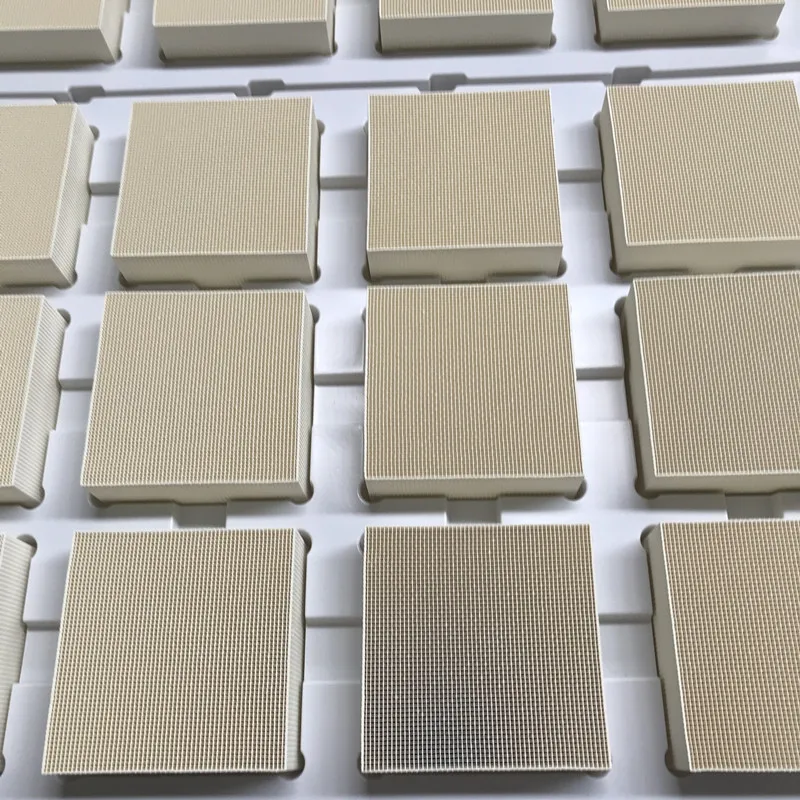

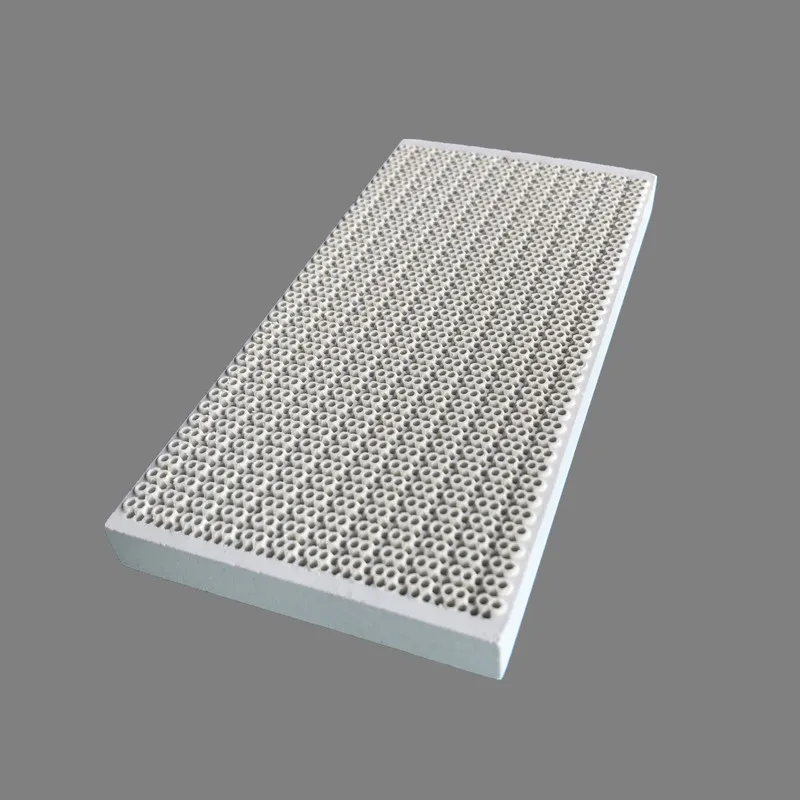

Located in Hunan province, Global New Material Technology Co.,Ltd is specialized in the manufacturing of advanced ceramic components based on customer specification. We cover an area of 6000 square meters and are staffed with about 100 workers. The main products include cordierite honeycomb ceramic bricks for RTO& RCO, ceramic substrates for DOC, DPF, SCR and infrared honeycomb ceramic burning plate for gas stove. We focus on providing cost effective solutions to waste and gas treatment, environmental protection, household heating appliances etc.
With strict quality control and our best service, the products have been sold well on the domestic market and exported to many countries in North America, Europe, Middle East, South East Asia, etc.
Our mission is “Quality, Value and Innovation”. We look forward to a long-term business relationship with you.




Recommend Products






Certifications




FAQ


Why us?
* Professional manufacturer since 2010.
* Strict quality control on production process and tolerance.
* Customized production based on your specification.
* On-time delivery and reliable support and service.
* Inventory available for quick shipment.
* We keep confidentiality of all the drawings and business information between us.


Are you a trading company or a manufacturer?
* We are a trading company and a manufaturer.


Do you accept customized production based our specification?
* Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea, we will work out the drawing for you.


What's the delivery time?
* 7-10 working days for standard products 20-30 days for customized products.


What is the MOQ?
* No limit to the quantity. We can offer the best proposal and solutions according to your condition. But we will offer more discount based on higher quantity.


What is the payment terms you accept?
* We accept T/T, LC, Western Union, Alibaba trade assurance.
