Fried Pallets Snacks Making Machine Fried Snack Food Wheat Flour Bugles Chips Making Machine
- Category: >>>
- Supplier: Jinan Dayi Extrusion Machinery Co. Ltd.
Share on (1600922762309):
Product Overview
Description
Products Description

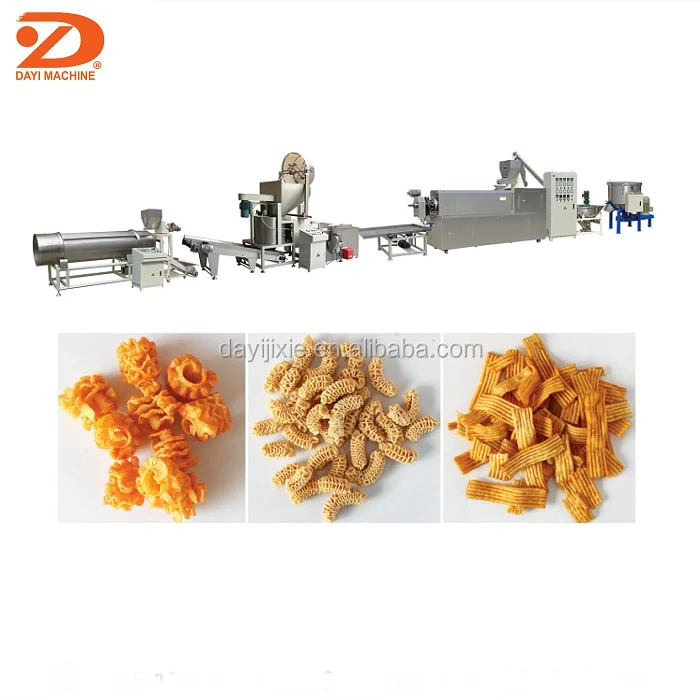

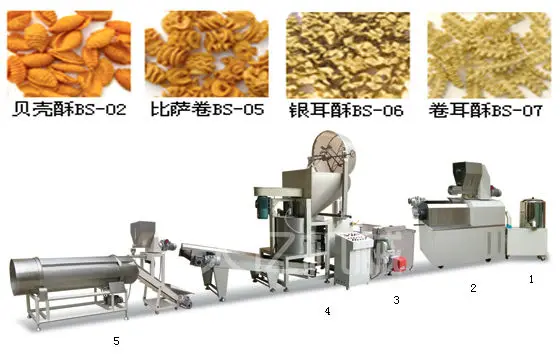

Fried Wheat Flour Snack Chips Production Machine
Fried wheat flour snack process line usee double-screw extruding technique to replace the traditaional steam boiling process. It includes mixing, steaming, curing, extruding, and shaping processes, no boiler, with high efficiency and no pollution. The raw material can be the rice flour, wheat flour, corn flour and their mixture. It also can make different shapes by chaing different shapes.
Model | Installed Power | Power Consumption | Capacity | Dimension |
SLG65-C | 40.75kw | 26kw | 100~150kg/h | 16500*2250*2900mm |
SLG70-A | 76.05kw | 54kw | 250~300kg/h | 20000*2250*2800mm |
SLG85-A | 121.05KW | 91kw | 350~400kg/h | 20800*3000*3000mm |
Main Features
1) Belt transmission between motor and gear box,reducing energy consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
Details Images

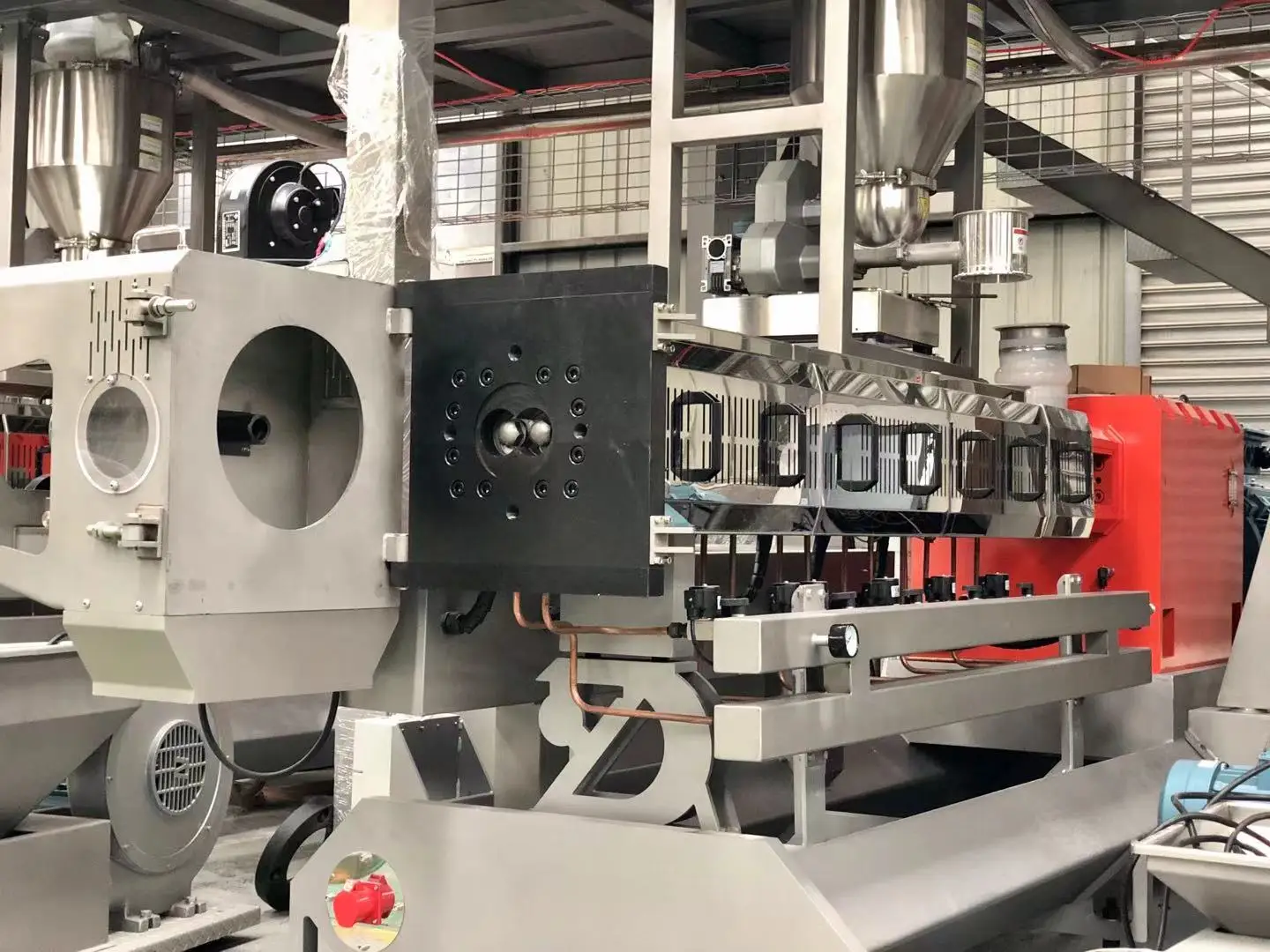

Double-screw Extruder
Model: SLG70-A
Installed power: 64.87KWScrew diameter: 70mm
Processing capacity: 250-300kg/h
Temperature control range: 0-399 ℃
Main drive power: 45KW
Rotary cutting drive power: 0.75KW
Dimension:20000*2250*2800
Oil Spray Flavoring Line
PG type drum seasoning machine
1.Drive power: 0.75KW
2.Working ability: 0-150kg/h
3.Boundary dimension: 2700*750*1500mm
1.Drive power: 0.75KW
2.Working ability: 0-150kg/h
3.Boundary dimension: 2700*750*1500mm
PY type fuel injector:
1.Oil pump: P-B2
2.Boundary dimension: 1000*800*1200mm
1.Oil pump: P-B2
2.Boundary dimension: 1000*800*1200mm
PF type automatic powder sprayer:
1.Driving power: 0.55KW
2.Boundary dimension:1300*450*1600mm
1.Driving power: 0.55KW
2.Boundary dimension:1300*450*1600mm
ZYG Automatic Fryer
Overall dimensions:4800*2300*2900mm
Production capacity: 150-250 kg/h
Installed consumption: 5kw (fuel type) 58.5kw (electric type)
Fuel consumption: 10-14 kg/h
Fuel burner: 120000 kcal
Explosion temperature: 190~220 ℃
Frying and degreasing time: 3-20s, adjusted by the corresponding switch on the control cabinet
Self provided air pump: 0-1.2Mpa
Production capacity: 150-250 kg/h
Installed consumption: 5kw (fuel type) 58.5kw (electric type)
Fuel consumption: 10-14 kg/h
Fuel burner: 120000 kcal
Explosion temperature: 190~220 ℃
Frying and degreasing time: 3-20s, adjusted by the corresponding switch on the control cabinet
Self provided air pump: 0-1.2Mpa
pulling cuttter
Model: 90FQ
Cut off driving power: 0.55kwTraction drive power: 0.37kw
Boundary dimension: 2300*830*1100mm
Production capacity: with extruder
Weight: 250kg
✍Real photos of our factory equipment
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Introduction
Jinan Dayi Extrusion Machinery Co., Ltd. was established in 1996 and has always been a professional manufacturer and leader of advanced and efficient extrusion food machinery in this field in the world. The freshman company has gathered a team of experts with over 20 years of experience in the extrusion machinery industry, striving not only to continuously research extrusion technology, but also to explore food processing processes to benefit our customers who produce creative food.
A corner of the factory area
After years of exploration and research, our screw extrusion technology has been widely used in the production of the following products: casual snacks, breakfast cereal and corn flakes, fried flour food, granular food, bread crumbs, soy protein and vegetarian, pet food, etc. More than 20 production lines can be selected. We can also provide customized services for special requirements.
Customer testing
Many influential large food companies and agent have chosen us as and set up worthy fellowship with us over 20 years, especially Oishi Foods Company in Japan, Ai Nasim food industries Co.,LTD in Jordan, Pt mayora indah tbk in Indonesia, Kinh Do Corporation in Vietnam, Universal robina corporation in Philippines, and the many agents like Vs tecnologia industrial in Brazil, Pakistan etc. Meantime.
Typical Client
Acecook Company in Vietnam
Typical Client
Shanti Foods Co.,LTD in India.
Typical Client
Mitsuwa Co.,LTD In Japan
Attending Fair in Thailand
Attending Fair in Canton

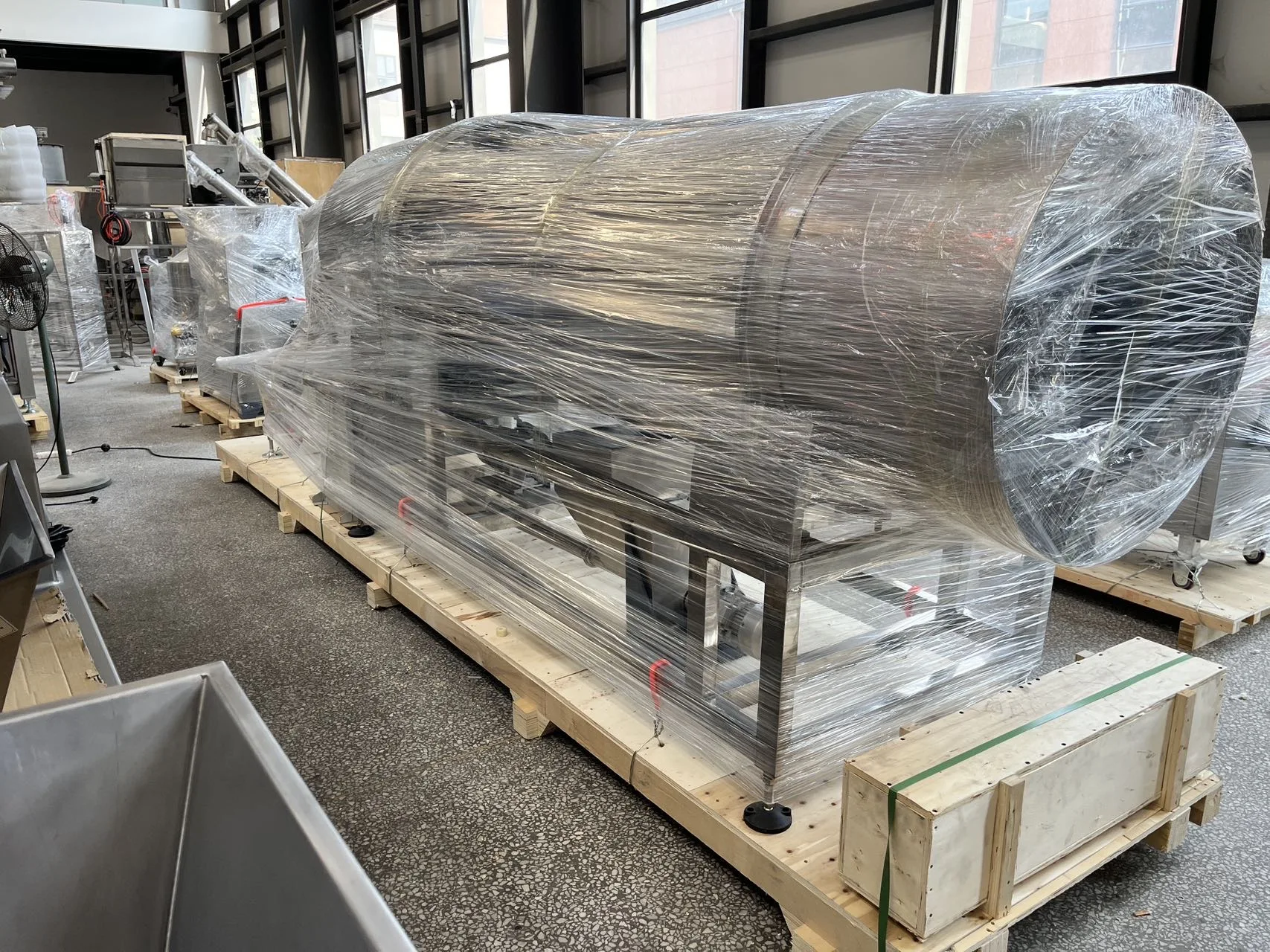

Packing&Shipping
1.Wooden Case or Wooden Pallet
2.Fumigation wooden cases, which are well sealed and strong enough for long-term trip, and suitable for multi-times loading &
unloading by forklift.
Contact Information
FAQ
Are you manufacturer or trader? | Certainly we are manufacturer. Welcome to visit us to check it！ | ||||||
Do you supply formula to buyers? | Yes, we provide free basic formulas to buyers. | ||||||
What kind of fuels we can choose? | You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation. | ||||||
What is the size of your company's machines? How to solve the problem if it's not suitable? | We can customize it for you,the best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space. | ||||||
If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine? | Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZand so on. | ||||||
Do you supply packing machine? | Yes, we can provide you with a packaging machine. | ||||||
