Industrial 3g4g Wireless Vpn Router Wifi HUASTLINK G10 Din rail Mounting Router Modem With Sim Card Slot Rs232 Rs485
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1600922772742):
Product Overview
Description

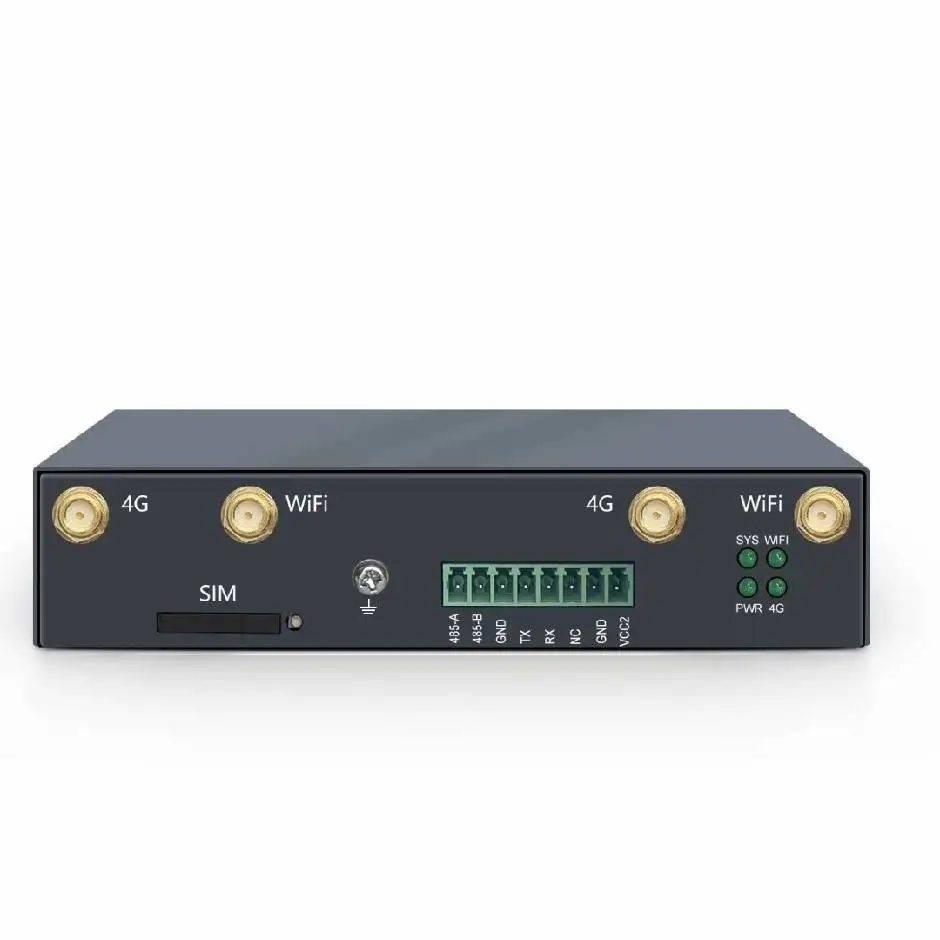

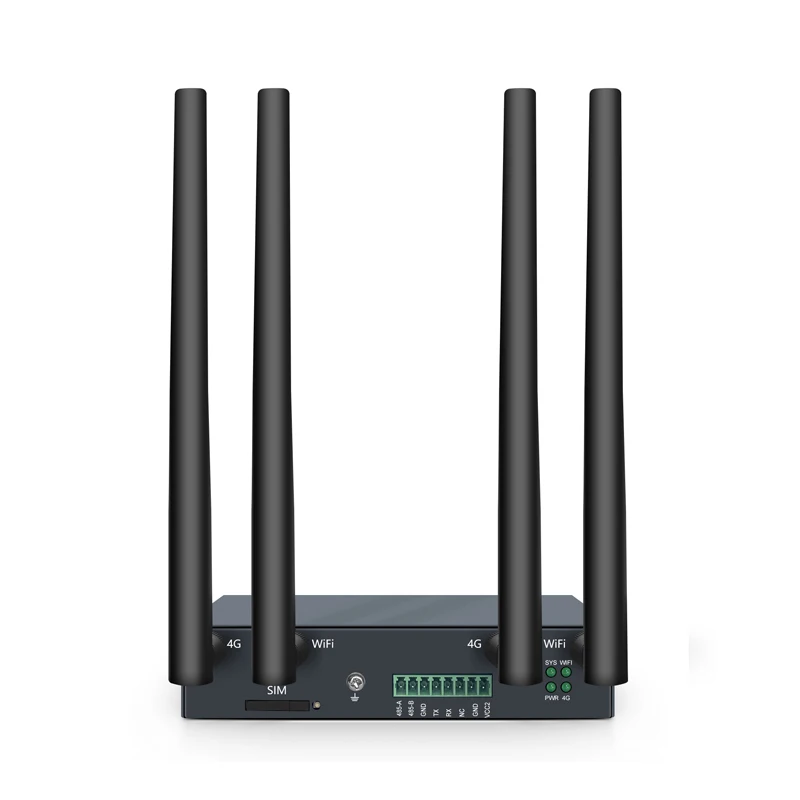

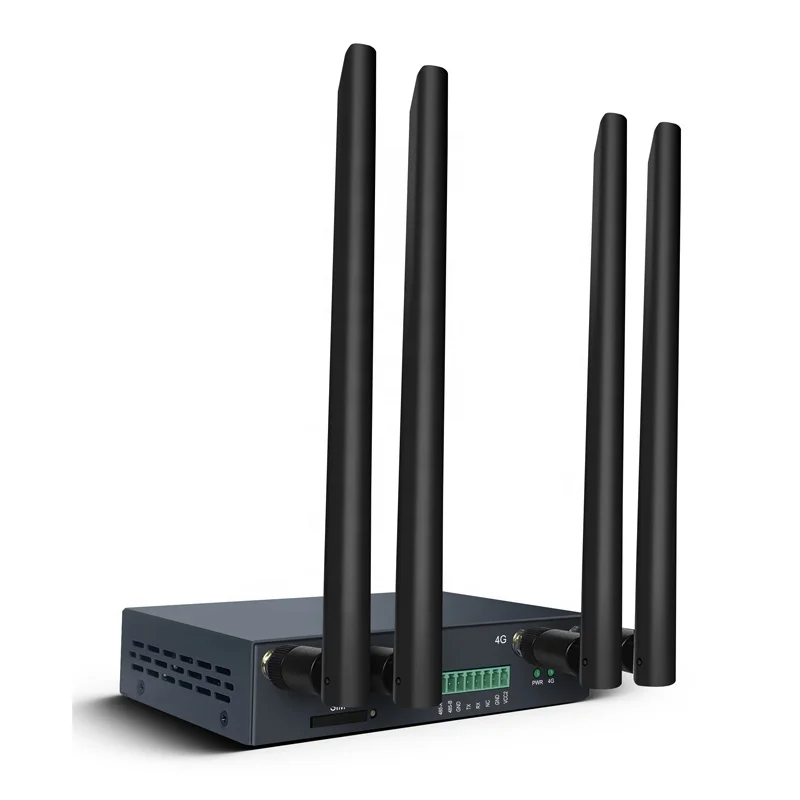

Industrial 3g4g Wireless Vpn Router Wifi HUASTLINK G10 Din-rail Mounting Router Modem With Sim Card Slot Rs232 Rs485
Simple Introduction
G10 is a high-performance Wi-Fi all-network 4G wireless industrial router tailored for industrial IoT scenarios. It integrates 4G LTE, 802.11b/g/n 300Mbps Wi-Fi, one SIM card slot, reserved design esim location , 10/100M adaptive Ethernet interface (4LAN and 1WAN), RS485/RS232 serial port, 48V PoE WAN, DC 9-48V wide voltage input, RS485 pass-through, VPN etc.
4G/3G/2G Frequency Bands
Asia:
LTE-FDD B1/B3/B5/B8,LTE-TDD B34/B38/B39/B40/B41
WCDMA B1/B5/B8
WCDMA B1/B5/B8
Europe, Africa:
FDD:B1/B3/B7/B8/B20/B28,TDD:B38/B40/B41
WCDMA:B1/B8
GSM:B3/B8
GSM:B3/B8
North America:
FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5
WCDMA:B2/B4/B5
Australia, South America:
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD :B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
LTE-TDD :B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
Product Feature
* Full industrial design, stable and reliable
The design of all industrial components, metal housing, protection level up to IP30; support wide voltage DC 9-48V wide voltage input, and with power reverse protection function; support static electricity, surge, electric fast pulse group and other multiple protection; built-in hardware and software watchdog, fault self detection, self-repair, to ensure long-term stable operation of the system; adapt to a variety of industrial harsh environment, can be long-term stable and reliable operation, without manual intervention. No need for manual intervention.
*Rich interface, strong expansion capability
Support RS232 & RS485 serial device access, and support data transmission, easy to connect various serial devices to the Internetserver to achieve real-time data monitoring.
*One SIM Card slot, reserved design esim location
Support plug in normal sim card to get Internet, reserved design esim location for customer’s choice.
*10/100Mbps Ethernet interface, 300M WiFi wireless access
MediaTek high-performance network wireless processor, while providing 10/100M adaptive network transmission, can provide wireless rates up to 300Mbps WiFi wireless access; barrier-free transmission distance of about 30 meters, independent professional amplifier and low-noise amplifier, stable and smooth with 32 units, no lag, no dropouts.
*Flexible networking, never lose connection
It supports 4G network and broadband, APN/VPDN private network card and wired broadband network access; it can provide 4G andwired broadband online at the same time and multi-network intelligent switching backup function; with virtual server and VPN function, it can realize fast off-site networking function.
*Multiple security policies to protect network data security at all times
Support WPA, WPA2 wireless security access, SSID masking, guest network, blacklisting, LAN port isolation, parental control, always protect user network data security.
*Free VPN support for remote network resource sharing
Support PPTP, L2TP VPN client connection method to establish a private network on the public network, so as to achieve
interconnection between devices and equipment on the public network, meet various needs of users to access intranet resources remotely, and realize remote network resource sharing.
The design of all industrial components, metal housing, protection level up to IP30; support wide voltage DC 9-48V wide voltage input, and with power reverse protection function; support static electricity, surge, electric fast pulse group and other multiple protection; built-in hardware and software watchdog, fault self detection, self-repair, to ensure long-term stable operation of the system; adapt to a variety of industrial harsh environment, can be long-term stable and reliable operation, without manual intervention. No need for manual intervention.
*Rich interface, strong expansion capability
Support RS232 & RS485 serial device access, and support data transmission, easy to connect various serial devices to the Internetserver to achieve real-time data monitoring.
*One SIM Card slot, reserved design esim location
Support plug in normal sim card to get Internet, reserved design esim location for customer’s choice.
*10/100Mbps Ethernet interface, 300M WiFi wireless access
MediaTek high-performance network wireless processor, while providing 10/100M adaptive network transmission, can provide wireless rates up to 300Mbps WiFi wireless access; barrier-free transmission distance of about 30 meters, independent professional amplifier and low-noise amplifier, stable and smooth with 32 units, no lag, no dropouts.
*Flexible networking, never lose connection
It supports 4G network and broadband, APN/VPDN private network card and wired broadband network access; it can provide 4G andwired broadband online at the same time and multi-network intelligent switching backup function; with virtual server and VPN function, it can realize fast off-site networking function.
*Multiple security policies to protect network data security at all times
Support WPA, WPA2 wireless security access, SSID masking, guest network, blacklisting, LAN port isolation, parental control, always protect user network data security.
*Free VPN support for remote network resource sharing
Support PPTP, L2TP VPN client connection method to establish a private network on the public network, so as to achieve
interconnection between devices and equipment on the public network, meet various needs of users to access intranet resources remotely, and realize remote network resource sharing.
Antennas Option:
Sucker Antennas With SMA Connector, default 1.5meter cable (cable length can be customization)
Specification
Hardware | ||
Main Chipset | MT7628A | |
RAM | DDR2 128MB (MAX DDR2 256MB) | |
SPI FLASH | 16MB (MAX 32MB) | |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a, IEEE 802.3, IEEE 802.3u | |
RT Power | 802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; | |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER | |
Work Channel | 2.4GHz choose: 1-13 | |
Wireless Rate | Max. 300Mbps | |
Work Frequency | 2.4GHz | |
Antenna | 4*5dbi external antennas | |

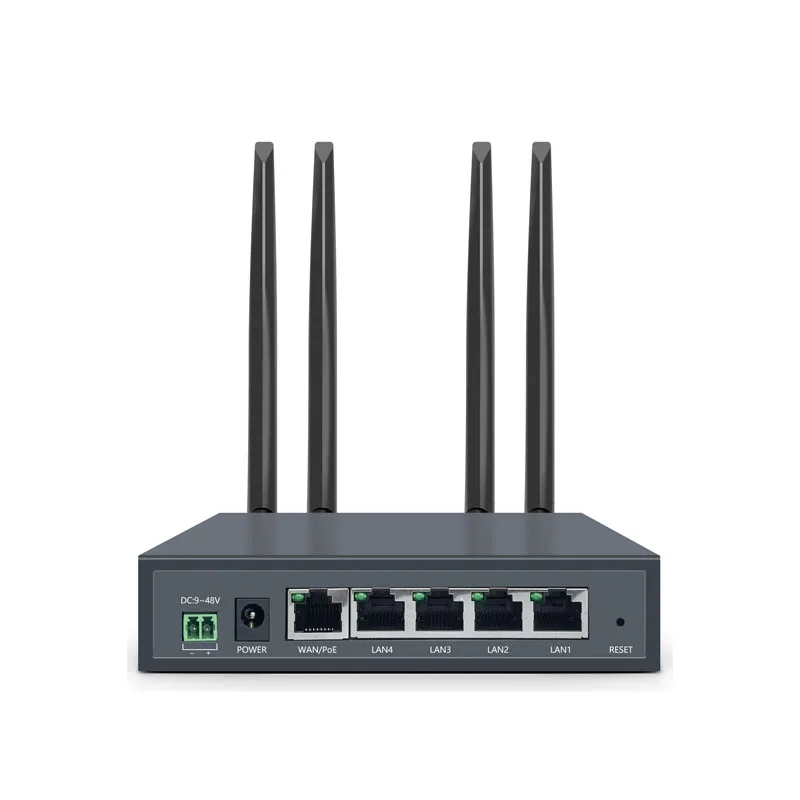

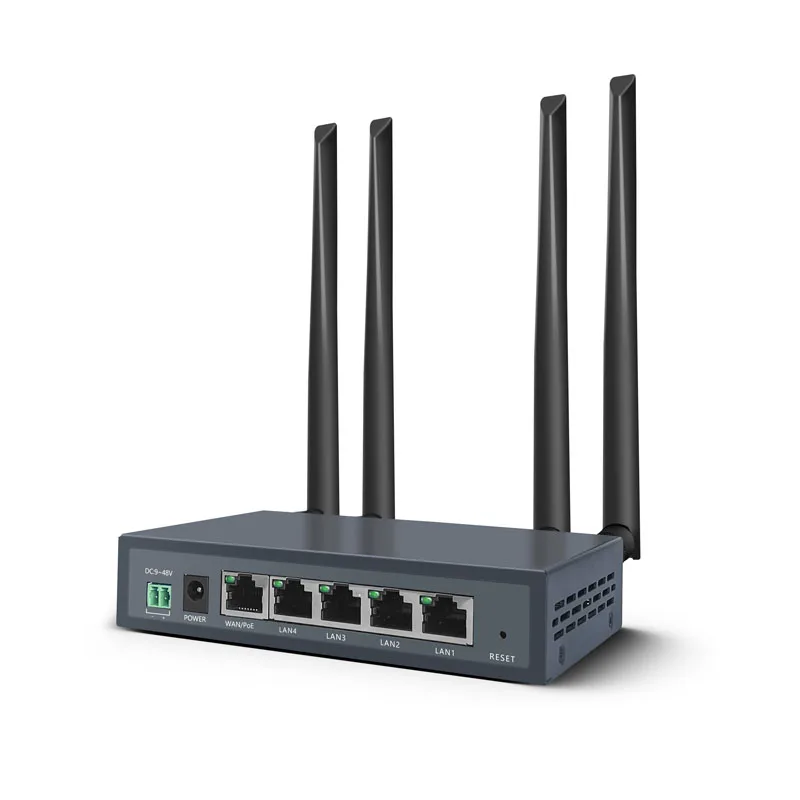

Interface | 1*SIM card slot 1*RS485/RS232 serial port 1*10/100M WAN port with LED(Auto MDI/MDIX), support 48V poe power in 4*10/100M LAN port with LED(Auto MDI/MDIX) 1*DC 9V-48V power port 1*2 Pin 9V-48V power port | |
LED | System, Wifi, Power, 4G | |
Button | Reset | |
Max Power consumption | < 12W | |
Others | ||
Work Environments | Operating Temperature：-10℃ ~ 45℃； Storage Temperature：-40℃~ 70℃； Operating Humidity：0%~90% non-condensing Storage Humidity：0%~90% non-condensing | |
Adapter | 12V 1A | |
Authentication | CE, FCC | |
Other accessories | Power adapter, Ethernet cable | |
